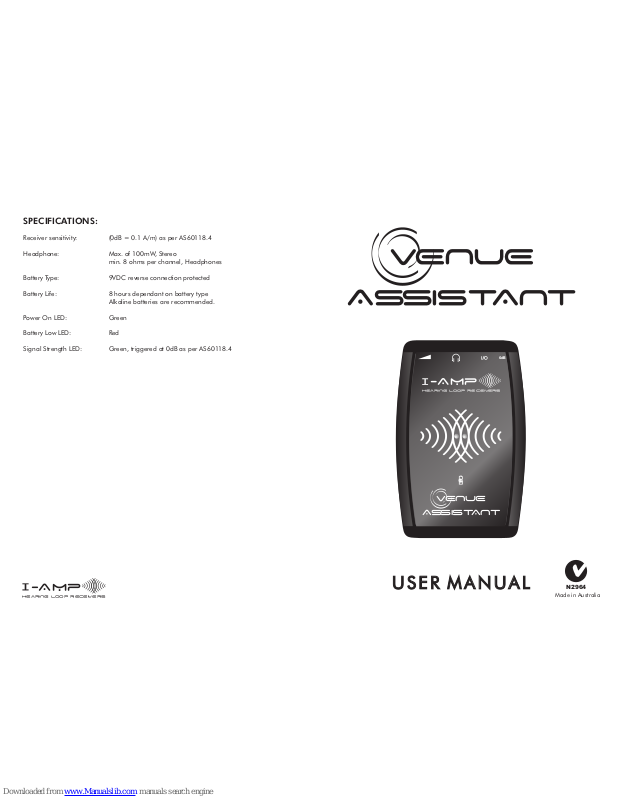

Venue Assistant I-AMP User Manual

U S E R M A N UAL

SPECIFICATIONS:

Receiver sensitivity: (0dB = 0.1 A/m) as per AS60118.4

Headphone: Max. of 100mW, Stereo
min. 8 ohms per channel, Headphones

Battery Type: 9VDC reverse connection protected

Battery Life: 8 hours dependant on battery type

Alkaline batteries are recommended.

Power On LED: Green

Battery Low LED: Red

Signal Strength LED: Green, triggered at 0dB as per AS60118.4

VENUE

AssistANt

Made in Australia

N2964

-AMp

hEArING LOOp rECEIVErs

VENUE

ASSIStANt

-AMp

hEArING LOOp rECEIVErs

0dB

VENUE

ASSIStANt

-AMp

hEArING LOOp rECEIVErs

0dB

INDUCTION LOOP MONITOR and CALIBRATED TEST SET

The VENUE ASSISTANT is an induction loop receiver and headphone driver unit. In
addition, the VENUE ASSISTANT has been calibrated to indicate induction loop signal
strength, via an LED, to Australian Standard AS60118.4. The unit has been designed for use by
personnel responsible for the operation and maintenance of induction loop systems. The
induction loop audio signal may also be monitored directly via the supplied headphones.

The VENUE ASSISTANT has been designed for simple operation with only two user

controls; power on and volume.

Three LED indicators monitor the status of the unit. A green LED indicates the unit is switched

on. A red LED indicates that the battery will soon require replacement. A 2nd green LED

indicates that a 0dB, AS60118.4 field strength signal has been detected.

The VENUE ASSISTANT has been calibrated to Australian Standard AS60118.4 (2007)

field strength and frequency response requirements.

Although the VENUE ASSISTANT receiver is supplied with light weight headphones,

other headphone types may be connected if desired.

OPERATION:

The VENUE ASSISTANT should be clipped to a belt or placed in a shirt pocket. The

VENUE ASSISTANT should be used in the vertical position for best reception.

The VENUE ASSISTANT has been designed to allow the set-up and maintenance of

induction loop power amplifier drive levels. The VENUE ASSISTANT is placed in the

pickup area of the induction loop system (held in the vertical position). The output level of the

induction loop amplifier is then increased until the green calibration LED just alights. The output

level of the induction loop power amplifier should be adjusted to the minimum level that makes

the VENUE ASSISTANT calibration LED light on peak audio passages.

Field Strength Indicator: This green LED
indicates that a 0dB, AS60118.4 field
strength signal has been detected.

Power On/Off switch: This slide activated
switch is set flush with the side panel to
prevent accidental damage.

Headphone output: The supplied
headphones are connected to provide
the audio output.

Volume is controlled by the rotation
of the volume dial and should be
adjusted to a comfortable listening level.

Power On indicator: These green
LED’s indicate when power is
switched on.

Battery Low indicator: Is used to notify
when the battery needs replacing.

This red LED is first illuminated when
there is approximately 1 hour of
operation remaining.

-AMp

hEArING LOOp rECEIVErs

VENUE ASSISTANT
PANEL FUNCTIONS:

VENUE ASSIStANt
