XDR-1280/D

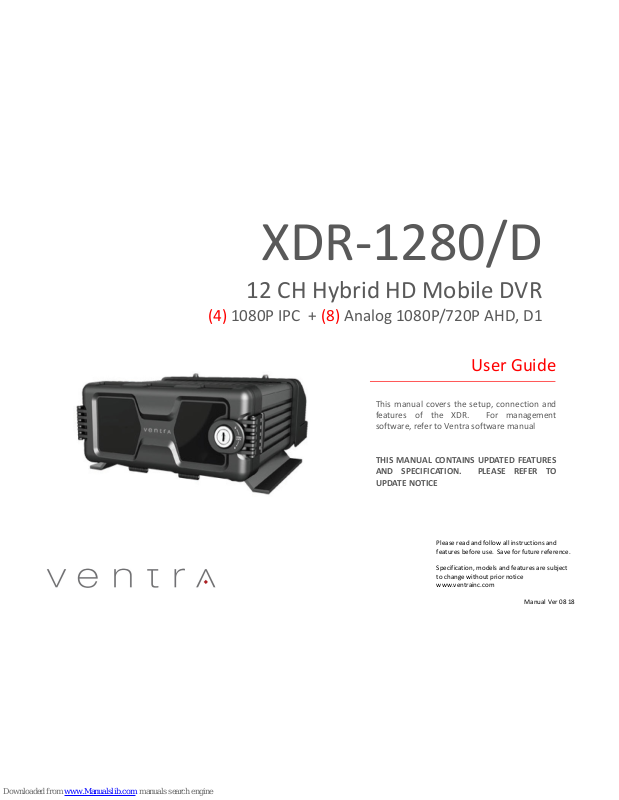

12 CH Hybrid HD Mobile DVR
(4) 1080P IPC + (8) Analog 1080P/720P AHD, D1
User Guide
Please read and follow all instructions and
features before use. Save for future reference.
Specification, models and features are subject
to change without prior notice
www.ventrainc.com
Manual Ver 08 18
This manual covers the setup, connection and
features of the XDR. For management
software, refer to Ventra software manual
THIS MANUAL CONTAINS UPDATED FEATURES
AND SPECIFICATION. PLEASE REFER TO
UPDATE NOTICE
Table of Content
TECHNICAL SPECIFICATION …………………………………………………………………………………………………………………………4
RECORDING FRAME RATE / VIDEO STREAM AND STORAGE RATE ………………………………………………………………5
WARNING: SAFETY PRECAUTIONS…………………………………………………………………………………………………….…….....6
WARNING: LAWS AND REGULATIONS………………………………………………………………………………………………………….7
HARD DRIVE, SD CARD PRECAUTION, REQUIREMENT………………………………………………………………………………….8
SYSTEM LAYOUT FRONT …………………………………………………………………………………………………………………………….9
SYSTEM LAYOUT REAR ..…………………………………………………………………………………………………………………………….10

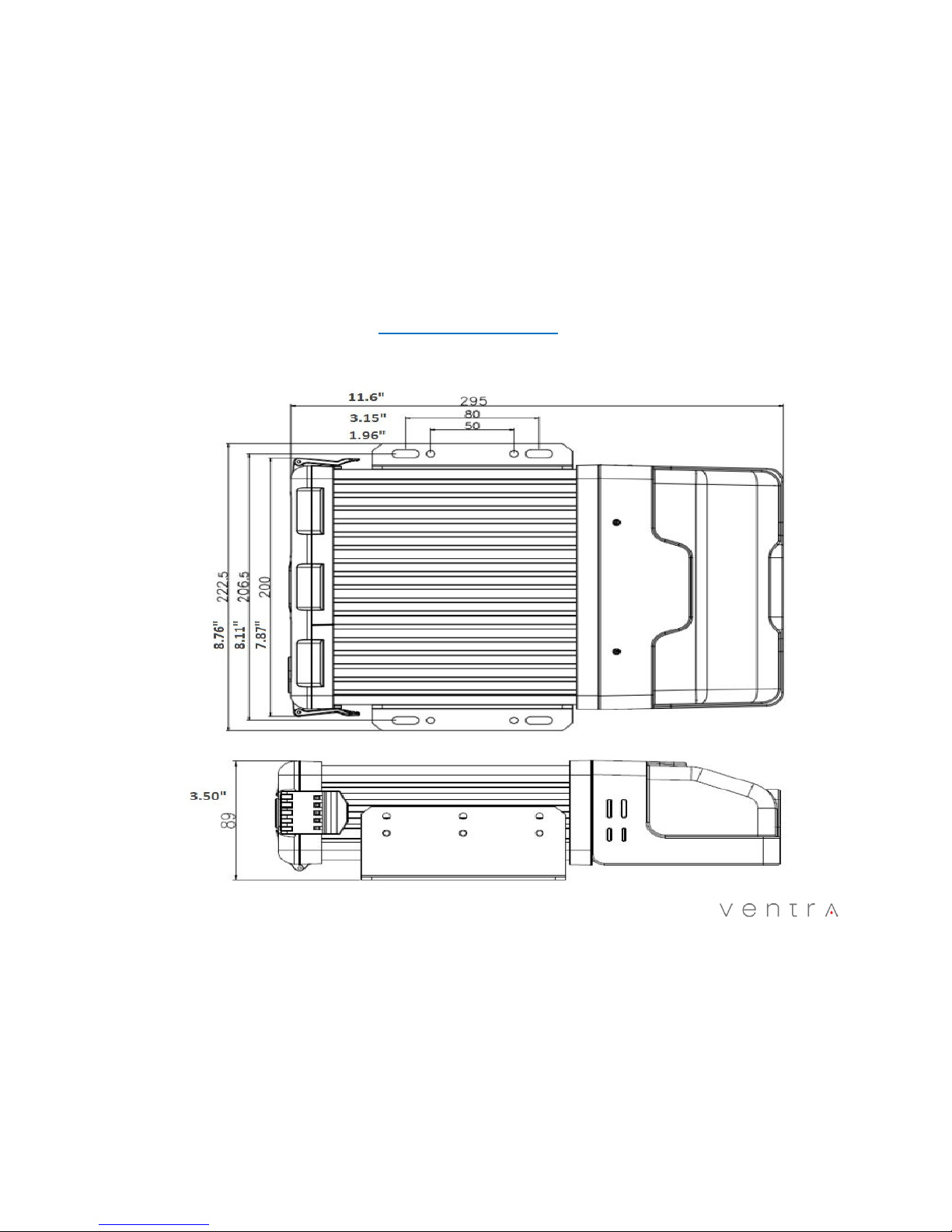

SYSTEM DIMENSION……....………………………………………………………………………………………………………………………….11

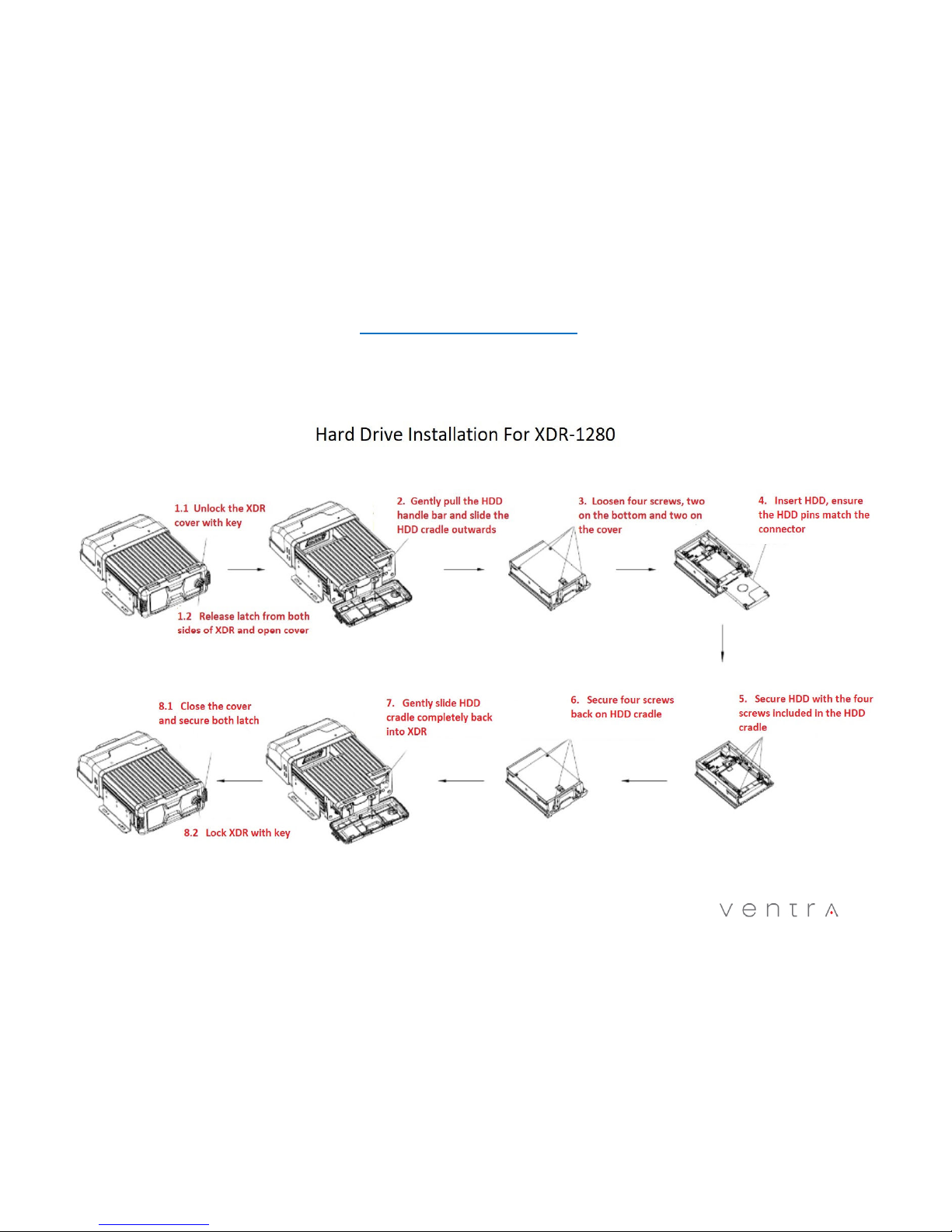

HARD DRIVE INSTALLATION ……………………………………………………………………………………………………………………….12

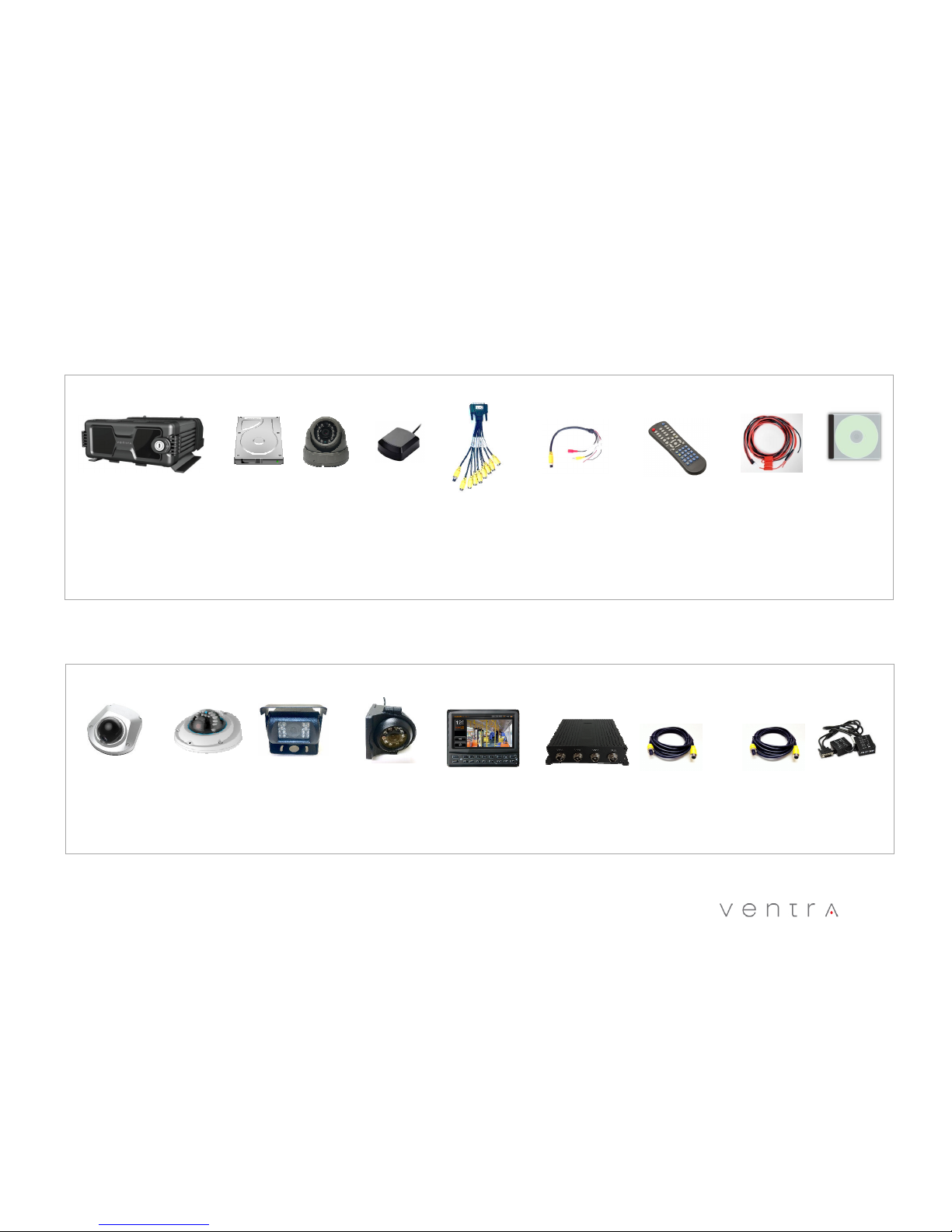

SYSTEM COMPONENTS…………………………………………………………………….............................................................13

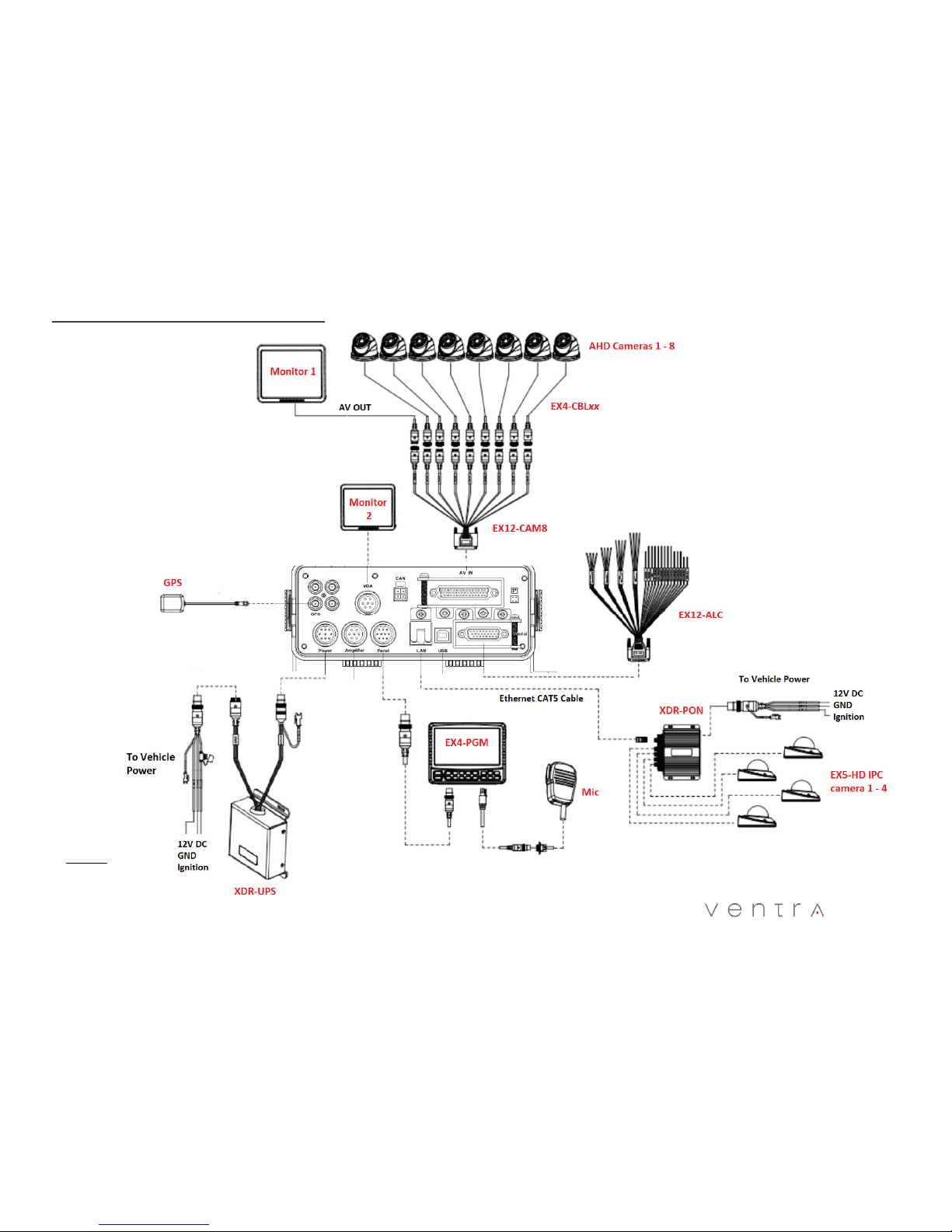

SYSTEM CONNECTION SIMPLIFIED..............................................................................................................……14

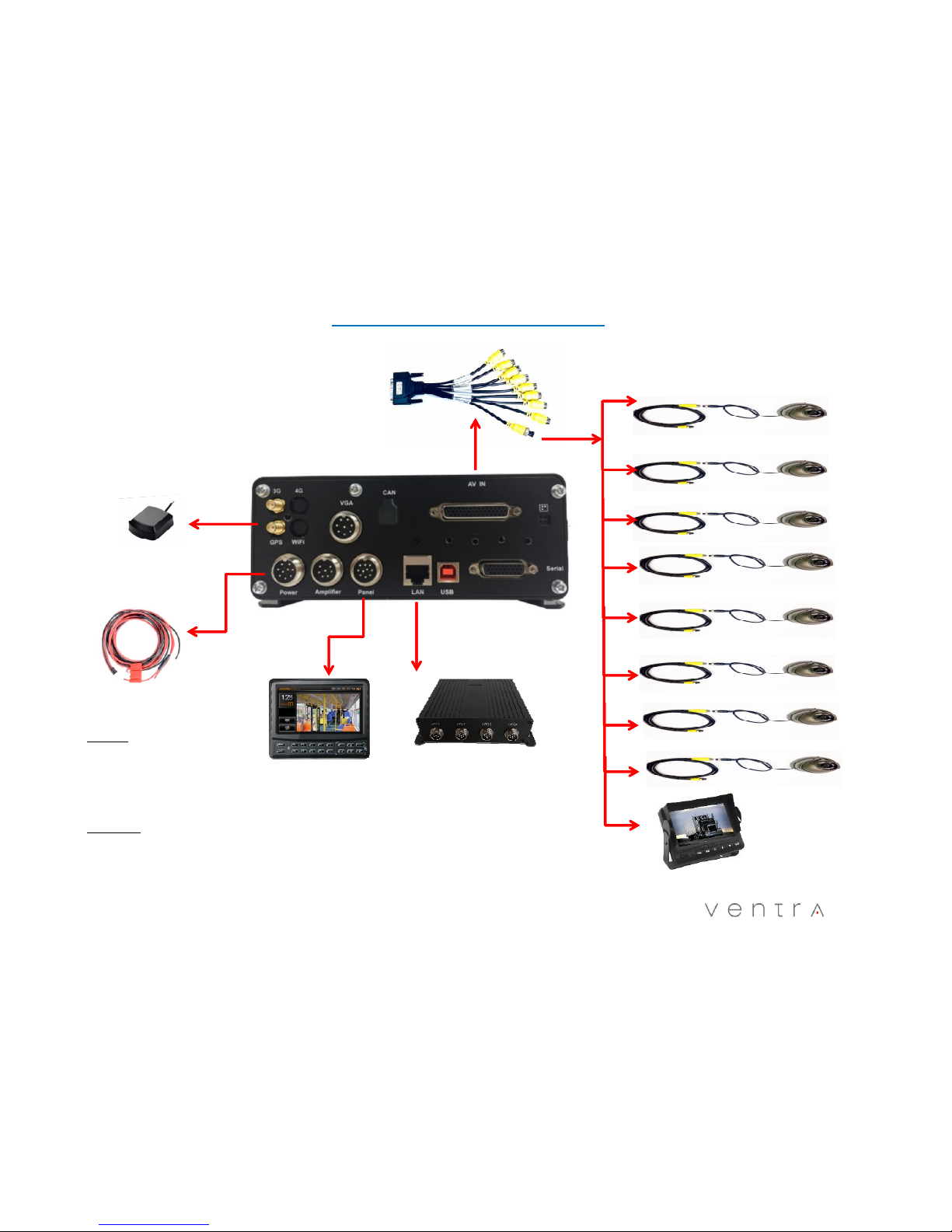

SYSTEM CONNECTION FULL OVERVIEW......................................................................................................……15

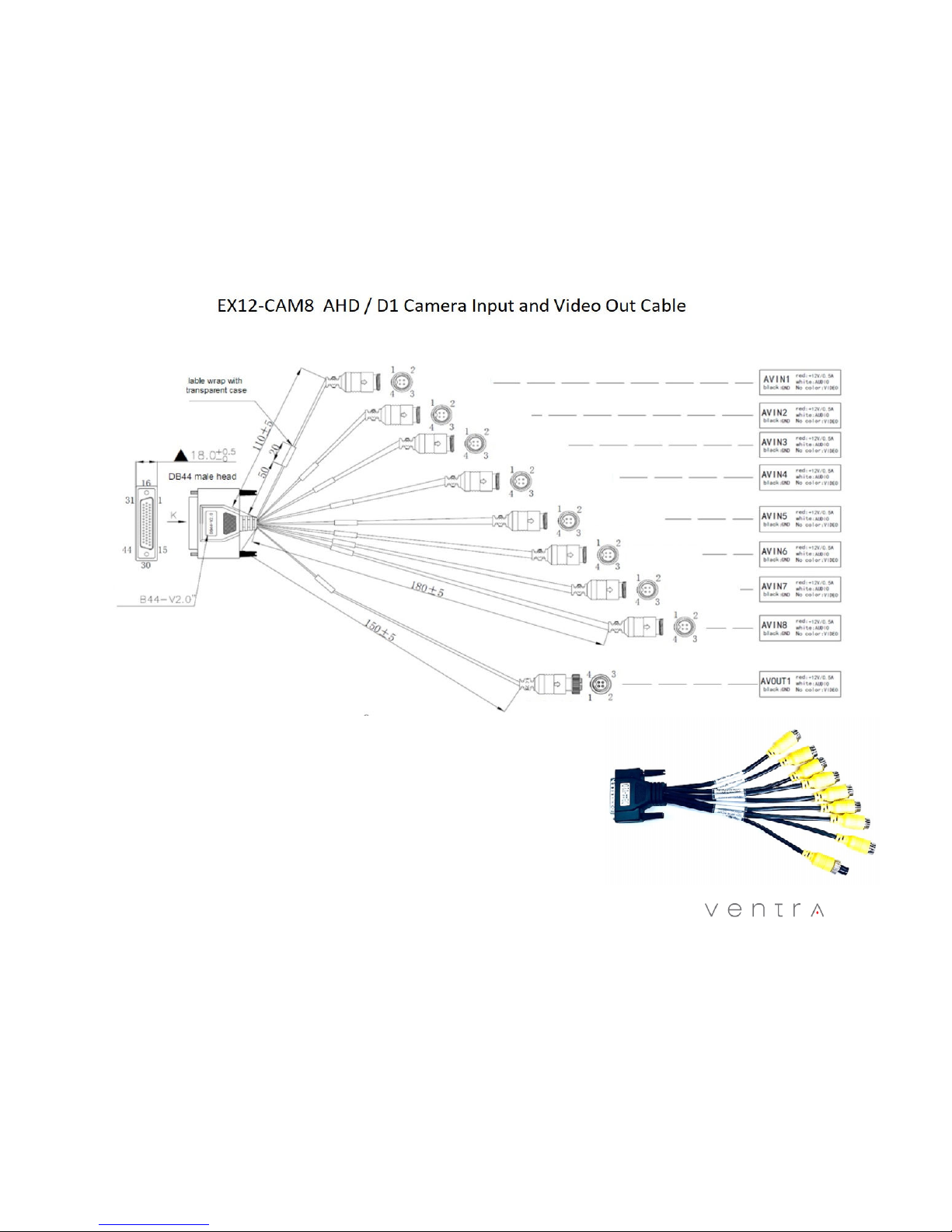

EX12-CAM8 EX4-XC4 SERIES AHD CAMERAS ............................................................................................……16
EX12-ALC ALARM CABLE….........................................................................................................................……..17
CONNECTION
POWERING THE XDR-1280, CONNECTING POWER CABLE / FUSE...............................................................……18

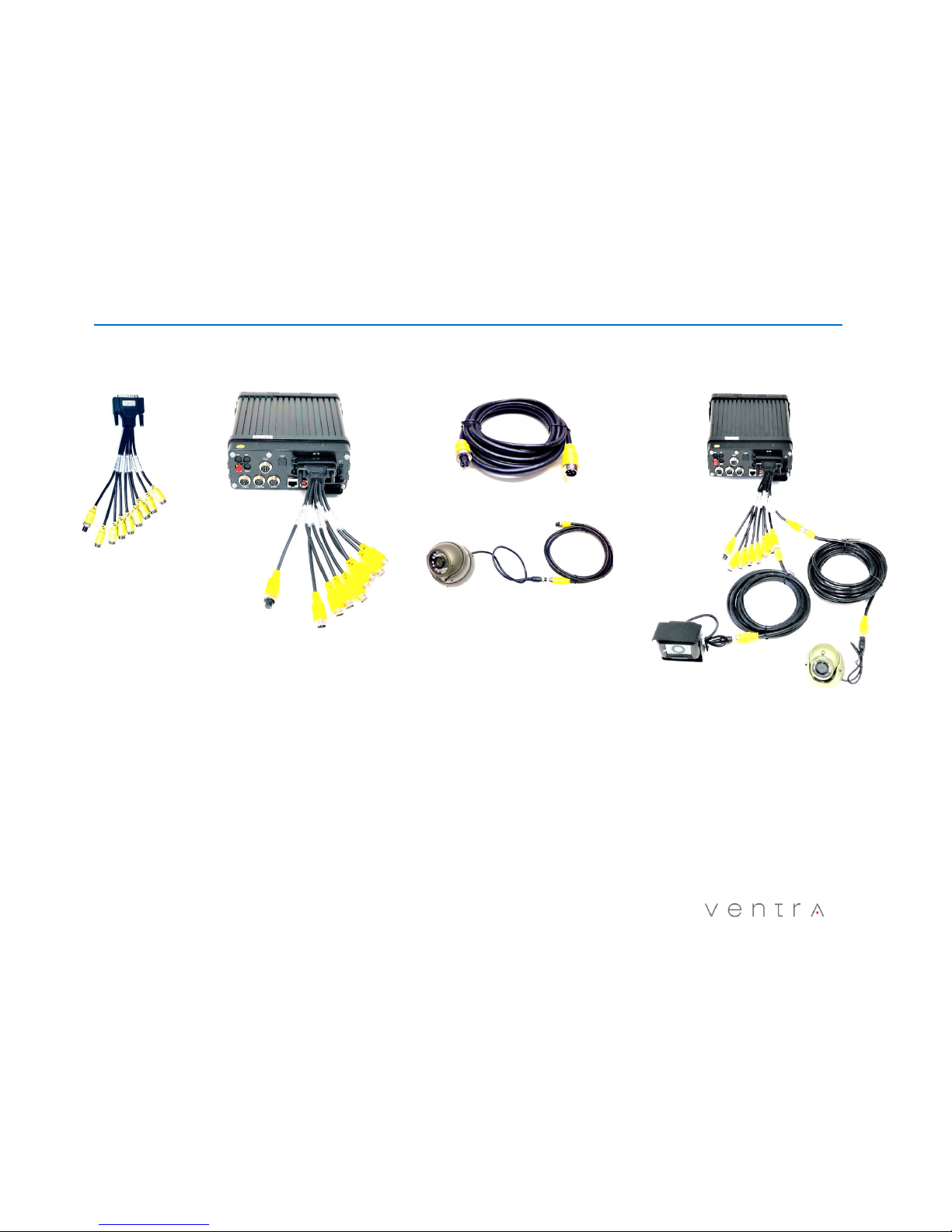

CONNECT EX4-XC SERIES AHD CAMERAS (EX12-CAM8)..............................................................................……19
CONNECT XDR-PON 4 PORT SWITCH TO XDR-1280……………............................................................................20

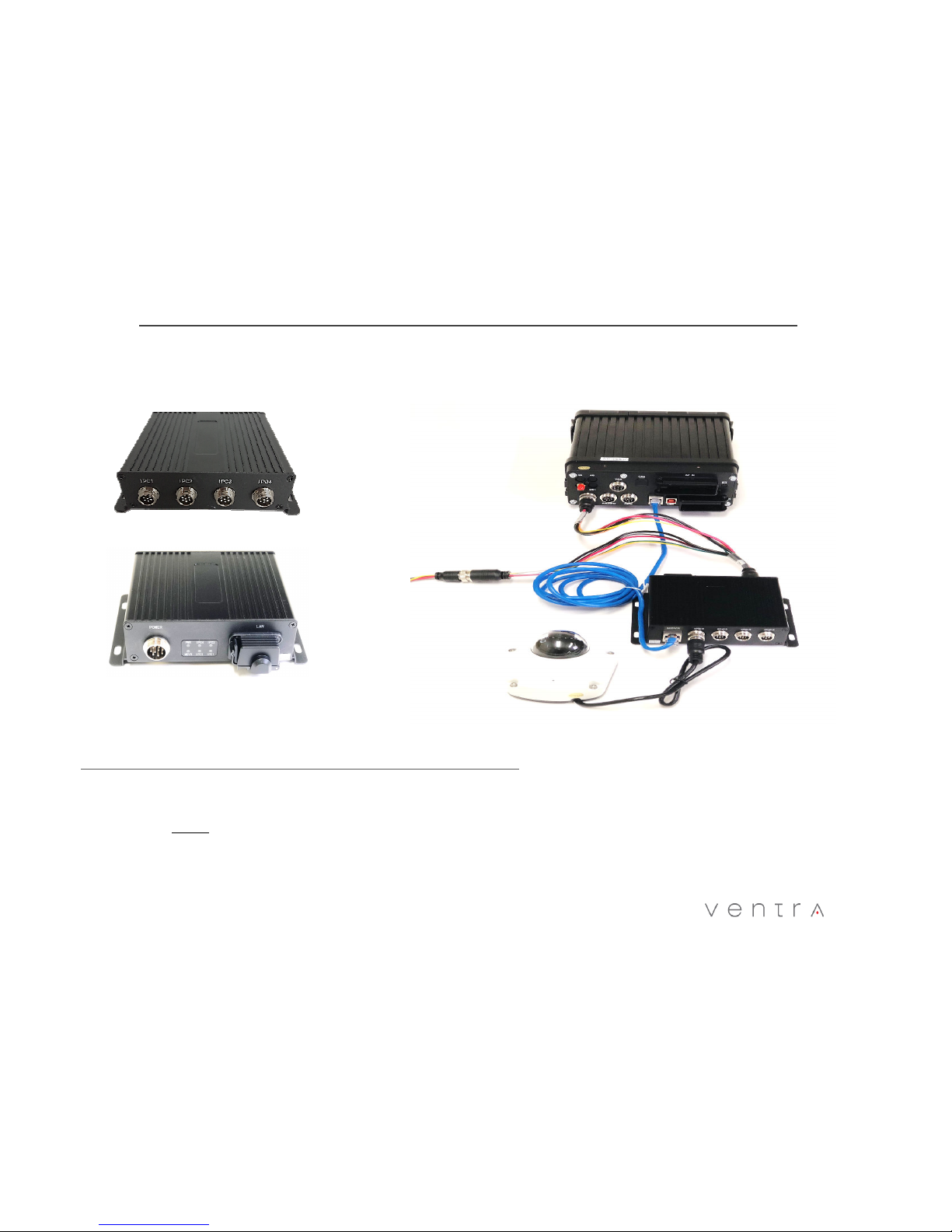

CONNECT XDR-PON 4 PORT SWITCH FOR EX5-HD CAMERAS...........................................................................21

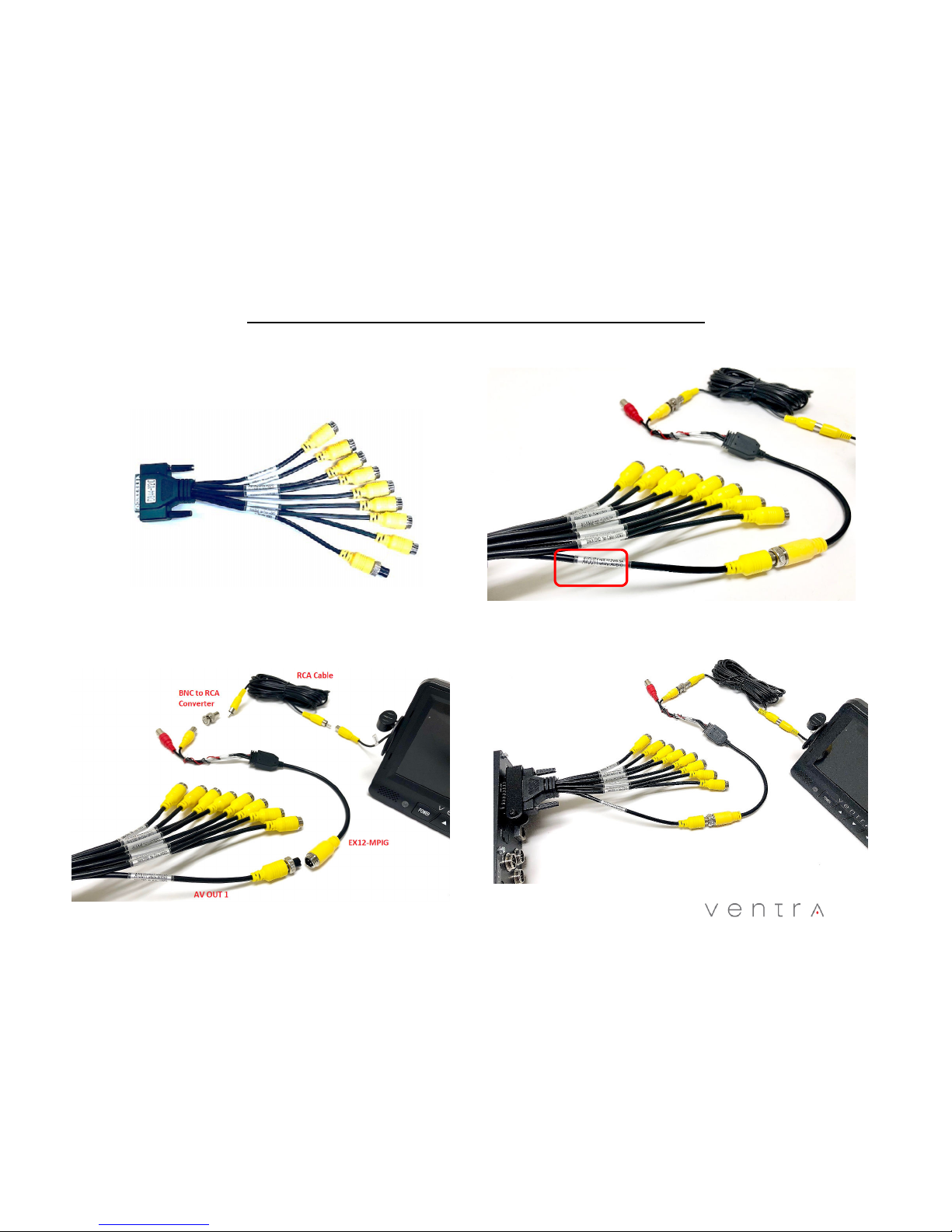

VIDEO OUT CONNECTION TO LCD MONITOR …………........................................................................................22
XDR SYSTEM SETUP VIA EX4-PGM….................................................................................................................23
SECTION 1: SYSTEM SETUP / FORMAT SD CARD
OSD MENU SCREEN ……………………………………………………………………………… ……………………………………………………24
1.1 – 1.2 GETTING STARTED – FORMAT CARD / ENTER SYSTEM SETTING……………………………………………………25
SECTION 2: SYSTEM SETTING
2.0 BASIC SETUP – REGISTER SYSTEM, DRIVER ID, VEHICLE ID….…………..…………………………………………..26
2.1 – 2.2 BASIC SETUP – DATE / TIME SETUP, DAY LIGHT SAVINGS..………...…….……………………..……….…………27
2.3 – 2.4 BASIC SETUP – SYSTEM STARTUP, BATTERY PROTECTION…………..………..……………………………….……..28

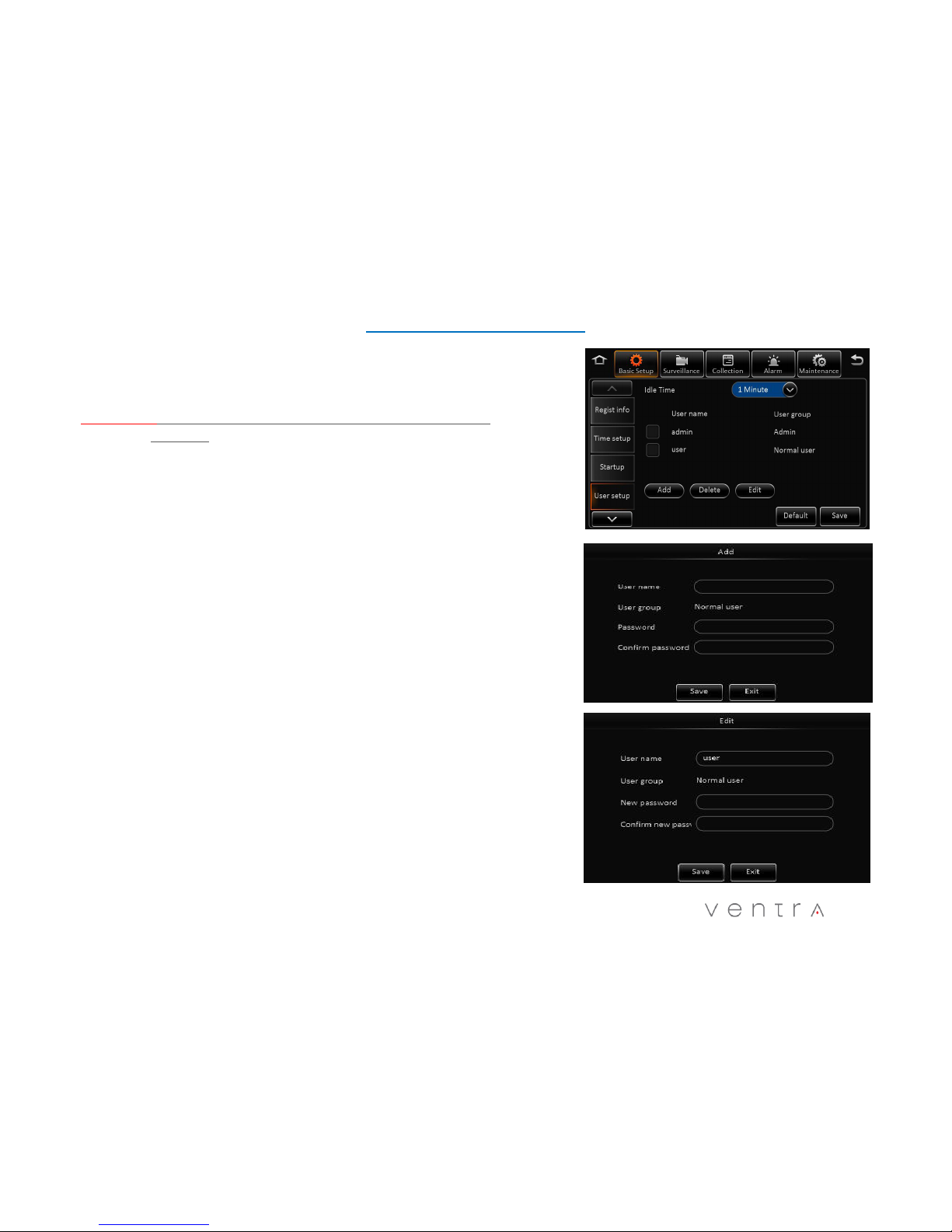

2.5 BASIC SETUP – USER SETUP, PASSWORD …………………………...………….…………………………….…...…………29
3.0 NETWORK CONNECTION …………………………………………………… …………………………………..…………..………30
SECTION 4: SURVEILLANCE / RECORD SETTING
4.0 - 4.2 SURVEILLANCE – LIVE VIEW, AUTO LOOP, ON SCREEN DISPLAY..………………...….…………..….……….....31

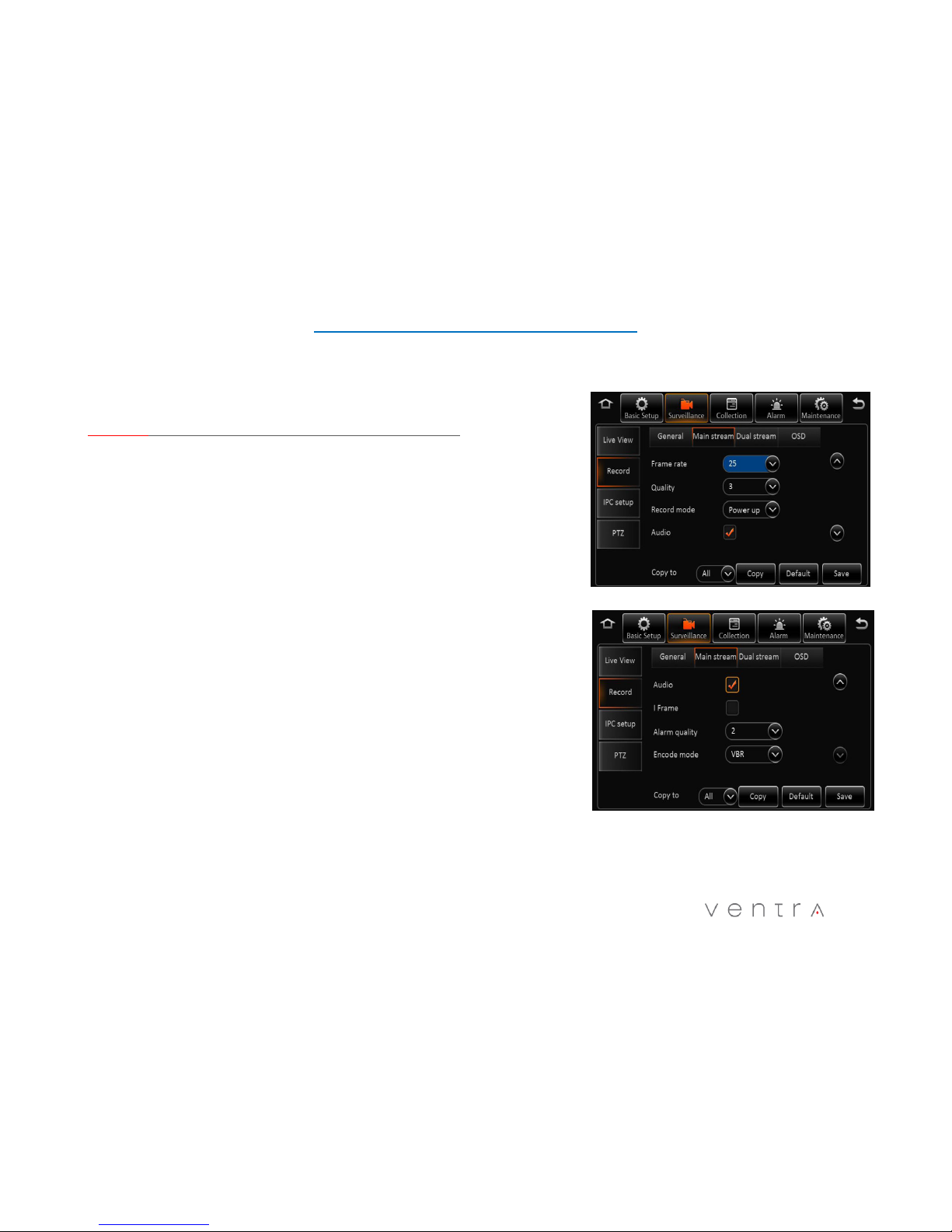

4.3 – 4.4 SURVEILLANCE – RECORD GENERAL SETTING, MAIN STREAM……..………………………………………….......32
4.4 SURVEILLANCE – RECORD MAIN STREAM CONTINUED……..………………………….……………………………...33
4.5 – 4.6 SURVEILLANCE – RECORD DUAL STREAM, ON SCREEN DISPLAY…….……………………..…………..………….34
4.6 – 4.7 SURVEILLANCE – EX5 HD /IPC CAMERA SETUP………………………..…….……………………..……….…….……….35
4.9 SURVEILLANCE – PTZ CAMERA SETUP……………..……………………..…….……………………..……….………………36
SECTION 5: COLLECTION OF DATA (COD) / SENSOR SETTING
5.0 – 5.2 COD SENSOR – GENERAL SENSOR, SERIAL, SPEED..……………..….……….……..…………………….…………...37
5.3 – 5.4 COD SENSOR – IMAGE SNAPSHOT TIME, TRIGGER SETTING……...……..……………………………….……….38
SECTION 6: ALARM SETTING
6.0 ALARM – OVERSPEED….……………...............................…………………..…………………………….….….………..39
6.1 ALARM – PANIC ALARM……………...............................…………………..…………………………….….……………40
6.2 ALARM – INPUT ALARM……………...............................…………………..…………………………….….……………41
6.3 ALARM – VIDEO LOSS ………………...............................…………………..…………………………….….……………42
6.4 ALARM – ADVANCE….………………..................................…………………..…………………………….….…………43
SECTION 7: SYSTEM MAINTENANCE
7.0 – 7.1 MAINTENANCE – CONFIGURATION, DATA FILE IMPORT / EXPORT……...……..……………….……………..44
7.2 MAINTENANCE – FIRMWARE UPGRADE……………………………………………...……..……………………………...45
7.3 MAINTENANCE – STORAGE FORMAT…..……………………………………………...……..………………………….…..46
WARRANTY / RMA .............................…………………..…………………………….….………..............................................47
Table of Content
Function Overview
Preview, Recording, Playback, Route History
System
OS Linux 3.0.8
Control Mode Remote Controller, USB Corded Mouse, EX4-PGM
Cameras IPC + AHD 12 Cameras max - Up to (8) AHD / Analog + (4) IP (requires PON switch)
Video
Input
12 channels (8) 1080P AHD, 720P AHD, D1 Resolution
(4) 1080P IPC, 720P IPC
Output 2 channels
Video System NTSC/PAL optional (1Vpp 75 Ohm)
Audio
Input 12 channels (Camera if applicable)
Output 2 channels
Display
Display Split 1, 4, 9
OSD GPS information, alarm, temperature, date/time, device information
Operation Interface Semi-transparent GUI
Recording
Video/Audio Compression H.264 / ADPCM
Image Resolution
NTSC: 8 x 1080P @ 10 FPS(AHD) + 4 x 1080P @ 30 FPS (IPC) or
8 x 720P @ 30 FPS (AHD)+ 4 x 1080P @ 30 FPS (IPC) or
8 x D1 @ 30 FPS (AHD) + 4 x 1080P at 30 FPS(IPC)
Image Quality 1 ~ 8 levels adjustable (1 is the best)
Recording Mode Manual/ Schedule/ Alarm (sensor trigger, speed, acceleration, video loss, temperature)
Pre Recording / Post-recording Pre-Recording 0 – 60 Minutes / Post-Recording 0 - 30 Minutes
Mirror Recording Support
Playback & Backup
Playback Channel 1 channel by local playback
Search Mode Date/time, channel, file type
GPS GPS route history, speed detection and time sync
Storage HDD (SATA / SSD) Max: 1TB 2.5” SATA 5400RPM HDD / 1TBSSD
Interface
USB
USB 2.0 × 2 (Front / Rear)
SD
SD × 1 (For Back up Purpose) - 32GB ~ 128GB Minimum Class 10 SDHC
Sensor 8 inputs, 2 outputs RS232 x 2, RS485 x 2
Ethernet RJ45 x 1 (10/100M)
Remote Viewing
Router
Support external cellular, WiFi router (monthly fee and cellular data fee)
Power
Input DC8-36V
Output 5V @ 500mA, 12V @ 500mA
Power Consumption
Max Power Consumption: 69.6W Standby Power Consumption: ~ 0W
Impulse current: input 13.5V@1.3A Working current: input 13.5V@1.2A, 27V@0.5A
Environment
Operating Temperature 14 F ~ 158 F ( -10 C ~ 70 C )
Operating Relative Humidity 8% - 90% (Non Condense)
Dimension L x W x H 11.61” x 8.74” x 3.50” ( 295mm x 222 mm x 89mm )
4
Technical Specification
5

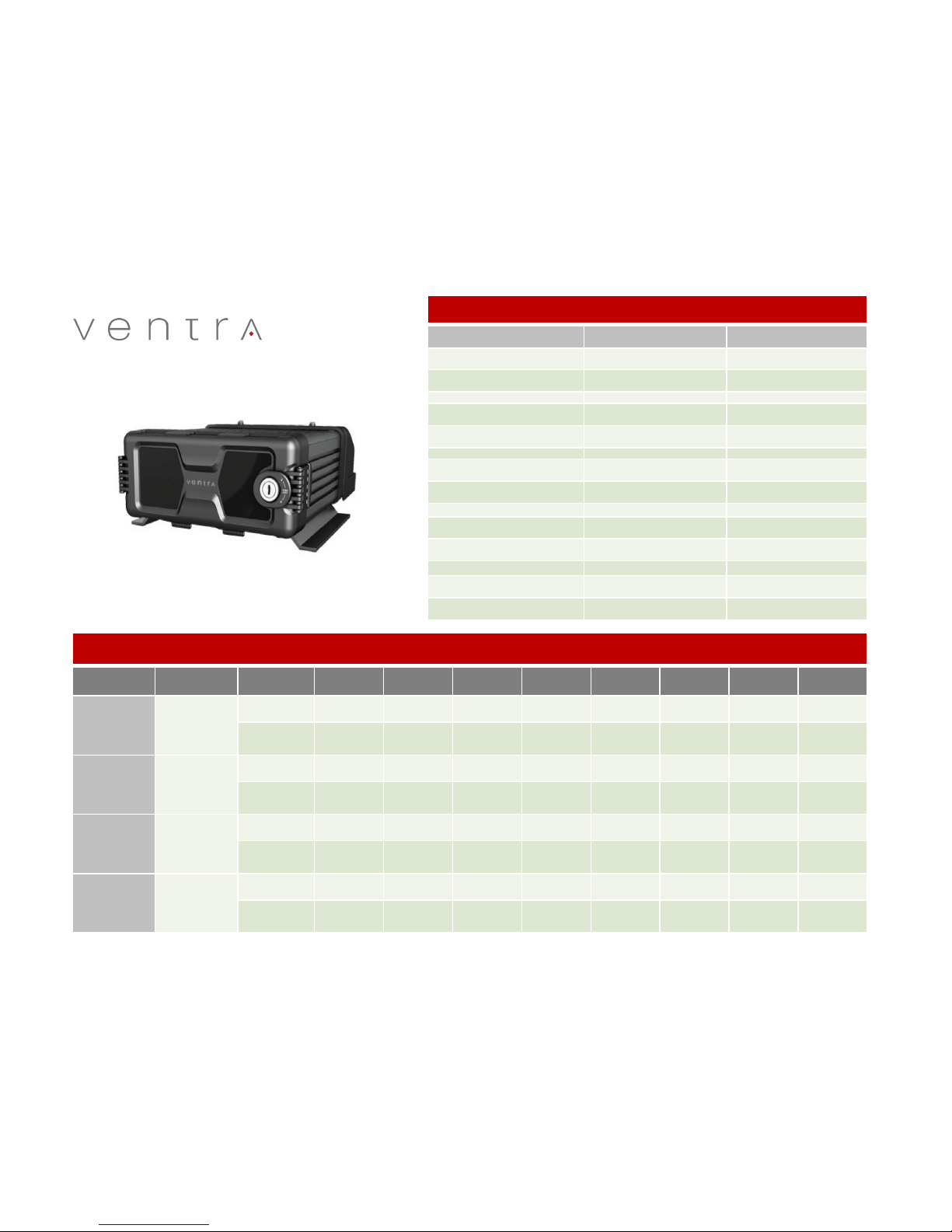

XDR-1280/D Camera Frames Per Second (FPS) Chart
Camera Resolution Channels FPS
AHD-720 8 30
IPC-1080P 4 30
AHD-1080P 8 10
IPC-1080P 4 30
AHD-1080P 4 10
IPC-1080P 8 20
AHD-1080P 2 30
IP1080P 8 20
AHD-720P 4 30
IPC-1080P 8 20
Video Stream Rate and Storage Based On Video Quality Level (1 – 8)
1 2 3 4 5 6 7 8
CIF
352 x 240
Stream (kB/s) 1024 768 640 512 440 350 312 280
MB / Hour /
CH
450 338 281 225 193 154 137 123
D1 / VGA
704 X 480
Stream (kB/s) 2048 1536 1280 1024 900 800 720 640
MB / Hour /
CH
900 675 563 450 396 352 316 281
720P
1280 x 720
Stream (kB/s) 6144 4800 4128 3456 2784 2112 1440 768
MB / Hour /
CH
2700 2109 1814 1519 1223 928 633 338
1080P
1920 x 1080
Stream (kB/s) 8192 6390 5505 4068 3712 2816 1919 1024
MB / Hour /
CH
3600 2808 2419 1788 1631 1238 843 450
Failure to follow these safety warnings could potentially result in an accident, collision resulting in serious injury or death
• Install the device in a manner that does not obstruct the driver’s view of the front or sides of the vehicle, or interfere with the safety of operating the vehicle.
• Do not operate, adjust or view this recorder while driving or when vehicle is in motion
• Do not place the device unsecurly on the dashboard, or place the device in front of or above an airbag
• Please comply with all driving and traffic regulations
• To reduce the risk of fire or electric shock, do not expose the DVR to water, liquid, rain or moisture
• Disconnect the power from the XDR if equipment or wire is exposed to liquid
• Disconnect and replace the cable if wire is stripped or damaged
• When exposed to direct sunlight for a period of time, the equipment may become hot. Please exercise caution when touching the equipment
• Do not disassemble or alter the equipment, cable or accessories as this may lead to equipment error and failure, thus voiding all warranty
• In the event of an impact or accident, please check to ensure the equipment is properly secured. Inspect the mounting bracket and screws for any signs of damage
• Disconnect and replace the cable if wire is stripped or damaged
• When using the power connection cable, ensure all connections are secured
• Metallic coating on front window of vehicle may cause interference in GPS signal
• Use only recommended Micro SD card specifications as it may affect data storage. SDXC Min Class 10 and Up
• When Power is connected, do not remove the micro SD card as it may cause memory card failure
• Do not modify the name of file folders in the SD card as it will cause directory and recording issues
6
Windshield Mounted Device Legal Notice
Please check and comply with ALL local, state and federal laws and or regulations regarding windshield mounted devices. Some state laws prohibit drivers
from using suction mounts on their windshield when operating motor vehicles. Other state laws allow the suction mount to be mounted to be located only in
specific locations on the windshield. Numerous states have enacted restrictions against placing objects on the windshield in locations that may obstruct the
driver’s vision.
IT IS THE USER’S RESPONSBILITY TO MOUNT VENTRA EQUIPMENT IN COMPLIANCE WITH ALL PPLICABLE LAWS AND
ORDINCANCE
Audio and Video Recording Legal Notice
Certain local, state and federal laws may prohibit recording of audio and or video in vehicles or public area, or without knowledge and or consent, please
check and comply with ALL local, state and federal laws and regulations.
Certain local, state and federal laws may require signage or display that indicate recording of audio and or video in vehicles or public area. Please check and
comply with ALL local, state and federal laws and regulations
IT IS THE USER’S RESPONSBILITY TO USE VENTRA EQUIPMENT IN COMPLIANCE WITH ALL PPLICABLE LAWS AND ORDINCANCE
Use of this product other than its intended purpose is strictly prohibited.
Ventra Technologies Inc. does not assume any responsibility for any fines, violation, penalties or damages that may be incurred as a result of the use of the
product
Ventra Technologies Inc. is not responsible for any direct, indirect, incidental or consequential damages, arising out of use, misuse or inability to use of
our products.
7
• To avoid damage and or data loss, power off the XDR BEFORE inserting or removing the HDD or SD card
• Turning the power off or removing a HDD or memory card during operation such as formatting, deleting, recording and playback may cause system
error and or data loss.
• Only New HDD and SD card should be used and are highly recommended to ensure reliability and data integrity
• When unspecified storage are used, XDR may not record data properly and recordings may be lost or damaged
• Ventra is not responsible for any damage , data loss, or system error resulting from HDD or SD card error and or damage, computer issues or virus
• XDR utilizes a propriety file format for security , each HDD / SD card MUST be formatted IN the XDR prior to use
8
IMPORTANT HDD and SD Card Requirement and Compatibility
It is extremely important to use HDD and SD cards that are suitable for rugged environments, constant data writing, continuous
operation and models that are designed specifically for DVR.
• SD CARD: 32GB to 128GB Minimum Class U1 and up - 20MB Writing Speed or faster (SanDisk Extreme and Transcend
Ultimate SD card)
• HDD SATA or SSD : 500 GB - 1 TB Max Storage 2.5”
Due to rugged environment of mobile recording in vehicles, Ventra does not warrant the HDD, video recordings
or data integrity. Warranty of HDD are provided by the respective manufacturer
System Layout
9
Front

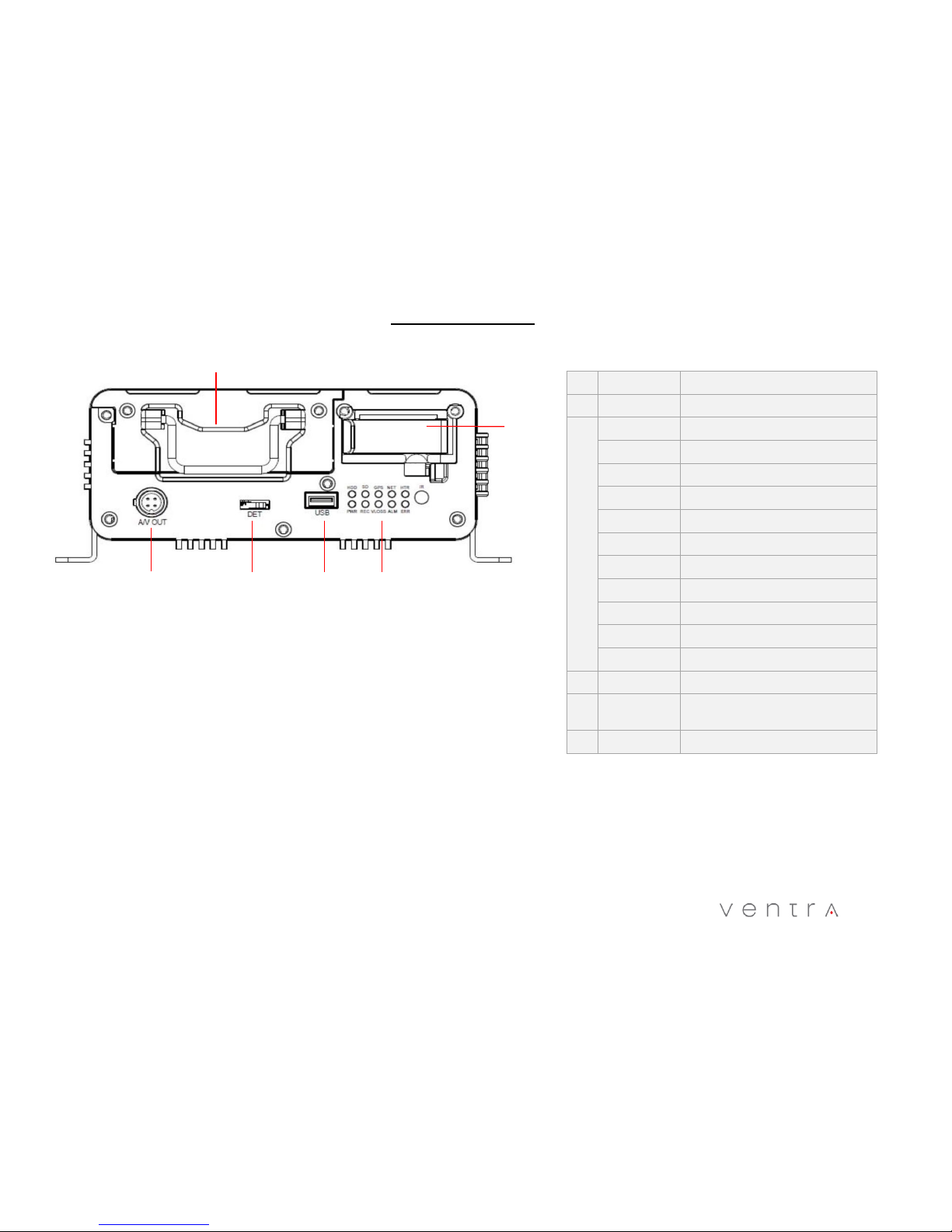

1 HDD Slot 2.5mm HDD Removable cradle slot
2 SD Card Slot SD Card Slot
3
HDD Hard Drive access indicator
SD SD card access indicator
GPS GPS status indicator
NET Network connection indicator
HTR Internal Heater Indicator (if applicable)
PWR Power indicator
REC Recording status indicator
VLOSS Camera video loss indicator
ALM Alarm / Event indicator
Err Storage Error indicator
IR IR receiver
4 USB USB Interface
5
DVR Cover
Sensor
DVR cover detection / Auto shutdown
when cover is opened
6 AV Out Video out connection
1
2
3
Labeling may differ due to product update
5 4
6
1. Removable Hard Drive Cradle – HDD provides the main storage for
recorded data. Supports up to 2TB HDD. (Never remove or insert
HDD while XDR is on)
2. Mirror SD Card Slot – SD card provides mirror recording of events
(Never remove or insert HDD while XDR is on)
3. Status LED – Provides visual system operation status
4. USB Port - For USB flash drive to conveniently download recordings/
data without removing SD card or Hard Drive. Upload firmware or
configuration settings. May also be used for USB mouse connection to
access system settings
5. XDR Cover Detection – Cover must be completely closed and latched
for XDR to power on
6. AV OUT – Provides connection to external monitor
System Layout
10
Labeling may differ due to product update

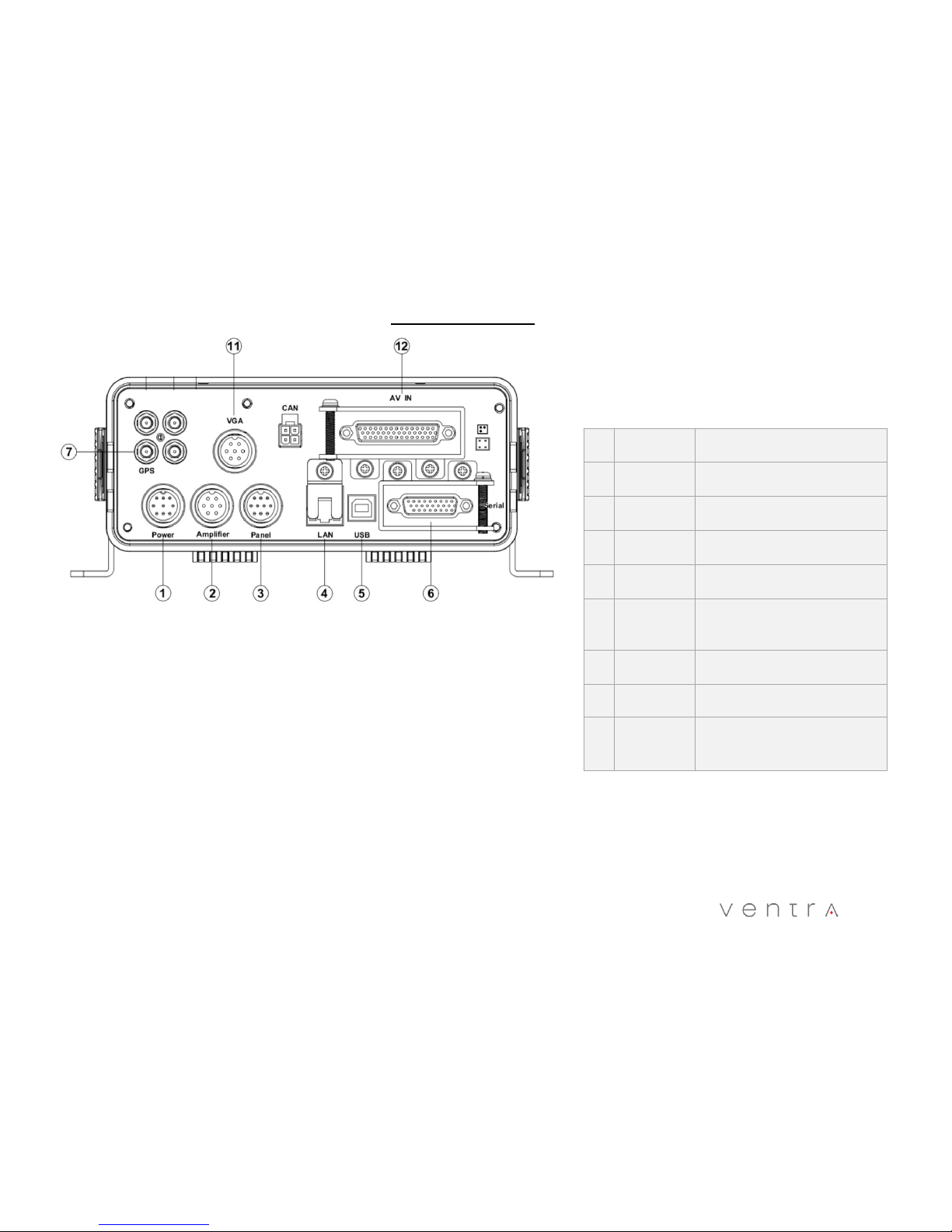

Rear

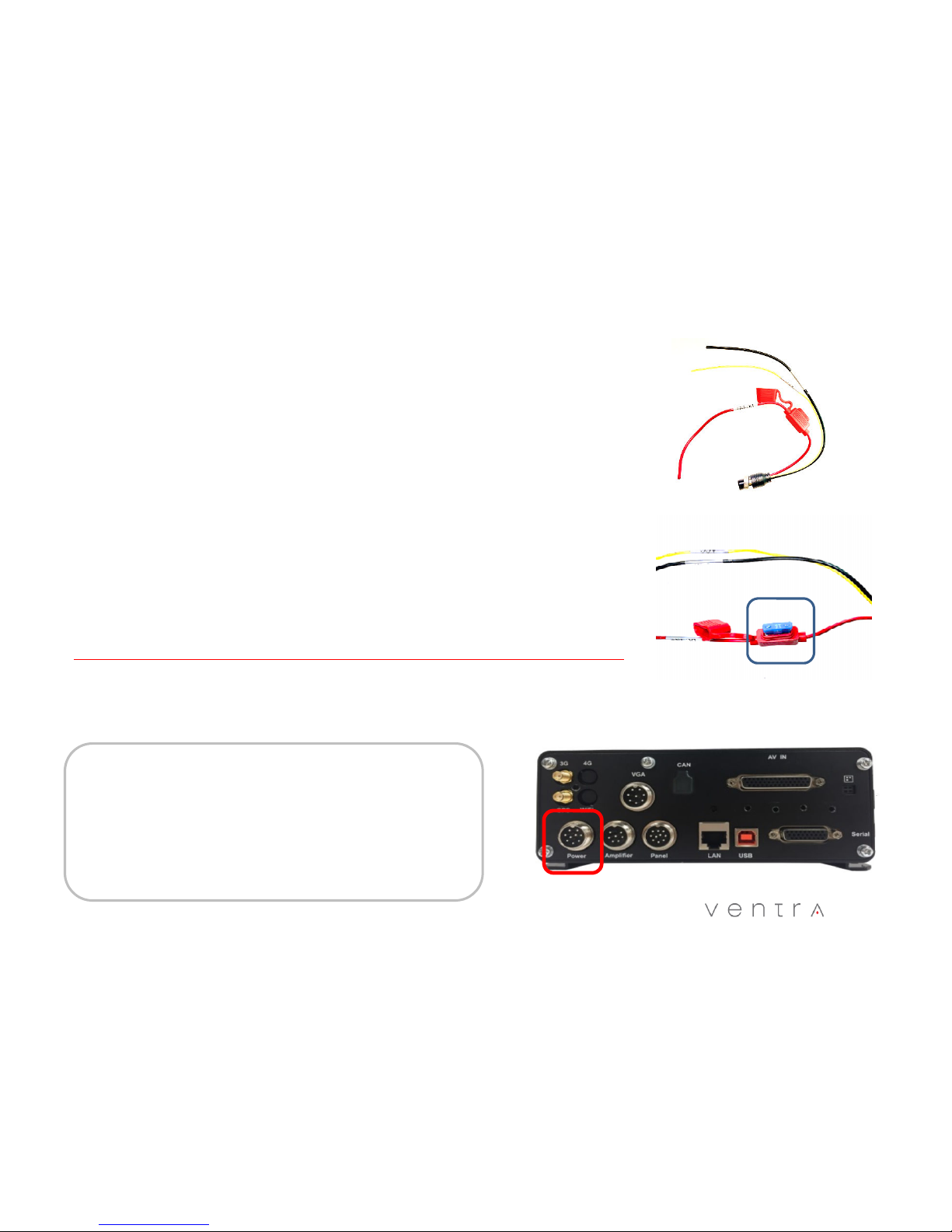

1 Power Power cable connection 9 – 36V DC
2 Amplifier Amplifier connection
3 Panel EX4-PGM connection
4 LAN Ethernet RJ45 network connection
5 USB USB connection
6 Serial
EX12-ALC Input / Output Alarm and
Serial cable connection harness
7 GPS GPS Antenna connection
11 VGA EX12-VGA Video out connection
12 AV IN
EX12-CAM8 8 AHD camera input
connection / 1 Video out connection
cable harness
1. Power Connection – Main power connection to vehicle fuse or XDR-PON network
switch. 9 – 36V DC
2. Amplifier – Connection to external microphone and accessories (in development)
3. Panel – Connection to EX4-PGM touchscreen tablet
4. LAN Port - Connection for external WiFi or Cellular router, as well as XDR-PON EX5-HD
series IP camera switch
5. USB Port - Connection for external USB devices
6. Serial – Provides connection to EX12-ALC input / output trigger cable and serial cable
7. GPS – GPS antenna connection
11. VGA - Connection for VGA output cable
12. AV IN - EX12-CAM8 8 AHD camera input connection + 1 video out cable connection
System Dimension
11
Hard Drive Installation
12
Note: Hard drive already pre-installed in each XDR
XDR-1280D MDVR
1TB SSD
HDD
(1) EX4-
XC1D
720P
AHD
Camera
GPS
Passive
Receiver
EX12-CAM8
Camera input
cable
EX12-MPIG Male
DIN to BNC Video
Cable
Remote
Controller Power Cable
Software /
Manual
System Components
13
Included:
Optional:
EX5-HD3IP1080
EX5-HD2 720P
HD Camera w/
IR + Audio
EX4-XC2 Analog
D1 Outdoor
Camera
EX4-XC4
Left/Right Side
Outdoor D1
Analog Camera
EX4-PGM Tablet
for Programming /
Back Up Monitor
XDR-PON 4 Port
Switch required
for EX5-HD series
cameras
EX5-CBLxx HD
Camera Patch
Cable 15ft, 30ft
and 50ft
EX4-CBLxx 4 pin
DIN Camera
Patch Cable 15ft
– 60ft
EX12-
ALC
Input /
Output Alarm
Cable
XDR System Layout Diagram
AHD1 Cameras AV 1 ~ 8
and Video output 1
Connect to:
• EX4-PON Switch
• External Cellular / WiFi
router
Passive GPS
VLCD-7 LCD monitor
14
To Vehicle Power Source
3 Wires:
- 12 / 24V DC ( Red )
- GND ( BLK )
- ACC / IGN ( YEL )
Inline Fuse
(Must be connected to XDR power
cable for system to power on)
12V = Blue Fuse
24V = Red Fuse
EX4-PGM
XDR System Layout Diagram
15
3 Wires:
- 12 / 24V DC ( Red )
- GND ( BLK )
- ACC / IGN ( YEL )
This cable provides connection for (8) AHD cameras and (1) video output to monitor
• Up to 8 AHD cameras (AV IN 1 – AV IN 8)
• 1080P AHD, 720P HD, D1 Resolution
• 4 pin DIN connection
• 1 DIN female video out connection (AV OUT 1)
(Must connect to EX12-MPIG to convert to BNC connection)
16
For Sensor In:
High Voltage: 5~12V
Low Voltage : 0~3V
For Sensor Out:
Triggered Voltage: 12V
Default Voltage: 0V

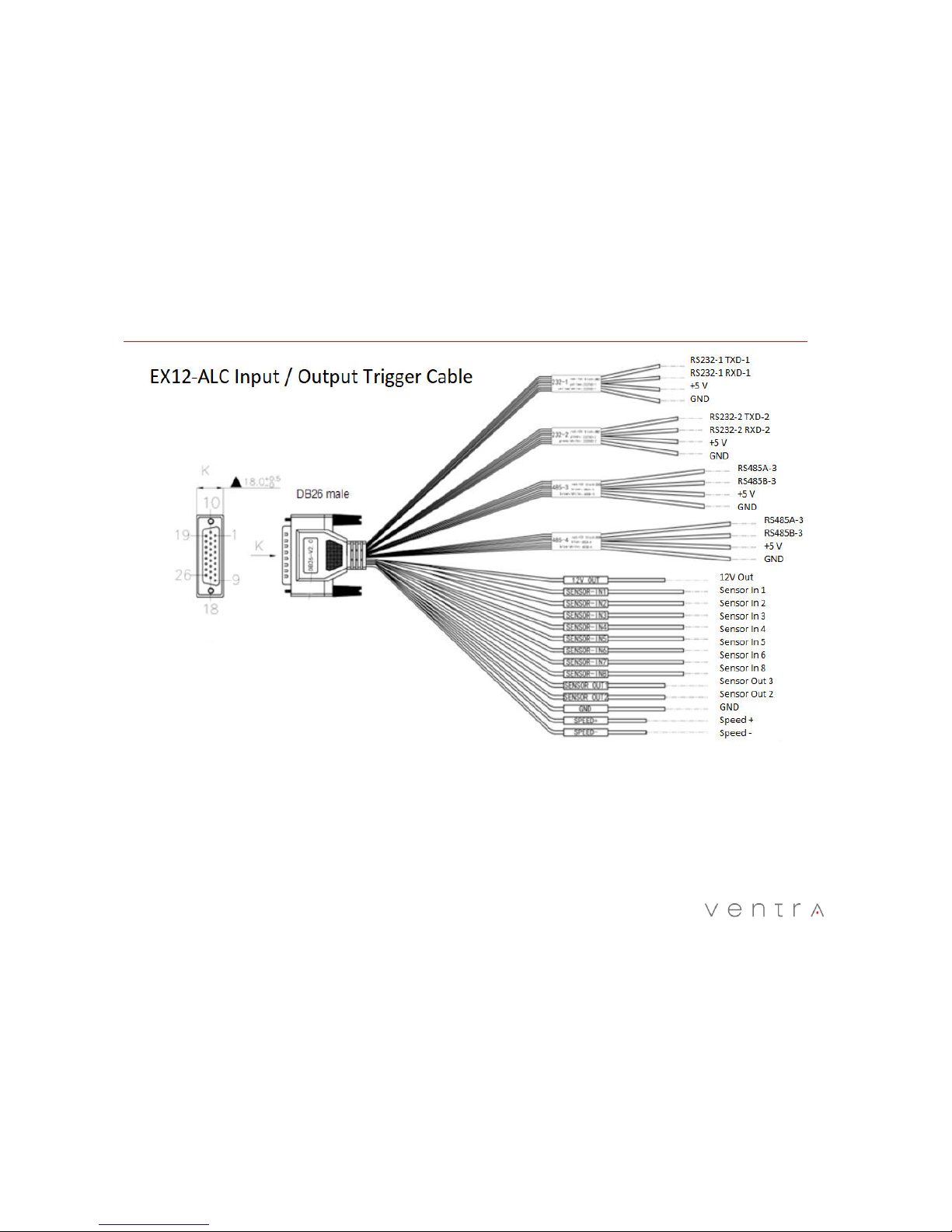

EX12-ALC Input / Output Trigger Cable Guide
Trigger Cable Can Be connected for a wide array of applications
• Door Open / Close Contact
• Light Trigger
• Siren Trigger
• Reverse Gear Signal
• PTO Trigger
• Lift Arm / Gate
• PTZ controller
17
Powering the XDR (12V / 24VDC)
18
1. Insert the appropriate fuse blade into the Red power cable
Blue Fuse = 12V Brown Fuse = 24V
2. Connect the 3 power wires to the vehicle’s fuse
Red = 12VDC Power
Yellow = Ignition / Accessory
Black = Ground
3. Connect the power cable to the Power connection on the XDR
XDR Cover / Latch MUST BE CLOSED in order for the XDR to Power ON!
Fig. 2 Fuse Blade
Fig. 1 Pic of Power Cable
Fig. 3 XDR Power connection
CAUTION
Installation by a Professional technician is highly recommended
Exercise caution when connecting the power to prevent shock. Do not use
sharp object to force cable
Ensure connection to the proper fuse to avoid damage or interference with
vehicle operation
Refer to vehicle owners manual for fuse guideline
Connect Ventra EX4-XC series 1080P, 720P AHD and D1 resolution camera (4 PIN DIN)
19
(EX4-XC1D, EX4-XC2, EX4-XC2D, EX4-XC4) with 4 PIN DIN
- Connect the EX12-CAM8 cable to the AV IN connector at the rear of the XDR
shown in Figure 1
- Each EX4-XC4 series camera that connects to the XDR requires an EX4-CBLxx
cable to XDR (Figure 2 EX4-CBLxx xx denotes length )
- XDR transmits Audio / Video & Power through the 4 PIN DIN cable (Figure 3)
- EX4-CBL available in 15, 33 and 60ft
- Maximum length / distance is 120ft by connecting (2) EX4-CBL4
Figure 3
EX12-CAM8 Figure 1 Figure 2
EX4-CBL

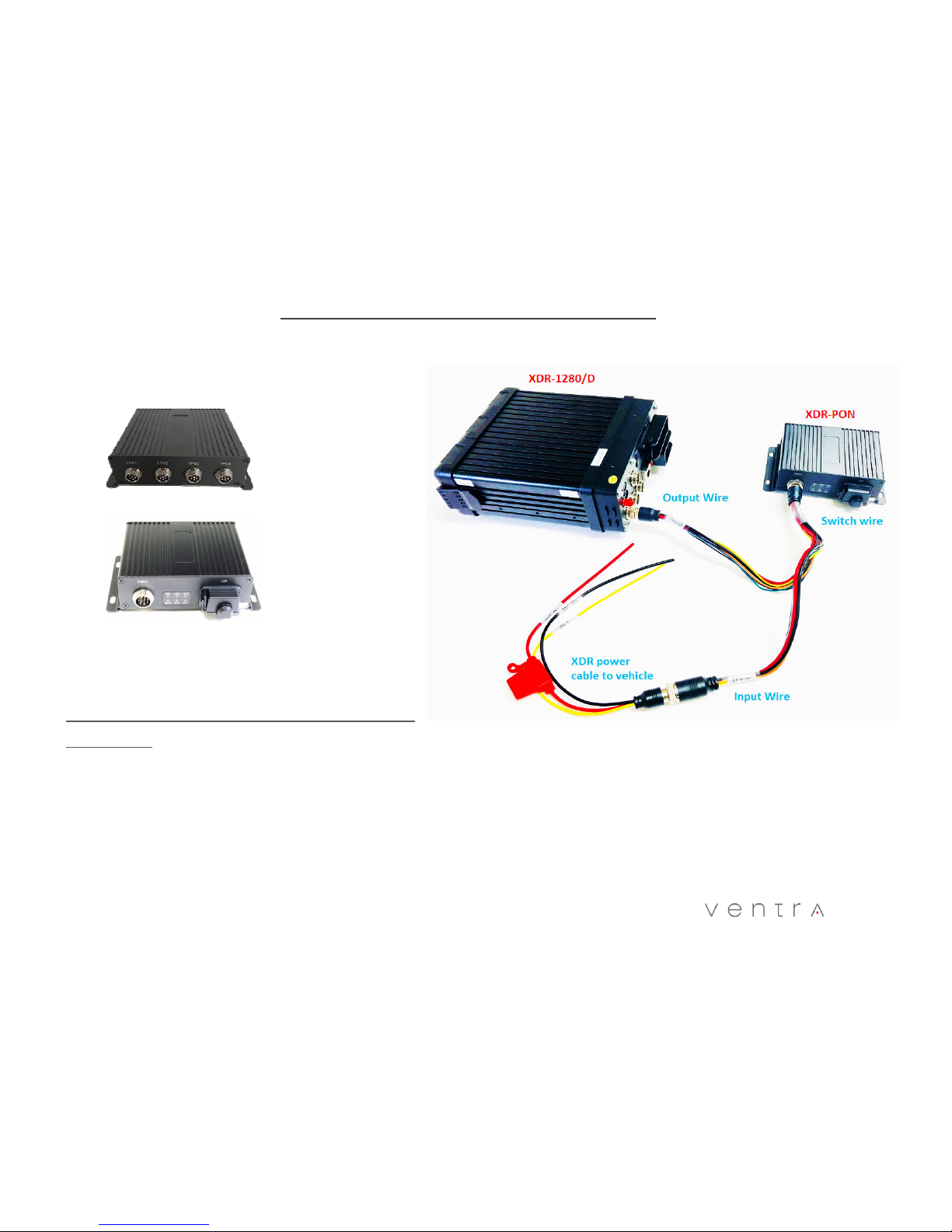

Connect XDR-PON Switch to XDR-1280
20
For EX5-HD1, EX5-HD2, EX5-HD3IP1080 cameras
Requires Ventra EX5-CBLxx 6PIN DIN cable and XDR-PON 4
camera switch (sold separately)
• Connect the power cable included with the XDR-PON to both
the XDR-1280 and the PON switch
- Switch wire connects to XDR-PON
- Output wire connects to XDR-1280
- Input wire connects to power cable of the XDR
Fig. 2 Connect Power to XDR and XDR-PON
Fig. 1 XDR-PON Switch
Connecting Ventra EX5 HD series 1080P, 720P IP camera (6 PIN DIN)
21
For EX5-HD1, EX5-HD2, EX5-HD3IP1080 cameras
Requires Ventra EX5-CBLxx 6PIN DIN cable and XDR-PON 4 camera switch (sold separately)
• Connect an Ethernet CAT5 cable from the LAN port on the rear of XDR-1280 to the PON switch
port labeled MDVR
• Connect EX5-CBLxx 6 PIN DIN cable to IPC port 1 – 4 (sold separately)
(EX5-CBLxx xx denotes length available in 15, 30 and 50ft )
Fig. 2 Connect Power to XDR and XDR-PON
IPC port for HD camera
Fig. 1 XDR-PON Switch
XDR-1280 Video Out to LCD Screen Connection
1. Connect EX12-CAM8 to XDR
3. Use a BNC to VGA Converter to connect to the Video
Cable Lead on EX12-MPIG
22
2. Using AV Out 1 port to connect to EX12-MPIG included with XDR
4. Connect RCA cable to EX12-MPIG
EX4-PGM (Optional)
7” Touch Screen Programming Tablet and LCD monitor
EX4-PGM
• Programming XDR system
• LCD monitor for live viewing / back up
• Touch Screen for easy access
23

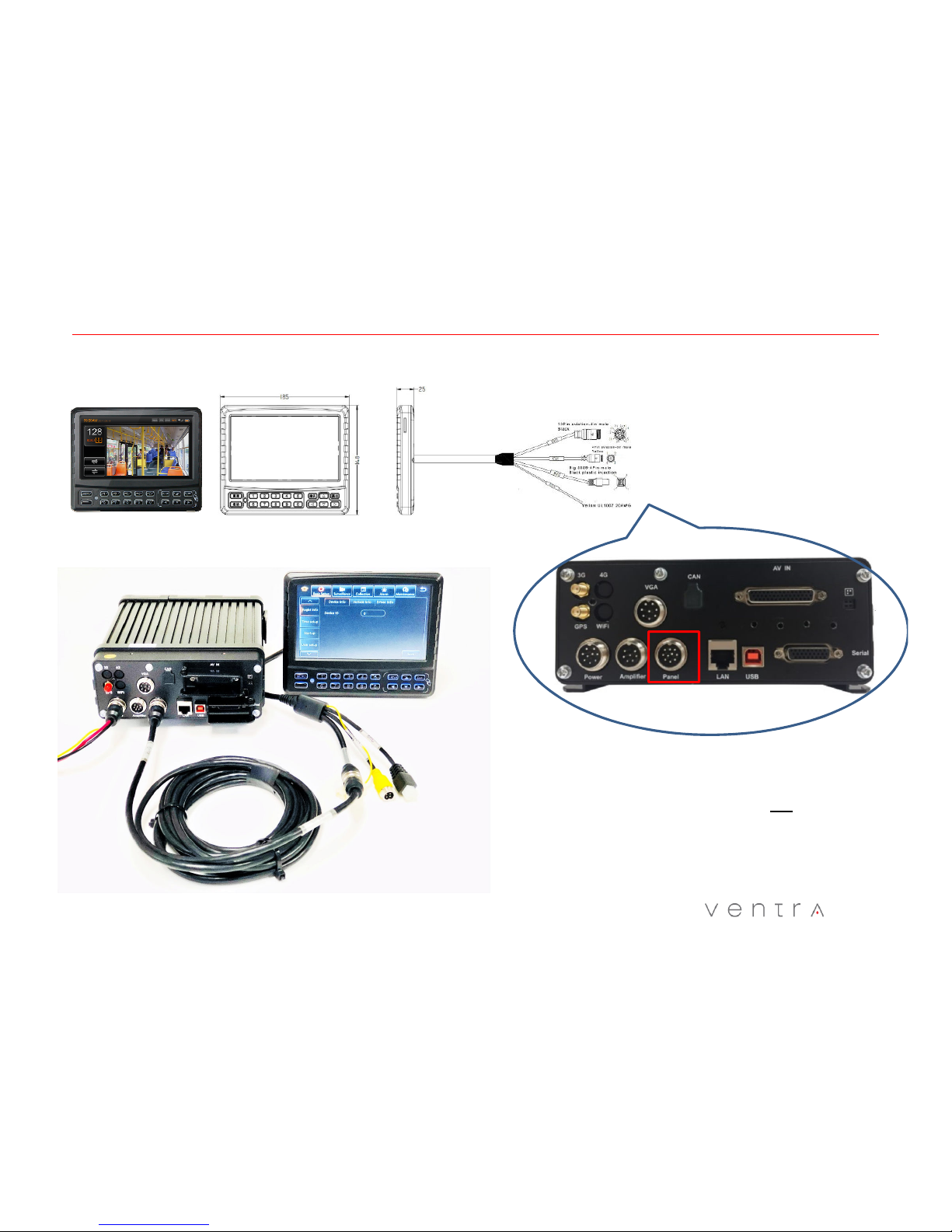

Connect the EX4-PGM with the 5M extension
cable to the “Panel” Connector on XDR
24

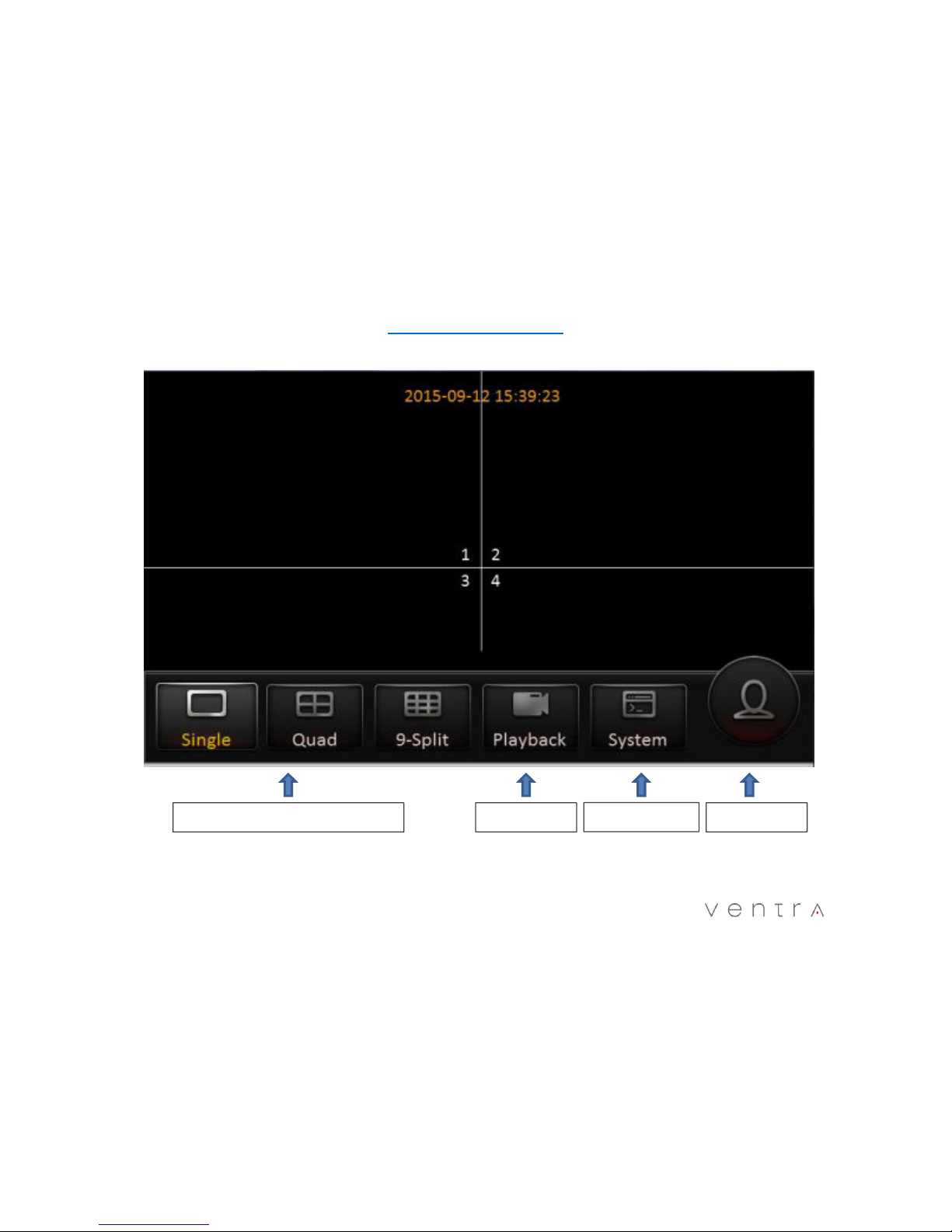

OSD Menu Layout
Live View Display Screen Mode Playback
System Status
Setting
Getting Started

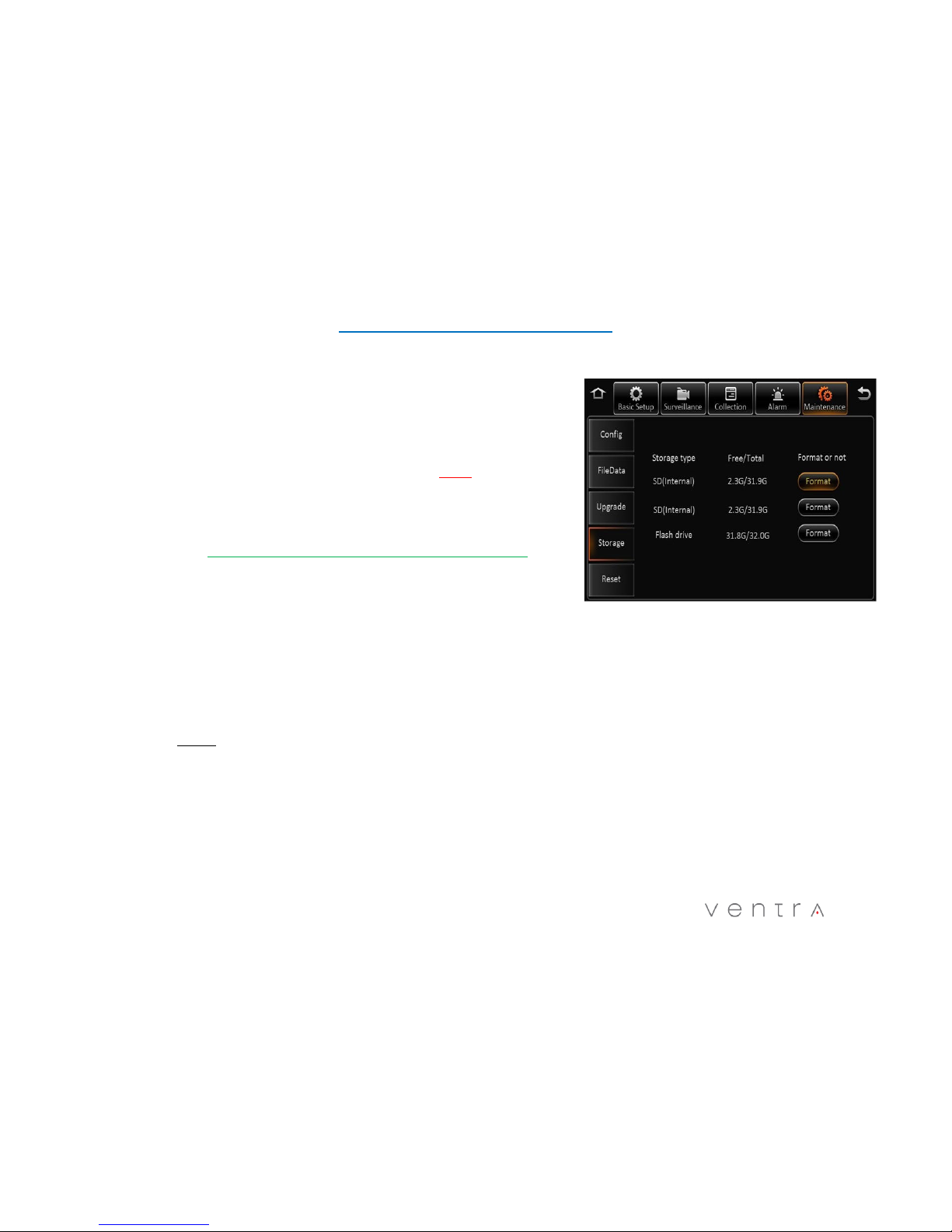

1.1 Formatting the HDD / SD Card
1. XDR utilizes a propriety file format for security , each storage device MUST be formatted IN
the XDR prior to use.
2. MS Windows will NOT recognize the SD card when inserted and will display error message
and ask to Repair or Reformat the card. Do NOT format or Repair the card via PC. (This is a
safety feature of the system). Data can only be recognized by the Ventra XDR Software
3. Do NOT Insert or Remove HDD / SD card while XDR is powered ON
4. To connect to the XDR, there are 2 methods
- Mouse to the USB port on the XDR
- EX4-PGM programming tablet

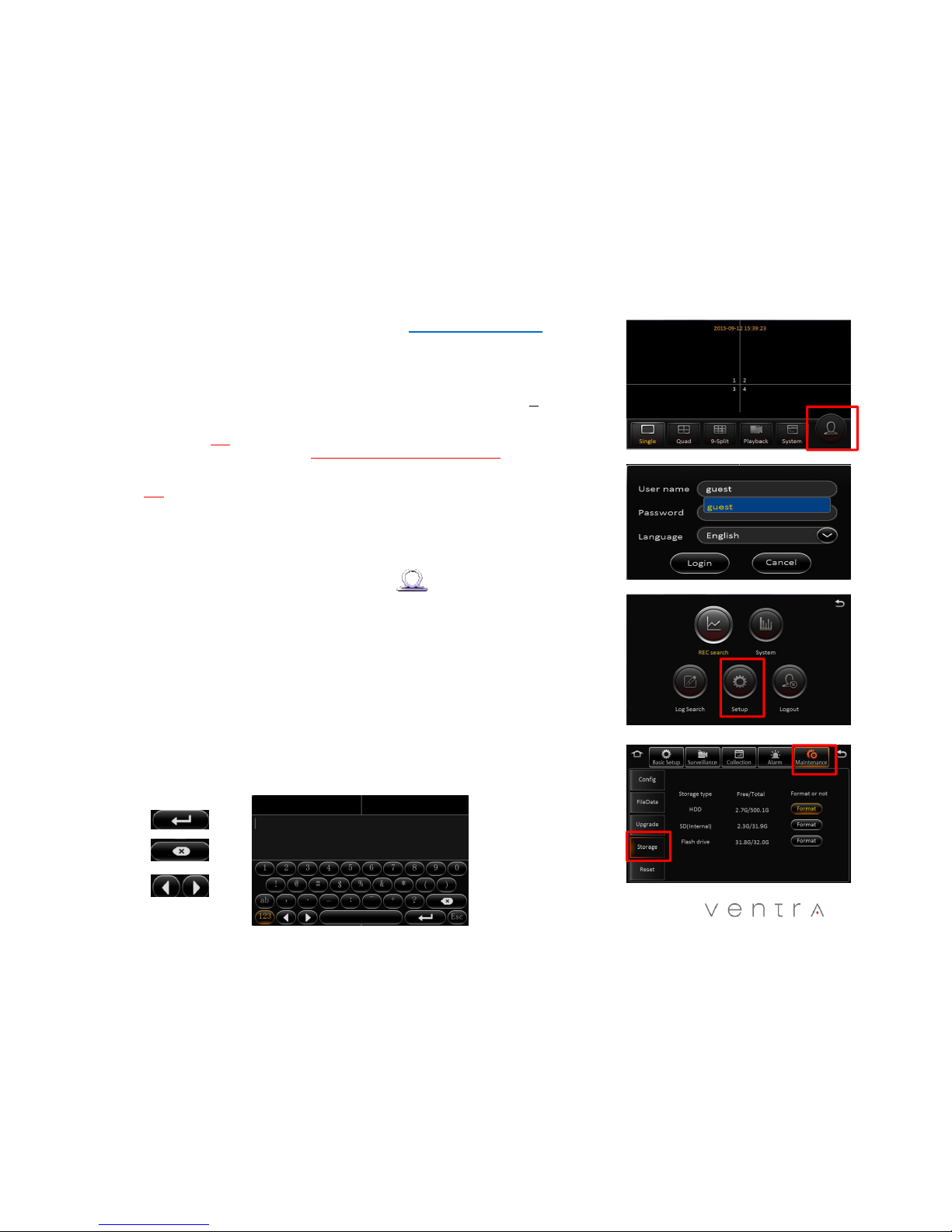

5. To Format the card, Login to XDR Settings by selecting the > Login > Setup >
Maintenance > Storage
- Default ID: admin
- Password: admin
6. Select Maintenance Tab > Storage Tab > pick the SD Slot to format (Any previous data will
be erased)
7. Top Slot = Primary, Bottom Slot = Secondary. (If using only 1 card, insert into Top Slot)
8. Each system support 1 HDD for data storage and 1 SD card up to 128GB for back up.
25
To access the OSD keyboard, click mouse in each field. Or use touch screen if utilizing
EX4-PGM programmer
Enter =
Cancel =
Cursor =
Basic Setup – Register Vehicle / Driver / Device ID
26

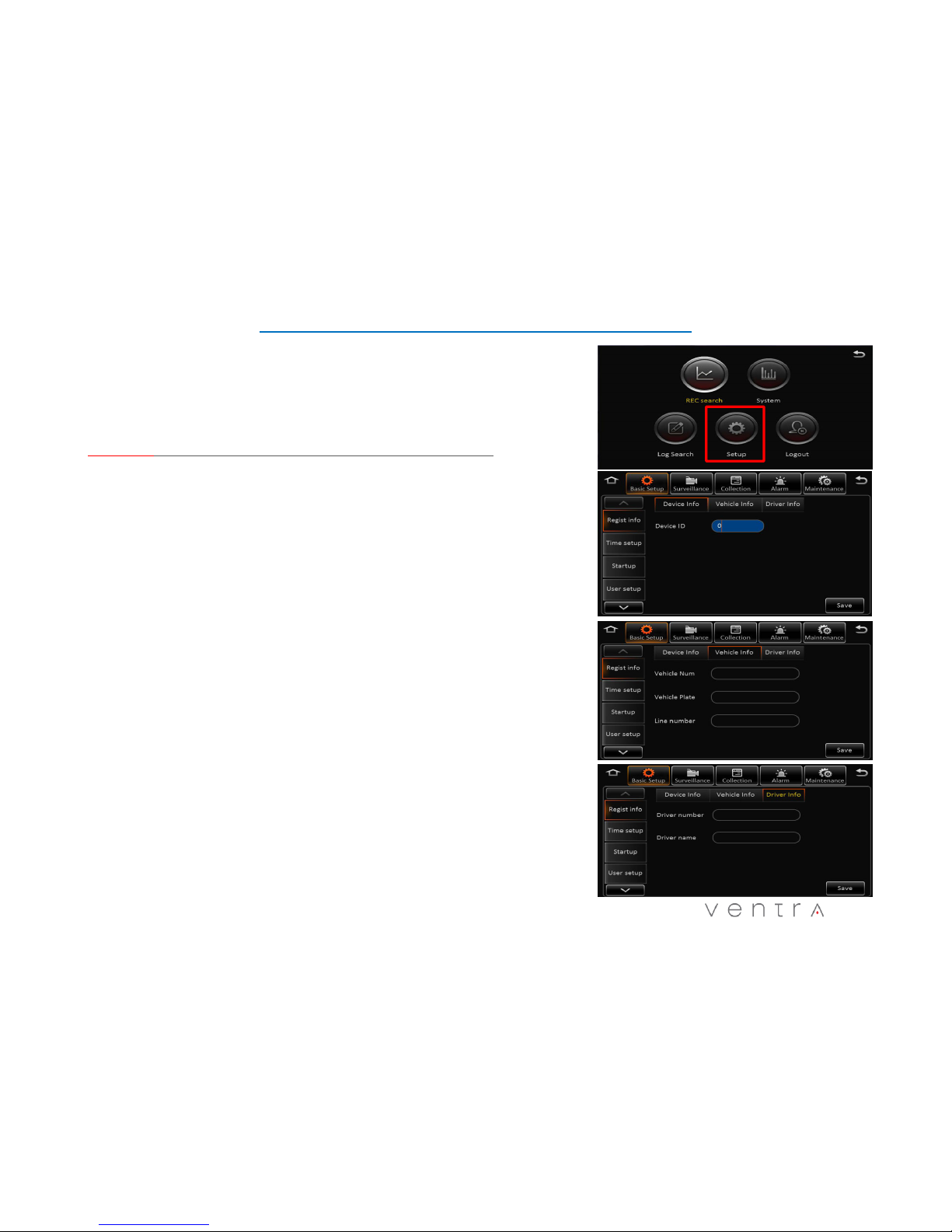

2.0 Register – Vehicle / Driver / Device Info
Reminder: Save each tab individually before proceeding to next tab
1. Device ID: currently not in use
2. Vehicle Info
Vehicle Number (Required for software to identify system)
Vehicle Plate (Optional)
Line Number (Optional)
3. Driver Info
Driver Number (Optional)
Driver Name (Optional)
Basic Setup – Date / Time Setup
27
2.1 Time setup – Date / Time
Reminder: Save each tab individually before proceeding to next tab
1. Set Date / Time Format
2. Set Time Zone
3. Time Sync - set date and time
4. Enable Satellite time sync via external GPS receiver. Once signal is acquired, XDR will
automatically sync time
5. Center Server- synchronize time with time server (optional)
6. NTP Sync – Syncs to specified time servers (Optional)
Multiple sync methods can be selected. XDR will select the signal based on availability
2.2 Daylight Saving Time (DST)
1. Enable / Disable DST
2. Select Hour Offset from dropdown menu
3. Select Mode from drop down menu
4. Enter date and time of effective DST
Basic Setup – System Startup
28

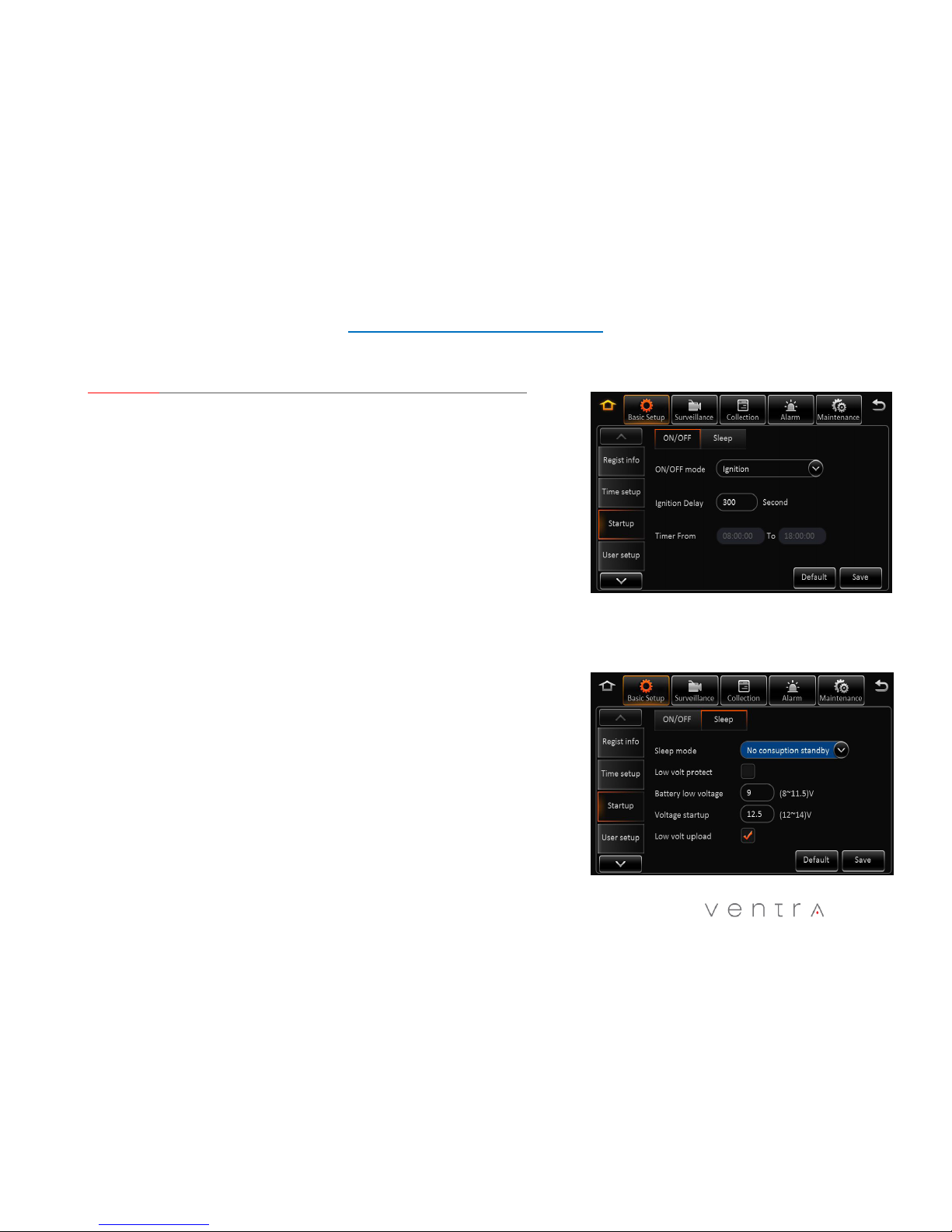

2.3 Startup – On / Off
Reminder: Save each tab individually before proceeding to next tab
1. On / Off: How the XDR is activated (3 Modes)
- Ignition
- Timer
- Ignition or Timer
2. Ignition Delay: Time delay between vehicle ignition off to XDR powering off (0-300
seconds)
3. Ignition: XDR powers on as vehicle ignition is on
4. Timer : If Timer option is selected, the schedule for Start and End Time must be set .
This schedule only applies to the XDR and does not affect or shut down the vehicle
ignition
5. Ignition or Timer: XDR will power on from either trigger. However, both criteria have to
be met in order for the XDR to power off. XDR will not shut off if the scheduled shut
down time has been reached while the vehicle ignition is still on.
2.4 Startup – Low Battery
1. Sleep: No consumption standby
2. Low Voltage Protect: Enable / Disable the XDR from auto shutting off when reaching
the low battery voltage threshold to prevent battery drain
3. Battery Low Voltage: Protects the vehicle battery by setting threshold to turn off XDR
Default for 12V = 9V, 24V = 21V
4. Voltage Startup: When the vehicle battery is consistently greater the than set value, it
will automatically boot up.
Default for 12V = 12.5V, 24V = 24.5V
5. Low Voltage Upload: Enable / Disable low voltage report log
Basic Setup – User Setup
29
2.5 User Setup
Reminder: Save each tab individually before proceeding to
next tab
1. Idle Time: The length of time the system remains in settings
mode before logging out. Recommend (10 Minutes)
2. User Name: Default are admin and user
3. User Group: It is categorized as Administrator and Normal
user
Admin: View videos, change settings and export logs
User: View videos but cannot change settings or logs
Add, Delete or Edit
1. Only Administrators can delete or add new users (up to 2)
2. User name cannot be duplicated or empty
3. Edit / Change password

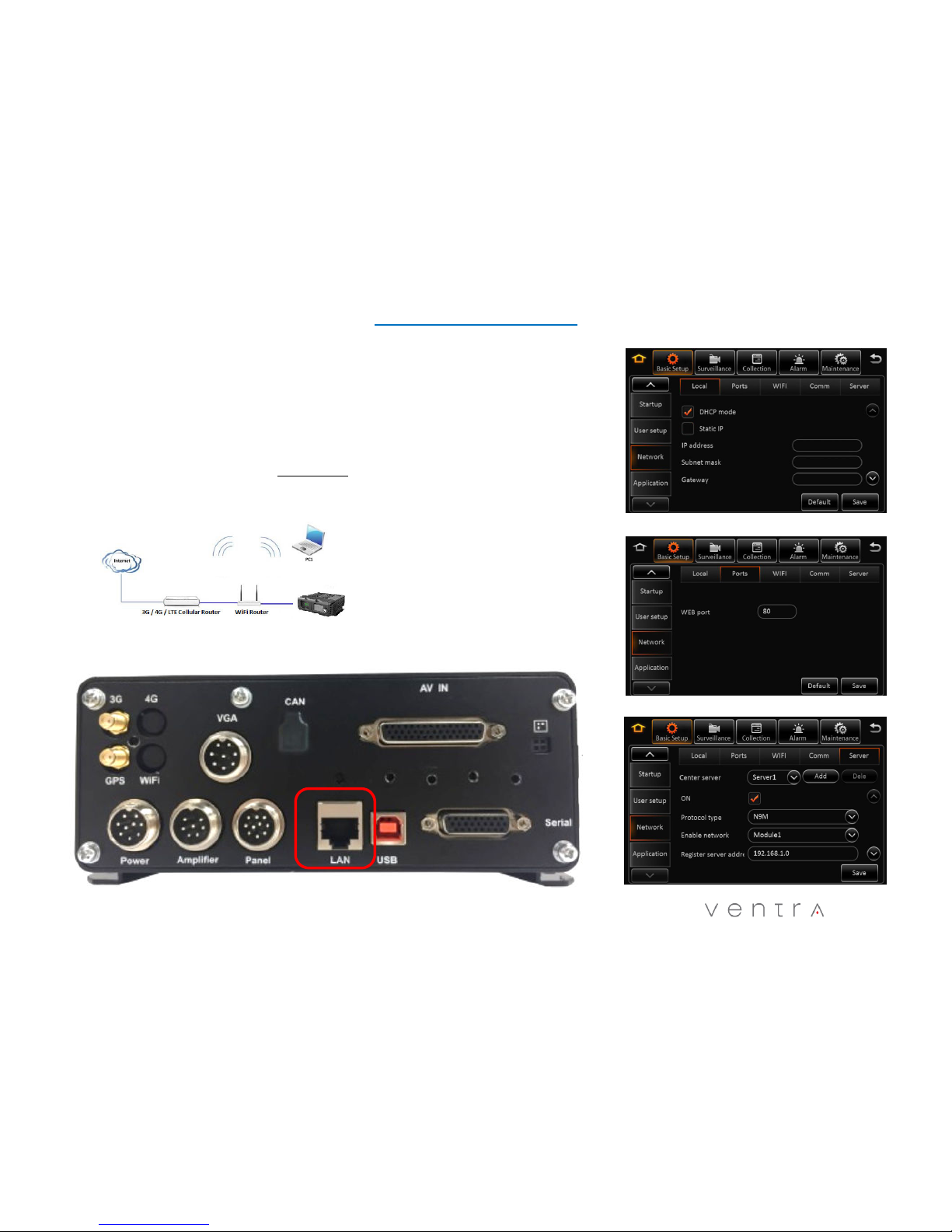

Setup - Network Setup
30
XDR-1280/D supports remote connectivity and viewing with the addition of the
Ethernet cable and optional XDR remote viewing monthly service (sold separately)
This enables the XDR-1280/D to connect to an external WiFi and or Cellular Router
via Ethernet connection.
Additional settings are required in the Network Tab within the XDR
For detailed info, refer to XDR Remote Connectivity User Guide
Surveillance – Live View
31

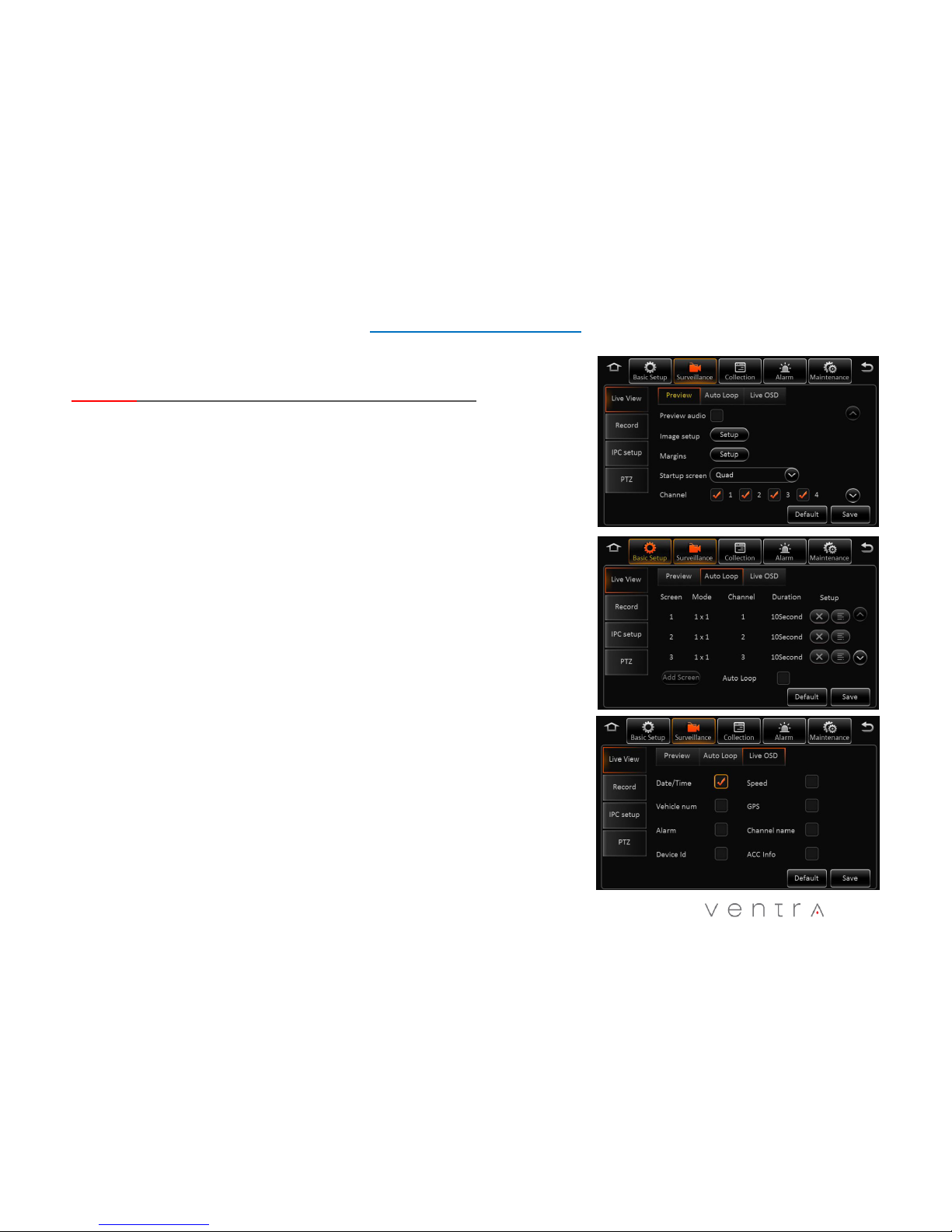

4.0 Surveillance – Live View – Preview
Reminder: Save each tab individually before proceeding to next tab
1. Preview Audio: Enable / Disable audio during live view of cameras
2. Image Setup: Adjust live view parameters - Color, Contrast, Brightness
3. Margins: Adjust live view screen setup
4. Startup Screen: Set live view display in Single, Quad or Nine CH mode
5. Channel: Select the channels to display on screen
Note: 1 CH can only select 1 4CH Must Select 4
4.1 Surveillance – Live View – Auto Loop
1. Auto loop allows different cameras to be displayed on a monitor with its unique time
duration.
2. Add, Edit Or Delete Cameras and settings
3. Add: Enable “Auto Loop” box to access “Add Screen” Button, select desired camera
and duration of display
4. Delete: Click the “ X “ Button of the camera to be deleted
5. Edit: Click the Menu button icon of the camera to edit time and settings
4.2 Surveillance – Live View – Live OSD
1. Select various information to display on monitor in live view mode. The information
in this section is not recorded/watermarked.
2. Add, Edit Or Delete Cameras and settings
Surveillance – Record – General / Main Stream
32

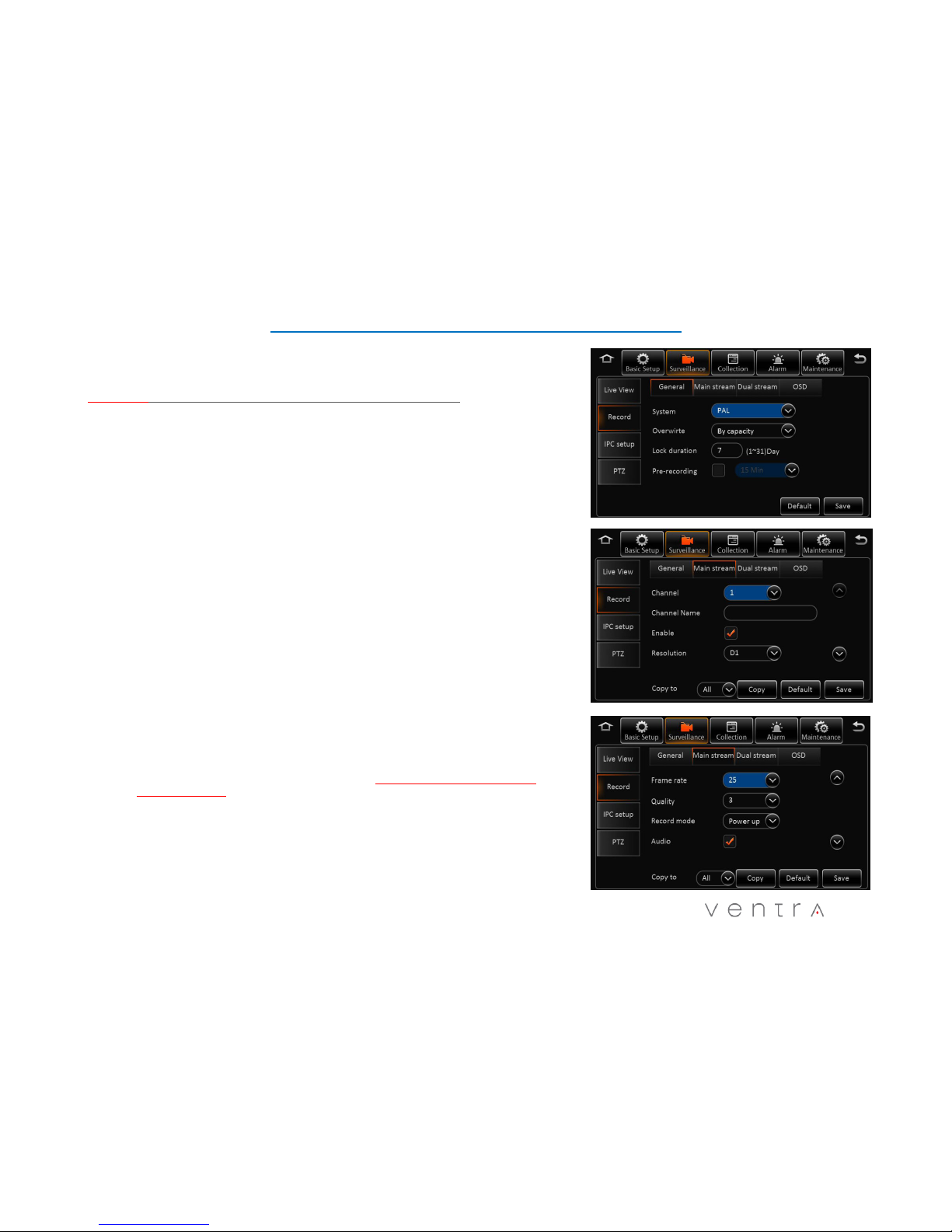

4.3 Surveillance – Record - General
Reminder: Save each tab individually before proceeding to next tab
This section covers the general system wide setting of the XDR
1. System – PAL / NTSC (Default = NTSC)
2. Overwrite: How the system stores new recording once the storage is full
- Capacity: As SD storage is full, system will overwrite oldest data
- Date: XDR will overwrite old data based on date
- Alarm: XDR will overwrite old data based on alarm
4. Lock Duration: Number of days to lock an alarm event file 1 – 31 days (Default 7 days)
5. Pre-Recording: Enable/ Disable and Length of recording before an event
(Recommend 1 to 3 minutes)
4.4 Surveillance – Record – Main Stream
This section enables, disables individual cameras as well as custom parameters for each. If setting
is same for all cameras, click “Copy To > All”.
1. Channel: Select the camera from Channel 1 - 12
2. Channel Name: Assign name to each channel - optional ( rear, side door, interior…etc)
3. Enable: Enable or Disable each camera in the system. If camera is NOT enabled, it will NOT
record in the system
4. Resolution: Select resolution for camera
Analog HD (AHD) Camera = CH 1 ~ 8 = 1080P AHD, 720P AHD, D1
IPC HD Camera = CH 9 – 12 = 1080P HD, 720P HD Resolution
5. Frame Rate: Select frame rate of individual camera (1 – 30FPS) Default 25
Higher the frame rate, bigger the file storage size
Surveillance – Record – Main Stream
33
4.4 Surveillance – Record – Main Stream (Continued)
Reminder: Save each tab individually before proceeding to next tab
5. Quality: Video quality in relation to Bit Stream ( 1 – 8, 1 = Best) Default = 3
6. Record Mode: Select how the camera is activated
- Ignition / Power: When vehicle ignition is on
- Event: Only when an event occurs
- Time: Active between a set schedule
7. Audio: Enable / Disable audio recording if camera supports audio
8. Alarm Quality: XDR supports separate video recording quality in terms of bit stream
between Normal and Alarm.
Default Video quality is 3 and Alarm Quality is 2
For example: Normal recording can be changed to 4 to reduce storage size and Alarm
Quality at 2 so when an event occurs, video quality is enhanced.
9. Encode Mode: VBR / CBR Default = VBR
VBR = Variable Bit Rate
Variable bit rate automatically adjusts recording bit stream based on environment
CBR = Constant Bit Rate (Occupies more storage)
Constant bit rate maintains recording bit stream regardless of environment
Record – Dual Stream
34
Record - Dual Stream
Reminder: Save each tab individually before proceeding to next tab
This section covers what type of storage is used and the recording method of the 2ndSD card
(If utilized). Dual Stream is also utilized for continuous recording from 1stcard to the 2ndcard
in continuous loop format.
To enable continuous loop recording, select NONE in Record Mode

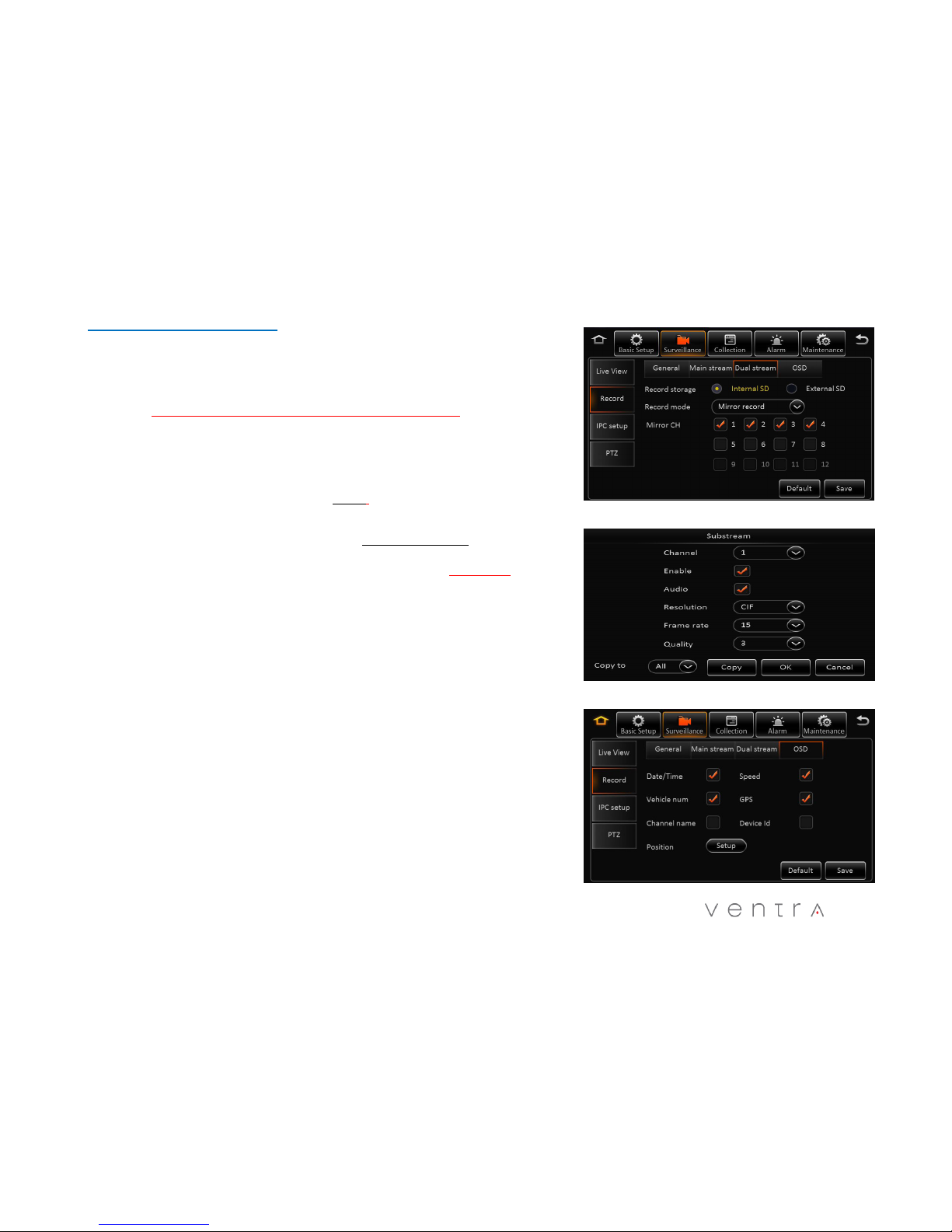

1. Record Storage: Internal SD / External SD Default = Internal SD
2. Record Mode: Mirror / Alarm Back Up / Sub Stream / None (Select None)
- Mirror: Mirroring identical data to be stored on both SD cards. Channel
selectable
- Alarm Backup: Events triggered by Alarm are stored
- Substream: Substream is a sub recording of the Main recording that can be
compressed in
video quality and resolution. Individual parameters can be set based on selected
cameras
- None: Continuous LOOP recording when storage is full. This enables the system
to continuously record, replacing the oldest files with the latest.
Record - OSD
1. Select various information to record , watermark and displayed on monitor in all video
recordings.
Surveillance – IPC / HD Camera Setup
35
4.7 Surveillance – IPC / HD Camera Setup
NOTE:
1. This section is solely for the configuration, enabling and setting for the EX5-HD series IP
camera. Each camera has its own internal IP / MAC address within the XDR
2. Default IP address for the HD camera = 10.100.100.1
3. Any IP cameras can start from IP address 10.100.100.1 - 32
4. Recommend setting the EX5-HD camera on CH 5 and CH 6 (by scrolling down the screen),
as CH 1 – 4 are utilized for Analog Cameras
Setup:

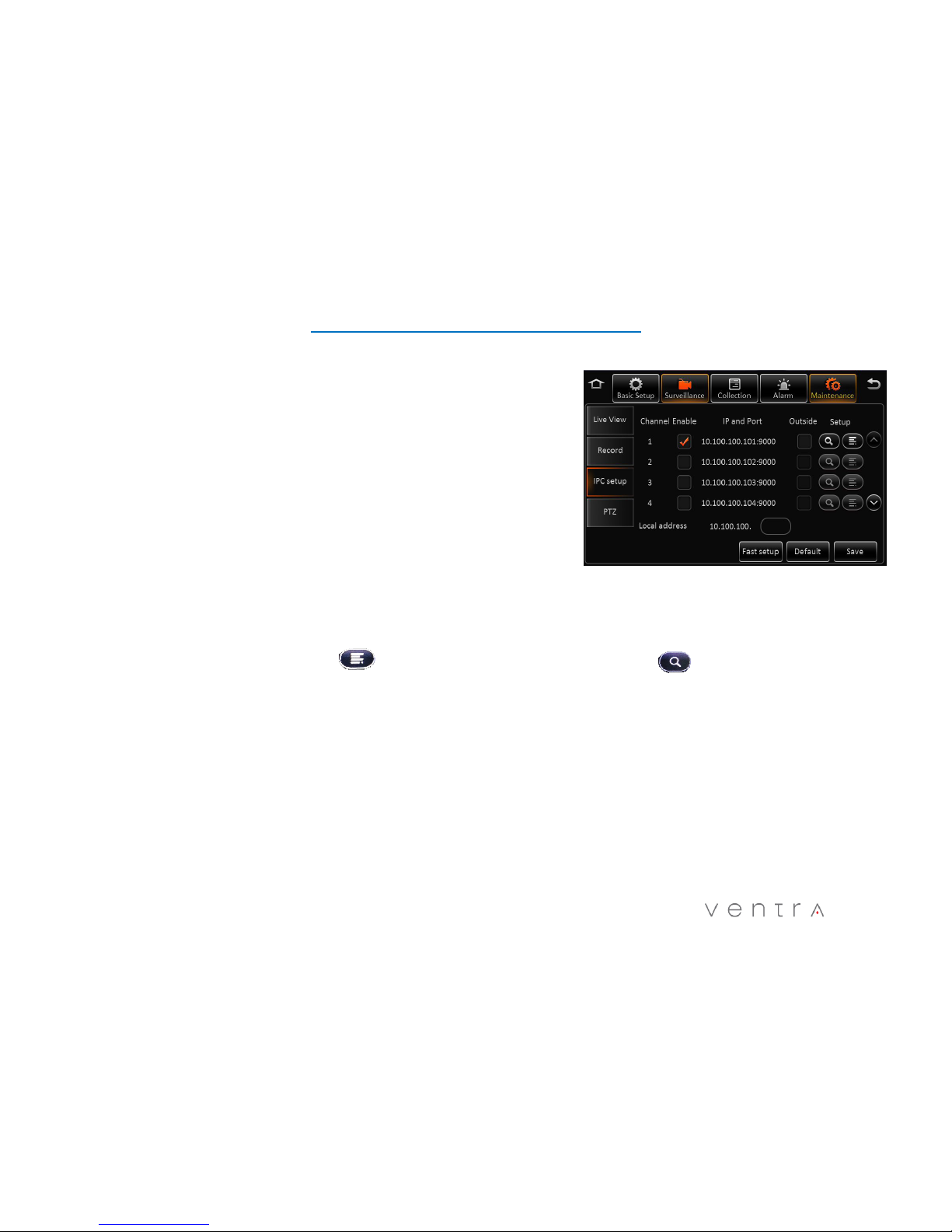

1. Connect the EX5-HD series IP camera to the IPC slot on the XDR prior to setup
2. To enable EX5-HD camera, scroll down to CH 9 - 12 to Enable the appropriate camera
3. Click on Magnifying glass on the selected CH for XDR to scan and auto detect IP
address once camera is connected.
4. To view, change or manually enter IP address of each camera, user can also select the
menu option
5. Outside: This setting optimizes the EX5-HD camera when installed in outdoor
environment
If system does not detect IP address of EX5-HD camera when entered or having technical difficulty
configuring the camera, select Default
The system will automatically detect an connected EX5-HD cameras. Select the box and enable
the camera.
Reminder: Click SAVE when done to store all settings
If experiencing difficulty detecting the EX5HD Camera, select Default
Select and allow XDR to detect
camera
Surveillance – IPC / HD Camera Setup
36
4.8 Surveillance – PTZ
NOTE:
PTZ settings applicable only for PTZ enabled analog or IP cameras
Setup:
1. Enable / Disable PTZ function in each Channel
2. Operate: Serial / N9M, ONVIF.
3. Protocol Type: Serial Mode Supports
- N9M
- Onvif
- Pelco D
- Pelco-P PTZ
4. Address: Applies to Serial mode
5. Test: Test PTZ function, select Test to enable On Screen PTZ control
panel
Collection of Data – General
37
5.0 Collection – General - Sensor
Note: Save each tab individually before proceeding to next tab

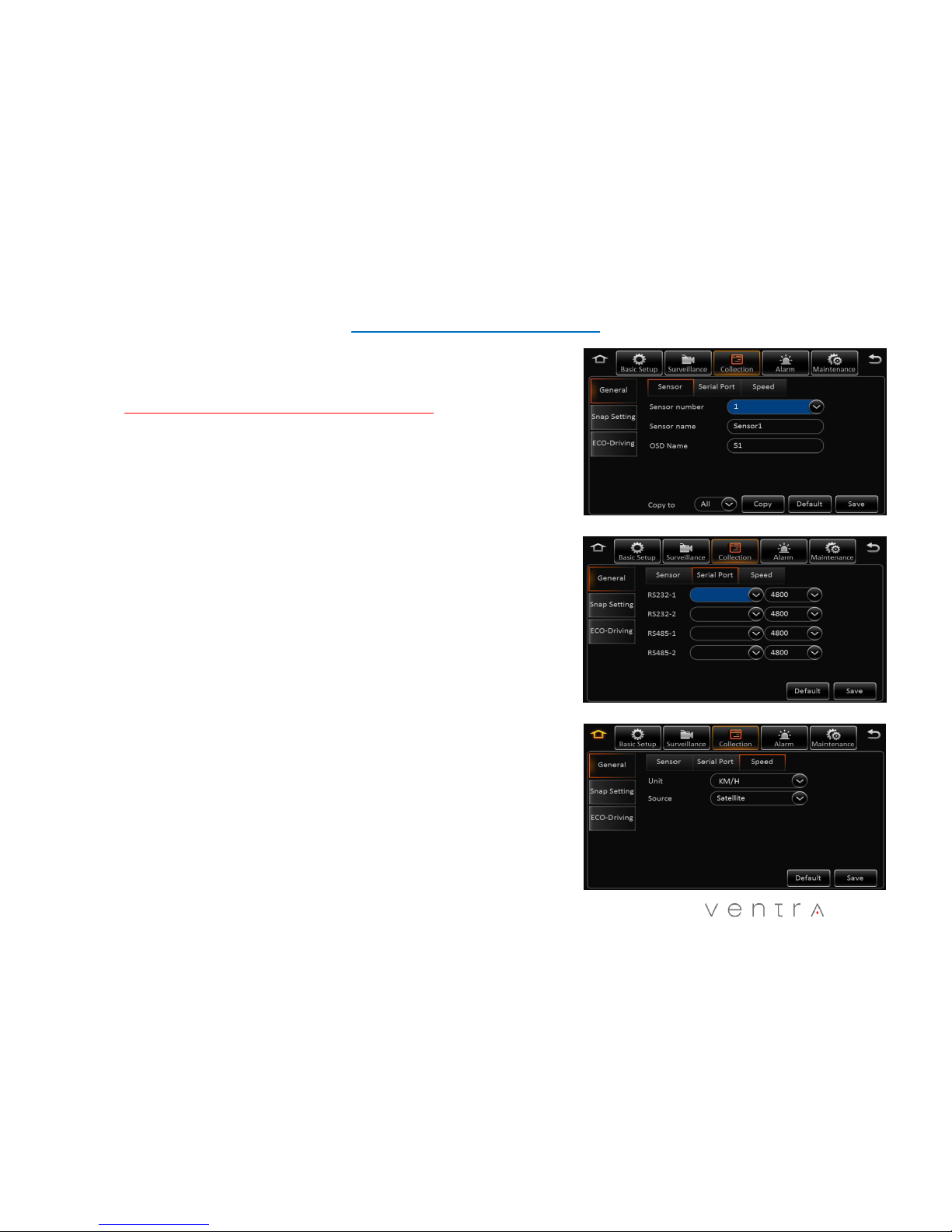

1. Sensor Number: Select from drop down menu of the sensor to edit
2. Sensor Name: Optional – assign name to each sensor (i.e. Door, trunk, lift arm)
3. OSD Name: The name embedded in video and data recordings
4. Copy: If settings are the same, select Copy To individual or all sensors
5.1 Collection – General – Serial Port
1. RS232-1 / RS232-2 : Applies to 3-Axis G Sensor, Expansion 485 Bus signal and GPS data
2. RS485-1 / RS485-2 : Applies to PTZ, control panel, 485 Bus signal and GPS Data
3. Baud Rate: 2400 – 115,200 9 classes optional
5.2 Collection – General – Speed
1. Unit of Measurement: KM/H or MPH
2. Source: Speed determined by GPS
Collection of Data – General
38
5.3 Collection – Snap Setting – Time Snap

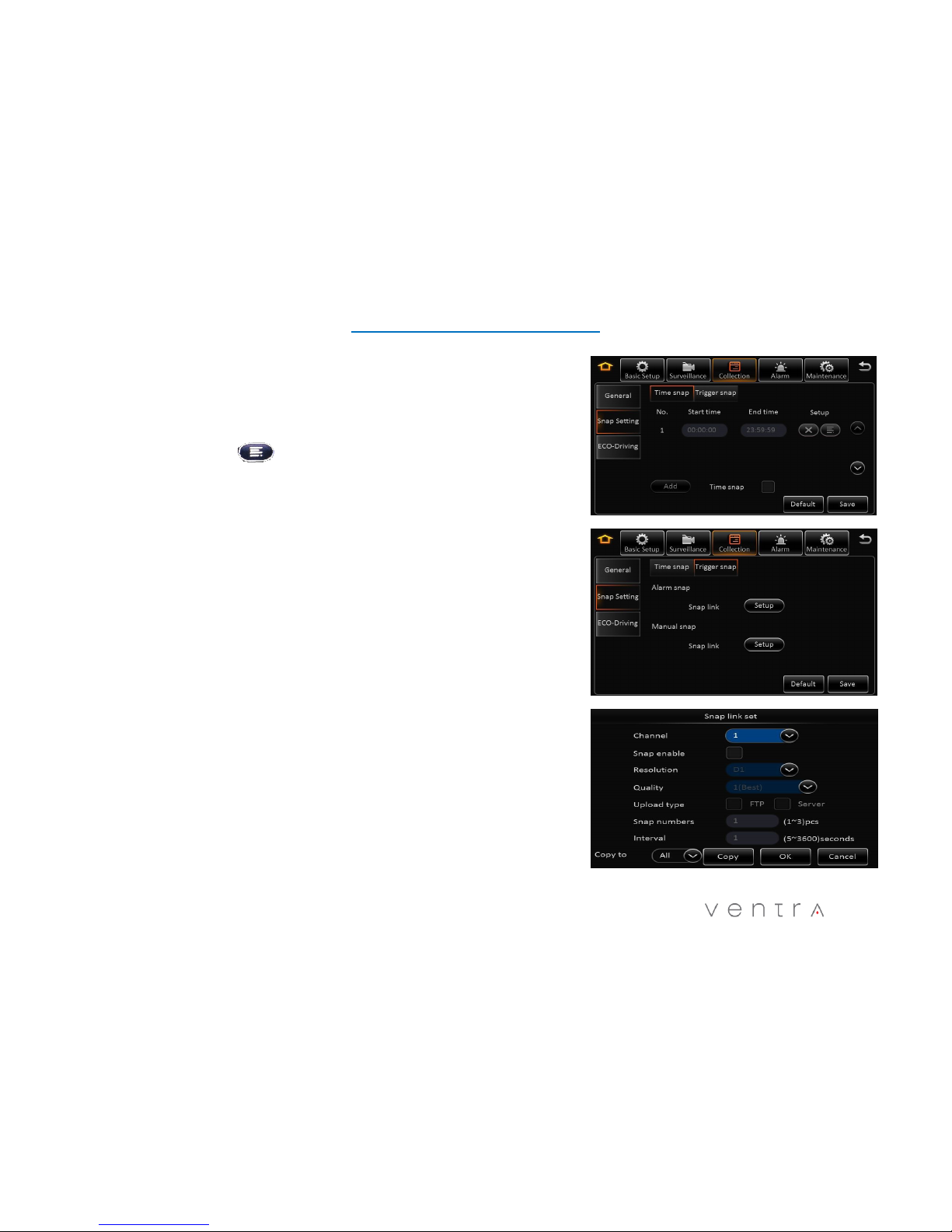

1. Start Time / End Time: Set schedule of image snapshot. Check the Time Stamp Box to
enable, edit and add.
2. Edit by selecting the menu icon. Delete by selecting the X icon
3. Add: XDR supports up to 8 different schedules for image Snapshot configuration
5.4 Collection – Snap Setting – Trigger Snap
1. Alarm Snap – Snap Link Setup:
- Select camera channel
- Enable / disable image snapshot feature
- Select resolution of image (D1, WD1, CIF)
- Select image quality ( 1 -8) 1 = Best
- Upload Type: Available only in XDR-480 and XDR580
- Snap number of images
- Interval (5 – 3600) seconds
Click Ok to Save, or Copy to apply same configuration to other sensors and cameras
Alarm – Base Configuration
39

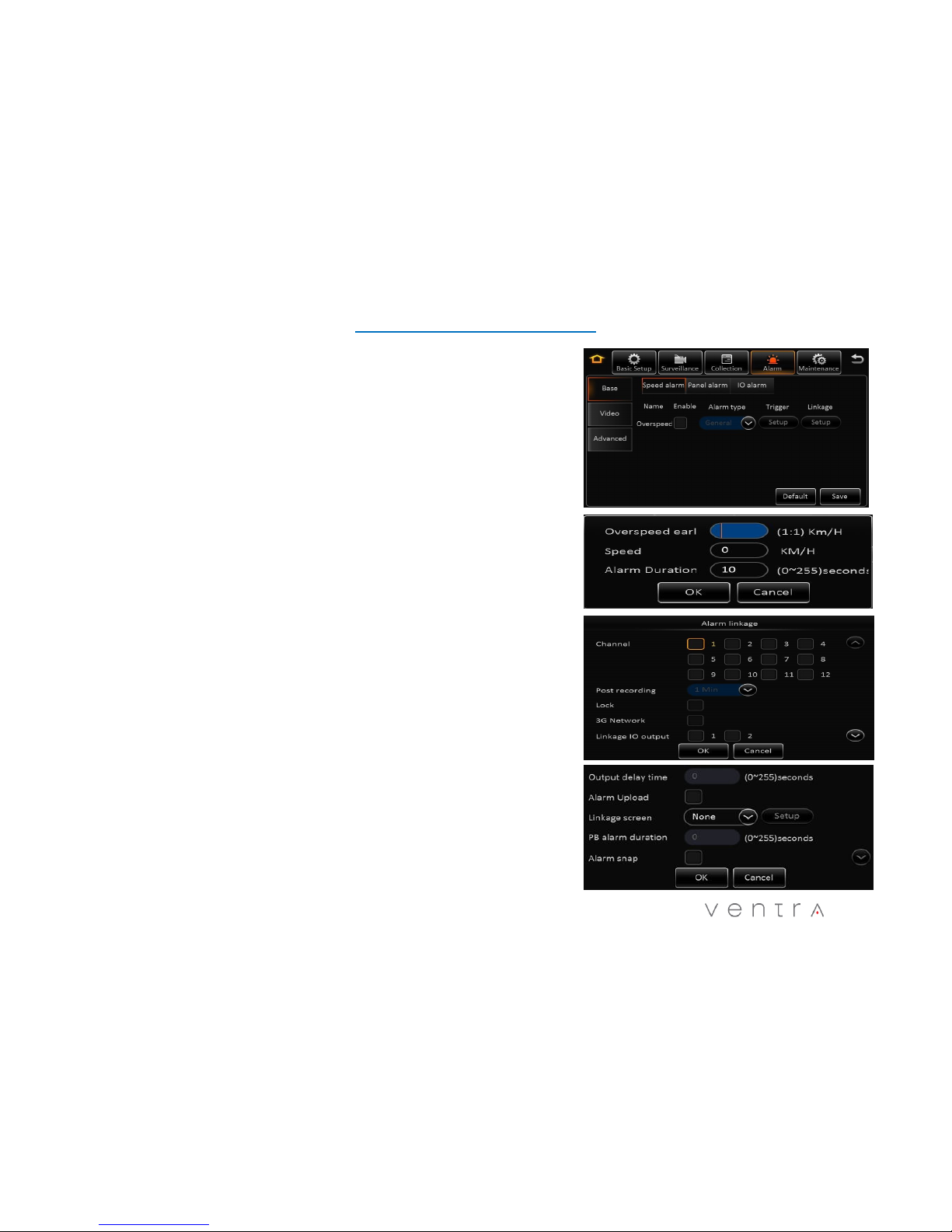

6.0 Alarm – Base – Speed Alarm
Enable / Disable Overspeed Event trigger
Alarm Type: Important or General
Trigger: Set speed limit trigger
- Overspeed Early Warning
If max speed is set at 60 MPH, when vehicle reaches 50 MPH, system will trigger
and activate an alert to optional external device (light, buzzer)
- Speed: Max vehicle speed limit
- Alarm duration ( 0 -255 seconds)
Alarm Linkage:
Channel: XDR supports multiple cameras to be assigned for recording when
specific alarm is triggered
Post Recording: Duration of recording to be marked as post alarm event
Lock: Lock specific alarm recording to keep for specified duration – refer to
section 4.3 General > Surveillance > Record > Lock Duration days 1 – 31 days
3G: Applicable only for the XDR-580H
Linkage Output: 1 or 2 – Enable link alarm output when alarm is triggered
Output delay Time: alarm output duration after alarm is removed 0 – 255 secs
Alarm upload: Enable to upload to platform (Only on XDR-580)
Linkage screen: Link channel to show full image when alarm is triggered
PB alarm duration: Available alarm duration after urgent alarm is removed
Alarm snap: Enable to link image snapshot
Alarm – Base Configuration
40

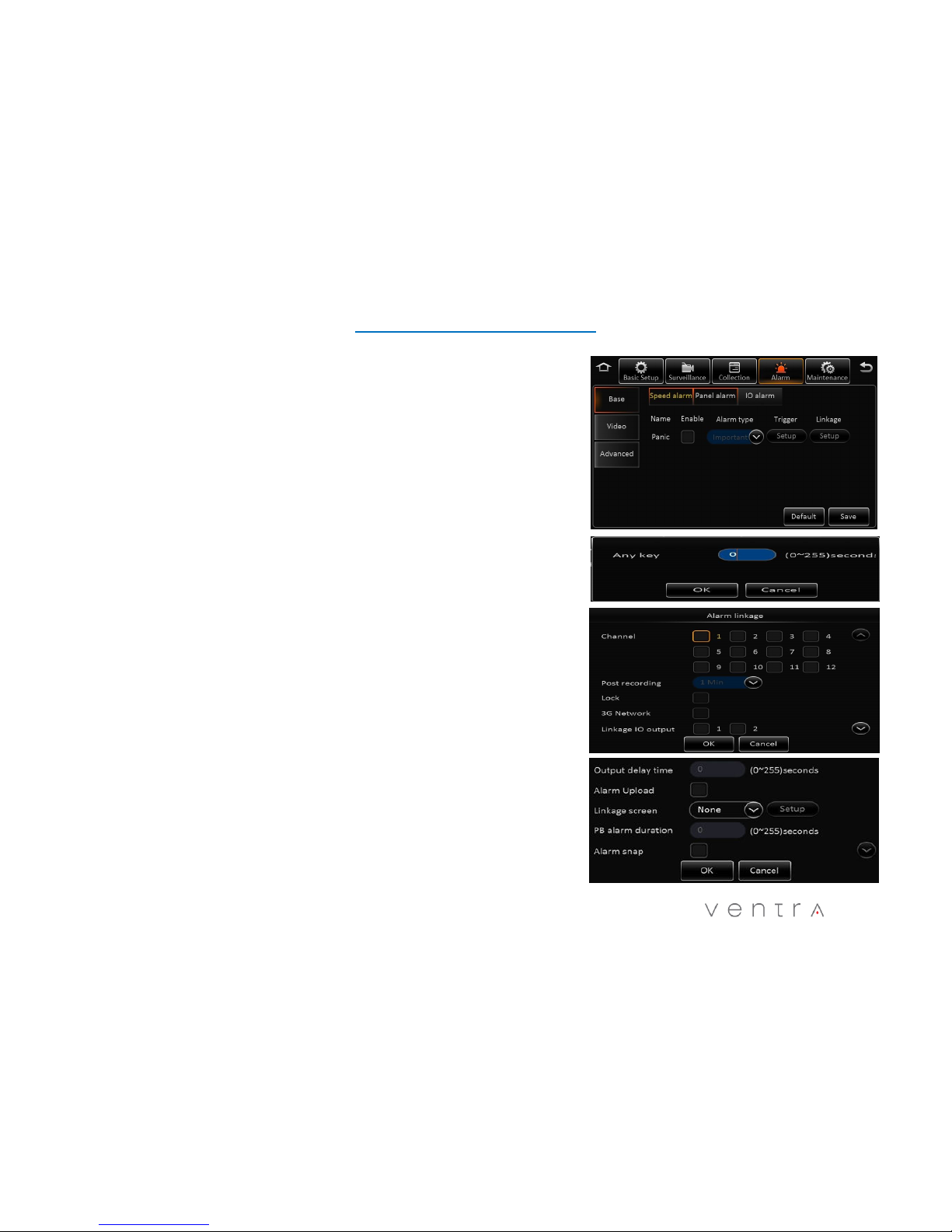

6.1 Alarm – Base – Panel Alarm
Enable / Disable Panic Alarm trigger
Alarm Type: Important or General
Trigger: Set time delay for panic alarm activation 0 -255 seconds
Alarm Linkage:
Channel: XDR supports multiple cameras to be assigned for recording when
specific alarm is triggered
Post Recording: Duration of recording to be marked as post alarm event
Lock: Lock specific alarm recording to keep for specified duration – refer to
section 4.3 General > Surveillance > Record > Lock Duration days 1 – 31 days
3G: Applicable only for the XDR-580H
Linkage Output: 1 or 2 – Enable link alarm output when alarm is triggered
Output delay Time: alarm output duration after alarm is removed 0 – 255 secs
Alarm upload: Enable to upload to platform (Only on XDR-580)
Linkage screen: Link channel to show full image when alarm is triggered
PB alarm duration: Available alarm duration after urgent alarm is removed
Alarm snap: Enable to link image snapshot
Alarm – Base Configuration
41

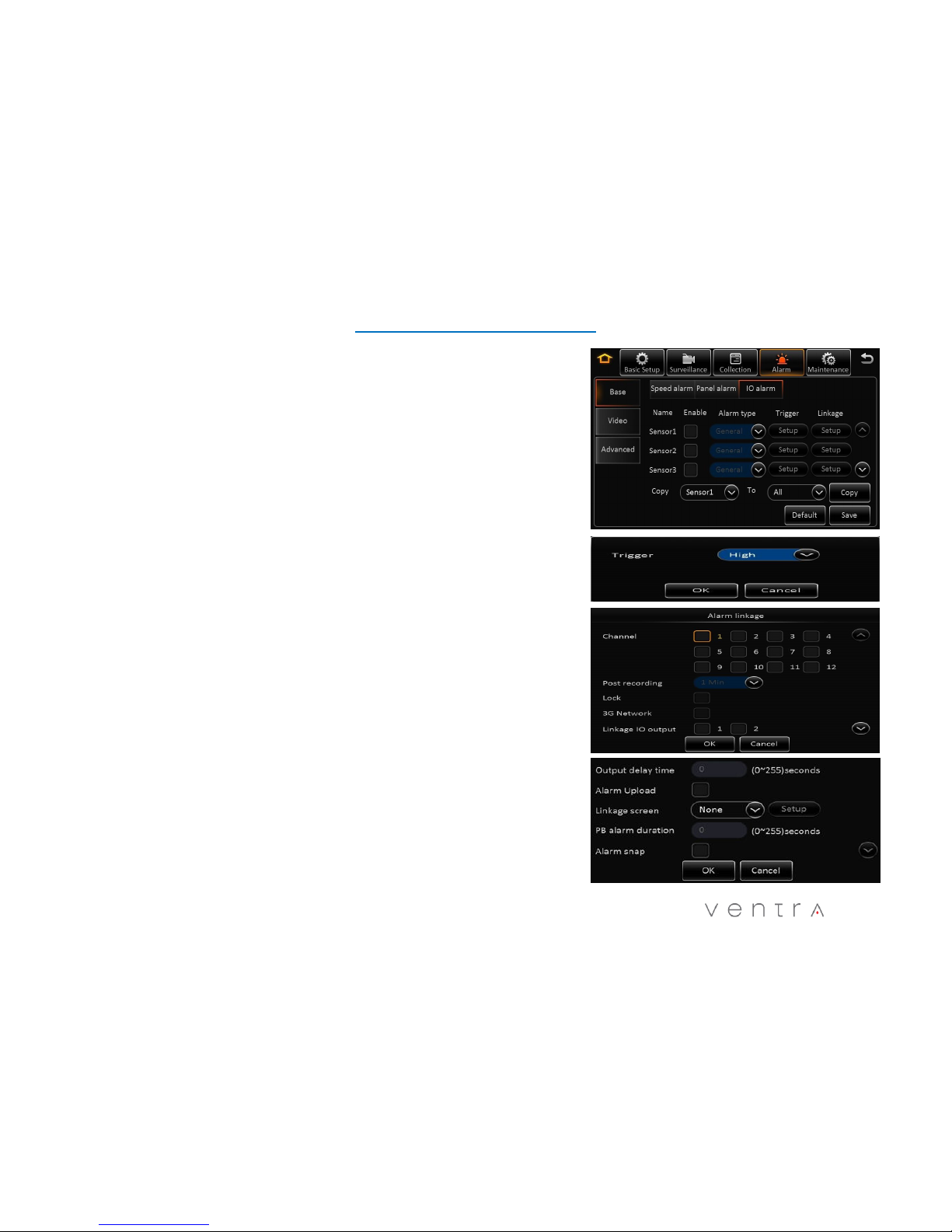

6.2 Alarm – Base – I/O Alarm
Enable / Disable I/O Alarm trigger 1 - 8
Alarm Type: Important or General
Trigger: Low or High trigger (Default is Low for alarm trigger)
For Sensor In: For Sensor Out:
High Voltage: 5~12V Triggered Voltage: 12V
Low Voltage : 0~2V Default Voltage: 0V
Alarm Linkage:
Channel: XDR supports multiple cameras to be assigned for recording when
specific alarm is triggered
Post Recording: Duration of recording to be marked as post alarm event
Lock: Lock specific alarm recording to keep for specified duration – refer to
section 4.3 General > Surveillance > Record > Lock Duration days 1 – 31 days
3G: Applicable only for the XDR-580H
Linkage Output: 1 or 2 – Enable link alarm output when alarm is triggered
Output delay Time: alarm output duration after alarm is removed 0 – 255 secs
Alarm upload: Enable to upload to platform (Only on XDR-580)
Linkage screen: Link channel to show full image when alarm is triggered
PB alarm duration: Available alarm duration after urgent alarm is removed
Alarm snap: Enable to link image snapshot
Alarm – Base Configuration
42

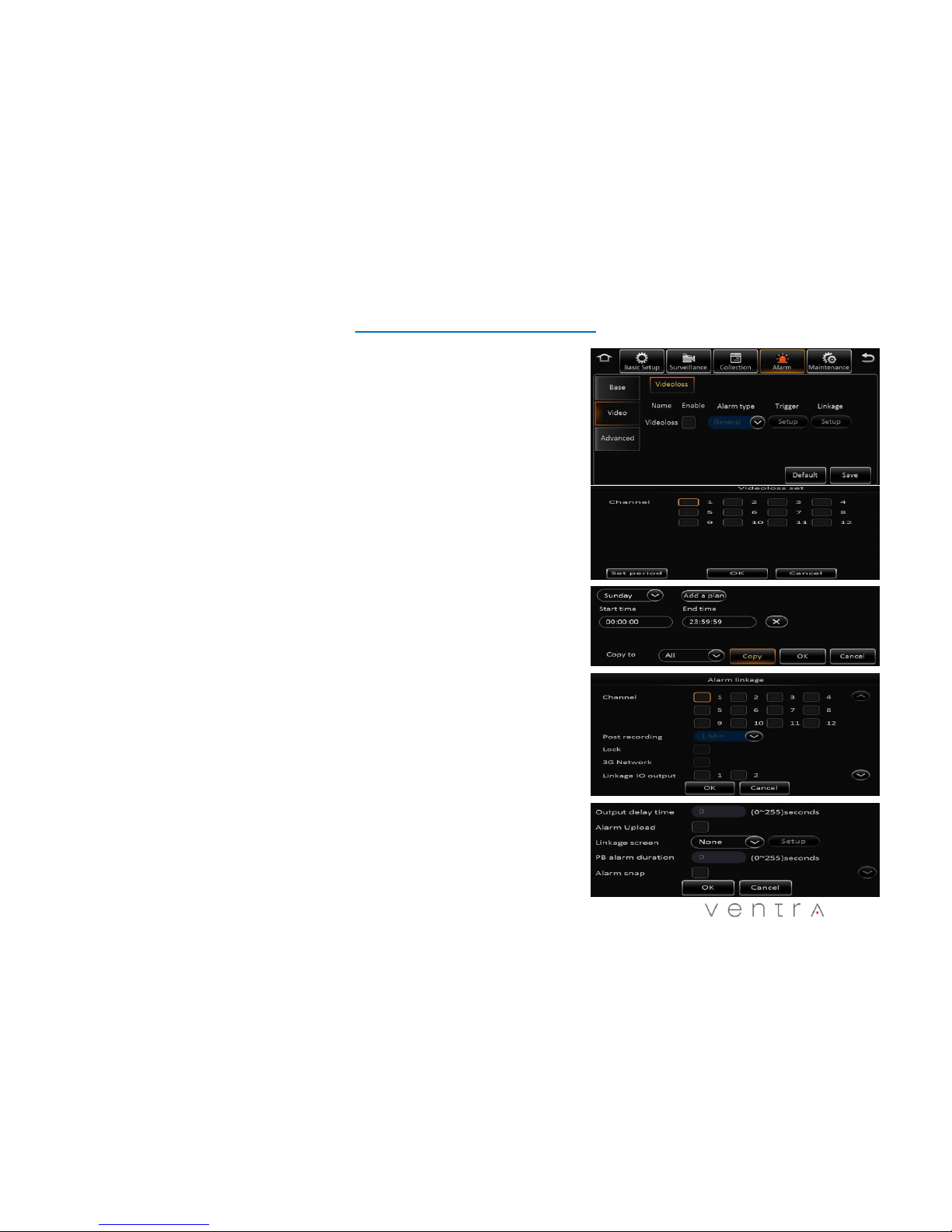

6.3 Alarm – Video Loss
Enable / Disable Video loss Alarm
Alarm Type: Important or General
Trigger: Channel selection
Channel: Select channels to detect video loss
Set Period / Schedule: Create schedule for video loss detection
Channel: XDR supports multiple cameras to be assigned for recording when
specific alarm is triggered
Post Recording: Duration of recording to be marked as post alarm event
Lock: Lock specific alarm recording to keep for specified duration – refer to
section 4.3 General > Surveillance > Record > Lock Duration days 1 – 31 days
3G: Applicable only for the XDR-580H
Linkage Output: 1 or 2 – Enable link alarm output when alarm is triggered
Output delay Time: alarm output duration after alarm is removed 0 – 255 secs
Alarm upload: Enable to upload to platform (Only on XDR-580)
Linkage screen: Link channel to show full image when alarm is triggered
PB alarm duration: Available alarm duration after urgent alarm is removed
Alarm snap: Enable to link image snapshot
Alarm – Base Configuration
43

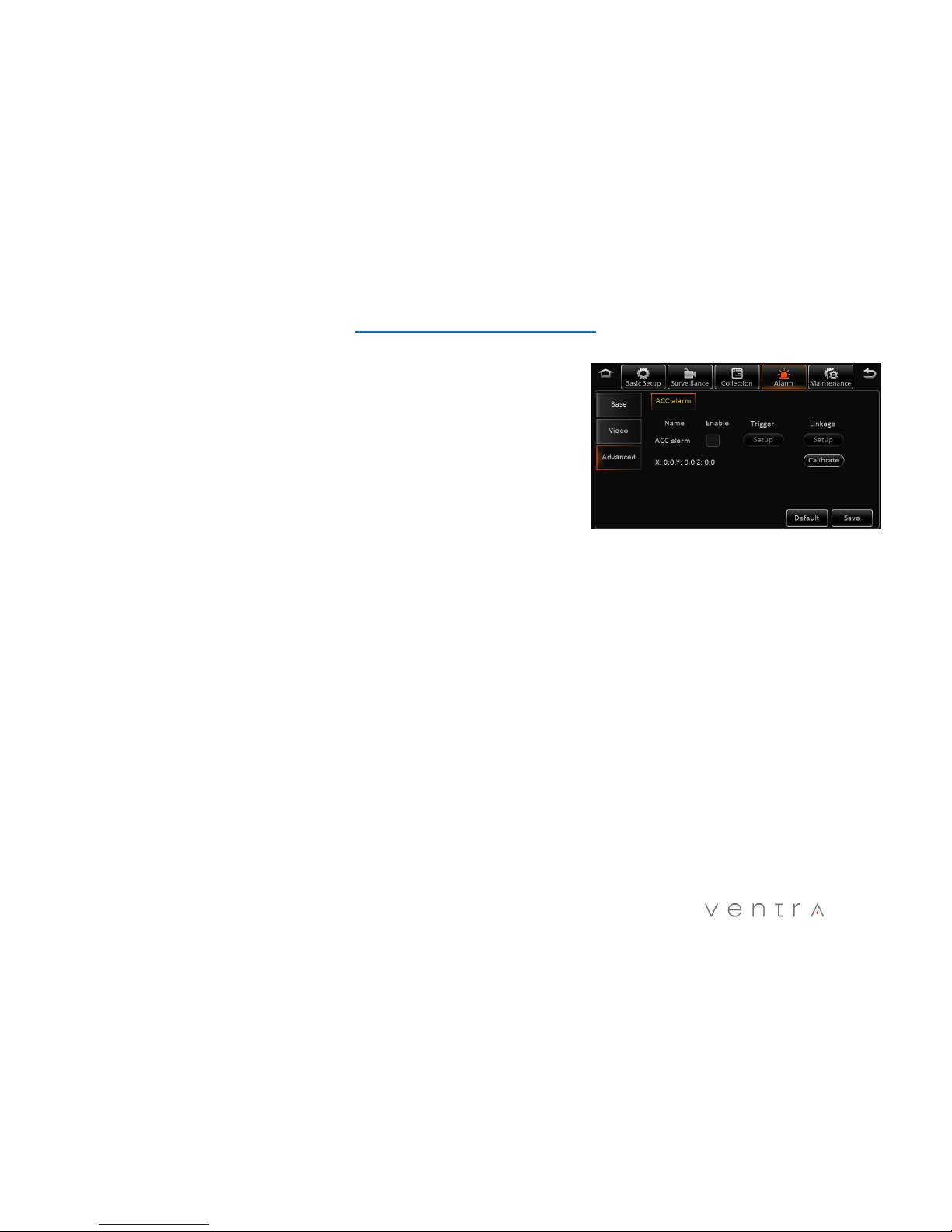

6.4 Alarm – Advanced
G Sensor Alarm – Feature Currently Not Available
Maintenance – Configuration
44

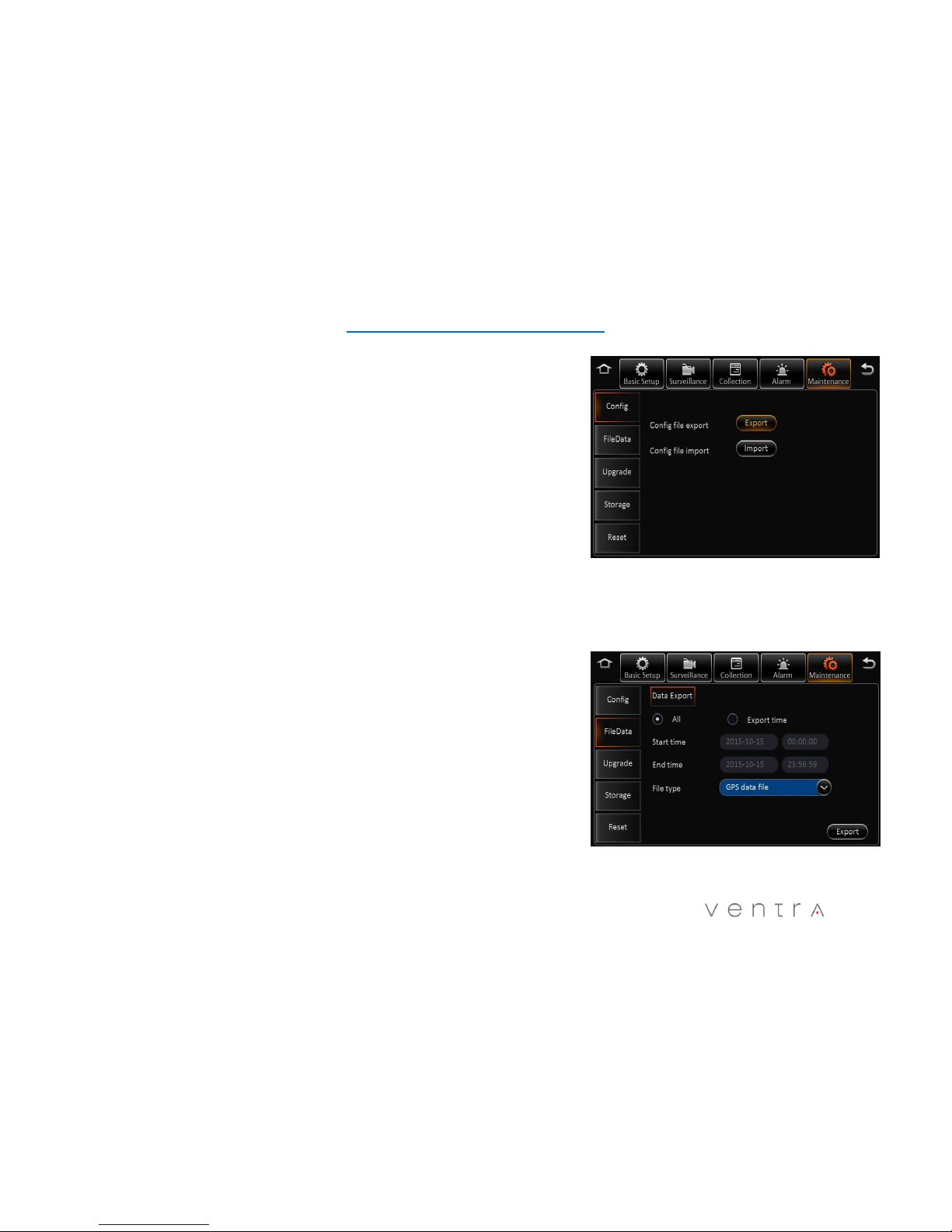

7.0 Maintenance – Configuration File Import / Export
NOTE: If using both corded USB mouse to control and USB thumb drive for Firmware
storage, a USB hub may be used to provide multiple USB port
In the configuration menu, user can export and or import configuration
file for system settings. This can be used for restoring a system, loading
templates for setting up multiple XDR with same configuration.
• Insert USB Thumb drive to export the configuration file to the root
folder, file name is ConfigFile
• Insert flash drive to import configuration file into XDR. System will
display notice when import successfully completed
Remark: Config file does not import the register info and speed adaption info.
7.1 Maintenance – File Data Export Setup
XDR supports exporting of data to USB thumb drive for specific file and time
frame
Data Export File Type: GPS data file, vehicle info file, ACC info file, CAN info
file, Dial info and Captured pic.
• Select All or specific time period to export
• Select start and end time
• Select file type
Maintenance – Upgrade
45
7.2 Maintenance – Upgrade (Firmware)
NOTE: If using both corded USB mouse to control and USB thumb drive for
Firmware storage, a USB hub may be used to provide multiple USB port
In the Upgrade menu, user can update Firmware for XDR, EX5-HD camera
(IPC) or EX4-PGM (CP4) programming tablet.
• Download and Copy firmware to a BLANK USB thumb drive
• Firmware must be saved into a folder labeled “upgrade” on the USB drive
• Insert USB Thumb drive to USB port and select specific Upgrade
• System will reboot and display notice when import successfully completed
For latest firmware, visit www.ventrainc.com
Maintenance – Storage Format
46
7.3 Maintenance – Storage Format
NOTE: Do NOT insert or remove the SD card when the system is powered on, it
may cause system error and corrupt recording files
XDR uses a proprietary file format, all HDD and SD cards MUST be formatted
in the XDR prior to recording.
USB thumb drive does NOT require formatting for file export/import
Storage type: Refer to HDD / SD card requirement and specification on PAGE 7
HDD (Internal) 1TB Max
SD card (Internal) - Max 128GB per slot- U1 speed minimum
USB drive for File Export, Settings Import/Export, Firmware updates
• Insert HDD and or SD card (if applicable) while system is powered off
• Select Format for storage device
• Once format is completed, capacity of each device will be displayed
• Not Found: XDR didn’t detect SD card (not install or card malfunction)
• Unformatted: SD card detected, but unformatted (New HDD)
Product Warranty
Product WarrantyProduct Warranty
Product Warranty
Ventra Technology warrants the system against defects in material and workmanship for a period of one (1) year from the date of original purchase. During this period,
Ventra’s liability for any defective product, or any product part, shall be limited to the repair or replacement of the product, at Ventra’s sole discretion.
This warranty does not apply to defects or damages resulting from mishandling, accident, abuse, negligence, lightning, water/liquid, power surges, improper interfacing,
operation outside of design limits, misapplication, improper repair, or unauthorized modification.
The term "Ventra Product" is limited to the hardware components and required firmware. It DOES NOT include software applications or programs, non-Ventra products
or peripherals. To the extent permitted by local law, all non-Ventra products or non-Ventra branded peripherals - such as external storage HDD and SD card are provided
by the respective manufacturer's own warranties directly to you, and are not covered by this Limited Warranty.
To obtain service within the warranty period, please contact Ventra at (888) 418 3833 or tech@ventrainc.com for assistance. If product repair or replacement is
necessary, a Return Merchandise Authorization (RMA) will be issued. The Customer will be solely responsible for shipping charges, insurance and proper packaging to
prevent breakage in transit, whether or not the product is covered by this warranty. All shipments of repaired or replaced products by Ventra will be F.O.B. California.
VENTRA MAKES NO OTHER WARRANTIES, EXPRESS OR IMPLIED, AS TO MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE OF ANY PRODUCT SOLD UNDER
THIS CONTRACT. UNDER NO CIRCUMSTANCES SHALL VENTRA BE LIABLE FOR ANY INDIRECT, INCIDENTAL, SPECIAL, PUNITIVE OR CONSEQUENTIAL DAMAGES
INCLUDING, WITHOUT LIMITATION, INFRINGEMENT OF THIRD PARTY RIGHTS, LOST GOODWILL, LOST REVENUES OR PROFITS, WORK STOPPAGE, DATA LOSS, SYSTEM
FAILURE, IMPAIRMENT OF OTHER GOODS, COSTS OF REMOVAL AND REINSTALLATION OF THE SYSTEM, LOSS OF USE, INJURY TO PERSONS OR PROPERTY ARISING
OUT OR RELATED TO THE SYSTEM WHETHER BASED ON BREACH OF WARRANTY, BREACH OF CONTRACT, TORT OR OTHERWISE. IN NO EVENT SHALL VENTRA’s
LIABILITY EXCEED THE ACTUAL PURCHASE PRICE OF THE SYSTEM WITH RESPECT TO WHICH ANY CLAIM IS MADE.
The information in this specification sheet reflects the current technical specifications at the time of print. Ventra reserve the right to change the technical or physical
specifications and features without prior notification.
While every effort has been made to ensure the accuracy of the information, certain specifications are based on approximate figures
All trademarks, service marks, trade names, product names and logos are the property of their respective owners.
47
1578 W. San Bernardino Rd. # E, Covina, CA. 91722 USA
www.ventrainc.com / info@ventrainc.com
Tel: 888 418 3833
Innovative solutions in vehicle and mobile video technology
Loading...
