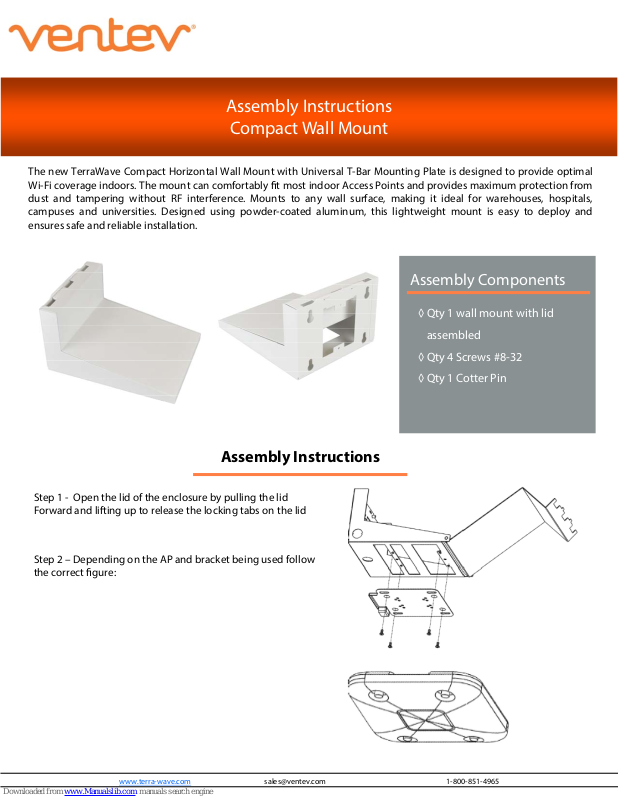

Assembly Instructions
Compact Wall Mount
The new TerraWave Compact Horizontal Wall Mount with Universal T-Bar Mounting Plate is designed to provide optimal
Wi-Fi coverage indoors. The mount can comfortably t most indoor Access Points and provides maximum protection from
dust and tampering without RF interference. Mounts to any wall surface, making it ideal for warehouses, hospitals,
campuses and universities. Designed using powder-coated aluminum, this lightweight mount is easy to deploy and
ensures safe and reliable installation.
Assembly Components
◊ Qty 1 wall mount with lid
assembled
◊ Qty 4 Screws #8-32
◊ Qty 1 Cotter Pin
Assembly Instructions
Step 1 - Open the lid of the enclosure by pulling the lid
Forward and lifting up to release the locking tabs on the lid
Step 2 – Depending on the AP and bracket being used follow
the correct gure:
www.terra-wave.com [email protected] 1-800-851-4965
Page 2
Assembly Instructions
Compact Wall Mount
Step 2.1a (Cisco AP with low prole mount) – Use qty 4 screws #8-32 provided to securely fasten the Cisco bracket as
shown in Figure 1.
Figure 2
Step 2.1b (Cisco AP with universal mount) - Use qty 2 screws #8-32 provided to securely fasten the Cisco universal
bracket as shown in Figure 1.
Step 2.1.5 – If a lock is not used, slip the cotter pin provided in place to secure the AP to the Cisco bracket as shown in
Figure 3. This will prevent the AP from accidently being dislodged.
www.terra-wave.com [email protected] 1-800-851-4965
Figure 3
Page 3
Assembly Instructions
Compact Wall Mount

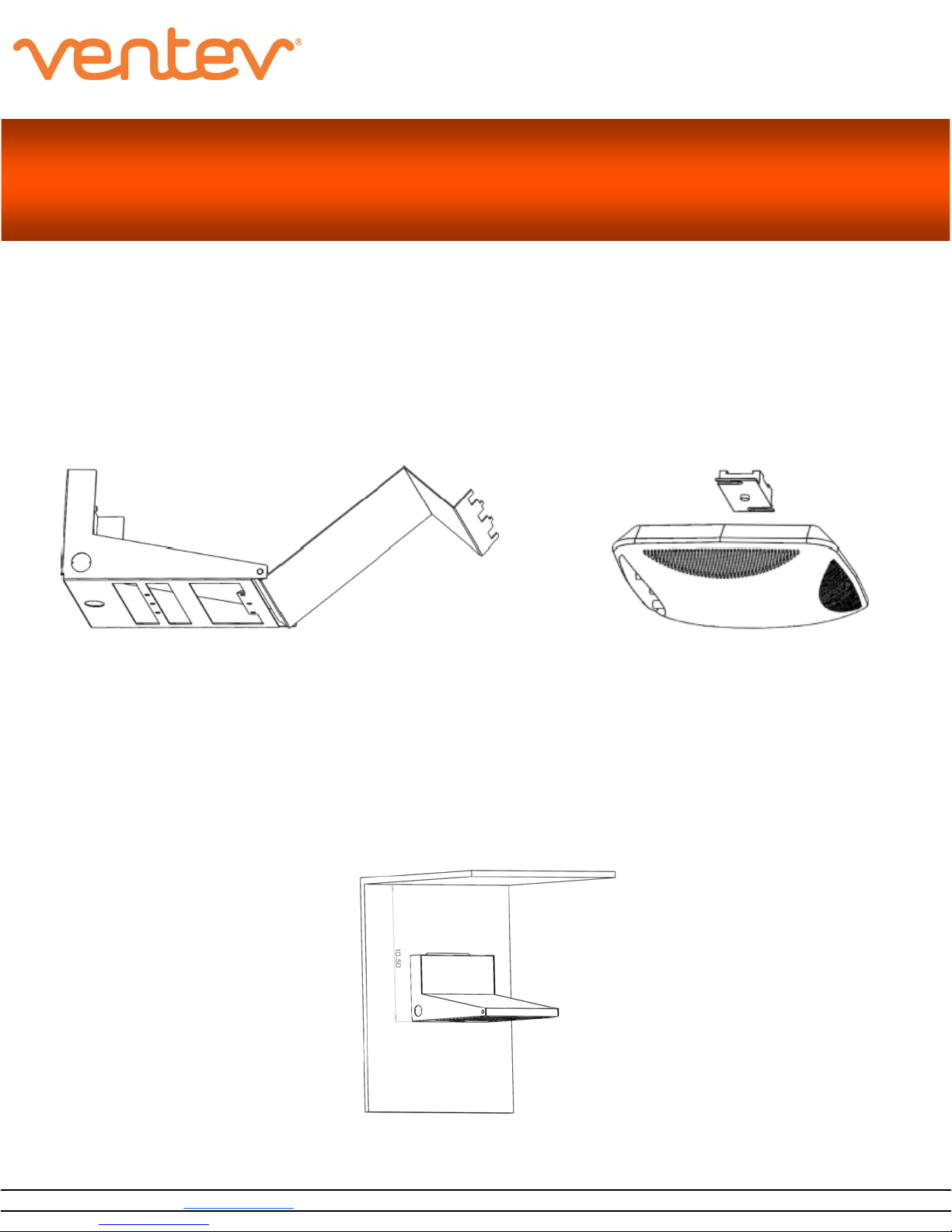

Step 2.2 (Aruba or other T bar mounted AP) – Fasten the AP clip onto the built in T-Bar
Step 3 –Clamps can be installed by removing the ½” trade size conduit knock outs if required
Step 4 – Place the enclosure on the wall where it is to be installed. The enclosure can be mounted directly to a junction
box or use the key holes to mount to any wall. Make sure to leave a minimum of 10 1/2“ from the bottom of the enclosure
to the ceiling so the door can be opened/closed.
Figure 4
Proper screws and wall anchors are the responsibility of the installer.
Step 5 – Run the data and power cables into the enclosure and attach to the AP
Step 6 – Attach AP to enclosure
Step 7 – Close lid until it snaps shut. Installation is now complete.
www.terra-wave.com [email protected] 1-800-851-4965
Figure 5
