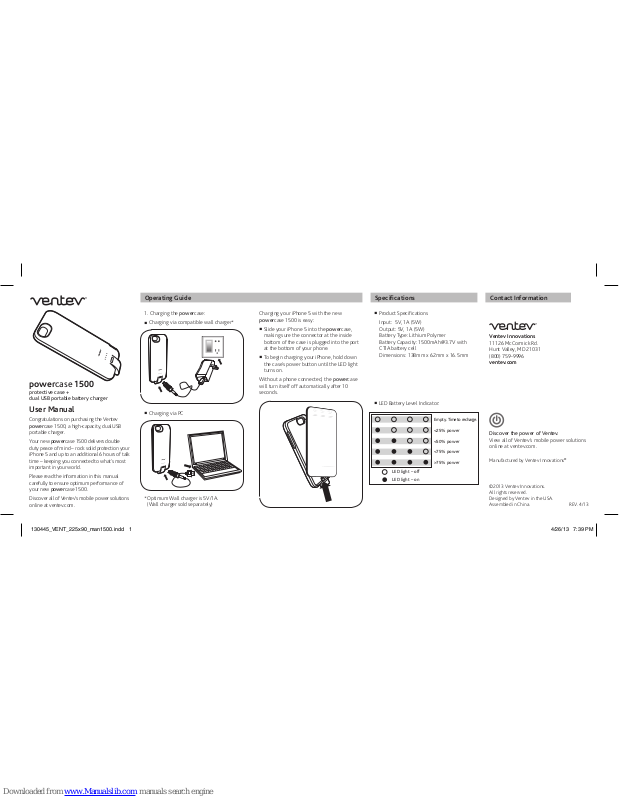

Page 1
powercase 1500
protective case +
dual USB portable battery charger
User Manual
Congratulations on purchasing the Ventev
powercase 1500, a high-capacity, dual USB
portable charger.
Your new powercase 1500 delivers double
duty peace of mind – rock solid protection your
iPhone 5 and up to an additional 6 hours of talk
time – keeping you connected to what’s most
important in your world.
Please read the information in this manual
carefully to ensure optimum performance of
your new powercase 1500.
Discover all of Ventev’s mobile power solutions
online at ventev.com.
◼
Product Specifications
Input: 5V, 1A (5W)
Output: 5V, 1A (5W)
Battery Type: Lithium Polymer
Battery Capacity: [email protected] with
CTIA battery cell
Dimensions: 138mm x 62mm x 16.5mm
◼
LED Battery Level Indicator:
Empty. Time to recharge.
<25% power
<50% power
<75% power
>75% power
LED light – on
LED light – off
1. Charging the powercase:
◼
Charging via compatible wall charger*
◼
Charging via PC
* Optimum Wall charger is 5V/1A.
(Wall charger sold separately)
Operating Guide Specifications
Charging your iPhone 5 with the new
powercase 1500 is easy:
◼
Slide your iPhone 5 into the powercase,
making sure the connector at the inside
bottom of the case is plugged into the port
at the bottom of your phone.
◼
To begin charging your iPhone, hold down
the case’s power button until the LED light
turns on.
Without a phone connected, the powercase
will turn itself off automatically after 10
seconds.
Ventev Innovations
11126 McCormick Rd.
Hunt Valley, MD 21031
(800) 759-9996
ventev.com
Discover the power of Ventev.
View all of Ventev’s mobile power solutions
online at ventev.com.
Manufactured by Ventev Innovations
®
©2013 Ventev Innovations.
All rights reserved.
Designed by Ventev in the USA.
Assembled in China.
REV. 4/13
Contact Information
130445_VENT_225x90_man1500.indd 1 4/26/13 7:39 PM
Page 2
powercase 1500
protective case +
dual USB portable battery charger
User Manual
◼
Do not expose the powercase to direct
sunlight for long periods of time, or
leave it any place with high temperature
or high humidity.
◼
Discharge and recharge the powercase
periodically if you don’t plan to use it for
an extended period of time.
Ventev Innovations warrants to the original purchaser of this product that it is free from defects
in material and workmanship and that if used in accordance with any accompanying labels or
instructions, it will perform as specified for one year from the date of purchase. This limited
warranty does not cover damages caused by accident, misuse, modification, or normal wear and
tear. This warranty is Ventev Innovations’ only warranty. There are no other warranties,
expressed or implied, including any warranty of merchantibility or fitness for a particular
purpose; and purchaser’s remedy if this warranty is not met, is limited to repair or replacement,
as stated above.
Maintenance
◼
Do not expose the product to fire or
other high temperature environments.
◼
Do not expose the product to water.
◼
Stop using if any of the following
conditions occur: electrolytic liquid
leakage, overheating, color change,
or any other unusual conditions.
Safety Precautions
◼
Standard Components
1. Powercase 1500 ( Pic.1 )
2. Micro USB Cable ( Pic.2 )
3. User Manual
( Pic.2 )
Micro USB Cable
Features
Ventev Limited
Warranty
5V, 1A (5W) Output
Fully accessible headset
jack; no adaptor necessary
with most models
Device controls and
camera remain fully
functional through case
2-piece protective
case snaps easily
on and off
( Pic.1 )
130445_VENT_225x90_man1500.indd 2 4/26/13 7:39 PM
