Ventev 2300 User Manual
powercase 2300
protective case +
built-in portable battery charger
User Manual
Congratulations on purchasing the Ventev
powercase 2300, a high-capacity, portable
charging case.
Your new powercase 2300 delivers double duty
peace of mind – rock solid protection for your
Samsung Galaxy S
13 hours of talk time – keeping you connected
to what’s most important in your world.
Please read the information in this manual
carefully to ensure optimum performance of
your new powercase 2300.
Discover all of Ventev’s mobile power solutions
online at ventev.com.
®
4 and up to an additional

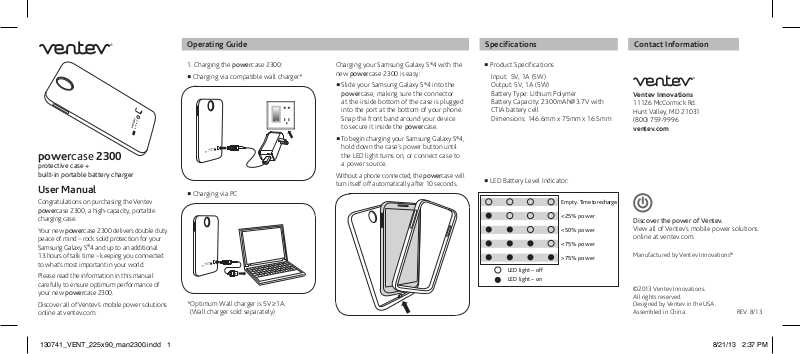

Operating Guide Specifications
1. Charging the powercase 2300:
◼
Charging via compatible wall charger*
◼
Charging via PC
* Optimum Wall charger is 5V ≥1A.
(Wall charger sold separately)
Charging your Samsung Galaxy S®4 with the
new powercase 2300 is easy:
◼
Slide your Samsung Galaxy S
powercase, making sure the connector
at the inside bottom of the case is plugged
into the port at the bottom of your phone.
Snap the front band around your device
to secure it inside the powercase.
◼
To begin charging your Samsung Galaxy S
hold down the case’s power button until
the LED light turns on, or connect case to
a power source.
Without a phone connected, the powercase will
turn itself off automatically after 10 seconds.
®
4 into the
◼
Product Specifications
Input: 5V, 1A (5W)
Output: 5V, 1A (5W)
Battery Type: Lithium Polymer
Battery Capacity: 2300mAh@3.7V with
CTIA battery cell
Dimensions: 146.6mm x 75mm x 16.5mm
®
4,
◼
LED Battery Level Indicator:
LED light – off
LED light – on
Empty. Time to recharge.
<25% power
<50% power
<75% power
>75% power
Contact Information
Ventev Innovations
11126 McCormick Rd.
Hunt Valley, MD 21031
(800) 759-9996
ventev.com
Discover the power of Ventev.
View all of Ventev’s mobile power solutions
online at ventev.com.
Manufactured by Ventev Innovations
©2013 Ventev Innovations.
All rights reserved.
Designed by Ventev in the USA.
Assembled in China.
®
REV. 8/13
130741_VENT_225x90_man2300.indd 1 8/21/13 2:37 PM
Safety Precautions
◼
Do not expose the product to fire or
other high temperature environments.
◼
Do not expose the product to water.
◼
Stop using if any of the following
conditions occur: electrolytic liquid
leakage, overheating, color change,
or any other unusual conditions.
Maintenance
◼
Do not expose the powercase to direct
sunlight for long periods of time, or
leave it any place with high temperature
or high humidity.
◼
Discharge and recharge the powercase
periodically if you don’t plan to use it for
an extended period of time.
Features
◼
Standard Components
1. Powercase 2300 ( Pic.1 )
2. Micro USB Cable ( Pic.2 )
3. User Manual
Headphone Access
(no adapter needed)
Camera Access
Device Controls
Remain Fully
Functional
powercase 2300
protective case +
built-in portable battery charger
User Manual
Ventev Limited
Warranty
Ventev Innovations warrants to the original purchaser of this product that it is free from defects
in material and workmanship and that if used in accordance with any accompanying labels or
instructions, it will perform as specified for one year from the date of purchase. This limited
warranty does not cover damages caused by accident, misuse, modification, or normal wear and
tear. This warranty is Ventev Innovations’ only warranty. There are no other warranties,
expressed or implied, including any warranty of merchantibility or fitness for a particular
purpose; and purchaser’s remedy if this warranty is not met, is limited to repair or replacement,
as stated above.
130741_VENT_225x90_man2300.indd 2 8/21/13 2:37 PM
( Pic.2 )
Micro USB Cable
( Pic.1 )
2-piece design
for easy installation
5V, 1A (5W)
Output
