Page 1
Sentinel
Kinetic MVHR
and
Kinetic Plus MVHR
Installation & Commissioning
Stock Ref. N°
438222 Kinetic B
438222A Kinetic BS
443319 Kinetic BH
443319A Kinetic S BH
438342 Kinetic V
438342A Kinetic VS
443028 Kinetic Plus B
447938 Kinetic Plus BS
443029 Kinetic Plus CVP
PLEASE RETAIN THESE INSTRUCTIONS WITH THE PRODUCT.
Copyright © 2009 Vent-Axia Limited. All rights reserved.
Page 2
Warnings & Safety Information
IMPORTANT
PLEASE READ THESE INSTRUCTIONS
CAREFULLY BEFORE COMMENCING
INSTALLATION.
1. DO NOT INSTALL THIS PRODUCT IN AREAS WHERE THE
FOLLOWING MAY BE PRESENT OR OCCUR:
• EXCESSIVE OIL OR A GREASE LADEN ATMOSPHERE.
• CORROSIVE OR FLAMMABLE GASES, LIQUIDS OR
VAPOURS.
• SUBJECT TO DIRECT WATER SPRAY FROM HOSES.
• AMBIENT TEMPERATURES HIGHER THAN 40°C AND
LOWER THAN -20°C.
• POSSIBLE OBSTRUCTIONS THAT MAY HINDER
ACCESS TO OR REMOVAL OF THE UNIT.
2. ALL WIRING MUST BE IN ACCORDANCE WITH THE
CURRENT IEE WIRING REGULATIONS BS7671, OR
APPROPRIATE STANDARDS OF YOUR COUNTRY.
INSTALLATION SHOULD BE INSPECTED AND TESTED BY A
SUITABLY QUALIFIED PERSON AFTER COMPLETION.
3. WHEN INSTALLING UNIT, TAKE CARE NOT TO DAMAGE
ELECTRICAL OR OTHER HIDDEN UTILITIES.
4. THE INSTALLER IS RESPONSIBLE FOR THE INSTALLATION
AND ELECTRICAL CONNECTION OF THE SENTINEL SYSTEM
ON SITE. IT IS THE RESPONSIBILITY OF THE INSTALLER TO
ENSURE THAT THE EQUIPMENT IS SAFELY AND SECURELY
INSTALLED AND LEFT ONLY WHEN MECHANICALLY AND
ELECTRICALLY SAFE.
5. ALL REGULATIONS AND REQUIREMENTS MUST BE
STRICTLY FOLLOWED TO PREVENT HAZARDS TO LIFE AND
PROPERTY, BOTH DURING AND AFTER INSTALLATION, AND
DURING ANY SUBSEQUENT SERVICING AND MAINTENANCE.
6. THE UNIT SHOULD BE PROVIDED WITH A LOCAL DOUBLE
POLE FUSED SPUR FITTED WITH A 3A FUSE HAVING A
CONTACT SEPERATION OF AT LEAST 3mm.
7. ENSURE THE MAINS SUPPLY (VOLTAGE, FREQUENCY
AND PHASE) COMPLIES WITH THE RATING LABEL.
8. THESE UNITS MUST BE EARTHED.
9. SENTINEL AIR HANDLING UNITS ARE DESIGNED AND
SPECIFIED FOR USE WITH VENT-AXIA CONTROLS,
DAMPERS, GRILLES AND ACCESSORIES.
10. THE UNIT’S CONDENSATE DRAIN MUST BE CONNECTED
TO THE BUILDING’S FOUL WATER DRAINAGE SYSTEM.
11. IF THE EXTRACT GRILLE ASSOCIATED WITH THE UNIT IS
SITED IN A ROOM CONTAINING A FUEL BURNING
APPLIANCE THE INSTALLER MUST ENSURE THAT AIR
REPLACEMENT IS ADEQUATE FOR BOTH APPLIANCES.
12. CERTAIN APPLICATIONS MAY REQUIRE THE
INSTALLATION OF SOUND ATTENUATION TO ACHIEVE THE
SOUND LEVELS REQUIRED.
13. THE UNIT MUST NOT BE CONNECTED DIRECTLY TO A
TUMBLE DRIER.
14. THE SUPPLY AND EXHAUST VALVES MUST BE FULLY
OPENED PRIOR TO COMMISSIONING.
15. THE SUPPLY AIR MUST BE DRAWN FROM THE EXTERIOR
OF THE PROPERTY.
16. THE INTERNAL AND EXTERNAL CONDENSATE DRAIN
AND ASSOCIATED PIPE WORK MUST BE CLEAR OF DEBRIS
PRIOR TO COMMISSIONING.
17. THE SUPPLY AND EXHAUST CEILING VALVES MUST BE
POSITIONED A MINIMUM OF 300 mm FROM A WALL TO
ENABLE THE AIRFLOW MEASURING EQUIPMENT TO FIT
CORRECTLY OVER THE VALVE.
18. THE UNIT SHOULD BE ALLOWED TO STABILISE DURING
COMMISSIONING FOR A MINIMUM PERIOD OF 5 MINUTES
WHEN CHANGING BETWEEN BOOST AND NORMAL SPEEDS.
19. WHEN FITTED TO A NEW BUILD PROPERTY THE SUPPLY
AND EXHAUST FILTERS SHOULD BE CHECKED AT ONE
MONTH INTERVALS FOR THE FIRST SIX MONTHS.
20. THIS APPLIANCE IS NOT INTENDED FOR USE BY YOUNG
CHILDREN OR INFIRM PERSONS WITHOUT SUPERVISION.
21. YOUNG CHILDREN SHOULD BE SUPERVISED TO ENSURE
THAT THEY DO NOT PLAY WITH THE APPLIANCE.
22. WHEN THIS UNIT IS USED IN CONJUNCTION WITH AN
OPEN FLUE APPLIANCE, AN ELECTRICAL DUCT HEATER
MUST BE PLACED IN THE SUPPLY (COLD FRESH AIR DUCT
COLOUR MARKED GREEN) WHEN USED IN BYPASS MODE.
23. ENSURE THAT THE UNIT’S EXTERNAL GRILLE ARE A
MINIMUM OF 2 m APART AND LOCATED AT LEAST 600 mm
AWAY FROM ANY FLUE OUTLET.
24. IF THE DUCTWORK OR CONDENSATE PIPE PASSES
THROUGH AN UNHEATED LOFT VOID OR SIMILAR LOCATION
IT SHOULD BE INSULATED.
25. THIS PRODUCT AND ASSOCIATED DUCT INSTALLATION
SHOULD BE CARRIED OUT IN ACCORDANCE WITH THE
DOMESTIC VENTILATION COMPLIANCE GUIDE.
Disposal
This product should not be disposed of with
household waste. Please recycle where
facilities exist. Check with your local authority
for recycling advice.
Sentinel Kinetic MVHR Installation & Commissioning 2
Page 3
About this Document
Contents
Product Description 4
Sentinel Kinetic & Sentinel Kinetic Plus ......................................... 4
Technical Data 5

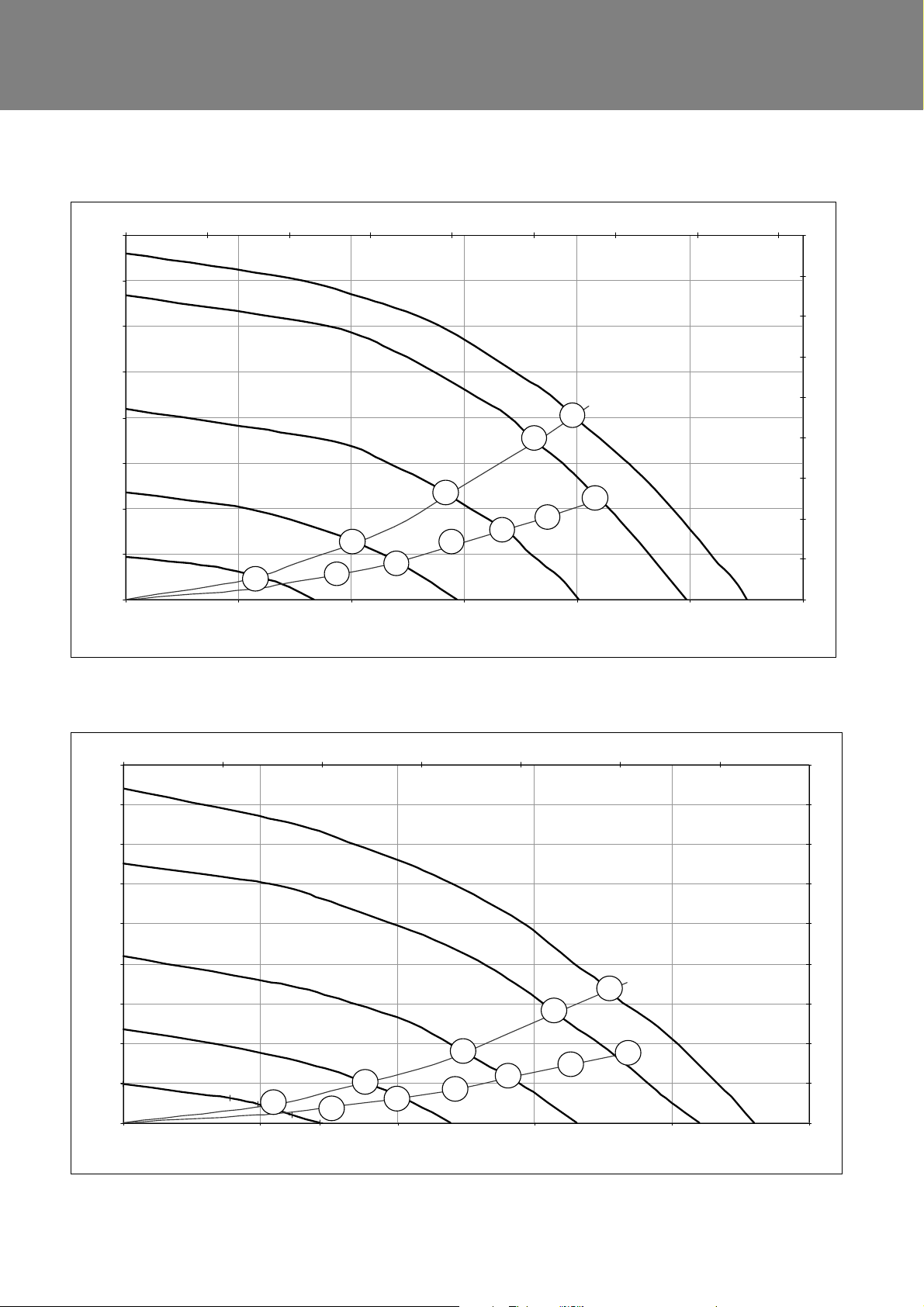

Sentinel Kinetic Performance graph for Horizontal Discharge ....... 8

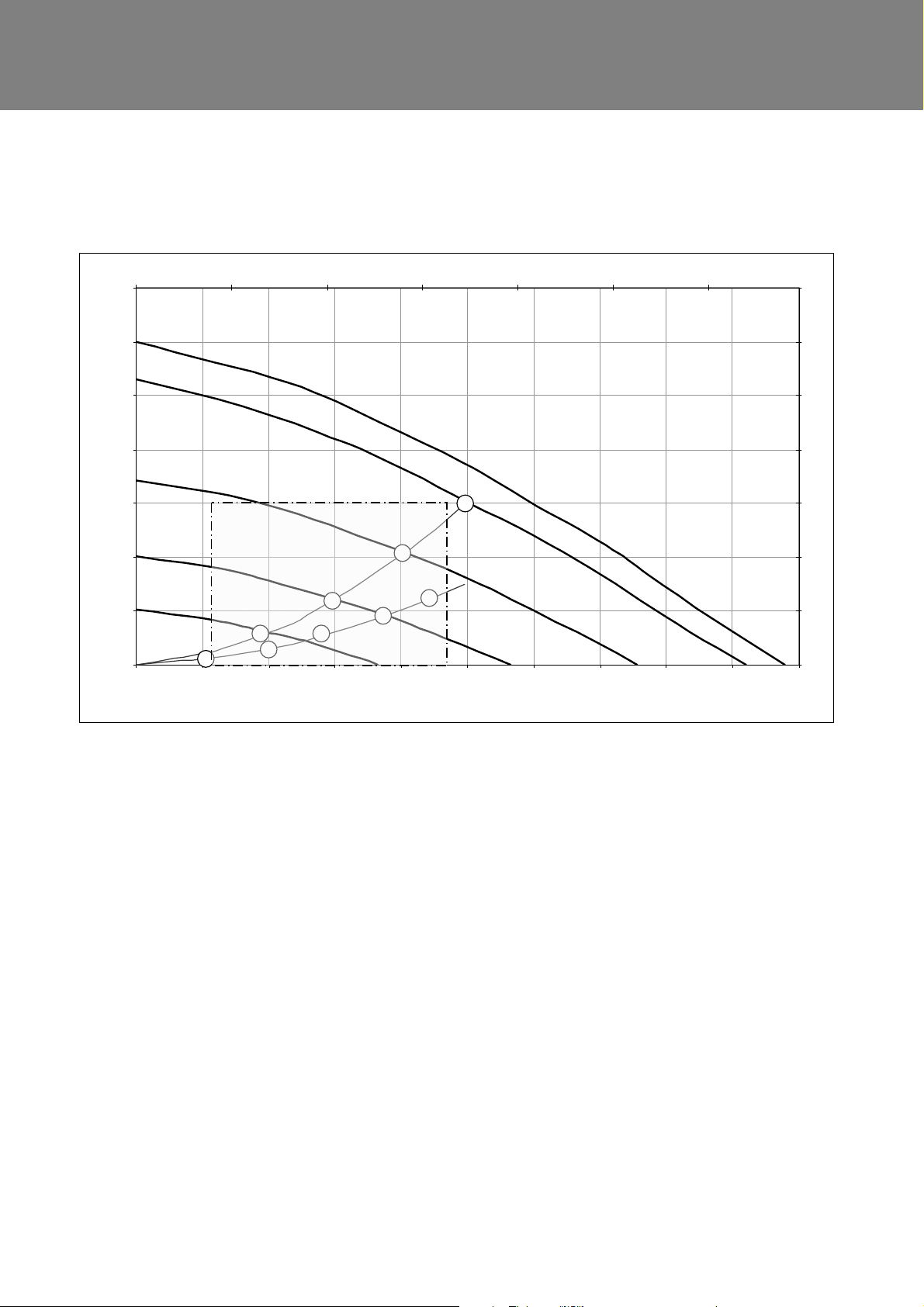

Sentinel Kinetic Plus and Plus CVP Performance graph for Vertical
and Horizontal Discharge ............................................................... 9
Note: Graph shows 2 typical system curves with total unit input
power in Watts and the shaded area of the graph shows constant
volume operation (CVP only).Installation ....................................... 9
Overview ...................................................................................... 10
Before Installation of the Unit ....................................................... 10
Unit Installation ............................................................................. 10

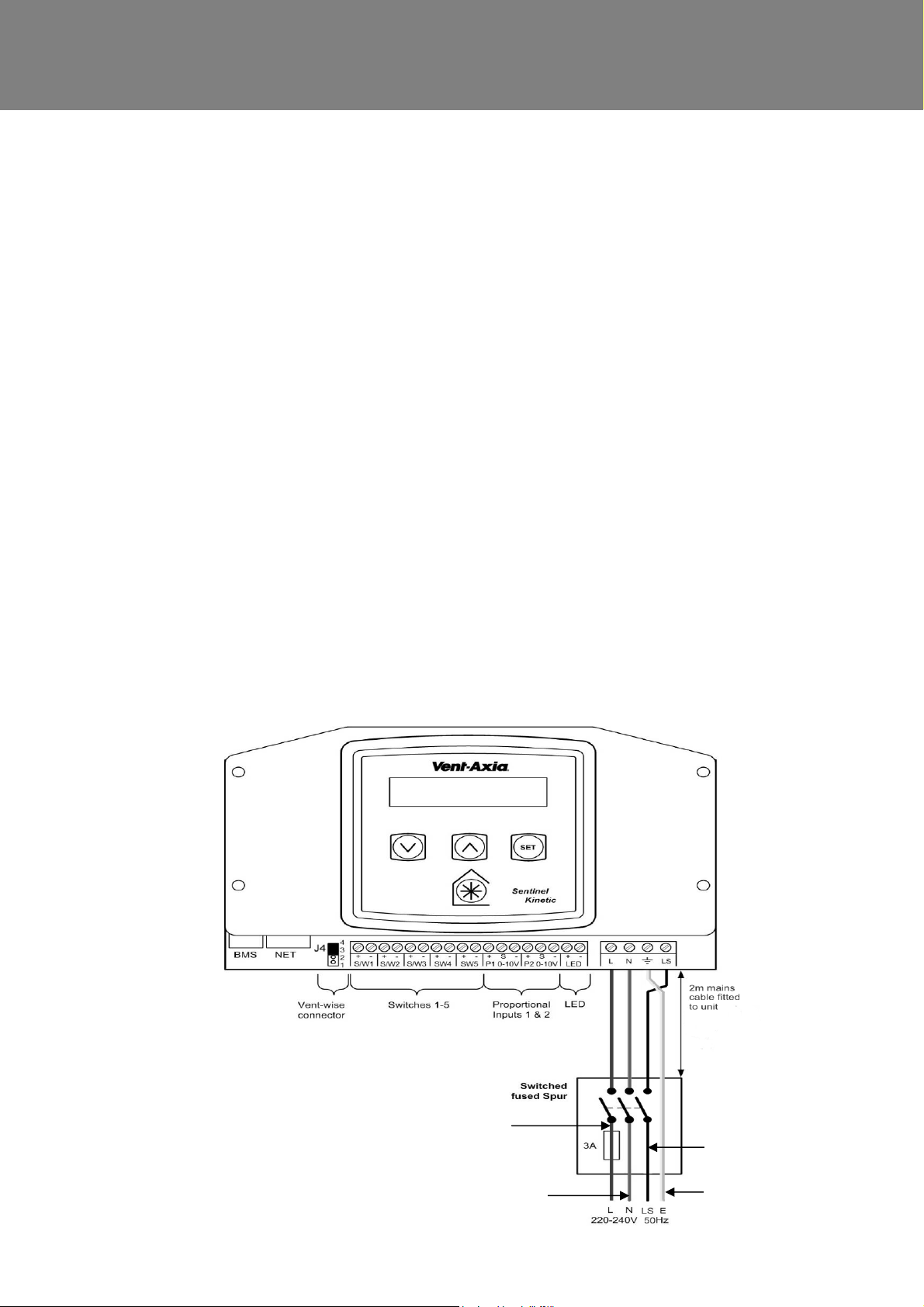

Electrical Installation..................................................................... 20
Powering Up the Unit ................................................................... 23

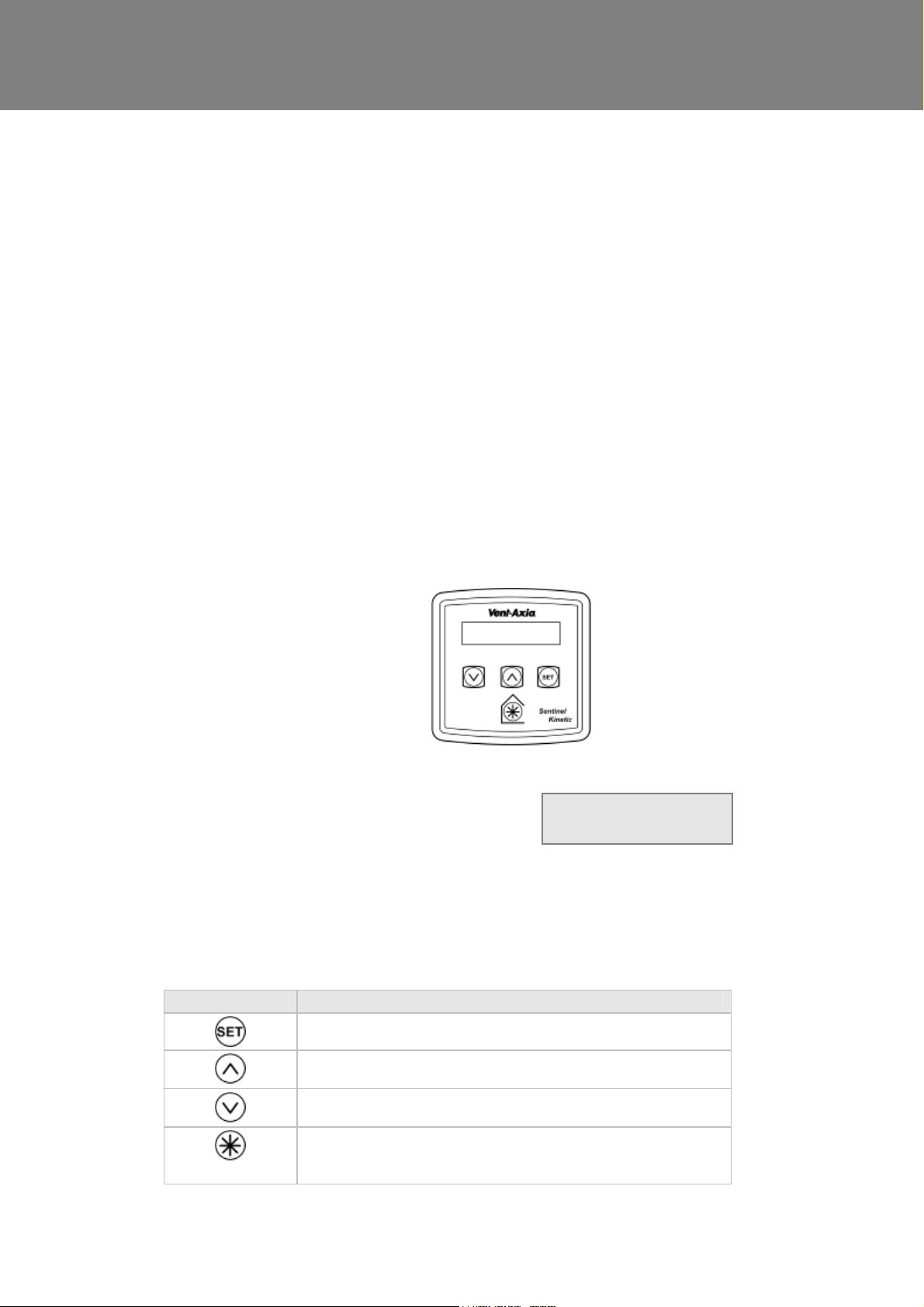

Control Unit Display...................................................................... 23
Start-up Screens .......................................................................... 24
Commissioning 28
Overview ...................................................................................... 28

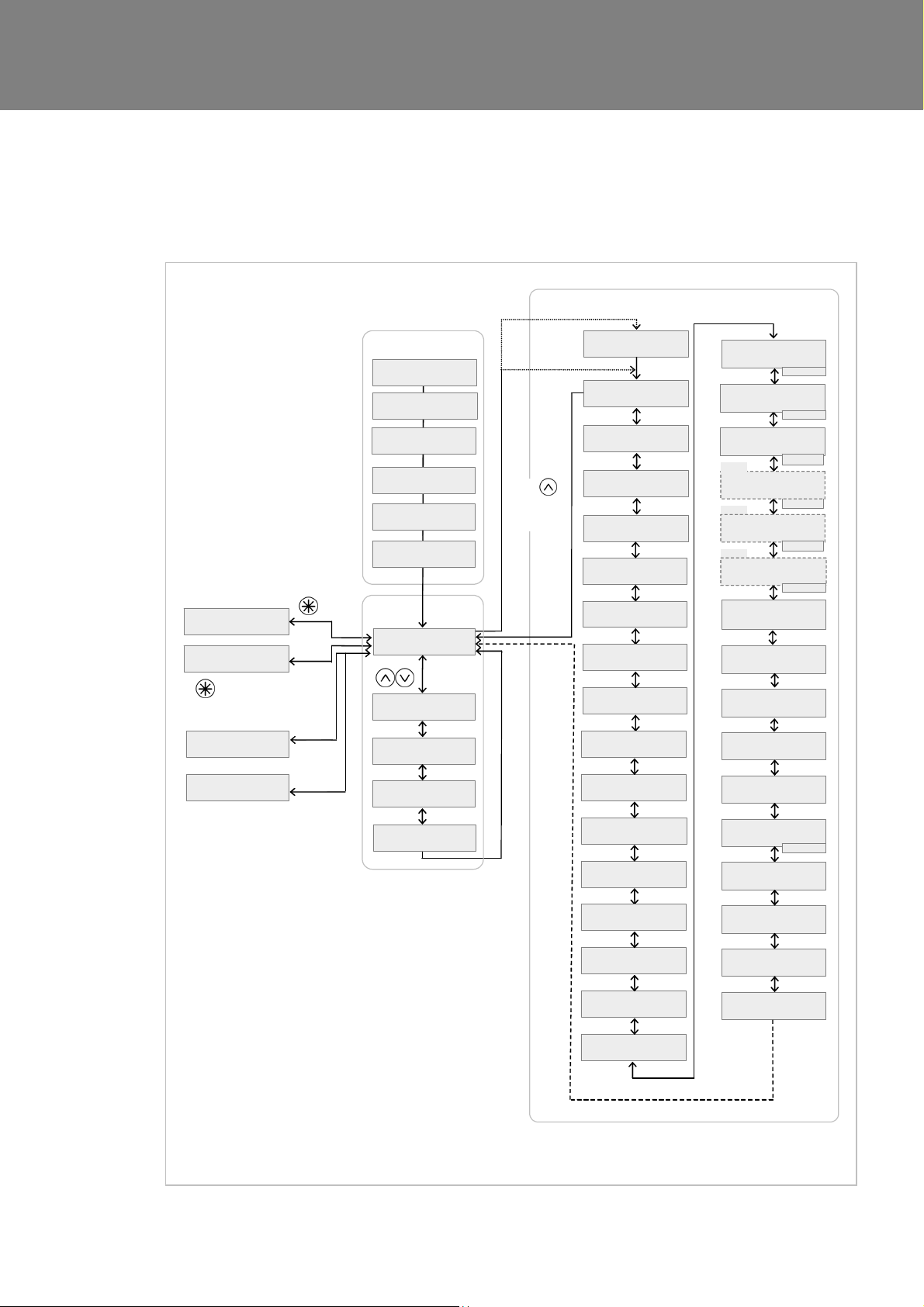

Control Unit Screens Summary .................................................... 29
Commissioning Screens............................................................... 30
Maintenance 40
Filter Maintenance ........................................................................ 40
12 Monthly Maintenance .............................................................. 40

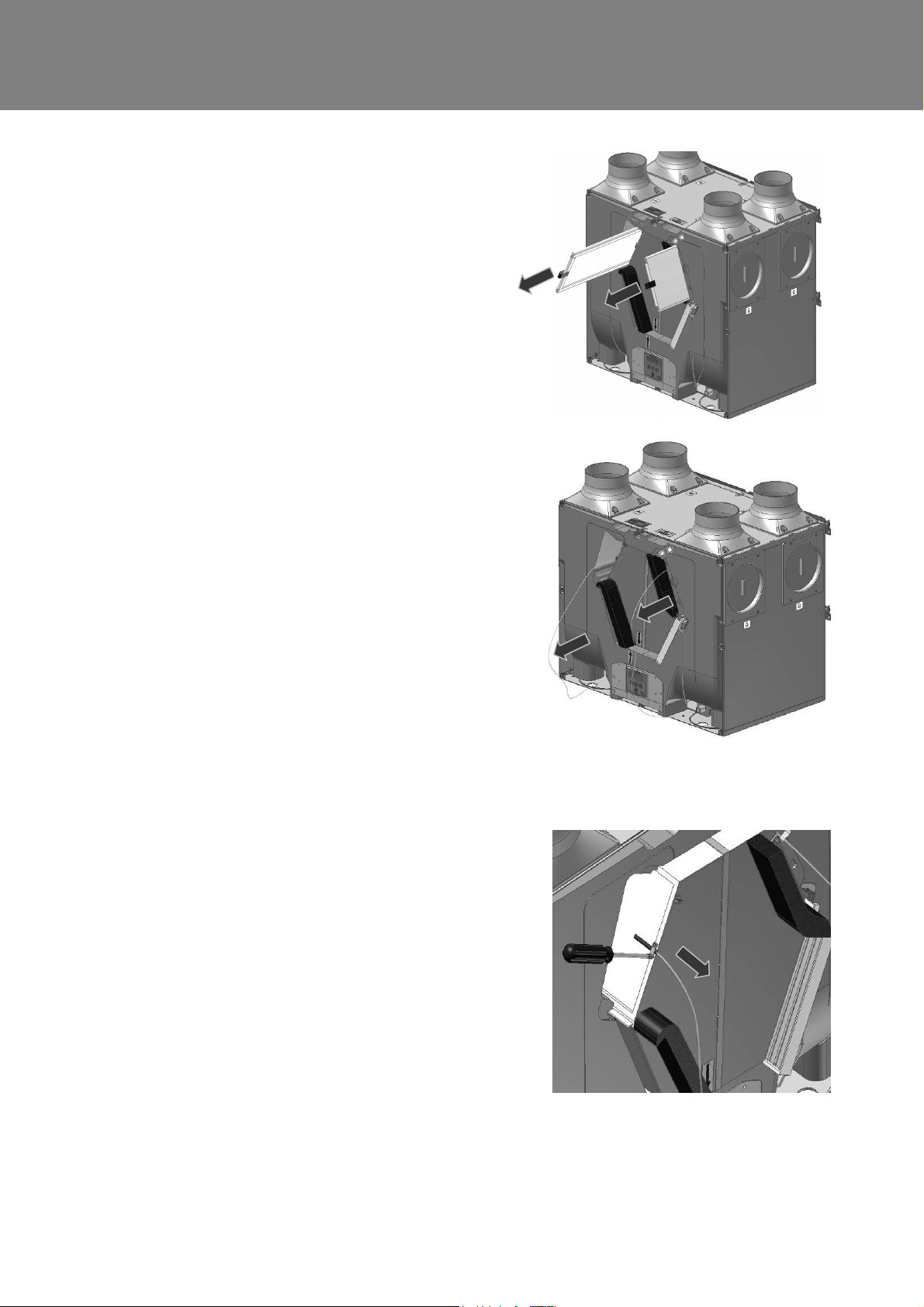

Heat Exchanger Removal Instruction for CVP Unit ...................... 41
Spares .......................................................................................... 43
UK Building Regulations (Part F)
Declaration of Conformance
The Sentinel Kinetic conforms to the 2010 Building
Regulations (Part F - Means of Ventilation requirements) for
installed performance of a ducted mechanical extract fan
when installed in accordance with the instructions in this
document.
Note:
Read in conjunction with the Operating & Monitoring
manual 442073
Troubleshooting 44
Diagnosing a Problem .................................................................. 44
Appendix One: Control Mode 02 Description 46
Overview ...................................................................................... 46

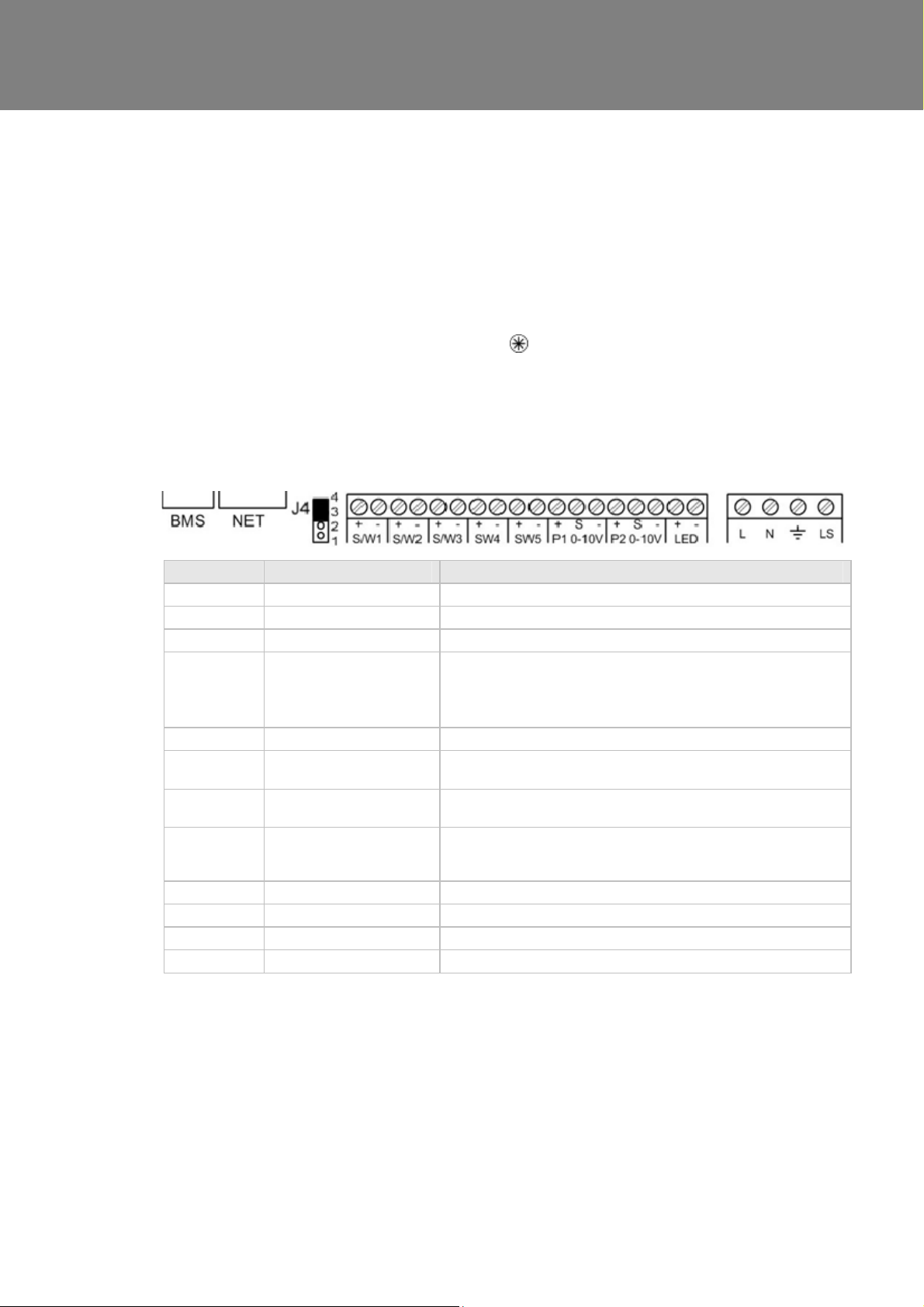

Terminal Connections and Functions ........................................... 46
Airflow Mode Selection ................................................................. 47
Appendix Two: Options and Accessories 48
CO2 Sensor.................................................................................. 48
Normal / Boost Switch .................................................................. 48
Humidistats ................................................................................... 48
Connecting an opto-coupler ......................................................... 48

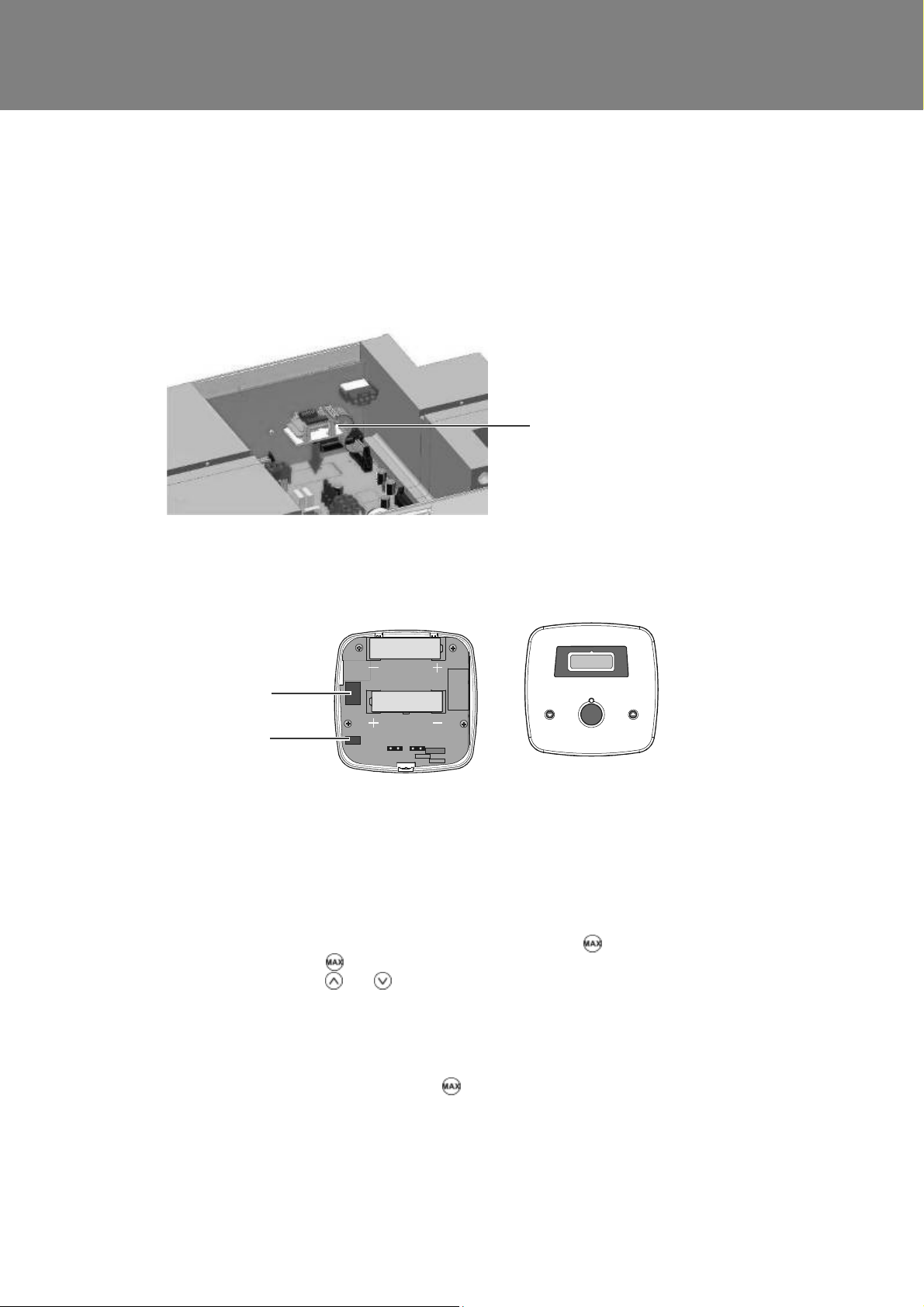

Wireless Enable Kit ...................................................................... 49
Wired Remote Control .................................................................. 50
Isolator Relay Controller ............................................................... 50
Sentinel Kinetic MVHR Installation & Commissioning 3
Page 4
Product Description
Product Description
Sentinel Kinetic & Sentinel Kinetic Plus
The Vent-Axia Sentinel Kinetic & Sentinel Kinetic Plus Mechanical Ventilation/Heat Recovery (MVHR) is a
heat recovery unit designed for the energy efficient ventilation of houses and similar dwellings, conforming to
the latest requirements of the Building Regulations document F 2010.
The unit is designed for continuous 24 hour exhaust ventilation of stale moist air from bathrooms, toilets and
kitchens. As the stale air is extracted, a heat exchanger within the unit transfers up to 90% of the heat into the
supply air entering the bedrooms and lounge.
In addition a Kinetic Plus unit is available that maintains a constant air flow independent of change in the system
pressure.

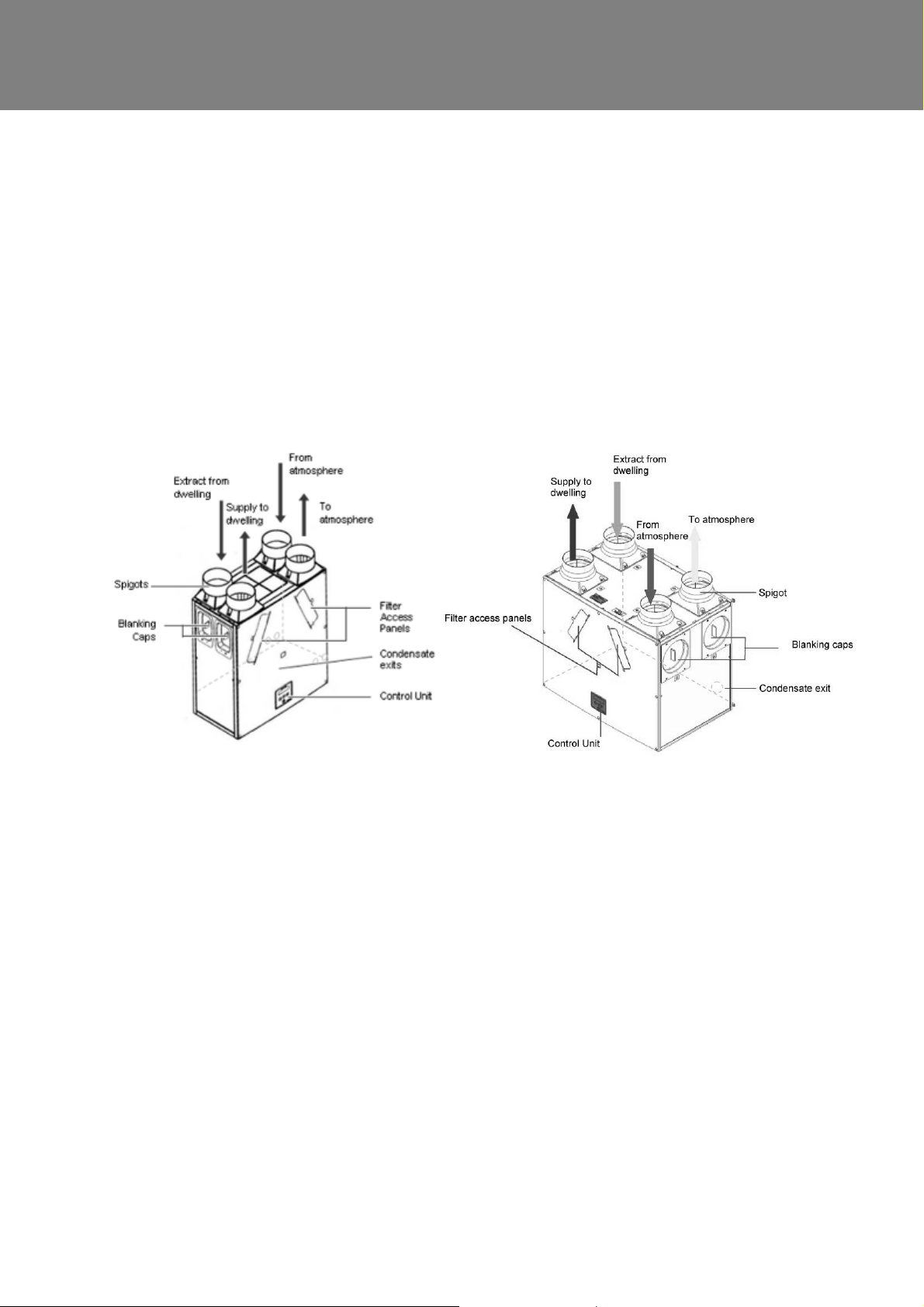

Fig 1: Sentinel Kinetic (Front of Unit as supplied) Fig 2: Sentinel Kinetic Plus (Front of Unit as supplied)
Models
438222 - Sentinel Kinetic B with summer bypass.
438222A - Sentinel Kinetic BS with summer bypass.
443319 - Sentinel Kinetic BH with summer bypass and integral humidity sensor.
443319A - Sentinel Kinetic S BH with summer bypass and integral humidity sensor.
438342 - Sentinel Kinetic V without summer bypass.
438342A - Sentinel Kinetic VS without summer bypass.
443028 - Sentinel Kinetic Plus B with Summer Bypass and integral humidity sensor.
447938 - Sentinel Kinetic Plus BS with Summer Bypass and integral humidity sensor.
443029 - Sentinel Kinetic Plus CVP
Accessories
441838 - Sentinel Kinetic Plug-in integral humidity sensor
441865 - Wireless enable kit (consists of wireless receiver and one wireless switch).
437827 - Additional wireless switch (up to four may be connected).
441780 - Vent-Wise accessory pack – requires sensors.
442367 - Monza System Cooker Hood 600mm wide
442368 - Latina System Cooker Hood 900mm wide
443283 - Wired Remote Control.
447340 - Opto-Coupler
A range of sensors can be used to manage system demand and control the ventilation rate. These include an
internal humidity sensor, humidity sensors for independent mounting in rooms, wireless receiver and wireless
boost switches, CO
options, see www.vent-axia.com
sensor, Vent-Wise sensors, manual switches and pull cords. For these alternative control
2
Sentinel Kinetic MVHR Installation & Commissioning 4
Page 5
Installation
Technical Data
Performance Sentinel Kinetic Sentinel Kinetic Plus
Airflow Maximum, FID, 290 m3/h
Sound levels (@ 3 m) 20 dB(A) (normal), 36 dB(A) (boost) 24 dB(A) (normal), 34 dB(A) (boost)
Power
AC Voltage Input 220-240 V AC (single phase)
AC Frequency Input 50 Hz nominal
Supply Fuse 3 A (located in fused spur)
Product Fuse 2 A (located on main PCB)
Rated Power 150 W (max.) 190 W (max.)
Physical
Height (excluding
spigots)
Width (excluding
spigots)
Depth 285 mm 524 mm including filter flap hinge
Weight 15 kg 24 kg
Spigot diameter 125 mm 150 mm
Condensate pipe
diameter
Environmental
IP Rating IP22
Operating Temperature -20C to +45C
Air Intake Temperature As above
Operating Humidity 0% to 95% RH
Storage Temperature -20C to +45C
Storage Humidity 0% to 95% RH
Software Version V28
Low default 20%
Normal default 30%
Boost default 50%
Purge 100%
(For commissioning graphs see page 8)
550 mm 630 mm
550 mm 775 mm
3
Maximum, FID, 500 m
Low default 20%
Normal default 30%
Boost default 50%
Purge 100%
(For commissioning graphs see 9)
22 mm
/h
protrusion
For all other technical details, please see the Product Catalogue or our website at www.vent-axia.com
Sentinel Kinetic MVHR Installation & Commissioning 5
Page 6
Installation
456
550
650
Allow clearance to
remove filter
285

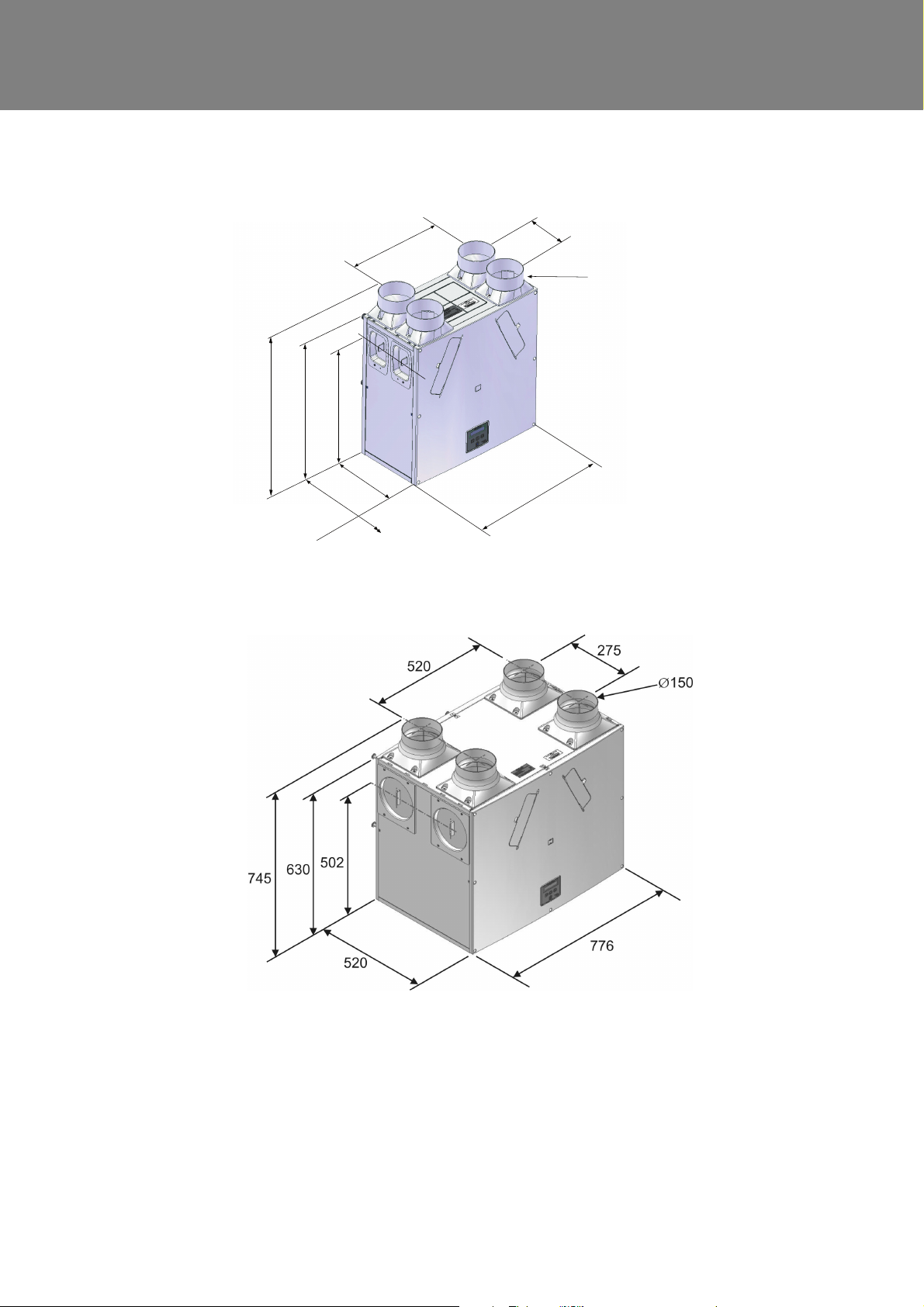

Figure 3: Sentinel Kinetic Dimensions
360
550
140
ø
125
Figure 4: Sentinel Kinetic Plus Dimensions
Sentinel Kinetic MVHR Installation & Commissioning 6
Page 7
Installation
Sentinel Kinetic Range Summer By Pass Models.
The Sentinel Kinetic B, BH, Plus B, Plus BS, S BH, and Plus CVP are fitted with a Summer By Pass (SBP) and
will provide energy-free heating and energy-free cooling when the house temperature and ambient temperature
allows.
If the room is warmer than the set (shown as "indoor") temperature (i.e. you need the room to be cooler) and the
outdoor air is cooler than the actual room temperature (i.e. the outdoor air could cool your room) then the SBP will
open and the unit will supply cooler air to your room.
If the room is cooler than the set ("indoor") temperature (i.e. you need the room heating) and the outdoor air is
warmer than the actual room temperature (i.e. the outdoor air could heat your room) then the SBP will open and
the unit will supply warmer air to your room.
Note that the above only applies whilst the outdoor air temperature is above 14 C (adjustable) in order to prevent
cold draughts.
The set ("indoor") temperature should be set 2 or 3 degrees higher than the central heating thermostat and 2 or 3
degrees below any air conditioning thermostat if fitted. This will prevent any clash between the separate systems.
Sentinel Kinetic MVHR Installation & Commissioning 7
Page 8
Installation
Sentinel Kinetic Performance graph for Vertical Discharge
0 1020304050607080
400
350
300
100%
80%
Volume (l/s)
450
400
350
250
200
150
Static Pressure (Pa)
100
50
.
0
60%
128
96
40%
20%
0 50 100 150 200 250 300
13
27
20
30
53
44
Volume (m3/h)
107
82
58
Sentinel Kinetic Performance graph for Horizontal Discharge
0 102030405060
450
100%
400
Volume (l/s)
300
250
200
150
100
50
0
450
400
350
300
250
200
Static Pressure (Pa)
150
100
50
0
80%
60%
40%
20%
12
0 50 100 150 200 250
26
18
25
49
38
Volume (m3/h)
89
54
118
75
97
350
300
250
200
150
100
50
0
Note: Graph show 2 typical system curves with total unit input power in Watts.
Sentinel Kinetic MVHR Installation & Commissioning 8
Page 9
Installation
Sentinel Kinetic Plus and Plus CVP Performance graph for Vertical and Horizontal
Discharge
0 20406080100120
700
Volume (l/s)
700
600
500
100%
80%
600
500
400
60%
300
140
Static Press ure (Pa)
200
40%
83
400
300
200
20%
100
21 24
0
0 50 100 150 200 250 300 350 400 450 500
8
14
42
Note: Graph shows 2 typical system curves with total unit input power in Watts and the shaded area of the graph shows constant volume
operation (CVP only).
66
41
100
0
Volume (m3/ h)
Sentinel Kinetic MVHR Installation & Commissioning 9
Page 10
Installation
Installation
Overview
The following instructions are intended to help prevent potential hazards and installation should only be carried
out by a qualified electrician and installer. This booklet covers both the Kinetic and Kinetic Plus. The control
systems are identical on all units. There are some differences during the physical installation that the installer
needs to be aware of.
NOTE: we advise installers to fix all mains and sensor wiring along with any internal accessories prior
to fixing the MVHR unit in position, leaving approximately 500 mm tails to allow for internal routing.
Before Installation of the Unit
Inspect the Unit
When taking delivery of the unit, check the items delivered against the enclosed delivery note. Inspect the unit
for damage in transit. If in doubt, contact Customer Services. Each box contains a Kinetic HR unit and an
accessory pack containing wall brackets, condensate drain link pipe, worm-drive clip, fixings and product
documentation.
Lift and Move the Unit Safely
On page 5 check the weight of the unit that you are installing. Always use appropriate lifting techniques and
appliances when moving heavy equipment.
Check Site Requirements and Safety Notices
Check that the physical and environmental conditions for the site meet, or exceed, the requirements detailed in
the Technical Specification on page 5.
Read and observe the safety notices listed in Warnings and Safety Information on page 2.
Unit Installation
The Sentinel Kinetic unit is typically installed on a wall in a kitchen, storage cupboard, roof void, or similar. It will
fit in a 600 mm (external) x 300 mm deep (internal) kitchen wall cupboard.
The Sentinel Kinetic Plus unit is typically installed on a wall in a utility room, storage cupboard, roof void, or
similar.
The wall should have sufficient strength to support the unit.
Take into consideration the position of the electrical services and the condensate drain.
Ensure there is adequate access for installation, operation and maintenance.
It is recommended that a local disconnection mains and sensor terminal box is installed within 1m of the unit to
facilitate future maintenance.
The unit MUST always be mounted vertically with ducting exiting vertically or horizontally. Do not use this unit
as a support for any other equipment.
Select Unit Orientation
The unit is supplied from the factory with the condensate exit (and the atmosphere spigots) to the right of the
unit, when viewed from the front. Access is required to the Control Unit on the front of the unit in order to
commission, operate and maintain the unit. If the unit is to be installed as supplied, skip the following section
and go to Vertical Discharge Condensate Installation on page 13.
Sentinel Kinetic MVHR Installation & Commissioning 10
Page 11
Installation
If the orientation of the condensate exit (and the atmosphere spigots) would be better suited on the left of the
unit, the front Control Unit and the rear Cable Inlet Plate can be swapped over to allow the unit to be installed in
the opposite orientation.
Sentinel Kinetic Plus CVP is supplied with condensate drain exit to the right of the unit and cannot be installed in
the opposite orientation (LH).

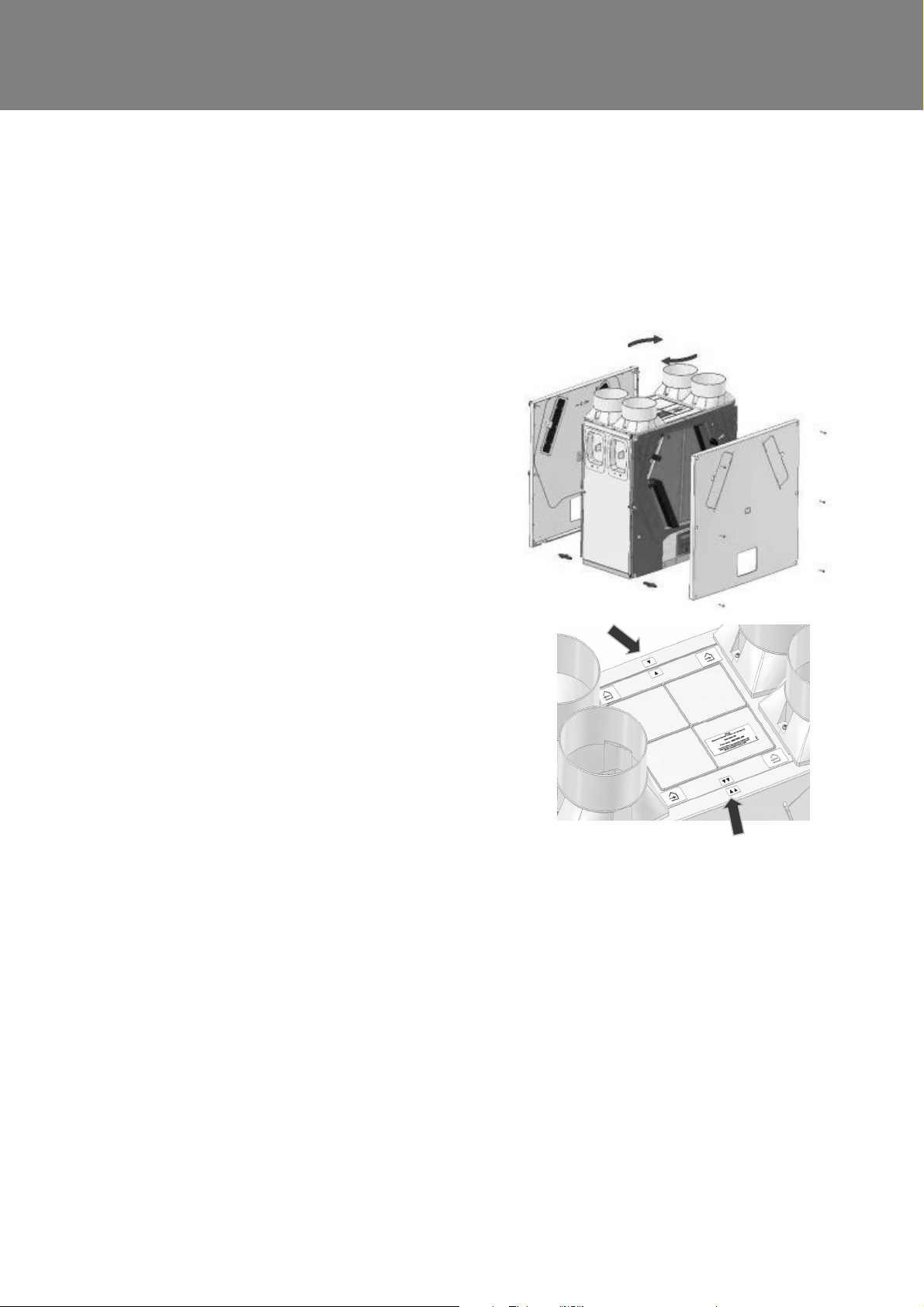

Installing the Unit in the Opposite Orientation (LH Condensate)
This procedure for opposite orientation applies to all
Sentinel Kinetic range named in this document,
except Kinetic Plus CVP.
Installing the unit in the opposite orientation involves
removing the front cover (and associated Control Unit
Panel), and the rear cover (and associated Cable
Inlet Plate), rotating the unit chassis and covers
through 180 degrees and then re-attaching them.
This moves the condensate drain exit from the right
(rear) corner of the unit to the left (front) corner of the
unit, when viewed from the front (viewing the Control
Unit).
The arrow labels on the top edge of the Covers
should be correctly matched to the arrow labels on
the top of the Case.
1. Remove the front and rear covers by unscrewing
the) fixing screws on both covers.
2. Six screws for the Kinetic.
3. Eight screws for the Kinetic Plus
Sentinel Kinetic MVHR Installation & Commissioning 11
Page 12
Installation

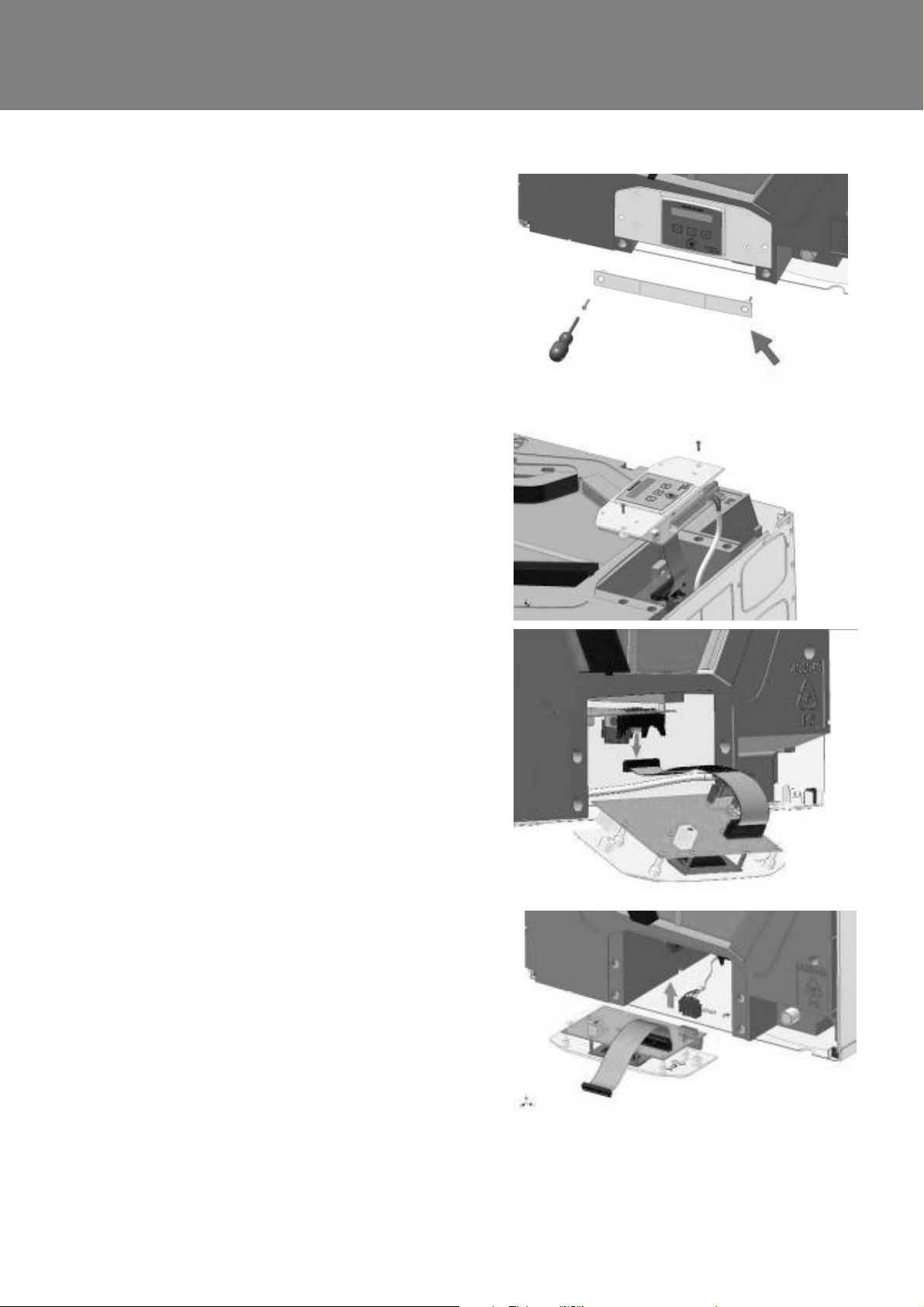

4. Remove the 2 screws and detach the Electrical
5. Remove the 2 screws and detach the Control
Cover from the front of the unit.
Panel and disconnect the mains lead.
6. Disconnect the ribbon cable.
7. Disconnect the 4-way connector.
Sentinel Kinetic MVHR Installation & Commissioning 12
Page 13
Installation

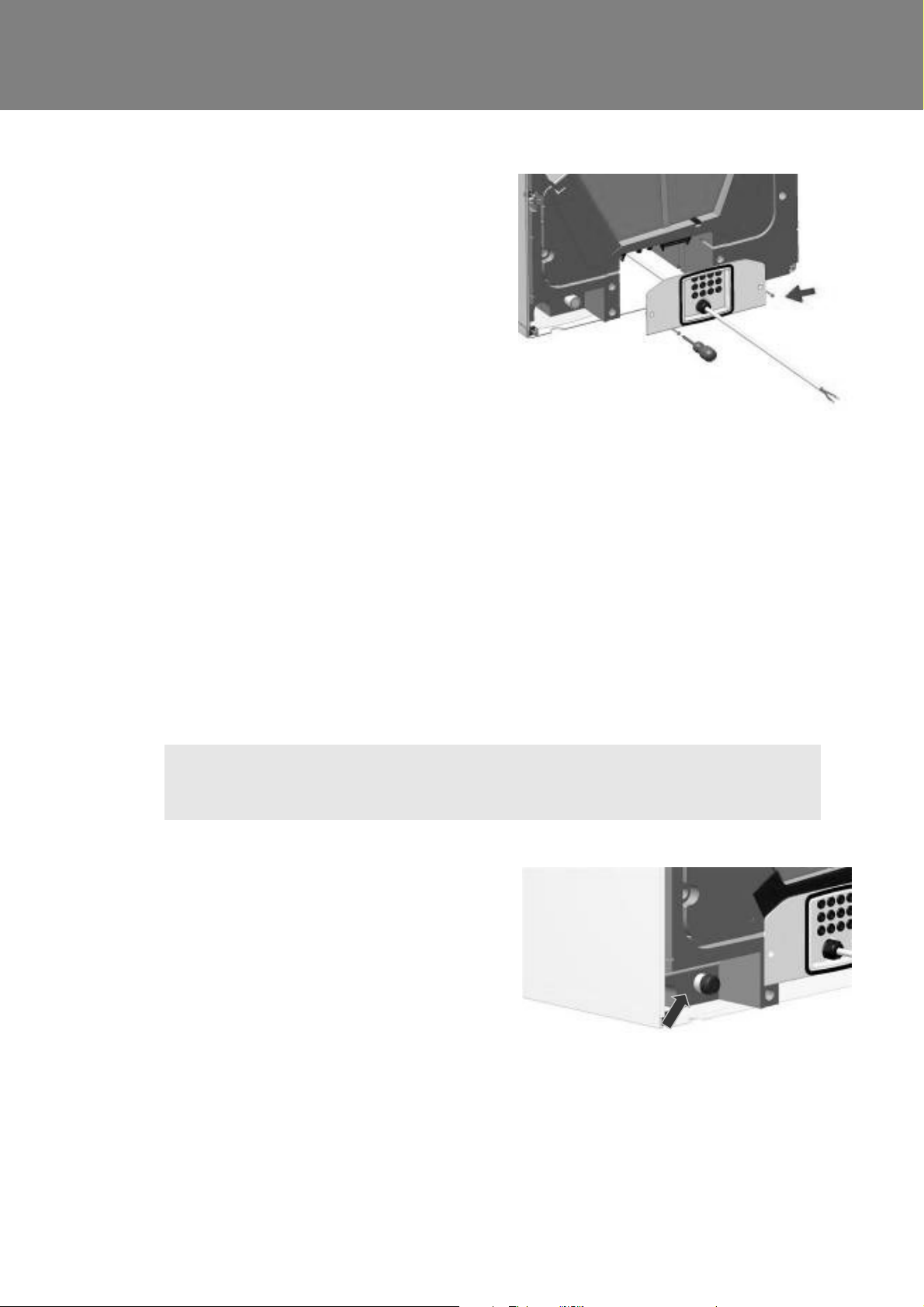

8. Remove the 2 screws and detach the rear Cable
7. Re-attach the Cable Inlet Plate on the opposite side of the unit.
8. Fit the Control Panel on the opposite side of the unit. Taking care to reconnect the ribbon cable and internal
Note: Cable ribbon connector is polarised to ensure correct fitting.
Inlet Plate.
Note that the grommets shown may be replaced
by easy knock-out positions. If these are required
ensure that you use a grommet or gland to protect
against potential water ingress. See note in bold
on page 20.
4-way connector to the control panel before securing the panel to the unit.
9. Re-connect the mains cable: L, N, LS and E.
10. Re-attach the Electrical Cover.
11. Leave the front and rear covers off the unit.
12. For vertical discharge condensate connection continue as below and page 15, or for horizontal discharge
condensate connection go to page 14.

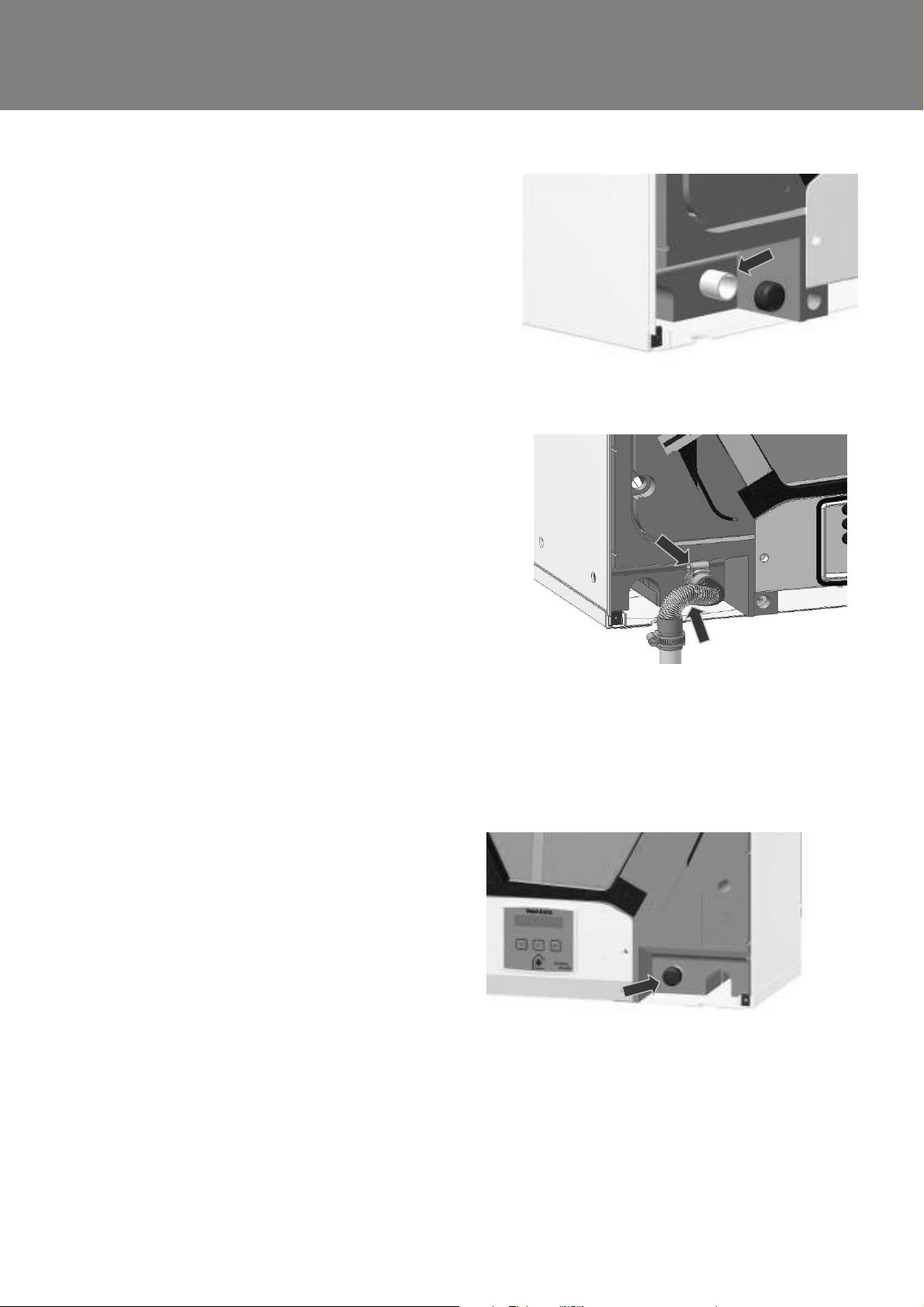

Vertical Discharge Condensate Installation
Note
The 22 mm diameter condensate pipe is suitable for standard 22 mm plastic push-fit fittings and can
be connected vertically underneath the unit or horizontally at the rear.
To install the vertical discharge condensate:
1. For vertical discharge, remove the rear cover and
locate the condensate stub at the rear of the unit.
Sentinel Kinetic MVHR Installation & Commissioning 13
Page 14
Installation
2. Remove the black Cap from the end of the
3. If not already fitted, fit the flexible condensate pipe
condensate stub at the rear of the unit.
and secure with worm drive clip
The condensate pipe can be attached with a worm
drive clip to a 22 mm vertical pipe.
Fit a ‘U’ bend condensate drain having a minimum
of a 60mm water seal or a HepVo valve to the
building’s foul water drainage system and ensure
there is a minimum 3 degree fall to allow
condensate drainage.
4. Go to Spigot Installation on page 16.
Horizontal Discharge Condensate Installation
To install the condensate horizontal discharge:
1. For horizontal discharge, remove the front
cover and locate the condensate stub at the
front of the unit.
Sentinel Kinetic MVHR Installation & Commissioning 14
Page 15
Installation

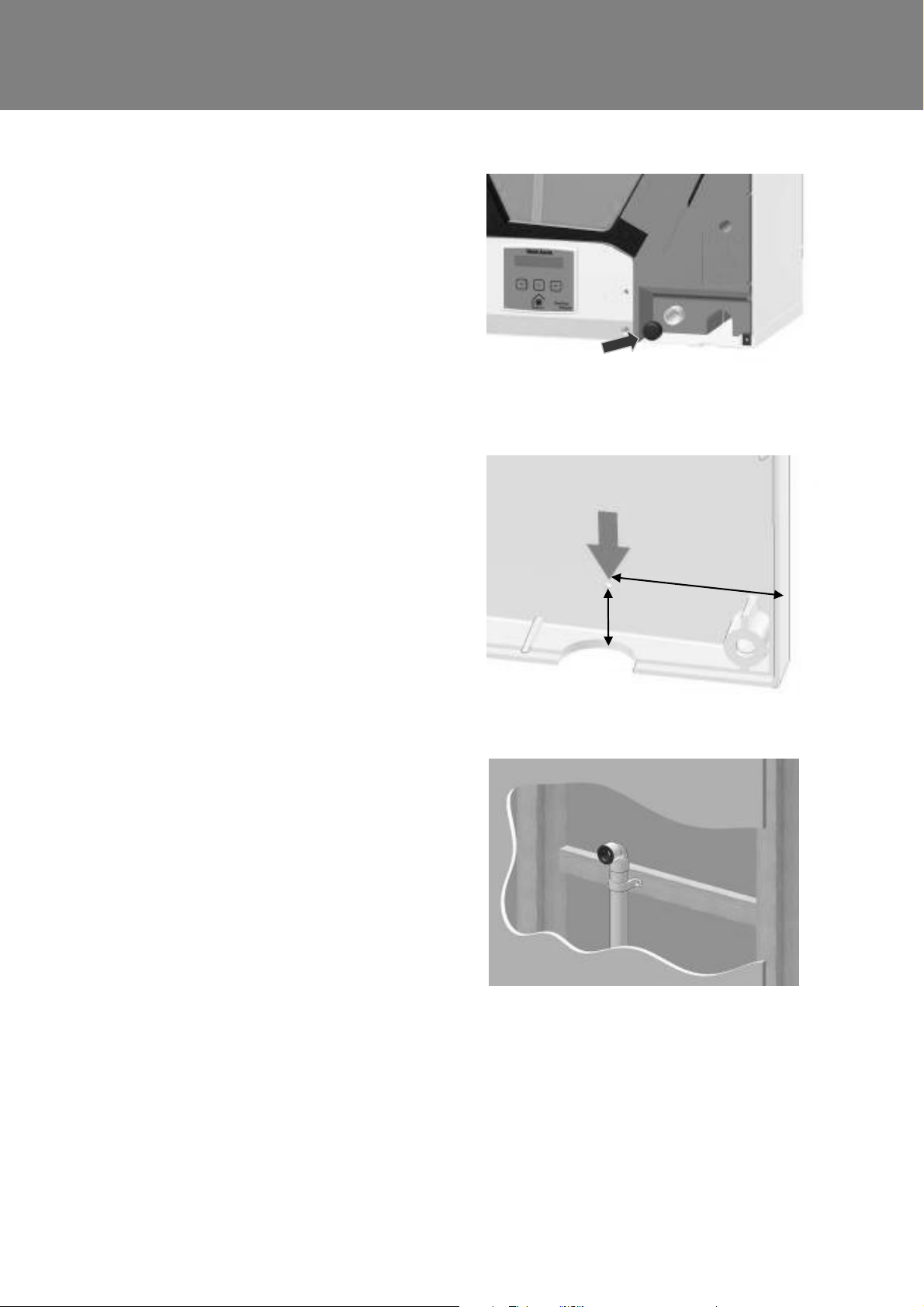

2. Remove the Black Cap from end of
condensate stub at the front of the unit.
3. On the Kinetic drill a diameter 32 mm hole
where shown, right.
On the Kinetic Plus drill a diameter 32 mm
hole using the indent provided in the
moulding as a guide.
The hole is a clearance hole for a diameter
22 mm pipe and so may vary a little from
this guidance.
4. N.B. SEE “WALL MOUNTING” on page
17 for information on marking out the
wall for the position of the condensate
drain and wall mounting brackets.
Fit Vertical discharge 32mm waste pipe
(fitted with 22 / 32mm reducer ).
Fit a ‘U’ bend condensate drain having a
minimum of a 60mm water seal or a
HepVo valve to the building’s foul water
drainage system and ensure there is a
minimum 3 degree fall to allow
condensate drainage.
60 mm
21 mm
Sentinel Kinetic MVHR Installation & Commissioning 15
Page 16
Installation

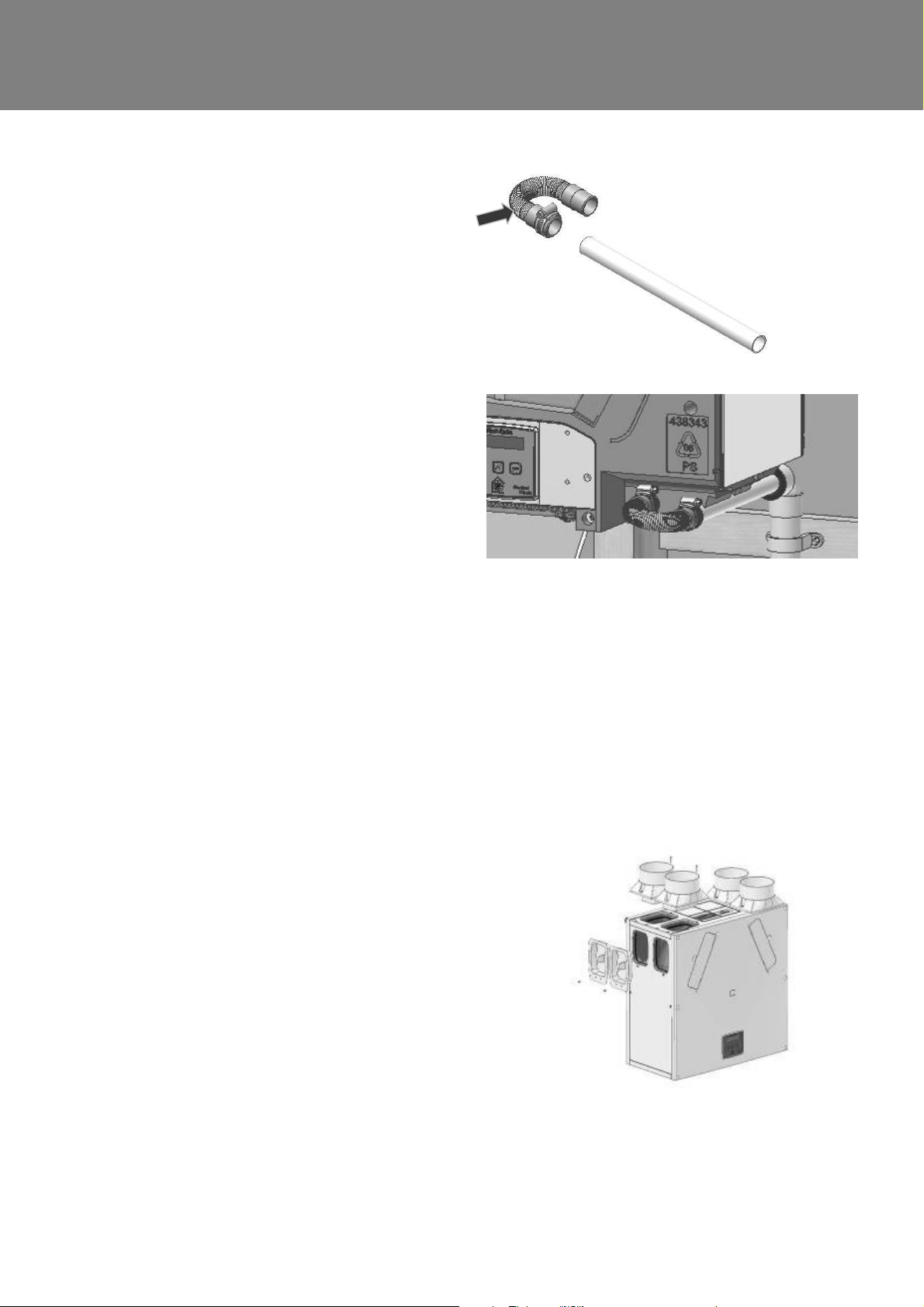

5. Fit the flexible condensate pipe to a
22mm diameter x 280mm long
condensate pipe with worm drive clip.
6. Fit pipe assembly into waste pipe and
secure to condensate spigot with worm
drive clip.
Spigot Installation
Air entry/exit spigots may be fitted on either the top or the side of the unit for vertical or horizontal entry or exit. Attach
the spigots, depending on the space available for the ducting and orientation of the unit. Always fit the blanking caps
to the entry or exit hole not in use to ensure the correct airflow into and out of the unit.
Note: Sentinel Kinetic Plus units have spigots suitable for either diameter 150 mm ducting (UK model) or for
diameter 180 mm ducting (rest of EU model). The diameter 180 mm spigots come complete with self adhesive foam
adaptors to enable it to be used with either diameter 180 mm ducting or diameter 200 mm ducting. These foam
adaptors are to be fixed to the outside of the spigot for diameter 200 mm ducting.
To move the spigots:
1. Remove the spigot by unscrewing the screw(s)
securing it to the chassis. Then pull the spigot firmly
from the entry/exit hole.
2. Remove the blanking cap by unscrewing the screw(s)
securing it to the chassis. Then pull the blanking cap
firmly from the entry/exit hole.
3. Swap over the spigot with the removed blanking cap.
4. Insert the spigot into the entry/exit hole and secure
with the retaining screw(s).
5. Insert the blanking cap into the entry/exit hole and
secure with the retaining screw(s).
N.B. Before finally fixing the unit into position it may be more convenient to make
the electrical connections; including the mains connections and any wiring
for sensor(s) or switch(es).
Sentinel Kinetic MVHR Installation & Commissioning 16
Page 17
Installation

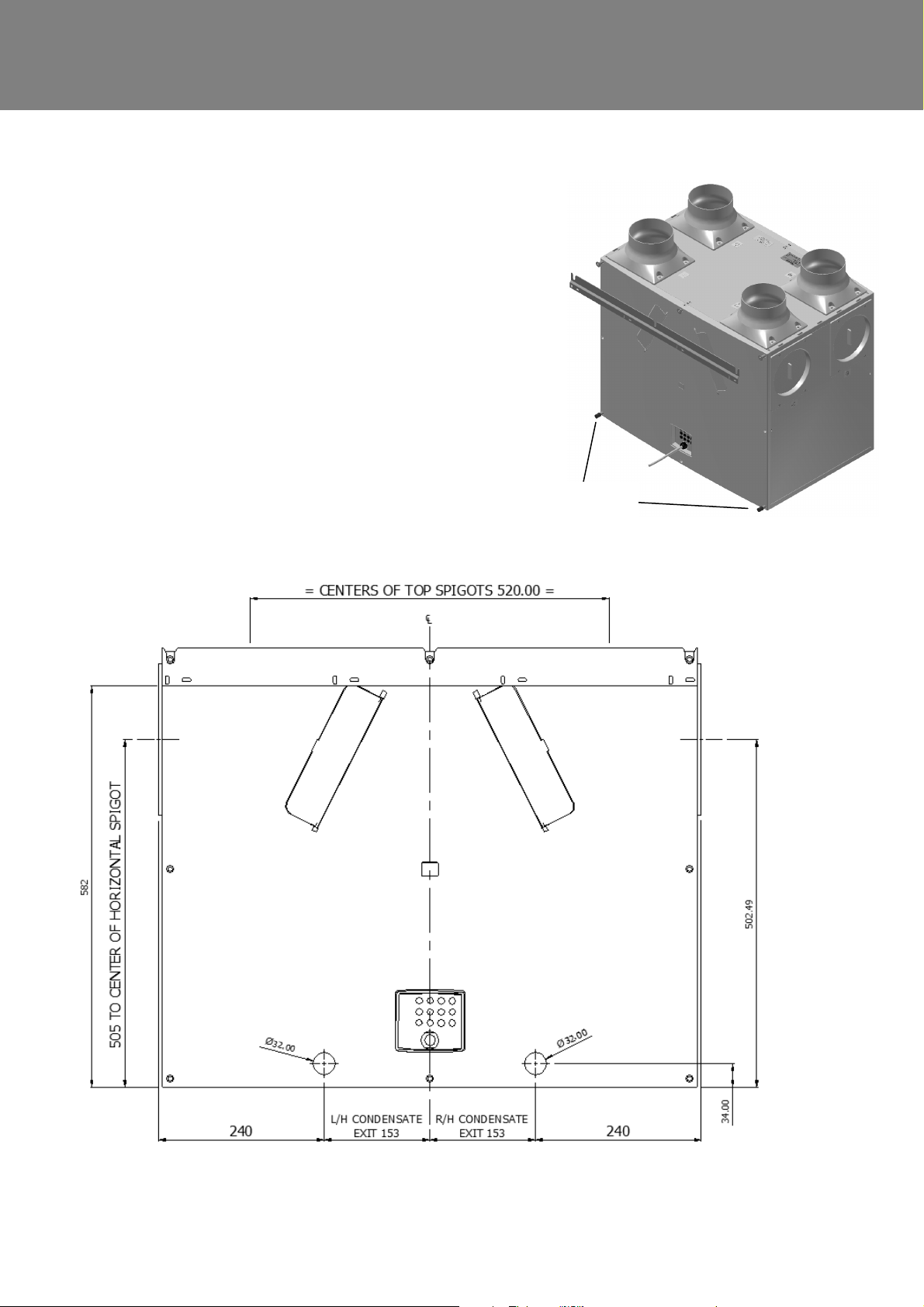

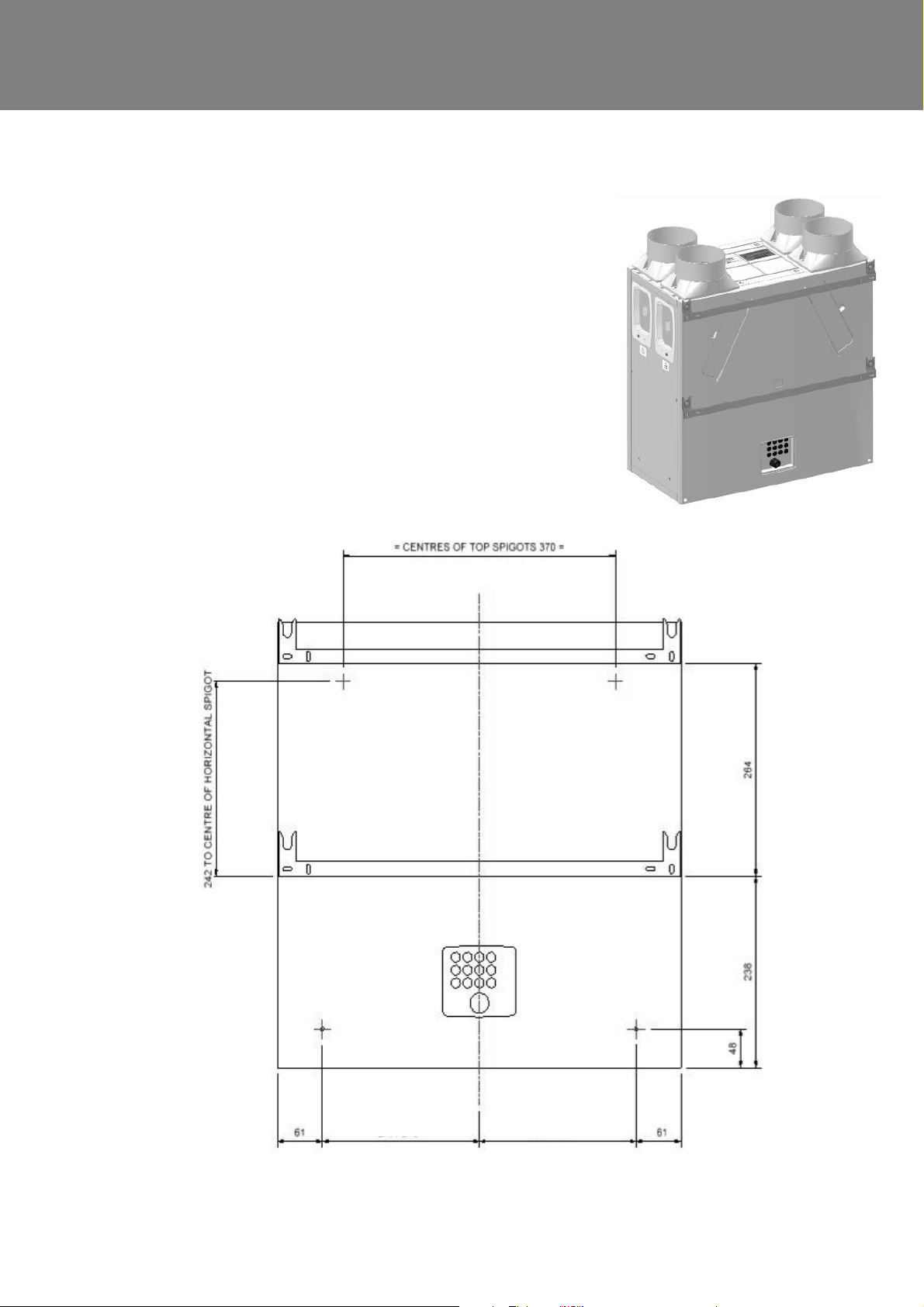

Wall Mounting Sentinel Kinetic
1. Refit the front and rear covers if they have been removed.
2. Ensure four off wall bushes are fitted to the rear cover across the middle and
upper screws.
3. Mark the condensate and wall bracket positions.
4. Fit 2-off metal wall brackets (supplied) to the wall using appropriate fixings.
5. Lift unit and locate the wall bushes onto the 2 wall brackets. The unit should
now be physically installed in its intended operating location.
6. Ensure that the condensate drain is connected as described on page 15.
L/H CONDENSATE
EXIT 213
R/H CONDENSATE
EXIT 213
Wall Mounting Sentinel Kinetic
Sentinel Kinetic MVHR Installation & Commissioning 17
Page 18
Installation
Wall Mounting Sentinel Kinetic Plus
1. Refit the front and rear covers if they have been removed.
2. Ensure three off wall bushes are fitted to the rear cover,
along the top row of screws.
3. Mark the condensate and wall bracket positions using the template below.
A paper copy can be obtained from Vent-Axia Technical Support.
4. Fit metal wall bracket (supplied) to the wall using appropriate fixings.
5. Lift unit and locate the wall bushes onto the wall bracket.
The unit should now be physically installed in its intended operating location.
(Ensure black rubber stand-off feet are in place).
6. Ensure that the condensate drain is connected as described on page 15.
Black rubber stand-off feet

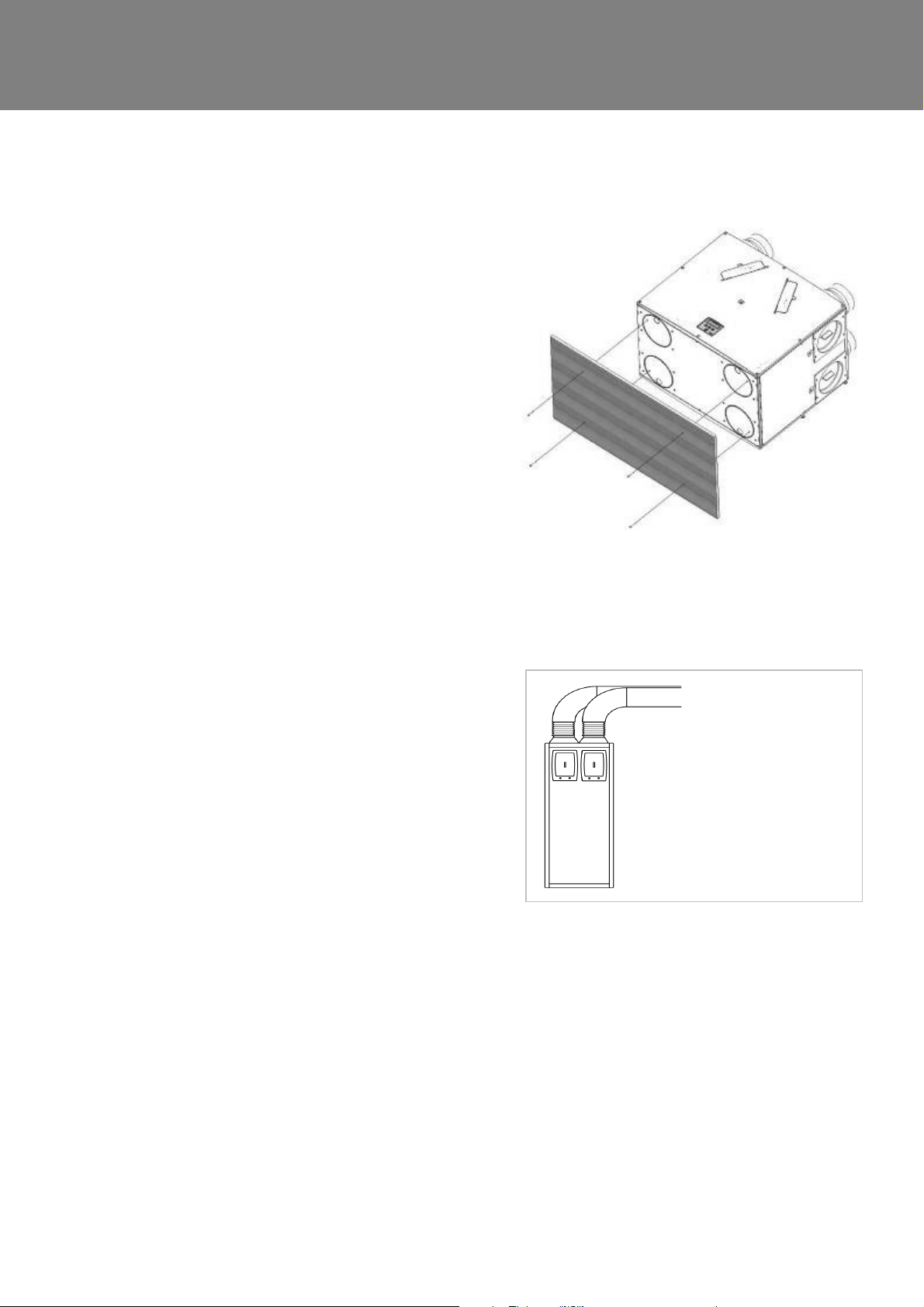

Wall Mounting Sentinel Kinetic Plus
Sentinel Kinetic MVHR Installation & Commissioning 18
Page 19
Installation
Floor Mounting Sentinel Kinetic Plus
1. Remove the front and rear covers.
2. Ensure that a secure, firm, flat and level surface is
provided to place the Kinetic Plus unit on.
3. Screw down through the white plastic base plate of the
unit to a board which may then be screwed to joists,
flooring or equivalent.
4. The unit should now be physically installed in its
intended operating location.
Attach the ducting:
1. Always use a short piece of flexible duct 100-150 mm
long, extended to its full length when connecting to
ductwork.
2. Securely connect this ducting to the spigots using
worm-drive clips or cable ties and duct tape.
3. Insulate any ducting passing through an unheated
space to prevent any heat losses and surface
condensation.
Sentinel Kinetic MVHR Installation & Commissioning 19
Page 20
Installation
Electrical Installation

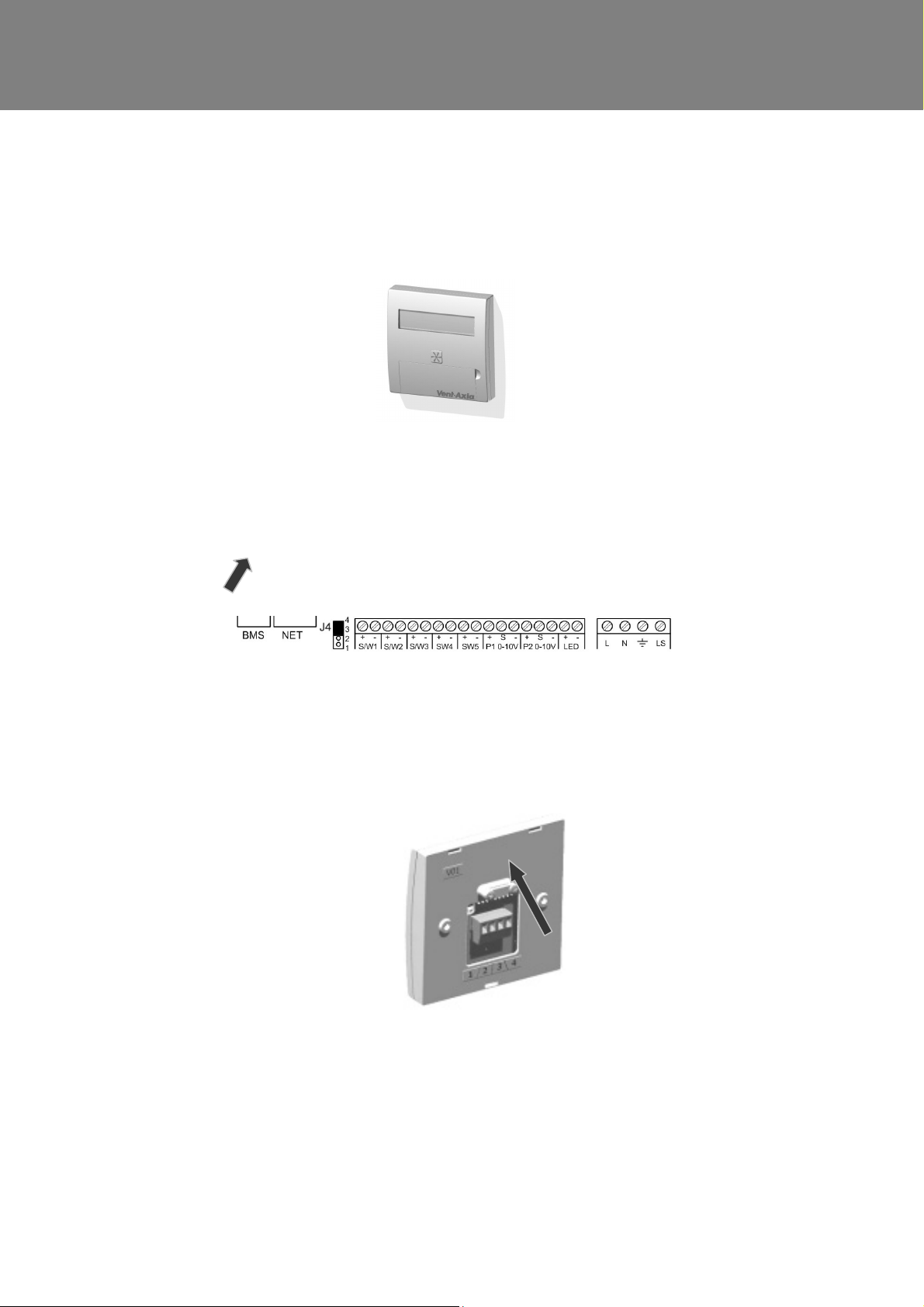

Connect Switches and Sensors
The unit can be switched to boost by a variety of methods:
Applying 240 V to the LS input .
Switching across 1 of 5 pairs of switch terminals.
Applying between 0 and 10 V as a proportional input to two input terminals.
N.B Alternative functions are assigned to SW/1, SW/2, SW/3 & SW/5 when Control Mode 02 is selected in
the start-up screens see Appendix One for further details.
In addition, fitting a Vent-Wise Accessory to the unit means that switch terminals 1-3 can be connected to be
switched by a current detector (for example, detecting a hob being switched on) or a temperature sensor (for
example, detecting the flow of hot water). Terminal 4 can be used in conjunction with a momentary switch or
switches.
Connect any switches or sensors required to control the unit by connecting to the terminal connectors at the
bottom of the control unit as shown below and in Table 1. If necessary contact Vent-Axia regarding the wiring
and fixing of accessories and sensors.
The cable entry back plate may have grommets or easy knock-out positions. If the knock-outs are used then
ensure that you use a grommet or gland to protect against potential water ingress.
When fitting external controls the appropriate cord anchorage and glands, according to country
requirements for cable size should be fitted, these glands should have a minimum water ingress
protection of IPX2.
Brown
Blue
Black
Green/Yellow
Sentinel Kinetic MVHR Installation & Commissioning 20
Page 21
Installation

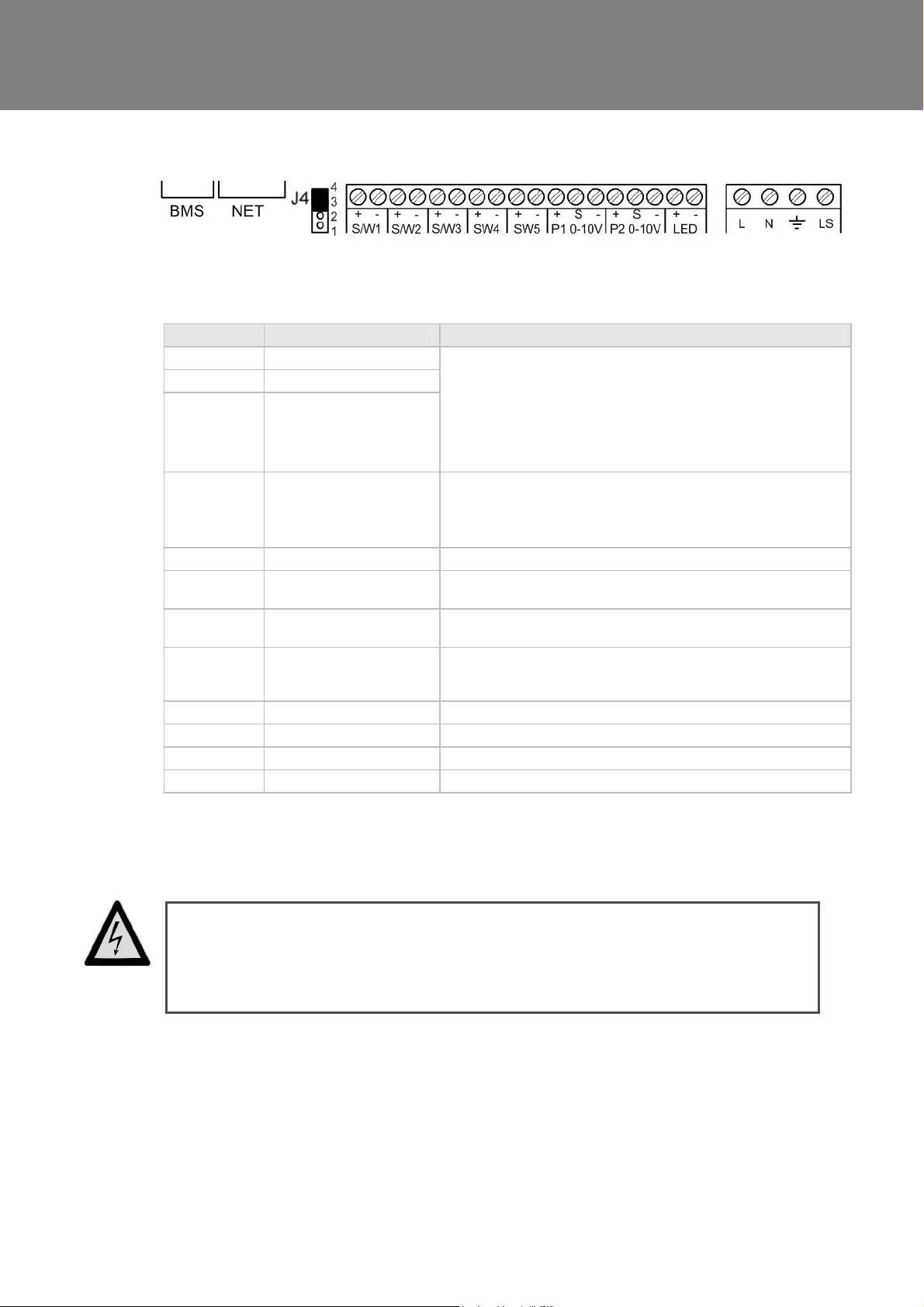

Table 1: Terminal Connections
Terminal No. Name Description (Control Mode 01)
S/W1 Switch 1 With link fitted on J4 - activates volt-free contact for sensor input
S/W2 Switch 2
S/W3 Switch 3
SW4 Switch 4 Volt-free contact for sensor input between + and – terminals
SW5 Switch 5 Volt-free contact for sensor input between + and - terminals
P1 0-10V Proportional 1 A 24 V DC sensor supply is output between the + and - terminals.
P2 0-10V Proportional 2 A 24 V DC sensor supply is output between the + and - terminals.
LED Red Light Emitting Diode
L Mains Live 220-240 V AC, 50 Hz input
N Mains Neutral 220-240 V AC, 50 Hz input
EARTH Mains Earth Earthing connector
LS Switched Live 220-240 V AC, 50 Hz input
Output
between + and - terminals
With Vent-Wise PCB fitted to J4 - enables Vent-Wise sensor input
Note do not fit standard sensors or Volt- free switch contact in this
mode.
(Momentary if SW/4 if SW4 Commissioning Screen set On)
With Vent-Wise PCB fitted to J4 - enables Vent-Wise momentary switch
input
A 10 V proportional sensor input is received between S and - terminals
A 10 V proportional sensor input is received between S and - terminals
A 5 V LED driving signal output between the + and – terminals that
enables remote indication of a unit fault. See the Control Panel for fault
code (see Service/Fault Code Screens on page 44).
N.B Alternative functions are assigned to SW/1, SW/2, SW/3 & SW/5 when Control Mode 02 is selected in
the start-up screens see Appendix One for further details.
Connect the Power Supply
WARNINGS
1. MAINS SUPPLY VOLTAGES (220-240 V AC) ARE PRESENT IN THIS EQUIPMENT WHICH MAY CAUSE
DEATH OR SERIOUS INJURY BY ELECTRIC SHOCK. ONLY A QUALIFIED ELECTRICIAN OR INSTALLER
SHOULD CONNECT THE POWER SUPPLY TO THIS UNIT.
2. THIS UNIT MUST BE CORRECTLY EARTHED.
This unit is designed for operation from a single-phase alternating current source (220-240 V AC). A 1.5 m cable
is connected internally to the unit for connection to a switched fused spur.
To connect the power supply:
1. Ensure the local AC power supply is switched off.
One end of the power cable supplied is already connected to the unit and routed through the Cable Inlet
Plate via a suitable gland to ensure the IP rating of the unit is not affected.
Connect the other end of the cable to the switched fused spur.
Use cable clamps and clips to secure the cable, as appropriate.
Sentinel Kinetic MVHR Installation & Commissioning 21
Page 22
Installation
Connecting a Boost (Light) Switch
A Switched Live (LS) may be used to boost the airflow when a light is turned on, for instance in a bathroom or
kitchen. If the LS core of the mains cable is not used it should be terminated in an appropriate manner.
Power supplied to the unit via a 3 pole isolating switch must be supplied via the same circuit as the LS
connection. Alternatively an isolator relay controller, part number 442030, may be used.
Sentinel Kinetic MVHR Installation & Commissioning 22
Page 23
Start Up
Powering Up the Unit
Switching On
To switch the unit on:
1. Switch on the power at the mains supply isolator feeding the unit.
2. Following switch-on, the fan motors will start and the Control Unit will display a series of start-up screens,
described below (see Start-up Screens on page 24).
N.B. If you are intending to carry out work or maintenance inside the unit, switch off the power at the
mains outlet supplying the unit before you remove the covers.
Switching Off
To switch the unit off:
1. Turn the power off at the mains supply isolator.
Control Unit Display
Display
The Control Unit is located at the front of the Sentinel Kinetic unit. The Control Unit provides the user interface
for commissioning and monitoring purposes.
The main display is a 16 character by 2-line liquid crystal
display (LCD) with automatic backlight, which is turned
off to automatically minimise power consumption.
Normal Airflow
30%
Buttons
Four buttons on the Control Unit provide the controls for configuring and monitoring the unit.
Button Function
Press to adjust settings and press to save settings.
Press to go to the previous screen or to increase a parameter value. Press
and hold for more than 2 seconds for fast scrolling.
Press to go to the next screen or to decrease a parameter value. Press and
hold for more than 2 seconds for fast scrolling.
Press to activate Boost mode. See page 25 for options.
Press and hold for 5 seconds to activate Purge mode. (Press and hold for 5
seconds to cancel Purge).
Sentinel Kinetic MVHR Installation & Commissioning 23
Page 24
Start Up
Start-up Screens
Sentinel Kinetic Version Screen
The Sentinel Kinetic Version screen displays the
firmware version number for 3 seconds.
No adjustments are possible on this screen.
Language Screen
The Language screen displays the language used for
the screens. It is typically displayed for 5 seconds, or
longer if changing the setting.
(To re select a new language disconnect and then
reconnect to the mains supply).
Control Mode Screen
Selects between Control Mode 01 operation described
herein and the alternative Control Mode 02 described
in Appendix One.
Airflow Units Screen
The Airflow Units is a percentage of the unit’s
maximum flow.
Wireless Control Screen
V--
Language
English
Control Mode
01
Airflow Units
%
The Wireless Control screen automatically displays
whether the wireless boost control switch is fitted. It is
typically displayed for 3 seconds.
Wireless Control
Not Fitted
Humidity Sensor Screen
The Humidity Sensor screen displays whether the
humidity sensor is fitted. It is typically displayed for
3 seconds.
Humidity Sensor
Not Fitted
Low Airflow / Normal Airflow / Boost Airflow Screen
When the start-up screens are finished, the low or normal screen is
displayed showing operating status (Low Airflow X % or Normal Airflow
X % or Boost Airflow X %).
The Normal screen displays the rate of normal airflow (supply air)
through the unit.
If the installation has proportional sensors or an internal humidity
sensor fitted, an
boosting the airflow.
When the summer bypass is active, the normal screen top line will
alternate (for 3 seconds) with Summer Bypass On.
α symbol will be displayed when humidity sensor is
Normal Airflow
30 %
Summer Bypass On
30 %
Sentinel Kinetic MVHR Installation & Commissioning 24
Page 25
Start Up
An interval can be set, see page 38, at which the unit reminds the user
to check the filters. The normal screen top line will include Check Filter
as a reminder to check and, if necessary, clean or replace the filters.
When this has been done, press and hold the
seconds to reset the automatic message.
Pressing the button activates the boost airflow mode when extra
ventilation is required.
No. of presses Boost action
(Control Mode 01)
1 Boosts for 30 minutes
2 Boosts for 60 minutes
3 Boosts continuously
4 Back to Normal flow rate
N.B Additional airflow modes are available from the
when Control Mode 02 is selected in the start-up screens see
Appendix One for further details.
If the wireless boost option is fitted, this can be triggered from the
wireless transmitter/boost switch.
If the installation has switch sensors, is wired to the lighting, has VentWise sensors, Vent-Wise momentary switch or if the internal time
switch is set for periodic operation, operation will change from normal
to boost automatically. Pressing the
show which device has activated boost.
button will reveal a code to
and
buttons for 5
button
Check Filter
30 %
Boost Airflow
50 %
s1 = Switch S/W1
s2 = Switch S/W2
s3 = Switch S/W3
s4 = Switch SW4
s5 = Switch SW5
v1 = Vent-Wise Input S/W1
v2 = Vent-Wise Input S/W2
v3 = Vent-Wise Input S/W3
ls = Switched live (LS)
w1-4 = Wireless controller
c1-3 = Internal Time switch
If running on boost due to pressing the
‘take over’ the boost. Flow will return to normal when that device
switches off. If a number of different devices are calling for boost flow,
the unit will run at boost until the last one has reverted to normal.
N.B Alternative functions are assigned to SW/1, SW/2, SW/3 &
SW/5 when Control Mode 02 is selected in the start-up screens
see Appendix One for further details.
button, another device may
Sentinel Kinetic MVHR Installation & Commissioning 25
Page 26
Start Up
Purge Screen
Pressing and holding the button for approximately 5
seconds activates purge mode when you want to purge
air from the building. The unit will revert to normal flow
by pressing and holding the button again for 5
seconds. If the wireless boost option is fitted, purge can
be triggered from the wireless transmitter/boost switch.
Purge mode runs the fans at full speed for 2 hours (120
minutes). The Purge screen displays a countdown of
the time remaining.
Cooker Hood Boost Screen
Cooker Hood mode is activated when the J12, LS input
is activated, see page 32 for details.
Low Airflow Screen
Low Airflow mode is activated when the Normal Airflow
is set to Off, (see page 31 for set up details).
The Normal Airflow mode can be set to run during the
daytime i.e. from 6am to 11pm, the Low Airflow mode
will then run during the night from 11pm to 6pm.
Set Clock Screen
From the Normal Airflow screen, simply press the
button once to access the Set Clock screen.
The Set Clock Control screen enables you to change
the clock settings. The clock retains its settings for
approximately two weeks without mains power, after
which it will need resetting when power is reconnected
Values are DDD HH:MM.
Purge 120m
100 %
Cook Hood
100 %
Low Airflow
20 %
Set Clock
Mon 12:30
Return to the normal display by pressing the
or leave to timeout and return automatically after 2
minutes.
The unit will not automatically switch for daylight saving
time.
button
Summer Mode Screen
From the Normal Airflow screen, simply press the
button twice to access the Summer Mode screen.
If the unit is a summer bypass model, the Summer
Mode screen enables you to switch the summer
bypass control on or off. This screen is only displayed
when the bypass is fitted.
Options available are On (default) and Off.
Return to the normal display by pressing the
or leave to timeout and return automatically after 2
minutes.
Sentinel Kinetic MVHR Installation & Commissioning 26
button
Summer Mode
On
Page 27
Start Up
Indoor Temp Screen
From the Normal Airflow screen, simply press the
button until the Indoor Temp screen is displayed.
The Indoor Temp screen enables you to choose the
target room temperature in degrees Centigrade – only
displayed when the bypass is fitted.
Selectable range is 16-40 (25 default).
Return to the normal display by pressing the
or leave to timeout and return automatically after 2
minutes.
This function will only work when the Summer Mode is
set to on.
button
Outdoor Temp Screen
From the Normal Airflow screen, simply press the
button until the Indoor Temp is displayed. Press
button to choose the required temperature and then
press
call up Outdoor Temp.
The Outdoor Temp screen enables you to choose the
minimum outdoor temperature at which the bypass will
operate in degrees Centigrade – only displayed when
the bypass is fitted.
button again to confirm the entry and this will
Indoor Temp
25 C
Outdoor Temp
14 C
Use this to prevent cold draughts being introduced.
Selectable range is 5C – 20C (14C default).
Return to the normal display by pressing the
or leave to timeout and return automatically after 2
minutes.
This function will only work when the Summer Mode is
set to on.
button
Sentinel Kinetic MVHR Installation & Commissioning 27
Page 28
Commissioning
Commissioning
Overview
The instructions in this section are intended to provide configuration and operation information for setting up the
equipment. In the event of problems, see Troubleshooting on page 44
Follow good practice when commissioning the unit. Ensure that the system is installed according to the system
designers intent incorporating any acoustic ducting, that all joints are air tight, ducting is well supported, bends
are avoided close to vents, and that the vent valves are fully open at the start of the commissioning process.

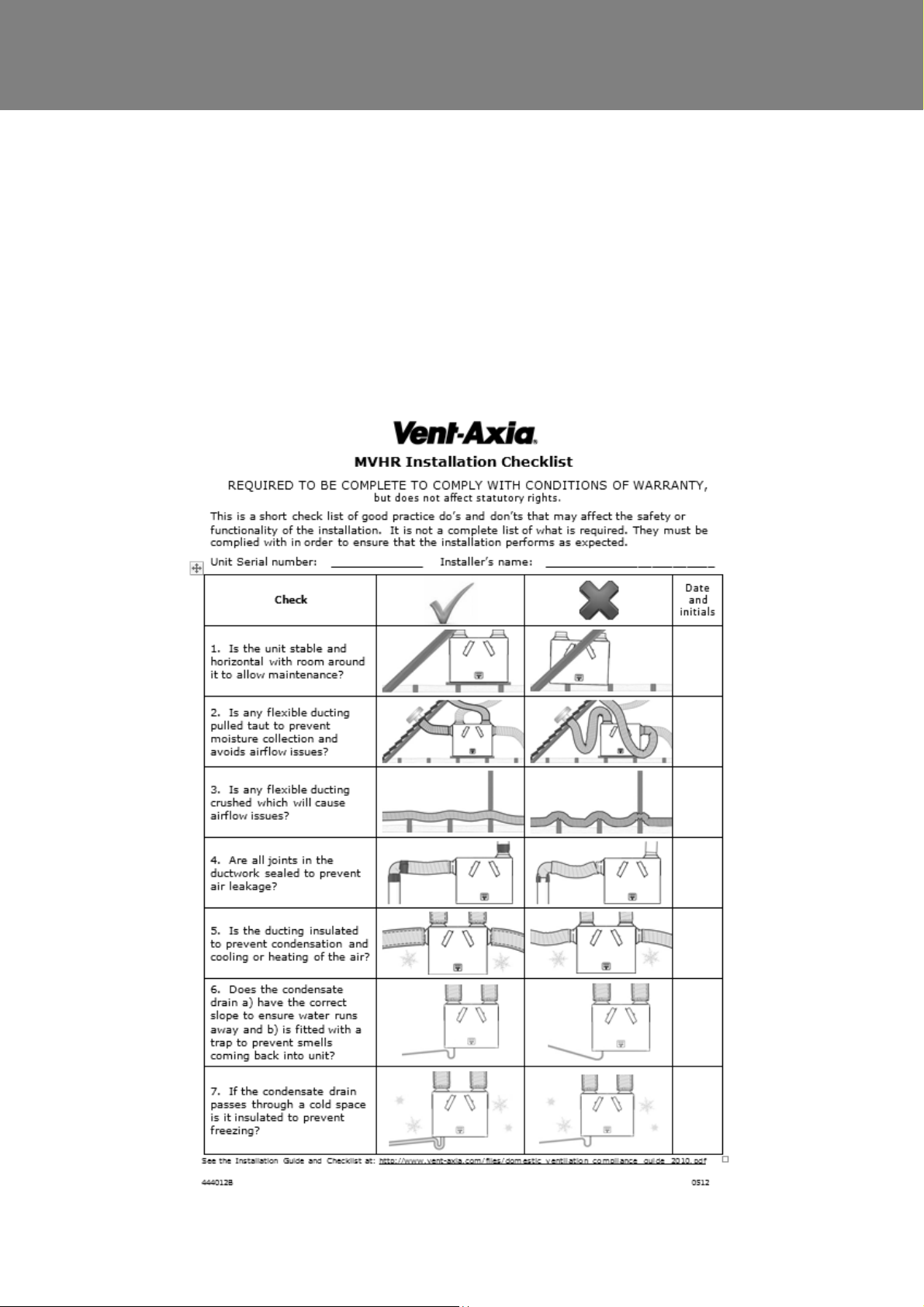

The following is attached to the unit and should be used as a check list prior to setting the air flows.
Sentinel Kinetic MVHR Installation & Commissioning 28
Page 29
Commissioning
Control Unit Screens Summary
When the unit is switched on (see Powering up the Unit on page 23, the following Control Unit screens are
available for monitoring and configuring the unit.
Boost Airflow
50%
Purge 120m
100%
Press
for > 5 s
Low Airflow
20%
CookerHood
100%
Press for
Boost
Start-up Screens
V--
Language
English
Control Mode
01
Airflow Units
%
Wireless Control
Not Fitted
Humidity Sensor
Not Fitted
User Menu
Screens
Normal Airflow
30%
Press
Set Clock
Mon 12:30
Summer Mode
On
Indoor Temp
25 C
Outdoor Temp
14 C
Timeout after 2 minut es
Commissioning Scre ens
PIN number set
PIN number not set
Press for
>5 s to exit the
commissioning
screens
Security PIN?
****
Boost Supply
50 %
Boost Extract
50 %
Normal Supply
30 %
Normal Extract
30 %
Low Supply
20%
Low Extract
20%
Ckr Hood Supply
30 %
Ckr Hood Extract
100 %
Boost Overrun
15 m
Boost Delay
00 m
Boost On Off
Mon1 00:00 00:00
Boost On Off
All Set
Proportional 1
Humidity
Proportional 2
CO2
SW4 Momentary
if fitted
Off
if fitted
Ventwise Input 1
if fitted
Load pot 60 %
if fitted
Ventwise Input 2
if fitted
Load pot 60 %
if fitted
Ventwise Input 3
Load pot 60 %
CVP Control
Off/CV
Summer Bypass
Not Fitted
Antifrost
Airflow Mode
Dryout
Off
Running Time
12345
Filter Service
Suburban
BMS Mode
On
Sub-menus
Sub-menus
Sub-menus
Sub-menus
Sub-menus
Sub-menus
Sub-menus
Normal On Off
Mon
Normal On Off
All Set
Set Service No
Humidity Sensor
Off
BMS 00
Security PIN?
Restore Defaults
No
Timeout after 2 minutes
Control Unit Screens Overview
Sentinel Kinetic MVHR Installation & Commissioning 29
Page 30
Commissioning
Commissioning Screens
The commissioning screens enable you to configure the operational settings of the unit. Settings are stored in a
non-volatile memory and will be retained irrespective of mains supply breaks.
Note: Access to the commissioning screens is prevented if the display shows Antifrost Active, Room
Too Cold or a Fault Code. In this event, switch the unit off and on again and enter the commissioning
screens within one minute. If you are within the commissioning screens the Antifrost and Room Too
Cold Failures modes will not operate allowing the flow rates to be adjusted even in a property which is
below 5C. For further information see Troubleshooting on page 44.
To access the commissioning screens: Press and hold the
together; continue to hold down all three buttons for 5 seconds.
To scroll through the Commissioning Screens use the buttons.
To return to the normal screen, either press and hold the button to reach the first menu item and then hold
for a further 5 seconds. Alternatively, the normal display will resume if no buttons are pressed for two minutes.
button immediately followed by the
buttons
Security PIN Screen
If a security PIN code has been previously set, this
screen will display ****.
Enter the PIN using
Note 1
Whilst displaying the Low, Normal, Boost Supply, Low, Normal, Boost Extract screens the fans will run
at the displayed % flow and the bypass will remain shut. The two minute automatic return to normal
display time is extended to four hours to allow time for measurements or adjustments.
Note 2
Generally the speed % selected is the speed signal to the motor and can be set up to 100%. The
Sentinel Kinetic Plus CVP model can run in Constant Volume mode where the volume flow is
independent of the system pressure.
, and buttons.
Security PIN?
****
Boost Supply Screen
The Boost Supply screen enables you to set the Boost
airflow speed for the Supply fan in order to balance out
any differences in ductwork or other installation
features.
Default Boost speed = 50%. See graph on either page
8 or 9 for setting the Supply airflow.
The Boost speed cannot be set above the Cooker
Hood speed or below Normal speed setting.
Boost Supply
50 %
Boost Extract Screen
The Boost Extract screen enables you to set the
Extract airflow speed for the Extract fan in order to
balance out any differences in ductwork or other
installation features. Default Boost speed = 50%. See
graph on either page 8 or 9 for setting the Extract
airflow.
The Boost speed cannot be set above the Cooker
Sentinel Kinetic MVHR Installation & Commissioning 30
Boost Extract
50 %
Page 31
Commissioning
Hood speed or below Normal speed setting.
Normal Supply Screen
The Normal Supply screen enables you to set the
Normal airflow speed for the Supply fan in order to
balance out any differences in ductwork or other
installation features.
Default Normal speed = 30%
See graph on either page 8 or 9 for setting the Supply
airflow.
The Normal speed cannot be set below Low speed or
above Boost speed setting.
Normal Extract Screen
The Normal Extract screen enables you to set the
Normal airflow speed for the Extract fan in order to
balance out any differences in ductwork or other
installation features.
Default Normal speed = 30%
See graph on either page 8 or 9 for setting the Extract
airflow.
The Normal speed cannot be set below Low speed or
above Boost speed setting.
Normal Supply
30 %
Normal Extract
30 %
Low Supply Screen
The Low Supply screen enables you to set the Low
airflow speed for the Supply fan in order to balance out
any differences in ductwork or other installation
features.
Default Low speed = 20%
See graph on either page 8 or 9 for setting the Supply
airflow.
The Low speed cannot be set below 1% or above
Normal speed setting.
Low Extract Screen
The Low Extract screen enables you to set the Low
airflow speed for the Extract fan in order to balance out
any differences in ductwork or other installation
features.
Default Low speed = 20%.
See graph on either page 8 or 9 for setting the Extract
airflow.
The Low speed cannot be set below 1% or above
Normal speed setting.
Low Supply
20 %
Low Extract
20 %
Sentinel Kinetic MVHR Installation & Commissioning 31
Page 32
Commissioning
Cooker Hood Supply Screen
The Cooker Hood Supply screen enables you to set the
Boost speed for the Supply fan.
Default Cooker Hood supply speed = 30%
Cooker Hood Extract Screen
The Cooker Hood Extract screen enables you to set
the Boost speed for the Extract fan.
Default Cooker Hood speed = 100%
Cooker Hood extract speed cannot be set below Boost
speed.
Boost Overrun Screen
The Boost Overrun screen enables you to set a time
period for the fans to boost airflow (in minutes) after the
light switch (LS input) is turned off. It will then return to
normal airflow.
Selectable range: minimum = 00, maximum = 25,
default = 15.
Boost Overrun screen does not function for inputs
Ckr Hood Supply
100 %
Ckr Hood Extract
100 %
Boost Overrun
15 m
S/W1 to S/W3 and SW4, SW5
Boost Delay Screen
The Boost Delay screen enables you to set the time
delay (in minutes) from the light switch (LS input) being
switched on to the airflow boost being activated. This is
used to prevent the unit from boosting unnecessarily
when the light switch is switched on for short periods.
Selectable range: min. = 00, max. = 10, default = 00.
Boost Delay
00 m
Sentinel Kinetic MVHR Installation & Commissioning 32
Page 33
Commissioning
Boost On/Off Screen
The Boost On/Off screen enables you to set a time for
boost to be activated for each day of the week.
You can set up to three On/Off times per day, shown
as Day1, Day2 and Day3. If On and Off times are the
same, the unit will not change speed.
On time cannot be set earlier than a previous off time,
Likewise, Off time cannot be set earlier than a previous
On time.
To set a weekly schedule:
Setting starts at Mon1 and uses
flashing, which item is available for adjustment with the
and
so on).
Mon1 10:01 11:11
↑ ↑ ↑ ↑ ↑
a b c d e
When Day flashes, pressing
yesterday’s times to today.
Setting finishes when the last off minutes for Sun3 are
accepted, at which point the screen will now show
All Set or holding the
buttons (a → b → c → d → e → Mon2 and
button for 3 seconds.
to show, by
(> 2 sec) will copy
Boost On Off
Mon1 00:00 00:00
Boost On Off
All Set
(Day)
(Day)
(On)
(On)
Repeat for Off
Repeat for each
Day.
Note: if same
times are used
on subsequent
days,
copy times
found.
will
Sentinel Kinetic MVHR Installation & Commissioning 33
Page 34
Commissioning
Normal On/Off Screen
The Normal Airflow mode can be set to run during the
daytime i.e. from 6am to 11pm, the Low Airflow mode
will then run during the night from 11pm to 6pm.
The Normal On/Off screen enables you to set a time for
Normal to be activated for each day of the week.
You can set up to one On/Off time per day, If On and
Off times are the same, the unit will not change speed.
On time cannot be set earlier than a previous off time,
Likewise, Off time cannot be set earlier than a previous
On time.
To set a weekly schedule:
Setting starts at Mon and uses
which item is available for adjustment with the
buttons (a → b → c → d → e → Mon and so on).
Mon 10:01 11:11
↑ ↑ ↑ ↑ ↑
a b c d e
When Day flashes, pressing
yesterday’s times to today.
Setting finishes when the last off minutes for Sun are
accepted, at which point the screen will now show
All Set or holding the
button for 3 seconds.
to show, by flashing,
and
(> 2 sec) will copy
Normal On Off
Mon 00:00 00:00
Normal On Off
All Set
(Day)
(Day)
(On)
(On)
Repeat for Off
Repeat for each
Day.
Note: if same
times are used
on subsequent
days,
copy times
found.
will
Set Service No Screen
The Set Service No screen enables you to enter the
telephone number that should be called for service in
the event the unit fault.
Initially the screen is blank. Press
and buttons to change between 0 and 9 (or
blank). Repeat until the number is entered. Finally,
select a blank and press
digits.
Press and hold
service number.
for more than 2 seconds to clear
to finish. Maximum 16
to get a 0. Use
Set Service No
Internal Humidity Sensor Screen (if fitted)
The Humidity Sensor screen enables you to
switch the Sensor On and adjust the trigger point
between 60% and 90%. (default setting 70%).
Sentinel Kinetic MVHR Installation & Commissioning 34
Humidity Sensor
Off
Page 35
Commissioning
Proportional 1 Screen
The Proportional 1 screen enables the conditions of the
proportional sensors to be set.
The unit can receive a 0-10 V proportional signal from
either a humidity, CO
when connected to terminals P1.
By default, the Proportion 1 input is set for a humidity
sensor operation.
When you have selected the sensor type, screens for
the appropriate boost and normal limits are displayed.
Press
selection (Humidity-default, CO2, Temperature).
When the input signal is below the ‘Normal Limit’, the
unit runs at low / normal airflow. When the signal is
above the ‘Boost Limit’, the unit runs at boost airflow.
Between these limits the unit runs at a proportional
airflow.
and use the and buttons to change the
or temperature external sensor,
2
Proportional 1
Humidity
For a humidity sensor, a percentage value must be
entered for boost and normal settings. For range and
default values, see Table 2 below.
For a CO2 sensor, a figure (in ppm) must be entered for
boost and normal settings. For range and default
values, see Table 2 below.
For a Temperature sensor, a figure (in degrees C) must
be entered for boost and normal settings. For range
and default values, see Table 2 below.
P1 Boost Limit
70 %
P1 Normal Limit
60 %
P1 Boost Limit
2000 ppm
P1 Normal Limit
1000 ppm
P1 Boost Limit
27 C
P1 Normal Limit
17 C
Table 2: Boost & Normal Limits – Defaults and Adjustment Range
Sensor Humidity CO2 Temperature
Default (%) Range (%) Default (ppm) Range (ppm) Default (°C) Range (°C)
Boost limit 70 25-90 2000 200-2000 27 10-35
Normal limit 60 25-90 1000 200-2000 17 10-35
Sentinel Kinetic MVHR Installation & Commissioning 35
Page 36
Commissioning
Proportional 2 Screen
By default, the Proportional 2 input is set to CO2 sensor
operation.
See Proportion 1 Screen for a description.
SW4 Screen
Momentary closure (1 sec) starts or stops boost for set
time.
Selectable range: min. = 15, max. = 30.
Default = Off when no Vent-Wise card fitted.
Proportional 2
CO2
SW4 Momentary
Off
Vent-Wise Screens
These screens are only displayed if a Vent-Wise Card is fitted. Replacing J4 3-4 link with a Vent-Wise board
converts S/W1, S/W2 and S/W3 from switch inputs to Vent-Wise inputs. In addition SW4 can be used by a
momentary switch.
Vent-Wise sensors measure current or temperature. When the current or temperature exceeds a ‘trip’ level,
boost airflow is selected. Low / Normal airflow is resumed after a timed delay once the current or temperature
has dropped below the trip level.
Any of the sensor types can be connected to S/W1, S/W2 or S/W3 but once the Vent-Wise Card is fitted,
ordinary switches must not be used.
In use, the Vent-Wise Card with three sensors will run hot to the touch albeit well below its maximum
temperature. If any input is shorted (e.g. used with switch), the board will overheat and shut down.
Nominal trip level is with the Load Pot set to (60 %). A temperature sensor will trip with hot water at around 40ºC
and a current one around 1.5 A. Time Pot setting is from 1 to 25 minutes with a default of 20 minutes.
A one-second push on a momentary switch wired to SW4 will run boost for up to 25 minutes. The overrun timer
can be set from 15 to 30 mins. A second one-second push will cancel the boost as would a “cancel boost”
signal from one of the sensors. Multiple momentary switches may be wired in parallel to SW4.
Screens for each of the three switches are displayed.
Enter a percentage value for the Load Pot setting.
* Shows Vent-Wise signal and indicates the unit is
running in Boost mode
Selectable range: min. = 5, max. = 95, default = 60.
Enter a time (in minutes) for the Time Pot setting.
Selectable range: min. = 1, max. = 25, default = 20.
Ventwise Input 1
Load Pot 60 % *
Ventwise Input 1
Time Pot 20 m
Ventwise Input
nn%
Momentary closure (1 sec) starts or stops boost for set
time.
Selectable range: min. = 15, max. = 30.
SW4 Momentary
25
Default = 25 when Vent-Wise card fitted
Sentinel Kinetic MVHR Installation & Commissioning 36
Page 37
Commissioning
CVP Control
This screen by default displays CV mode. The unit can
operate by choosing Constant Volume or Constant
Pressure, or can be set to Off to run on fan curve.
Default for standard unit is Off and for CVP unit is CV.
Summer Bypass Screen
The Summer Bypass screen is factory set if one has
been fitted. It will only need resetting if a replacement
control board has been fitted.
Available options = Not fitted (default) and Fitted.
Antifrost Screen
The Antifrost screen is only displayed if a summer
bypass is fitted. In installations where a negative
pressure is not permitted during antifrost operation, set
this to bypass mode.
Available options: Airflow Mode (default) and Bypass
Mode.
Airflow Mode - When the supply air temperature is
between 0° and -20°C, antifrost will automatically
activate. This will reduce the supply airflow rate and
increase the extract airflow rate to prevent frost forming
on the heat exchanger. During antifrost operation the
supply motor can stop for 15 minutes hour and run for
45, depending on the temperature below 0°C. If the
supply air temperature is -20°C or below the supply fan
switches off and the extract fan continues to run at
reduced rate to prevent frost forming on the heat
exchanger.
CVP Control
Off
Summer Bypass
Not Fitted
Antifrost
Airflow Mode
Bypass Mode - While the supply air temperature is
below 0°C, the antifrost mode will automatically
activate. This mode will open the bypass to prevent
frost forming on the heat exchanger.
Dryout Screen
The Dryout screen enables the fans to be run at max
speed for a week before returning to normal operation.
This feature can help to dry out fresh plaster and paint
enabling building work to be completed more quickly.
Filters may become fouled during this time and should
be cleaned or replaced afterwards.
Available options: Off (default) and On.
Dryout
Off
Running Time Screen
The Running Time screen displays the total running
time of the unit (in hours).
No changes may be made to this screen. In the event
of power failure total time will be retained.
Sentinel Kinetic MVHR Installation & Commissioning 37
Running Time
12345
Page 38
Commissioning
Filter Service
Press
select the time between Filter Services. The options are
Urban (6 months), Suburban (default: 12 months) or Rural
(18 months).
and then use the and push-buttons to
Filter Service
Suburban
BMS screen
On for BMS (default) or Off for Wired Remote Control,
automatically set up by BMS signal or Wired Remote
Control when either is plugged into BMS RJ11 socket.
The BMS screen displays byte count and first 16 bytes
from the Building Management System (BMS) system. The
output may controlled by a BMS system to switch the unit
on or off for example in conjunction with a smoke alarm.
No changes may be made to this screen.
BMS Mode
On
BMS 00
Security PIN Screen
The Security PIN screen enables you top set a four-digit
personal identification number (PIN) to access the
commissioning screens. This screen will show blank if
security is disabled and no PIN is used.
Press
the
until all four digits are specified.
Press and hold
security PIN.
to reveal 0000 with the first 0 flashing and use
and buttons to change the selection (0-9). Press
again to accept the digit and move to the next. Repeat
for more than 2 seconds to clear
Security PIN?
Restore Defaults Screen
Sentinel Kinetic MVHR Installation & Commissioning 38
The Restore Defaults screen enables you to restore the
default settings for all screens.
Available options: No (default) and Yes.
The default commissioning settings are present when
the unit is switched on and can be restored by setting
the Restore Defaults screen to Yes
Restore Defaults
No
Page 39
Commissioning
Table 3: Default Settings
Parameters Settings
Start-up Screens
Sentinel Kinetic Sentinel Kinetic
Language English.
Control Mode 01
Airflow Units %.
Commissioning Screens
Security PIN Not set
Boost Supply/Extract 50 %
Normal Supply/ Extract 30 %
Low Supply/Extract 20%
Cooker Hood
supply / extract
Boost Overrun 15
Boost Delay 00
Boost On/Off All days set to 0:00 (on), 00:00 (off) – inactive
Normal On Off All days set to 0:00 (on). 00:00 (off) – inactive
Set Service No Not set
Humidity 70%
Proportional 1 Humidity – Boost, Normal (60 %)
Proportional 2 CO2 – Boost (2000 ppm), Normal (1000 ppm)
SW4 Off, or with Vent-Wise card fitted 25 mins
Vent-Wise 1/2/3 Load Pot (60 %)
CVP Control Off, or when pressure sensors fitted CV/CP
Summer Bypass Not Fitted
Antifrost Airflow Mode
Dryout Off
Running Time -
Filter Service Suburban (default) 12 months, or can be set to Urban and Rural
BMS On
Restore Defaults Off
User Screens
Set Clock -
Summer Mode Summer Mode On
Indoor Temp 21 C
Outdoor Temp 14 C
30% / 100%
CO2 – Boost (2000 ppm), Normal (1000 ppm)
Temperature – Boost (27 C, Normal (17 C)
Temperature – Boost (27 C, Normal (17 C)
Humidity – Boost, Normal (60 %)
Time Pot (20 m)
Sentinel Kinetic MVHR Installation & Commissioning 39
Page 40
Maintenance
Maintenance
Heat recovery units, by their very nature, require regular maintenance. The Sentinel Kinetic has been designed
to facilitate access to enable maintenance to be carried out easily.
THE FAN AND ANCILLARY CONTROL EQUIPMENT MUST BE ISOLATED FROM THE POWER SUPPLY
DURING MAINTENANCE.
Filter Maintenance
Item Action
Fan Filters When the unit displays “Check filters”. This is a reminder to ensure that the filters are not so
WARNING
dirty that they are blocking the airflow or allowing dirt to pass through. The rate at which the
filters become dirty will vary hugely depending on the environment and the activity within the
property.
1. Open the filter flaps and remove the 2 filters.
2. Clean gently by tapping or carefully using a vacuum cleaner if necessary.
3. Replace the filters
4. Close the filter flaps.
5. Reset the automatic message, press and hold the
and
buttons for 5 seconds.
12 Monthly Maintenance
Item Action
Fan Filters
(Interval to suit
environment)
Unit & Heat Exchanger
Cell
Motors Inspect the motors for build-up of dust and dirt on the impeller blades, which could cause
Condensate Drain Check the condensate drain tube is secure and clear of debris. Clean if necessary.
Fastenings Check that all unit and wall-mount fastenings are sufficiently tight and have not become
Change the Fan Filters depending on which environment the unit has been installed; urban,
suburban or rural.
1. Open the filter flaps and remove the 2 filters.
2. Insert the replacement filters.
3. Close the filter flaps.
4. Reset the automatic message, press and hold the
Inspect and clean the unit
1. Isolate the mains power supply.
2. Remove front cover from the unit.
3. Remove the 2 filters.
4. Slide out the heat exchanger. For Sentinel Kinetic Plus CVP refer to pages 41 and 42.
5. Wash the outer cover and heat exchanger in warm water using a mild detergent (such as
Milton Fluid) and dry thoroughly.
NOTE: Keep water away from all electrical components and wiring within the unit.
imbalance and increased noise levels. Vacuum or clean if necessary.
loose. Re-tighten if necessary.
and
buttons for 5 seconds.
Sentinel Kinetic MVHR Installation & Commissioning 40
Page 41
Maintenance

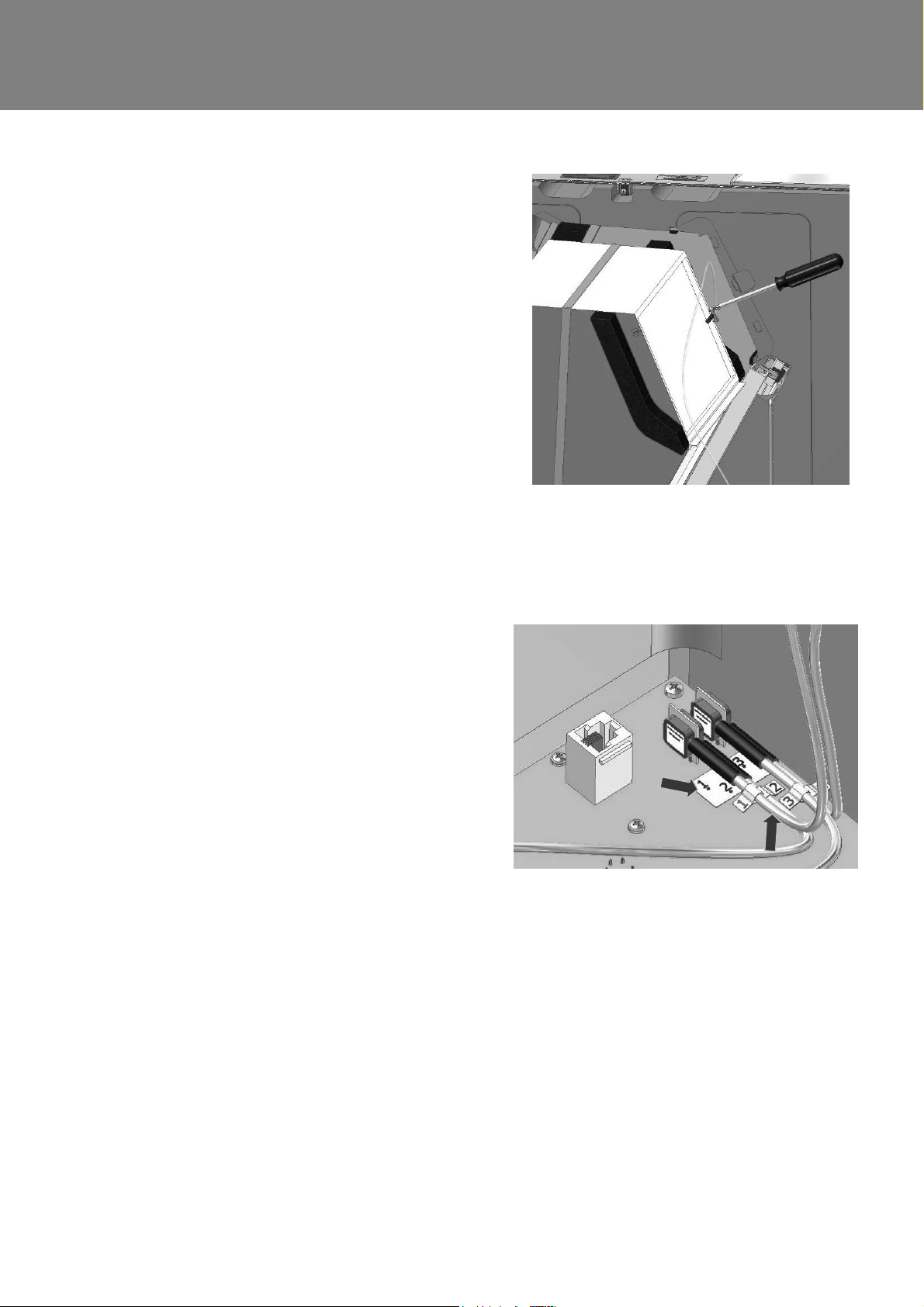

Heat Exchanger Removal Instruction for CVP Unit
1. Remove the 8 screws and detach the front cover
and then pull out both filters.
2. Remove both pressure tubes from their channels
and let them remain suspended in the air as shown
opposite.
3. Pull out the Heat Exchanger Cell to gain access to
the 2 screws on the cell as shown opposite.
Loosen up the both screws (no need to remove
them completely) to be able to remove the pressure
tube and its rubber grommet strip.
Sentinel Kinetic MVHR Installation & Commissioning 41
Page 42
Maintenance
4. Pull out the cell and make sure that the rear bottom
of the cell is securely resting on the lower edge of
the foam so you can access the rear pressure tube.
Repeat step 3 to detach the rear pressure tube.
When the rear pressure tube is removed then the
cell is free to clean.
Once the cell is cleaned then attach the
pressure tubes in reverse order starting from
step 4 to 1. Do not over tighten the screws for
securing clips. The clips should just slightly
grip the rubber grommet strips as over
tightening of the clips can block the air
pressure.

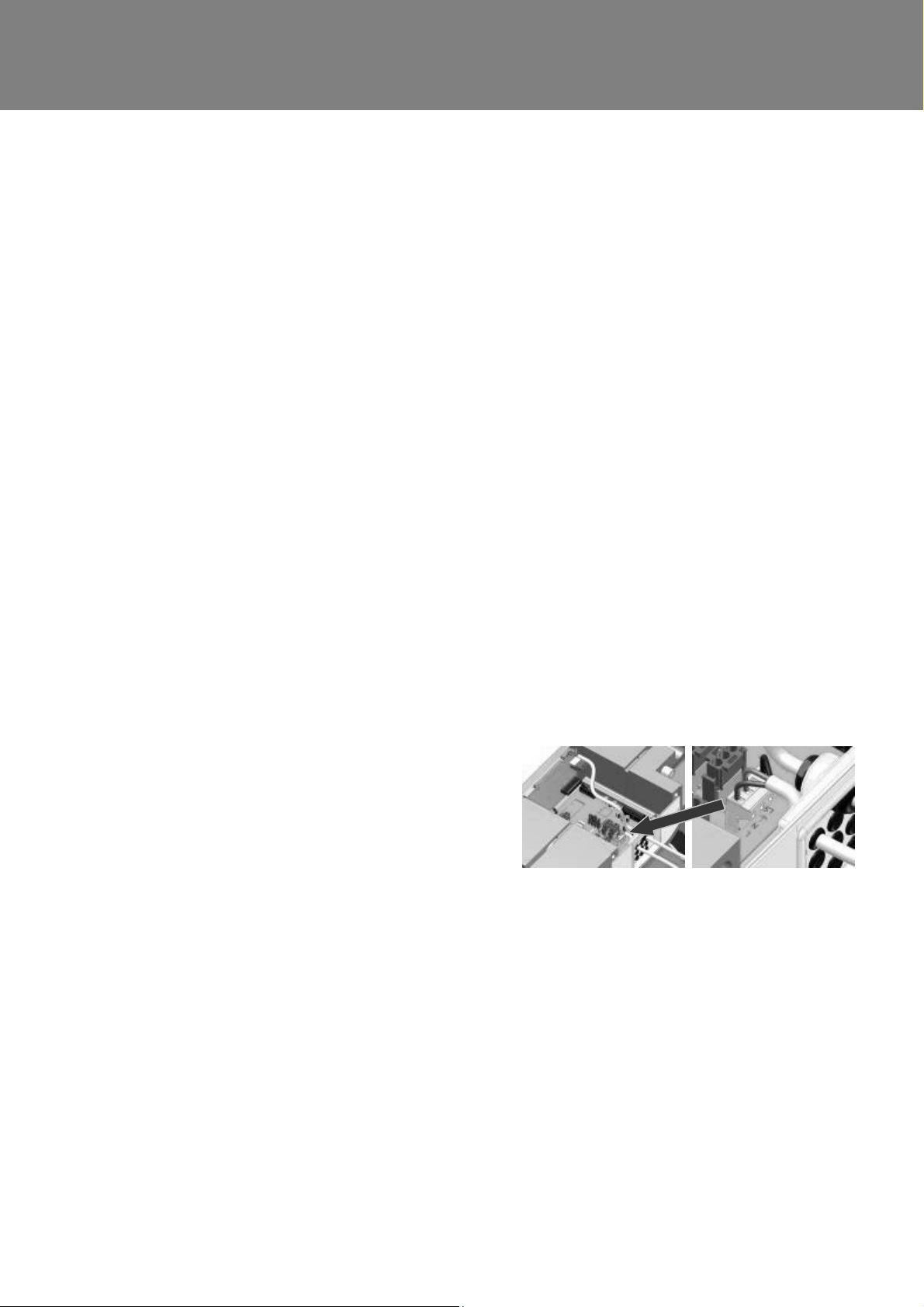

Sentinel Kinetic Plus CVP Control, Microbore tube connection to PCB
Sentinel Kinetic Plus CVP control PCB includes two
pressure sensors with Microbore tubes (pressure tubes)
connected to them. A pressure port identification label is
used adjacent to the pressure sensors with dots and
numbers 1 to 4 representing the pressure ports and
labels 1 to 4 on the Microbore tubes.
Note:
Wrong connection of the Microbore tubes will cause
failure in constant volume operation.
Sentinel Kinetic MVHR Installation & Commissioning 42
Page 43
Maintenance
Spares
The following spares may be ordered from Vent-Axia:
Part No Description
441768 Main Power Board
441767 Control Panel
443430 Temperature Sensor T1 (Extract air from room)
443431 Temperature Sensor T2 (Supply air from outside)
SENTINEL KINETIC SPARES
441774 Filters, 2 per pack (bypass version 438222 & 438222A)
442356 Filters, 2 per pack (non bypass version 438242 & 438242A)
441764 Heat Recovery Cell (bypass version 438222 & 438222A)
441996 Heat Recovery Cell (non bypass version 438242 & 438242A)
441759 Supply Motor
441760 Exhaust Motor
441776 Summer Bypass
438378 Spigot, one per pack
SENTINEL KINETIC PLUS SPARES
443351 Filters, 2 per pack
443352 Heat Recovery Cell
443353 Supply Motor
443354 Extract Motor
443355 Summer Bypass
444057 Spigot diameter 150 mm, one per pack
446523 Spigot diameter 180 mm, one per pack, complete with foam adaptor to make 200mm spigot.
SENTINEL KINETIC PLUS CVP SPARES
447206 Heat Recovery Cell
447207 Control Panel
Sentinel Kinetic MVHR Installation & Commissioning 43
Page 44
Troubleshooting
Troubleshooting
Diagnosing a Problem
In the event of a problem, always troubleshoot the unit according to:
Fault code displayed on the Control Unit.
Fault LED if connected.
If no indications are displayed, then troubleshoot problem according to the fault symptom as described in the
following tables.
Service/Fault Code Screens
The Service screen is displayed, alternating with
the Fault Code screen, when a fault has caused
the unit to switch off and you must phone the
telephone number displayed on the screen for
assistance.
The Fault Code screen is displayed, alternating
with the Service screen, when a fault has
occurred. Take note of the fault code when
reporting a fault.
The Fault Code screen is displayed when the
Constant Volume stops working.
For assistance contact the service provider and quote the fault code number. The following fault codes numbers
may be displayed. Code numbers are added together if more than one is detected.
Table 4: Fault Codes
Code Problem
01 Supply Fan not running
02 Extract Fan not running
04 Control PCB 24 V fuse (FS1) failure
08 Temperature sensor T1 (supply) faulty
16 Temperature sensor T2 (extract) faulty
32 Wired Remote Control failure
CV Control
Switched Off
This can be caused by either a trapped
pressure tube/s or faulty sensors.
Service Phone
01293nnnnnn
Fault Code
01
CV Control Switched
Off
Sentinel Kinetic MVHR Installation & Commissioning 44
Page 45
Troubleshooting
Room Too Cold Screen
The Room Too Cold screen displays the status of the
fan. If the heating system in the building fails or is
switched off and the internal temperature drops below
5°C, the unit will stop running so as to not bring cold air
into an already cold house. The unit will start up every
hour and will run for a short time to measure the
temperature of the property. When the temperature
rises, e.g. the heating system is switched back on, the
unit will restart and continue normal operation.
Bottom line of display may be ( Fan Off, Fan
Restarting).
Note: Access to the commissioning screens is prevented if the display shows Antifrost Active, Room
Too Cold or a Fault Code. In this event, switch the unit off and on again and enter the commissioning
screens within one minute. If you are within the commissioning screens the Antifrost and Room Too
Cold Failures modes will not operate allowing the flow rates to be adjusted even in a property which is
below 5C.
Room Too Cold
Fan Off
Sentinel Kinetic MVHR Installation & Commissioning 45
Page 46
Appendix One
Appendix One: Control Mode 02 Description
Overview
The functional differences described in this Appendix are available when Control Mode 02 is selected from the
start-up screens. Control Mode 02 assigns alternative functions to certain wiring Terminal Connections and
allows additional airflow settings to be accessed via the
control.
Terminal Connections and Functions
The following switching Functions are available with Control Mode 02:
Terminal No. Name Description (Control Mode 02)
S/W1 Switch 1 With link fitted to J4 – Volt- free switch – Low Mode
S/W2 Switch 2 With link fitted to J4 – Volt- free switch – Normal Mode
S/W3 Switch 3 With link fitted to J4 – Volt- free switch – Boost Mode
S/W4 Switch 4 Volt-free contact for sensor input between + and – terminals
S/W5 Switch 5 Fire System or SW/5 open Stop
P1 0-10V Proportional 1 A 24 V DC sensor supply is output between the + and - terminals.
P2 0-10V Proportional 2 A 24 V DC sensor supply is output between the + and - terminals.
LED Red Light Emitting Diode
Output
L Mains Live 220-240 V AC, 50 Hz input
N Mains Neutral 220-240 V AC, 50 Hz input
EARTH Mains Earth Earthing connector
LS Switched Live 220-240 V AC, 50 Hz input
(Momentary if SW/4 if SW4 Commissioning Screen set On)
With Vent-Wise PCB fitted to J4 - enables Vent-Wise momentary switch
input
A 10 V proportional sensor input is received between S and - terminals
A 10 V proportional sensor input is received between S and - terminals
A 5 V LED driving signal output between the + and – terminals that
enables remote indication of a unit fault. See the Control Panel for fault
code (see Service/Fault Code Screens on page 44).
button on the front of the Kinetic unit or remote
N.B If control mode 02 is selected then S/W5 must have a link connecting the + and – terminals or a
normally closed device such as a fire system.
Sentinel Kinetic MVHR Installation & Commissioning 46
Page 47
Appendix One
Airflow Mode Selection
The following switching Functions are available via the
No. of presses Airflow Mode
(Control Mode 02)
1 Low
2 Normal
3 Boosts 30 minutes
4 Boosts 60 minutes
5 Boosts continuously
6 Cancel
Press
If the wireless boost option is fitted, this can be triggered from the wireless transmitter/boost switch.
If the installation has switch sensors, is wired to the lighting, has Vent-Wise sensors, Vent-Wise momentary switch or if
the internal time switch is set for periodic operation, operation will change from normal to boost automatically. Pressing
the
s4 = Switch SW4
v1 = Vent-Wise Input S/W1
10 seconds after last press to cancel and return to normal operation.
button will reveal a code to show which device has activated boost.
button with Control Mode 02:
v2 = Vent-Wise Input S/W2
v3 = Vent-Wise Input S/W3
ls = Switched live (LS)
w1-4 = Wireless controller
c1-3 = Internal Time switch
If running on boost due to pressing the button, another device may ‘take over’ the boost. Flow will return to normal
when that device switches off. If a number of different devices are calling for boost flow, the unit will run at boost until the
last one has reverted to normal.
Sentinel Kinetic MVHR Installation & Commissioning 47
Page 48
Appendix Two
Appendix Two: Options and Accessories
CO2 Sensor
An optional wall-mounted CO2 Sensor (433257) may be used to control airflow. The CO2 sensor measures the
CO
level in ppm (parts per million) and the unit adjusts the fan speed accordingly. When the CO2 level is below
2
the lower threshold (adjustable), the fan will run at Normal speed. When the CO
threshold (also adjustable), the fan will run at Boost speed. If the CO
thresholds, the fan will run at a speed between Normal and Boost proportional to the difference between the
CO
level and the thresholds.
2
Normal / Boost Switch
An optional Normal/Boost Switch (455213) may be used to control airflow. Connecting a switch will enable a
manual control to be used in conjunction with other boost controls.
Humidistats
An internal Relative Humidity Sensor PCB (441838) may be used to control airflow. The unit adjusts the fan
speed proportionally depending on the temperature and relative humidity levels in the extracted air whilst
avoiding nuisance tripping at night time when temperatures drop and relative humidity naturally rises. The unit
does not just look for relative humidity levels above a set point, which can be unreliable in products that extract
from multiple rooms, but it also looks for rapid increase in relative humidity typically generated by such activities
as showering or cooking.
level is above the upper
2
level is between the lower and upper
2
Connecting a System Cooker Hood
A system cooker hood that has a Switched Live output to trigger the unit from normal to cooker hood boost can
be connected as follows. The cooker hood must be double insulated.
1. Remove a blind grommet from the Cable Inlet plate
and insert the 3 core cable from Cooker hood.
2. Connect the 3 wires to the terminal block
marked J12
Brown = L
Grey = N
Black = LS
Connecting an opto-coupler (447340)
The LED terminals are intended to drive a remote LED to indicate that a fault has occurred. They provide a 5 V
LED driving signal output between the + and – terminals that enables remote indication of a unit fault. See the
Control Panel for fault code (Refer to installation and commissioning guide listed above). This signal could also
be used by a BMS system so that it is informed that a fault has occurred. If a volt-free contact is required then
use this opto-coupler to provide electrical separation.
Connect the flying leads of the opto-coupler pcb into the LED terminals, + to + and - to Connect the pair of leads from the BMS to the terminal block of the opto-coupler pcb. Polarity does not matter
here.
Sentinel Kinetic MVHR Installation & Commissioning 48
Page 49
Appendix Two
Wireless Enable Kit (consists of Wireless Receiver and one Wireless Switch)
(441865)
1. To fit the Wireless Receiver remove the Front, Rear and Bottom Case panels, insert the ribbon cable plug
into terminal J9 and fit the Receiver assembly to the main PCB with the double sided pads provided.
2. Open the Wireless Switch by inserting a flat bladed screwdriver into the slot at the bottom and fit two AA
batteries to the transmitter, removing any plastic tabs between battery and terminal.
6-way DIP
2-way DIP
Switch
Switch
Wireless Receiver
AA
MAX
AA
3. Ensure that the system address, set by the 6-way DIP switch on the Wireless Switch PCB matches that on
the Wireless Receiver PCB. For multiple systems in close proximity to each other, the system addresses
need to be different. The Wireless Switch PCBs also have a 2-way DIP switch to set the transmitter address.
Up to four Wireless Switch’s can be used to control any one unit. The Wireless Switch address needs to be
different for each Switch in a system.
4. Accessories can be connected to the volt-free and light switch connections so that the transmitter sends a
boost signal on the accessory's behalf. The LED light above the
pressed. Pressing the
minutes. Pressing the and
count down the time in minutes. If more than one of the wireless transmitters are calling for Boost speed, the
unit will prioritise the longest overrun time period requested. The unit may continue to run at Boost speed
after the timer has timed out if another accessory or switch is calling for Boost speed.
5. Purge Feature: Pressing and holding the
to run at Purge speed for 2 hours.
Sentinel Kinetic MVHR Installation & Commissioning 49
button will send a signal wirelessly to the unit, telling it to run at Boost speed for 15
buttons will adjust the overrun time in 5 minute increments. The LCD will
button for more than 5 seconds will send a signal telling the unit
button will illuminate when a button is
Page 50
Appendix Two
Wired Remote Control (443283)
1. The Wired Remote Control uses 15 metre long cable and has the same functionality as the control mounted
on the unit, it can be permanently mounted in a living space for the end user or used for commissioning the
unit.
2. To fit the Wired Remote Control remove the Front, Rear and Electrical covers, using the cable assembly
supplied insert the RJ11 plug into the socket marked BMS and feed the remaining cable through cable inlet
plate, refit all covers.
3. Connect the cable assembly (4 wires numbered 1 to 4) to the Remote Control terminal block and mount onto
a single gang recessed wall box with the 2 screws provided. The Wired Remote Control will automatically be
detected.
Isolator Relay Controller (442030)
The isolating relay controller allows several LS signals to be combined from independent circuits. For instance,
from lighting circuits on different floor levels.
Sentinel Kinetic MVHR Installation & Commissioning 50
Page 51
Appendix Two
Sentinel Kinetic MVHR Installation & Commissioning 51
Page 52
Applicable only to products installed and used in the United Kingdom. For details of guarantee outside the United Kingdom contact your local supplier.
Vent-Axia guarantees its products for two years from date of purchase against faulty material or workmanship. In the event of any part being found to be
Has been installed and used in accordance with the instructions given with each unit.
Has not been connected to an unsuitable electricity supply. (The correct electricity supply voltage is shown on the product rating label attached
Has not been subjected to misuse, neglect or damage.
Has not been modified or repaired by any person not authorised by the company.
defective, the product will be repaired, or at the Company’s option replaced, without charge, provided that the product:-
to the unit).
Please return the complete product, carriage paid to your original supplier or nearest Vent-Axia Centre, by post or personal visit. Please ensure that it is
adequately packed and accompanied by a letter clearly marked “Guarantee Claim” stating the nature of the fault and providing evidence of date and
The Guarantee
IF CLAIMING UNDER TERMS OF GUARANTEE
source of purchase.
The guarantee is offered to you as an extra benefit, and does not effect your legal rights
Head Office: Fleming Way, Crawley, West Sussex, RH10 9YX.
UK NATIONAL CALL CENTRE, Newton Road, Crawley, West Sussex, RH10 9JA
SALES ENQUIRIES: Tel: 0844 8560590 Fax: 01293 565169
TECHNICAL SUPPORT Tel: 0844 8560594 Fax: 01293 532814
For details of the warranty and returns procedure please refer to www.vent-axia or write to Vent-Axia Ltd, Fleming Way, Crawley, RH10 9YX
439817S © 2013 Vent-Axia Limited. All rights reserved. 0313
Loading...
