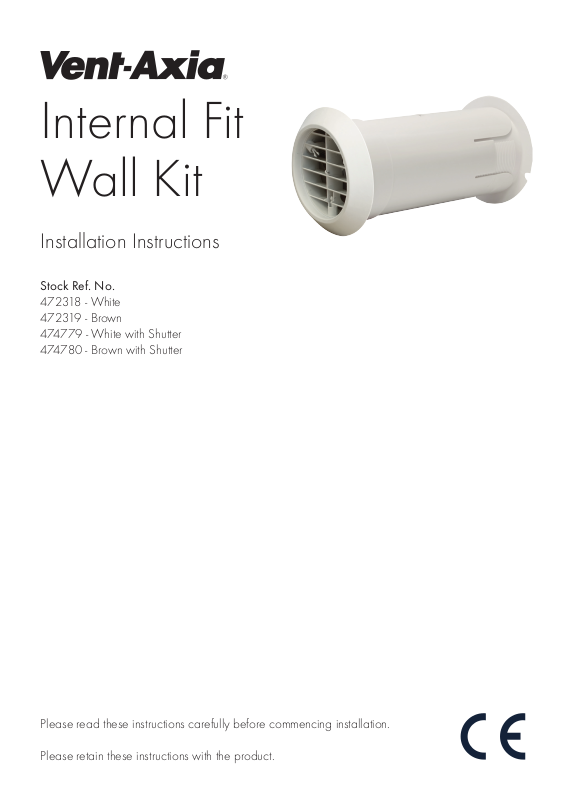

Vent-Axia 472318, 472319, 474779, 474780 Installation Instructions

Internal Fit
Wall Kit

Installation Instructions

Stock Ref. No.

472318 - White
472319 - Brown
474779 - White with Shutter
474780 - Brown with Shutter

Please read these instructions carefully before commencing installation.

Please retain these instructions with the product.

click!

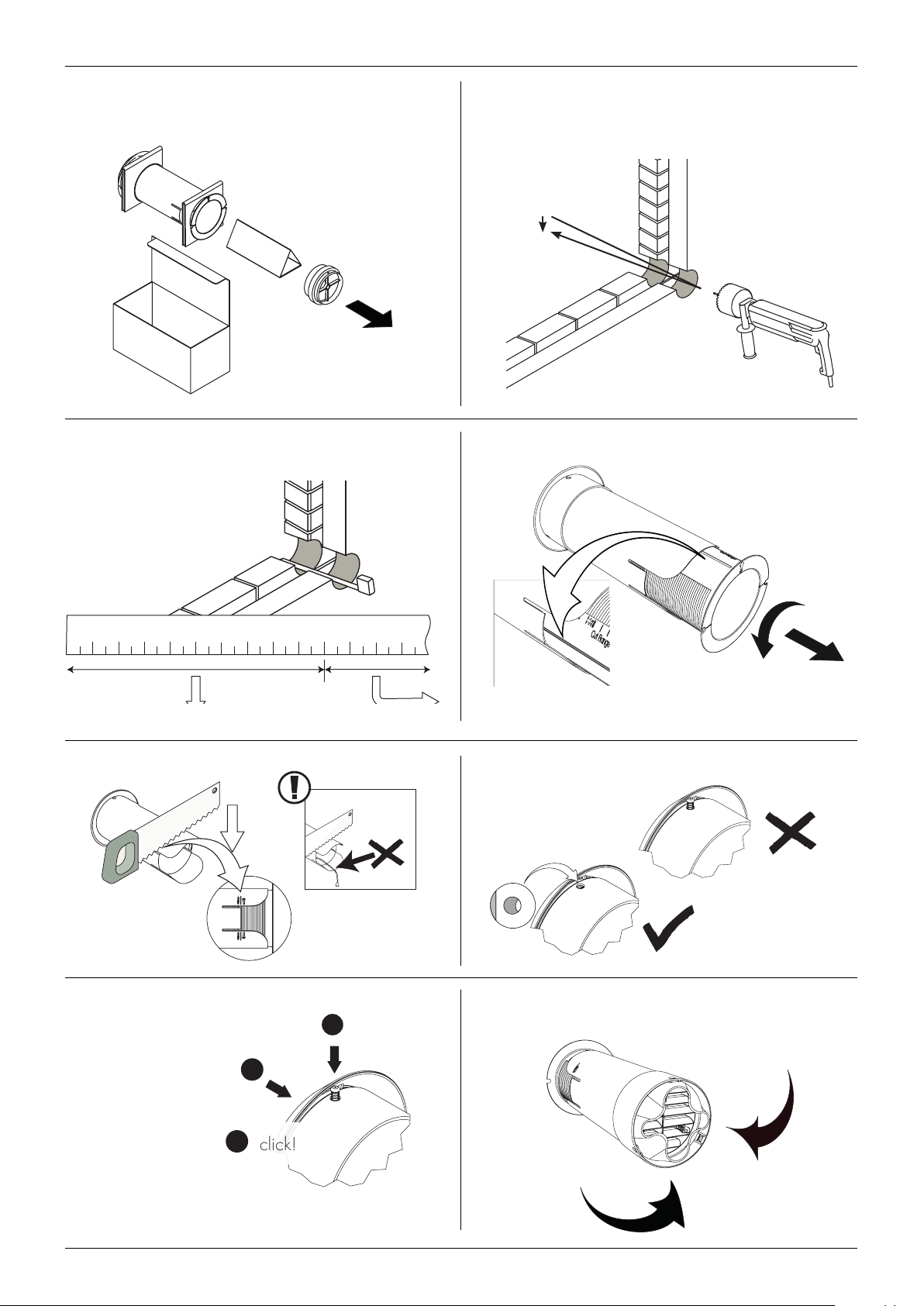

Step 1

Open box, gently slide the backdraught shutter out of the pipe (474779 &
474780 only). Remove folded push piece.

Step 2

Drill hole 117mm diameter angled downwards 1° - 2° all the way through
wall to outside.

Ø 117mm

1° - 2°

Step 3

Measure hole and note length, if deeper than 25cm, go to step 5. If shorter
than 25cm, trim the outer pipe’s ears - go to steps 3 + 4.

10.0 20.05.0 15.0CM 30.0

Step 5 Step 6

25.0

25.0cm

Step 4

90°

Go to Step 7

Step 7

1. Push the locking pin
down.

2. Push the grille inwards so
the head of the locking
pin is under the outer
pipe.

3. When it CLICKS! it is in
place.

4. Repeat for each one of
the three pins.

Go to Step 8

Step 8

Fold seal inwards, push grille and seal into tube.

1

2

3

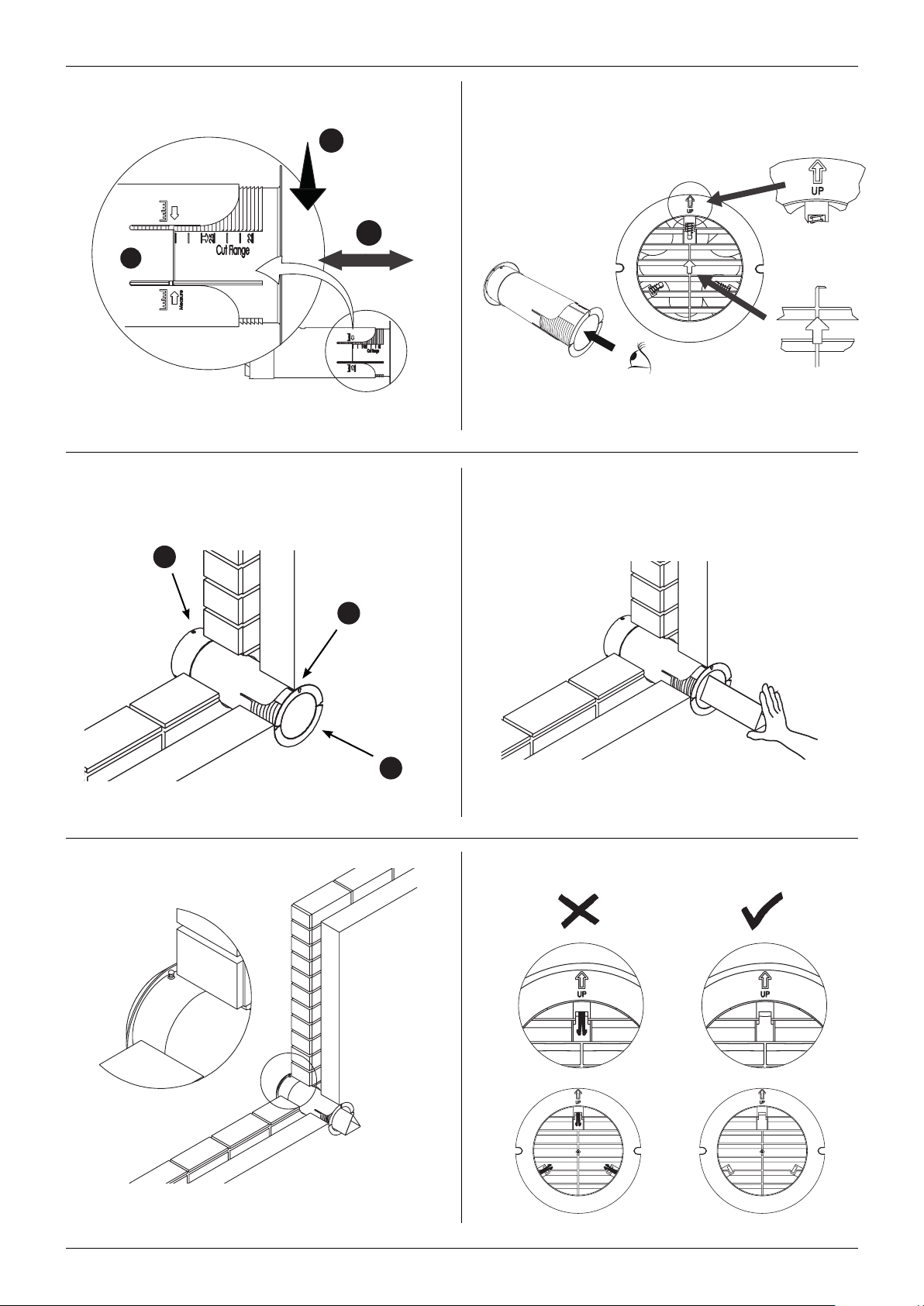

Step 9

1. Rotate inner tube until ridge up lines up with slot.

2. Slide inner tube in or out to match depth of hole measured in step 2.

1

2

1

Step 10

Look down the pipe and check that the two arrows are lined up and both
facing upwards.

UP

Step 11

1. Push wall kit through wall

2. Ensure locking pins are outside wall.

3. Check arrow is at top

Step 12

Insert folded cardboard into duct and gently push.
The seal will pop out and unfold, the locking pins will extend.
Stop pushing when you hear the CLICK! of the locking pins - see overpage.

4. Check arrow is at top

2

3

1

Step 13 Step 14

Check all 3 pins are out

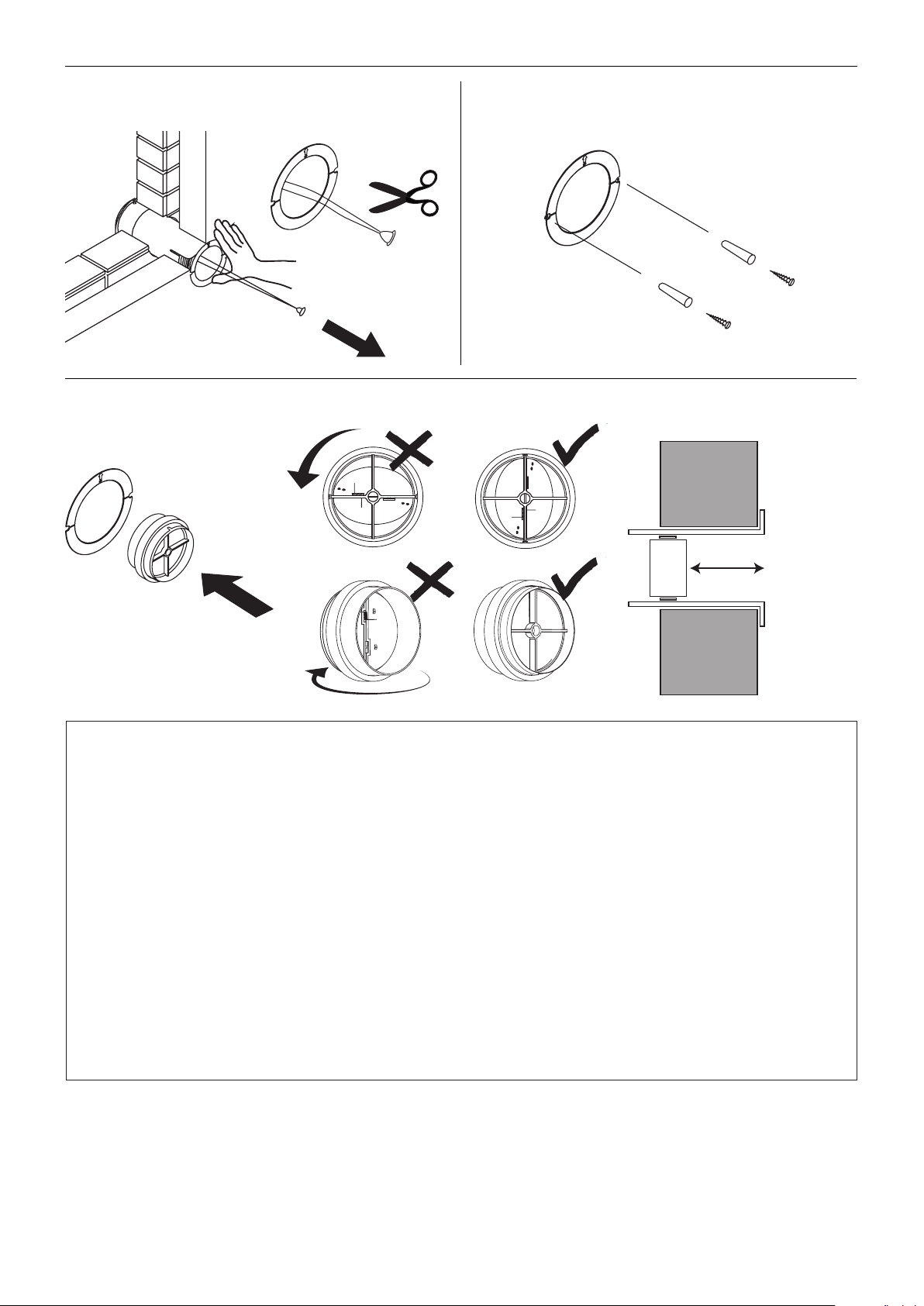

Step 15

Hold duct flange firmly against the wall. Using the toggle pull to ensure wall
kit is tight in the hole.

Step 17

(474779 & 474780 only)

Step 16

Using supplied screws and rawl plugs attach flange to wall.

200mm

MAX
