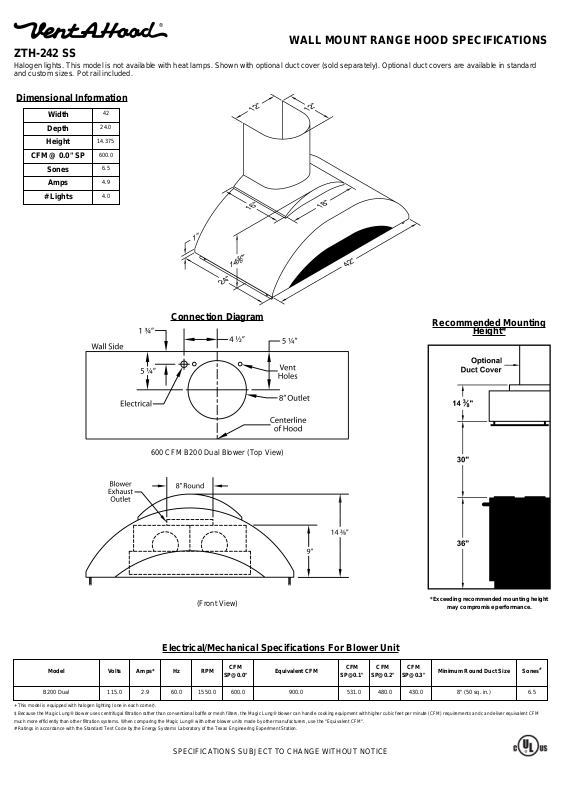

Vent-A-Hood ZTH242SS Specifications

WALL MOUNT RANGE HOOD SPECIFICATIONS

ZTH-242 SS

Halogen lights. This model is not available with heat lamps. Shown with optional duct cover (sold separately). Optional duct covers are available in standard
and custom sizes. Pot rail included.

Dimensional Information

Width
Depth

Height

CFM @ 0.0" SP

Sones

Amps

# Lights

42

24.0

14.375

600.0

6.5

4.9

4.0

Connection Diagram

600 CFM B200 Dual Blower (Top View)

Recommended Mounting

Height*

(Front View)

*Exceeding recommended mounting height

may compromise performance.

Electrical/Mechanical Specifications For Blower Unit

Model Volts Amps* Hz RPM

B200 Dual 115.0 2.9 60.0 1550.0 600.0 900.0 531.0 480.0 430.0 8" (50 sq. in.) 6.5

+ This model is equipped with halogen lighting (one in each corner).
$ Because the Magic Lung® blower uses centrifugal filtration rather than conventional baffle or mesh filters, the Magic Lung® blower can handle cooking equipment with higher cubic feet per minute (CFM) requirements and can deliver equivalent CFM
much more efficiently than other filtration systems. When comparing the Magic Lung® with other blower units made by other manufacturers, use the "Equivalent CFM".
# Ratings in accordance with the Standard Test Code by the Energy Systems Laboratory of the Texas Engineering Experiment Station.

CFM

SP@0.0"

Equivalent CFM

SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE

CFM

SP@0.1"

CFM

SP@0.2"

CFM

SP@0.3"

Minimum Round Duct Size Sones

#
