Page 1
TH448PSLE
Halogen lights. This model is not available with heat lamps.
Dimensional Information
Width
Depth
Height
CFM @ 0.0" SP
Sones
Amps
# Lights
48.0
30.0
12.0
1100.0
6.4
7.8
4.0
Connection Diagram

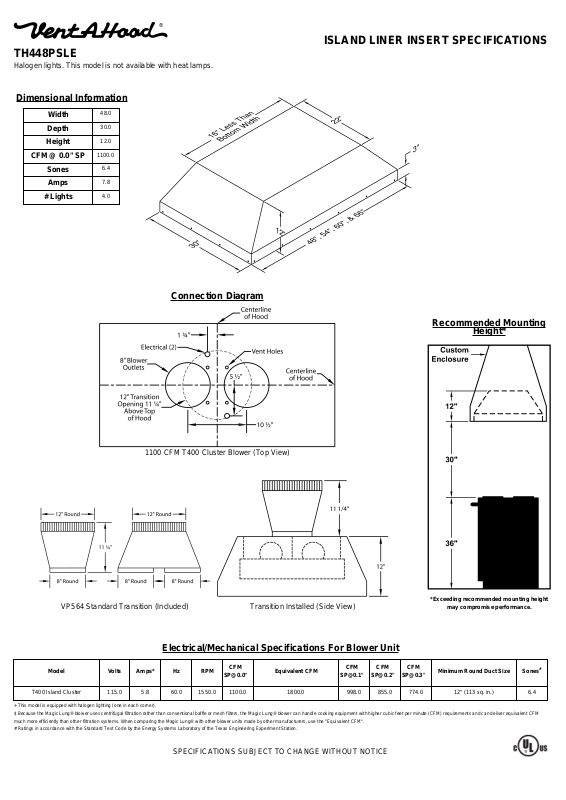

ISLAND LINER INSERT SPECIFICATIONS
1100 CFM T400 Cluster Blower (Top View)
VP564 Standard Transition (Included) Transition Installed (Side View)
Recommended Mounting
Height*
*Exceeding recommended mounting height
may compromise performance.
Electrical/Mechanical Specifications For Blower Unit
Model Volts Amps* Hz RPM
T400 Island Cluster 115.0 5.8 60.0 1550.0 1100.0 1800.0 998.0 855.0 774.0 12" (113 sq. in.) 6.4
+ This model is equipped with halogen lighting (one in each corner).
$ Because the Magic Lung® blower uses centrifugal filtration rather than conventional baffle or mesh filters, the Magic Lung® blower can handle cooking equipment with higher cubic feet per minute (CFM) requirements and can deliver equivalent CFM
much more efficiently than other filtration systems. When comparing the Magic Lung® with other blower units made by other manufacturers, use the "Equivalent CFM".
# Ratings in accordance with the Standard Test Code by the Energy Systems Laboratory of the Texas Engineering Experiment Station.
CFM
Equivalent CFM
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
CFM
CFM
CFM
Minimum Round Duct Size Sones
#
