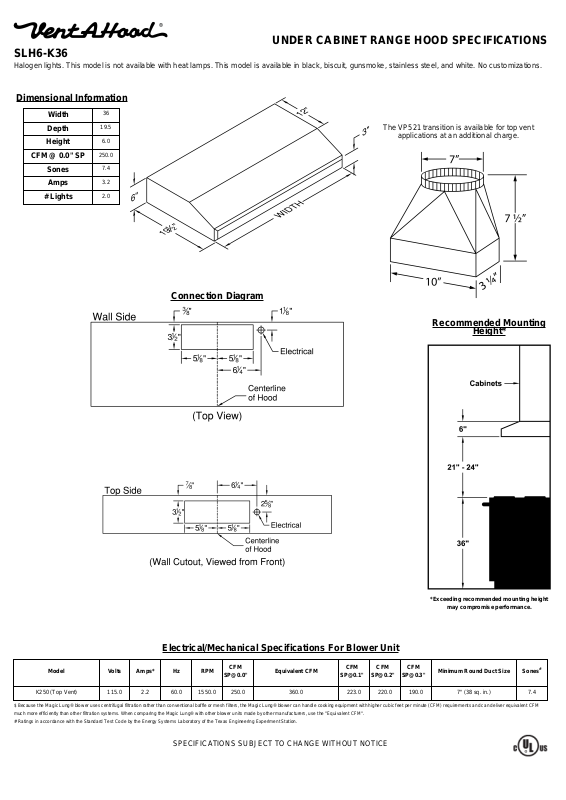

Vent-A-Hood SLH6-K36 SPECIFICATIONS

UNDER CABINET RANGE HOOD SPECIFICATIONS

SLH6-K36

Halogen lights. This model is not available with heat lamps. This model is available in black, biscuit, gunsmoke, stainless steel, and white. No customizations.

Dimensional Information

Width
Depth

Height

CFM @ 0.0" SP

Sones

Amps

# Lights

36

19.5

6.0

250.0

7.4

3.2

2.0

The VP521 transition is available for top vent

applications at an additional charge.

Connection Diagram

Recommended Mounting

Height*

*Exceeding recommended mounting height

may compromise performance.

Electrical/Mechanical Specifications For Blower Unit

Model Volts Amps* Hz RPM

K250 (Top Vent) 115.0 2.2 60.0 1550.0 250.0 360.0 223.0 220.0 190.0 7" (38 sq. in.) 7.4

$ Because the Magic Lung® blower uses centrifugal filtration rather than conventional baffle or mesh filters, the Magic Lung® blower can handle cooking equipment with higher cubic feet per minute (CFM) requirements and can deliver equivalent CFM
much more efficiently than other filtration systems. When comparing the Magic Lung® with other blower units made by other manufacturers, use the "Equivalent CFM".
# Ratings in accordance with the Standard Test Code by the Energy Systems Laboratory of the Texas Engineering Experiment Station.

CFM

SP@0.0"

Equivalent CFM

SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE

CFM

SP@0.1"

CFM

SP@0.2"

CFM

SP@0.3"

Minimum Round Duct Size Sones

#
