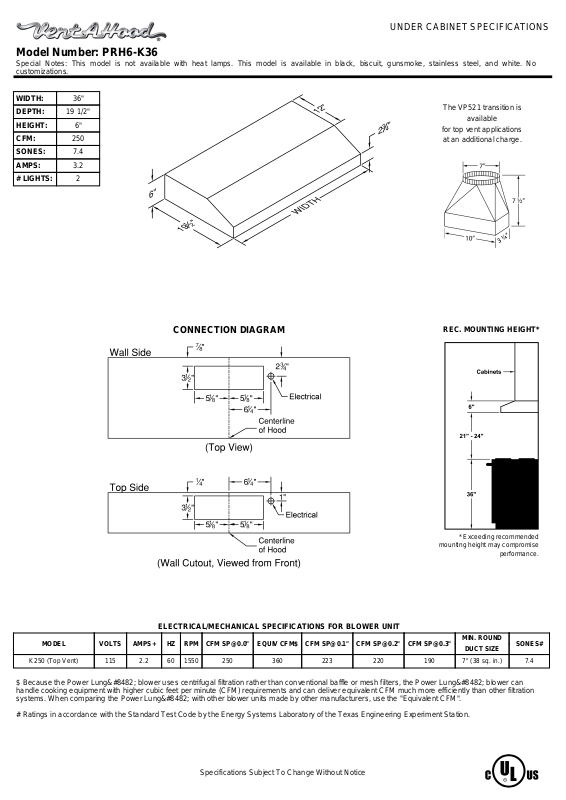

Vent-A-Hood PRH6K36SS Specifications

UNDER CABINET SPECIFICATIONS

Model Number: PRH6-K36

Special Notes: This model is not available with heat lamps. This model is available in black, biscuit, gunsmoke, stainless steel, and white. No
customizations.

WIDTH: 36"
DEPTH: 19 1/2"
HEIGHT: 6"
CFM: 250
SONES: 7.4
AMPS: 3.2
# LIGHTS: 2

CONNECTION DIAGRAM

The VP521 transition is

available
for top vent applications
at an additional charge.

REC. MOUNTING HEIGHT*

* Exceeding recommended

mounting height may compromise

ELECTRICAL/MECHANICAL SPECIFICATIONS FOR BLOWER UNIT

MODEL VOLTS AMPS+ HZ RPM CFM SP@0.0" EQUIV CFM$ CFM SP@0.1" CFM SP@0.2" CFM SP@0.3"

K250 (Top Vent) 115 2.2 60 1550 250 360 223 220 190 7" (38 sq. in.) 7.4

$ Because the Power Lung™ blower uses centrifugal filtration rather than conventional baffle or mesh filters, the Power Lung™ blower can
handle cooking equipment with higher cubic feet per minute (CFM) requirements and can deliver equivalent CFM much more efficiently than other filtration
systems. When comparing the Power Lung™ with other blower units made by other manufacturers, use the "Equivalent CFM".

# Ratings in accordance with the Standard Test Code by the Energy Systems Laboratory of the Texas Engineering Experiment Station.

Specifications Subject To Change Without Notice

MIN. ROUND

DUCT SIZE

performance.

SONES#
