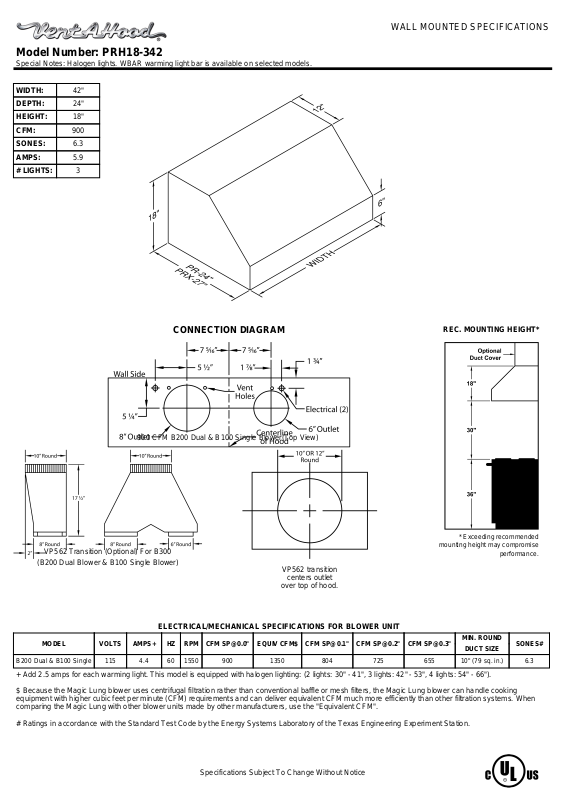

Vent-A-Hood PRH18-342 SPECIFICATIONS

Model Number: PRH18-342

Special Notes: Halogen lights. WBAR warming light bar is available on selected models.

WIDTH: 42"
DEPTH: 24"
HEIGHT: 18"
CFM: 900
SONES: 6.3
AMPS: 5.9
# LIGHTS: 3

WALL MOUNTED SPECIFICATIONS

900 CFM B200 Dual & B100 Single Blower(Top View)

VP562 Transition (Optional) For B300

(B200 Dual Blower & B100 Single Blower)

CONNECTION DIAGRAM

REC. MOUNTING HEIGHT*

* Exceeding recommended

mounting height may compromise

performance.

VP562 transition

centers outlet

over top of hood.

ELECTRICAL/MECHANICAL SPECIFICATIONS FOR BLOWER UNIT

MODEL VOLTS AMPS+ HZ RPM CFM SP@0.0" EQUIV CFM$ CFM SP@0.1" CFM SP@0.2" CFM SP@0.3"

B200 Dual & B100 Single 115 4.4 60 1550 900 1350 804 725 655 10" (79 sq. in.) 6.3

+ Add 2.5 amps for each warming light. This model is equipped with halogen lighting: (2 lights: 30" - 41", 3 lights: 42" - 53", 4 lights: 54" - 66").
$ Because the Magic Lung blower uses centrifugal filtration rather than conventional baffle or mesh filters, the Magic Lung blower can handle cooking

equipment with higher cubic feet per minute (CFM) requirements and can deliver equivalent CFM much more efficiently than other filtration systems. When
comparing the Magic Lung with other blower units made by other manufacturers, use the "Equivalent CFM".

# Ratings in accordance with the Standard Test Code by the Energy Systems Laboratory of the Texas Engineering Experiment Station.

Specifications Subject To Change Without Notice

MIN. ROUND

DUCT SIZE

SONES#
