NPH9-230
Halogen lights. WL-1 warming lights are available on selected models.
Dimensional Information
Width
Depth
Height
CFM @ 0.0" SP
Sones
Amps
# Lights
30
21.0
9.0
600.0
6.5
3.9
2.0

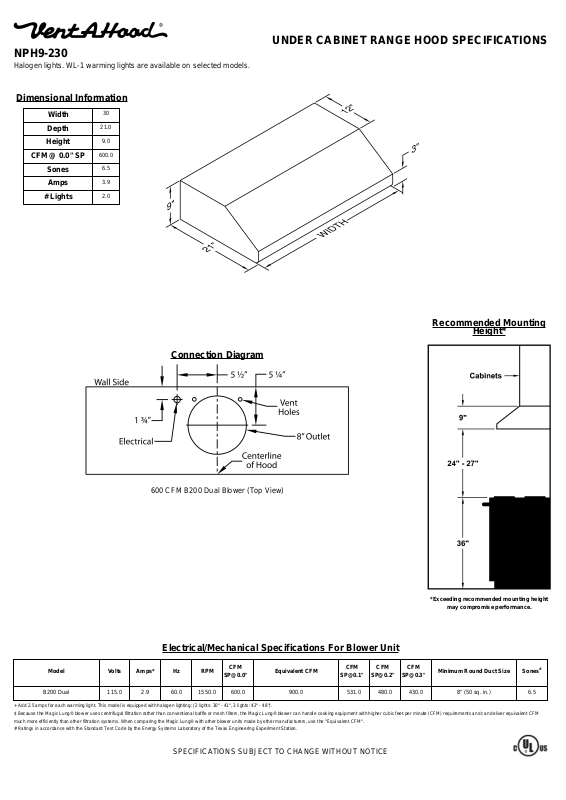

UNDER CABINET RANGE HOOD SPECIFICATIONS
Connection Diagram
600 CFM B200 Dual Blower (Top View)
Recommended Mounting
Height*
*Exceeding recommended mounting height
may compromise performance.
Electrical/Mechanical Specifications For Blower Unit
Model Volts Amps* Hz RPM
B200 Dual 115.0 2.9 60.0 1550.0 600.0 900.0 531.0 480.0 430.0 8" (50 sq. in.) 6.5
+ Add 2.5 amps for each warming light. This model is equipped with halogen lighting: (2 lights: 30" - 41", 3 lights: 42" - 48").
$ Because the Magic Lung® blower uses centrifugal filtration rather than conventional baffle or mesh filters, the Magic Lung® blower can handle cooking equipment with higher cubic feet per minute (CFM) requirements and can deliver equivalent CFM
much more efficiently than other filtration systems. When comparing the Magic Lung® with other blower units made by other manufacturers, use the "Equivalent CFM".
# Ratings in accordance with the Standard Test Code by the Energy Systems Laboratory of the Texas Engineering Experiment Station.
CFM
Equivalent CFM
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
CFM
CFM
CFM
Minimum Round Duct Size Sones
#
