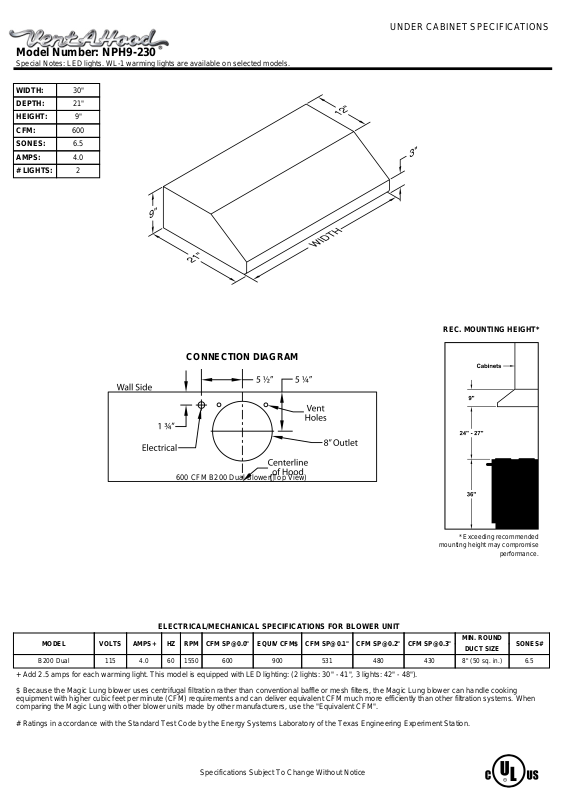

Vent-A-Hood NPH9-230 SPECIFICATIONS

Model Number: NPH9-230

Special Notes: LED lights. WL-1 warming lights are available on selected models.

WIDTH: 30"
DEPTH: 21"
HEIGHT: 9"
CFM: 600
SONES: 6.5
AMPS: 4.0
# LIGHTS: 2

UNDER CABINET SPECIFICATIONS

CONNECTION DIAGRAM

600 CFM B200 Dual Blower(Top View)

REC. MOUNTING HEIGHT*

* Exceeding recommended

mounting height may compromise

performance.

ELECTRICAL/MECHANICAL SPECIFICATIONS FOR BLOWER UNIT

MODEL VOLTS AMPS+ HZ RPM CFM SP@0.0" EQUIV CFM$ CFM SP@0.1" CFM SP@0.2" CFM SP@0.3"

B200 Dual 115 4.0 60 1550 600 900 531 480 430 8" (50 sq. in.) 6.5

+ Add 2.5 amps for each warming light. This model is equipped with LED lighting: (2 lights: 30" - 41", 3 lights: 42" - 48").
$ Because the Magic Lung blower uses centrifugal filtration rather than conventional baffle or mesh filters, the Magic Lung blower can handle cooking

equipment with higher cubic feet per minute (CFM) requirements and can deliver equivalent CFM much more efficiently than other filtration systems. When
comparing the Magic Lung with other blower units made by other manufacturers, use the "Equivalent CFM".

# Ratings in accordance with the Standard Test Code by the Energy Systems Laboratory of the Texas Engineering Experiment Station.

Specifications Subject To Change Without Notice

MIN. ROUND

DUCT SIZE

SONES#
