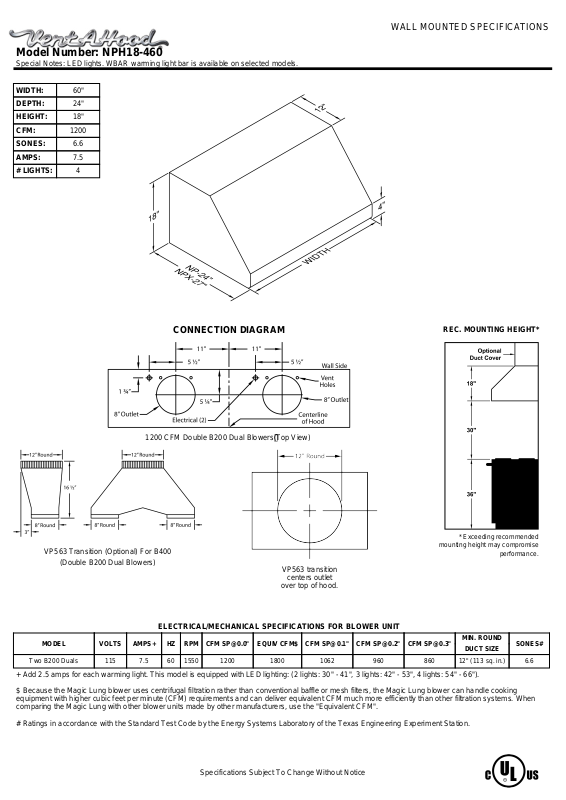

Vent-A-Hood NPH18-460 SPECIFICATIONS

Model Number: NPH18-460

Special Notes: LED lights. WBAR warming light bar is available on selected models.

WIDTH: 60"
DEPTH: 24"
HEIGHT: 18"
CFM: 1200
SONES: 6.6
AMPS: 7.5
# LIGHTS: 4

WALL MOUNTED SPECIFICATIONS

1200 CFM Double B200 Dual Blowers(Top View)

VP563 Transition (Optional) For B400

(Double B200 Dual Blowers)

CONNECTION DIAGRAM

REC. MOUNTING HEIGHT*

* Exceeding recommended

mounting height may compromise

performance.

VP563 transition

centers outlet

over top of hood.

ELECTRICAL/MECHANICAL SPECIFICATIONS FOR BLOWER UNIT

MODEL VOLTS AMPS+ HZ RPM CFM SP@0.0" EQUIV CFM$ CFM SP@0.1" CFM SP@0.2" CFM SP@0.3"

Two B200 Duals 115 7.5 60 1550 1200 1800 1062 960 860 12" (113 sq. in.) 6.6

+ Add 2.5 amps for each warming light. This model is equipped with LED lighting: (2 lights: 30" - 41", 3 lights: 42" - 53", 4 lights: 54" - 66").
$ Because the Magic Lung blower uses centrifugal filtration rather than conventional baffle or mesh filters, the Magic Lung blower can handle cooking

equipment with higher cubic feet per minute (CFM) requirements and can deliver equivalent CFM much more efficiently than other filtration systems. When
comparing the Magic Lung with other blower units made by other manufacturers, use the "Equivalent CFM".

# Ratings in accordance with the Standard Test Code by the Energy Systems Laboratory of the Texas Engineering Experiment Station.

Specifications Subject To Change Without Notice

MIN. ROUND

DUCT SIZE

SONES#
