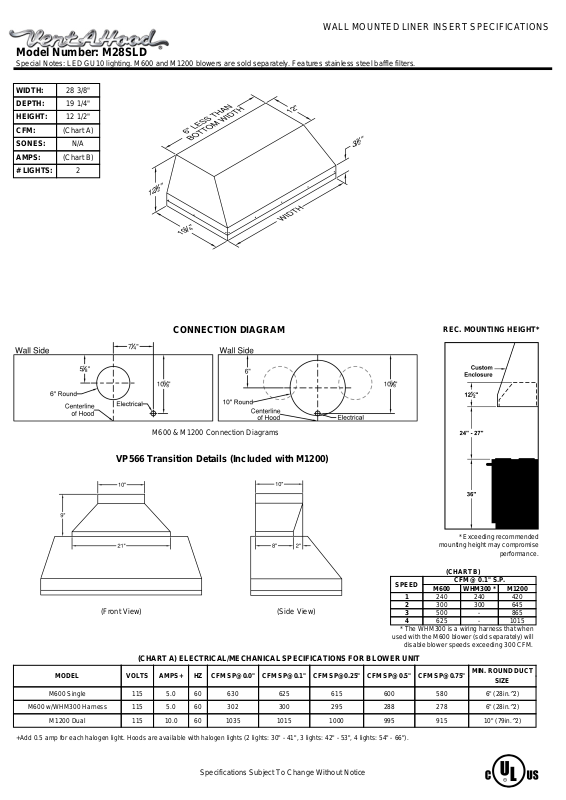

Vent-A-Hood M28SLD SPECIFICATIONS

WALL MOUNTED LINER INSERT SPECIFICATIONS

Model Number: M28SLD

Special Notes: LED GU10 lighting. M600 and M1200 blowers are sold separately. Features stainless steel baffle filters.

WIDTH: 28 3/8"
DEPTH: 19 1/4"
HEIGHT: 12 1/2"
CFM: (Chart A)
SONES: N/A
AMPS: (Chart B)
# LIGHTS: 2

CONNECTION DIAGRAM

REC. MOUNTING HEIGHT*

M600 & M1200 Connection Diagrams

VP566 Transition Details (Included with M1200)

* Exceeding recommended

mounting height may compromise

(CHART B)

CFM @ 0.1" S.P.

M600 WHM300 * M1200

(Front View) (Side View)

SPEED

1 240 240 420
2 300 300 645
3 500 - 865
4 625 - 1015

* The WHM300 is a wiring harness that when

used with the M600 blower (sold separately) will

disable blower speeds exceeding 300 CFM.

(CHART A) ELECTRICAL/MECHANICAL SPECIFICATIONS FOR BLOWER UNIT

MODEL VOLTS AMPS+ HZ CFM SP@0.0" CFM SP@0.1" CFM SP@0.25" CFM SP@0.5" CFM SP@0.75"

M600 Single 115 5.0 60 630 625 615 600 580 6" (28in.^2)

M600 w/WHM300 Harness 115 5.0 60 302 300 295 288 278 6" (28in.^2)

M1200 Dual 115 10.0 60 1035 1015 1000 995 915 10" (79in.^2)

performance.

MIN. ROUND DUCT

SIZE

+Add 0.5 amp for each halogen light. Hoods are available with halogen lights (2 lights: 30" - 41", 3 lights: 42" - 53", 4 lights: 54" - 66").

Specifications Subject To Change Without Notice
