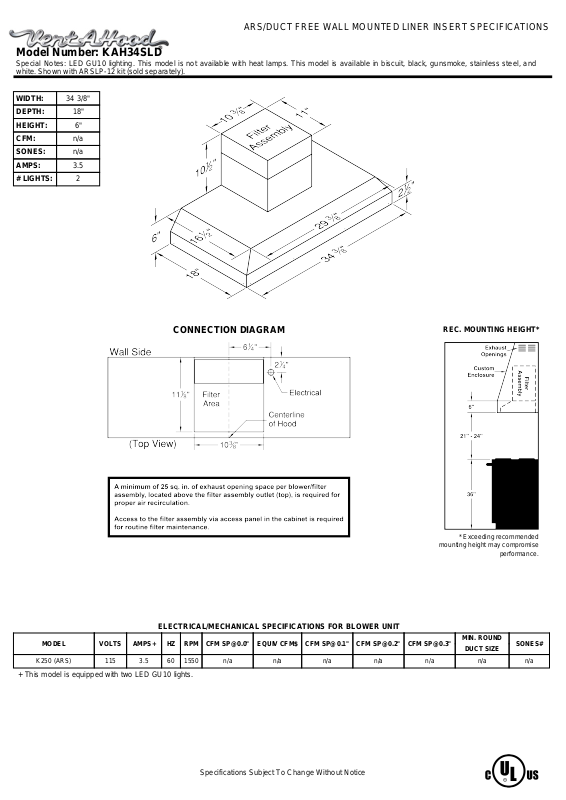

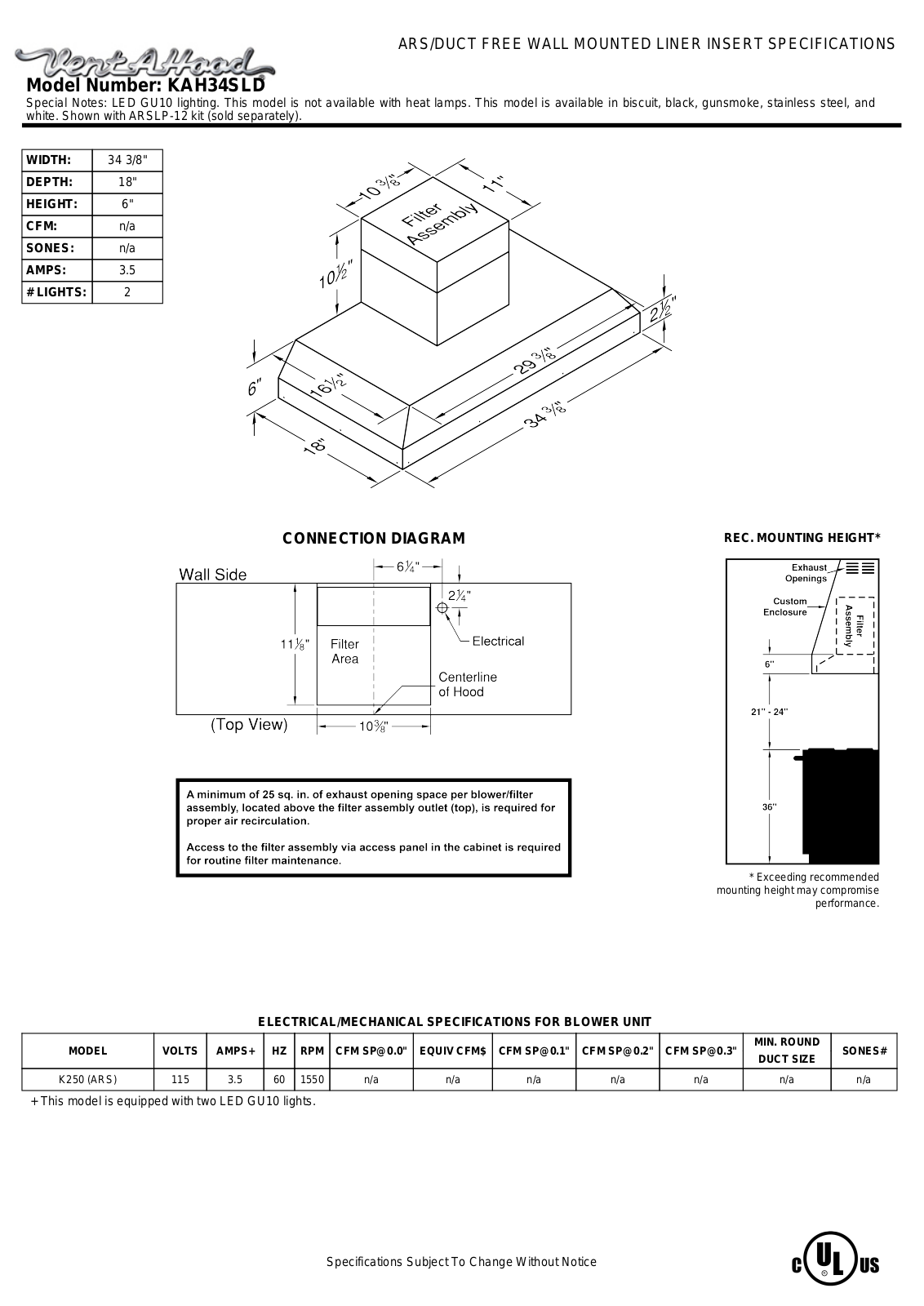

Vent-A-Hood KAH34SLD SPECIFICATIONS

ARS/DUCT FREE WALL MOUNTED LINER INSERT SPECIFICATIONS

Model Number: KAH34SLD

Special Notes: LED GU10 lighting. This model is not available with heat lamps. This model is available in biscuit, black, gunsmoke, stainless steel, and
white. Shown with ARSLP-12 kit (sold separately).

WIDTH: 34 3/8"
DEPTH: 18"
HEIGHT: 6"
CFM: n/a
SONES: n/a
AMPS: 3.5
# LIGHTS: 2

CONNECTION DIAGRAM

REC. MOUNTING HEIGHT*

* Exceeding recommended

mounting height may compromise

performance.

ELECTRICAL/MECHANICAL SPECIFICATIONS FOR BLOWER UNIT

MODEL VOLTS AMPS+ HZ RPM CFM SP@0.0" EQUIV CFM$ CFM SP@0.1" CFM SP@0.2" CFM SP@0.3"

K250 (ARS) 115 3.5 60 1550 n/a n/a n/a n/a n/a n/a n/a

+ This model is equipped with two LED GU10 lights.

Specifications Subject To Change Without Notice

MIN. ROUND

DUCT SIZE

SONES#
