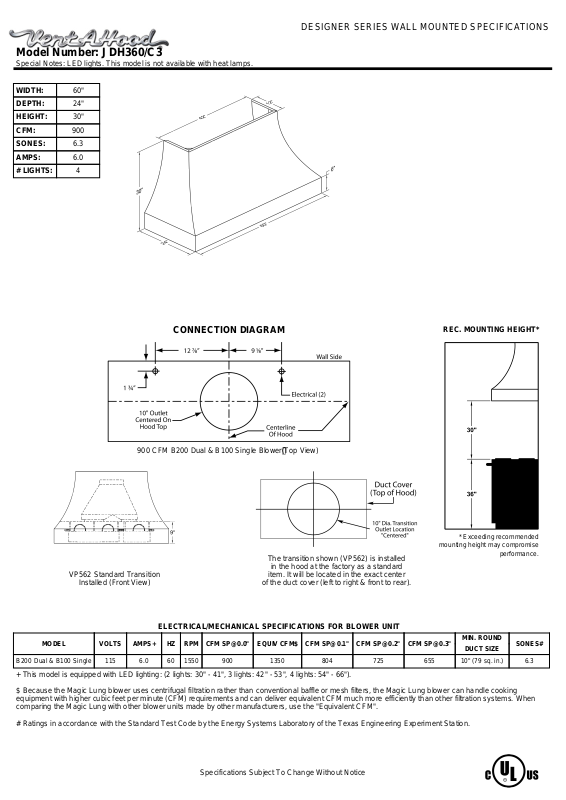

Vent-A-Hood JDH360/C3 SPECIFICATIONS

Model Number: JDH360/C3

Special Notes: LED lights. This model is not available with heat lamps.

WIDTH: 60"
DEPTH: 24"
HEIGHT: 30"
CFM: 900
SONES: 6.3
AMPS: 6.0
# LIGHTS: 4

DESIGNER SERIES WALL MOUNTED SPECIFICATIONS

900 CFM B200 Dual & B100 Single Blower(Top View)

VP562 Standard Transition

Installed (Front View)

CONNECTION DIAGRAM

The transition shown (VP562) is installed

in the hood at the factory as a standard

item. It will be located in the exact center

of the duct cover (left to right & front to rear).

REC. MOUNTING HEIGHT*

* Exceeding recommended

mounting height may compromise

performance.

ELECTRICAL/MECHANICAL SPECIFICATIONS FOR BLOWER UNIT

MODEL VOLTS AMPS+ HZ RPM CFM SP@0.0" EQUIV CFM$ CFM SP@0.1" CFM SP@0.2" CFM SP@0.3"

B200 Dual & B100 Single 115 6.0 60 1550 900 1350 804 725 655 10" (79 sq. in.) 6.3

+ This model is equipped with LED lighting: (2 lights: 30" - 41", 3 lights: 42" - 53", 4 lights: 54" - 66").
$ Because the Magic Lung blower uses centrifugal filtration rather than conventional baffle or mesh filters, the Magic Lung blower can handle cooking

equipment with higher cubic feet per minute (CFM) requirements and can deliver equivalent CFM much more efficiently than other filtration systems. When
comparing the Magic Lung with other blower units made by other manufacturers, use the "Equivalent CFM".

# Ratings in accordance with the Standard Test Code by the Energy Systems Laboratory of the Texas Engineering Experiment Station.

Specifications Subject To Change Without Notice

MIN. ROUND

DUCT SIZE

SONES#
