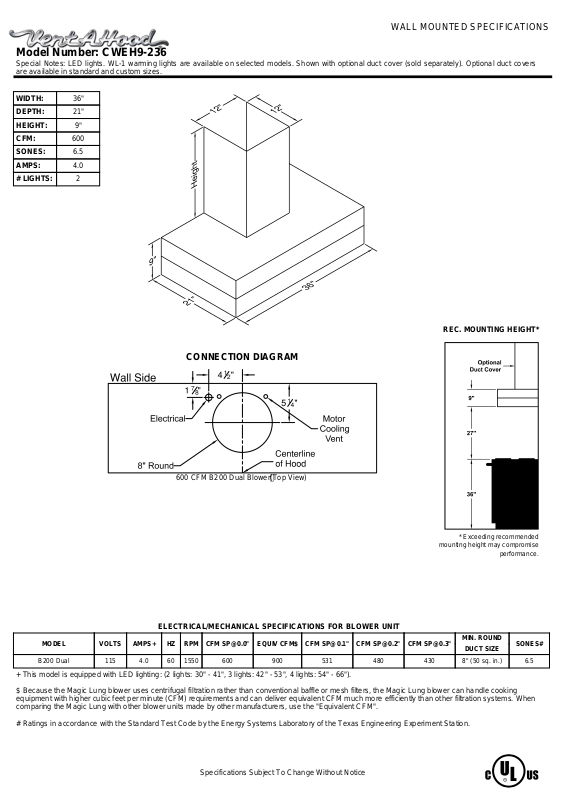

Vent-A-Hood CWEH9-236 SPECIFICATIONS
WALL MOUNTED SPECIFICATIONS
Model Number: CWEH9-236
Special Notes: LED lights. WL-1 warming lights are available on selected models. Shown with optional duct cover (sold separately). Optional duct covers
are available in standard and custom sizes.
WIDTH: 36"
DEPTH: 21"
HEIGHT: 9"
CFM: 600
SONES: 6.5
AMPS: 4.0
# LIGHTS: 2
CONNECTION DIAGRAM
600 CFM B200 Dual Blower(Top View)
REC. MOUNTING HEIGHT*
* Exceeding recommended
mounting height may compromise
performance.
ELECTRICAL/MECHANICAL SPECIFICATIONS FOR BLOWER UNIT
MODEL VOLTS AMPS+ HZ RPM CFM SP@0.0" EQUIV CFM$ CFM SP@0.1" CFM SP@0.2" CFM SP@0.3"
B200 Dual 115 4.0 60 1550 600 900 531 480 430 8" (50 sq. in.) 6.5
+ This model is equipped with LED lighting: (2 lights: 30" - 41", 3 lights: 42" - 53", 4 lights: 54" - 66").
$ Because the Magic Lung blower uses centrifugal filtration rather than conventional baffle or mesh filters, the Magic Lung blower can handle cooking
equipment with higher cubic feet per minute (CFM) requirements and can deliver equivalent CFM much more efficiently than other filtration systems. When
comparing the Magic Lung with other blower units made by other manufacturers, use the "Equivalent CFM".
# Ratings in accordance with the Standard Test Code by the Energy Systems Laboratory of the Texas Engineering Experiment Station.
Specifications Subject To Change Without Notice
MIN. ROUND
DUCT SIZE
SONES#
