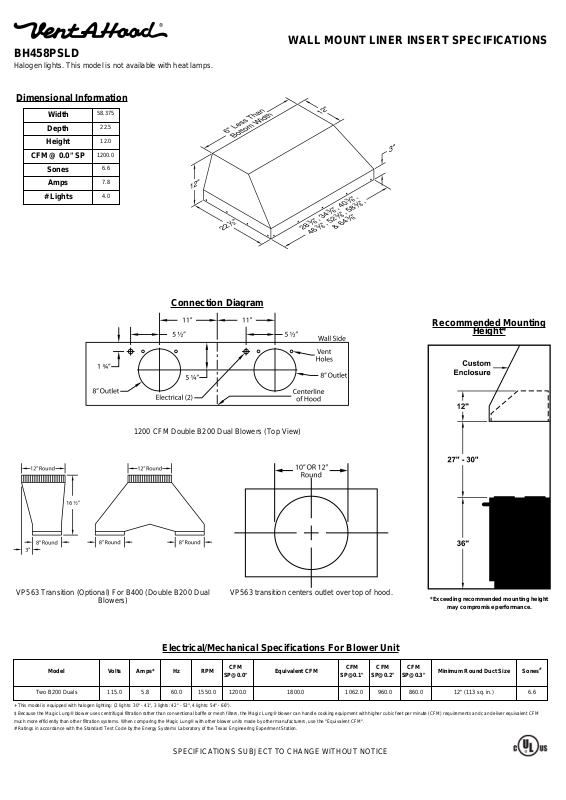

Vent-A-Hood BH458PSLDSS Specifications

BH458PSLD

Halogen lights. This model is not available with heat lamps.

Dimensional Information

Width
Depth

Height

CFM @ 0.0" SP

Sones

Amps

# Lights

58.375

22.5

12.0

1200.0

6.6

7.8

4.0

Connection Diagram

WALL MOUNT LINER INSERT SPECIFICATIONS

1200 CFM Double B200 Dual Blowers (Top View)

VP563 Transition (Optional) For B400 (Double B200 Dual

Blowers)

VP563 transition centers outlet over top of hood.

Recommended Mounting

Height*

*Exceeding recommended mounting height

may compromise performance.

Electrical/Mechanical Specifications For Blower Unit

Model Volts Amps* Hz RPM

Two B200 Duals 115.0 5.8 60.0 1550.0 1200.0 1800.0 1062.0 960.0 860.0 12" (113 sq. in.) 6.6

+ This model is equipped with halogen lighting: (2 lights: 30" - 41", 3 lights: 42" - 53", 4 lights: 54" - 66").
$ Because the Magic Lung® blower uses centrifugal filtration rather than conventional baffle or mesh filters, the Magic Lung® blower can handle cooking equipment with higher cubic feet per minute (CFM) requirements and can deliver equivalent CFM
much more efficiently than other filtration systems. When comparing the Magic Lung® with other blower units made by other manufacturers, use the "Equivalent CFM".
# Ratings in accordance with the Standard Test Code by the Energy Systems Laboratory of the Texas Engineering Experiment Station.

CFM

SP@0.0"

Equivalent CFM

SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE

CFM

SP@0.1"

CFM

SP@0.2"

CFM

SP@0.3"

Minimum Round Duct Size Sones

#
