Page 1

VB0162

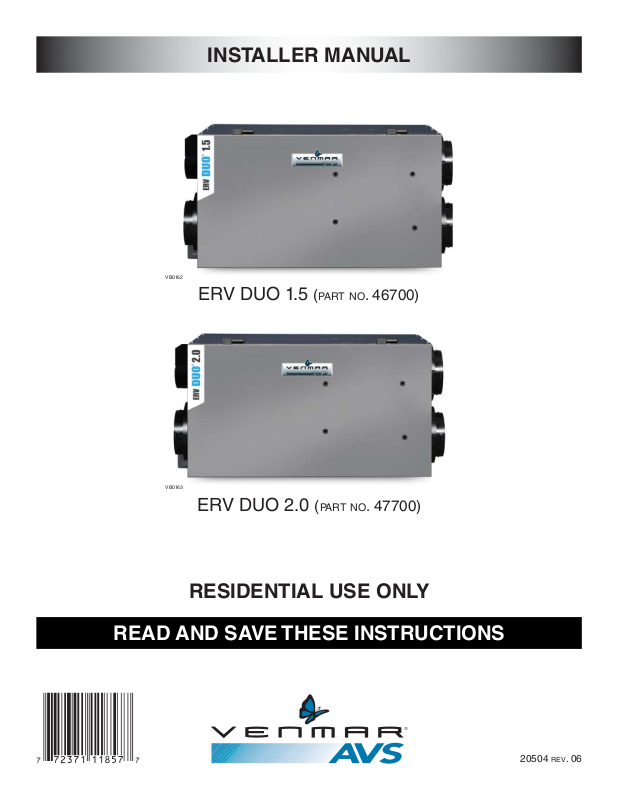

INSTALLER MANUAL

ERV DUO 1.5 (PART NO. 46700)

VB0163

ERV DUO 2.0 (PA RT NO. 47700)

RESIDENTIAL USE ONLY

READ AND SAVE THESE INSTRUCTIONS

20504 REV. 06

Page 2

ABOUT THIS MANUAL

Please take note that this manual uses the following symbols to emphasize particular information:

WARNING

Identifies an instruction which, if not followed, might cause serious personal injuries including possibility of death.

CAUTION

Denotes an instruction which, if not followed, may severely damage the unit and/or its components.

NOTE: Indicates supplementary information needed to fully complete an instruction. We welcome any suggestions you may have concerning this manual and/or the unit, and we would appreciate hearing your comments

on ways to better serve you. Please contact us by phone at 1-800-567-3855.

ABOUT THESE UNITS

LIMITATION

For residential (domestic) installation only. Installation work and electrical wiring must be done by a qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction codes and standards.

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSON(S) OBSERVE THE FOLLOWING:

1. Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer at the address or telephone number listed in the warranty.

2. Before servicing or cleaning this unit, disconnect power cord from electrical outlet.

3. This unit is not designed to provide combustion and/or dilution air for fuel-burning appliances.

4. When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.

5. Do not use this unit with any solid-state speed control device other than following main wall controls: Altitude, Deco-Touch, Lite-Touch Constructo, Simple-Touch Constructo or Constructo, and no other optional wall controls than 60-minute crank timer and/or 20/40/60-minute push-button timer and/or Dehumidistat.

6. This unit must be grounded. The power supply cord has a 3-prong grounding plug for your personal safety. It must be plugged into a mating 3-prong grounding receptacle, grounded in accordance with the national electrical code and local codes and ordinances. Do not remove the ground prong. Do not use an extension cord.

7. Do not install in a cooking area or connect directly to any appliances.

8. Do not use to exhaust hazardous or explosive materials and vapors.

9. When performing installation, servicing or cleaning these units, it is recommended to wear safety glasses and gloves.

10. Due to the weight of the unit, two installers are recommended to perform installation.

11. When applicable local regulations comprise more restrictive installation and/or certification requirements, the aforementioned requirements prevail on those of this document and the installer agrees to conform to these at his own expenses.

CAUTION

1. To avoid prematurate clogged filters, turn OFF the unit during construction or renovation.

2. Please read specification label on product for further information and requirements.

3. Be sure to duct air outside – Do not intake/exhaust air into spaces within walls or ceiling or into attics, crawl spaces, or garage.

4. Intended for residential installation only in accordance with the requirements of NFPA 90B (for a unit installed in U.S.A.) or Part 9 of the National Building Code of Canada (for a unit installed in Canada).

5. Do not run any air ducts directly above or closer than 2 ft (0.61 m) to any furnace or its supply plenum, boiler, or other heat producing appliance. If a duct has to be connected to the furnace return plenum, it must be connected not closer than 9’10” (3 m) from this plenum connection to the furnace.

6. The ductwork is intended to be installed in compliance with all local and national codes that are applicable.

7. When leaving the house for a long period of time (more than two weeks), a responsible person should regularly check if the unit operates adequately.

8. If the ductwork passes through an unconditioned space (e.g.: attic), the unit must operate continuously except when performing maintenance and/or repair. Also, the ambient temperature of the house should never drop below 18°C (65°F).

Page 3

TABLE OF CONTENTS

1. TECHNICAL DATA ....................................................................................................................................... 4

1.1 AIR DISTRIBUTION (NORMAL OPERATION) .......................................................................................................................... 4

1.2 A

1.3 DEFROST CYCLES TABLE ................................................................................................................................................4

1.4 DIMENSIONS ................................................................................................................................................................4

1.5 SPECIFICATIONS ...........................................................................................................................................................4

2. TYPICAL INSTALLATIONS .......................................................................................................................... 5

2.1 FULLY DUCTED SYSTEM ................................................................................................................................................. 5

2.2 EXHAUST DUCTED SYSTEM (SOURCE POINT VENTILATION) .....................................................................................................5

2.3 SIMPLIFIED (VOLUME VENTILATION) .................................................................................................................................. 5

3. INSTALLATION .........................................................................................................................................5-11

3.1 INSPECT THE CONTENT OF THE BOX .................................................................................................................................5

3.2 LOCATING AND MOUNTING THE UNIT .................................................................................................................................6

3.3 P

3.4 C

3.4.1 EXAMPLE OF CALCULATION ....................................................................................................................................................... 7

3.4.2 EXAMPLE OF A DESIGN FOR A FULLY DUCTED SYSTEM .................................................................................................................... 7

3.5 INSTALLING THE DUCTWORK AND THE REGISTERS .............................................................................................................8-9

3.5.1 FULLY DUCTED SYSTEM ........................................................................................................................................................... 8

3.5.2 EXHAUST DUCTED SYSTEM ....................................................................................................................................................... 8

3.5.3 SIMPLIFIED INSTALLATION ......................................................................................................................................................... 9

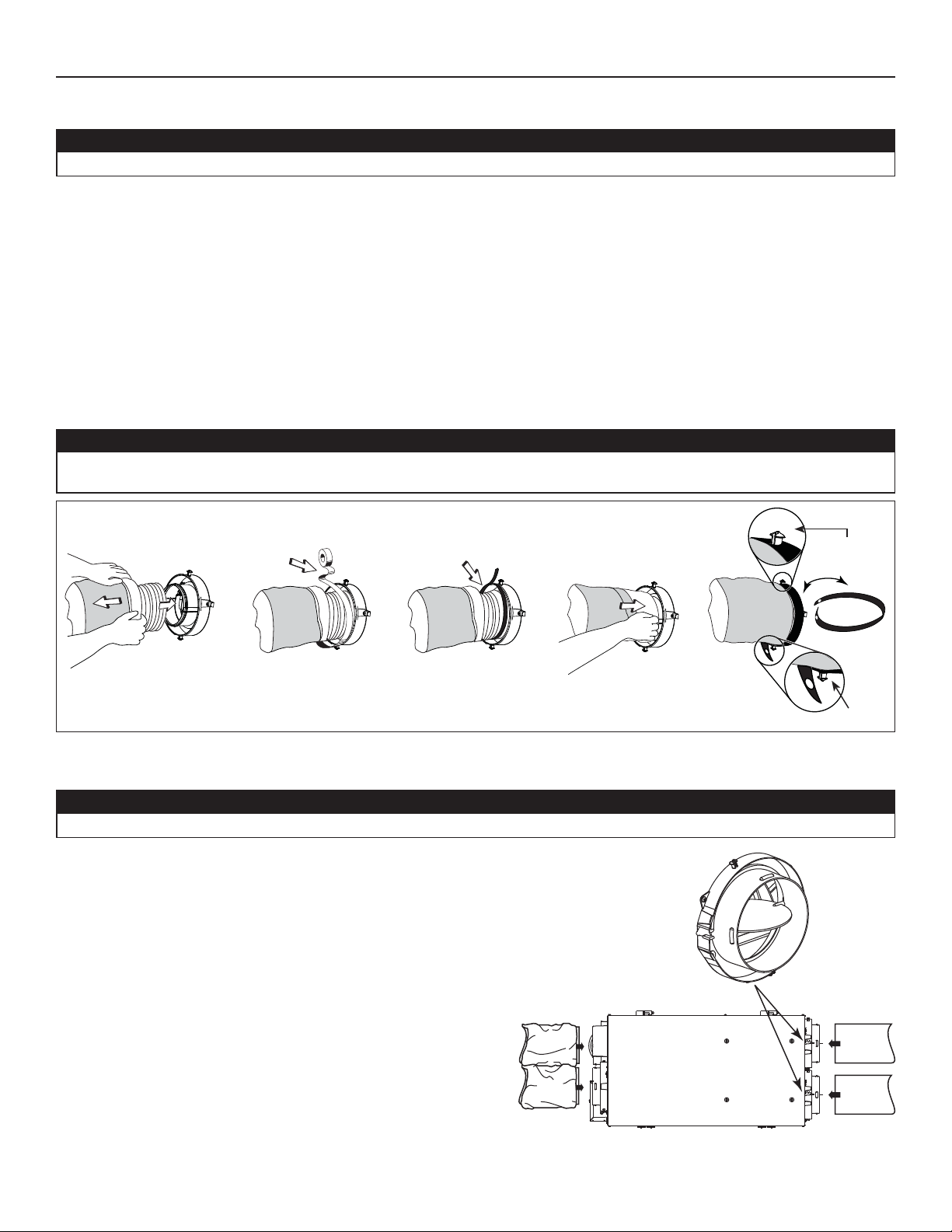

3.6 CONNECTING THE DUCTS TO THE UNIT ........................................................................................................................... 10

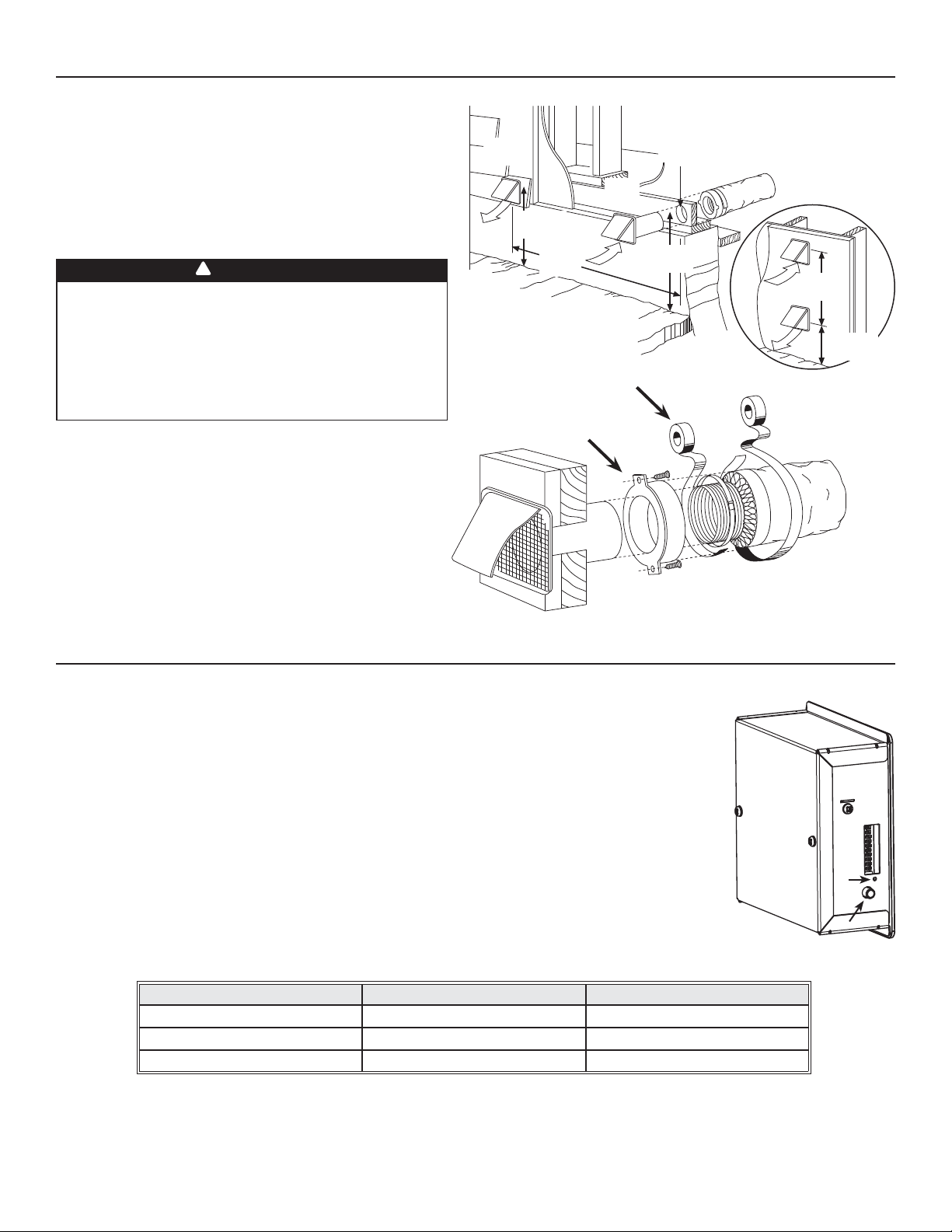

3.7 INSTALLING THE EXTERIOR HOODS ................................................................................................................................. 11

IR DISTRIBUTION (DEFROST MODE) ................................................................................................................................ 4

LANNING OF THE DUCTWORK .........................................................................................................................................7

ALCULATING THE DUCT SIZE ..........................................................................................................................................7

4. CONTROLS ........................................................................................................................................... 11-13

4.1 INTEGRATED CONTROL ............................................................................................................................................11-12

4.1.1 BOOT SEQUENCE .................................................................................................................................................................12

4.1.2 SETTING EXTENDED DEFROST ..................................................................................................................................................12

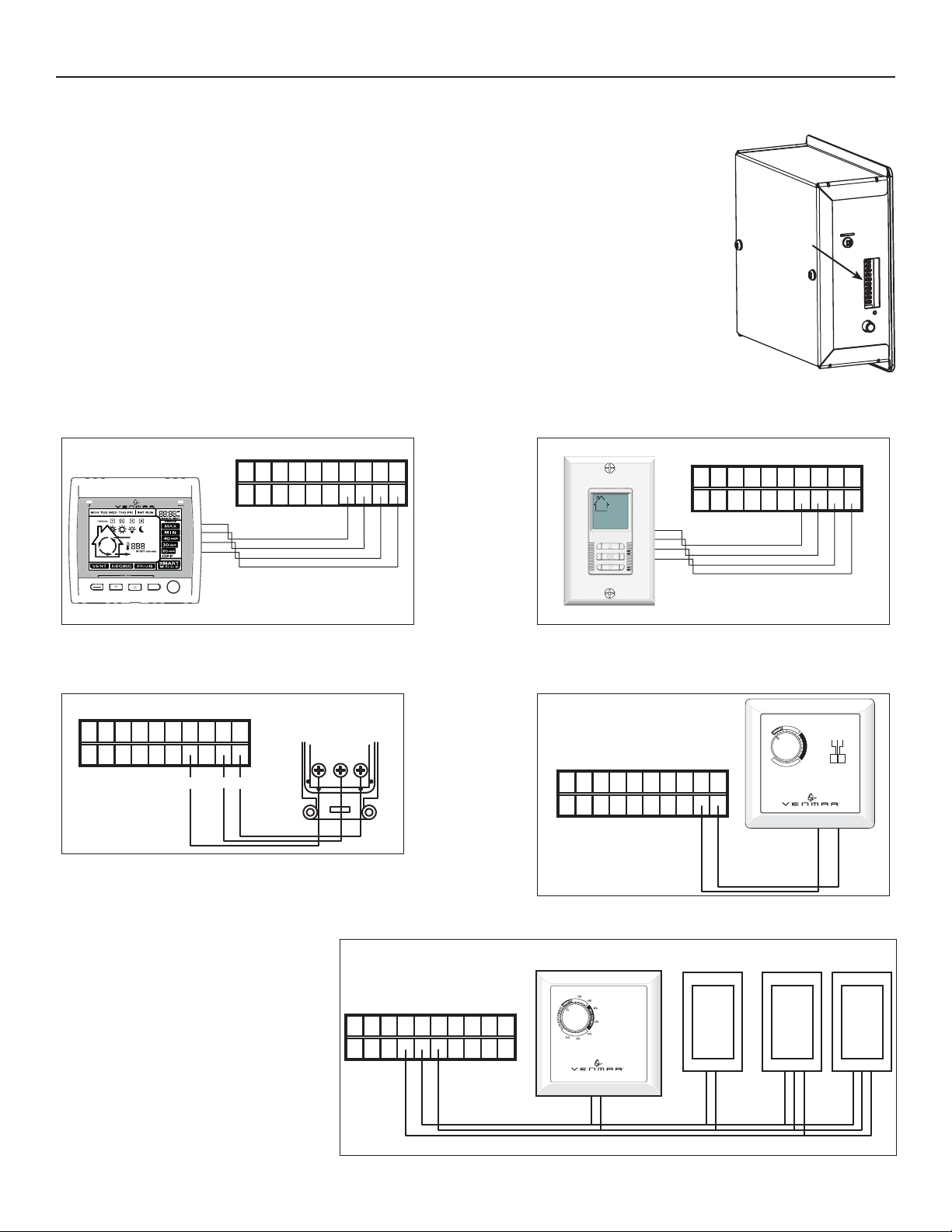

4.2 ELECTRICAL CONNECTION TO OPTIONAL WALL CONTROLS .............................................................................................. 12-13

4.2.1 ELECTRICAL CONNECTION TO ALTITUDE MAIN WALL CONTROL ..........................................................................................................13

4.2.2 ELECTRICAL CONNECTION TO DECO-TOUCH MAIN WALL CONTROL....................................................................................................13

4.2.3 ELECTRICAL CONNECTION TO LITE-TOUCH CONSTRUCTO OR SIMPLE-TOUCH CONSTRUCTO MAIN WALL CONTROL .....................................13

4.2.4 ELECTRICAL CONNECTION TO CONSTRUCTO MAIN WALL CONTROL ...................................................................................................13

4.2.5 ELECTRICAL CONNECTION TO OPTIONAL AUXILIARY WALL CONTROLS ................................................................................................13

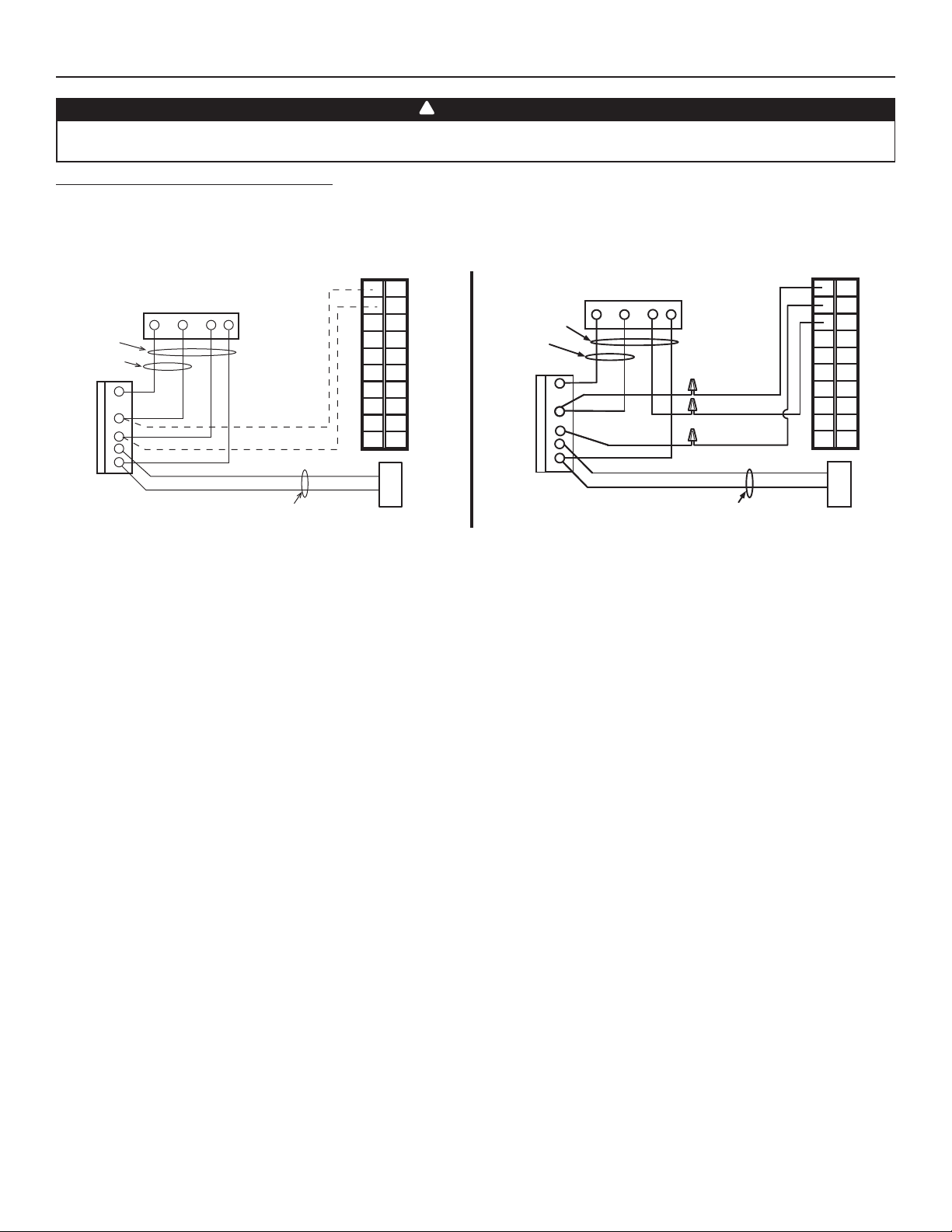

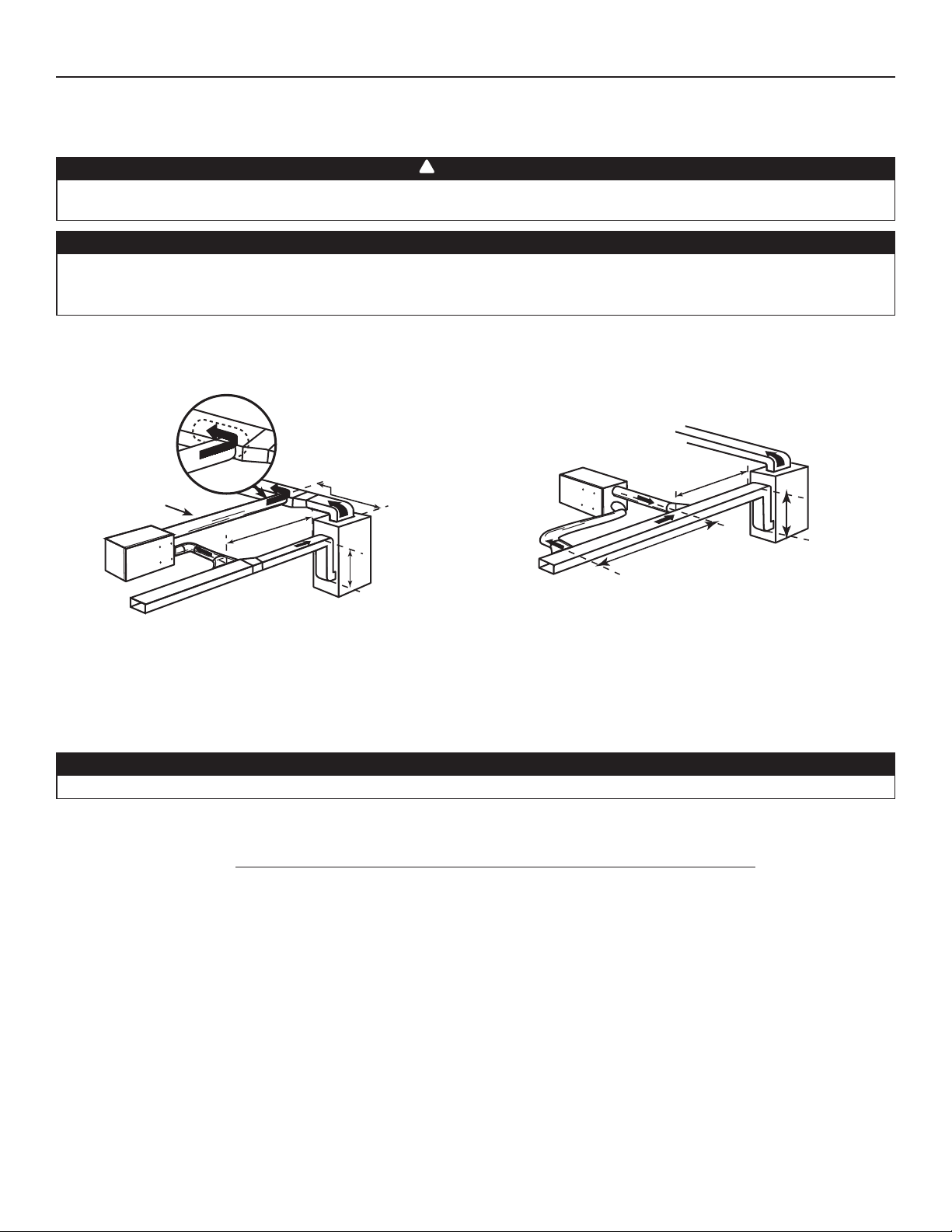

5. ELECTRICAL CONNECTION TO THE FURNACE .....................................................................................14

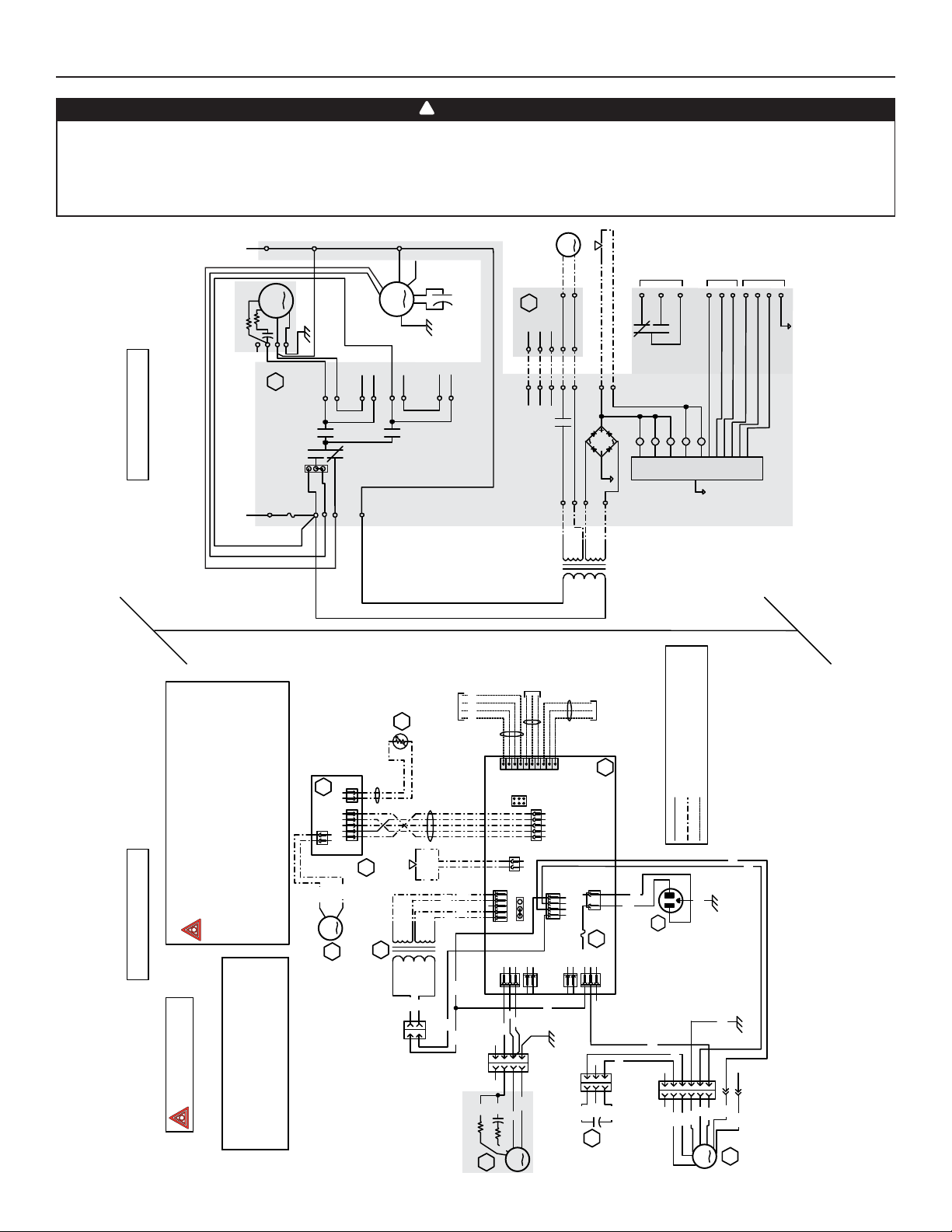

6. WIRING DIAGRAM ......................................................................................................................................15

7. BALANCING THE UNIT ..............................................................................................................................16

7.1 WHAT YOU NEED TO BALANCE THE UNIT .........................................................................................................................16

7.2 PRELIMINARY STAGES TO BALANCE THE UNIT ................................................................................................................... 16

7.3 BALANCING PROCEDURE .............................................................................................................................................16

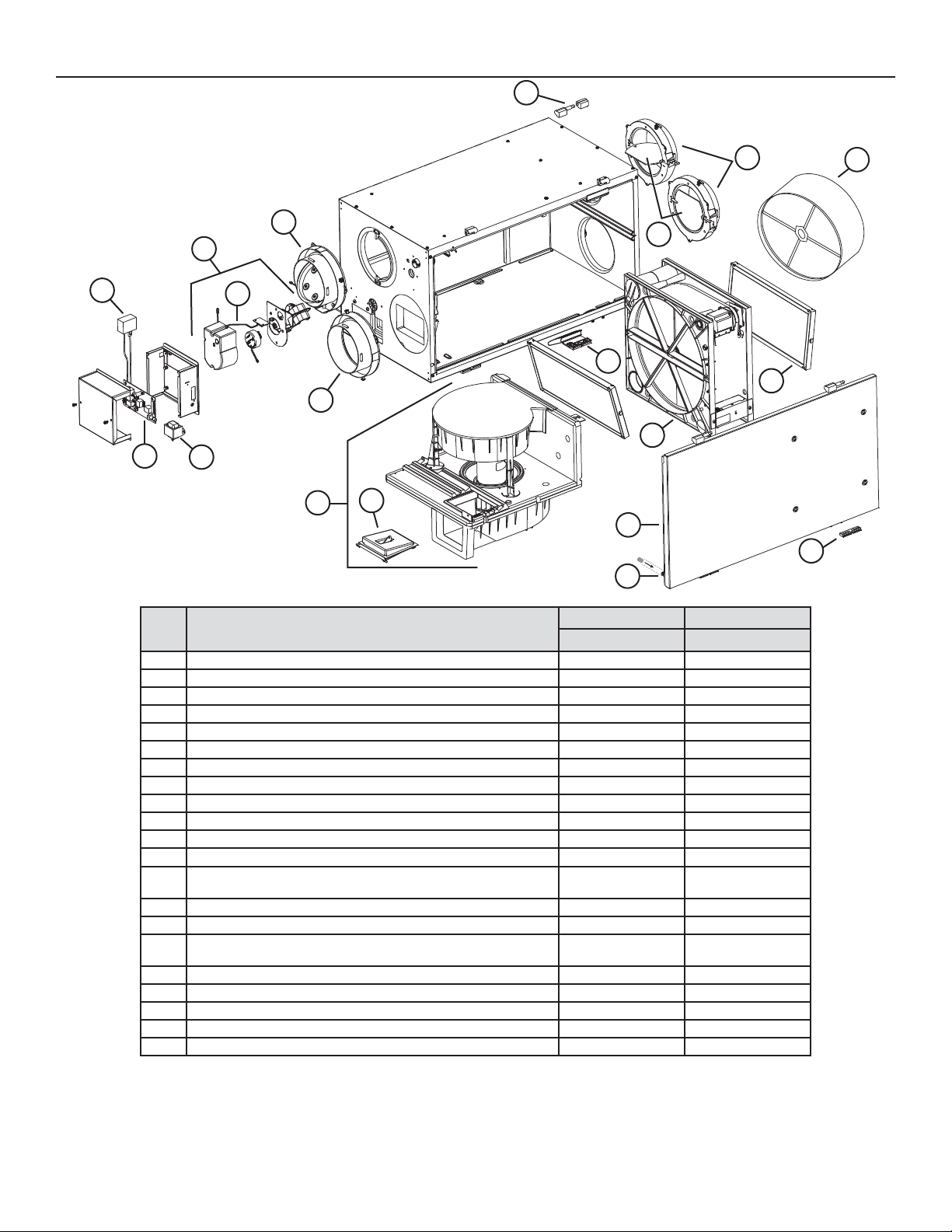

8. SERVICE PARTS ........................................................................................................................................17

9. OVERALL VERIFICATION ..........................................................................................................................18

9.1 OPTIONAL MAIN CONTROLS .......................................................................................................................................... 18

9.2 OPTIONAL AUXILIARY CONTROLS ................................................................................................................................... 18

10. MAINTENANCE / INSTRUCTIONS FOR USER .........................................................................................19

11. TROUBLESHOOTING .......................................................................................................................... 19-20

Page 4

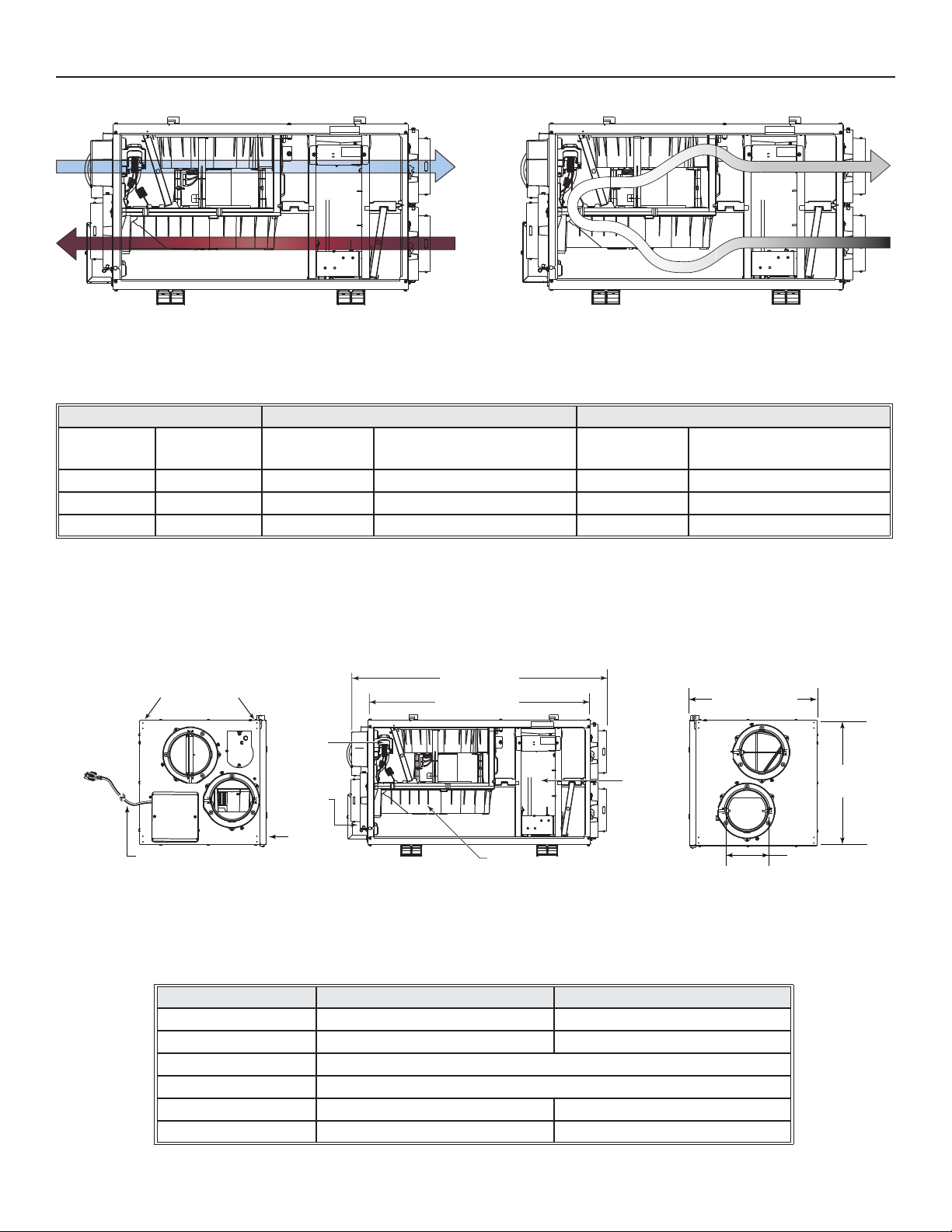

1. TECHNICAL DATA

1.1 AIR DISTRIBUTION (NORMAL OPERATION)

VF0054

EFROST CYCLES TABLE

1.3 D

1.2 AIR DISTRIBUTION (DEFROST MODE)

VF0055

OUTSIDE TEMPERATURE DEFROST CYCLES (MINUTES)EXTENDED DEFROST CYCLES (MINUTES)

ELCIUS (°C) FAHRENHEIT (°F) DEFROSTING

OPERATION TIME BETWEEN EACH

DEFROST CYCLES

DEFROSTING

OPERATION TIME BETWEEN EACH

DEFROST CYCLES

-5 23 9 60 10 30

-15 5 9 32 10 20

-27 -17 9 20 10 15

NOTE: The Duo Performance Charts are listed on the specification sheets of these units. Visit our website at www.venmar.ca to access those documents.

1.4 DIMENSIONS

Hooks Location

for Hanging Chains

Power Cord

VK0079A

36” (914 mm)

1.5 SPECIFICATIONS

35” (891 mm)

30¼” (768 mm)

Motorized

Damper

Terminal

Block

Location

Door

Blower Assembly

Thermal Wheel

MODEL ERV DUO 1.5 ERV DUO 2.0

EIGHT 65 LB. (29.5 kg) 65 LB. (29.5 KG)

PORT DIAMETER 6˝ (152 MM) 6˝ (152 MM)

INSTALLATION CHAINS AND SPRINGS (PROVIDED WITH THE UNIT)

OTOR SPEEDS HIGH AND LOW SPEED FACTORY SET (OPTIONAL INCREASED LOW SPEED)

LECTRICAL SUPPLY 120 V, 60 HZ 120 V, 60 HZ

POWER CONSUMPTION 170 WATTS 230 WATTS

17¼” (438 mm)

17”

(432 mm)

6”

(152 mm)

Page 5

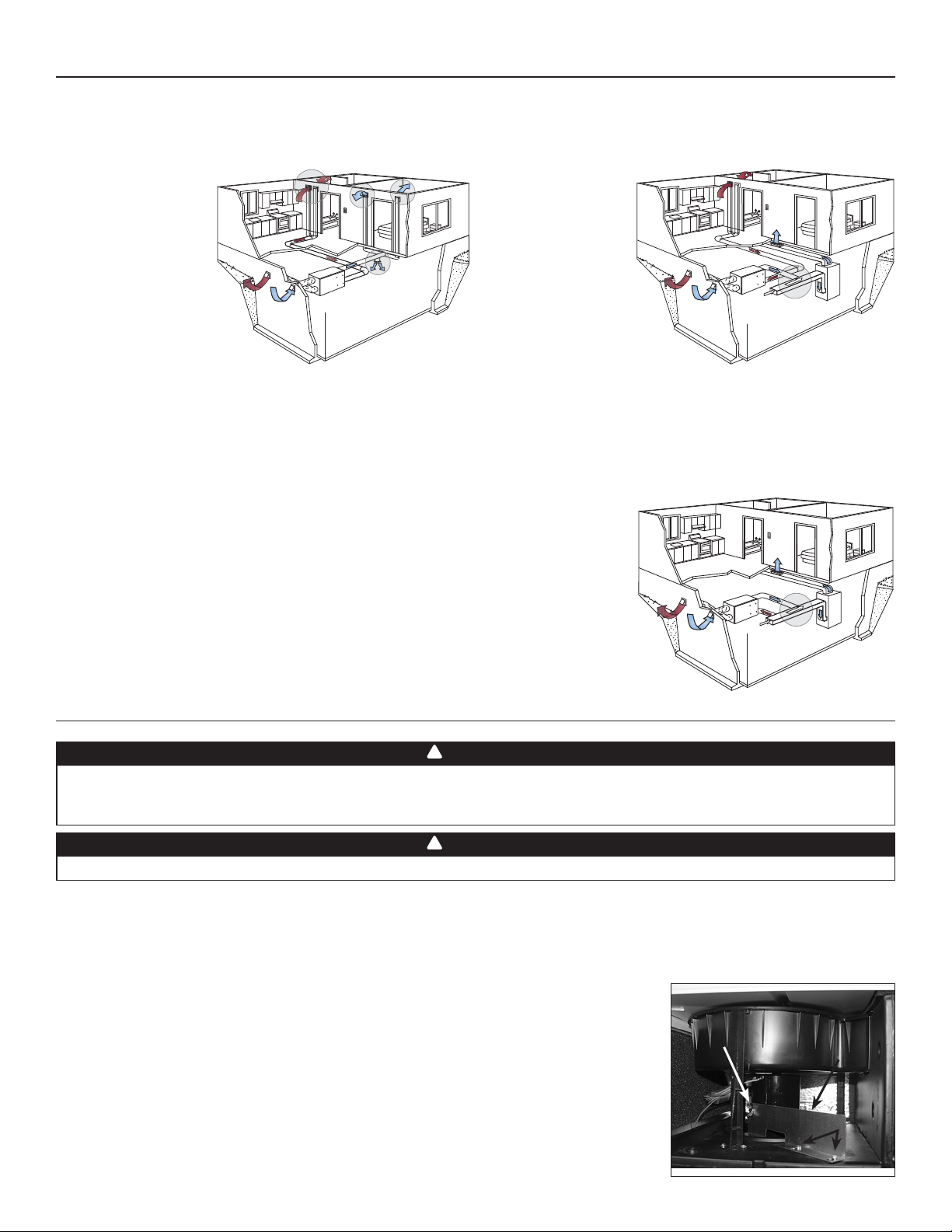

2. TYPICAL INSTALLATIONS

NOTE: Installation may vary according to the model number and the position (normal or reverse) in wich the unit is installed. There are three common installation methods.

2.1 FULLY DUCTED SYSTEM

(Primarily for homes with radiant hot water or electric baseboard heating. See illustration at right.)

Moist, stale air is exhausted from the high humidity areas in the home, such as bathrooms, kitchen and laundry room.

Fresh air is supplied to

VH0084

bedrooms and principal living areas. If required, bathroom fans and a range hood may be used to better

exhaust stale air. Homes with more than one level require at least one exhaust

See 3.5.1 for details

2.2 EXHAUST DUCTED SYSTEM (SOURCE POINT VENTILATION)

(For homes with forced air heating. See illustration at right.)

Moist, stale air is exhausted from the high humidity areas in the home, such as bathrooms, kitchen and laundry room. Fresh air is supplied to the cold air return or the supply duct of the furnace. If required, bathroom fans and a range hood may be used to better exhaust stale air.

Homes with more than one level require at least one exhaust register at the highest level.

NOTE: For this type of installation, it is not essential that the furnace

blower runs when the unit is in operation, but we recommend it.

2.3 SIMPLIFIED (VOLUME VENTILATION)

(For homes with forced air heating. See illustration at right.)

Fresh air and exhaust air flow through the furnace ducts, which simplifies the installation. The use of bathroom fans and a range hood is suggested to exhaust stale air. NOTE: For this type of installation, the furnace blower must be running when the unit is in

operation.

3. INSTALLATION

VH0085

VH0086

See 3.5.2 for details

See 3.5.3 for details

WARNING

When applicable local regulations comprise more restrictive installation and/or certification requirements, the aforementioned requirements prevail on those of this document and the installer agrees to conform to these at his own expenses.

WARNING

When performing installation, servicing or cleaning the unit, it is recommended to wear safety glasses and gloves

3.1 INSPECT THE CONTENT OF THE BOX

• Inspect the exterior of the unit for shipping damage. Ensure that there is no damage to the door, door latches, door hinges, dampers,

duct collars, cabinet, etc.

• Inspect the interior of the unit for damage. Ensure that the fan motor assembly, recovery module, insulation, dampers are all intact.

• If the unit was damaged during shipping, contact your local distributor. (Claim must be made within 24 hours after delivery.)

WING NUT

SHIPPING BRACKET

NOTE: Prior to install the unit, remove its shipping bracket by unscrewing its wing nut and loosing its both retaining screws.

RETAINING SCREWS

VD0283

Page 6

3. INSTALLATION (CONT’D)

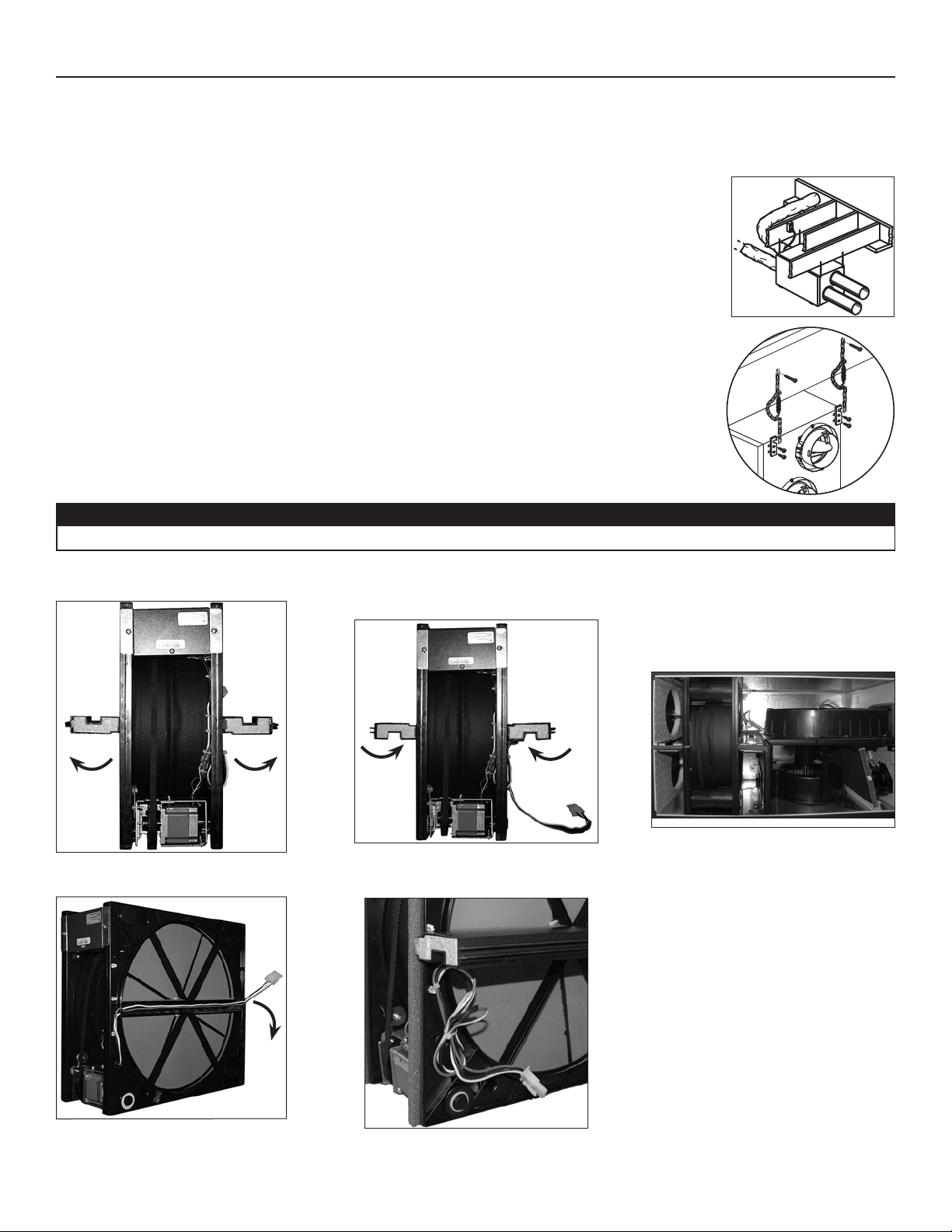

3.2 LOCATING AND MOUNTING THE UNIT

NOTE: Please note that these units can be installed in either the normal or reverse (upside down) position. See below for special instructions about reverse position.

Choose an appropriate location for the unit:

• Within an area of the house where the ambient temperature is kept between 10°C (50°F) and 40°C (104°F)

• Away from living areas (dining room, living room, bedroom), if possible

• So as to provide easy access to the interior cabinet for every three months maintenance, and to the control

panel on the side of the unit

• Close to an exterior wall, so as to limit the length of the insulated flexible duct to and from the unit

• Away from hot chimneys, electrical panel and other fire hazards

• Allow for a power source (standard outlet)

Hang the unit with the 4 chains and springs provided (see illustration at right).

CAUTION

If the unit is installed upside down, the thermal wheel must have its motor on top. Follow procedure below.

VD0037

VD0279

 Unplug and slide the thermal wheel out of the unit.  Remove both thermal wheel side bars.  Reinstall upside down both  Turn upside down the thermal wheel in

thermal wheel side bars. order to place the motor on top. Slide back the thermal wheel in the unit, with motor at the back of the unit and connect back its harness.

VD0292

VD0361

VD0363

 Disengage thermal wheel harness  Attach the harness to prevent possible

from its channel. interference with thermal wheel operation.

VD0362

VD0291

Page 7

3. INSTALLATION (CONT’D)

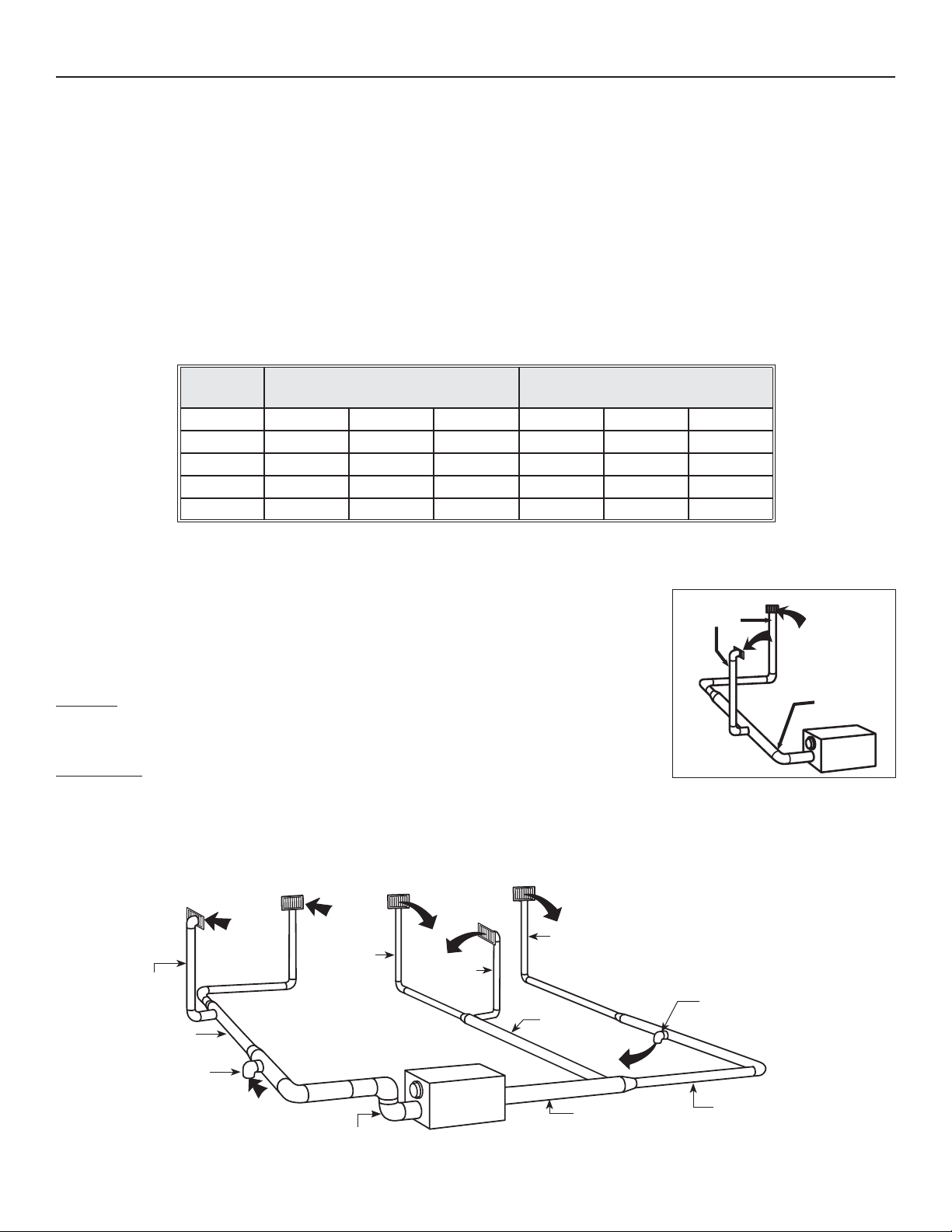

3.3 PLANNING OF THE DUCTWORK

a) Follow the instructions in Section 3.4 below to determine the appropriate duct diameters for your system. b) Keep it simple. Plan for a minimum number of bends and joints. Keep the length of insulated duct to a minimum. c) Do not use wall cavities as ducts. Do not use branch lines smaller than 4” Ø (102 mm Ø). d) Do not ventilate crawl spaces or cold rooms. Do not attempt to recover the exhaust air from a dryer or a range hood. This would cause

clogging of the recovery module. Use sheet metal for the kitchen exhaust duct.

e) Be sure to plan for at least one exhaust register on the highest lived-in level of the house if it has 2 floors or more.

3.4 CALCULATING THE DUCT SIZE

Use the table below to ensure that the ducts you intend to install will be carrying air flows at or under the recommended values. Avoid installing ducts that will have to carry air flows near the maximum values and never install a duct if its air flow exceeds the maximum value.

DUCT

DIAMETER

4˝ (102 MM) 40 CFM 19 L/S 68 M/H 60 CFM 28 L/S 102 M/H 5˝ (127 MM) 75 CFM 35 L/S 127 M/H 110 CFM 52 L/S 187 M/H 6˝ (152 MM) 120 CFM 57 L/S 204 M/H 180 CFM 85 L/S 306 M/H 7˝ (178 MM) 185 CFM 87 L/S 314 M/H 270 CFM 127 L/S 459 M/H 8˝ (203 MM) 260 CFM 123 L/S 442 M/H 380 CFM 179 L/S 645 M/H

NOTE: Examples 3.4.1 and 3.4.2 use imperial measures. The same calculation applies to metric measures.

RECOMMENDED AIR FLOW MAXIMUM AIR FLOW

3.4.1 EXAMPLE OF CALCULATION

PROBLEM: My installation requires two exhaust registers (one for the kitchen, one for the bathroom). I will connect these registers to a main duct which will connect to the unit (high speed performance value of 140 cfm). What size of duct should I use for the main exhaust duct and for both end branches leading to the registers? (See illustration at right.)

SOLUTION: Simplified method. (For a more detailed method of calculating duct size refer to the ASHRAE or HRAI HANDBOOK). Main duct: Table above indicates a 6” Ø duct: Recommended air flow: 120 cfm; maximum air flow: 180 cfm. The high speed air flow of 140 cfm is close enough to the recommended value (120) and far away enough from the maximum value (180). Therefore a 6” Ø duct or larger is an appropriate choice for the main exhaust duct.

End branches: Each end branch will have to transport an air flow of 70 cfm (140 divided by 2). Table above indicates a 5” Ø duct: Recommended air flow: 75 cfm; maximum air flow: 110 cfm. The high speed air flow of 70 cfm is close enough to the recommended value (75) and far away enough from the maximum value (110). Therefore a 5” Ø duct or larger is an appropriate choice for both end branches.

NOTE: A 4” Ø duct would have been too small because the maximum acceptable value for a 4” Ø duct is 60 cfm.

END

BRANCHES

5˝ø,

70 CFM

MAIN BRANCH 6˝ø, 140 CFM

VI0003

3.4.2 EXAMPLE OF A DESIGN FOR A FULLY DUCTED SYSTEM FOR A UNIT HAVING A HIGH SPEED PERFORMANCE OF 222 CFM

5˝ø

65 CFM

129 CFM

5˝

6˝ø

93 CFM

6˝ø

VI0004

5˝ø

64 CFM

6˝

5˝

4˝

4˝ø

42 CFM

4˝

7˝

7˝ø

222 CFM

4˝ø

6˝

4˝

7˝

4˝ø

42 CFM

6˝ø

84 CFM

222 CFM

7˝ø

4˝

6˝ø

96 CFM

6˝

6˝ø

138 CFM

Page 8

3. INSTALLATION (CONT’D)

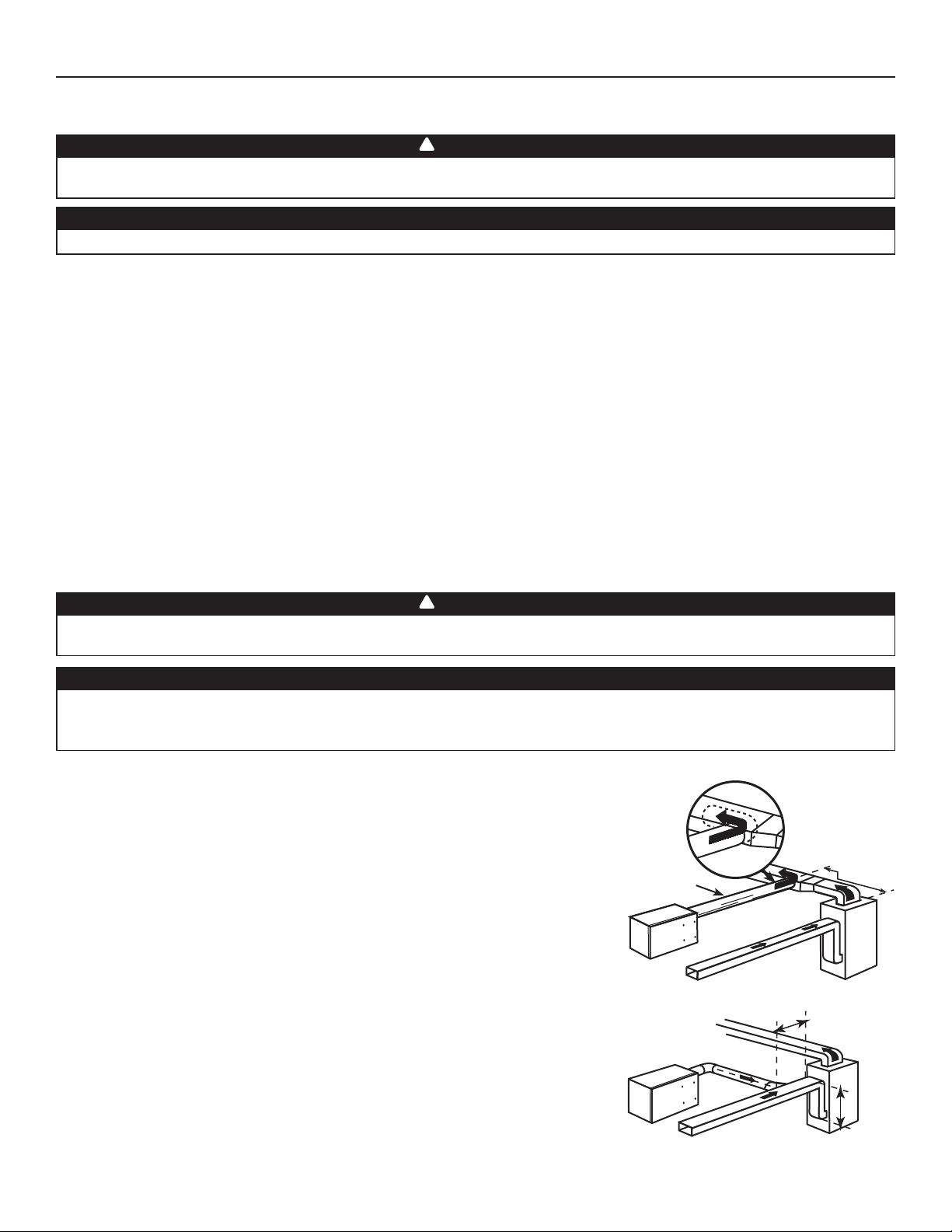

3.5 INSTALLING THE DUCTWORK AND THE REGISTERS

WARNING

Never install a stale air exhaust register in a room where there is a combustion device, such as a gas furnace, a gas water heater or a fireplace.

CAUTION

The ductwork is intended to be installed in compliance with all local and national codes that are applicable.

3.5.1 FULLY DUCTED SYSTEM (AS ILLUSTRATED IN SECTION 2.1)

STALE AIR EXHAUST DUCTWORK:

• Install registers in areas where contaminants are produced: Kitchen, bathrooms, laundry room, etc.

• Install registers 6" to 12" (152 mm to 305 mm) from the ceiling on an interior wall OR install them in the ceiling.

• Install the kitchen register at least 4 feet (1.2 m) from the range.

• If possible, measure the velocity of the air flowing through the registers. If the velocity is higher than 400 ft/min. (122 m/min), then

the register type is too small. Replace with a larger one.

FRESH AIR DISTRIBUTION DUCTWORK:

• Install registers in bedrooms, dining room, living room and basement.

• Install registers either in the ceiling or high on the walls with air flow directed towards the ceiling. (The cooler air will then cross the upper part of the room, and mix with room air before descending to occupant level.)

• If a register must be floor installed, direct the air flow up the wall.

3.5.2 EXHAUST DUCTED SYSTEM (AS ILLUSTRATED IN SECTION 2.2)

TALE AIR EXHAUST DUCTWORK:

Same as for Fully Ducted System, described on point 3.5.1 above)

FRESH AIR DISTRIBUTION:

WARNING

When performing duct connection to the furnace, installation must be done in accordance with all applicable codes and standards. Please refer to your local building code.

CAUTION

When performing duct connection to the furnace supply duct, this duct must be sized to support the additional airflow produced by the ERV. Also, use a metal duct. It is recommended that the ERV is running when the furnace is in operation in order to prevent backdrafting inside ERV.

There are two methods for connecting the unit to the furnace:

ETHOD 1: SUPPLY SIDE CONNECTION

• Cut an opening into the furnace supply duct at least 18 inches (0.5 m) from the

furnace.

• Connect this opening to the fresh air distribution port of the ERV (use metal duct,

see illustration at right).

• Make sure that the ERV duct forms an elbow inside the furnace ductwork.

• If desired, interlock (synchronize) the furnace blower operation with the ERV

operation (see Section 5).

METHOD 2: RETURN SIDE CONNECTION

• Cut an opening into the furnace return duct not less than 10 feet (3.1 m) from the

furnace (A+B).

• Connect this opening to the fresh air distribution port of the ERV (see illustration at

right).

NOTE: For Method 2, it is not essential that the furnace blower runs when the unit

is in operation, but we recommend it. If desired, synchronize the furnace blower operation with the ERV operation (see Section 5).

METAL DUCT

VD0172

VD0108

A+B= NOT LESS

THAN 10’ (3.1 M)

MINIMUM

18’’ (0.5 M)

Page 9

3. INSTALLATION (CONT’D)

3.5 INSTALLING THE DUCTWORK AND THE REGISTERS (CONT’D)

3.5.3 SIMPLIFIED INSTALLATION (AS ILLUSTRATED IN SECTION 2.3)

WARNING

When performing duct connection to the furnace, installation must be done in accordance with all applicable codes and standards. Please refer to your local building code.

CAUTION

When performing duct connection to the furnace ducts (Method 1), these ducts must be sized to support the additional airflow produced by the ERV. Also, the supply duct must be a metal duct. It is recommended that the ERV is running when the furnace is in operation in order to prevent backdrafting inside ERV.

There are two methods (illustrated below) for connecting the unit to the furnace ducts:

ETHOD 1: RETURN-SUPPLY METHOD 2: RETURN-RETURN

METAL DUCT

VD0171

A+B= NOT LESS

THAN 10’ (3.1 M)

MINIMUM

18’’ (0.5 M)

VD0111

MINIMUM

3’ (0.9 M)

A+B= NOT LESS

THAN 10’ (3.1 M)

STALE AIR INTAKE:

• Cut an opening into the furnace return duct not less than 10 feet (3.1 m) from the furnace.

• Connect this opening to the stale air intake port of the ERV (as shown above).

FRESH AIR DISTRIBUTION:

Same instructions as for Method 1 or Method 2 (Section 3.5.2, page 8).

CAUTION

If using Method 2, make sure the furnace blower operation is synchronized with the unit operation! See Section 5.

For Method 2 (Return-Return), make sure there is a distance of at least 3 feet (0.9 m) between the 2 connections to the furnace duct.

NOTE: For Method 1, it is not essential to synchronize the furnace blower operation with the ERV operation, but we recommend it.

Page 10

3. INSTALLATION (CONT’D)

3.6 CONNECTING THE DUCTS TO THE UNIT

CAUTION

If ducts have to go through an unconditioned space (e.g.: attic), always use insulated ducts.

INSULATED FLEXIBLE DUCTS

Use the following procedure for connecting the insulated flexible duct to the ports on the unit (exhaust to outside and fresh air from outside).

 Pull back the insulation to expose the flexible duct and place it over inner port ring.

 Install good quality aluminum duct tape on flexible duct to prevent potential water leakage from duct.

 Attach the flexible duct to the port using tie wrap.

 Pull the insulation over the joint and tuck it between the inner and outer rings of the double collar.

 Pull down the vapor barrier (shaded part in illustrations below) over the outer ring to cover it completely. Fasten in place the vapor

barrier using the port strap (included in unit parts bag). To do so, insert one collar pin through vapor barrier and first strap hole, then insert the other collar pin through vapor barrier and center strap hole and close the loop by inserting the first collar pin in the last strap hole.

CAUTION

Make sure the vapor barrier on the insulated ducts does not tear during installation to avoid condensation within the ducts.

12345

VJ0091

RIGID DUCTS

To prevent potential water leakage from ducts, use good quality aluminum duct tape to connect the rigid ducts to the ports.

CAUTION

Do not use screws to connect rigid ducts to the ports.

Make sure that both balancing dampers are left in a fully open position before connecting the ducts to these ports (Fresh air to building port and Exhaust air from building port as shown in illustration at right).

COLLAR PIN

VJ0088

Page 11

3. INSTALLATION (CONT’D)

3.7 INSTALLING THE EXTERIOR HOODS

Choose an appropriate location for installing the exterior hoods:

• At a minimum distance of 6 feet (1.8 m) between the

hoods to avoid cross-contamination

• At a minimum distance of 18 inches (457 mm) from the

ground

WARNING

Make sure the intake hood is at least 6 feet (1.8 m) away from any of the following:

• Dryer exhaust, high efficiency furnace vent, central vacuum vent

• Gas meter exhaust, gas barbecue-grill

• Any exhaust from a combustion source

• Garbage bin and any other source of contamination

Refer to illustration at right for connecting the insulated duct to the hoods. An “Anti-Gust Intake Hood” should be installed in regions where a lot of snow is expected to fall.

EXHAUST

OOD

18” (457 MM)

6’

(1.8 M)

CAULKING

(152

INTAKE

HOOD

18”

(457 MM)

TAPE AND DUCT TIE

6” ø

MM)

OPTIONAL

DUCT

LOCATION

6’

(1.8 M)

18” (457 MM)

VD0028

4. CONTROLS

4.1 INTEGRATED CONTROL

The units are equipped with an integrated control, located on the electrical compartment. Use the push button (1) to control the unit. The LED (2) will then show on which mode the unit is in.

NOTES: 1. The integrated control must be turned OFF to use an optional main control.

2. If an optional auxiliary control is used, if activated, this auxiliary control will override the

optional main control.

Refer to table below to learn how to operate the unit using its integrated control.

PRESS ON PUSH-BUTTON LED COLOR RESULTS

ONCE AMBER UNIT IS ON LOW SPEED

TWICE GREEN UNIT IS ON HIGH SPEED

THREE TIMES NO LIGHT UNIT IS OFF

VD0278

If a problem occurs during the unit operation, its integrated control LED (2) will blink. The color of the blinking light depends on the type of error detected. Refer to Section 11 Troubleshooting on pages 19 and 20 for further details.

Page 12

4. CONTROLS (CONT’D)

4.1 INTEGRATED CONTROL (CONT’D)

4.1.1 BOOT SEQUENCE

The unit boot sequence is similar to a personnal computer boot sequence. Each time the unit is plugged after being unplugged, or after a power failure, the unit will perform a 30-second booting sequence before starting to operate. During the booting sequence, the integrated control LED will light GREEN (unit set in normal defrost) or AMBER (unit set in extended defrost) for 5 seconds, and then will shut off for 2 seconds. After that, the LED will light RED for the rest of the booting sequence. During this RED light phase, the unit is checking and resetting the motorized damper position. Once the motorized damper position completely set, the RED light turns off and the booting sequence is done.

NOTE: No command will be taken until the unit is fully booted.

4.1.2 SETTING EXTENDED DEFROST

The unit is factory set to normal defrost. In cold region, it may be necessary to setup extended defrost. During the first 5 seconds of booting sequence, while the integrated control LED is GREEN, press on push button until the LED turns AMBER (about 3 seconds).

VD0281

4.2 ELECTRICAL CONNECTION TO OPTIONAL WALL CONTROL

For more convenience, this unit can also be controlled using an optional main wall control.

WARNING

Always disconnect the unit before making any connections. Failure in disconnecting power could result in electric shock or damage to the wall control or electronic module inside the unit.

CAUTION

Never install more than one optional main wall control per unit. Make sure that the wires do not short-circuit between themselves or by touching any other components on the wall control. Avoid poor wiring connections. To reduce electrical interference (noise) potential, do not run wall control wiring next to control contactors or near light dimming circuits, electrical motors, dwelling/building power or lighting wiring, or power distribution panel.

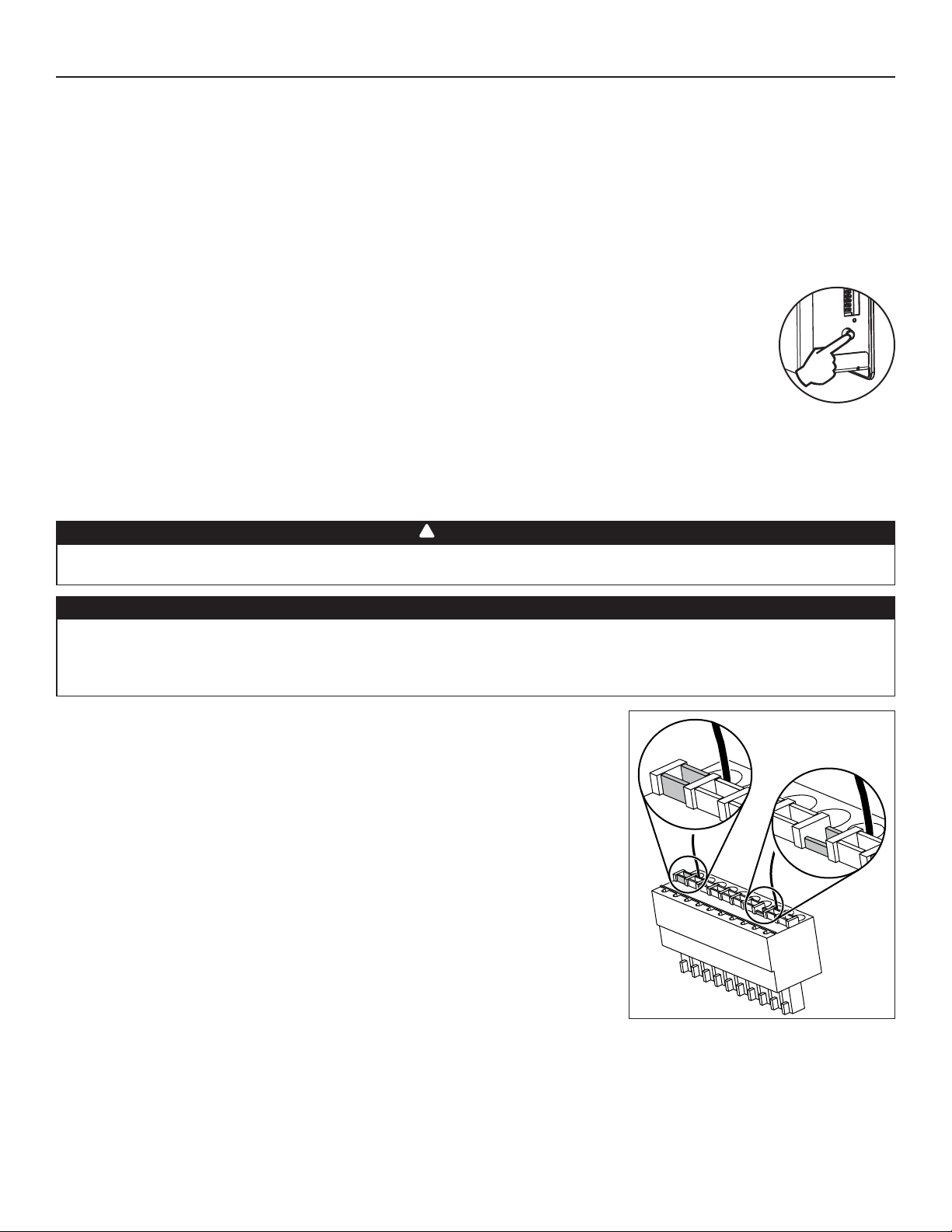

Use the terminal connector included in the installation kit to perform the electrical connection for main and optional wall controls. Check if all wires are correctly inserted in their corresponding holes in the terminal block. (A wire is correctly inserted when its orange receptacle is lower than another one without wire. On picture at right, wire A is correctly inserted, but not wire B.)

VE0272

Page 13

4. CONTROLS (CONT’D)

4.2 ELECTRICAL CONNECTION TO OPTIONAL WALL CONTROL (CONT’D)

Once the wall control(s) connections have been made, insert the terminal connector in the electrical compartment.

NOTE: For information about the operation of the wall controls, refer to the user guide.

4.2.1 ELECTRICAL CONNECTION

TO ALTITUDE MAIN WALL CONTROL

NO C NC I OC OL Y R G B

VE0175

MODE PREF

SET

SMART

4.2.3 ELECTRICAL CONNECTION TO LITE-TOUCH CONSTRUCTO

OR SIMPLE-TOUCH CONSTRUCTO MAIN WALL CONTROL

4.2.2 ELECTRICAL CONNECTION

TO DECO-TOUCH MAIN WALL CONTROL

VE0250

4.2.4 ELECTRICAL CONNECTION

TO CONSTRUCTO MAIN WALL CONTROL

TERMINAL

CONNECTOR LOCATION

VD0278

NO C NC I OC OL Y R G B

MAIN WALL CONTROL

LITE-TOUCH CONSTRUCTO

and

NO C NC I OC OL Y R G B

SIMPLE-TOUCH CONSTRUCTO

REAR VIEW

B G

VE0100A

4.2.5 ELECTRICAL CONNECTION TO OPTIONAL AUXILIARY WALL CONTROLS

NOTE: If an optional auxiliary wall control is

activated and then, the Dehumidistat is being activated, this one will override the auxiliary wall control commands.

NO C NC I OC OL Y R G B

VE0295A

NO C NC I OC OL Y R G B

VE0102

DEHUMIDISTAT

60-MINUTE

CRANK TIMER

OFF

--5°C

23°F

-20°C

-4°F

MIN MAX

CONSTRUCTO

PUSH-BUTTON TIMERS

Page 14

5. ELECTRICAL CONNECTION TO THE FURNACE

WARNING

Never connect a 120-volt AC circuit to the terminals of the furnace interlock (standard wiring). Only use the low voltage class 2 circuit of the furnace blower control.

FOR A FURNACE CONNECTED TO A COOLING SYSTE M:

On some older thermostats, energizing the “R” and “G” terminals at the furnace has the effect of energizing “Y” at the thermostat and thereby turning on the cooling system. If you identify this type of thermostat, you must use the ALTERNATE FURNACE INTERLOCK WIRING.

STANDARD FURNACE INTERLOCK WIRING ALTERNATE FURNACE INTERLOCK WIRING

FOUR WIRES

TWO WIRES

heating only

FURNACE 24-VOLT

TERMINAL BLOCK

VE0108A

W R G

THERMOSTAT

TERMINALS

TWO WIRES

NO C NC I OC OL Y R G B

COOLING SYSTEM

UNIT TERMINAL CONNECTOR

4 WIRES

2 WIRES

heating only

FURNACE

24-VOLT

TERMINAL BLOCK

W R G Y

wiring nuts

THERMOSTAT

TERMINAL

2 WIRES

NO C NC I OC OL Y R G B

UNIT TERMINAL CONNECTOR

COOLING SYSTEM

Page 15

6. WIRING DIAGRAM

WARNING

• Risk of electric shocks. Before performing any maintenance or servicing, always disconnect the unit from its power source.

• This product is equipped with an overload protection (fuse). A blown fuse indicates an overload or a short-circuit situation. If the fuse blows, unplug the product and check the polarity and voltage output from the outlet. Replace the fuse as per the servicing instructions (refer to wiring diagram for proper fuse rating) and verify the product. If the replaced fuse blows, it may be a short-circuit and the product must be discarded or returned to an authorized service center for examination and/or repair.

120 V,

60 Hz

LOGIC DIAGRAM

120 V, 60 Hz

NOTES

be replaced, use the same equivalent wire.

UL listed/CSA Certified line fuse (3A, 3AG Type).

1. For continued fire protection. Use specified

2. If any of the original wire, as supplied, must

3. Field wiring must comply with applicable

WIRING DIAGRAM

COLOR CODE

Critical characteristic.

J10-1

J5-2

J4-2

Neutral

MED

COM

LOW

Fan

Thermal wheel

J5-1

J5-3

321

JU1

Line

J10-2

J9-1

J9-2

J9-3

LOW

DAMPER

codes, ordinances and regulations.

4. Remote controls (class 2 circuit) available,

see instruction manual.

O ORANGE

R RED

W WHITE

Y YELLOW

BK BLACK

BL BLUE

BN BROWN

GY GRAY

5. Furnace fan circuit must be class 2 circuit only.

nc no connection

GN GREEN

motor

J4-1

J7-2

J7-1

J9-4

Defrost

temperature sensor

ELECTRONIC ASSEMBLY

1234512

Door interlock switch

(magnetically actuated

Damper motor

J4-3

t˚

reed switch)

24 V

class 2

120 V

2211

J6-2

J6-1

Field wiring

remote control

(see notes 3 & 4)

W W

9.5 V

class 2

Fan

motor capacitor

YRG

12345

Thermal wheel

987654321

J11

12312

2211

nc nc

J2-4

J2-5

J12-5

J12-4

Override

switch

J13

ICP

J12

213

JU1

ncncnc

Damper motor

J3-2

J3-1

J2-3

J2-2

J2-1

J12-2

J12-1

J12-3

J8-1

J8-2

J8-4

24 V

class 2

120 V

notes 3 & 4)

(optional; see

J14

12345

1234

See note 1

12123

Furnace

blower

interlock

Door interlock switch

J14-3

J14-1

J11-2

J11-1

K2K4K5

J8-5

9.5 V

class 2

J14-1 : NO

J14-2 : COM

J14-3 : nc

(optional; see notes 3, 5)

Furnace blower interlock

ASSEMBLY

ELECTRONIC

J10

2211

Motor

capacitor

120 V, 60 Hz

ncnc

(optional; see

notes 3, 5)

Override

switch

(optional; see

notes 3, 4)

Field wiring

remote

control (see

notes 3, 4)

J14-2

J14-4

J14-5

J14-6

J14-7

J14-8

J14-9

J14-10

CPU

Line voltage factory wiring

Class 2 low voltage factory wiring

Class 2 low voltage field wiring

GND

2211

COM

MED

Fan

motor

VE0320A

Page 16

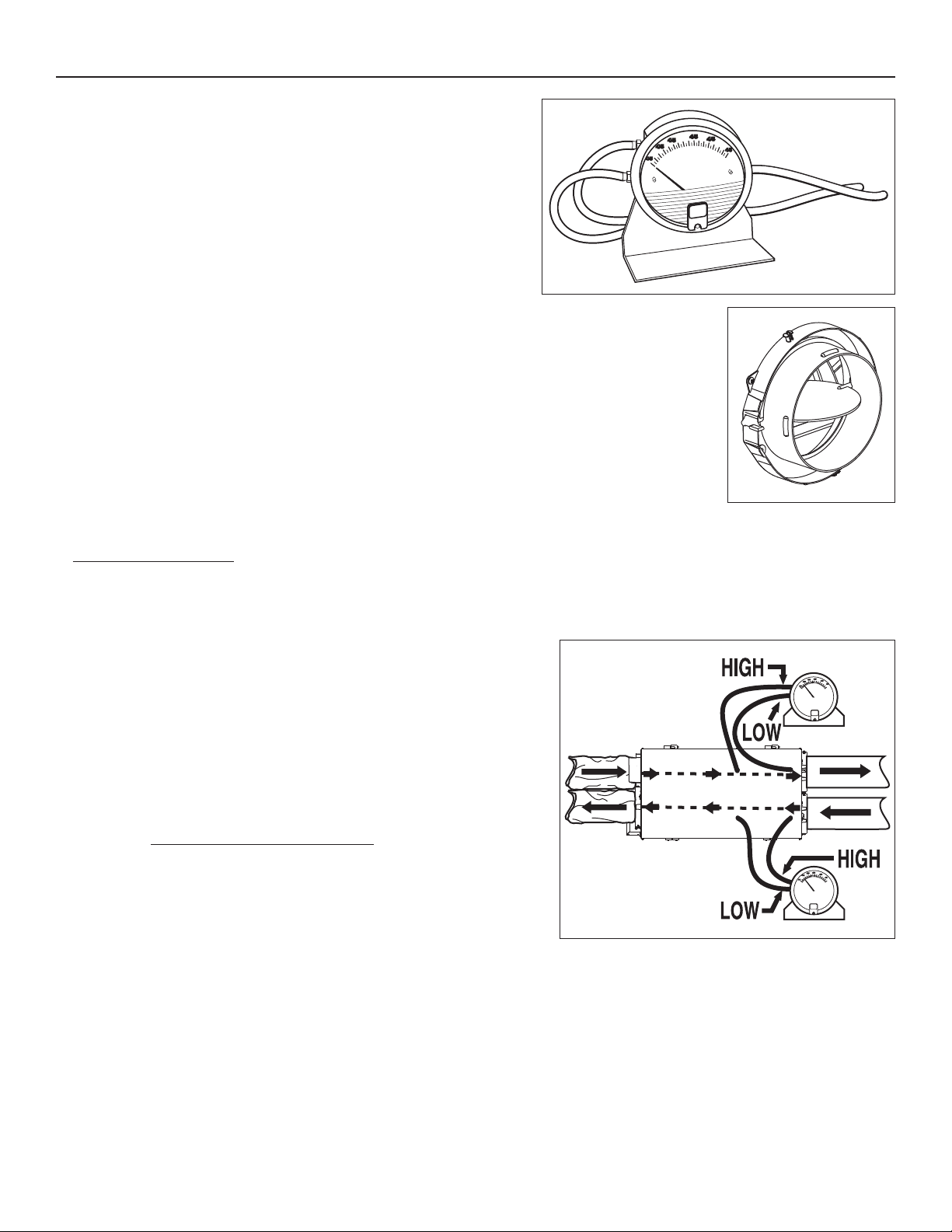

7. BALANCING THE UNIT

7.1 WHAT YO U NEED TO BALANCE THE UNIT

• A magnehelic gauge capable of measuring 0" to 0.5" of water (0 to 125 Pa) and 2 plastic tubes.

• The balancing chart of the unit.

7.2 PRELIMINARY STAGES TO BALANCE THE UNIT

• Seal all the unit ductwork with tape. Close all windows and doors.

• Turn off all exhaust devices such as range hood, dryer and bathroom fans.

• Make sure the integrated balancing dampers are fully open.

• Make sure all filters are clean (if it is not the first time the unit is balanced).

VP0009

VD0280

7.3 BALANCING PROCEDURE

1. Set the unit to high speed.

Make sure that the furnace/air handler blower is ON if the installation is in any way connected to the cold air return ductwork. If not,

leave furnace/air handler blower OFF. If the outside temperature is below 0°C/32°F, make sure the unit is not running in defrost while balancing. (By waiting 10 minutes after plugging the unit in, you are assured that the unit is not in a defrost cycle.)

2. Place the magnehelic gauge on a level surface and adjust it to zero.

3. Connect tubing from gauge to EXHAUST air flow pressure taps (see diagram

at right). Be sure to connect the tubes to their appropriate high/low fittings. If the gauge drops below zero, reverse the tubing connections.

NOTE: It is suggested to start with the exhaust air flow reading because the

exhaust has typically more restriction than the fresh air, especially in cases of fully ducted installations or source point ventilation.

Place the magnehelic gauge upright and level. Record equivalent AIR FLOW of

the reading according to the balancing chart.

4. Move tubing to FRESH air flow pressure taps (see diagram). Adjust the fresh

air balancing damper until the FRESH air flow is approximately the same as the EXHAUST air flow. If FRESH air flow is less than EXHAUST air flow, then go back and adjust the exhaust balancing damper to equal the FRESH air flow.

5. Secure both dampers in place with a fastening screw.

6. Write the required air flow information on a label and stick it near the unit for

future reference (date, maximum speed air flows, your name, phone number and business address).

VP0023

7. Install 4 pressure taps plugs (included in parts bag).

NOTES: 1. Use conversion chart provided with the unit to convert magnehelic gauge readings to equivalent cfm values.

2. The unit is considered balanced even if there is a difference of ±10 cfm (or ± 5 l/s or 17 m³/h) between both air flows.

FRESH AIR FLOW

EXHAUST AIR FLOW

Page 17

8. SERVICE PARTS

VL0049

ITEM DESCRIPTION

1 Hinge assembly kit 13036 13036 2 Damper supply port assembly 17245 17245 3 Damper system actuator (including no. 4 thermistor kit) 17235 17235 4 Thermistor kit 17242 17242 5 Capacitor 7.5 µF 17240 17240 6 Electronic board 60811 60811 7 Transformer 17244 17244 8 Double collar port 60818 60818

9 Blower assembly (including no. 10 square damper kit) 60807 60808 10 Square damper kit 17243 17243 11 Magnet switch 19060 19060 12 Door assembly (including hinges and latches) 60797 60797

Door latches (keeper)

and screws 14 Filter kit 60799 60799 15 14" cassette (for media only, see no. 17) 60821 60821

Door latches 16

and screws 17 Media (14" wheel) 15186 15186 18 Balancing double collar port 02256 02256 19 Balancing damper 02253 02253

* Terminal connector 16416 16416 * Hardware kit 20498 20498

* Not shown.

ERV DUO 1.5 ERV DUO 2.0

46700 47700

00887 (2) 00601 (4)

00886 (2) 00601 (4)

00887 (2) 00601 (4)

00886 (2) 00601 (4)

REPLACEMENT PAR TS AND REPAIRS

In order to ensure your ventilation unit remains in good working condition, you must use Venmar Ventilation Inc. genuine replacement parts only. The Venmar Ventilation Inc. genuine replacement parts are specially designed for each unit and are manufactured to comply with all the applicable certification standards and maintain a high standard of safety. Any third party replacement part used may cause serious damage and drastically reduce the performance level of your unit, which will result in premature failing. Also, Venmar Ventilation Inc. recommends to contact a certified service depot for all replacement parts and repairs.

Page 18

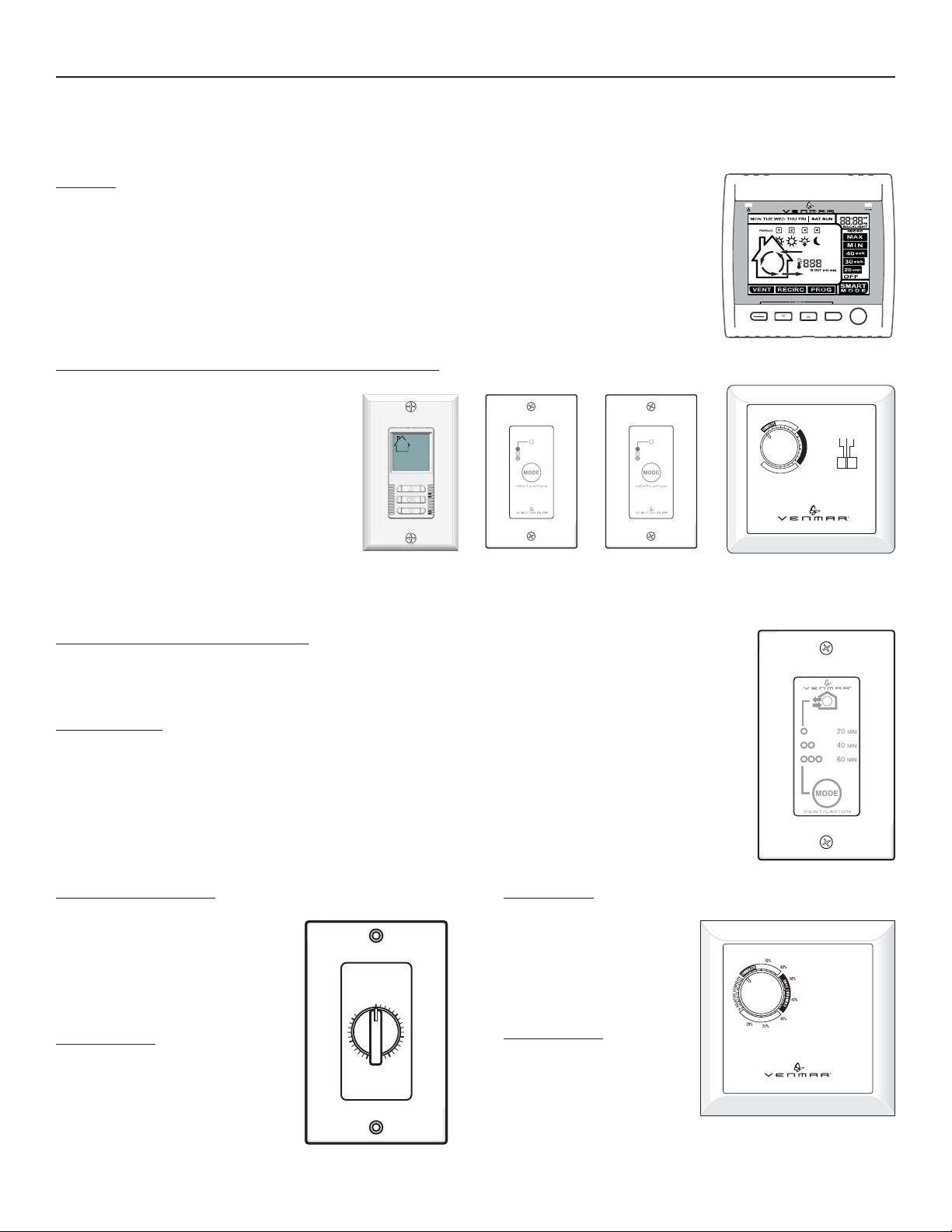

9. OVERALL VERIFICATION

9.1 OPTIONAL MAIN CONTROLS

This procedure allows the installer to verify that all modes of operation are fully functional.

During the verification of a main control, make sure that all optional remote controls are inactive.

ALTITUDE

At its very start-up, the Altitude wall control will perform a booting sequence before being ready to operate. The booting sequence is done when the hour display is flashing.

Refer to the installation sheet included with the Altitude wall control for more details in programming and setting preferences.

DECO-TOUCH, LITE-TOUCH, SIMPLE-TOUCH, CONSTRUCTO

Refer to the installation sheet included with the wall control.

MAX MIN

INTERMITTENT

L-T

MAX MIN

RECIRCULATION

S-T

VC0101

MODE PREF

--5°C

23°F

-20°C

-4°F

SET

SMART

OFF

MIN MAX

VC0117

VC0124

VC0145

VC0086

9.2 OPTIONAL AUXILIARY CONTROLS

First, turn OFF the main control device before checking the remote optional controls.

20/40/60-MINUTE PUSH-BUTTON TIMER

Activate the push-button. Within 2 seconds, push once for 20 minutes, twice for 40 minutes or three times for a 60-minute activation.

Results expected:

1. Motor speed: High for 20, 40 or 60 minutes.

2. Indicator light goes “ON” and flashes every 5 seconds (once to indicate a 20-minute operation, twice for a 40-minute, and three times for a 60-minute operation).

NOTE: To stop activation, push one more time.

60-MINUTE CRANK TIMER

DEHUMIDISTAT

CONSTRUCTO

VC0143

Activate the timer. Result expected: Motor speed: High for up to 60 minutes.

VC0017

OFF

Turn

MINUTES

Past

HOLD

Turn dial to the maximum clockwise position (20%).

Result expected: Motor speed changes to high.

VC0009

Page 19

10. MAINTENANCE / INSTRUCTIONS FOR USER



BOTH DURING

8 SEC.

VQ0048A



WARNING

Risk of electric shocks. Before performing any maintenance or servicing, always disconnect the unit from its power source.

• Review with the user the steps required for the regular maintenance of her/his ventilation system. These steps are described in detail in the user manual.

• Warn the user of the necessity to rebalance the system following a major house renovation or following the installation of any extra registers.

• Make sure the user understands how to use the main control as described in the user manual.

CAUTION

Do not oil the motor. It is already permanently lubricated.

11. TROUBLESHOOTING

If the integrated control LED of the unit is flashing, this means the unit sensors detected a problem. See the list below to know where on the unit the problem occurs.

LED flashes GREEN (double blink) • Thermistor error (unit is runnig) Replace the thermistor kit

LED flashes AMBER • Damper error (unit is OFF) Go to point 10

WARNING

A few diagnosis procedures may require the unit to be in operation while proceeding. Open the unit door and bypass its magnetic switch by putting the door white magnet on it. Be careful with moving and/or live parts.

PROBLEMS POSSIBLE CAUSES YOU SHOULD TRY THIS

1. The error code E1 is displayed on Altitude or Deco-Touch wall control screen.

2. There is no outside temperature displayed on Altitude wall control

screen __.

3. Altitude or Deco-Touch wall control screen alternates between normal display and E3 or E4 appears on screen.

4. On Altitude wall control, there is an important difference between temperature displayed and real temperature.

5. Unit does not work (no LED is lit on the integrated control).

• The wires may be in reverse position.

• The wires may be broken.

• The wires may have a bad connection.

• The unit is not compatible with Altitude wall control (Constructo).

• Unit is on error and integrated control LED flashes (GREEN or AMBER).

• The unit thermistor is defective (integrated control LED flashes GREEN).

• The Altitude or Deco-Touch wall control needs to be reset.

• The Altitude or Deco-Touch wall control is defective.

• Exterior air intake port is blocked.

• The unit thermistor is defective (integrated control LED flashes GREEN).

• The unit damper has been blocked or broken (integrated control LED flashes AMBER and unit is OFF).

• Motor won’t turn.

• The transformer may be defective.

• The circuit board may be defective.

• The unit is unplugged.

• The unit door is opened.

• A fuse is blown.

• Wrong control connections.

• Ensure that the color coded wires have been connected to their appropriate places.

• Inspect every wire and replace any that are damaged.

• Ensure the wires are correctly connected.

• Refer to unit spec. sheet for control compatibility.

NOTE: At its very start-up or after a power failure, it takes some minutes before

the outside temperature appears on screen. The delay duration depends on which operation mode the wall control is set. The shortest delay is obtained when the wall control is set on MIN or MAX in VENT Mode.

• Check if unit is operating.

• Replace the unit thermistor.

• Reset the Altitude or Deco-Touch wall

control by pressing simultaneously on both keys for 8 second (as shown at right). Then, unplug the unit for

30 seconds. Plug the unit back.

• If the problem is not solved, replace the Altitude or Deco-Touch wall control.

• Clean the exterior air intake port.

• Replace the unit thermistor.

• Check for the proper operation of the unit damper; replace if necessary.

• Confirm that the motor is running, if not refer to point 9.

• Check for 24 VAC on J8-1 and J8-2.

• Unplug the unit. Disconnect the main control

and the optional(s) control(s) (if need be). Jump G and B terminals. Plug the unit back and wait about 10 seconds. If the motor runs on high speed and the damper opens, the circuit board is not defective.

• Plug the unit.

• Close unit door.

• Inspect fuse on circuit board (refer to wiring diagram F1 on page 15).

• Try the integrated control (see Section 4.1 on pages 11 and 12).

ALTITUDE

NO C NC I OC OL Y R G B

VE0097

VQ0062

DECO-TOUCH

Page 20

11. TROUBLESHOOTING (CONT’D)

PROBLEMS POSSIBLE CAUSES YOU SHOULD TRY THIS

6. The damper actuator does not work or rotates continuously.

7. The wall control does not work OR its indicator flashes.

8. The Dehumidistat does not work OR the pushbutton timer does not work OR its indicator light does not stay on.

9. The motor does not work. • The circuit board may be defective.

10. The defrost cycle does

not work (the fresh air duct is frozen OR the fresh air distributed is very cold).

11. The integrated control

push button does not work.

• The damper actuator or the integrated damper port mechanism may be defective (integrated control LED flashes AMBER and unit is OFF).

• The circuit board or the transformer may be defective.(integrated control LED flashes AMBER and unit is OFF)

• The wires may be in reverse position.

• The wires may be broken.

• The wire in the wall OR the wall control may be defective.

• The wires may be in reverse position.

• The Dehumidistat or push button may be defective.

• The motor may be defective.

• The motor capacitor may be defective.

• The motor is unplugged from inside the unit.

• The motor is unplugged from the electronic board (J4).

• There is a problem with the door magnet switch.

• JU-1 jumper is missing or in wrong position.

• Ice deposits may be hindering the damper operation.

• The damper rod or the port damper itself may be broken.

• The damper actuator or circuit board may be defective.

• The 30-second boot sequence is not completed.

• The circuit board may be defective.

• The transformer may be defective.

• Unplug the unit. Disconnect the main control and the optional controls(s) (if need be). Wait 10 seconds and plug the unit back. Check if the damper opens. If not, use a mulltimeter and check for 24 VAC on J12-1 and J12-2 (in electrical compartment). If there is 24 VAC, replace the entire port assembly.

NOTE: It is normal to experience a small delay (7-8 seconds) before detecting

• If there is no 24 VAC, check for 24 VAC between J8-1 and J8-2. If there is 24 VAC replace the circuit board, and if there is no 24 VAC, change the transformer.

• Ensure that the color coded wires have been connected to their appropriate places.

• Inspect every wire and replace any that are damaged.

• Remove the wall control and test it right beside the unit using another shorter wire. If the wall control works there, change the wire. If it does not, change the wall control.

• Ensure that the color coded wires have been connected to their appropriate places.

• Jump the OL and OC terminals. If the unit switches to high speed, remove the Dehumidistat or push button and test it right beside the unit using another shorter wire. If it works here, change the wire. If it doesn’t, change the Dehumidistat or the push button.

• Press on the integrated control push button until the unit turns on low speed (the LED will light AMBER). Using a multimeter, check the voltage on J9-4 and J9-3. Refer to Section 6 Wiring Diagram. The reading must be 120 VAC Then set the unit on high speed by pressing on the integrated control push button one more time (the LED will light GREEN). Using a multimeter, check the voltage on J9-4 and J9-2. The reading must be 120 VAC Check also between J4-2 and J4-1, the reading must be 120 VAC Refer to Section 6 Wiring Diagram. Check if the fuse F1 is intact. If all the readings correspond to the right voltage values, the circuit board is not defective. If one or both readings are different, change the circuit board.

• Using a multimeter, check for 120 VAC for the following speeds: High Speed: between GREY and ORANGE wires; Low/Medium Speed: between GREY and RED/BLUE wires. Refer to Section 6 Wiring Diagram.

• Unplug the unit. Check for continuity between Pin 5 on the 6-pin connector (brown leads) and Pin 3 of the capacitor connector. Also check for continuity between Pin 4 on the 6-pin connector (brown leads) and Pin 1 of the capacitor connector. Refer to Section 6 Wiring Diagram.

• Open the door and ensure that the wire going to the motor is connected.

• Check J4 motor connection on circuit board.

• Door magnet switch is missing or not in its place (see item no. 11 on page 17).

Ensure JU-1 jumper is set on “M” speed (refer to Section 6 Wiring Diagram).

•

• Remove the ice.

• Inspect these parts and replace if necessary.

• See point 6.

• See Section 4.1.1 Boot Sequence (page 12).

• Check voltage going to circuit board J8-1 and J8-2.

• Check for 24 VAC on J8-1 and J8-2.

the 24 VAC signal at starting-up. This signal will stay during 17-18 seconds before disappearing.

NO C NC I OC OL Y R G B

VE0098
