Page 1

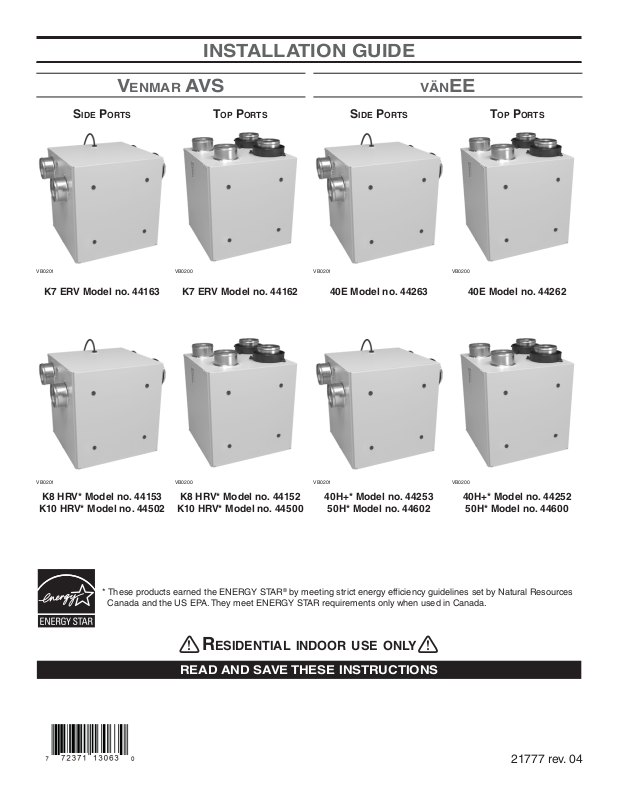

INSTALLATION GUIDE

VENMAR AVS VÄNEE

SIDE PORTS TOP PORTS SIDE PORTS TOP PORTS

VB0200VB0201VB0200VB0201

K7 ERV Model no. 44163 K7 ERV Model no. 44162 40E Model no. 44263 40E Model no. 44262

K8 HRV* Model no. 44153

K10 HRV* Model no. 44502

* These products earned the ENERGY STAR® by meeting strict energy efficiency guidelines set by Natural Resources Canada and the US EPA. They meet ENERGY STAR requirements only when used in Canada.

K8 HRV* Model no. 44152

K10 HRV* Model no. 44500

RESIDENTIAL INDOOR USE ONLY

! !

40H+* Model no. 44253

50H* Model no. 44602

READ AND SAVE THESE INSTRUCTIONS

VB0200VB0201VB0200VB0201

40H+* Model no. 44252

50H* Model no. 44600

21777 rev. 04

Page 2

ABOUT THIS GUIDE

Because of the large amount of models covered in this publication, the illustrations are typical ones. Some details of your unit may be slightly different than the ones shown. Please take note that this manual uses the following symbols to emphasize particular information:

WARNING

Identifies an instruction which, if not followed, might cause serious personal injuries including possibility of death.

CAUTION

Identifies an instruction which, if not followed, may severely damage the unit and/or its components.

NOTE: Indicates supplementary information needed to fully complete an instruction.

ABOUT THESE UNITS

LIMITATION

For residential (domestic) installation only. Installation work and electrical wiring must be done by a qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction codes and standards.

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSON(S) OBSERVE THE FOLLOWING:

1. Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer at the address or

telephone number listed in the warranty.

2. We recommend that your unit be inspected by a specialized technician once a year.

3. Before servicing or cleaning the unit, disconnect power cord from electrical outlet.

4. This unit is not designed to provide combustion and/or dilution air for fuel-burning appliances.

5. When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.

6. Do not use the units with any solid-state speed control device other than the corresponding ones listed below:

UNIT MAIN CONTROL AUXILIARY CONTROL

K7 ERV, K8 HRV AND K10 HRV

40E, 40H+ AND 50H

7. This unit must be grounded. The power supply cord has a 3-prong grounding plug for your personal safety. It must be plugged into a mating 3-prong grounding receptacle, grounded in accordance with the national electrical code and local codes and ordinances. Do not remove the ground prong. Do not use an extension cord.

8. Do not install in a cooking area or connect directly to any appliances.

9. Do not use to exhaust hazardous or explosive materials and vapors.

10. When performing installation, servicing or cleaning the unit, it is recommended to wear safety glasses and gloves.

11. Due to the weight of the unit, two installers are recommended to perform installation.

12. When applicable local regulations comprise more restrictive installation and/or certification requirements, the aforementioned requirements

prevail on those of this document and the installer agrees to conform to these at his own expenses.

ALTITUDE, DECO-TOUCH, LITE-TOUCH CONSTRUCTO,

SIMPLE TOUCH CONSTRUCTO OR CONSTRUCTO

PLATINUM, DECO-TOUCH, LITE-TOUCH BRONZE,

SIMPLE TOUCH BRONZE OR BRONZE

20/40/60-MINUTE PUSH-BUTTON TIMER,

20-MINUTE LIGHTED PUSH BUTTON,

60-MINUTE CRANK TIMER AND DEHUMIDISTAT

CAUTION

1. To avoid prematurate clogged filters, turn OFF the unit during construction or renovation.

2. Please read specification label on product for further information and requirements.

3. Be sure to duct air outside – Do not intake/exhaust air into spaces within walls or ceiling or into attics, crawl spaces, or garage.

4. Intended for residential installation only in accordance with the requirements of NFPA 90B (for a unit installed in U.S.A.) or Part 9 of the

National Building Code of Canada (for a unit installed in Canada).

5. Do not run any air ducts directly above or closer than 2 ft (0.61 m) to any furnace or its supply plenum, boiler, or other heat producing appliance. If a duct has to be connected to the furnace return plenum, it must be connected not closer than 9’ 10” (3 m) from this plenum connection to the furnace.

6. The ductwork is intended to be installed in compliance with all applicable codes.

7. When leaving the house for a long period of time (more than two weeks), a responsible person should regularly check if the unit

operates adequately.

8. If the ductwork passes through an unconditioned space (e.g.: attic), the unit must operate continuously except when performing maintenance and/or repair. Also, the ambient temperature of the house should never drop below 18°C (65°F).

Page 3

TABLE OF CONTENTS

1. TECHNICAL DATA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4

1.1 AIR DISTRIBUTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

1.2 D

1.3 T

1.4 SIDE PORTS UNITS DIMENSIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

2. TYPICAL INSTALLATIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

2.1 FULLY DUCTED SYSTEM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

2.2 CENTRAL DRAW POINT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

2.3 SIMPLIFIED INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

3. SERVICE PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-7

NSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-13

4. I

4.1 INSPECT THE CONTENT OF THE BOX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

4.2 LOCATING THE UNIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

4.3 PLANNING OF THE DUCTWORK. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

4.4 INSTALLING THE DUCTWORK AND REGISTERS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-10

4.5 CONNECTING THE DUCTS TO THE UNIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

4.6 INSTALLING TWO EXTERIOR HOODS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

4.7 INSTALLING DUAL EXTERIOR HOOD USING TANDEM® TRANSITION KIT (OPTIONAL) . . . . . . . . . . . . . . . . . . . . . 12

4.8 CONNECTING THE DRAIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

5. CONTROLS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-16

5.1 UNITS BOOTING SEQUENCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

5.2 INTEGRATED CONTROL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

5.3 SETTING EXTENDED DEFROST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

5.4 ELECTRICAL CONNECTION TO MAIN CONTROLS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14-15

5.5 ELECTRICAL CONNECTION TO OPTIONAL AUXILIARY CONTROLS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

6. ELECTRICAL CONNECTION TO THE FURNACE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

7. W

7.1 K7 ERV AND 40E UNITS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

7.2 K8 HRV AND 40H+ UNITS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

7.3 K10 HRV AND 50H UNITS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

8. BALANCING THE UNIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

8.1 WHAT YOU NEED TO BALANCE THE UNIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

8.2 PRELIMINARY STAGES TO BALANCE THE UNIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

8.3 BALANCING PROCEDURE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

9. TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21-22

10. T

EFROST CYCLES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

OP PORTS UNITS DIMENSIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

IRING DIAGRAMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17-19

ECHNICAL SUPPORT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

1. T ECHNICAL DATA

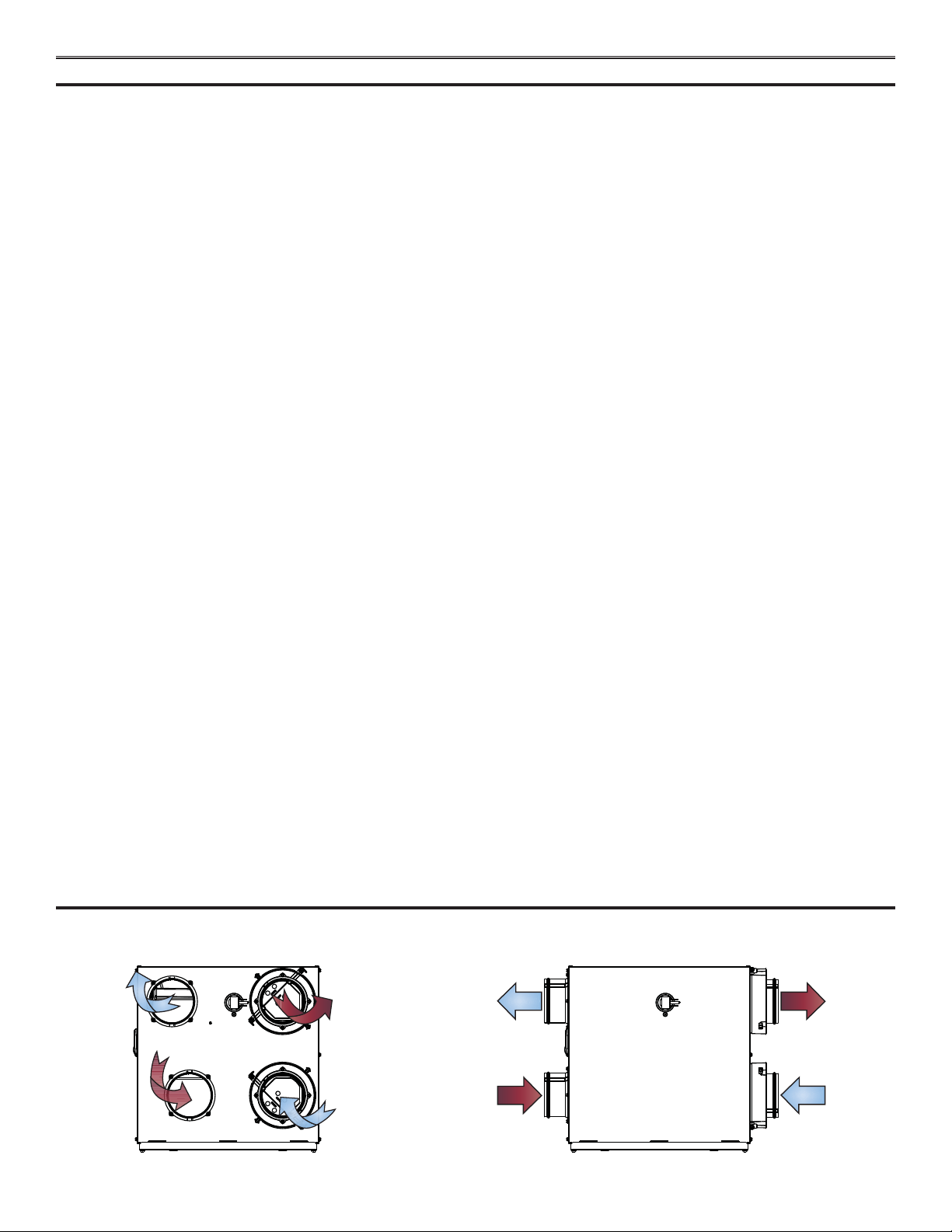

1.1 AIR DISTRIBUTION

TOP PORTS UNITS SIDE PORTS UNITS

FRESH AIR

BUILDING

STALE AIR

FROM

BUILDING

VF0051

UNIT FRONT

STALE AIR

OUTSIDE

FRESH AIR

OUTSIDE

FROM

FRESH AIR

BUILDING

STALE AIR

FROM

BUILDING

STALE AIR

OUTSIDE

FRESH AIR

FROM

OUTSIDE

UNIT FRONT

Page 4

1. T ECHNICAL DATA (CONT’D)

1.2 DEFROST CYCLES

K8 HRV, K10 HRV, 40H+ AND 50H UNITS

OUTSIDE

TEMPERATURE

°C °F DEFROSTING

DEFROST CYCLES

(MINUTES)

OPERATION

BETWEEN EACH

DEFROST

CYCLE

EXTENDED DEFROST*

CYCLES (MINUTES)

OPERATION

DEFROSTING

BETWEEN EACH

DEFROST CYCLE

-523530620

-155520615

-27 -17 7 15 7 12

OUTSIDE

TEMPERATURE

°C °F DEFROSTING

-5 23 7 22 7 15

-155722715

-27 -17 7 15 7 12

K7 ERV AND 40E UNITS

DEFROST CYCLES

(MINUTES)

OPERATION

BETWEEN EACH

CYCLE

DEFROST

EXTENDED DEFROST*

CYCLES (MINUTES)

OPERATION

DEFROSTING

BETWEEN EACH

DEFROST CYCLE

* In a cold region (outdoor temperature -27°C [-17°F] and lower), it may be necessary to setup EXTENDED DEFROST. See Section 4.3.

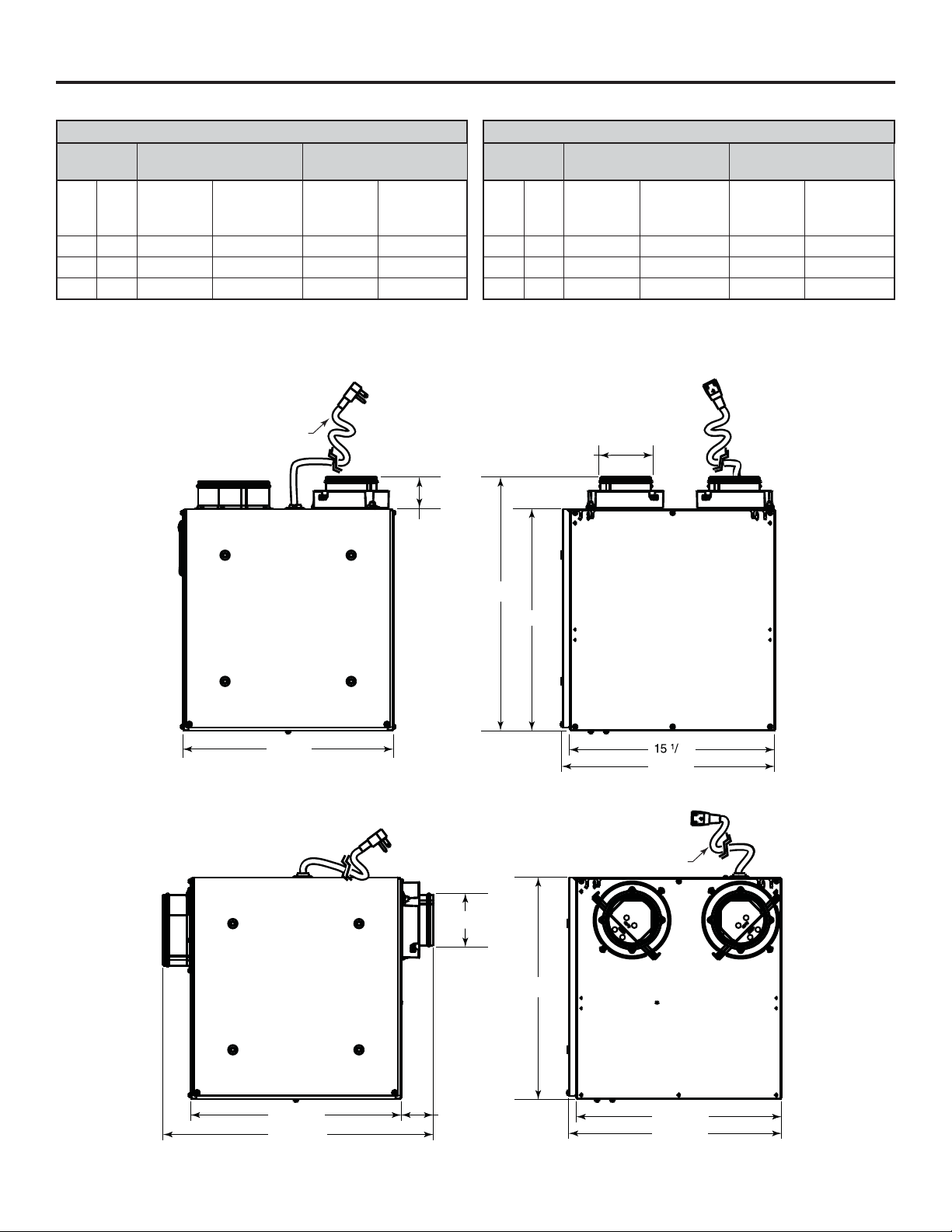

1.3 TOP PORTS UNITS DIMENSIONS

3 FT.

POWER CORD

Ø 4” TYP.

8”

2 ³/

15 7/16”

VK0075A

1.4 SIDE PORTS UNITS DIMENSIONS

Ø 4” TYP.

18 5/8”

16 5/16”

/16”

FT.

POWER CORD

16”

/8”

VK0072A

19 13/16”

2 ³/8”15 7/16”

15 /16”

/8”

Page 5

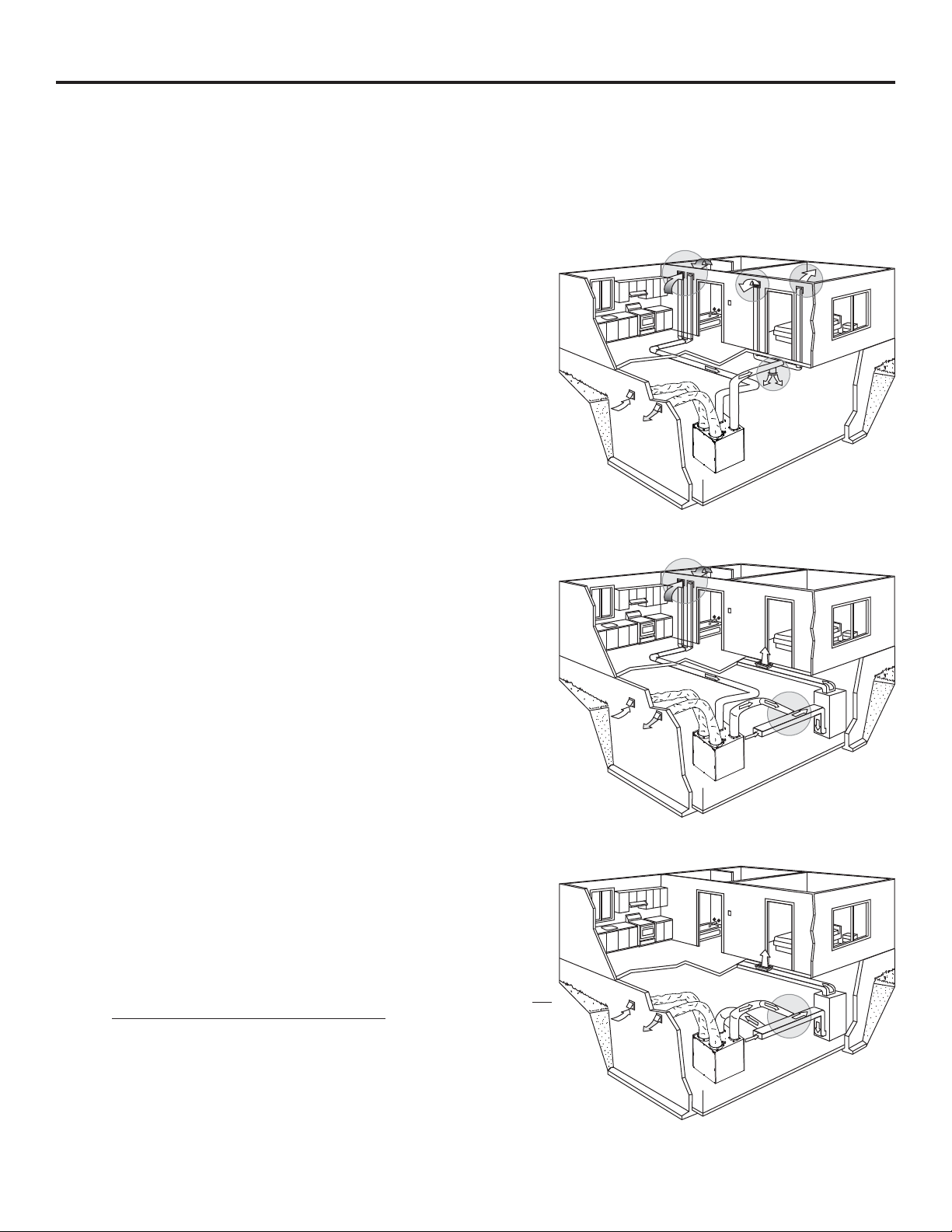

2. TYPICAL INSTALLATIONS

Use the following illustrations as guidelines to help you decide on how the unit will be installed. All the units should be hung from the joists.

If required, bathroom fans and a range hood may be used to exhaust stale air. Also, for homes with more than one level, we recommend one exhaust register at the highest level. There are 3 installation methods: Fully ducted, Central Draw Point and Simplified Installation. NOTE: An electrical outlet has to be available within 3 feet of the unit.

2.1 FULLY DUCTED SYSTEM (PRIMARILY FOR HOMES WITH RADIANT HOT WATER OR ELECTRIC BASEBOARD HEATING)

Stale air coming from the registers located at the highest level of the house is exhausted to the outside. Fresh air from outside is filtered and supplied by the register located in the lowest liveable level.

Homes with more than one level require at least one exhaust register at the highest level.

See figure at right.

VH0081

2.2 CENTRAL DRAW POINT (CONNECTION TO A FORCED AIR SYSTEM)

Stale air coming from the registers located at the highest level of the house is exhausted to the outside. Fresh air from outside is filtered and supplied to the return (plenum) or the supply duct of the forced air unit. See figure at right.

For this type of installation, it is not essential that the forced air system blower runs when the unit is in operation, but we recommend it.

NOTE: Home with multiple forced air systems should have one unit on each system.

2.3 SIMPLIFIED INSTALLATION (CONNECTION TO A FORCED AIR SYSTEM)

Stale air is exhausted to the outside. Fresh air from outside is filtered and supplied to the return (plenum) or the supply duct of the forced air unit.

See figure at right. To avoid cross-contamination and achieve the highest efficiencies, the

forced air system blower must always be ON. NOTE: Home with multiple forced air systems should have one unit on

each system.

VH0082

VH0083

Page 6

3. SERVICE PARTS

In order to ensure your ventilation unit remains in good working condition,

you must use the manufacturer genuine replacement parts only. The

REPLACEMENT PAR TS AND REPAIR:

manufacturer replacement parts are specially designed for each unit and

are manufactured to comply with all the applicable certification standards

and maintain a high standard of safety. Any third party replacement part

used may cause serious damage and drastically reduce the performance

level of your unit, which will result in premature failing. The manufacturer

recommends to contact a certified service depot for all replacement parts

VL0043

and repair.

Page 7

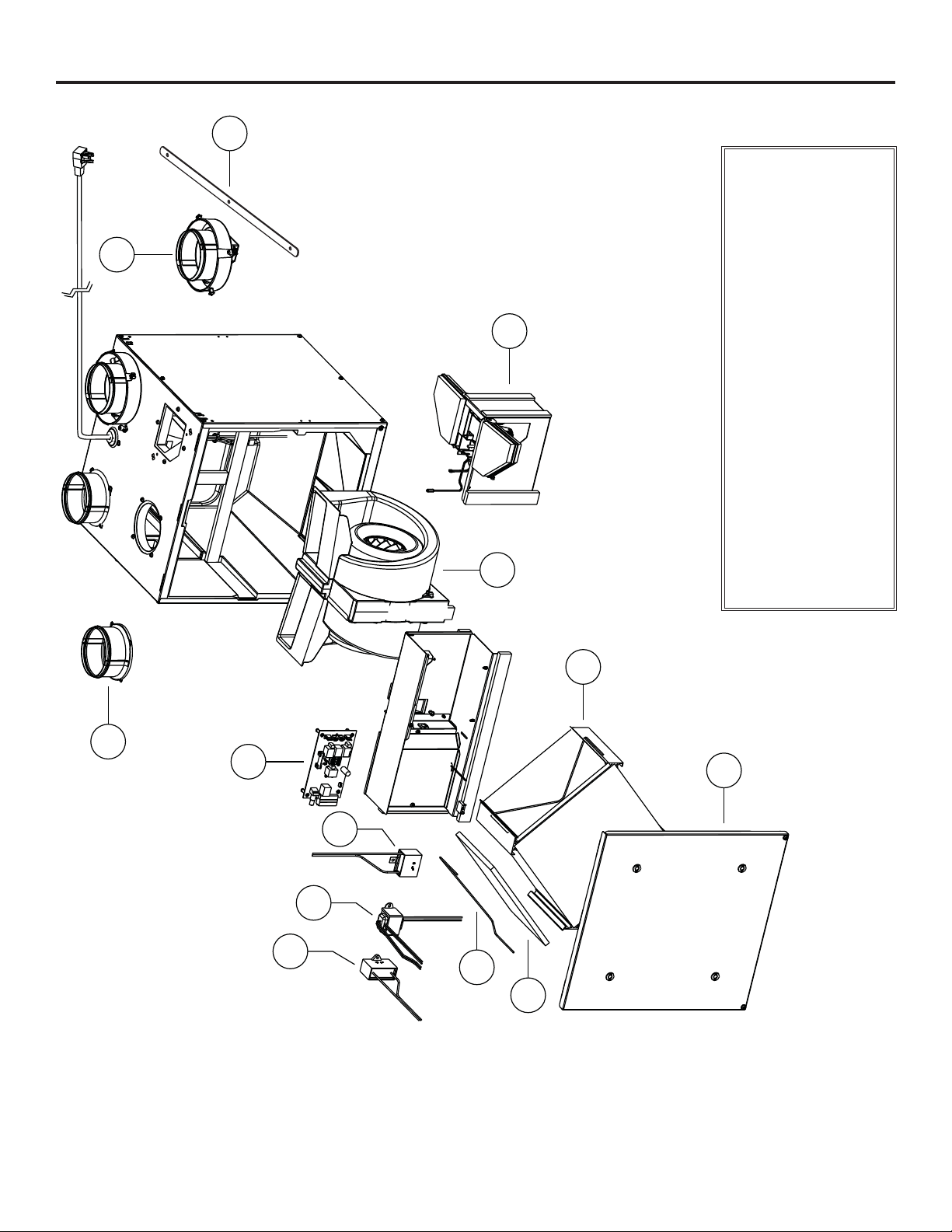

3. SERVICE PARTS (CONT’D)

50H

K10 HRV

40E

(44602)

(44600)

(44502)

(44500)

(44263)

(44262)

40H+

(44253)

40H+

(44252)

(44163)

K7 ERV

(44162)

K7 ERV

(44153)

K8 HRV

(44152)

K8 HRV

11 11

DESCRIPTION

APACITOR 13 F 111111111111

TRANSFORMER

NO.

PART

ITEM

19206 ELECTRONIC BOARD (HRV) 11 11 1111

1 18854 4” ROUND METAL PORT 222222222222

61550 CAPACITOR 6 F 1111

19207 ELECTRONIC BOARD (ERV) 1 1 1 1

17244

16042 CAPACITOR 5 F 11111111

62480 1 1 1 1 1111

5 19211 C

19201 DOOR ASSEMBLY 1111 11

19199 HEAT RECOVERY CORE 11 11 1111

19203 DOOR ASSEMBLY 1111 11

6 19208 FILTER RETAINING WIRES (PAIR) 111111111111

7 18883 CORE FILTERS (PAIR) 111111111111

62176 BLOWER ASSEMBLY 1111

19200 ENERGY RECOVERY CORE 11 11

18867 BLOWER ASSEMBLY 11111111

ORTS STRAPS 222222222222

18868 VERTICAL PORTS DAMPER SYSTEM 111111

18881 HORIZ. PORTS DAMPER SYSTEM* 111111

13 18855 4” DOUBLE COLLAR PORT WITH DAMPER 222222222222

14 19213 HARDWARE KIT* 111111111111

12 19212 4” P

15 16416 PCB CONNECTOR* 111111111111

* PART NOT SHOWN.

Page 8

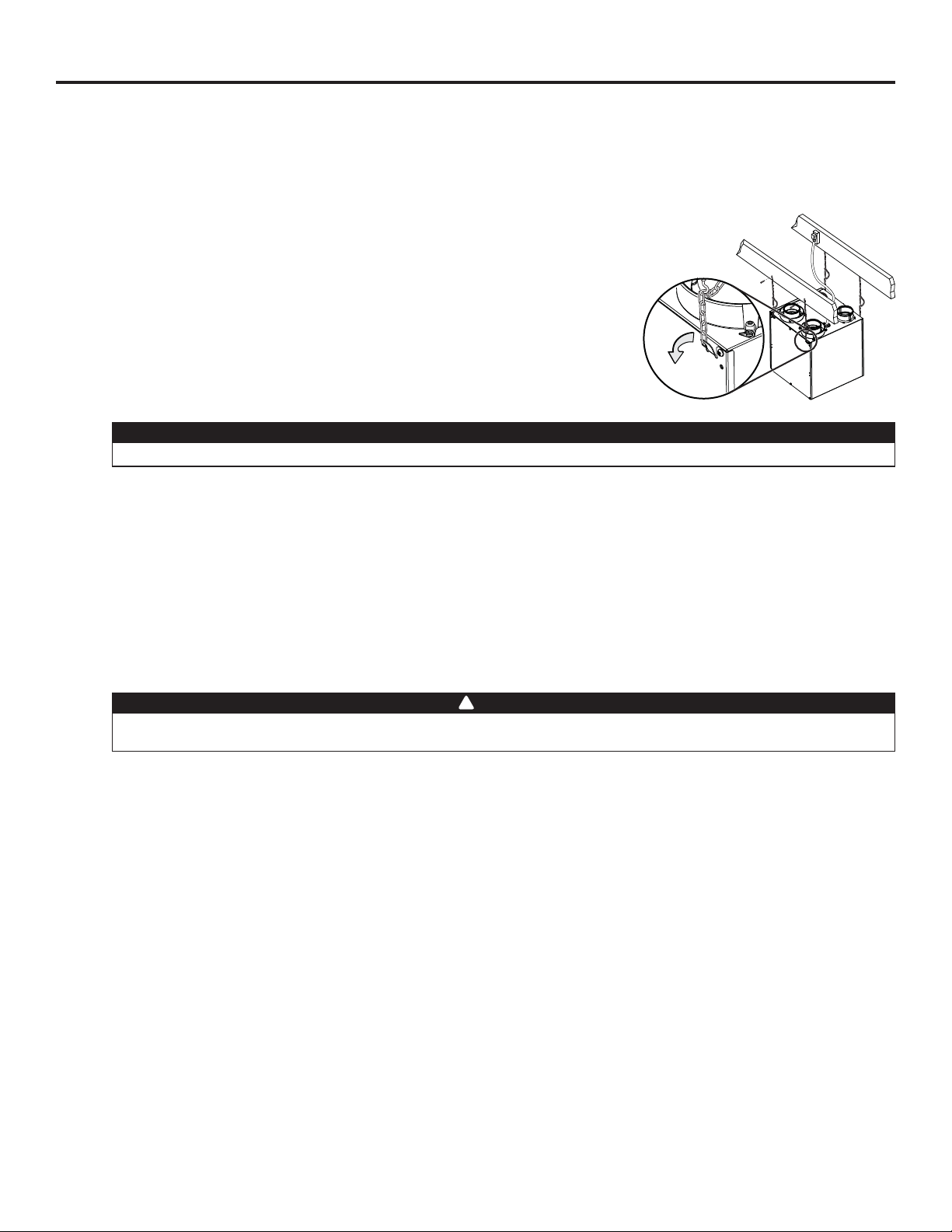

4. INSTALLATION

4.1 INSPECT THE CONTENT OF THE BOX

Inspect the exterior of the unit for shipping damage. Ensure that there is no damage to the door, ports, power cord, etc.

4.2 LOCATING THE UNIT

Choose an appropriate location for the unit.

• Within an area of the house where the ambient temperature is kept between 10°C (50°F) and 40°C (104 °F).

• Away from living areas (dining room, living room, bedroom), if possible.

• So as to provide easy access to the interior of the unit, for quarterly and annual maintenance.

• Close to an exterior wall, so as to limit the length of the insulated flexible duct to and from the unit.

• Away from hot chimneys and other fire hazards.

• Allow for a power source (standard 3-prong grounding outlet).

• Close to a drain (HRV units only). If no drain is close by, use a pail to collect run-off. Hang the unit with the four chains and springs provided. See illustration beside.

Make sure the unit is level.

4.3 PLANNING OF THE DUCTWORK

• Keep it simple. Plan for a minimum of bends and joints.

• Keep the length of insulated ducts to a minimum.

• Do not ventilate crawl spaces or cold rooms. Do not attempt to recover the exhaust air from a dryer or a range hood. This would cause clogging of the filters and recovery module.

• If the house has two floors or more, be sure to plan for at least one exhaust register on the highest lived-in level.

VD0242

CAUTION

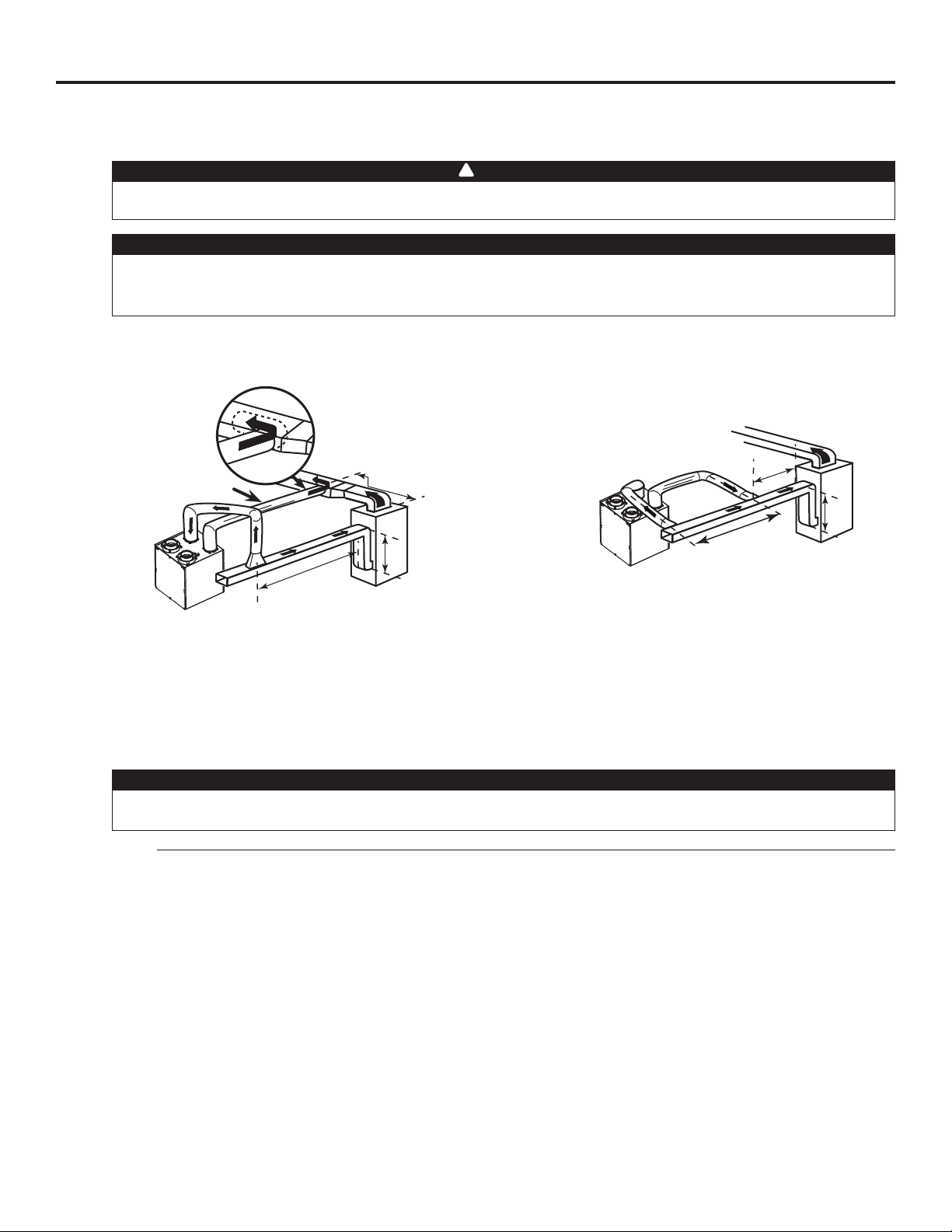

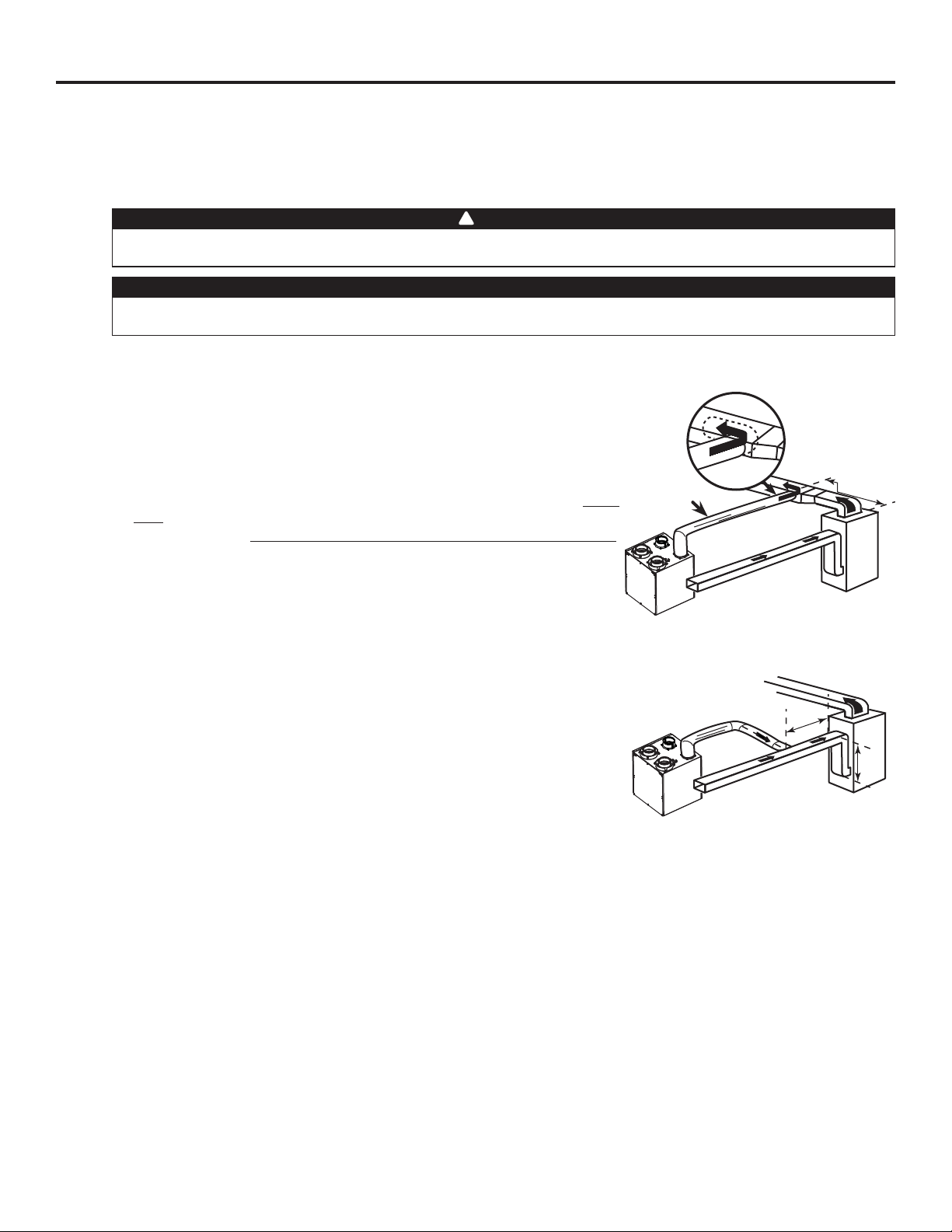

4.4 INSTALLING THE DUCTWORK AND REGISTERS

ULLY DUCTED SYSTEM (AS ILLUSTRATED IN SECTION 2.1)

4.4.1 F

Never install a stale air exhaust register in a closed room where a combustion device operates, such as a gas furnace, a gas water heater or a fireplace.

Stale air exhaust ductwork

• Install the stale air exhaust registers where the contaminants are produced: kitchen, living room, etc. Position the registers as far from the stairway as possible and in such a way that the air circulates in all the lived-in spaces in the house.

• If a register is installed in the kitchen, it must be located at least 4 feet (1.2 m) from the range.

• Install the registers 6 to 12 inches (152 to 305 mm) from the ceiling on an interior wall OR install them in the ceiling.

Fresh air distribution ductwork

• Install the fresh air distribution registers in bedrooms, dining rooms, living room and basement.

• Keep in mind that the fresh air registers must be located as far as possible from the stale air registers.

• Install the registers either in the ceiling or high on the walls with air flow directed towards the ceiling. (The cooler air will then cross the upper part of the room and mix with room air, before descending to occupant’s level.)

• If a register must be floor installed, direct the airflow up the wall.

WARNING

Page 9

4. INSTALLATION (CONT’D)

4.4 INSTALLING THE DUCTWORK AND REGISTERS (CONT’D)

4.4.2 C

ENTRAL DRAW POINT (AS ILLUSTRATED IN SECTION 2.2)

Stale air exhaust ductwork

Same as for Fully Ducted System, described on point 4.4.1

When performing duct connections, always use approved tools and materials. Respect all corresponding laws and safety regulations. Please refer to your local building code.

When performing duct connections to the furnace supply duct, this duct must be sized to support the additional airflow produced by the unit. Also, the use of metal duct is highly recommended.

Fresh air distribution ductwork

There are 2 methods for connecting the unit to the furnace/air handler:

Method 1: Supply side connection

• Cut an opening into the furnace supply duct at least 18 inches (0.5 m) from the furnace/air handler.

• Connect this opening to the Fresh air distribution port of the unit (use metal duct, see figure beside).

• Make sure the unit duct forms an elbow inside the furnace/air handler ductwork.

• If desired, interlock (synchronize) the furnace/air handler blower operation (see Section 6 Electrical Connection to the Furnace).

WARNING

CAUTION

ETAL DUCT

MINIMUM 18”

(0.5 M)

Method 2: Return side connection

• Cut an opening into the furnace return duct not less than 10 feet (3.1 m) from the furnace/air handler (A+B).

• Connect this opening to the Fresh air distribution port of the unit (see figure beside).

NOTE: For Method 2, it is not essential that the furnace/air handler runs when the unit is operation, but we recommend it. If desired, interlock (synchronize) the furnace/air handler blower operation (see Section6 Electrical Connection to the Furnace).

VJ0075

A+B = NOT LESS

THAN 10’ (3.1 M)

VJ0076

Page 10

4. INSTALLATION (CONT’D)

4.4 INSTALLING THE DUCTWORK AND REGISTERS (CONT’D)

4.4.3 S

IMPLIFIED INSTALLATION (AS ILLUSTRATED IN SECTION 2.3)

When performing duct connections, always use approved tools and materials. Respect all corresponding laws and safety regulations. Please refer to your local building code.

When performing duct connections to the furnace supply duct (Method 1), this duct must be sized to support the additional airflow produced by the unit. Also, the use of metal duct is highly recommended. For a Return-Return installation, the furnace blower must be in operation when the unit is in operation.

There are 2 methods for connecting the unit to the furnace/air handler:

Method 1: Supply-Return Connection Method 2: Return-Return Connection

WARNING

CAUTION

ETAL DUCT

MINIMUM 18”

(0.5 M)

VJ0077

A+B = NOT LESS

THAN 10’ (3.1 M)

MINIMUM 3’

VJ0078

(0.9 M)

A+B = NOT LESS

THAN 10’ (3.1 M)

Stale air intake

• Cut an opening into the furnace return duct not less than 10 feet (3.1 m) from the furnace/air handler (A+B).

• Connect this opening to the Exhaust air from building port of the unit.

Fresh air distribution

• Same instructions as for Method 1 or Method 2, Section 4.4.2. For Method 2 (Return-Return), make sure there is a distance of at least 3 feet (0.9 m) between the 2 connections to the furnace/air

handler.

CAUTION

If using Method 2, make sure the furnace/air handler blower operation is synchronized with the unit operation! See Section 6 Electrical Connection to the Furnace.

NOTE: For Method 1, it is not essential to synchronize the furnace blower operation with the unit operation, but we recommend it.

Page 11

4. INSTALLATION (CONT’D)

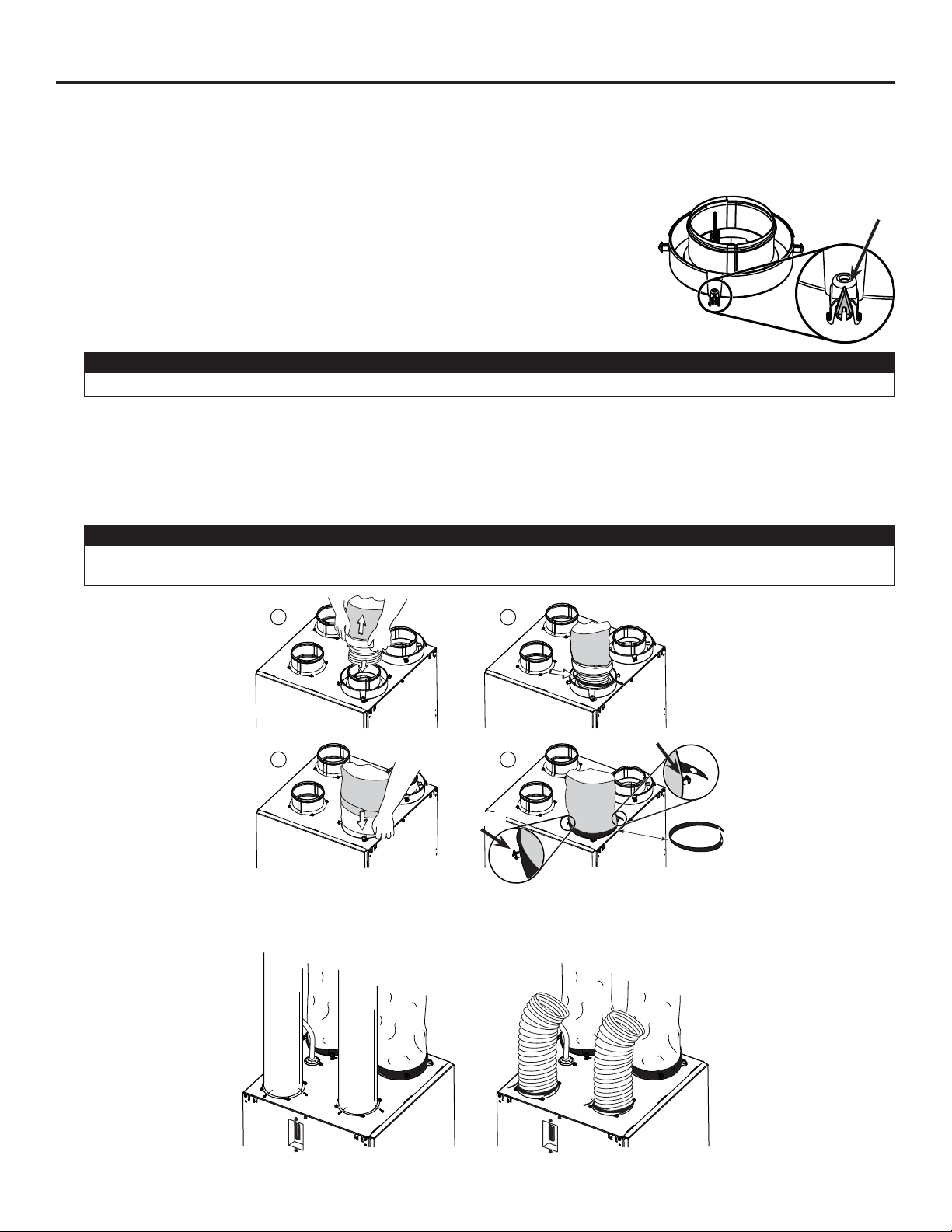

4.5 CONNECTING THE DUCTS TO THE UNIT

NOTE: All units ports were created to be connected to ducts having a minimum of 4” diameter, but if need be, they can be connected to bigger sized ducts by using an appropriate transition (e.g.: 4” diameter to 5” diameter transition).

Insulated flexible ducts

Use the following procedure to connect the insulated flexible ducts to the ports of the unit (Exhaust air to outside and Fresh air from outside ports).

All units have those 2 ports equipped with integrated balancing damper. Prior to install the insulated flexible ducts, ensure these both ports have their damper entirely open (their adjusment pin (A) must be set vertical, as shown beside).

VJ0033

CAUTION

If ducts have to go through an unconditioned space (e.g.: attic), always use insulated ducts.

 Pull back the insulation to expose the flexible duct.  Attach the flexible duct to the port using tie wrap.  Pull the insulation over the joint and tuck in between the inner and outer rings of the double collar.  Pull down the vapor barrier (shaded part in illustrations below) over the outer ring to cover it completely. Fasten in place the vapor

barrier using the port strap included in unit par ts bag). To do so, insert one collar pin through vapor barrier and first strap hole, then insert the other collar pin through vapor barrier and center strap hole and close the loop by inserting the first collar pin in the last strap hole.

CAUTION

Make sure the vapor barrier on the insulated ducts does not tear during installation to avoid condensation within the ducts.

COLLAR PIN

VJ0074

Non-insulated rigid ducts

Use metal screws and duct tape

to connect the rigid ducts to the

unit ports.

COLLAR PIN

Non-insulated flexible ducts

Use tie wraps to connect the flexible

ducts to the unit ports.

VJ0073

Page 12

4. INSTALLATION (CONT’D)

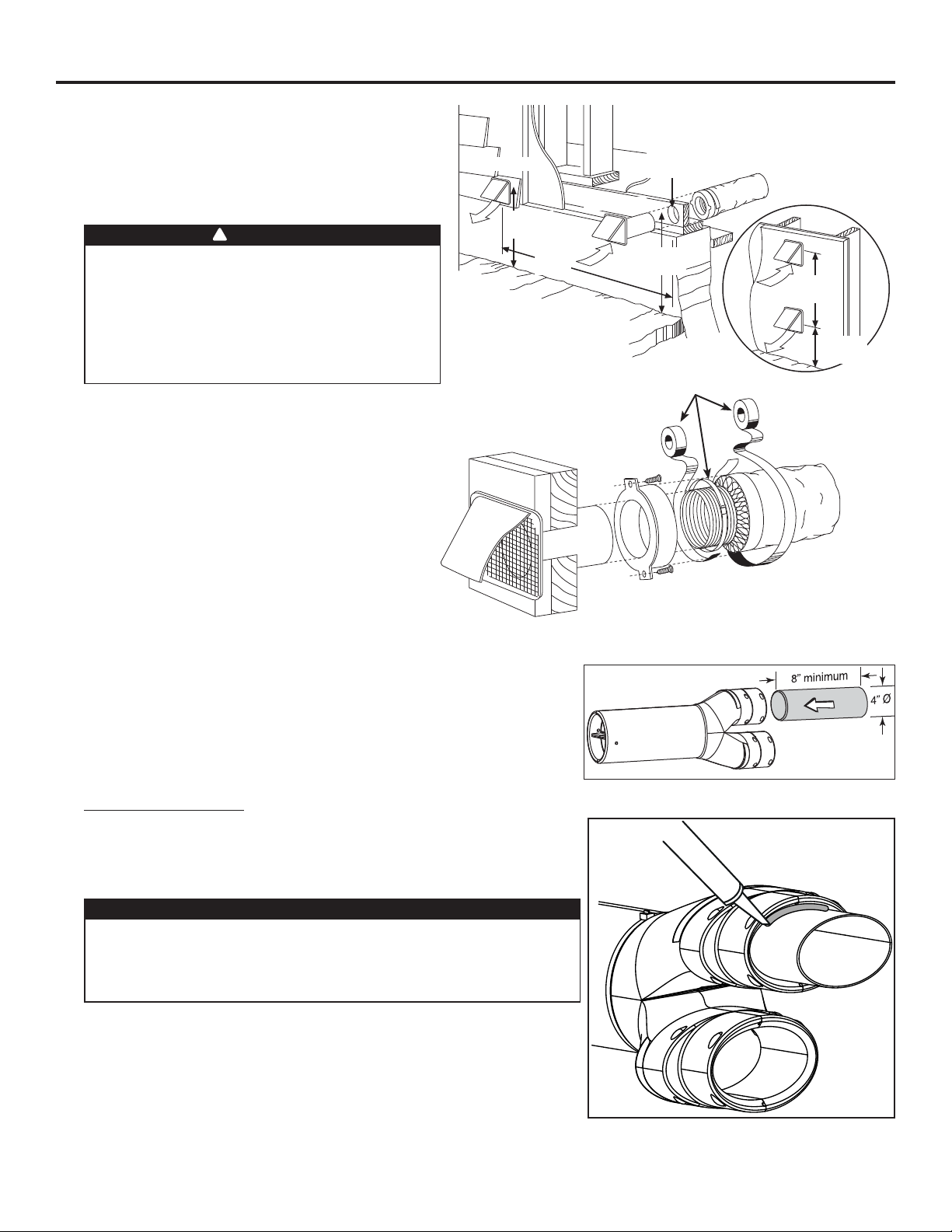

4.6 INSTALLING TWO EXTERIOR HOODS

Choose an appropriate location to install the exterior hoods:

• There must be a minimum distance of 6 feet (1.8 m) between the hoods to avoid cross-contamination

• There must be a minimum distance of 18 inches (457 mm) from the ground

WARNING

Make sure the intake hood is at least 6 feet (1.8 m) away from any of the following:

• Dryer exhaust, high efficiency furnace vent, central vacuum vent

• Gas meter exhaust, gas barbecue-grill

• Any exhaust from a combustion source

• Garbage bin and any other source of contamination

Refer to figure beside for connecting insulated ducts to the exterior hoods. An “Anti-gust intake hood’’ should be installed in regions where a lot of snow is expected to fall.

EXHAUST HOOD

18” (457 MM)

6’

(1.8 M)

INTAKE HOOD

4” Ø

(102 MM)

18”

(457 MM)

OPTIONAL

LOCATION

DUCT

TAPE AND DUCT TIE

6’

(1.8 M)

18”

(457 MM)

VD0028

4.7 INSTALLING DUAL EXTERIOR HOOD USING TANDEM®* TRANSITION KIT (OPTIONAL)

If desired, a dual exterior hood can be used instead of 2 exterior hoods to connect insulated ducts. The joist opening needed to install the Tandem® transition must be 9¾” minimum. The maximum height of the Tandem® transition is 8¾”.

To connect 4” insulated flexible ducts to the 5” oval ends of the Tandem® transition (Exhaust air to outside and Fresh air from outside), connect an adapter to the Tandem® transition (not included).

For each duct connection:

1. Slightly squeeze a section of 4” round metal duct, at least 8” long, to insert it into the oval opening of the Tandem® transition and push it all the way in.

2. Using silicon, seal the joint between the outside of metal duct and Tandem® transition, and allow silicon to dry completely.

CAUTION

When connecting insulated flexible duct to the Tandem

transition,

pull the interior flexible duct over the adapter all the way to the silicon joint and secure using a tie wrap. Then pull the insulation over the joint, making sure that no part is left without insulation.

3. From this point on, follow the instructions included with the Tandem® transition kit (part no.14690).

VJ0118A

*Patented.

VJ0119

Page 13

4. INSTALLATION (CONT’D)

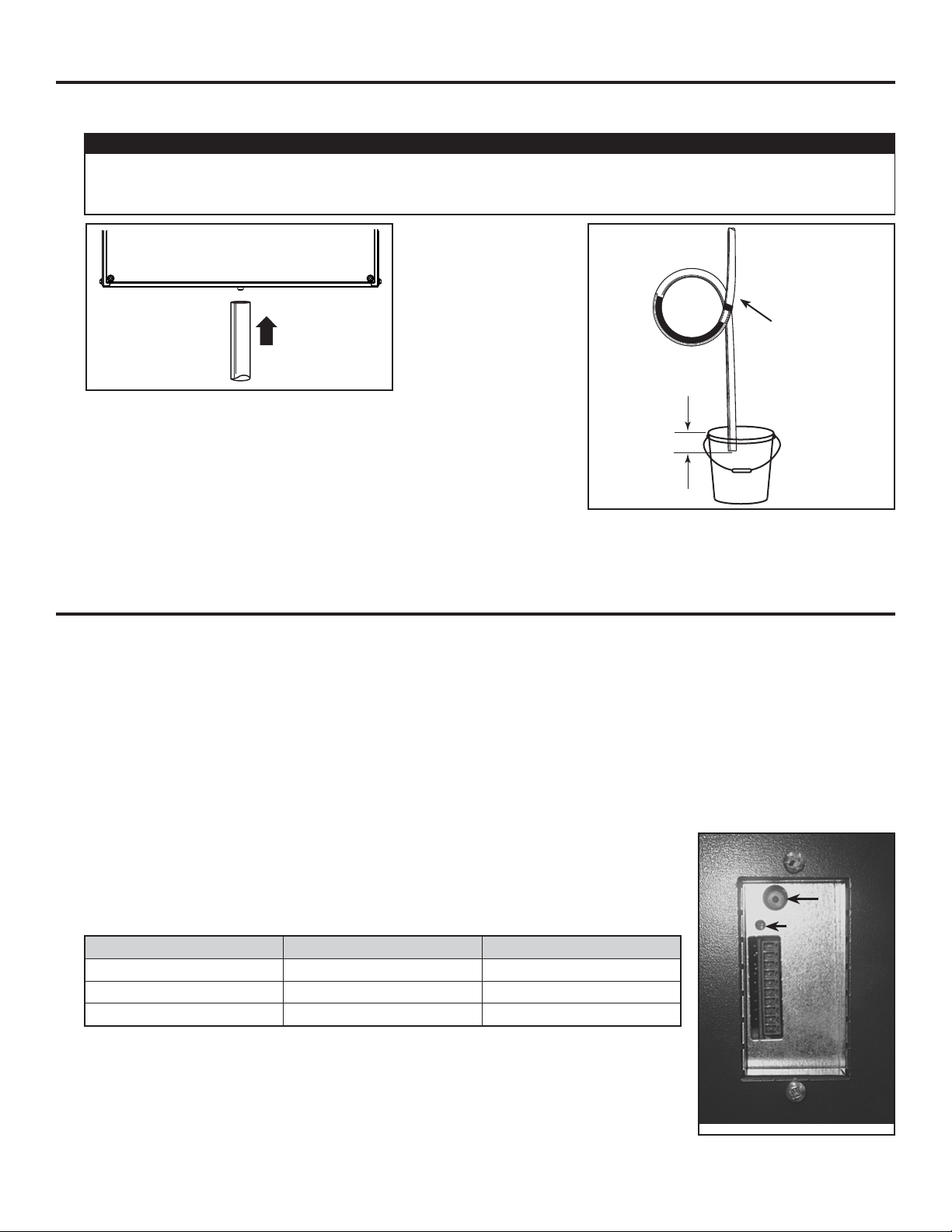

4.8 CONNECTING THE DRAIN

CAUTION

A drain tubing (included) must be installed for all HRV units. For ERV units, it is not required, however, it is recommended for climates where the outside temperature typically remains below -25°C (-13°F), (over a 24-hour period) for several days in a row, combined with an indoor humidity of 40% or higher.

Make a water trap loop in the tube to prevent the unit from drawing unpleasant odors from the drain source. Run the tube to the floor drain or to an alternative

VO0190

Connect the plastic tube to the inner drain fitting located under the unit as shown.

NOTE: For ERV units, remove drain plug outside the unit prior to install tubing.

drain pipe or pail.

IMPORTANT

If using a pail to collect water, locate the tube end approximately 1” from the top of the pail in order to prevent water from being drawn back up into the unit.

± 1”

VD0240A

TIE-WRAP

5. CONTROLS

All units are equipped with an integrated control located on upper left side of the unit. Plug the unit.

5.1 BOOTING SEQUENCE

The unit booting sequence is similar to a personnal computer boot sequence. Each time the unit is plugged after being unplugged, or after a power failure, the unit will perform a 30-second booting sequence before starting to operate.

During the booting sequence, the integrated control LED will light GREEN for 5 seconds, and then will turn RED. During this RED light phase, the unit is checking and resetting the motorized damper position. Once the motorized damper position completely set, the RED light turns off and the booting sequence is done.

NOTE: No command will be taken until the unit is fully booted.

5.2 INTEGRATED CONTROL

Use the push button (1) to control the unit. The LED (2) will then show on which mode the unit is in.

Refer to table below to see how to operate the unit using its integrated control.

PRESS ON PUSH BUTTON LED COLOR RESULTS

ONCE AMBER UNIT IS ON LOW SPEED

TWICE GREEN UNIT IS ON HIGH SPEED

THREE TIMES NO LIGHT UNIT IS OFF

If a problem occurs during the unit operation, its integrated control LED (2) will blink. The color of the blinking light depends on the type of error detected. Refer to Section 9 Troubleshooting on page 21 for further details.

NOTE: WHEN USING MAIN CONTROL, THE INTEGRATED CONTROL MUST BE TURNED OFF.

VE0220

Page 14

5. CONTROLS (CONT’D)

5.3 SETTNG EXTENDED DEFROST

These units are factory set to normal defrost. In cold region (outside temperature -27°C [-17°F] and lower), it may be necessary to setup extended defrost. During the first 2 seconds of booting sequence, while the integrated control LED is GREEN, press on push button for 3 seconds to set the unit in extended defrost; the LED will blink AMBER to show the unit is in extended defrost mode. After that, the LED will shut off, then light RED (the unit returns in its booting sequence).

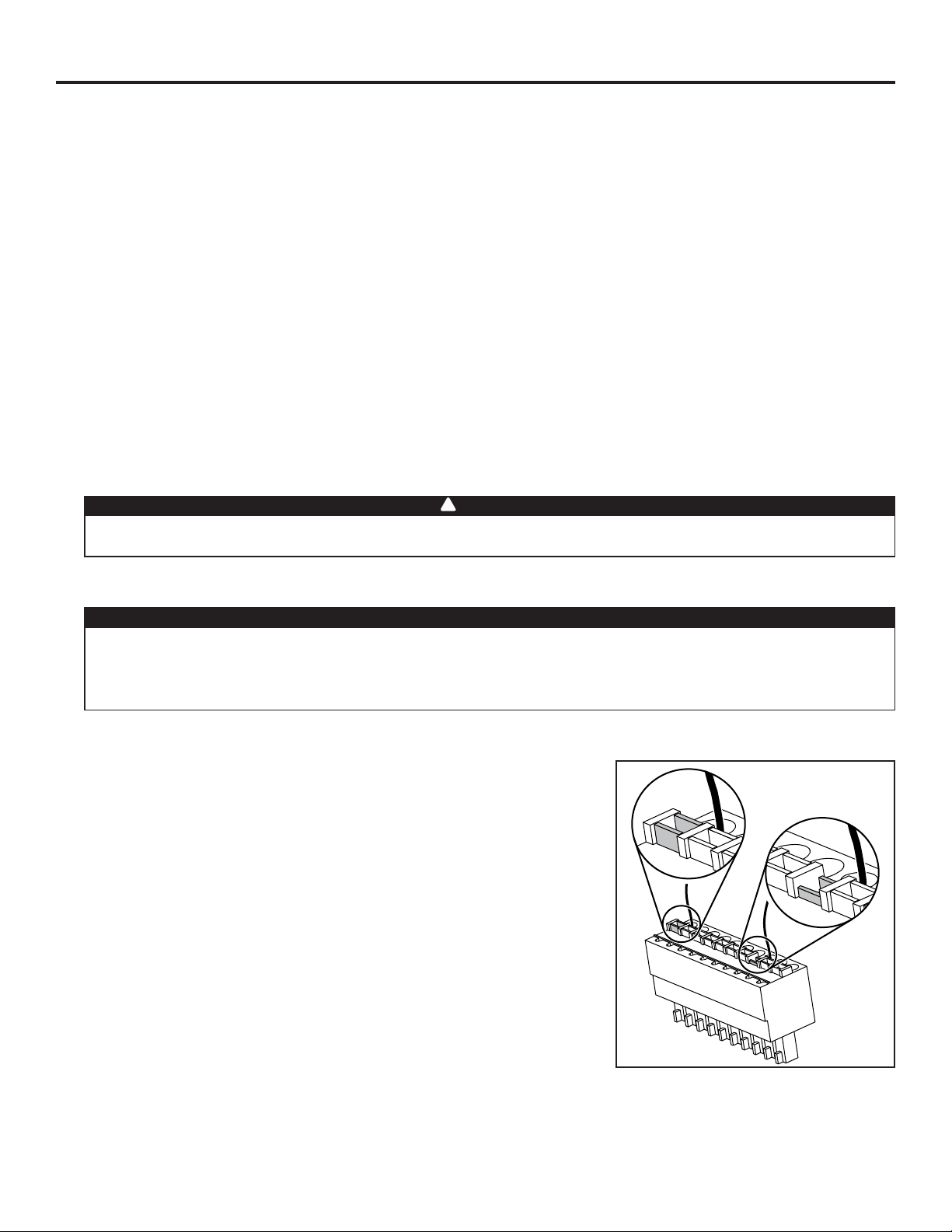

5.4 ELECTRICAL CONNECTION TO MAIN CONTROLS

For more convenience, these units can also be controlled using an optional main wall control. NOTES: 1. The integrated control must be turned OFF to use an optional main control.

2. If an optional auxiliary control is used, if activated, this auxiliary control will override the optional main control.

WARNING

Always disconnect the unit before making any connections. Failure in disconnecting power could result in electric shock or damage of the wall control or electronic module inside the unit.

CAUTION

Never install more than one optional main wall control per unit. Make sure that the wires do not short-circuit between themselves or by touching any other components on the wall control. Avoid poor wiring connections. To reduce electrical interference (noise) potential, do not run wall control wiring next to control contactors or near light dimming circuits, electrical motors, dwelling/building power or lighting wiring, or power distribution panel.

Use the terminal connector included in the installation kit to perform the electrical connection for main and optional wall controls. Check if all wires are correctly inserted in their corresponding holes in the terminal block. (A wire is correctly inserted when its orange receptacle is lower than another one without wire. On picture beside, wire A is correctly inserted, but wire B is not.)

VE0272

Page 15

5. CONTROLS (CONT’D)

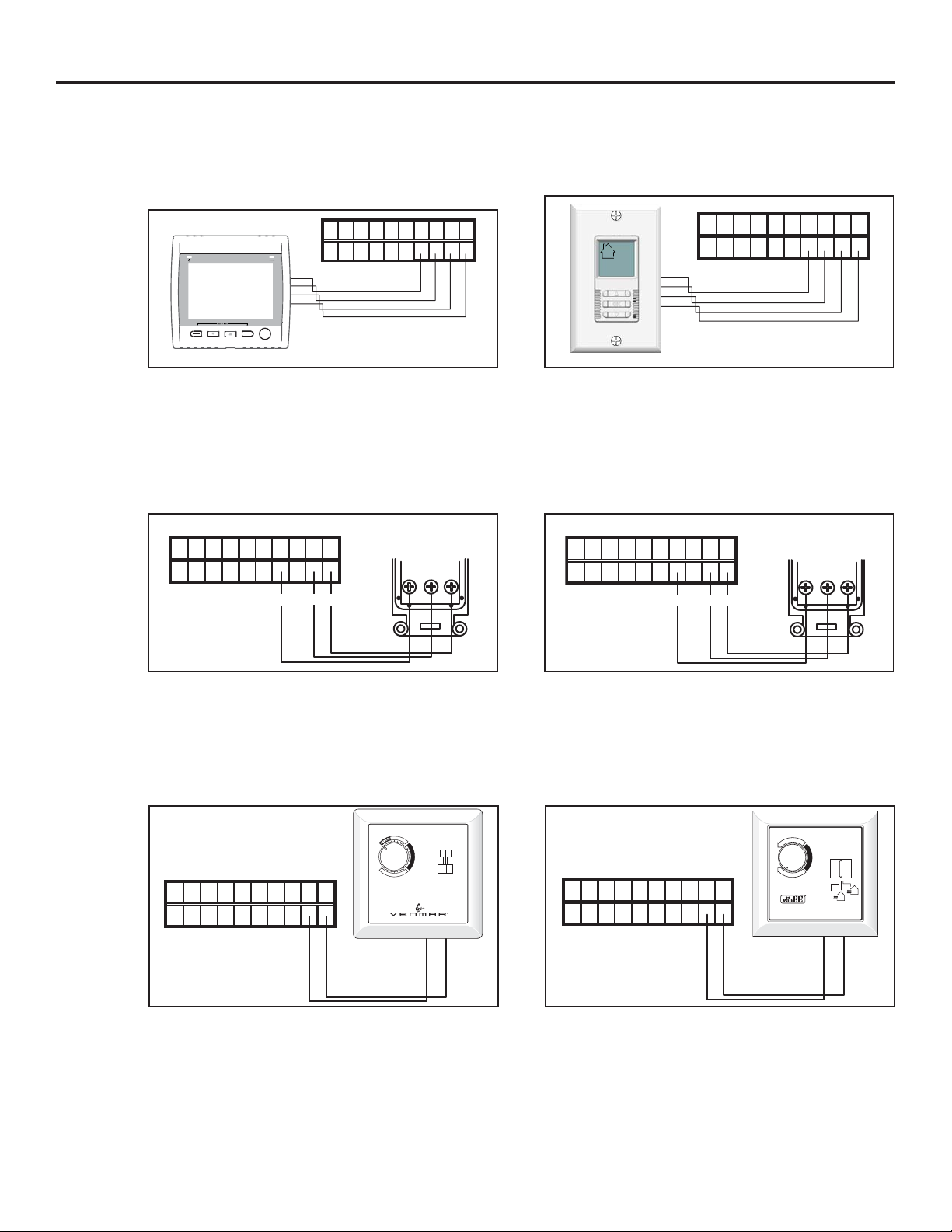

5.4 ELECTRICAL CONNECTION TO MAIN CONTROLS (CONT’D)

5.4.1 ELECTRICAL CONNECTION TO ALTITUDE (K7 ERV, K8 HRV AND K10 HRV UNITS ONLY) OR PLATINUM (40E, 40H+ AND 50H UNITS ONLY) MAIN WALL CONTROL

NO C NC I OC OL Y R G B

VE0181

MODE PREF

SET

SMART

5.4.3 ELECTRICAL CONNECTION TO LITE-TOUCH CONSTRUCTO OR SIMPLE-TOUCH CONSTRUCTO MAIN WALL CONTROLS (K7 ERV, K8 HRV AND K10 HRV UNITS ONLY)

MAIN WALL CONTROL

LITE-TOUCH CONSTRUCTO

and

NO C NC I OC OL Y R G B

SIMPLE-TOUCH CONSTRUCTO

REAR VIEW

B G

5.4.2 ELECTRICAL CONNECTION TO DECO-TOUCH MAIN WALL CONTROL (ALL UNITS)

NO C NC I OC OL Y R G B

VE0250

5.4.4 ELECTRICAL CONNECTION TO LITE-TOUCH BRONZE OR SIMPLE-TOUCH BRONZE MAIN WALL CONTROLS (40E, 40H+ AND 50H UNITS ONLY)

MAIN WALL CONTROL

LITE-TOUCH BRONZE

and

NO C NC I OC OL Y R G B

SIMPLE TOUCH BRONZE

REAR VIEW

B G

VE0100A

5.4.5 ELECTRICAL CONNECTION TO CONSTRUCTO MAIN WALL CONTROL (K7 ERV, K8 HRV AND K10 HRV UNITS ONLY)

OFF

--5°C

MIN MAX

23°F

-20°C

-4°F

NO C NC I OC OL Y R G B

VE0102

CONSTRUCTO

VE0101A

5.4.6 ELECTRICAL CONNECTION TO BRONZE MAIN WALL CONTROL (40E, 40H+ AND 50H UNITS ONLY)

D I T

20%

5 °C

41 °F

25%

70%

-5 °C

60%

30%

23 °F

50%

40%

-20 °C

-4 °F

MAX.

OFF

MIN.

NO C NC I OC OL Y R G B

VE0103

HUMIDITY CONTROL

-30 °C

-22 °F

Page 16

5. CONTROLS (CONT’D)

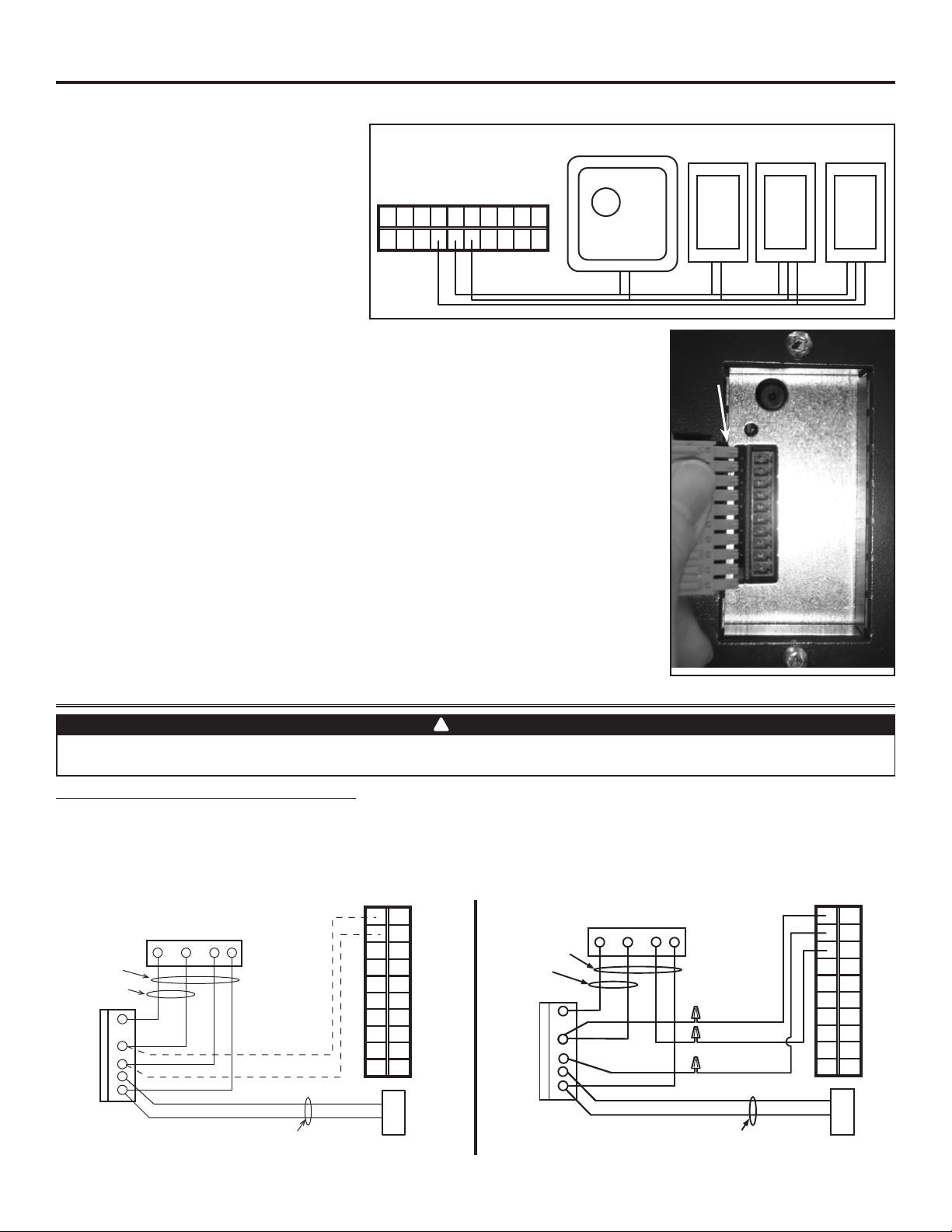

5.5 ELECTRICAL CONNECTION TO OPTIONAL AUXILIARY CONTROLS

NOTE: If the Dehumidistat is activated and then an optional auxiliary control is being activated, this one will override the Dehumidistat command.

Once the control(s) connections have been made, insert the terminal connector in the electrical compartment interface.

NO C NC I OC OL Y R G B

VE0089A

DEHUMIDISTAT

60-MINUTE

CRANK TIMER

TERMINAL

CONNECTOR

20/40/60-MINUTE or 20-MINUTE

PUSH-BUTTON SWITCHES

(5 MAXIMUM)

NOTE: For information about the operation of the wall controls, refer to the user guide.

VE0221

6. ELECTRICAL CONNECTION TO THE FURNACE

WARNING

Never connect a 120-volt AC circuit to the terminals of the furnace interlock (standard wiring). Only use the low voltage class 2 circuit of the furnace blower control.

For a furnace connected to a cooling system:

On some older thermostats, energizing the “R” and “G” terminals at the furnace has the effect of energizing “Y” at the thermostat and thereby turning on the cooling system. If you identify this type of thermostat, you must use the ALTERNATE FURNACE INTERLOCK WIRING.

TANDARD FURNACE INTERLOCK WIRING ALTERNATE FURNACE INTERLOCK WIRING

NO C NC I OC OL Y R G B

UNIT TERMINAL CONNECTOR

COOLING SYSTEM

FOUR WIRES

TWO WIRES

heating only

FURNACE

24-VOLT

TERMINAL BLOCK

W R G

THERMOSTAT

TERMINALS

TWO WIRES

NO C NC I OC OL Y R G B

COOLING SYSTEM

UNIT TERMINAL CONNECTOR

4 WIRES

2 WIRES

heating only

FURNACE

24-VOLT

TERMINAL BLOCK

W R G Y

G C

THERMOSTAT

TERMINAL

wiring nuts

2 WIRES

Page 17

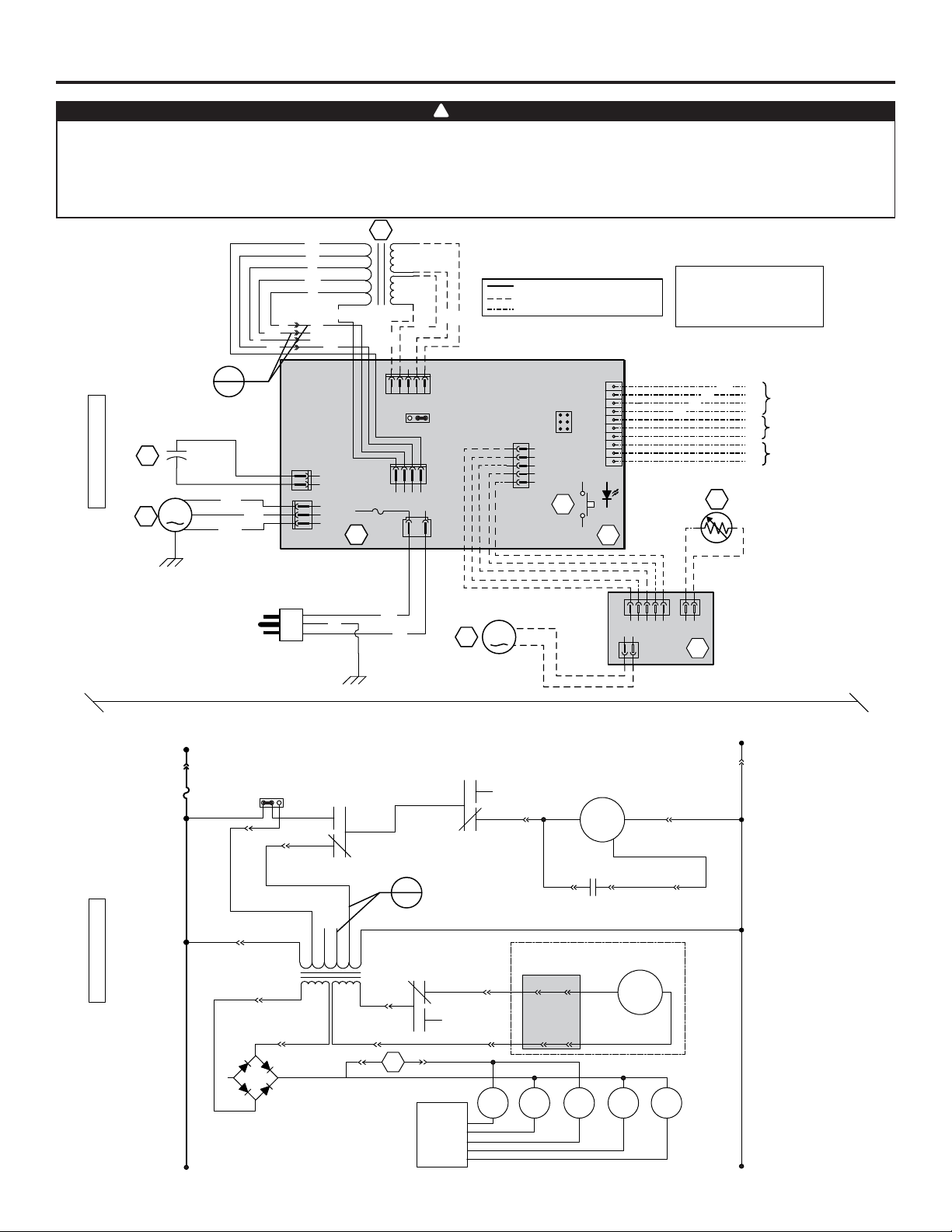

7. WIRING DIAGRAMS

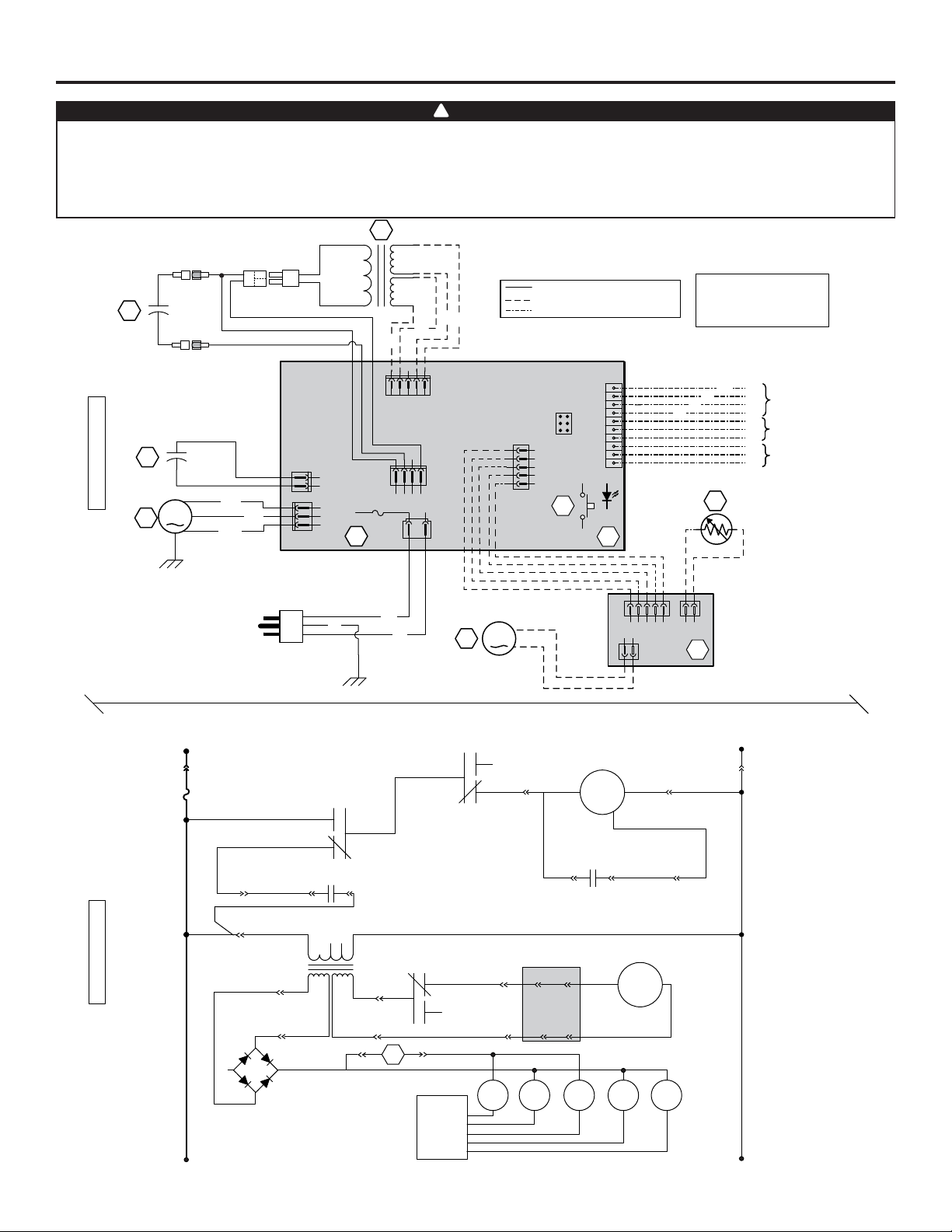

7.1 K7 ERV AND 40E UNITS

WARNING

• Risk of electric shocks. Before performing any maintenance or servicing, always disconnect the unit from its power source.

• This product is equipped with an overload protection (fuse). A blown fuse indicates an overload or a short-circuit situation. If the fuse blows, unplug the product from the outlet. Replace the fuse as per the servicing instructions (refer to wiring diagram for proper fuse rating) and verify the product. If the replaced fuse blows, it may be a short-circuit and the product must be discarded or returned to an authorized service center for examination and/or repair.

24 V Class 2

COLOR CODE

BLACK

BLUE

BROWN

GREEN

OL OC

B G R Y

O R W Y

INTERLOCK

RANGE

O RED WHITE YELLOW

IELD WIRING

REMOTE

CONTROL

OVERRIDE SWITCH

(OPTIONAL)

FURNACE BLOWER

(OPTIONAL)

HERMISTOR

t˚

WIRING DIAGRAM

MOTOR

CAPACITOR

BLOWER

MOTOR

13 µF

5 µF

9.5 V Class 2

21345

3AG T

2 3

4321

YPE

J10

LINE VOLTAGE CLASS 2 LOW VOLTAGE FACTORY WIRING

CLASS 2 LOW VOLTAGE FIELD WIRING

J14

9 8 7 6

J13

5 4

J12

ICP

12345

3 2 1

ELECTRONIC ASSEMBLY

LOGIC DIAGRAM

ASSEMBLY

J4-3

2154321

EUTRAL

J10-1

120 VAC

60 Hz

INE

J10-2

J9-3

J9-1

J8-5

9.5 VAC

J8-4

OTOR SPEED

J8-2

24 VAC

J8-1

J11-2 J11-1

DAMPER MOTOR

120 VAC

J12-1

J12-2

J4-1

J2-1

J6-1

J3-1

J3-2J2-2

LOWER MOTOR

OTOR CAPACITOR

J6-2

AMPER MOTOR

DAMPER ELECTRONIC

J4-2

VE0315A

CPU

K2 K3 K4

K1 K5

Page 18

7. WIRING DIAGRAMS (CONT’D)

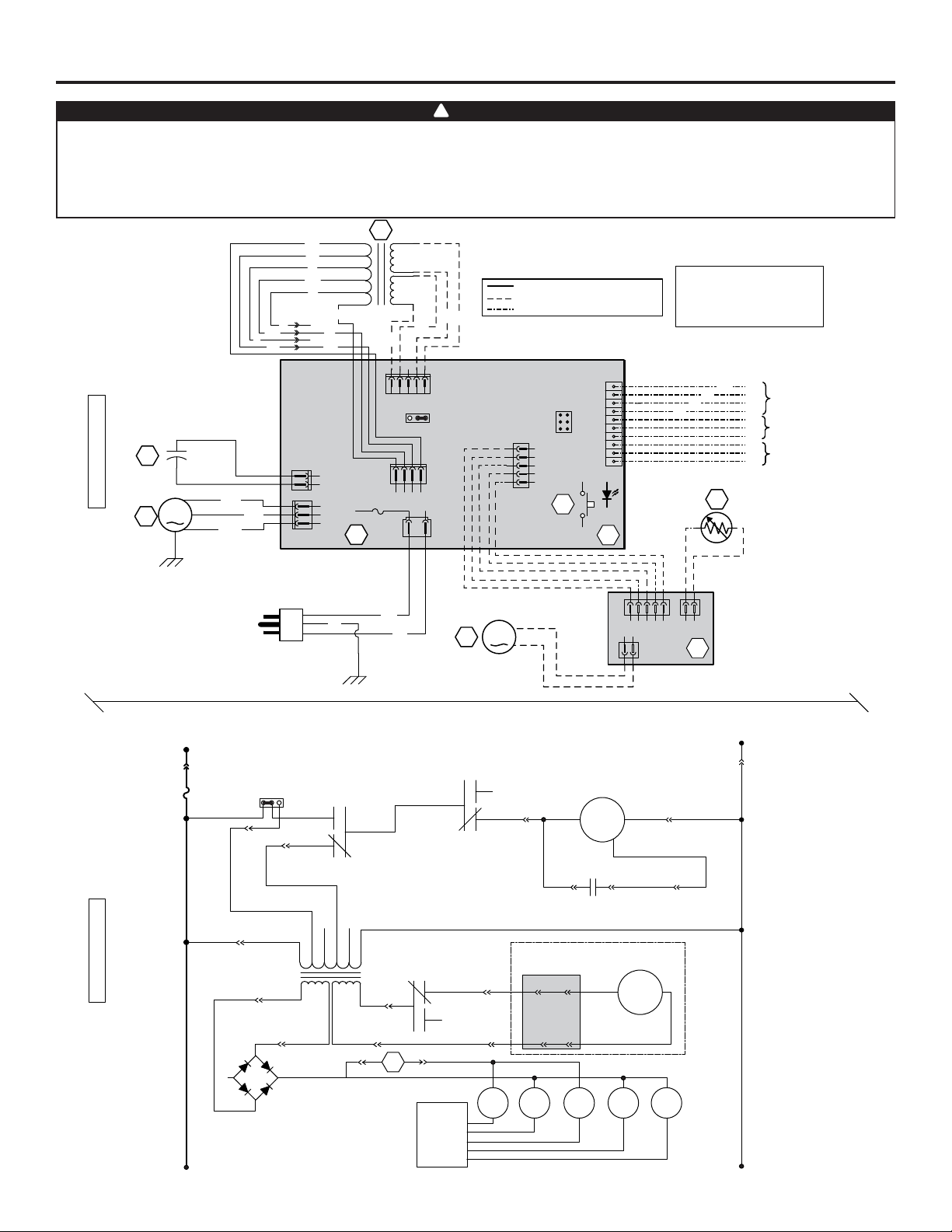

7.2 K8 HRV AND 40H+ UNITS

WARNING

• Risk of electric shocks. Before performing any maintenance or servicing, always disconnect the unit from its power source.

120 V

94 V

WIRING DIAGRAM

MOTOR

CAPACITOR

BLOWER

MOTOR

5 µF

BL BL

83 V

78 V 69 V

neutral

1 2

3AG T

24 V Class 2

9.5 V Class 2

21345

M H

JU1

321

4321

YPE

COLOR CODE

BLACK

LINE VOLTAGE CLASS 2 LOW VOLTAGE FACTORY WIRING

J10

CLASS 2 LOW VOLTAGE FIELD WIRING

J14

9 8 7 6

J13

5 4

J12

ICP

12345

3 2 1

ELECTRONIC ASSEMBLY

BLUE

BROWN

GREEN

CONNECTION

THERMISTOR

t˚

O P R W Y

B G R Y

OL OC

ORANGE PURPLE RED WHITE YELLOW

IELD WIRING

CONTROL

REMOTE

OVERRIDE SWITCH

(OPTIONAL)

FURNACE BLOWER

INTERLOCK

(OPTIONAL)

LOGIC DIAGRAM

ASSEMBLY

2154321

EUTRAL

J10-1

120 VAC

60 Hz

INE

J10-2

H M

123

JU1

DAMPER MOTOR

120 VAC

J4-1

LOWER MOTOR

AMPER ELECTRONIC

J4-2

J9-2

J9-1

J8-5

J9-3

J8-4

69 VAC

94 VAC

83 VAC

78 VAC

24 VAC

9.5 VAC

J11-2 J11-1

J8-2

J8-1

J12-1

J12-2

Damper system

J2-1

J6-1

J3-1

J3-2J2-2

J6-2

OTOR CAPACITOR

J4-3

AMPER MOTOR

VE0316A

CPU

K2 K3 K4K1 K5

Page 19

7. WIRING DIAGRAMS (CONT’D)

7.3 K10 HRV AND 50H UNITS

WARNING

• Risk of electric shocks. Before performing any maintenance or servicing, always disconnect the unit from its power source.

120 V

94 V

64 CFM optional low speed

selection can be achieved by

connecting BROWN to RED

(See Ref. 1)

MOTOR

CAPACITOR

6 µF

WIRING DIAGRAM

BLOWER

MOTOR

Ref.

BL BL

83 V

78 V 69 V

neutral

W R nc

1 2

3AG T

24 V Class 2

9.5 V Class 2

21345

M H

JU1

321

4321

YPE

COLOR CODE

BLACK

LINE VOLTAGE CLASS 2 LOW VOLTAGE FACTORY WIRING

J10

CLASS 2 LOW VOLTAGE FIELD WIRING

J14

9 8 7 6

J13

5 4

J12

ICP

12345

3 2 1

ELECTRONIC ASSEMBLY

BLUE

BROWN

GREEN

CONNECTION

THERMISTOR

t˚

O P R W Y

B G R Y

OL OC

ORANGE PURPLE RED WHITE YELLOW

IELD WIRING

CONTROL

REMOTE

OVERRIDE SWITCH

(OPTIONAL)

FURNACE BLOWER

INTERLOCK

(OPTIONAL)

LOGIC DIAGRAM

ASSEMBLY

2154321

EUTRAL

J10-1

120 VAC

60 Hz

INE

J10-2

H M

123

JU1

DAMPER MOTOR

120 VAC

J4-1

LOWER MOTOR

AMPER ELECTRONIC

J4-2

J9-2

J9-1

J8-5

J9-3

J8-4

nc nc

69 VAC

94 VAC

83 VAC

78 VAC

24 VAC

9.5 VAC

J11-2 J11-1

J8-2

J8-1

Ref.

Damper system

J12-1

J2-1

J12-2

J6-1

J3-1

J3-2J2-2

J6-2

OTOR CAPACITOR

J4-3

AMPER MOTOR

VE0317A

CPU

K2 K3 K4K1 K5

Page 20

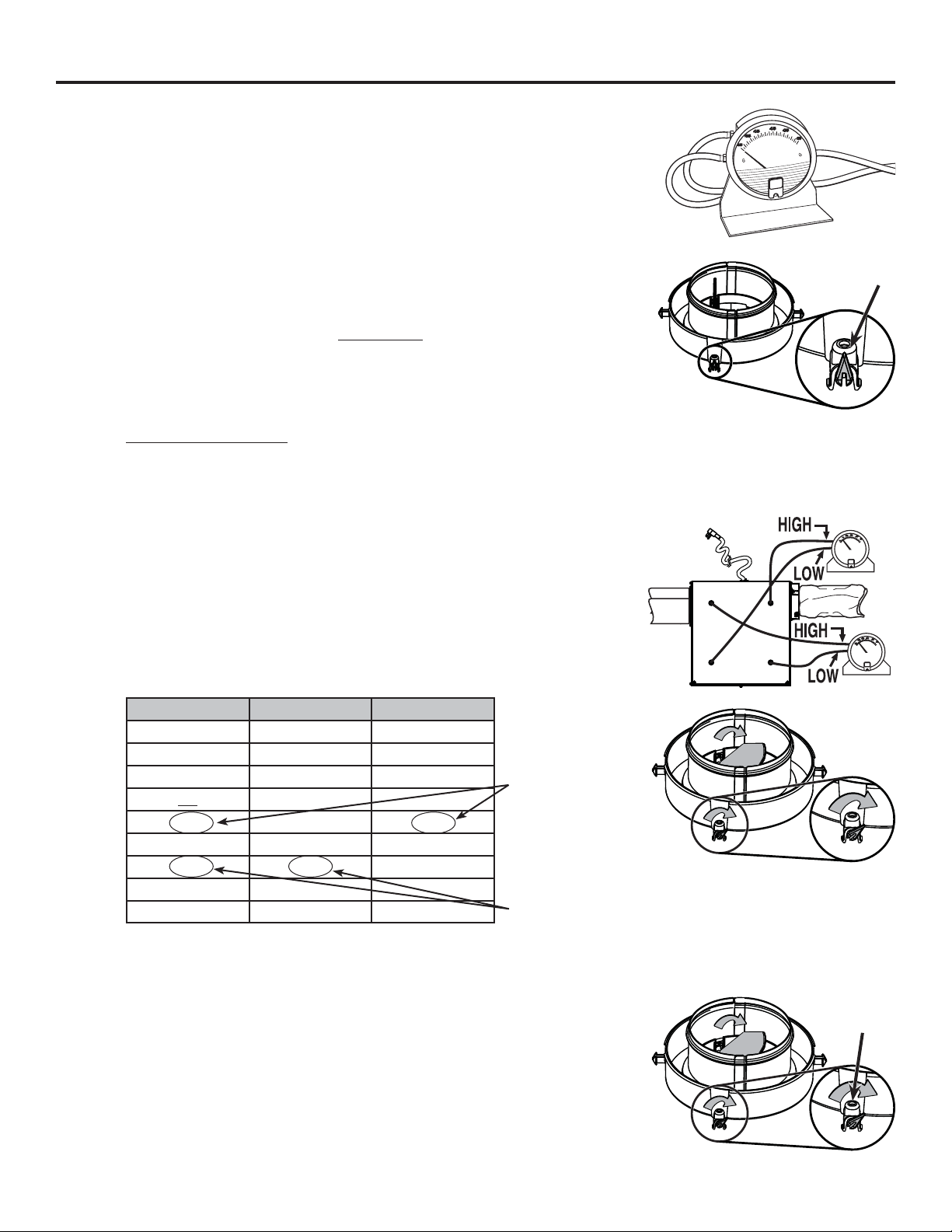

8. BALANCING THE UNIT

8.1 WHAT YOU NEED TO BALANCE THE UNIT

• A magnehelic gauge capable of measuring 0 to 0.5 inch of water (0 to 125 Pa) and 2 plastic tubes.

• The balancing chart of the unit, located on the unit door.

8.2 PRELIMINARY STAGES TO BALANCE THE UNIT

• Seal all the unit ductwork with tape. Close all windows and doors.

• Turn off all exhaust devices such as range hood, dryer and bathroom fans.

• Make sure the balancing dampers are fully open (their adjusment pin (A) must be set vertical, see illustration beside).

• Make sure all filters are clean (if it is not the first time the unit is balanced).

VP0009

8.3 BALANCING PROCEDURE

1. Set the unit to high speed. NOTE: Make sure that the furnace/air handler blower is ON if the installation is in any way connected to the ductwork of the

cold air return. If not, leave furnace/air handler blower OFF. If the outside temperature is below 0°C/32°F, make sure the unit is not running in defrost while balancing. (By waiting 10 minutes after plugging the unit in, you are assured that the unit is not in a defrost cycle.)

2. Place the magnehelic gauge on a level surface and adjust it to zero.

3. Connect tubing from gauge to EXHAUST air flow pressure taps (see diagram on unit

door). Be sure to connect the tubes to their appropriate high/low fittings. If the gauge drops below zero, reverse the tubing connections.

4. Note the CFM value from balancing chart on unit.

5. Repeat steps 3 and 4, but to FRESH air flow pressure taps.

6. Match highest CFM value to lowest by adjusting the balancing damper corresponding

to the highest value. To do so, rotate the adjusment pin.

See example below:

PRESSURE FRESH EXHAUST

. W.G. CFM CFM

0.16 47 42

0.18 54 48

0.2 60 55

0.22 66 61

0.24 72 68

0.26 78 74

0.28 84 81

0.3 90 88

In that case, there is 78 CFM in FRESH air and 61 CFM in EXHAUST air. Then, using the adjusment pin, adjust (close) the FRESH air balancing damper until the FRESH air flow matchs the EXHAUST air flow: 60 CFM (0.2 in. w.g.) with magnehelic gauge connected to FRESH air flow pressure taps).

EXHAUST

READING VALUES

FRESH

READING VALUES

VJ0033

FRESH AIR

FLOW

VP0019

VJ0031

EXHAUST AIR FLOW

7. Secure both dampers in place with a fastening screw (included in the hardware kit).

8. Write the required air flow information on a label and stick it near the unit for future

reference (date, maximum speed air flows, your name, phone number and business address).

NOTES: 1. Use conversion chart provided with the unit to convert magnehelic gauge readings to equivalent cfm values.

2. The unit is considered balanced even if there is a difference of ±10 cfm (or ± 5 l/s or 17 m³/h) between the two air flows.

VJ0031

CREW

Page 21

9. TROUBLESHOOTING

If the unit does not work properly, reset the unit by unplugging it for one minute and then replug it. If it still not working properly, refer to table below.

If the integrated control LED of the unit is flashing, this means the unit sensors detected a problem. See the table below to know where the problem occurs on the unit.

LED Signal Error Type Action Unit Status

LED flashes GREEN Thermistor error Replace damper system. Unit works but will defrost frequently LED flashes AMBER Damper error Go to point 6 Unit does not work

Problems Possible causes You should try this

1 The error code E1 is

displayed on Altitude, Platinum or Deco-Touch wall control screen.

2 There is no outside

temperature displayed on Altitude or Platinum wall control screen

3 Altitude, Platinum or

Deco-Touch wall control screen alternates between normal display and E3.

4 On Altitude or Platinum wall

control, there is an important difference between temperature displayed and real temperature.

5 Unit does not work. • The circuit board may be defective.

6 The wall control does not

work.

• The wires may be in reverse position.

• The wires may be broken.

• The wires may have a bad connection.

• The unit thermistor is defective (the integrated control LED of the unit must flash GREEN).

• The Altitude, Platinum or Deco-Touch wall control may be defective.

• The unit thermistor is defective.

• The unit damper has been blocked or broken.

• The fuse may be defective.

• Unit integrated control set to low or high speed (AMBER or GREEN continuous LED).

• Unit not compatible with control.

• The wires may be in reverse position.

• The wires may be misconnected.

• The wires may be broken.

• Defective wall control.

• Ensure that the color wires have been connected to their appropriate places.

• Inspect every wire and replace any that are damaged.

• Ensure the wires are correctly connected. NOTE: At its very start-up or after a power failure, it takes

some minutes before the outside temperature appears on screen. The shortest delay is obtained when the wall control is set on MIN or MAX in VENT Mode.

• Replace the unit damper system.

• Replace the Altitude, Platinum or Deco-Touch wall control.

• Replace the unit thermistor.

• Check for the proper operation of the unit damper; replace if necessary.

• Unplug the unit. Disconnect the main control and the optional(s) control(s) (if need be). Jump G and B terminals. Plug the unit back and wait about 10 seconds. If the motors run on high speed and the damper opens, the circuit board is not defective.

• Check if fuse F1 (located on PCB) is blown. In that case, replace fuse F1 as per wiring diagram specifications.

• Press on the integrated push button until the LED turns off.

• Check table on page 2 for control compatibility.

• Ensure that the color coded wires have been connected to their appropriate places.

• Ensure the wires are correctly connected.

• Inspect every wire and replace any that are damaged.

• Replace the wall control.

NO C NC I OC OL Y R G B

VE0097

Page 22

9. TROUBLESHOOTING (CONT’D)

Problems Possible causes You should try this

7 The damper system

does not work (AMBER error code).

8 The Dehumidistat does not

work OR other optional auxiliary control does not work OR its indicator light does not stay on.

9 The blower motor does not

work.

At power up, no RED LED. At power up, LED lights RED and there is a clicking sound coming from electrical compartment, but damper does not move:

• Ice or other things hindering the damper movement.

• J12 unconnected or bad contact.

• Wrong connection of J8.

• The transformer may be defective (no 24 VAC between J8-1 and J8-2).

• The damper actuator may be defective.

Damper moves but does not stop when supposed to:

• Damper motor turns on reverse side.

• Bad connection of J12 connector.

• Damper PCB defective or damper motor stripped gear.

• The main PCB is defective.

• The wires may be in reverse position.

• The wires may be misconnected.

• The wires may be broken.

• The Dehumidistat or push button may be defective.

• The fuse may be defective.

• The motor or capacitor may be defective.

NOTE: The unit must be unplugged to perform this test.

• See point 5.

• Remove ice or hindering elements.

• Check J12 connection (both harness side and board side).

• Check J8 connection.

• With unit powered and J9 connected, check if there is about 20-24 VAC between transformer connector J8-1 and J8-2 (ORANGE wires). If no, change the transformer.

• Replace the damper system.

• Facing the damper motor shaft, the motor should

turn counterclockwise. If not, replace the damper system.

• Check J12 connection (both harness side and board side).

• Replace the damper system.

•

Replace the main PCB.

• Ensure that the color coded wires have been connected to their appropriate places.

• Ensure the wires are correctly connected.

• Inspect every wire and replace any that is damaged. If wires are hidden into walls, test the control using a shorter wire.

• Jump the OL and OC terminals. If the unit switch to high speed, remove the Dehumidistat or push button and test it right beside the unit using another shorter wire. If it works here, change the wire. If it doesn’t, change the Dehumidistat or the push button.

• Check if fuse F1 (located on PCB) is blown. In that case, replace fuse F1 as per wiring diagram specifications.

• Using a multimeter, check the ohms value on motor connector. For BLUE and BLACK motor wires, the right value is ± 68 ohms. For BLUE and BROWN motor wires, the right value is ± 58 ohms. For BROWN and BLACK motor wires, the right value is ± 126 ohms. If the ohms values are the same, the motor is not defective. Replace the motor capacitor.

NO C NC I OC OL Y R G B

VE0098

10. TECHNICAL SUPPORT (FOR ASSISTANCE)

FOR ASSISTANCE, CALL ON WEEKDAYS, 8:30 AM TO 5:00 PM (EASTERN STANDARD TIME). NOTE: THESE PHONE NUMBERS ARE STRICTLY RESERVED FOR INSTALLERS USE ONLY. DO NOT CALL THESE NUMBERS FOR ORDERING PAR TS . FOR VENMAR UNITS: 1-800-649-0372 (TOOL FREE) FOR VÄNEE UNITS: 1-888-908-2633 (TOLL FREE)
