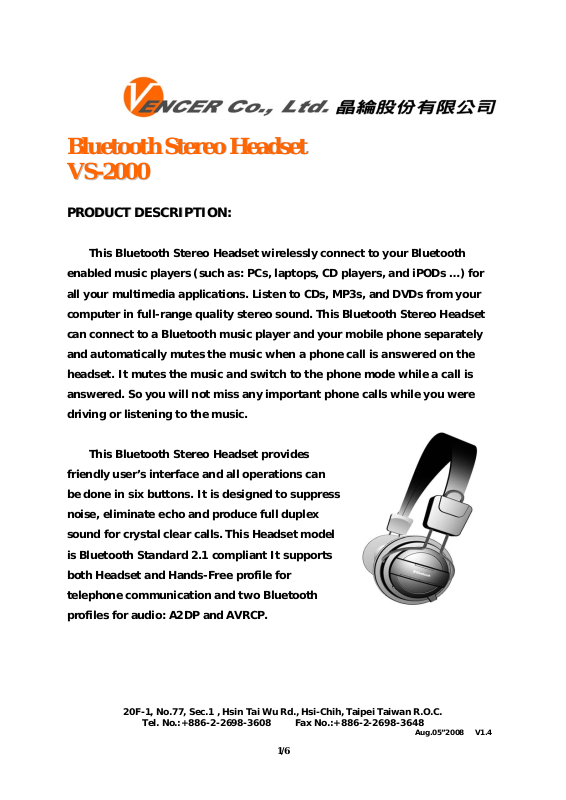

Vencer BTVS2000 Users Manual

BBlluueettooootthh SStteerreeoo HHeeaaddsseett
VVSS--22000000

PPRROODDUUCCTT DDEESSCCRRIIPPTTIIOONN::

This Bluetooth Stereo Headset wirelessly connect to your Bluetooth
enabled music players (suc h as: PCs, laptops, CD players, and iPODs …) for
all your multimedia applications. Listen to CDs, MP3s, and DVDs from your
computer in full-range quality stereo sound. This Bluetooth Stereo Headset
can connect to a Bluetooth music player and your mobile phone separately
and automatically mutes the music when a phone call is answered on the
headset. It mutes the music and switch to the phone mode while a call is
answered. So you will not miss any important phone calls while you were
driving or listening to the music.

This Bluetooth Stereo Headset provides
friendly user’s interface and all operations can
be done in six buttons. It is designed to suppress
noise, eliminate echo and produce full duplex
sound for crystal clear calls. This Headset model
is Bluetooth Standard 2.1 compliant It supports
both Headset and Hands-Free profile for
telephone communication and two Bluetooth
profiles for audio: A2DP and AVRCP.

20F-1, No.77, Sec.1 , Hsin Tai Wu Rd., Hsi-Chih, Taipei Taiwan R.O.C.

Tel. No.:[phone] Fax No.:[phone]

1/6

Aug.05”2008 V1.4

BBlluueettooootthh SStteerreeoo HHeeaaddsseett
VVSS--22000000

PPRROODDUUCCTT FFEEAATTUURREESS::

 Bluetooth V2.1 compliant.
 Up to 10 hrs playing time and 400 hrs standby time.
 LED indicator

 Wirelessly connect to your multi-media applications and your

Bluetooth mobile phone separately.

 Supports headset, hands-free for mobile phone usage, A2DP/AVRCP

profiles for music listen

 On chip DSP for SRS WOW HD audio.
 Music mutes while call is answered.
 Integrated on board antenna

 Rechargeable battery.

is a trademark of SRS Labs, Inc.

WOW HD technology is incorporated under license from SRS Labs, Inc.

20F-1, No.77, Sec.1 , Hsin Tai Wu Rd., Hsi-Chih, Taipei Taiwan R.O.C.

Tel. No.:[phone] Fax No.:[phone]

2/6

Aug.05”2008 V1.4

BBlluueettooootthh SStteerreeoo HHeeaaddsseett
VVSS--22000000

:

PPRROODDUUCCTT SSPPEECCIIFFIICCAATTIIOON

Description Bluetooth™ Stereo Headset (VS-2000)
Standard Bluetooth 2.1 specificat ion, Class II
Bluetooth Profile Supported HSP, HFP, A2DP, AVRCP Prof ile
Operating Ran ge 10 Meters (33 feet)
Operating Frequency 2.402 GHz - 2.4835 GHz ISM Band

Buttons

Connection Point-to-Point
RF Output power 2 dBm (Class II)
Power Supply +3.7V Li-polymer Battery.
Side Dimension 190*160*70 mm

N

Pick up / Hang up / Power on / Power off / Pairing

Previous / Next / Vol+ / Vol - / Play / Pause

Weight 155 g
Operating Temperature -10°C to 55 °C
Storage Temperatur e -20°C to 70 °C
Storage Humidity 10% to 90%
Receiver Sensitivity 0.1% BER for all packet types -85dBm
Operation Current 40mA
Low Power Mode Low Power Mode < 1mA
Talking time Up to 10 hrs
Standby time Up to 400 hrs
SNR (DAC) 95 dB (48 KHz)
SNR (ADC) 78 dB (44.1 KHz)
Speaker Ø 40,

20F-1, No.77, Sec.1 , Hsin Tai Wu Rd., Hsi-Chih, Taipei Taiwan R.O.C.

Tel. No.:[phone] Fax No.:[phone]

3/6

Aug.05”2008 V1.4

BBlluueettooootthh SStteerreeoo HHeeaaddsseett
VVSS--22000000

BBuuttttoonn FFuunnccttiioonn ::

20F-1, No.77, Sec.1 , Hsin Tai Wu Rd., Hsi-Chih, Taipei Taiwan R.O.C.

Tel. No.:[phone] Fax No.:[phone]

4/6

Aug.05”2008 V1.4

BBlluueettooootthh SStteerreeoo HHeeaaddsseett
VVSS--22000000

PPrroodduucctt PPiiccttuurree::

20F-1, No.77, Sec.1 , Hsin Tai Wu Rd., Hsi-Chih, Taipei Taiwan R.O.C.

Tel. No.:[phone] Fax No.:[phone]

5/6

Aug.05”2008 V1.4

BBlluueettooootthh SStteerreeoo HHeeaaddsseett
VVSS--22000000

20F-1, No.77, Sec.1 , Hsin Tai Wu Rd., Hsi-Chih, Taipei Taiwan R.O.C.

Tel. No.:[phone] Fax No.:[phone]

6/6

Aug.05”2008 V1.4

BBlluueettooootthh SStteerreeoo HHeeaaddsseett
VVSS--22000000

The Bluetooth Stereo Headset is a Bluetooth device developed with the latest Bluetooth
technology, which can connect to other Bluetooth devices such as mobile phone, desktop
or notebook computer, PDA which supported HSP or HFP( for voice) or A2DP(for
music) profile.

20F-1, No.77, Sec.1 , Hsin Tai Wu Rd., Hsi-Chih, Taipei Taiwan R.O.C.

Tel. No.:[phone] Fax No.:[phone]

1/4

Aug.05”2008 V1.2

BBlluueettooootthh SStteerreeoo HHeeaaddsseett
VVSS--22000000

Getting Started

1. Charging Battery

The Headset comes with a rechargeable battery included. The battery is not fully
charged when it is new. For first time use, it takes 3 hours to fully charge the battery.
Afterwards, it will take about 2 hours to fully charge the battery.
Plug the charge cable or adapter. The RED indicator on the headset will light on.(If the
headset is power ON state, the RED LED will flash alternative with BLUE LED) when
battery is charging.
When the battery is full, the RED indicator will turn off.

2. Turning the Headset On or Off

- To turn the Headset on

Turn the ON/OFF switch (S1) to ON position, then the blue indicator of the Headset
flashes. The Headset is now turned on.

- To turn the Headset off

Turn the ON/OFF switch (S1) to OFF position, and then the Headset will turn off.

20F-1, No.77, Sec.1 , Hsin Tai Wu Rd., Hsi-Chih, Taipei Taiwan R.O.C.

Tel. No.:[phone] Fax No.:[phone]

2/4

Aug.05”2008 V1.2

BBlluueettooootthh SStteerreeoo HHeeaaddsseett
VVSS--22000000

3. Pairing the Headset

You are required to pair the Headset with your Bluetooth mobile phone/audio
device/PC/PDA before using the Headset.
Step 1 : Turn ON the headset. Hold and keep pressing the Pairing button (S2) for 3

seconds until the blue and the red indicators are flashing alternatively. Th e
headset is now ready for pairing.

Step 2 : Initiate pairing process on your Bluetooth mobile phone/Audio Device/PC/PDA

to pair with the Headset. After search, you can find the device name “VS-2000”

Step 3 : When asked the Passkey by the mobile phone, enter 1234 and confirm it. (Note:

The 1234 is a Default pin-code pre-stored in the Headset.)

When pairing is successful, the red indicator will turn off and the blue indicator will

flash..

If pairing can not finish in a period of time (approx. 2 minutes), the Headset will return

to standby mode. You may need to repeat steps 1 to 3 until pairing succeeds.

4. Listening to Music

If the Bluetooth Device supported Bluetooth stereo audio (A2DP profile), you can listen

music by the headset. And adjust the Headset volume by press the Volume Up (S3)and
Volume Down (S6)button.

If the Bluetooth Device supported AVRCP profile also, you can control music playback

by headset button PLAY (S2) / PAUSE (S2) / FWD (S4) / REV (S5)

5. SRS

Press and hold SRS button (S7) for 3 seconds to enable the SRS feature, and press and

hold SRS button (S7) for 3 seconds to disable the SRS feature if SRS is enabled.

Press SRS button (S7) to select SRS mode when SRS is enabled. There are 4 SRS WOW

HD mode in VS-2000.

6. Making Calls

Using the phone keys to make call

Dial the number on the mobile phone as you normally do. Once the call has been set up,
the sound will be transmitted to your Headset automatically.

7. Answering Calls and Ending Call

When the Headset is powered on, and there is an incoming call, you will hear a ring tone.
(1) When the Headset rings, press the Answer button (S2) to answer.
(2) Adjust the Headset volume by press the Volume Up (S3) and Volume Down (S6)

button.

(3) End calls by pressing End button (S2) or don’t press any button.

20F-1, No.77, Sec.1 , Hsin Tai Wu Rd., Hsi-Chih, Taipei Taiwan R.O.C.

Tel. No.:[phone] Fax No.:[phone]

3/4

Aug.05”2008 V1.2

BBlluueettooootthh SStteerreeoo HHeeaaddsseett
VVSS--22000000

8. Making Bluetooth Connection from Headset

By press the PLAY/PAUSE/Answer/End button (S2), the headset can connect with the

paired stereo audio device (A2DP profile), like PC or MP3 player, automatically.

Low Battery

When the RED indicator starts to flash and heard alert at headset, it indicates that the Headset
is running low on battery.
Charge the Headset until the RED indicator turns off.

is a trademark of SRS Labs, Inc.

WOW HD technology is incorporated under license from SRS Labs, Inc.

20F-1, No.77, Sec.1 , Hsin Tai Wu Rd., Hsi-Chih, Taipei Taiwan R.O.C.

Tel. No.:[phone] Fax No.:[phone]

4/4

Aug.05”2008 V1.2

FCC ID: VHVBTVS2000

FCC Compliance and Advisory Statement

This device complies with Part 15 of the FCC rules. Operation is subject to the following two
conditions:(1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device,
according to Part 15 of the FCC rules. These limits are designed to provide reasonable
protection against harmful interference in a residential inst allatio n. This equipment generates,
uses and can radiate radio frequency energy and if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try correct the interference b y one or more
of the following measures:

1.Reorient the receiving antenna.

2.Increase the separation between the equipment and receiver.

3.Connect the equipment into and outlet on a circuit different from that to which the receiver is
connected.

4.Consult the dealer or an experienced radio/TV technician for help.

Any special accessories needed for compliance must be specified in the instruction manual.

Warning: A shielded-type power cord is required in order to meet FCC emission limits and
also to prevent interference to the nearby radio and television reception. It is essential that
only the supplied power cord be used. Use only shielded cables to connect I/O devices to this
equipment.

CAUSION: Any changes or modifications not expressly approved by the party responsible for
compliance could void your authority to operate the equipment.
