FCC ID: VHVBTVM1000
BBlluueettooootthh M
M--11000000
VVM
Moouussee

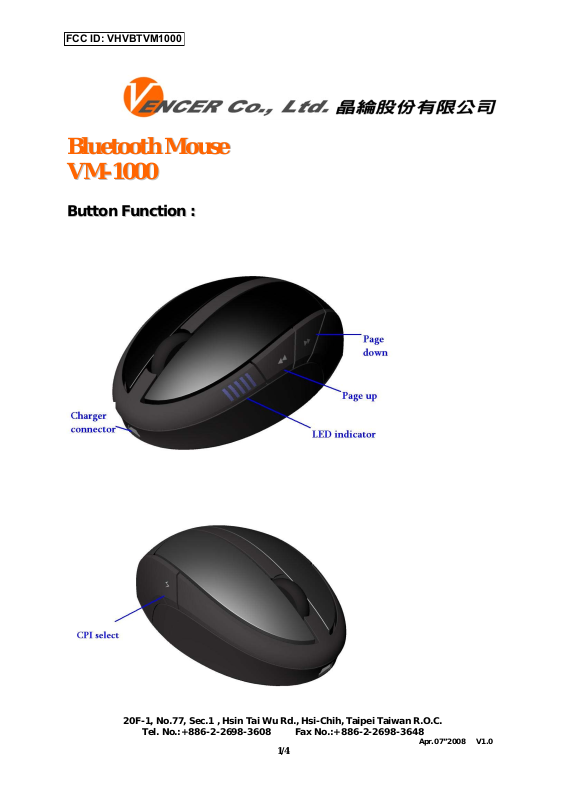

BBuuttttoonn FFuunnccttiioonn ::
20F-1, No.77, Sec.1 , Hsin Tai Wu Rd., Hsi-Chih, Taipei Taiwan R.O.C.
Tel. No.:+886-2-2698-3608 Fax No.:+886-2-2698-3648
1/4
Apr.07”2008 V1.0
FCC ID: VHVBTVM1000
BBlluueettooootthh M
M--11000000
VVM
Moouussee
20F-1, No.77, Sec.1 , Hsin Tai Wu Rd., Hsi-Chih, Taipei Taiwan R.O.C.
Tel. No.:+886-2-2698-3608 Fax No.:+886-2-2698-3648
Apr.07”2008 V1.0
2/4
FCC ID: VHVBTVM1000
BBlluueettooootthh M
M--11000000
VVM
QQuuiicckk SSttaarrtt
1. Power On/Off
Sliding power switch at bottom of mouse to turn on/off VM-1000.
2. Pairing
Press Connect button, and then Blue LED light on at sensor hole. Now, VM-1000 is
under pairing mode.
Step 1. Set VM-1000 under pairing mode
Step 2. Follow the pairing process of PC to search & pair with VM-1000
Step 3. After pairing is complete, VM-1000 will connect automatically. When VM-1000 is
connected, Blue LED will off.
3. Connect
To press any key or move mouse to connect to the paired PC when Bluetooth link is
disconnect.
4. Auto Disconnect/Power Off
VP-1000 will auto disconnect with PC, if no any action for a while.
5. Function Keys
1. CPI button : You can change the mouse resolution by press CPI button. VM-1000
supported 400,800,1200 & 1600 CPI. The LED indicator will show different length to
indicate the CPI when you press CPI select button.
2. Page up, Page down : To press Page up/down button to change page of document
when you are doing presentation.
Moouussee
20F-1, No.77, Sec.1 , Hsin Tai Wu Rd., Hsi-Chih, Taipei Taiwan R.O.C.
Tel. No.:+886-2-2698-3608 Fax No.:+886-2-2698-3648
Apr.07”2008 V1.0
3/4
FCC ID: VHVBTVM1000
BBlluueettooootthh M
M--11000000
VVM
6. LED indicator
There are 5pcs of LED to indicate the battery capacity when power on.
The 5pcs of LED will scrolling when charging.
The 5pcs of LED will show different length to indicate the CPI you selected when press
CPI select button
7. Low Battery
If the LED indicator only light on 1pc LED, it means low battery. Please plug charging
cable/adaptor to charge battery.
8. Charge Battery
The 5pcs of LED will scrolling when battery is charging. All LED light on and stop
scrolling when battery is fully charge.
Moouussee
20F-1, No.77, Sec.1 , Hsin Tai Wu Rd., Hsi-Chih, Taipei Taiwan R.O.C.
Tel. No.:+886-2-2698-3608 Fax No.:+886-2-2698-3648
Apr.07”2008 V1.0
4/4
FCC ID: VHVBTVM1000
FCC Compliance and Advisory Statement
This device complies with Part 15 of the FCC rules. Operation is subject to the following two
conditions:(1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device,
according to Part 15 of the FCC rules. These limits are designed to provide reasonable
protection against harmful interference in a residential inst allatio n. This equipment generates,
uses and can radiate radio frequency energy and if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try correct the interference b y one or more
of the following measures:
1.Reorient the receiving antenna.
2.Increase the separation between the equipment and receiver.
3.Connect the equipment into and outlet on a circuit different from that to which the receiver is
connected.
4.Consult the dealer or an experienced radio/TV technician for help.
Any special accessories needed for compliance must be specified in the instruction manual.
Warning: A shielded-type power cord is required in order to meet FCC emission limits and
also to prevent interference to the nearby radio and television reception. It is essential that
only the supplied power cord be used. Use only shielded cables to connect I/O devices to this
equipment.
CAUSION: Any changes or modifications not expressly approved by the party responsible for
compliance could void your authority to operate the equipment.
