Vemer memo AST Series, memo AST1, memo AST2 User Manual

Download

INTERRUTTORE CREPUSCOLARE ASTRONOMICO DIGITALE

Manuale d’Uso

memo AST NFC

Digital astronomical twilight switch

English

- 1 -

User manual memo AST NFC

Index

■ Technical features page 3

■ Safety warnings page 4

■ Dimensions page 4

■ Wiring diagrams page 5

■ Display and keyboard description page 6

■ Initial operation page 7

■ Start page (or main) page 8

■ Menu description page 11

■ Settings menu page 12

Language setting menu page 13 Date setting menu page 14 Time setting menu page 15 Daylight saving time (DST)/winter time (CET) change setting menu page 16 Astronomical coordinates setting menu page 18 Random switchings setting menu page 20 Protection PIN setting menu page 21

■ Program menu page 22

Program menu: new page 27 Program menu: new astro night page 28 Program menu: new astro daily page 32 Program menu: new astro weekly page 33 Program menu: new astro holiday page 34 Program menu: check page 36 Program menu: modify page 38

Program menu: copy page 40 Program menu: delete page 41

■ NFC menu page 42

■ Hour couter menu page 43

■ Reset menu page 44

■ Firmware menu page 46

■ Error signals page 47

■ Battery management page 48

■ Reference standards page 48

English

- 2 -

User manual memo AST NFC

USER MANUAL

The digital time switches of memo AST are electronic devices for the management of electrical loads between sunset and sunrise times (astronomical program). It has a NFC interface that allows it to be coupled with mobile devices (smartphone or tablet and, thanks to the free app that can be downloaded from Google Play store, it is possible to program and make settings directly on your smartphone, and then transfer all the data to the time switch. The reverse procedure is also possible, i.e. to copy the programming of a time switch on your mobile device. The backup battery allows you to keep the settings even in case of black-out and can be replaced through the cover on the back of the time switch. The time switches of Memo series are devices that perform actions of 1B type, intended to operate in environments with III overvoltage category and pollution degree 2 in accordance with EN 60730-1 standard.

Code Model Description VE344800 memo AST1 Astronomical twilight switch 1 channel with NFC interface VE343000 memo AST2 Astronomical twilight switch 2 channels with NFC interface

English

- 3 -

User manual memo AST NFC

TECHNICAL FEATURES

• Power supply: 230 Vac (-15% ÷ +10%) 50/60 Hz

• Power consumption:

- memo AST1: 1W (3.5 VA)

- memo AST2: 1.5W (5.5 VA)

• Lithium backup battery: 3V, CR2032 type (replaceable)

• Output:

- memo AST1: 1 monostable change-over relay with maximum switchable load of 16 (10)A / 250V

- memo AST2: 2 monostable change-over relays with maximum switchable load of 16 (10)A / 250V

• Display LCD with backlighting (active with AC power supply)

• NFC communication interface

• Storable programs:

- memo AST1: 120 events

- memo AST2: 120 events (divisible on 2 channels)

• Actions type: 1B

• Operating temperature: -20 ÷ +50°C

• Operating humidity: 20 ÷ 90% non condensing

• Storage temperature: -10 ÷ + 70°C

• Container: 2 DIN modules

• Protection degree: IP20

• Insulation: reinforced between accessible parts (front) and all the other terminals

English

- 4 -

User manual memo AST NFC

SAFETY WARNINGS

n During product installation and operation it is necessary

to observe the following instructions:

1) The instrument must be installed by a qualified person, strictly in observance of the connection diagrams shown in this manual.

2) After installation inaccessibility to the terminals without using dedicated tools must be guaranteed.

3) Before accessing the connection terminals, make sure

that the leads are not live.

4) Do not connect or feed the instrument if any part of it is

damaged.

5) The product must be installed and activated in compliance with current electric systems standards.

6) Do not use the product for anything other than the

indicated purpose.

7) I n the electrical system upstream of the device must be

installed a protection device against the overcurrents

8) The product can be used in environments with Measurement Category III and Pollution degree 2, according to the Standard EN 60730-1

DIMENSIONS

English

- 5 -

User manual memo AST NFC

WIRING DIAGRAMS

Memo AST1 Memo AST2

English

- 6 -

User manual memo AST NFC

DISPLAY AND KEYBOARD DESCRIPTION

a General indications b Time indication c Channel 1/channel 2 status indication

channel status blocked switchings active random switchings active holiday program active pulse program active manual program

d Day of the week (DAY) indication

e Turn on the display

Access the menu ESC (1 level back) f Key “C1”: decrease datum/previous menu/ switching channel 1/

lock channel 1

Key “C2”: increase datum/next menu/ switching channel 2/ lock channel 2

g Confirm selection h Hardware reset

Key “Ok” + “C1” (3 sec): random switching channel 1 Key “Ok” + “C2” (3 sec): random switching channel 2

English

- 7 -

User manual memo AST NFC

INITIAL OPERATION

• Once out of the package, memo is off: press the key and

wait a moment before activating the display

• The set language is Italian. To change it, press the key for

at least 3 seconds. Choose among: Italian, English, Spanish, French or German and confirm with

• Make connections following the diagrams on page 5 of this

manual

• Power memo: the backlighting turns on permanently.

• The presence of the backup battery allows the memo to have

updated date and time. To make the other settings follow the following steps:

Date - format: DD/MM/YY

- 1

day of the week: Monday

Astronomical coordinates - country: Italy

- city: Agrigento

- latitude: North (37° 19’ 12”)

- longitude: East (13° 34’ 12”)

Daylight Saving time (DST) change: active

- start of daylight saving time (DST): last Sunday of March at 02:00 o’clock

- end of daylight saving time (DST): last Sunday of October at 03:00 o’clock

Time correction: - sunrise: +0:00

- sunset: +0:00

Time zone: +1:00 UTC Random switchings: - minimum: 1 minute

- maximum: 5 minutes

Keyboard lock with PIN: disabled (---) NFC interface active

English

- 8 -

User manual memo AST NFC

START PAGE (or main)

Information messages

- day of the week

- product identification code and serial number

- battery status (only if discharged)

NO SUPPLy

•

Press the key

to access the menu of memo

and C2 to change channel 1 and channel 2 status (only for

memo AST2)

to display the calculated sunrise and sunset times**

* Only if memo is not powered by mains.

In this condition the backlighting is not active and the relay is in off status.

** The displayed times take into account possible entered values of

correction (see page 18). If the display shows

means that the calculated sunrise

time is after the sunset time.

If the display shows

means that the calculated sunrise

time is before 00:00 or that the calculated sunset is at 23:59.

NOTE: the NFC interface is active only when the memo displays the initial (main) page. The action range of the NFC interface is deliberately limited: in order for the memo and the smartphone to communicate, it is necessary to place the latter on the memo display.

information messages date

relay 2 status hour

day of the week relay 1 status

English

- 9 -

User manual memo AST NFC

Access the store of your device, install and start the free app Memo – Vemer.

English

- 10 -

User manual memo AST NFC

At the start the app displays the list of the associated memo devices (both Bluetooth and NFC).

To associate a new memo NFC, press the symbol “+” in the upper right corner.

In the “Choose connection type” screen, select NFC.

Place the smartphone on the display of the memo to be associated.

Note: each device is identified by the product code (for example VE343000) and by the serial number (for example 00000020). These informations can be viewed from the main page of the memo. Warning: make sure that the display shows the main page (initial). Otherwise the NFC interface is not active and the device is not visible.

Note: from this screen you can create a virtual memo. With a virtual memo you can create programs even if you do not have a memo available. The programming and settings of the virtual memo can be saved in the app and then transferred to the memo.

The app shows the detected memo: do a tap on the memo to complete the association. Once the procedure is complete, the memo is added to the list of associated devices. Select the memo on which to act from the list of associated devices.

The app displays the initial page of the selected memo. From this page you can: a. Create new programs that will then be copied to the memo b. View the parameters and associate an alias (name that identifies the time switch, such as “memo AST2 Belluno”) to the memo

English

- 11 -

User manual memo AST NFC

MENU DESCRIPTION

“Hour counter” menu allows you to check the operation hours

(relay on) of the loads connected to the relays.

“Reset” menu allows you to reset settings, programmed settings, operating hour counter. “Ver FW” menu allows you to check the firmware version

installed on the device.

“Settings” menu allows you to change: language, date, time, daylight saving time (DST), astronomical coordinates, minimum and maximum duration of the interval between two switchings with random program, PIN for keyboard lock.

“Programming” menu allows you to set a new program or to check,

to copy, to modify or to delete a set program.

“NFC” menu allows you to configure the NFC

communication interface.

English

- 12 -

User manual memo AST NFC

SETTINGS MENU

“Settings” menu allows you to view and eventually to modify the the general operation settings of memo, such as:

language date time automatic daylight saving time (DST) change position (astronomical coordinates) interval duration between two random switchings keys protection by PIN

English

- 13 -

User manual memo AST NFC

Language setting menu

Available languages: Italian, English, Spanish, French, German.

Quick access: from the main page it’s possible to access the language setting by pressing the key

for at least 3 seconds.

English

- 14 -

User manual memo AST NFC

Date setting menu

Parameters modification

Possible date formats: day-month-year ( ), year-month-day ( ),

month-day-year ( ).

Choose, by convention, the first day of the week. In Italy, for example, the first day of the week

is Monday, in the UK it’s Sunday.

Enter the date: day, month, year.

Parameters

modification

English

- 15 -

User manual memo AST NFC

Time setting menu

Parameters modification

Set the time: hours, minutes.

Set the time zone. Range: -14:00 ÷ +14:00 at 15 minutes steps.

For Italy set +1:00.

Parameters

modification

English

- 16 -

User manual memo AST NFC

Daylight saving time (DST)/winter time (CET) change setting menu

Daylight saving time (DST)/winter time(CET) change and vice versa can occur in an automatic way. In this case, memo:

- increases by an hour in the passage from winter time (CET) to daylight saving time (DST)

- decreases by an hour in the passage from daylight saving time (DST) to winter time (CET)

For every change it’s necessary to specify:

the week of the month during which the time change occurs

(first, second, third, fourth, last)

the day of the week

(Monday: 1, Tuesday: 2, ...)

the month the hour and the minutes

In Italy,for example, daylight saving time (DST) begins the last (

) Sunday ( ) of March ( ) at o’clock and ends the last

(

) Sunday ( ) of October ( ) at o’clock.

English

- 17 -

User manual memo AST NFC

Parameters modification

Choose to activate ( ) or to disable ( ) the automatic time change.

Set date and time of the winter time (CET)-daylight saving time (DST) change.

Set date and time of the daylight saving time (DST)-winter time (CET) change.

Parameters

modification

English

- 18 -

User manual memo AST NFC

Astronomical coordinates setting menu

The setting of the geographical coordinates of the installation place allows memo to calculate, for each day of the year, sunrise and sunset times. To simplify the procedure, in the memo are stored the coordinates of the locations listed below; if your location is among them you can select it from the menu

, otherwise it’s necessary to enter the coordinates of latitude and longitude (menu ).

Note: the display on point shows “---------” if the coordinates have been entered manually.

Location stored in memo: - Italy: all provinces

- United Kingdom: Cardiff, Belfast, Edinburgh, London

- Spain: Barcelona, Madrid, Seville, Valencia

- France: Lyon, Marseille, Paris, Toulouse

- Germany: Berlin, Hamburg, Cologne, Monaco

The correction of sunrise and sunset times is useful for applications that require the turning on of lights in particular localities. It’s possible, in fact, that the presence of disturbing elements, such as the mountains, can influence actual times of sunrise and sunset, making it necessary to advance or delay of a few minutes the calculated times.

The twilight is the time interval before sunrise, or after sunset, characterized by the permanence of the light due to the spread by the atmosphere of the Sun light. During these time intervals it’s possible to distinguish clearly objects and conduct outdoor activities without using additional lighting. Therefore, in some applications it is more interesting to take as times of switching on and off the twilight (civil) in place of sunrise and sunset. With memo it’s possible to choose to turn on/off the loads depending on the times of sunrise and sunset or the civil twilight. The calculated time correction also applies to the times of twilight. To view the calculated switching on time (sunset) and switching off time (sunrise), from the main page press the key

(see page 8).

English

- 19 -

User manual memo AST NFC

Parameters modification

Choose the installation location. If it’s not present, proceed with steps and . Set the latitude of installation place. Set the longitude of installation location. Set a possible correction of the calculated sunrise time. Positive values to delay, negative

values to anticipate.

Set a possible correction of the calculated sunset time. Positive values to delay, negative

values to anticipate.

Choose as switching times the civil twilight ( ) in place of sunrise and sunset

(

) times.

Parameters

modification

English

- 20 -

User manual memo AST NFC

Random switchings setting menu

The “random switching ” function (activated with the combination described on page 6) allows the channel on which it’s active to automatically switch and at random time intervals. In this menu it’s possible to define the minimum and maximum duration of the time interval between two random switchings. Default minimum duration is 1 minute, maximum duration is 5 minutes.

Parameters modification

Set the minimum duration. It’s possible to set values between 1 minute and the maximum duration.

Set the maximum duration. It’s possible to set values between the minimum duration and 23:59 hours.

Note: setting the minimum duration equal to the maximum, the switchings will occur at fixed time intervals.

Parameters

modification

English

- 21 -

User manual memo AST NFC

Protection PIN setting menu

The protection code (PIN) is used to lock the keyboard and prevent changes by unauthorized persons. With active PIN protection, pressing any key, it’s necessary to enter the PIN: if PIN is correct the keyboard unlocks; after 3 minutes without pressing a key, the keyboard will lock automatically.

To activate PIN protection:

- set a value between 000 and 999

To disable PIN protection:

- set “---” (located before 000 or after 999)

Note: if you have forgotten your PIN code to unlock memo it’s necessary to carry out a hardware reset (see page 44).

English

- 22 -

User manual memo AST NFC

PROGRAM MENU

The menu “program” allows you to:

create a new program check created programs change or delete a created program copy all created programs of channel 1 on the channel 2 and

vice versa (only for memo AST2)

delete all programs of a channel

English

- 23 -

User manual memo AST NFC

Select days

scroll through the days of the week from 1 to 7:

- by pressing the key

to move to the next day without selecting the current day

- by pressing the key to select/deselect the current day and move to the next

C2 C2

English

- 24 -

User manual memo AST NFC

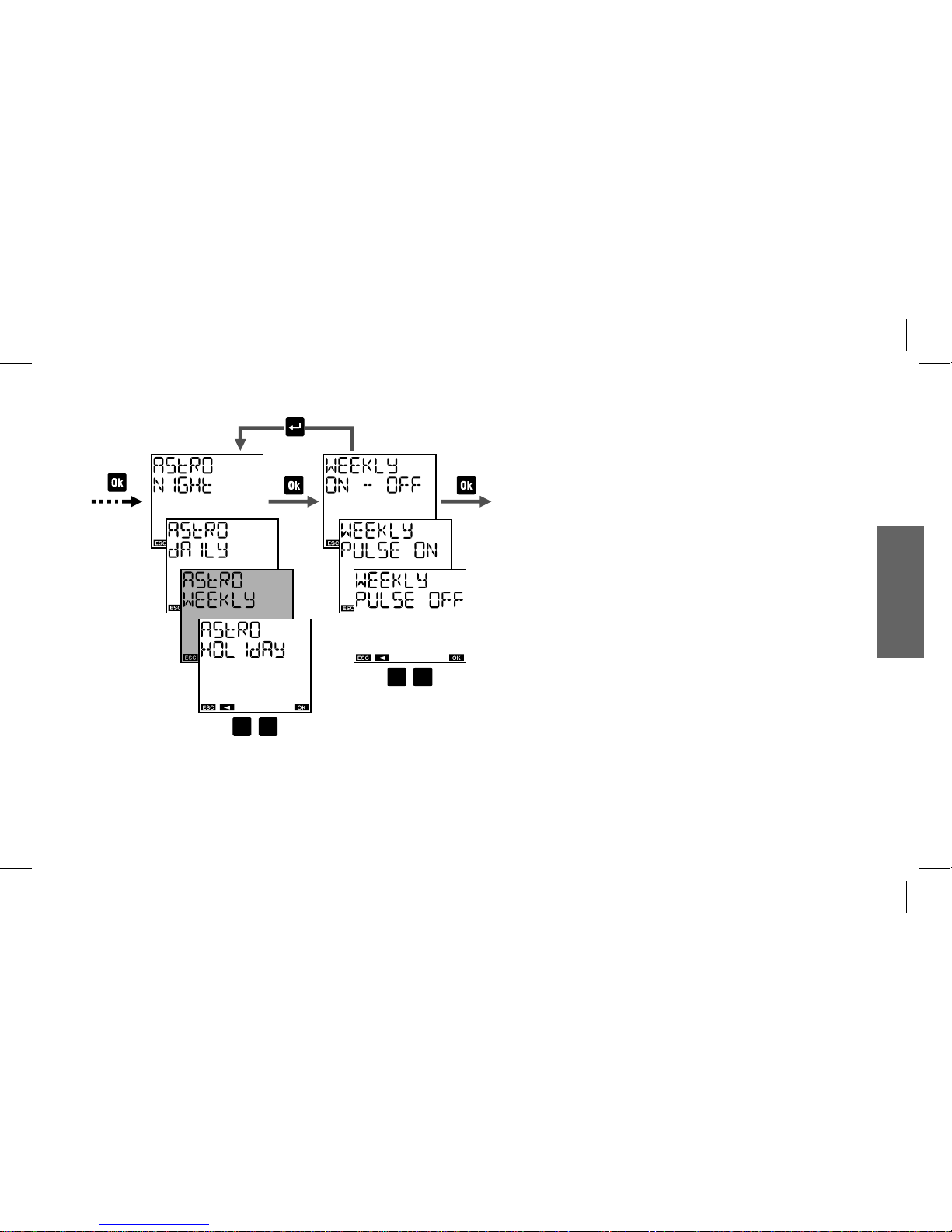

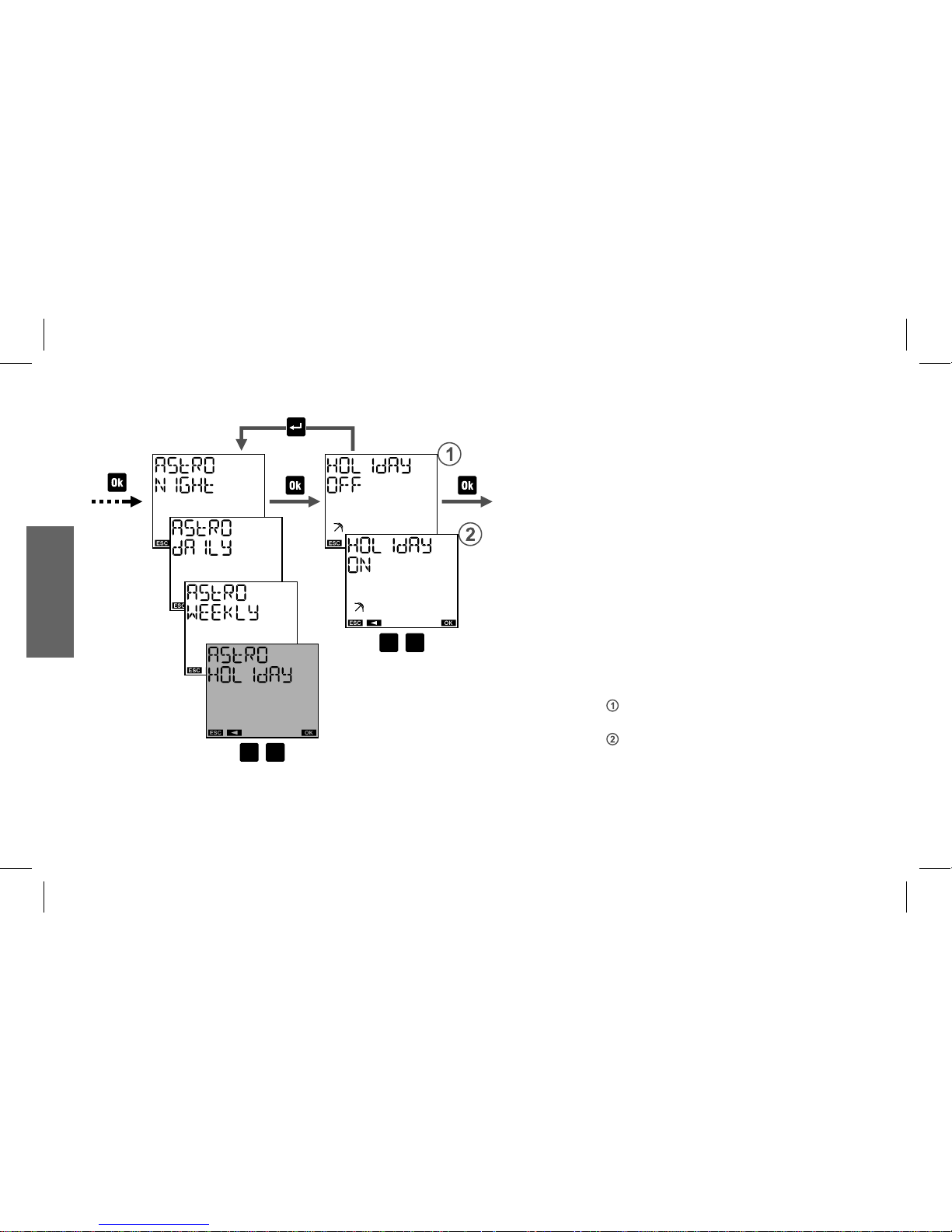

Memo AST carries out programs of astronomical type, i.e. in the interval delimited by sunrise and sunset*: ON/OFF, ON pulse, OFF pulse, holiday, night programs (see pages 30-31). ON switchings set before sunset are carried out at sunset, OFF switchings set after sunrise are carried out at sunrise (except for some night programs that can have switching on or switching off during the day. See on page 30).

* times of sunrise and sunset are automatically calculated by memo according to geographic coordinates set during installation. In place of

sunrise and sunset times it’s possible to use the times of civil twilight (see page 18).

Programs types

• ON/OFF program : is composed of a switching of the ON relay and of a subsequent switching of the OFF relay. It can have a daily period (everyday with the same modes), weekly (every week with the same modes)*.

• PULSE ON program: is an ON relay switching for a maximum duration of 59 seconds. It can have a daily period (everyday with the same modes), weekly (every week with the same modes)*.

• PULSE OFF program: is a relay switching OFF for a maximum duration of 59 seconds. It can have daily period (everyday with the same modes), weekly (every week with the same modes)*.

• HOLIDAY program: is a period of time defined by a start time and an end time within which all programmed switchings (of that channel) are disabled. The relay is in OFF position (OFF holiday) or in ON position (ON holiday).

English

- 25 -

User manual memo AST NFC

 Important: on the same channel can’t coexist ON pulses and OFF pulses (if an ON pulse is already present, it’s not possible to save a

holiday OFF program and vice versa).

 Important:

on the same channel can’t coexist holiday ON programs and holiday OFF programs (if a holiday ON program is already

present, it’s not possible to save a holiday OFF program and vice versa).

Programs priority

The priority programs defines how memo manages the case in which programs with different period are running at the same time (1 indicates higher priority).

Program

Date* Annual Monthly Weekly Daily Holiday 1 Night

2 Pulse 3 On/Off 4 5

* Date: select day, month, year (program carried “only once in the life of the product”). If the month is not specified, the program is carried

out all days xx of all months of the specified year.

English

- 26 -

User manual memo AST NFC

Priority on/off programs

In case in which, on the same channel, on/off programs are provided with different period (daily or weekly) to carry out in the same day, only the program with the highest priority is executed.

Holiday program

The holiday program just begins and ends exactly at the specified times.

From this example it’s possible to see that the daily event on Monday is not carried out because in the same day it is provided the beginning of the week program (even if the daily program

of Monday begins and ends before the beginning of the weekly program). Instead, the daily program of Sunday is carried out because it’s the only one running for that day.

Daily program

Weekly program

Carried out program

English

- 27 -

User manual memo AST NFC

Program menu: new

Choose the channel to program (only for memo AST2)

Choose the

channel

English

- 28 -

User manual memo AST NFC

Program menu: new astro night

Choose

nights

Nights

programs

English

- 29 -

User manual memo AST NFC

How to select nights

Scroll through the nights of the week from the first (1-2) to the last (7-1):

- by pressing the key

to move to the next night without selecting the current night

- by pressing the key to select/deselect the current night and move to the next

How to interpret the selection

If the night between the days of A and B is selected, the day A is on and underlined while B is on (not underlined). Examples of selection:

Selected nights: between day 1 and 2, between day 2 and 3, between day 3 and 4, between day 4 and 5 Selected nights: between day 1 and 2, between day 2 and 3, between day 4 and 5

Selected nights: between day 1 and 2, between day 3 and 4, between day 7 and 1

C2 C2

English

- 30 -

User manual memo AST NFC

Turning on at sunset, turning off at sunrise. No parameter required.

Off from sunset to sunrise. No parameter required.

Turning on at sunset, turning off during the night. Turning on during the night, turning off at sunrise. Choose one of the three following cases:

Turning on at sunset, turning off at a settable time. Turning on at a settable time, turning off at sunrise. (*)

Turning on at sunset, turning off after a settable time interval. Turning on before sunrise of a settable time interval, turning off at sunrise.

Turning on at sunset for a settable short duration (pulse, max 59 seconds). Turning on at sunrise for a short settable duration (pulse, max 59 seconds).

Night programs

* If off time is before sunset, switching is not carried out. If on

time is after sunrise, switching is not carried out.

** Switching on continues for the entire set time interval (also

if off time is after sunrise).

*** Switching on occurs before sunrise of the entire set time

interval (also if on time is before sunset).

English

- 31 -

User manual memo AST NFC

Turning on at sunset, turning off during the night. Choose one of the 3 following cases:

Turning on during the night, turning off at sunrise. Choose one of the three following cases:

Turning on at sunset, turning off at a settable time. (*)(**)

Turning on at a settable time, turning off at sunrise. (*)(***)

Turning on at sunset, turning off after a settable time interval. (**)

Turning on before sunrise of a settable time interval, turning off at sunrise. (***)

Turning on at sunset for a settable short duration (pulse, max 59 seconds).

Turning on at sunrise for a settable short duration (pulse, max 59 seconds).

English

- 32 -

User manual memo AST NFC

Program menu: new astro daily

Program parameters

- on/off: on time and off time

- on pulse: time and pulse duration (maximum 59 seconds)

- off pulse: time and pulse duration (maximum 59 seconds)

Enter

program

parameters

English

- 33 -

User manual memo AST NFC

Program menu: new astro weekly

Program parameters

- on/off: day (or days)* and on time, day (or days) and off time

- on pulse: day (or days)* and pulse time, pulse duration (max 59 seconds)

- off pulse: day (or days)* and pulse time, pulse duration (max 59 seconds)

* See “Days selection” on page 23

Enter

program

parameters

English

- 34 -

User manual memo AST NFC

Program menu: new astro holiday

HOLIDAY OFF: the relay is OFF from the

beginning to the end of holiday program.

HOLIDAY ON: the relay is ON from the

beginning to the end of holiday program.

Program parameters

- beginning of the program

- end of the program

Enter

program

parameters

English

- 35 -

User manual memo AST NFC

How to choose the day (or days) in a holiday astro program

to set the program:

in the first, second, third, fourth or last week of the month in / the day/s (Monday, ...) of the week just specified the specified month ( for all months) the given year ( for all years)

to set the program on the last day:

of all months of all years of the specified VV month of all years of all months of the specified ZZ year of the specified VV month of the specified ZZ year

to set the program on the day XX (1,2,3...):

of all months of all years of the specified VV month of all years of all months of the specified ZZ year of the specified VV month of the specified ZZ year

Note: in this case, the holiday program must begin and end in the

same day. Otherwise is signaled.

C2 C2 C2

English

- 36 -

User manual memo AST NFC

Program menu: check

How to check a program

choose the channel (only for memo AST2) choose the period: daily, weekly, holiday, night. choose the type: on/off, on pulse, off pulse or a night program.

Note: a program requires more screens to be displayed:

- press the key

to move from the first to the second part of the same program

- press the keys C1 and C2 to switch from one program to another

Indication of occupied

memory space

(76 of 120)

English

- 37 -

User manual memo AST NFC

Choose the

channel

Choose the

period

Choose the

type

Check

programs

English

- 38 -

User manual memo AST NFC

Program menu: modify

How to modify or to delete a program

choose the channel (only for memo AST2). choose the period: daily, weekly, yearly, holiday, night. choose the type: on/off, on pulse, off pulse or a night program

Note: a program requires more screens to be displayed:

- press the key

to move from the first to the second part of the same program

- press the keys C1and C2 key to switch from one program to another

To modify: press for a long time (at least 3 seconds) the key To delete: press for a long time and simultaneously the keys and

Indication of occupied

memory space

(76 of 120)

English

- 39 -

User manual memo AST NFC

Choose the

channel

Choose the

period

Choose the

type

Modify/

Delete

programs

English

- 40 -

User manual memo AST NFC

Program menu: copy (only for memo AST2)

Select

the origin

channel

“Copy” menu allows copying the programs of a channel (origin channel) on the other channel (channels destination). Note: the programs previously stored on the channel destination will be deleted.

Copy

programs

English

- 41 -

User manual memo AST NFC

Program menu: delete

“Delete” menu is used to delete all stored programs on the specified channel. Note: to delete one single program to see “modify” mode (see page 38).

Delete

programs

English

- 42 -

User manual memo AST NFC

BUS VEMER MENUNFC MENU

The NFC menu allows you to enable or disable the NFC interface

To enable the NFC interface:

set NFC ON

To disable the NFC interface:

set NFC OFF In this way no communication can take place between your device and memo. The memo works with the settings and programs already set; any changes or creation of new programs must be made by acting directly on the keyboard of memo.

Warning: to make the NFC interface active, the memo must be mains powered and connected to the main page (see page 8). The NFC interface is therefore not active when browsing through the memo NFC menus. To guarantee a stable communication, lay the smartphone on memo’s display

English

- 43 -

User manual memo AST NFC

HOUR COUNTER MENU

“Hour counter” menu allows you to display the hours of use (relay on) of connected loads. The maximum value of the counter is 99999 hours (about 11 years); reached the maximum limit, the counter resets automatically.

To reset a counter:

1. select the desired channel (only for memo AST2)

press the key for 3 seconds until the display shows “ ”

confirm by pressing (press to exit without zeroing)

Note: it’s possible to reset all counters contemporary from the “Reset” menu (see page 44).

Confirm

English

- 44 -

User manual memo AST NFC

RESET MENU

“Reset” menu allows you to restore the initial state of the device.

Available resets:

Settings reset: deletes all the carried out settings (except the language and the PIN)

Holiday programs reset: deletes all saved holiday programs

Astro programs reset: deletes all saved astronomical programs

Counter reset: resets the counters of all channels

Reset all: carries out all the above described resets and deletes the language and PIN protection

There is also another reset, of hardware type, which allows you to reset the device in case it responds to the pressing of the keys so unexpectedly, without losing the carried out settings/programs (only the date and the time are lost).

To carry out a hardware reset:

1. press the key “R” with a sharp object

The hardware reset is also useful when you forget PIN protection. Reset, in fact, unlocks the keyboard for 3 minutes, the necessary time to access the appropriate menu and check/disable PIN.

English

- 45 -

User manual memo AST NFC

English

- 46 -

User manual memo AST NFC

FIRMWARE MENU

This menu shows the firmware installed in the device, where: 022 is the revision index 05 is the month 20 is the day

English

- 47 -

User manual memo AST NFC

ERROR SIGNALS

When setting up programs, in case of a discrepancy, the following error messages can occur:

on and off events with different frequency (each

on event must have an off event)

on and off concomitant events of the same

program

Two or more consecutive on events of the same

program / Two or more consecutive off events of

the same program Invalid date Insufficient memory Attempt to set an on pulse on a channel where is

already stored an off pulse (see page 25) Attempt to set an off pulse on a channel where is

already stored an on impulse (see page 25) Attempt to set an on holiday program on a

channel where is already stored an off holiday

program (see page 25)

Attempt to set a holiday off program on a channel

where a holiday on program is already stored (see page 25)

Attempt to set a holiday program of on and off

events on different days of the week (see page

31)

Error accessing memory *

* In this case, carry out a hardware reset (see page 44).

If the error persists, contact Vemer technical support (tel.+ 39.0439.879885).

English

- 48 -

User manual memo AST NFC

REFERENCE STANDARDS

Compliance with Community Directives: 2014/35/EU (LVD) 2014/30/EU (EMCD) is declared in reference to the harmonized Standards

• EN 60730-2-7

BATTERY MANAGEMENT

When the battery is close to empty, on the first line of the display appears

. In this case, the battery must be replaced as

soon as possible. Use only batteries of CR2032. To replace the battery:

- disconnect the mains

- remove the battery slot cover, turning it anti-clockwise

- replace the battery and remount the cover, turning it clockwise

- connect the power supply

Warning: do not use metal objects (such as screwdrivers) to remove the battery because this may cause the power reserve to be canceled, resulting in a loss of date and time. Warning: in order not to lose the programming steps and carried out settings, it is necessary to ensure that the time for the battery replacement doesn’t exceed 60 seconds (in absence of power by means).

Dispose of the used batteries observing the laws in force

in relation to the disposal of hazardous waste.

EnEnergy Conservation Solutions Pty Ltd

Exclusive Distributor for VEMER in Australia

Locations:

VIC/TAS, NSW, QLD, ACT, SA/NT & WA

Phone:

1300 306 136

For contact details visit:

www.ecs.net.au

Vemer S.p.A.

I - 32032 Feltre (BL) • Via Camp Lonc, 16

Tel +39 0439 80638 • Fax +39 0439 80619

e-mail: info@vemer.it - web site: www.vemer.it

V3IS00967-010

07-2018

Vemer memo AST Series, memo AST1, memo AST2 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
