Vemer Iride, Iride 230, VE456000, VE457800 User Manual

Chronothermostat

IRIDE

User Manual

Index

■ Content of the package Page 3

■ Connection diagrams Page 3

■ Mounting Page 4

■ Safety warnings Page 16

■ Technical features Page 17

■ Display and keyboard Page 18

■ Installation Page 19

■ Programming menu Page 22

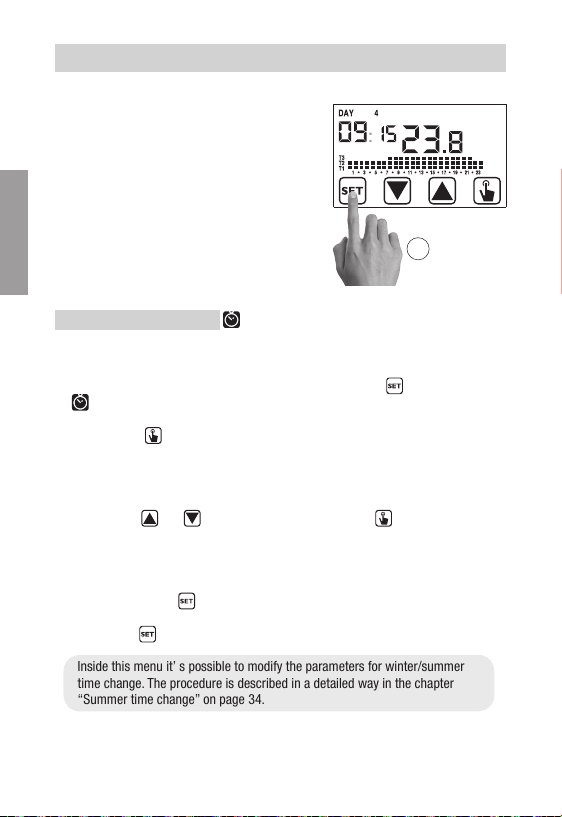

- Time and date modification Page 22

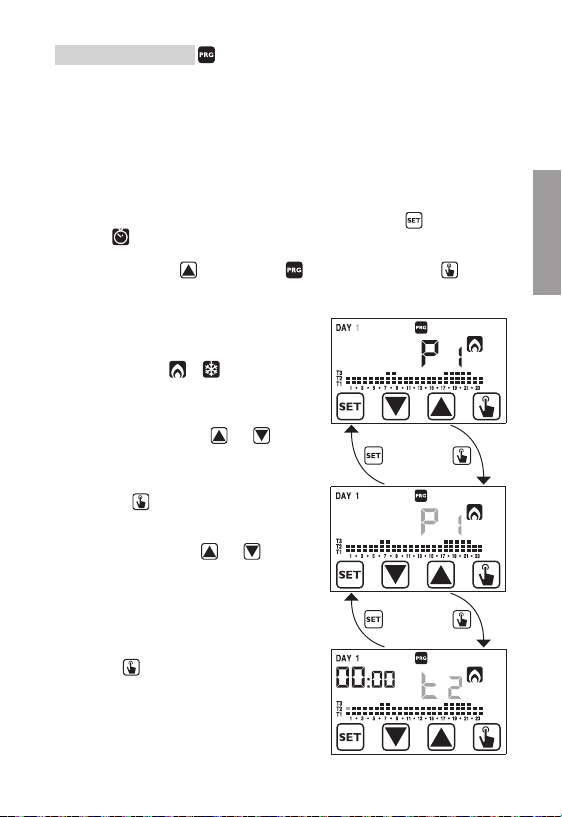

- Programs modification Page 23

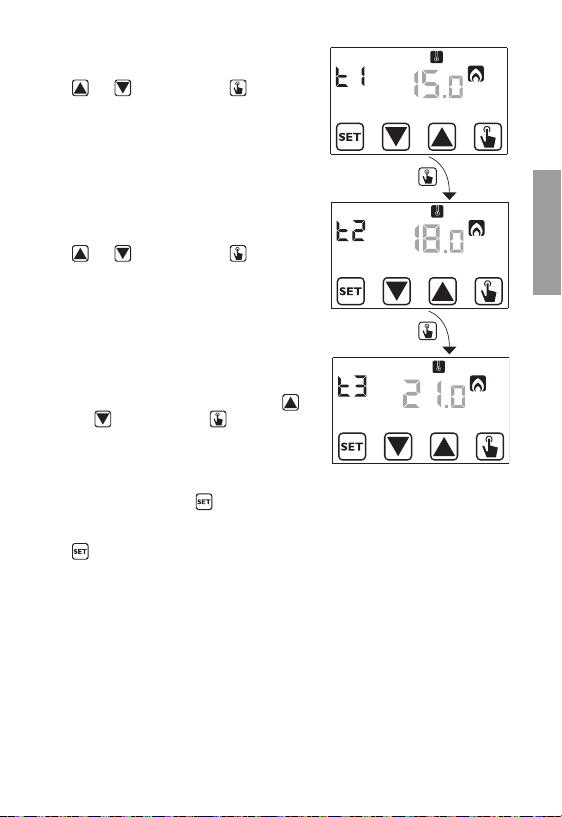

- Temperatures T1,T2,T3 modification Page 24

- Timing setting Page 26

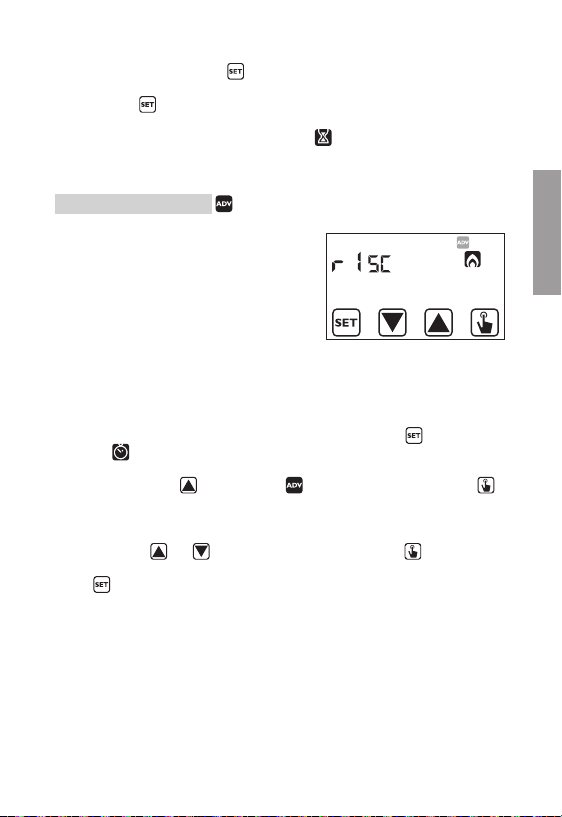

- Advanced functions menu Page 27

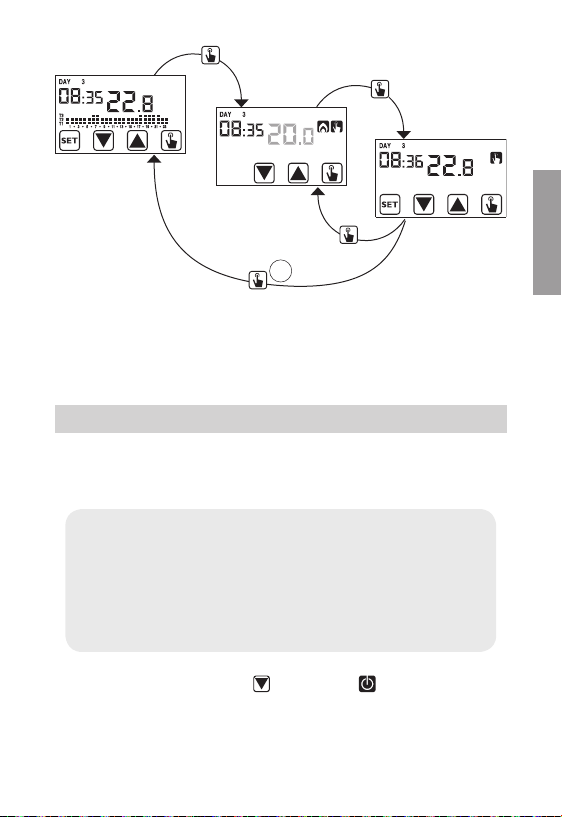

■ Manual operation Page 30

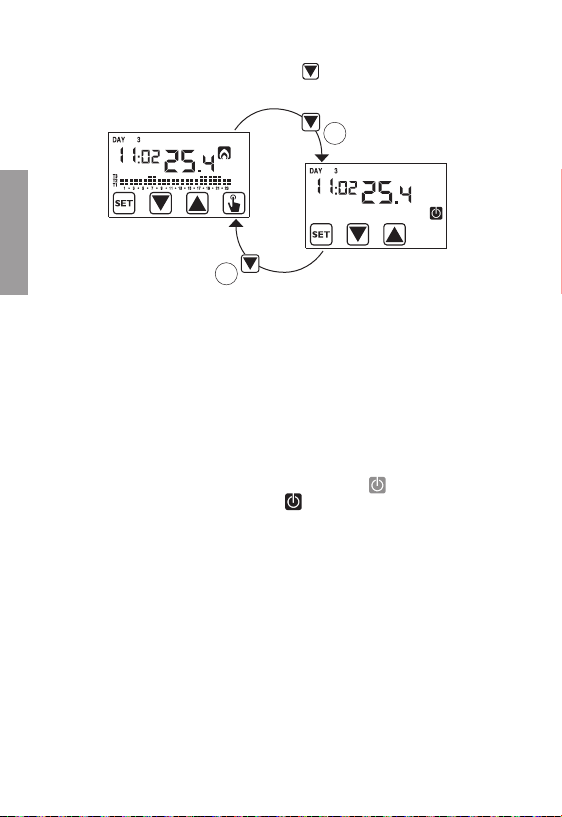

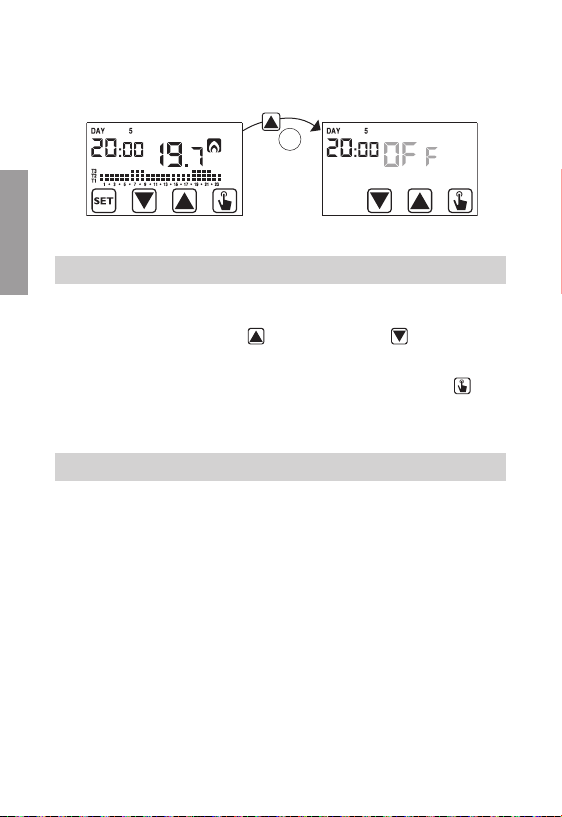

■ Off operation Page 31

■ Backlighting management Page 33

■ Minimum and maximum value Page 34

■ Summer time change Page 34

■ Regulation type Page 36

■ Timings: what they are Page 38

■ Device reset Page 40

■ Battery replacement Page 40

■ Reference standards Page 41

■ Default values Page 42

■ Winter preset programs Page 43

■ Summer preset programs Page 44

English

- 1 -

Iride Chronothermostat User Manual

English

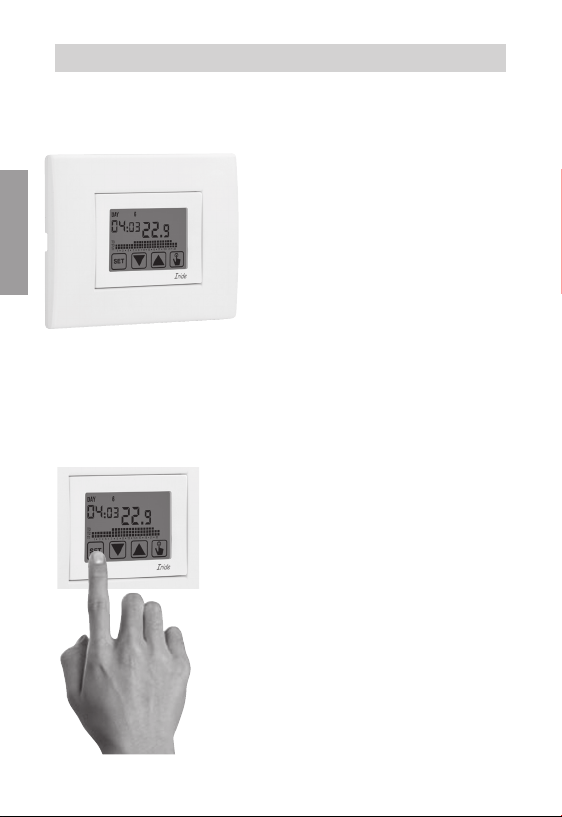

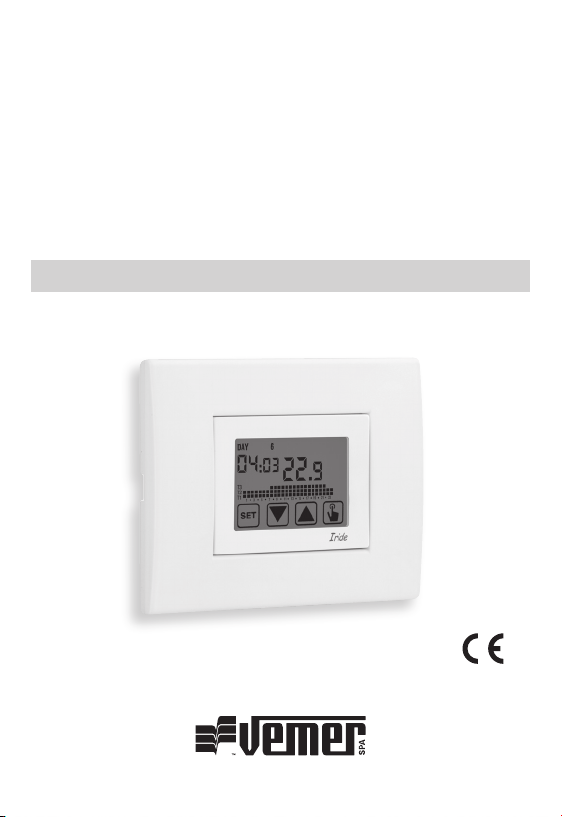

Digital chronothermostat IRIDE

• Summer and winter operating mode

• Front panels of white and anthracite
grey colour included in the package
(you can buy silver on request)

• Battery or 230V power supply

• 7 programs available for the heating

mode

• 7 programs available for cooling

mode

• Multicolour display red-green-blue according
to the gap between the measured temperature
and the set one (230V model only)

• Digital input for the connection of a telephone
dialler for switches on and switches off of the
device remotely

• Touch screen display of capacitive type
(sensible to the fingers’ touch)

• Flush-mounting on 3 modules box
(503 type)

• Weekly programming with 3 different
settable temperatures levels

- 2 -

Iride Chronothermostat User Manual

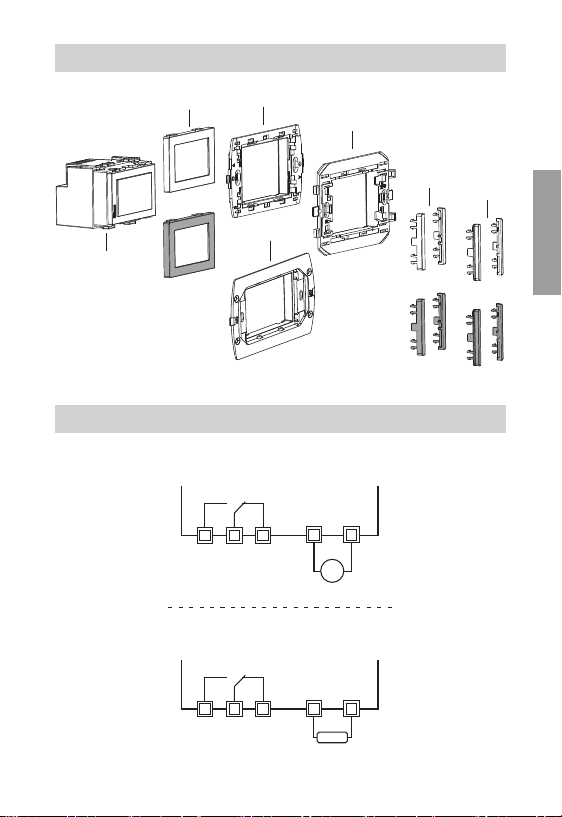

CONTENT OF THE PACKAGE

frames

mount A

mount AIR

Chronothermostat

frames and plastic elements available in white and anthracite grey colors

CONNECTION DIAGRAM

Iride 230

N

1 2 3

NA

COM

Iride

4 5

NC

230V~

mount B

L

plastic

elements VI

plastic

elements BM

English

1 2 3

NC

NA

COM

- 3 -

Iride Chronothermostat User Manual

4 5

X.code

English

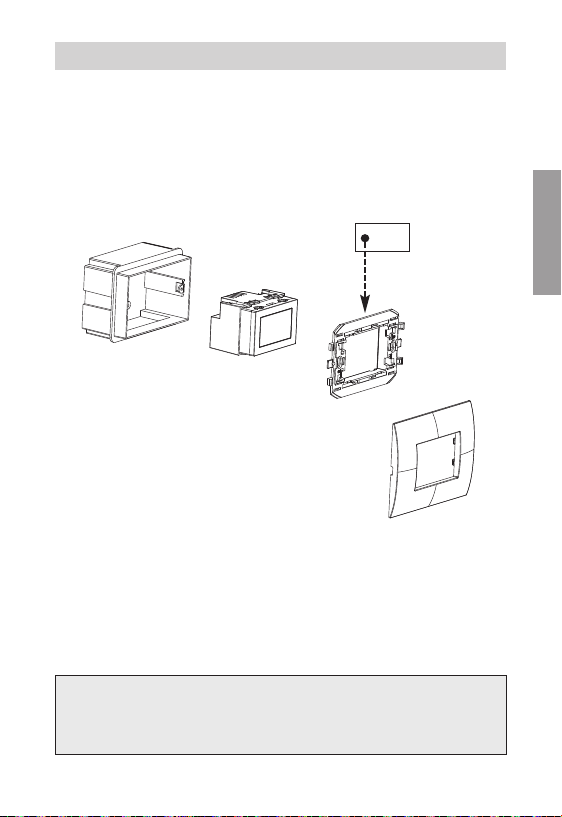

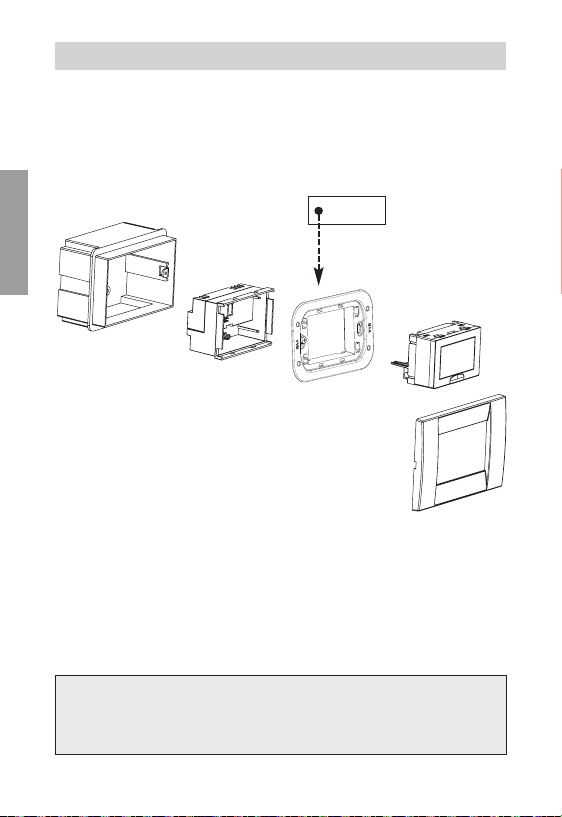

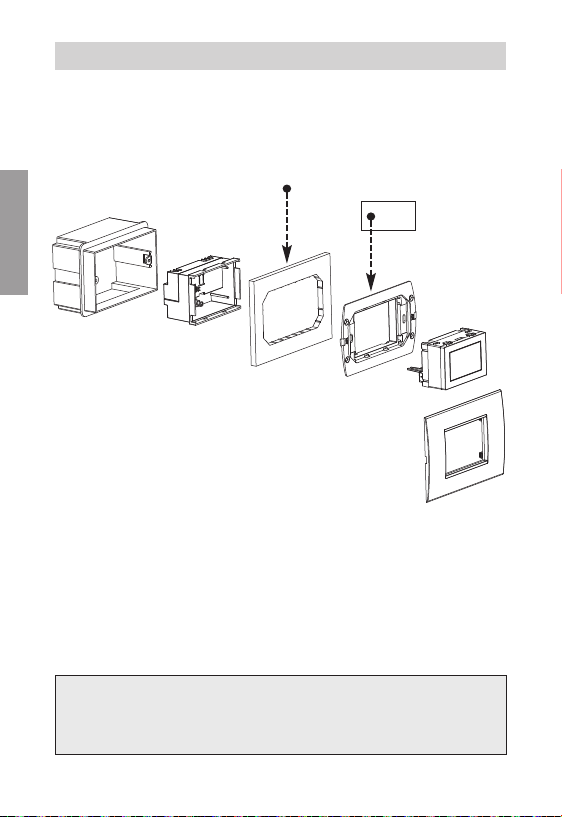

BATTERY IRIDE MOUNTING

A

Bticino Living series, Light, Light Tech, Livinglight, Axolute

Vimar Eikon series, Eikon Evo, Plana

Ave S44 series – ABB Mylos series

- 4 -

Iride Chronothermostat User Manual

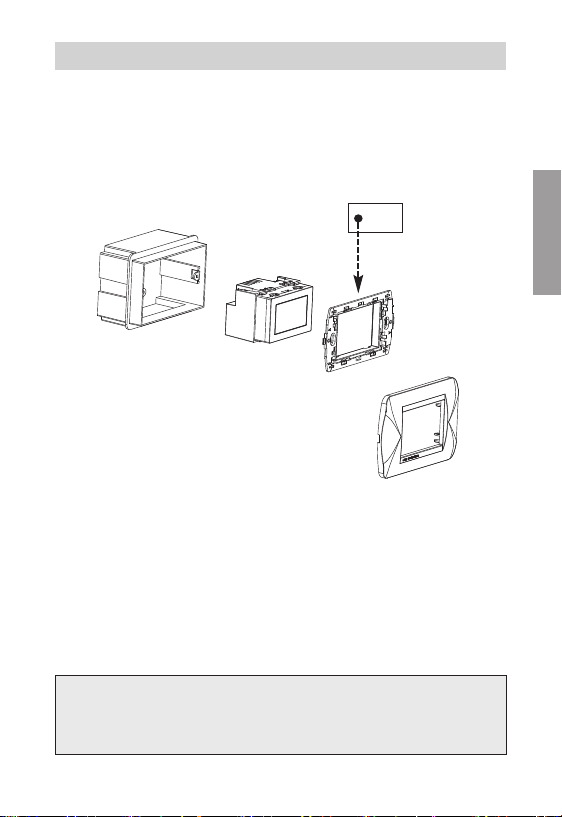

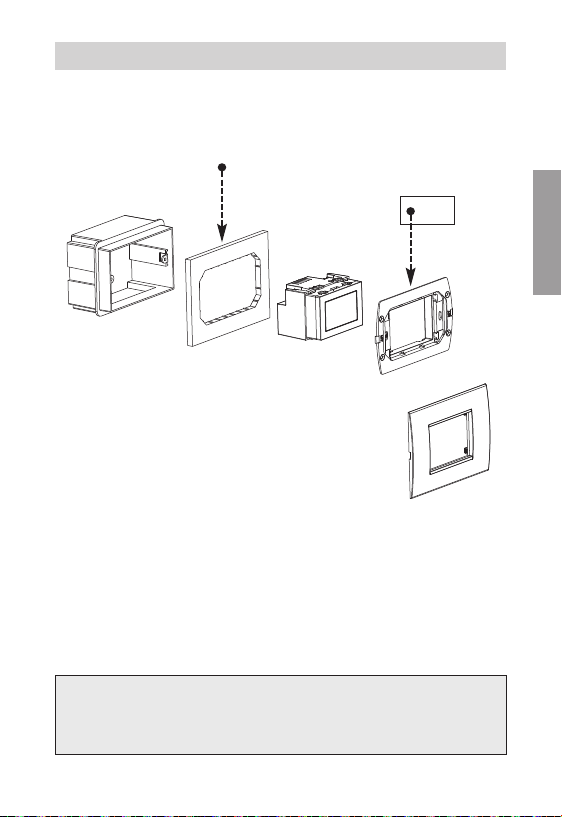

IRIDE 230 MOUNTING

A

English

Bticino Living series, Light, Light Tech, Livinglight, Axolute

Vimar Eikon series, Eikon Evo, Plana
Ave S44 series – ABB Mylos series

- 5 -

Iride Chronothermostat User Manual

English

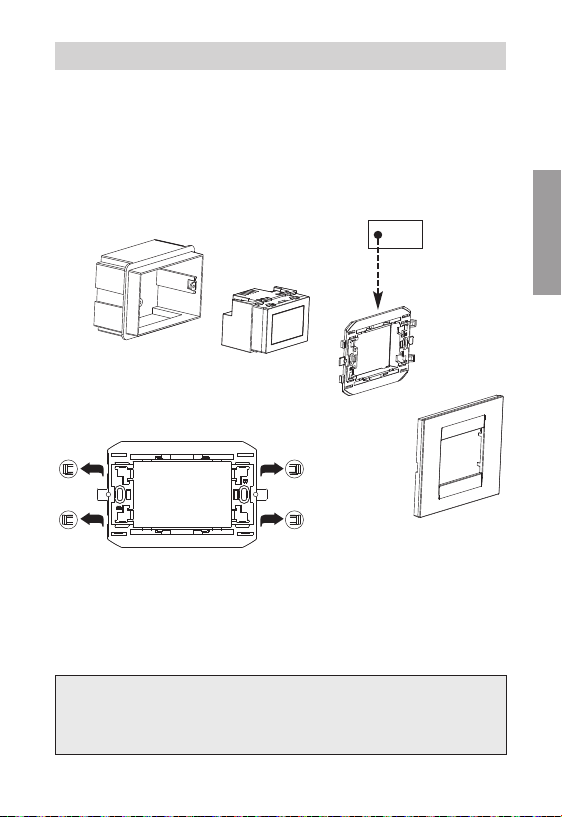

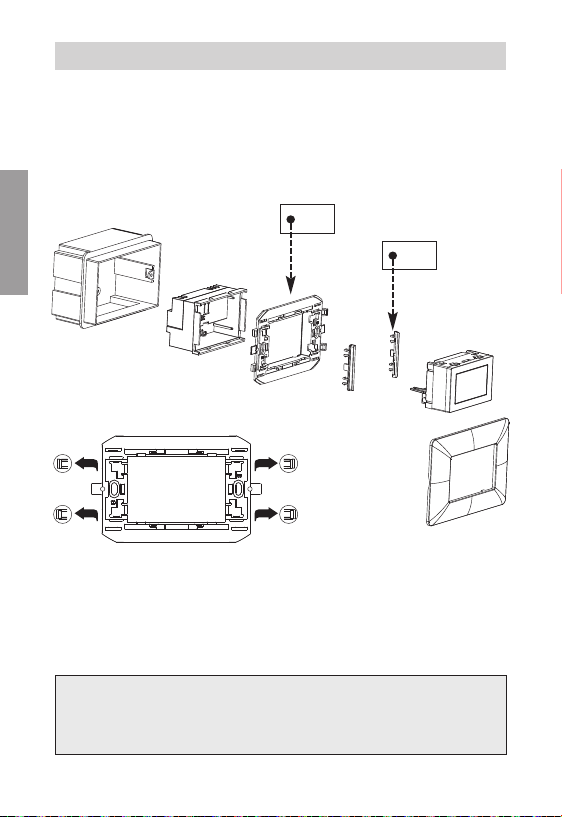

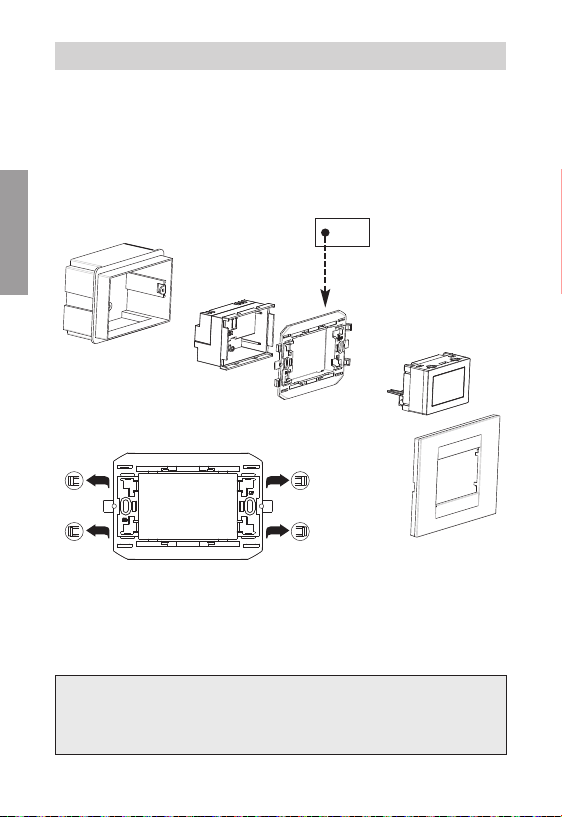

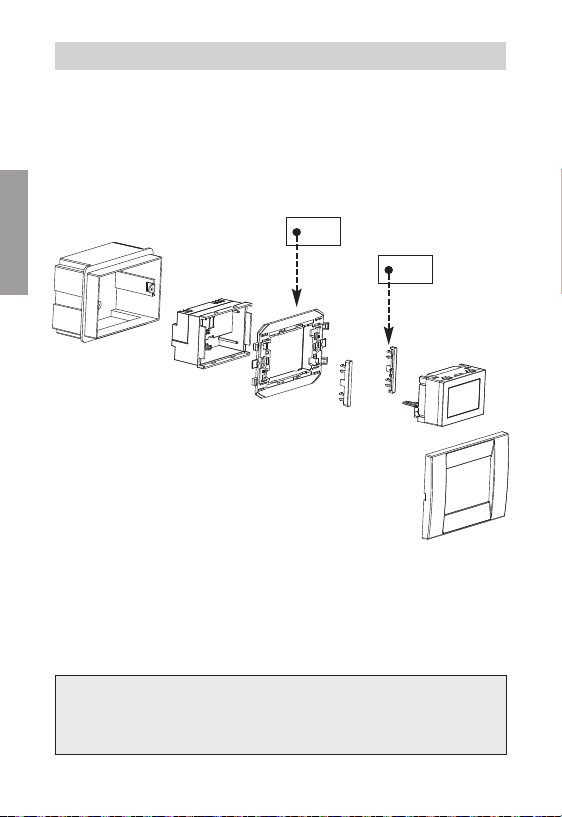

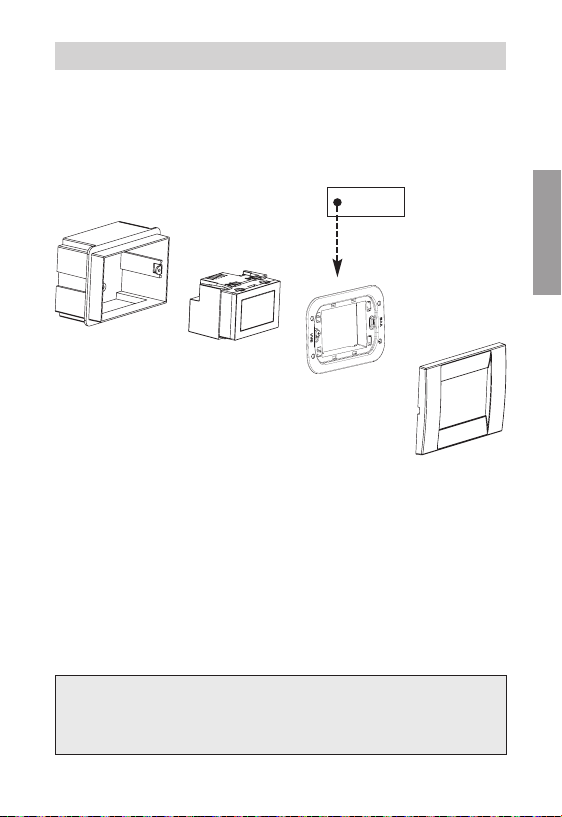

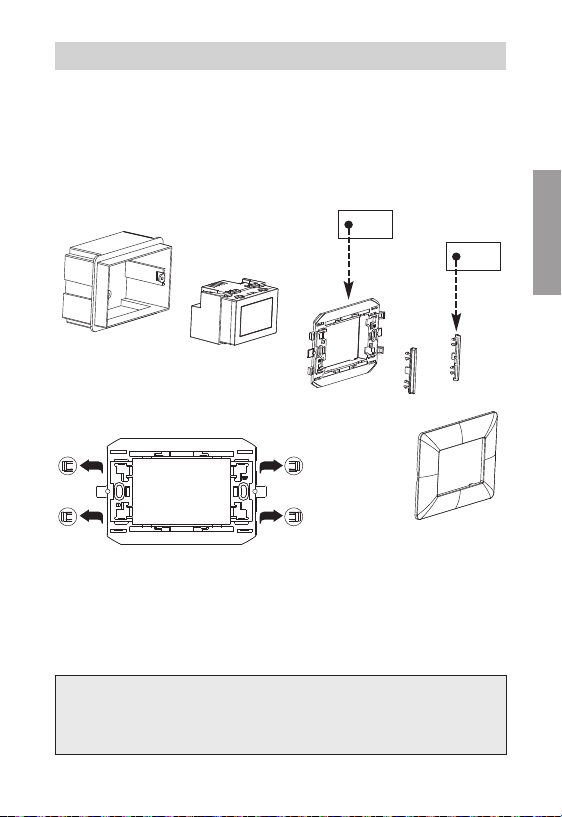

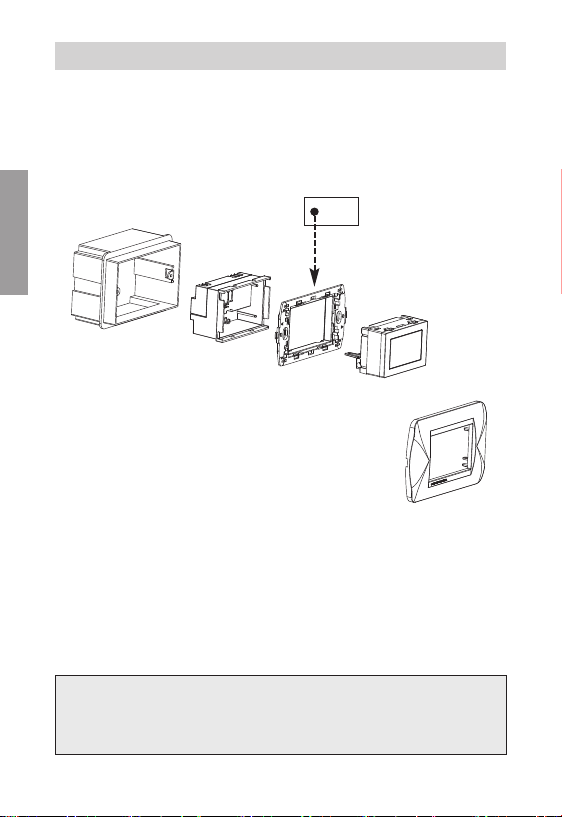

BATTERY IRIDE MOUNTING

B

ABB Chiara series
Vimar Arké series

- 6 -

Iride Chronothermostat User Manual

IRIDE 230 MOUNTING

ABB Chiara series
Vimar Arké series

- 7 -

Iride Chronothermostat User Manual

B

English

English

BATTERY IRIDE MOUNTING

B

Remove the cogs

Gewiss Chorus series

- 8 -

Iride Chronothermostat User Manual

IRIDE 230 MOUNTING

Remove the cogs

Gewiss Chorus series

- 9 -

Iride Chronothermostat User Manual

B

English

BATTERY IRIDE MOUNTING

B

English

Remove the cogs

Bticino Matix series

- 10 -

Iride Chronothermostat User Manual

BM

IRIDE 230 MOUNTING

Remove the cogs

B

BM

English

Bticino Matix series

- 11 -

Iride Chronothermostat User Manual

English

BATTERY IRIDE MOUNTING

B

VI

Vimar Idea series

- 12 -

Iride Chronothermostat User Manual

IRIDE 230 MOUNTING

B

VI

English

Vimar Idea series

- 13 -

Iride Chronothermostat User Manual

BATTERY IRIDE MOUNTING

*

English

Note: if the box extension is not present (adapter which increases the
depth of the flush-mounting box) we recommend you using the frame
for Livinglight AIR installation

AIR

Bticino Livinglight AIR series

- 14 -

Iride Chronothermostat User Manual

IRIDE 230 MOUNTING

*

Note: if the box extension is not present (adapter which increases the
depth of the flush-mounting box) we recommend you using the frame
for Livinglight AIR installation

AIR

English

Bticino Livinglight AIR series

- 15 -

Iride Chronothermostat User Manual

BATTERY IRIDE MOUNTING

English

Mount AXO AIR is not included in the package.

AXO AIR

Bticino Livinglight AIR series

- 16 -

Iride Chronothermostat User Manual

IRIDE 230 MOUNTING

Mount AXO AIR is not included in the package.

AXO AIR

English

Bticino Livinglight AIR series

- 17 -

Iride Chronothermostat User Manual

Electronic touch screen chronothermostats series with flush-mounting on 3 modules
box (503 type) suitable for the temperature control in household.
Two versions are available:

■

Iride, battery powered, with backlit monocolour display (blue) and input for external

contact with whom to switch on/to switch off the chronothermostat remotely (by
telephone)

■

Iride 230, mains powered, with backlit monocolour display, which changes tone

according to the gap between the environment temperature and the setpoint

These devices perform actions of 1B type and are intended for operating in
environments Pollution degree 2 and Overvoltage Category III (EN 60730-1).

English

SAFETY WARNINGS

■ During product installation and operation it is necessary to observe the

following instructions:

1) The device must be installed by a qualified person, in strict compliance with
the connection diagrams.

2) Do not power or connect the device if any part of it is damaged.

3) After installation, inaccessibility to the connection terminals without
appropriate tools must be guaranteed.

4) The device must be installed and activated in compliance with current electric
system standards.

5) Before accessing the connection terminals, verify that the leads are not live.

6) In the electrical system of the building where the device must be installed
and a protection device from the overcurrents must be present (for Iride 230
models only).

Code Model Description
VE456000

Iride Touch screen chronothermostat batteries

VE457800

Iride 230 Touch screen chronothermostat 230V

- 18 -

Iride Chronothermostat User Manual

TECHNICAL SPECIFICATIONS

• Power supply Iride:

– 2 alkaline batteries 1,5 V (AAA type)
– battery life: 1 year
– battery charge level indication
– charge reserve (for battery replacement): 1 minute

• Power supply Iride 230:

– 230Vac (-15% ÷ +10%) 50/60Hz
– maximum consumption: 6 VA / 230Vac
– charge reserve (for blackout): 2 days about

• Installation on 3 modules box

• Terminals Iride:

– 3 terminals for 1.5 mm
– 2 terminals for 1.5 mm

dialler)

• Terminals Iride 230:

– 3 terminals for 1.5 mm
– 2 terminals for 1.5 mm

• Temperature regulation:

– On/off with hysteresis setting between 0.1 °C and 1°C
– Proportional with settable band and period

• Summer/winter operating mode

• Weekly programming (7 programs available for each operating mode)

• Daily resolution: 1 hour (possibility to set delay activation of 15, 30, 45 minutes

• 5 settable temperatures:

– T1, T2, T3 in automatic operation
– Tm in manual operation
– Toff in off mode (antifreeze)

• Measured temperature display: 0 ÷ 50 °C

• Measurement precision: ±0.5 °C

• Measured temperature resolution: 0.1°C

• Setpoint range: 2 ÷ 35 °C

• Clock precision: ±1 second/day

• Key lock by password

• Summer/winter time automatic change (you can deactivate it))

• Operating temperature: 0 ÷ +50 °C

• Storage temperature: -10 ÷ +65 °C

• Operating humidity: 20÷90% non condensing

• Protection degree: IP40

• Insulation: reinforced among accessible parts (frontal) and all other terminals

2

cable section for bistable output relay 5A / 250 Vac

2

cable section for digital input (on/off with telephone

2

cable section for bistable output relay 5A / 250 Vac

2

cable section for power supply

independent for each hour)

English

- 19 -

Iride Chronothermostat User Manual

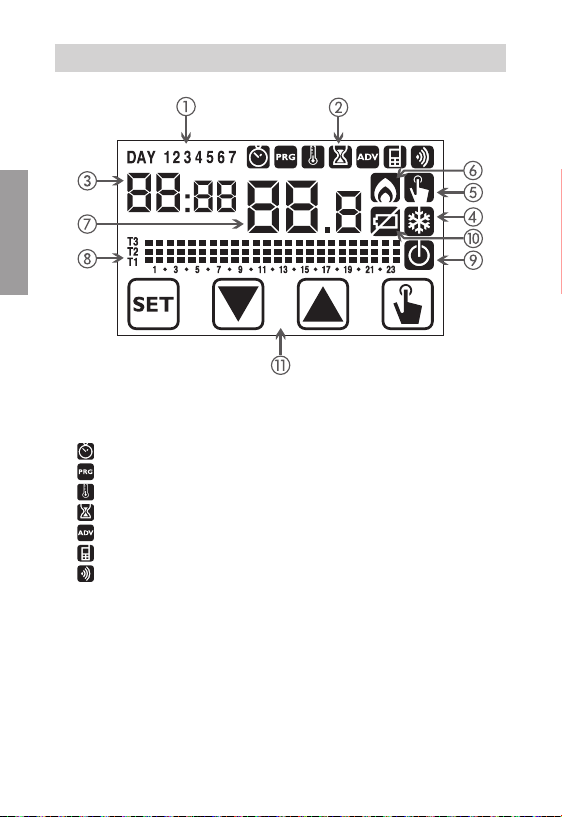

DISPLAY AND KEYBOARD

English

① Day of the week (DAY 1= Monday)

Programming menu

②

: date/time and summer time setting
: programs change mode (for automatic operating)
: temperatures setting T1, T2, T3
: timing menu
: advanced programming menu
: not used
: not used

Time and minutes

③
④

Load activation in summer mode/ cooling

⑤

Manual operation activation

⑥

Load activation in winter mode/heating

⑦

Measured environment temperature

⑧ Program on graphic for the current date (in automatic operation)

Off operation

⑨
⑩

Depleted battery indication (only batteries model)

⑪

Keyboard (active only if the device is inserted in the flush-mounting box)

:

- 20 -

Iride Chronothermostat User Manual

■

Keyboard

The keys carry out different functions on the basis of the device status and they will be
described step by step in this user manual.
Multipurpose keys are not built into the instrument, that is to say contemporary
pressures of 2 or more keys.
There are two types of pressure:

- brief pressure

- long pressure, with duration higher than 3 seconds

During the press of a button, the display is blue.

Attention: press the keys with your fingers; do not use sharp objects!

Attention: the keys are not active until the instrument is not correctly
inserted in the flush-mounting box.

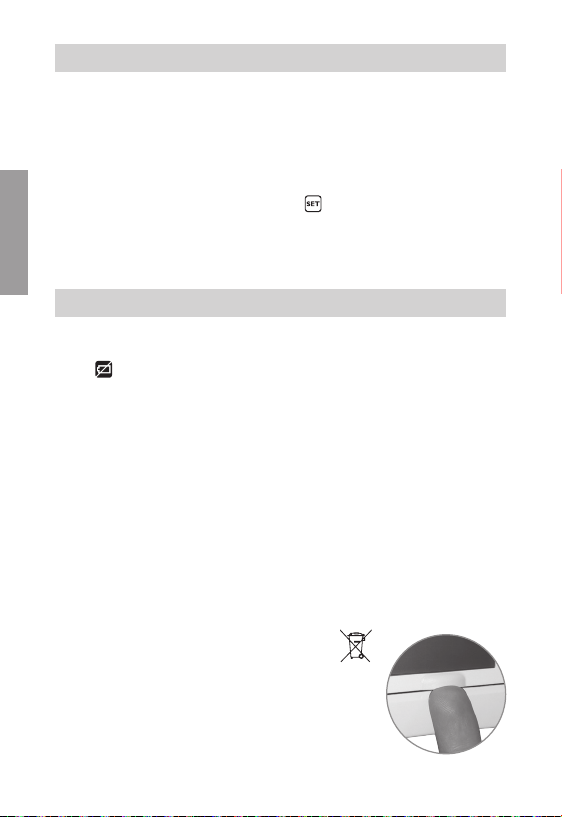

■ Cleaning the display

To clean the display use a soft, lint-free cloth, without using excess force.

INSTALLATION

• The chronothermostats of Iride series are designed for flush-mountig on 3 modules
box (503 type).

• The chronothermostats must be installed at a height at about 1.5 m above the floor,
away from direct sunlight, away from doors, windows, heat sources, locations with
excess or total lack of ventilation.

• Install the white or anthracite grey cover according to your preferences by hooking
it to the cogs of the device

• Make the connections by respecting the diagrams described in this manual.

• Fix the device inside the 3 modules box in compliance with the assembly diagrams
described at the beginning of this instruction sheet. The accessories for the
installation included in the package allow the mounting of the plates described in

English

- 21 -

Iride Chronothermostat User Manual

the diagram “adjustable cover plates” and they are:

- mount A

- mount B (according to the needs it could be necessary to remove the side cogs)

- mount AIR

- couple of side BM plastic elements (both of white colour and grey colour)

- couple of side elements VI (both of white colour and grey colour)

- covers of white colour and anthracite grey colour.

Attention: it’s not possible to make no programming or to set parameters

modification until the instrument is not correctly placed in the
flush-mounting box.

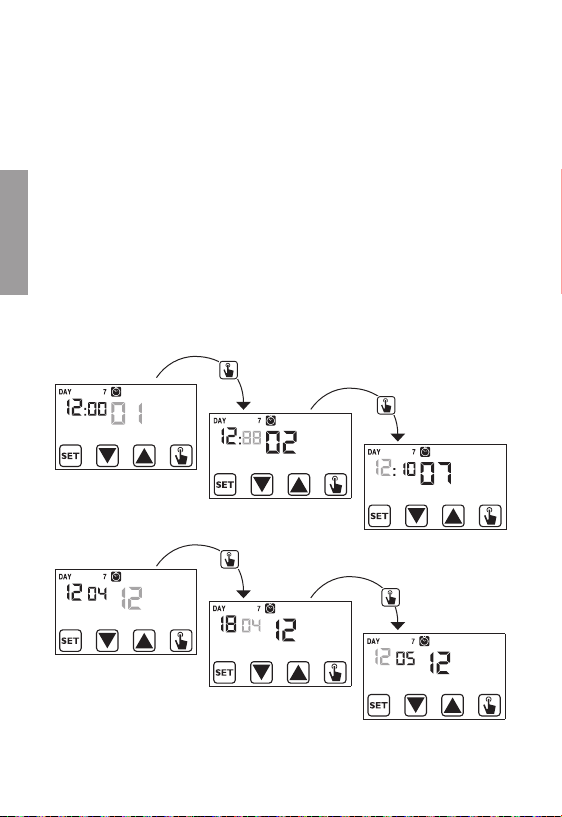

• Clock setting

English

Once the device is mains powered, synchronise the clock (time and date insertion).
The parameters to enter are the following:
seconds (only synchronisation at value 00), minutes, hours, year, month, day.

Seconds synchronisation

Minutes setting

Time setting

Year setting

Month setting

- 22 -

Iride Chronothermostat User Manual

Day setting

Use the keys and to increase and decrease the values and the key to
confirm and to move to the next parameter.

Once all values are set, press for a long time (3 seconds) the key

to exit the menu

of the clock synchronisation.

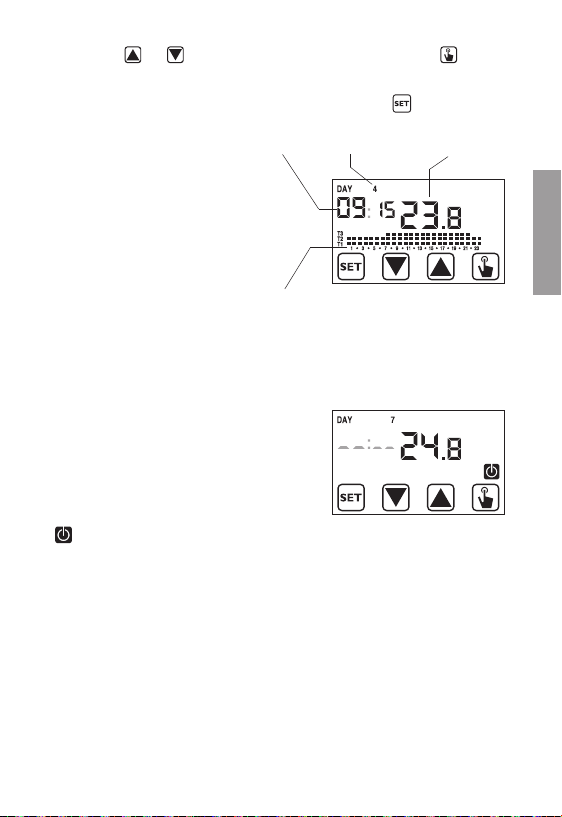

At this point the chronothermostat

HOUR

DAY

TEMPERATURE

will begin to operate with the set
default parameters (see page

42), displaying the day of the

week, the time, the environment
temperature and the graphic of
the program on.

PROGRAM

GRAPHIC

Attention:

To operate correctly the
chronothermostat requires the time
and date insertion.

If once mains powered, no value is
set within about 30 seconds, the
chronothermostat begins to operate in
off mode, displayed with the symbol

.

The time lack is displayed with flashing dashes ( _ _:_ _ ).

The chronothermostat remains in off operation condition until when the hour
is not inserted, ensuring in this way the saving of the antifreeze temperature
(6°C).

In this condition, the pressure of any key reactivates the menu of date/time
insertion for other 30 seconds about.

English

- 23 -

Iride Chronothermostat User Manual

PROGRAMMING MENU

With this menu it’s possible to modify
the following operating parameters:

- Date and time

- Automatic operation programs

- Automatic operation temperatures

- Timings

- Advanced functions.

English

3s

Time and date modification

To modify the hour and the date set:

1. From normal operating display, press for a long time the key

until the symbol

starts flashing on field (2)

2. Press the key

to access parameters modification. The seconds field starts

flashing. Parameters sequence to set is:

seconds* -> minutes -> hours -> year -> month -> day

3. Use the keys

and to modify the values and the key to confirm moving to

the next parameter.

(*) for seconds it’s possible only the synchronisatin at value 00

4. Once all parameters are set, to exit and to go back to the programming menu, press
a short time the key

.

To exit and to go back to the normal operating (automatic, manual) press for a long

time the key

or wait for the time-out expiration (30 seconds about).

Inside this menu it’ s possible to modify the parameters for winter/summer
time change. The procedure is described in a detailed way in the chapter
“Summer time change” on page 34.

- 24 -

Iride Chronothermostat User Manual

Programs modification

With this menu it’s possible to modify the programming of the automatic operation.
The device is configured to perform the program P1 from Monday to Friday and P2 on
Saturday and on Sunday (the programs profile is described at the end of this manual
on page 43-44)
If this programming doesn’t satisfy the user needs it’s possible to change it.

To modify the programming:

1. From the normal operation display, press for a long time the key
symbol

starts flashing on field (2)

2. Press briefly the key

until the symbol flashes and press the key to

until the

access the parameters modification.

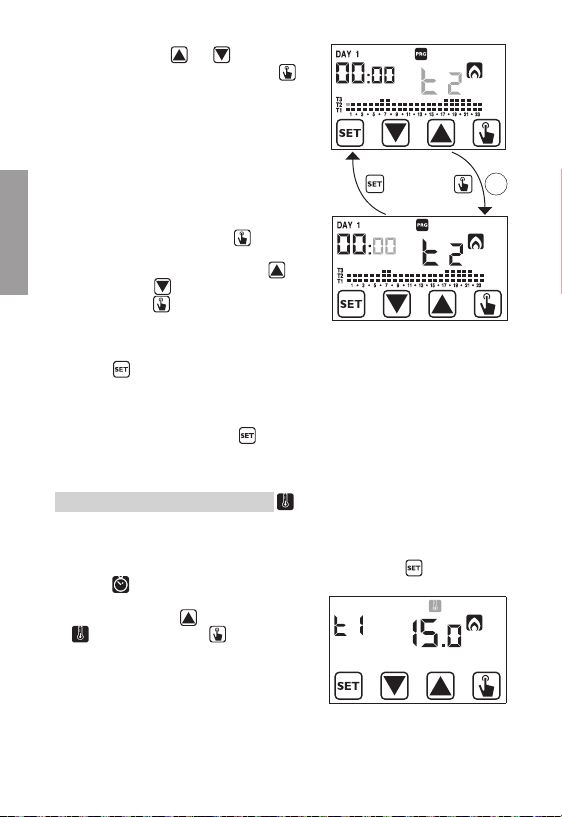

3. The programs page is displayed:

the first day of the week (DAY 1) flashing,

the current program (for example P1) of
the current mode (

or ) and the

corresponding profile of the program.

3.1. If the set program is good, move to the

next day with the keys

and .

3.2. If the set program is not good, press

the key

.
The set program flashes: choose one
program different among the 7 available
by pressing the keys

and .

3.2.1. If no program exactly satisfies the
user’s needs, choose any program
which best meet them and press the
key

to access the modification of

the program profile.
On field (3) 00:00 appears while on
field (7) flashes the temperature level
(T1, T2 o T3) set for that specific time
(00:00).

- 25 -

Iride Chronothermostat User Manual

English

Use the keys and to change
the temperature level and the key
to move to the next hour. Set like this
the desired level temperature for each
hour of the day.

3.2.1.1. For each hour it’ s possible to

delay the start of the regulation
of 15’, 30’ or 45’
After setting the temperature
as described above, press for

English

a long time the key
delay. The minutes field flashes
(field 3): set with the keys
and

the delay and press the

key

to move to the next hour.

to set a

4. When the program satisfies the user’s

needs, go back to the days pressing twice
the key

and repeat for the other days of

the week the operations just described.

When all modifications have been

performed, exit the programming menu
pressing for a long time the key

.

Temperatures T1, T2, T3 modification

To modify the 3 temperatures of automatic operation:

1. From the normal operation display, press for a long time the key

symbol

starts flashing on field (2)

2. Press briefly the key until the symbol

flashes. Press the key to access the

parameters modification.

3s

until the

- 26 -

Iride Chronothermostat User Manual

3. The value of the flashing T1 temperature is

displayed. Modify the value with the keys

and and press the key to move

to the modification of T2.

4. The value of the flashing T2 temperature is

displayed. Modify the value with the keys

and and press the key to move

to the modification of T3.

5. The value of the flashing T3 temperature is

displayed. Modify the value with the key
and

and press the key to go back to

the page of T1 temperature.

6. Once all parameters are set, to exit and to

go back to the programming menu, press
for a short time the key

.

To exit and to go back to the normal

operation press for a long time the key

or wait for the time-out expiration (30

seconds about).

Attention: the values of set temperatures

must respect the condition:
T1≤T2≤T3.
In cooling mode T1 is not
settable and equals off system.

English

- 27 -

Iride Chronothermostat User Manual

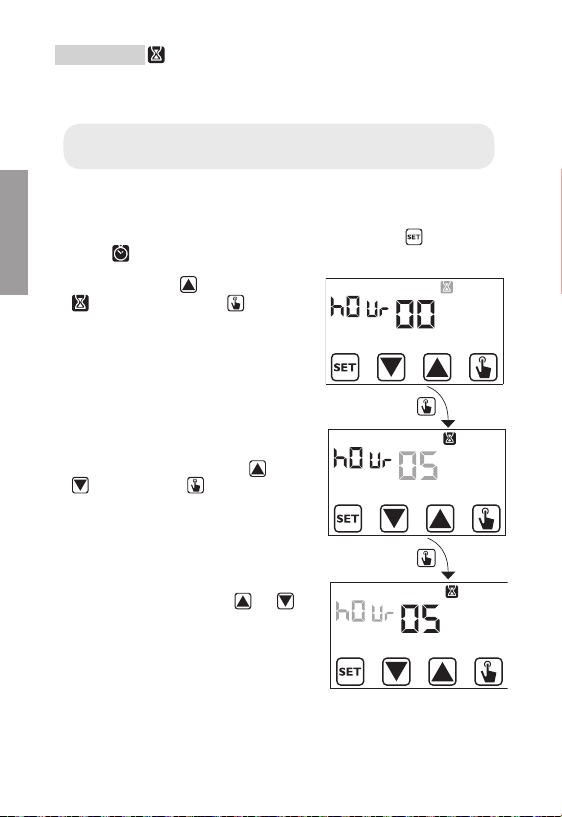

Timing setting

This menu allows the setting of a timing on the current operating mode, expressed in
hours and days.

For further information about timings, see the chapter “Timings: what they
are” on page 38.

To set a timing:

1. From the normal operation display, press for a long time the key

symbol

English

starts flashing on field (2)

2. Press briefly the key until the symbol

flashes and press the key to access

the parameters modification.

3. The value of the timing currently set

flashes (00= no timing). Enter the timing
value (from 1 to 99) with the keys

and

and press the key to move to the

measurement unit change (hours and days).

4. The measurement unit starts flashing

(h0ur or day). Press the keys

and

to choose a timing in hours (h0ur) or days
(day).

until the

- 28 -

Iride Chronothermostat User Manual

5. Once all parameters are set , to exit and to go back to the programming menu,

press for a short time the key

.

To exit and to go back to the normal operation (automatic, manual) press for a long

time the key

If a timing is active, the display shows the symbol

or wait for the time-out expiration (30 seconds about).

.

To interrupt a timing, access again the menu and set the value 00.

Advanced functions menu

With the ADV menu it’s possible to modify the
following operation parameters:

- operating mode (heating or cooling)

- regulation type (on-off or proportional)

- parameters relative to regulation type

- antifreeze temperature

- password for key lock

- system operation hours.

To access the menu ADV:

1. From the normal operation display, press for a long time the key

symbol

starts flashing on field (2)

2. Press briefly the key

until the symbol starts flashing and press the key

until the

to access the parameters modification

3. At this point the first parameter of the menu starts flashing:

press the keys

and to modify the parameter and the key to confirm
and to move to the next parameter. To exit the parameters modification press the
key

.

English

- 29 -

Iride Chronothermostat User Manual

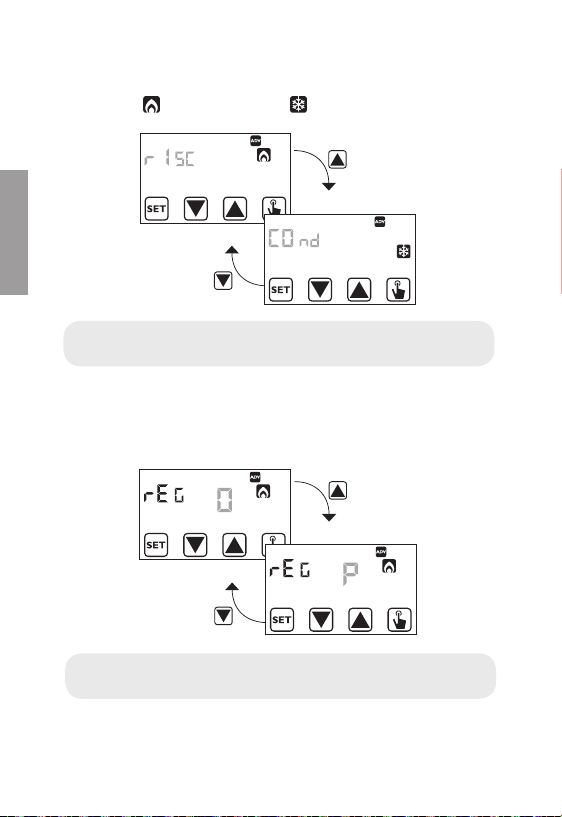

Operating mode

This parameter allows to specify the operating mode of the chronothermostat, between
winter/ heating (

) and summer- cooling ( ).

English

For further information about the operating mode see the chapter “Regulation
type” on page 36.

Regulation type (only for heating mode)

For heating mode it’s possible to choose between on/off regulation (Reg 0) or
proportional (rEg P ).

For further information about regulation type see the chapter “Regulation
type” on page 36.

- 30 -

Iride Chronothermostat User Manual

Regulation parameters

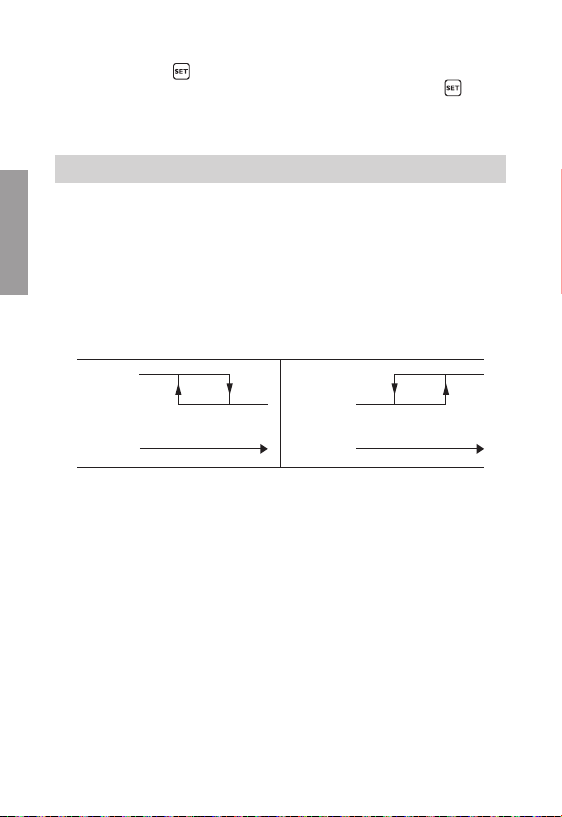

In case of on/off regulation the only parameter to set is the hysteresis (dIF), which
can have values between 0.1°C e 1°C.

In case of proportional regulation the parameters to set are the regulation band (bnd)
and the regulation period (PEr).

For further information about how to choose these values see the chapter
“Regulation type” on page 36.
But remember that the preset settings are suitable for the most part of the
situations: to change these settings only if it’s really necessary.

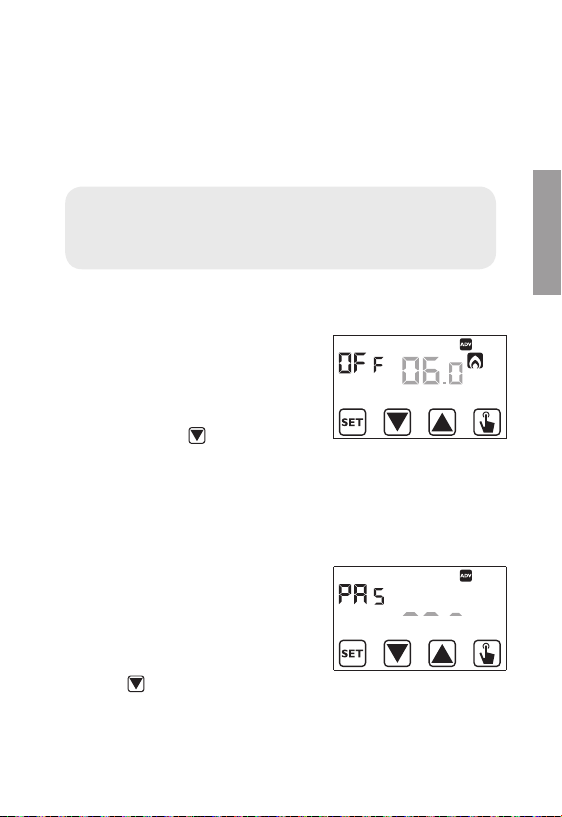

Antifreeze temperature (only for heating mode)

For the heating mode it’s possible to set a safety
temperature (antifreeze temperature – 0ff) to
maintain also if the chronothermostat is switched
off.
It’s possible to choose a value between 1°C and
10°C. It’s also possible to deactivate the antifreeze
function pressing the key
shows “
In this case, when the chronothermostat is

_-.-

”.

until the display

switched off, no safety temperature is maintained.

Password for key lock

It’s possible to set a key lock if the chronothermostat
is installed in public places or however if you want
to prevent anyone from modifying the operation
parameters.

To set a password, enter on field PAs a value
between 001 and 999. To deactivate the password
press the key

until “__ ._” appears.

When the keyboard is locked, the chronothermostat performs all its functions using the
set regulation parameters.

English

- 31 -

Iride Chronothermostat User Manual

If the key lock is active and one key is pressed, the display shows for a few seconds
the writing bL0c with flashing dashes: enter the password to unlock the keyboard,
which will be locked for 30 seconds from the last pressure.

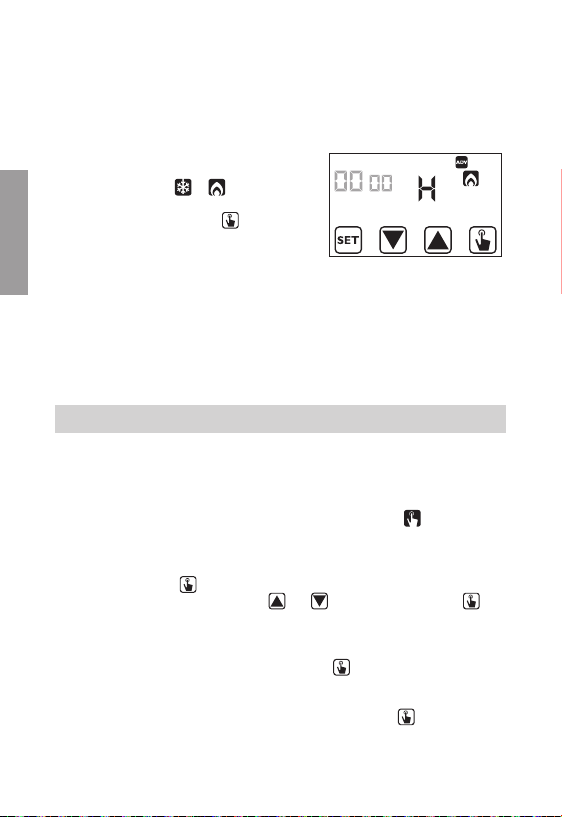

System operation hours

This page shows the total number of hours of the
system operation (relais ON) for the current mode
(indicated by the icons

or ).
The hour meter has got 4 digits and it’s resettable
pressing for a long time the key

until 0000

appears.

English

MANUAL OPERATION

During manual operation the chronothermostat performs as a normal thermostat,
adjusting on the basis of the Tm temperature (manual setpoint), independently from
the day and the time where it is.
The manual operation is signalled with the switch on of the symbol

To move from the automatic operation to the manual one:

1. press briefly the key

2. set the desired setpoint with the keys

3. at this point on field (7) the value of the environment temperature reappears and

the instrument operates in manual.

If you want to change the setpoint (Tm) press the key
and 3.

To go back to the automatic operation press for a long time the key (for about 3
seconds).

. In the field (7) the setpoint (Tm) currently set flashes

and and confirm with the key

and repeat the points 2

in the field (5).

- 32 -

Iride Chronothermostat User Manual

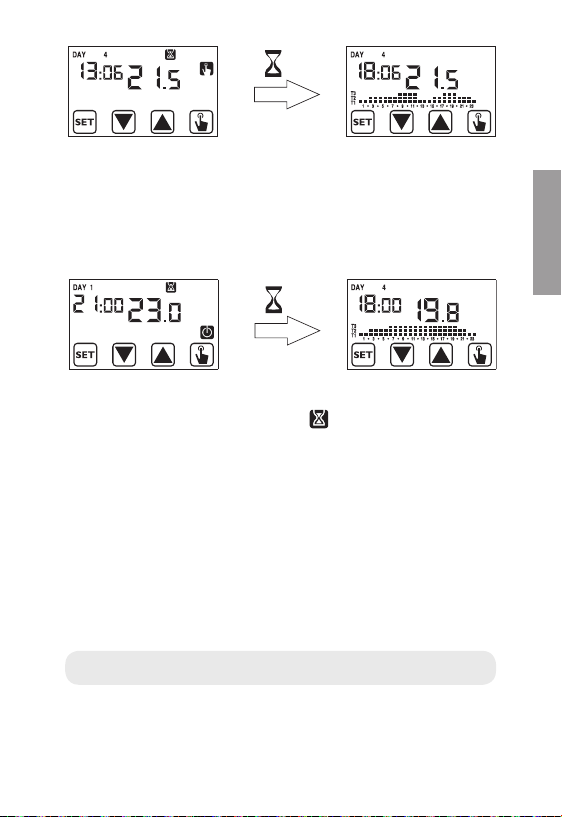

Automatic
operation

Manual setpoint
(Tm) setting

Manual operation

3s

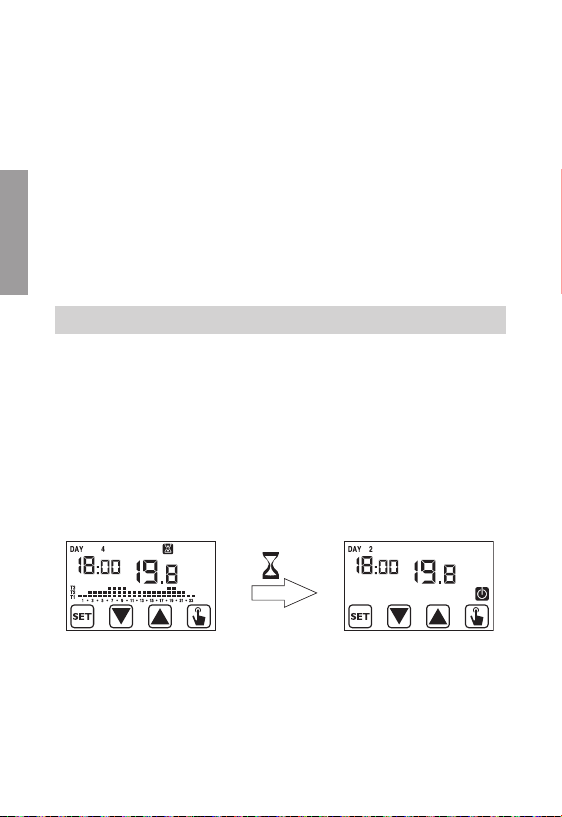

OFF OPERATION

In off mode the device doesn’t perform any regulation (*) but it continues to display the
day, the time and the measured temperature.

(*) When in heating / winter mode the device maintains a minimum
temperature - Toff antifreeze temperature - to avoid the freezing of the
systems where the device is installed.
Toff can have values between 1°C and 10°C or it can be completely shut
down; in this last case the saving of minimum temperature is not guaranteed.
The set default Toff is 6°C but it’s possible to modify this value entering the
ADV menu (see “Antifreeze temperature” on page 29).

English

To switch the device off press the key

Iride Chronothermostat User Manual

until the symbol is displayed (field (9)).

- 33 -

To reactivate the regulation, switching back to the operating (automatic or manual)
which is before the switching off, press the key

for about 3 seconds.

3s

English

3s

Remotely switching off (battery powered model only)

The battery powered Iride have got an input for the connection to a clean contact to
whom to connect for example a telephone dialler to switch on or to switch off remotely
the chronothermostat with their own telephone.
The contact can have one of these two positions:

- open à normal operation (according to the set programming)

- closed à chronothermostat in off mode

Remotely off status is displayed with the flash of the symbol
differentiate it from the keyboard off status (

fixed on field (9)).

on field (9) to

Attention: remotely off status (closed contact) is more important than any
other programming , so the instrument will be in off status until the contact
doesn’t switch back to the opened position.

- 34 -

Iride Chronothermostat User Manual

BACKLIGHTING MANAGEMENT

The chronothermostats of the Iride series have got a backlit display with led. There are
some differences between battery powered models and mains powered models.

Battery Iride

The battery powered model has got a backlighting of blue colour, which is activated
only if they are inside any menu of programming or if any key is pressed. In normal
operating status the backlight results off.
This behaviour is not modifiable.

Iride 230V~

The 230 V model has got a multicolor backlighting which can be configured according
to the preferences’ user.

The possible configurations for the backlighting are the following:

• RGB (RGB) in this case the backlighting changes following the difference

between the measured temperature and the programmed setpoint. In
particular, it will be

- blue, if the measured temperature is lower than the programmed setpoint
of at least 0.5°C (or we are inside any programming menu)

- green, if the difference between the measured temperature and the setpoint
is, in absolute value, lower than 0.5°C (or if the device is in off mode)

- red, if the measured temperature is higher than the setpoint of at least

0.5°C (or in case of probe error)

• BLUE (BLU) in this case the backlighting will be blue fixed

• GREEN (GRE), in this case the backlighting will be green fixed (blue inside

programming menu)

• RED (RED), in this case the backlighting will be red fixed (blue inside

programming menu)

• OFF (0FF), in this case the backlighting is always off (blue inside

programming menu). Useful for example in bedrooms.

It’s possible to configurate the backlighting pressing the key

:

for 3

English

- 35 -

Iride Chronothermostat User Manual

seconds: in this way you access the configuration menu and it’s possible to
select rgb, blu, red, gre, 0ff.

3s

English

MINIMUM AND MAXIMUM VALUE

It’s possible to display the measured values of minimum and maximum temperature.
To display these values press the key
L0 ).

During the display it’s possible the resetting of these values pressing the key
dashes appear in place of the temperature.

(maximum value Hi) or (minimum value

SUMMER TIME CHANGE

Summer time is the convention to step up of one hour the dials of the clocks during the
summer period in order to prolong the lighting time in the late afternoon to the loss of the
early morning.
In European countries summer time starts the last Sunday of march and ends the last
Sunday of october.

The chronothermostat manages the summer/winter time change as follows:

- increasing of one hour to move from winter time to summer time

- decreasing of one hour to move from summer time to winter time

The device is default configured to move from summer time the last Sunday of march at 2
o’clock to go back to winter time the last Sunday of October at 3 o’clock in accordance with
Europe convention.
However it’s possible to deactivate the automatic time change or to change the date or the
hour of the time change.

- 36 -

Iride Chronothermostat User Manual

until 3

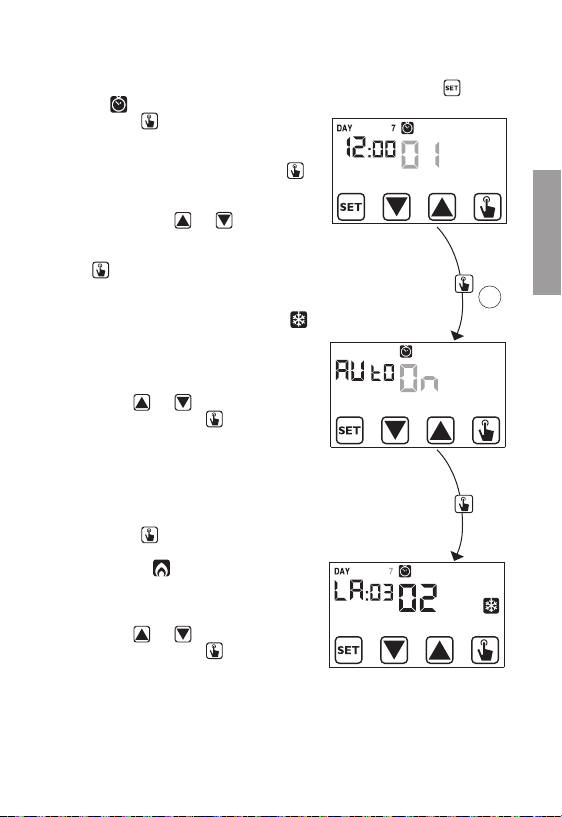

To change settings:

1. Access the menu of time and date change, pressing for a long time the key
symbol

starts flashing.

2. Press the key to access the time and date
modification. At this point, during the modification
of any parameter (seconds, minutes, hour, year,
month or day) press for a long time the key
until the display shows the writing Aut0 appears
on field (3).

3. Choose with the key

and the automatic

time change activation (Aut0 0n ) or its
deactivation (Aut0 0FF ) and confirm with the
key

4. If 0FF we go back to the date/time change; if 0n
the current setting for the passage to summer
time is displayed (indicated with the symbol

).

In the example:

a. the Sunday (7 ) of the last week (LA) of march

(03 ) at 2 o’clock (02)

b. if it’s necessary change the parameters with

the keys
parameter with the key

and and move to the next

. The sequence

requires the insertion of:
i. day (1…7) of the week
ii. the week of the month (first, second, third,

fourth, last – LA)

iii. the month (1…12)
iv. iv. the hour

5. Press the key

the current setting for the
passage to the winter time is displayed (indicated
with the symbol

). In the example:

a. the Sunday (7 ) of the last week (LA) of

october (10) at 3 o’clock (03 )

b. if it’s necessary change the parameters with

the keys
parameter with the key

and and move to the next

. The sequence

requires the insertion of:
i. day (1…7) of the week
ii. the week of the month (first, second, third,

fourth, last – LA)

iii. the month (1…12)
iv. the hour

- 37 -

Iride Chronothermostat User Manual

until the

English

3s

6. Once all parameters are set, to exit and to go back to the programming menu, press for

a short time the key

.

To exit and to go back to the normal operation press for a long time the key

for the time-out expiration (30 seconds about).

REGULATION TYPE

Iride has got two types of regulation:

On/off regulation

English

During on/off regulation the chronothermostat measures once a minute the
environment temperature and it carries out the regulation on the basis of the following
logic:

heating mode cooling mode

relay ON

relay OFF

Temperature
increasing

SET-DIFF SET

where SET represents the setpoint and DIFF the hysteresis (useful to avoid continuous
switches on/switches off dangerous for the system in proximity to the reaching of the
setpoint.

Proportional regulation (only in heating)

In heating mode, the on/off regulation is available and also the proportional regulation
which in some systems allows a more precise regulation to obtain a constant
temperature.

This regulation requires to specify two parameters:

• the band, which represents the temperature values with whom to perform the

proportional regulation. The band is centered on the setpoint and it can have values
between 0,5°C and 5°C; outside these values the heating will be
always on (if setpoint-band > environment temperature) or always off (if setpoint +
band < measured temperature).

Iride Chronothermostat User Manual

- 38 -

relay ON

relay OFF

Temperature
increasing

or wait

SET+DIFFSET

• the regulation period which represents the duration of the regulation cycle

(activation time + deactivation time of heating) and it can have values of 10, 20 or
30 minutes.

During the operating, at the beginning of the regulation period, the instrument
measures the environment temperature and it compares it with the programmed
setpoint; on the basis of this difference the activation time is calculated (and
consequently the deactivation time). The more the measured temperature is next to the
setpoint value – band, the more the activation time will be predominant in comparison
with the deactivation time; on the contrary, the more the measured temperature is next
to the setpoint value + band, the more the deactivation time will be predominant in
comparison with the activation time).
Once regulation period is passed, the device compares again the environment
temperature with the setpoint and it updates the activation and deactivation times for
the new period.

The result of the proportional regulation is subordinated to the correct selection of the
parameters.

Select the value of the regulation type as follows:

• 10’ for low thermal inertia systems (fan-coil)

• 20’ for medium thermal inertia systems (aluminium radiators)

• 30’ for high thermal inertia systems (cast-iron radiators)

Select the regulation band value as follows:

• broad band (5°C) for systems with high thermal gradient

• narrow band (0.5°C) for systems with low thermal gradient

Attention: the device is default configured to operate in on/off with hysteresis
set at 0.3°C. This configuration is suitable for the most part of the situations
and for this reason it’s advisable to modify it only in particular situations.

To modify the regulation type, dIF value (on/off regulation), band and period
(proportional regulation) see chapter “Regulation parameters” at page 29.

English

- 39 -

Iride Chronothermostat User Manual

Emergency regulation (winter mode only)

The device performs a regulation of emergency if an error occurs during the reading of
the probe or in case of time loss.

In case of probe error, if the antifreeze function is not excluded, the device activates
the load for 10 minutes every 4 hours. The display shows the writing Err on field (7).

In case of time loss (because of depleted batteries or blackout of a duration higher
than the charge reserve) the device restarts from the off mode, adjusting on the basis
of the antifreeze temperature, if it hasn’t been deactivated before. Reset date/ time
to go back to the normal operation (programs modifications and settings remain
memorized).

English

TIMINGS: WHAT THEY ARE

Timings allow to maintain the current operation (automatic, manual, off) for a certain
period (times or days) and once passed the chronothermostat changes the operating
mode, as explained below.

The timed operations are the following:

Timed automatic

If in automatic status you set a timing, such off status will be maintained until the end
of the timing operation, will then switched to off mode.

Timed manual

If in manual status you set a timing, such off status will be maintained until the end of
the timing; operation will then switched to automatic mode.

- 40 -

Iride Chronothermostat User Manual

Timed off

If in off status you set a timing, such off status will be maintained until the end of
the timing, operation will then switched to the one active before the deactivation
(automatic or manual).

If you set a timing, the display shows the symbol .

Attention: the timing is calculated in minutes and for this reason if for
example you set a timing of 3 days at 12:15 on Tuesday it will expire at 12:15
on Friday.

Attention: the timings can end before their programmed expiration if one of these
actions occur:

- time/ date modification (modification of the summer time change included)

- manual modification of the operating mode

- switching of digital input (only for battery models)

- change of the operating logic from winter to summer (or viceversa)

To set a timing, see chapter “Timing setting” at page 26.

English

- 41 -

Iride Chronothermostat User Manual

DEVICE RESET

If you want to erase all performed settings and to recharge the default values, proceed
as follows:

1. to switch off and to switch on the power of the chronothermostat (230 V versions)

or to extract the chronothermostat from the wall-mounted base and reinsert it
(battery versions)

2. during the flashing of the keys press the key

dEF.

Default values are indicated on page 42 of this manual.

English

until the display shows the writing

BATTERY REPLACEMENT

The model Iride (batteries) signals the status of depleted batteries switching on the
symbol

(field (10)) and making the display to flash.

In this status the regulation is always guaranteed, but it’s advisable to replace the
batteries as soon as possible! (*)

If the charge level of batteries further decreases, the chronothermostat enters into less
consumption mode, it switches off the display and it doesn’t perform any regulation.

(*) Remove the depleted batteries and replace them with the new ones in a maximum
time of one minute (charge reserve) to avoid to lose the settings of date and time
(the performed programmings on the contrary remain memorized even if this limit is
surpassed).

Attention: after batteries replacement, the display will switch on within 15
seconds at max.



Dispose of the used batteries observing the
laws in force in relation to the disposal
of hazardous waste.

The removal of the device occurs
by pulling on the convexity of the frame
(see figure).

Iride Chronothermostat User Manual

- 42 -

REFERENCE STANDARDS

Compliance with Community Directives
2014/35/EU (LVD)
2014/30/EU (EMCD)
is declared in reference to the harmonized standards:

EN 60730-2-7, EN 60730-2-9

English

- 43 -

Iride Chronothermostat User Manual

DEFAULT VALUES

parameter min max step default

winter
manual setpoint

summer
manual setpoint

T1 winter 2.0°C T2 0.1°C 15.0°C

T2 winter T1 T3 0.1°C 18.0°C

T3 winter T2 35.0°C 0.1°C 21.0°C

English

T2 summer 10.0°C T3 0.1°C 23.0°C

T3 summer T2 35.0°C 0.1°C 25.0°C

antifreeze temperature 1.0°C 10.0°C 0.1°C 6.0°C

operating mode winter summer - winter

regulation type ON/OFF PROP - ON/OFF

ON/OFF hysteresis 0.1°C 1.0°C 0.1°C 0.3°C

proportional band 0.5°C 5.0°C 0.1°C 0.5°C

proportional period 10’ 30’ 10’ 10’

password 0 999 1

winter hour meter 0 1 0

summer hour meter 0 1 0

winter/summer time,
enable

winter/summer time
change

activation delay 0’ 45’ 15’ 0’

timed operations 0h 99d 1h 0h

2.0°C 35.0°C 0.1°C 21°C

2.0°C 35.0°C 0.1°C 25°C

ON OFF - ON

000

(deactivated)

Summer:

LAST DAY7

march 02:00

Winter: LAST

DAY7 october

03:00

- 44 -

Iride Chronothermostat User Manual

WINTER PRESET PROGRAMS

T3

T2

■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■

P1

T1

■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■

0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23

T3

T2

■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■

P2

T1

■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■

0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23

T3

T2

■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■

P3

T1

■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■

0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23

T3

T2

■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■

P4

T1

■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■

0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23

T3

T2

■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■

P5

T1

■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■

0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23

T3

T2

■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■

P6

T1

■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■

0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23

T3

T2

P7

T1

■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■

0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23

■ ■ ■ ■ ■ ■ ■

■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■

■ ■ ■ ■ ■ ■ ■ ■ ■

■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■

■ ■ ■ ■ ■ ■ ■ ■ ■ ■

English

- 45 -

Iride Chronothermostat User Manual

English

SUMMER PRESET PROGRAMS

T3

■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■

T2

■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■

P1

T1

■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■

0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23

T3

■ ■ ■ ■ ■ ■ ■ ■ ■

T2

■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■

P2

T1

■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■

0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23

T3

■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■

T2

■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■

P3

T1

■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■

0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23

T3

■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■

T2

■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■

P4

T1

■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■

0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23

T3

■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■

T2

■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■

P5

T1

■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■

0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23

T3

T2

■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■

P6

T1

■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■

0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23

T3

T2

P7

T1

■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■

0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23

- 46 -

Iride Chronothermostat User Manual

Vemer S.p.A.

I - 32032 Feltre (BL)
Via Camp Lonc, 16
Tel [phone]
Fax [phone]

e-mail: [email protected] - web site: www.vemer.it

V3IS00684-014

06-2017
