Page 1
Replacement Parts Diagram
4
3
3
4
2007.02.26 09:27:31 05'00'
I am approving this
document
PROPRIETARY RIGHTS NOTICE This document and all information contained within it is the property of Hamilton Beach/Proctor-Silex, Inc.
(HB/PS). It is confidential and proprietary and has been provided to you for a limited purpose. It must be returned upon request or destroyed
as set forth in the Specification Notice. Disclosure, reproduction or use of this document and any information contained within it, in full or in
part, for any purpose is forbidden without the prior written consent of HB/PS. No photographs may be taken of any article fabricated or
assembled from this document without the prior written consent of HB/PS.
SWITCH
930095000
SOCKET (3 REQ.)
920595000
MOTOR MODULE
(3 REQ.)
928000610
REST BUTTON
KIT
CONTAINER GUIDE
(3 REQ.)
31659503100
Notes:
PART INCLUDED IN:
1 – Lower Module Housing Kit
2 – Motor Mount Kit
3 – Stabilizer Kit: 911995000
4 – Rest Button Kit: 920015901
5 – Lower Bearing Kit
938291401
STABILIZER ARM
CORD
SCREW (3 REQ.)
310004200
REST BUTTON KIT
REAR HOUSING
210035700
STRAIN RELIEF
30839110500
BUMPER W/ SCREW
(2 REQ.)
912893605
WASHER (3 REQ.)
44021802000
VACUUM FOOT
30999360000
HINGE BRACKET
BUMPER W/ SCREW
912893605
(2 REQ.)
(2 REQ.)
HAMILTON BEACH / PROCTOR-SILEX, INC.
4421 WATERFRONT DRIVE GLEN ALLEN, VA 23060
HQE-4734: Changed format. ISSUE CODE
DRAWN BY: ENG. IN CHG. DATE: APPROVED BY: SP CS
SN TAG 02/21/07
INITIAL USE: INITIAL TYPE SHEET DRAWING NO. REV.
950 GM50
ENG-FRM-RIC-4.32 Rev. D
1 /
3
5100017XX B
Page 2
Replacement Parts Diagram
1
950 MOTOR MODULE ASSEMBLY
MOTOR MODULE
COVER
210038600
NAMEPLATE
230048200
2
SHOULDER BOLT
(3 REQ.)
2
SPRING
(3 REQ.)
2
BUSHING
(4 REQ.)
2
SCREW
(2 REQ.)
2
MOUNTING BRACKET
ROCKER SWITCH
260022000
MOTOR COMPLETE
(DOES NOT COME
WITH AGITATOR)
650016000
MOTOR RING
31499363101
PLUG
RIVET (2 REQ.)
MOUNTING
BRACKET
(2 REQ.)
HOUSING
Notes:
PART INCLUDED IN:
1 – Lower Module Housing Kit:
910037500
2 – Motor Mount Kit: 912795017
3 – Stabilizer Kit
4 – Rest Button Kit
5 – Lower Bearing Kit
HAMILTON BEACH / PROCTOR-SILEX, INC.
4421 WATERFRONT DRIVE GLEN ALLEN, VA 23060
1
2
1
LOWER MODULE
HQE-4734: Changed format. ISSUE CODE
DRAWN BY: ENG. IN CHG. DATE: APPROVED BY: SP CS
SN TAG 02/21/07
INITIAL USE: INITIAL TYPE SHEET DRAWING NO. REV.
950 GM50
ENG-FRM-RIC-4.32 Rev. D
2 /
3
5100017XX B
Page 3
Replacement Parts Diagram

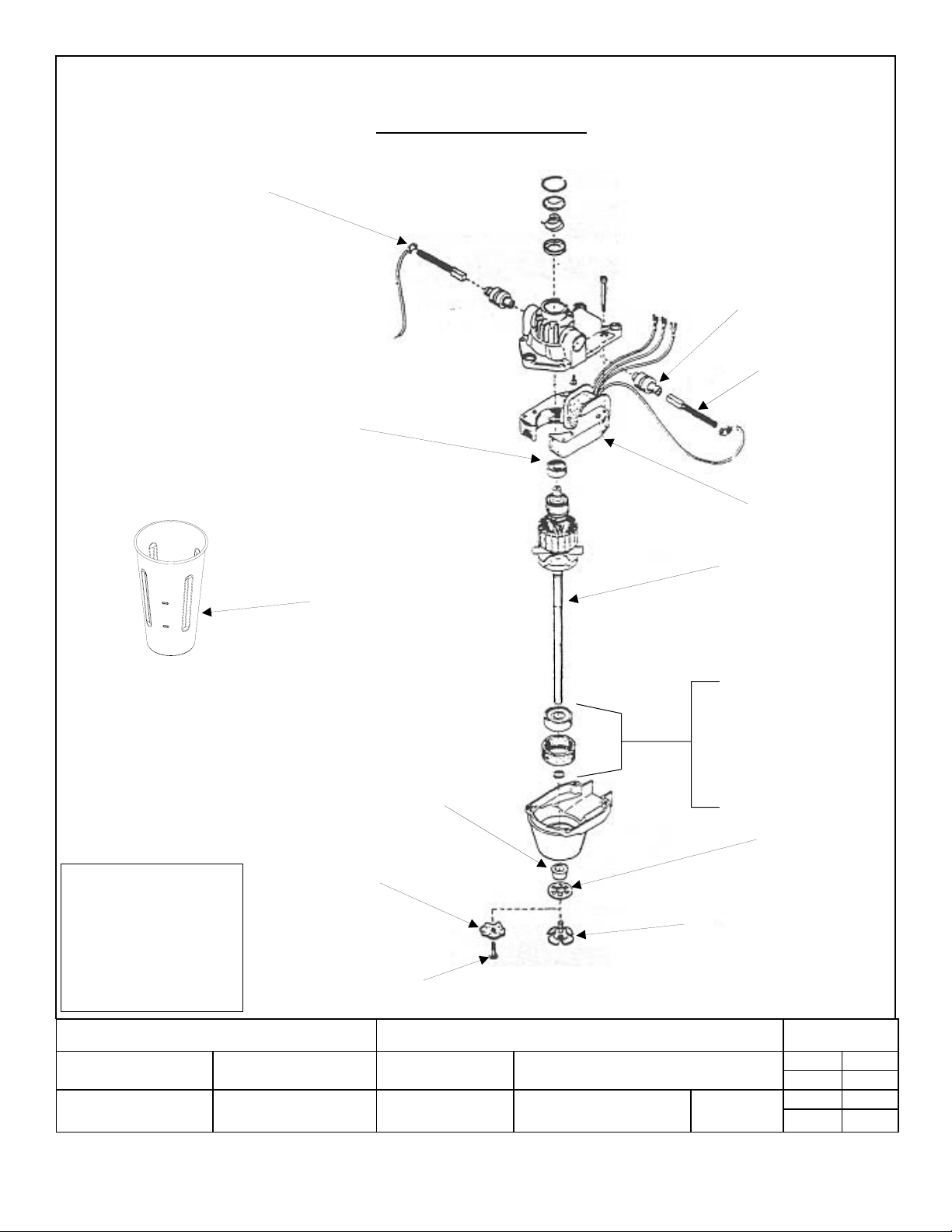

950 MOTOR ASSEMBLY
LEAD W/ PIN
908893600
BRUSH HOLDER
210023000
BRUSH &
SPRING SET
(2 REQ.)
UPPER BEARING
250014100
936505000
FIELD
965001171
ARMATURE
965001172
CUP
110E
NOTE:
REPLACE FIELD AND
ARMATURE TOGETHER TO
ENSURE PROPER FIT.
UPPER BEARING SHIELD
LOWER BEARING
LOWER BEARING SHIELD
CUSHION
RETAINING CLIP
UPPER BUTTON
31029330000
BUTTERFLY
AGITATOR
(DESIGNED FOR
SOFT ICE CREAM)
913595000
Notes:
PART INCLUDED IN:
1 – Lower Module Housing
Kit
2 – Motor Mount Kit
3 – Stabilizer Kit
4 – Rest Button Kit
5 – Lower Bearing Kit:
950012400
SOLID AGITATOR
(DESIGNED FOR
HARD ICE CREAM)
31409300000
SCREW (FOR
SOLID
AGITATOR)
5
SLINGER
250005000
310009300
HAMILTON BEACH / PROCTOR-SILEX, INC.
4421 WATERFRONT DRIVE GLEN ALLEN, VA 23060
HQE-4734: Changed format. ISSUE CODE
DRAWN BY: ENG. IN CHG. DATE: APPROVED BY: SP CS
SN TAG 02/21/07
INITIAL USE: INITIAL TYPE SHEET DRAWING NO. REV.
950 GM50
3 /
3
5100017XX B
ENG-FRM-RIC-4.32 Rev. D
