Vello LAE-MFT-CEFA User Manual

AUTO
LENS ADAPTER

 

LAE-MFT-CEFA
Canon EF/EF-S Lens to
Micro Four Thirds Mount

THANK YOU FOR CHOOSING VELLO

This Vello Lens Adapter is
for attaching Canon EF and
EF-S lenses to a Micro Four
Thirds mount. It supports
autofocus (AF) with select
Canon lenses, and maintains
auto exposure (AE) as
well as aperture control
with most other lenses.
The adapter also delivers
metadata for your pictures.

2

The inside of the adapter is
coated to reduce any stray
reflections and maximize
picture quality. The tripod
foot is detachable and
has a /4-inch socket for
attaching to most tripods.

CONTENTS

• Vello LAE-MFT-CEFA
Lens Adapter for Canon
EF/EF-S lens to Micro
Four Thirds mount

• Front and Rear Caps

• Removable Tripod Foot

• User Manual

3

PRECAUTIONS

• Please read and follow
these instructions, and
keep this manual in a
safe place.

• Avoid sandy or dusty
environments when using
this adapter.

4

• Handle the adapter with
care—don’t drop it, and
avoid bumps and shocks.

• Clean the adapter by
wiping it with a soft,
dry cloth.

• Do not use solvents such
as benzene, alcohol, or
detergents to clean the
adapter.

• Be sure to read the
operating instructions for
your digital camera.

• Keep this unit away from
children.

• Keep this unit away from
water and flammable
gases or liquids.

• Do not attempt to
disassemble or repair
the equipment—doing
so will void the warranty,
and Vello will not be
responsible for any
damage.

• Handle the unit with
care.

• All images are for
illustrative purposes only.

5

OVERVIEW

EF-S Lens Alignment Dot
(White)

EF Lens Alignment
Dot (Red)

EF/EF-S
Lens Mount

6

Front Back

Lens Release
Button

Tripod Foot

Tripod Foot

Mounting Wheel

/4"-20 Tripod Socket

Camera Mount
Alignment Dot

Micro Four
Thirds Mount

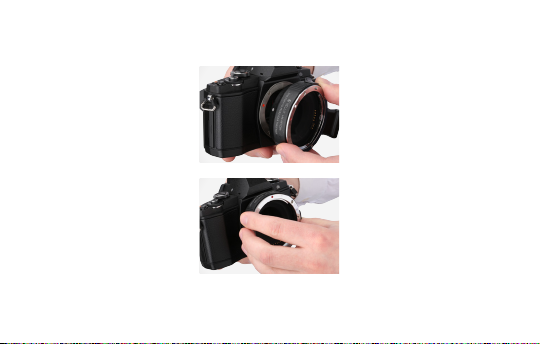

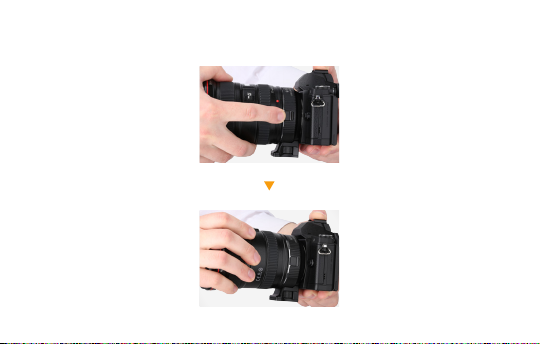

MOUNTING THE LENS ADAPTER

. Turn the camera's power

o and remove all caps
before mounting. Line
up the alignment dots
and carefully insert the
adapter.

2. Rotate the adapter
clockwise until it locks
into place.

7

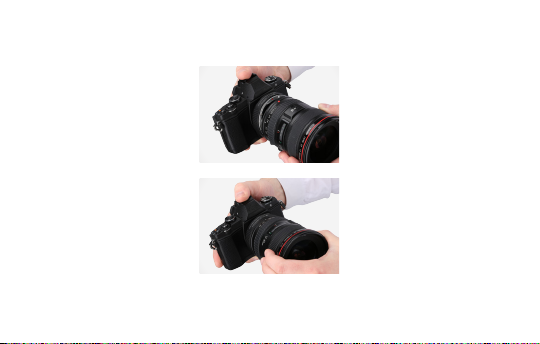

3. Line up the alignment
dots on the lens and the
adapter. Then carefully
insert the lens into the
adapter.

4. Rotate the lens clockwise
until it locks.

5. Turn your camera on.

8

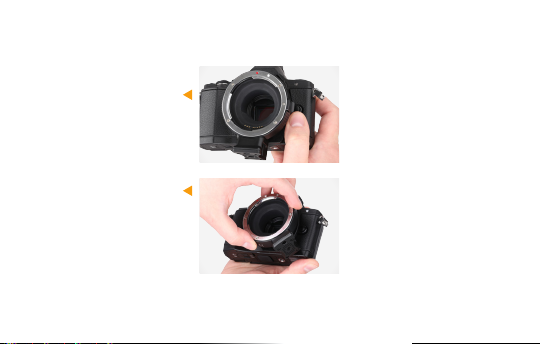

REMOVING THE LENS ADAPTER

. Turn the camera’s

power o.

2. Press and hold the
release pin on the lens
adapter, and rotate the
lens counterclockwise
to detach.

9

3. Press and hold the lens
release button on the
camera.

4. Rotate the lens adapter
counterclockwise to
release, and carefully
detach the lens adapter
from the camera.

0

5. Reattach the lens
adapter's front and rear
caps.

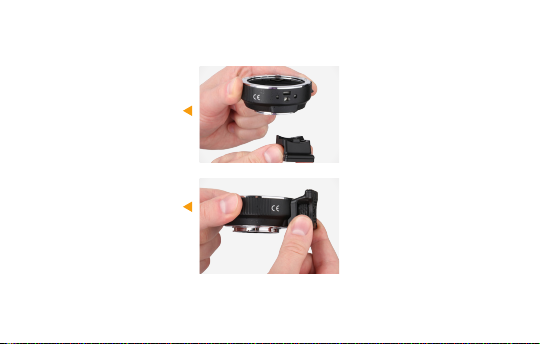

MOUNTING THE TRIPOD COLLAR

. Align the tripod foot’s

mounting screw with
the mounting hole on
the bottom of the lens
adapter.

2. Carefully rotate the
tripod foot’s mounting
wheel clockwise until the
foot is securely attached.



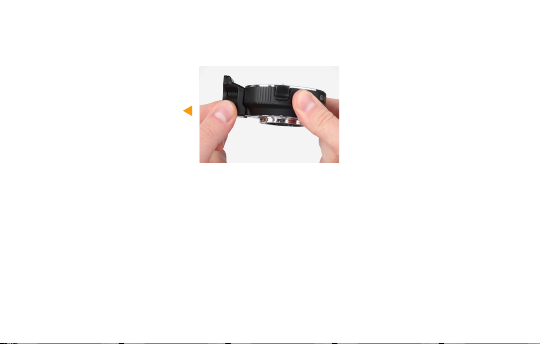

REMOVING THE TRIPOD COLLAR

Rotate the mounting
wheel counterclockwise
until the collar is loose
enough to remove from
the lens adapter.

2

Note: If your lens has a built-in
tripod collar, use the collar on
the lens to mount the assembly
to the tripod.

SPECIFICATIONS

Compatible Lenses Canon EF and EF-S

Compatible Cameras Micro Four Thirds System

Front Mount Canon EF/EF-S

Rear Mount Micro Four Thirds

Tripod Foot /4-20 inch socket

Dimensions with Tripod
Foot (H × W × D)

Weight 7.6 oz. (27 g)

3.25 × 2.75 × .4 inches (8.3 × 7 × 3.5 cm)

3
