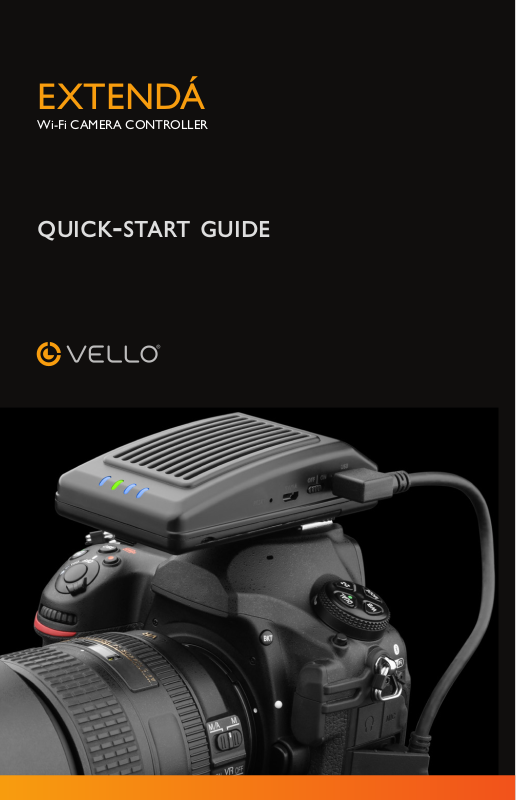

Page 1
EXTENDÁ
Wi-Fi CAMERA CONTROLLER
-
Page 2
CONTENTS
LW-100
• Extendá Wi-Fi remote control
• Mini-B USB cable
• Micro-B USB cable
• Shoe-mount adapter
• Lanyard
Page 3
LW-500
• Extendá Plus Wi-Fi remote control
• Mini-B USB cable
• Micro-B USB cable
• USB 3.0 cable
Page 4
OVERVIEW
LW-100
. Status LEDs
System: Flashing when the Extendá is starting up.
Solid indicates a successful start-up.
Battery: Turns on when battery power is low.
Battery charging: Orange when the battery is charging.
Green when the battery is fully charged.
2. Battery charging port
3. Reset button
4. Standard-A USB port: Connect to a camera or charge
mobile USB devices.
5. Ethernet/network port: Network connection to a computer.
6. Power switch
7. Lanyard port
8. /4"-20 mounting socket
6
7
4 5
3
2
8
Page 5
LW-500
. Status LEDs
Illuminates when turned on.
Battery: Flashes red when the battery power is low.
Orange when the battery is charging.
Green when the battery is fully charged.
Flashes when connecting, solid when connected.
Illuminates when a USB device is connected.
2. Battery charging port
3. Standard-A USB port: Connect to a camera or charge
mobile USB devices.
4. Reset button
5. Power switch
6. Mounting foot
7. /4"-20 mounting socket
8. Locking wheel
9. Battery compartment
6
8
9
7
2
3
5
4
Page 6
CHARGING
Extendá Battery Charging
Use the Micro-B USB cable to connect the Extendá to a power
source, such as a USB wall charger or powered USB port.
Charging Other Devices
You can charge devices, such as a smartphone, by
using a compatible USB cable to connect your mobile
device to the USB port on the Extendá.
EXTENDÁ SETUP
1. Download the Extendá app
Download the Extendá app from your device's app store.
The Extendá app is available for iOS® 8.0 and above,
Android™ 4.0 and above, Android TV 4.0 and above,
Windows
0.0 and above. For a full list, visit vellogear.com.
2. Connect the Extendá to your camera
Use a compatible USB cable to connect the Extendá’s
USB port to your camera’s AV / USB port. Turn on the
Extendá and your camera. For Sony cameras, set the USB
connection mode to PC Remote in the camera's menu.
Note: Some cameras use specific cables for this
operation, which are not supplied.
3. Connect to Extendá Wi-Fi hotspot
After turning on the Extendá, the system status indicator light
will turn solid green. In your device settings, connect to the
Extendá Wi-Fi hotspot [Extendá-xxxx].
4. Launch the Extendá app
Start the Extendá app from your device.
®
Windows XP and above, and Mac OS X
Page 7
EXTENDÁ APP
Settings: Access the camera’s exposure settings such as
shutter speed, aperture, ISO, and exposure compensation.
Browse: Access the pictures saved on the camera.
Shutter Button: Release the camera’s shutter.
Live View (LV): View what the camera sees in real time.
Auto View: Displays picture after each exposure.
Sony App Screenshot
Page 8
FIRMWARE UPDATE
The Extendá mobile app automatically checks for firmware
upgrades. If new firmware is available, the Extendá will start the
upgrade wizard. Follow the instructions provided by the wizard
to upgrade the firmware. For PC and Mac, visit vellogear.com.
NEED FURTHER ASSISTANCE?
For answers to questions and troubleshooting, visit vellogear.com
or call customer service at 22-594-2353.
Images are for illustrative purposes only.
One-Year Limited Warranty
www.vellogear.com
Vello is a registered trademark of the Gradus Group.
© 208 Gradus Group LLC. All Rights Reserved.
GG4
