Thank you for choosing Vello.
Congratulations on the purchase of your
new Vello CB-700 Mini Folding Bracket.
Designed for Point & Shoot cameras and
camcorders, this bracket features a comfortable
rubber grip for handheld shooting in vertical or
horizontal positions, and a 1/4" thread on the bottom
that facilitates tripod mounting. Compatible with
most shoe mount ashes and LED lights, the
bracket also folds at for easy storage.
FOR POINT & SHOOT CAMERAS AND CAMCORDERS

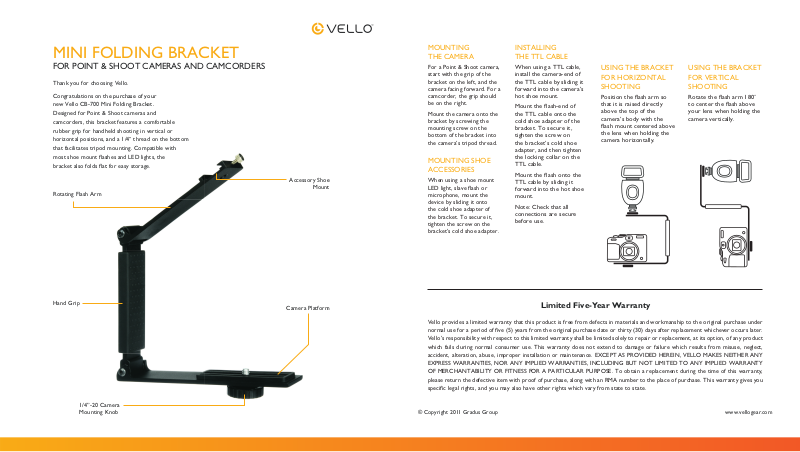

MINI FOLDING BRACKET
Rotating Flash Arm
Hand Grip
Accessory Shoe
Mount
Camera Platform
1/4”-20 Camera
Mounting Knob
purchase of your
d
r
a
m
the
oe
Mou
nt
f
orm
b
© Copyright 2011 Gradus Group www.vellogear.com
Vello provides a limited warranty that this product is free from defects in materials and workmanship to the original purchase under
normal use for a period of ve (5) years from the original purchase date or thirty (30) days after replacement whichever occurs later.
Vello’s responsibility with respect to this limited warranty shall be limited solely to repair or replacement, at its option, of any product
which fails during normal consumer use. This warranty does not extend to damage or failure which results from misuse, neglect,
accident, alteration, abuse, improper installation or maintenance. EXCEPT AS PROVIDED HEREIN, VELLO MAKES NEITHER ANY
EXPRESS WARRANTIES, NOR ANY IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY
OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. To obtain a replacement during the time of this warranty,
please return the defective item with proof of purchase, along with an RMA number to the place of purchase. This warranty gives you
specic legal rights, and you may also have other rights which vary from state to state.
When using a TTL cable,
install the camera-end of
the TTL cable by sliding it
forward into the camera’s
hot shoe mount.
Mount the ash-end of
the TTL cable onto the
cold shoe adapter of the
bracket. To secure it,
tighten the screw on
the bracket’s cold shoe
adapter, and then tighten
the locking collar on the
TTL cable.
Mount the ash onto the
TTL cable by sliding it
forward into the hot shoe
mount.
Note: Check that all
connections are secure
before use.
INSTALLING
THE TTL CABLE
For a Point & Shoot camera,
start with the grip of the
bracket on the left, and the
camera facing forward. For a
camcorder, the grip should
be on the right.
Mount the camera onto the
bracket by screwing the
mounting screw on the
bottom of the bracket into
the camera’s tripod thread.
MOUNTING
THE CAMERA
When using a shoe mount
LED light, slave ash or
microphone, mount the
device by sliding it onto
the cold shoe adapter of
the bracket. To secure it,
tighten the screw on the
bracket’s cold shoe adapter.
MOUNTING SHOE
ACCESSORIES
Position the ash arm so
that it is raised directly
above the top of the
camera’s body with the
ash mount centered above
the lens when holding the
camera horizontally.
USING THE BRACKET
FOR HORIZONTAL
SHOOTING
Rotate the ash arm 180˚
to center the ash above
your lens when holding the
camera vertically.
USING THE BRACKET
FOR VERTICAL
SHOOTING
Limited Five-Year Warranty
