Page 1
BG-P2
BAT T ERY GRIP
Designed For The Panasonic
Lumix GH5 and GH5s
Page 2
Introduction
The Vello BG-P2 is compatible with the Panasonic GH5
and GH5s Micro Four Thirds cameras. This grip accepts
one Pana sonic DMW-BLF19 battery, in addition to the
camera’s internal battery, effectively doubling your
camera’s runtime.
The BG-P2 is equipped with an alternate shutter
release, white balance, ISO, EV, and Fn buttons, plus an
AF/AE Lock, joystick, and a control lock switch. Main
and sub-command dials, along with the buttons, make it
comfort able to shoot in portrait orientation.
Please read through
this entire manual before
using the BG-P2 battery grip.
2
Page 3
Precautions
1. The BG -P2 should be us ed with only th e compatible
devices and batteries specified in this manual.
2. Cover the power terminal with the contact
cap when the BG -P2 is not in use. T his prevents
electrical shor ts caused by metal object s touching
the power terminals.
3. If you notice smoke, an unusual smell, or noise
coming from the bat tery pack, discontinue use
immediately. Remove the bat tery and contact the
Vello Customer Service Department.
4. Keep this product away from water and any
flammable gases or liquids.
5. Install batteries in the proper orient ation. Installing
batteries in the reverse orientation can cause them
to leak, overheat, or explode.
6. Do not attempt to disassemble or repair this
product.
7. Clean this produc t with only a sof t, dr y cloth.
8. Keep this product away from children.
9. Make sure that this produc t is intact and that there
are no missing par ts .
10. To avoid damage to this product, be careful not
to overtighten or improperly thread any of the
threaded fittings.
11. Remove the battery from the grip before long-
term storage .
12 . All images are for illus trative purposes only.
OVERVIEW INTRODUCTION
3
ASSEMBLY
Page 4
Overview
13
14
15
16
17
1
12
18
11
19
20
10
9
6
8
7
2
3
4
5
4
Page 5
1
Shutter release button*
8
On/o switch
14
Contact cap
Activates the BG-P2’s controls. Your
2
Front command dial*
3
White-balance button*
4
ISO button*
5
EV button*
6
Fn button
7
Strap mount
camer a will continue to draw power
from the BG -P2 when the s witch is in
the Off position. The on/off switch is
not a power s witch.
9
Rear command dial*
10
AF/AE lock button*
11
Joystick / Fn button*
12
Locking wheel
13
Mounting screw
15
Terminal contacts
16
Camera’s contact cap compartment
17
Mounting pin
18
1/4-20 tripod socket
19
Battery chamber
Accepts one DMW-BLF19 batter y.
20
Battery chamber latch
* These controls perform the same function as their on-camera equivalents and are affected by changes to the Custom Settings menu.
See your camera manual for details.
OVERVIEW INTRODUCTION
5
ASSEMBLY
Page 6

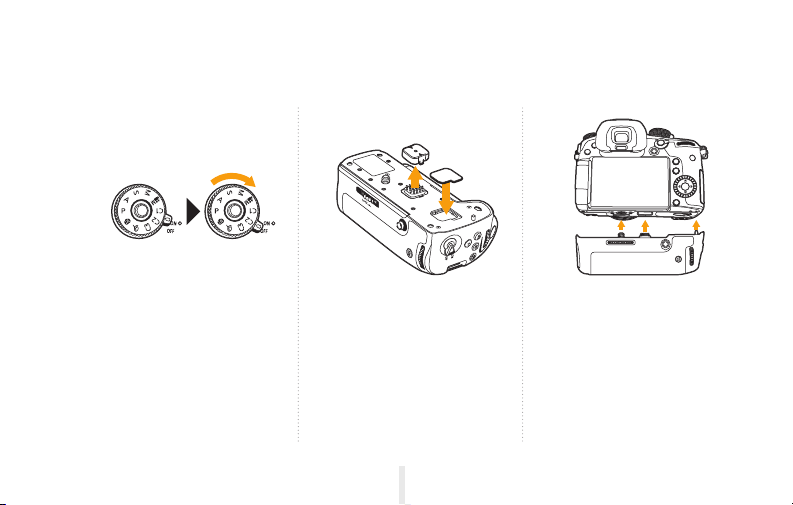

Attaching the Grip
1. Make sure your camera is
turned off, and the batter y
grip’s control lock is in the
off position.
2. Remove the rubber
contac t cap from the
bottom of the camera ,
and store it in the available
contact cap compartment.
Remove the contact cap
from the grip.
6
3. Align the grip’s mounting
screw, mounting pin, and
contacts with the camera’s
corresponding slots, and
inser t the grip.
Page 7
INTRODUCTIONOVERVIEW

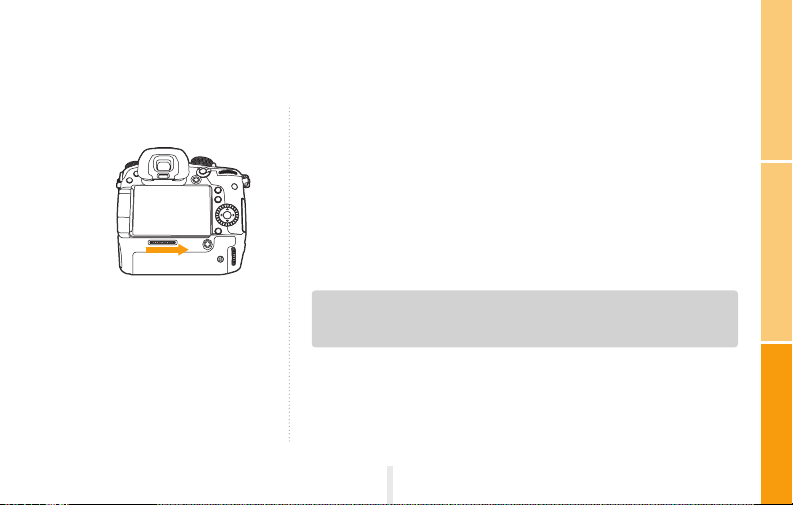

4. Rotate the grip’s locking
wheel in the direc tion of
the arrow until the grip is
firmly att ached. Be careful
not to overtighten.
Tip: If you plan to use a single battery, we recommend inserting the battery into
the grip (see Inserting a Battery on page 8) rather than into your camera. This
way, you will be able to access the batter y while the grip is installed.
7
ASSEMBLY
Page 8

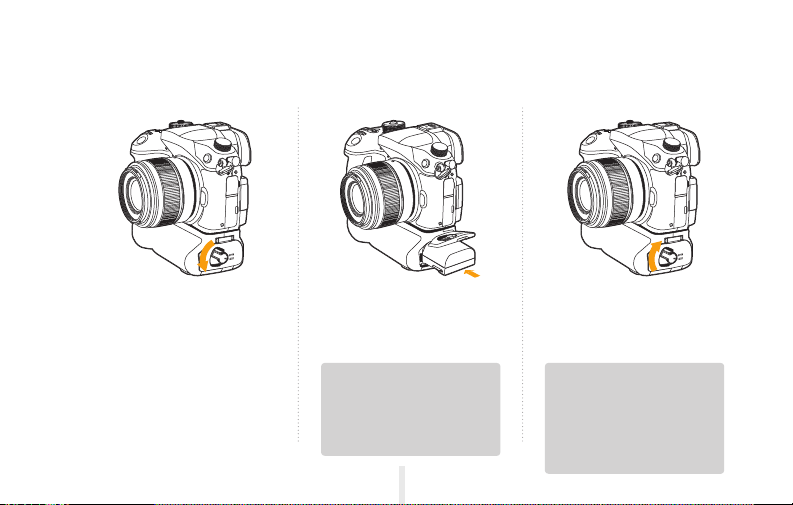

Inserting a Battery
1. Slide the battery
compartment latch
to the Open position.
The chamber door will
automatically open.
2. Insert one DMW-BLF19
battery all the way into the
battery chamber, until the
battery locks into place.
Note: If the battery is not in the
correct orientation, you won’t
be able to insert it all the way,
and the battery will not lock into
place.
8
3. Close the bat tery chamber
door, and slide the latch to
the Lock position.
Note: The BG-P2’s On/Off
switch will not turn off your
camera or prevent it from
drawing power from the grip. To
turn off your camera, use your
camera’s power switch.
Page 9
INTRODUCTIONOVERVIEW

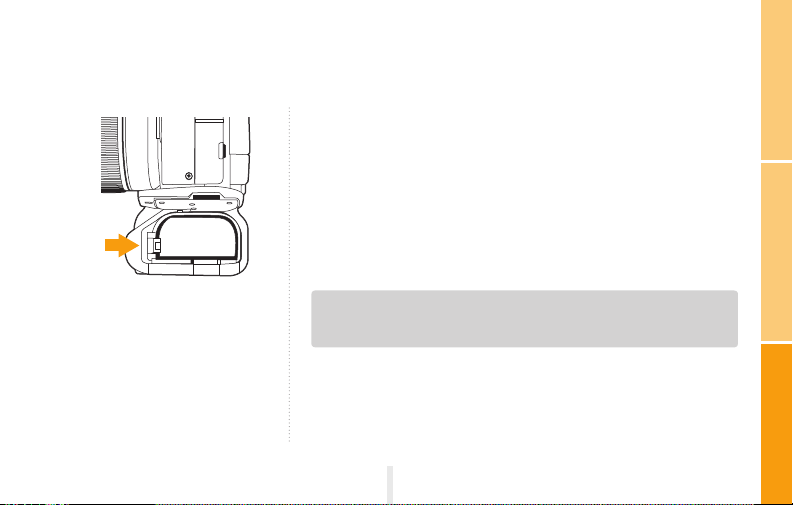

4. To remove the ba ttery,
open the battery chamber
and pull the relea se lever.
Note: When using two batteries, one installed in the camera and one in the grip,
you can program your camera to draw power from one batter y before the other.
For more information on this feature, refer to your camera’s instruction manual.
9
ASSEMBLY
Page 10
Specifications
Power So urce One DM W-BL F19 batt ery
Operating Temperature 32°F–104°F (0°C– 40°C)
Dime nsio ns (W × H × D) 5.3 × 1.5 × 2 .5 in. (13. 5 × 3.8 × 6.4 c m)
Weig ht
5.7 oz. (161.6 g) excl uding bat ter y
10
Page 11
ONE-YEAR LIMITED WARRANTY
This VELLO product is warranted to the original purchaser to be free from defects in materials and workmanship
under normal consumer use for a period of one (1) year from the original purchase date or thirty (30) days after
replacement, whichever occurs later. The warranty provider’s responsibility with respect to this limited warranty
shall be limited solely to repair or replacement, at the provider’s discretion, of any product that fails during normal
use of this product in its intended manner and in its intended environment. Inoperability of the product or part(s)
shall be determined by the warranty provider. If the product has been discontinued, the warranty provider reserves
the right to replace it with a model of equivalent quality and function.
This warranty does not cover damage or defect caused by misuse, neglect, accident, alteration, abuse, improper
installation or maintenance. EXCEPT AS PROVIDED HEREIN, THE WARRANTY PROVIDER MAKES NEITHER
ANY EXPRESS WARRANTIES NOR ANY IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO ANY
IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. This warranty
provides you with specific legal rights, and you may also have additional rights that vary from state to state.
To obtain warranty coverage, contact the Vello Customer Service Department to obtain a return merchandise
authorization (“RMA”) number, and return the defective product to Vello along with the RMA number and proof of
purchase. Shipment of the defective product is at the purchaser’s own risk and expense.
For more information or to arrange service, visit www.vellogear.com or call Customer Service at 212-594-2353.
Product warranty provided by the Gradus Group.
www.gradusgroup.com
VELLO is a registered trademark of the Gradus Group. © 2018 Gradus Group LLC. All Rights Reserved.
All other trademarks are the property of their respective owners.
