BG-N16-2
BAT T ERY GRIP
Designed for the Nikon
D5500 and D5600 DSLR Cameras
Page 2
Thank you
for choosing Vello
The Vello BG-N16-2 battery grip offers extended
shooting time and comfort when shooting in a vertical
(portrait) orientation. The grip is compatible with the
Nikon D5500 and D5600 DSLR cameras and accepts up
to two Nikon EN-EL14/EL14a rechargeable batteries. It
offers an al ternate shut ter release bu tton that triggers the
camer a via the included shutter release cable, making the
grip ideal for shooting por trait photography. An included
IR remote allows ea sy line-of-sight wireless shooting.
Please read through this
entire manual before
using the BG- N16-2
battery grip.
2
Page 3
Precautions
1.
The BG-N16-2 should be used only with compatible
devices specified in this manual.
2.
Use only with the batteries and battery holders
recommended in this manual.
3. If you notice smoke, noise, or an unusual smell from
the bat tery pack, discontinue use immediately.
Remove the batteries, and ta ke the device to a Vello
authorized reseller.
4.
The bat tery level may not display properly if bat teries
are installed before mounting the grip.
5. Remove batteries from the grip when not in use.
6. Do not attempt to disassemble.
7.
Avoid exposing this product to water or ex treme
humidity, and keep i t in a cool, dry place.
8. Keep out of reach of children.
9. All images are for illus trative purposes only.
OVERVIEW INTRODUCTION
3
ASSEMBLY
Page 4
Overview
14
13
4
1
2
3
5
12
11
10
6
7
9
8
19
20
1615
17
18
21
4
Page 5
1
Shutter release button
2
Handstrap mount
3
Tripod socket
4
Nonslip grip
5
IR remote sensor
6
Thumbwheel lock
7
2.5 mm remote cable socket
8
Battery tray compartment
9
Battery tray lock
10
Mounting screw
11
Control lock switch
12
Camera battery door holder
13
Power contacts
14
Contact cap
15
Battery slot 1
16
Slot 1 contacts
17
Slot 2 contacts
18
Battery slot 2
19
6-bay AA battery tray
20
IR remote
21
Shutter release cable
(2.5 mm to accessory terminal)
OVERVIEW INTRODUCTION
5
ASSEMBLY
Page 6
Attaching the Battery Grip
1.
Ensure that the camera
power is tur ned off.
2.
Remove the camera’s
battery chamber door. Pull
gently at a 45° angle until t he
door detaches.
6
3.
Slide the chambe r door into
the BG-N16-2’s camer a
battery door holder for
safe kee ping.
Page 7
4. Remove the power contact
cap, and inser t the batter y
grip’s power contacts
into the camera’s battery
chamber.
5.
Rotate the thumbwheel
counterclockwise until
the grip is secured to the
camera.
6.
Connect the shutter release
cable from the 2. 5 mm
remote cable socket on
the grip to the accessory
terminal on the camera.
OVERVIEW INTRODUCTION
7
ASSEMBLY
Page 8

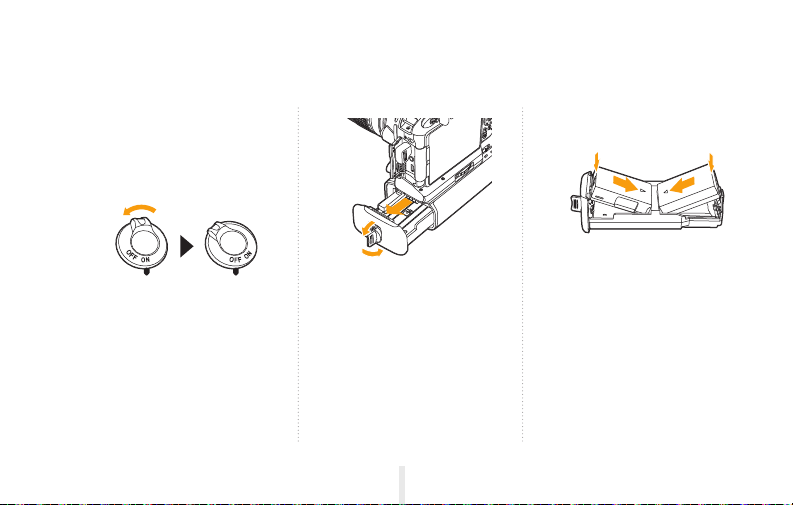

Inserting the Batteries
1.
Turn off the camera’s
power, and make sure the
grip’s control lock switch is
in the Off position.
2.
Twist the bat tery tray’s
lock counterclockwise, and
remove the battery tray
from the grip.
8
3.
Nikon EN-EL14/EL14a:
Inser t the first battery into
slot 1 as shown and push
down to lock the bat tery
in place. Repeat for slot 2.
Page 9
AA Batteries: Place six
identical AA batteries into
the AA battery tray as
indicated.
4.
Inser t and lock the batter y
tray inside the batter y grip.
5. Turn on the camera power,
and make sure the grip’s
control lock swi tch is in the
On position.
Note: When removing the grip,
turn off the camera’s power and
control lock switch, and then
remove the batteries.
OVERVIEW INTRODUCTION
9
ASSEMBLY
Page 10
IR Remote
The IR remote works with the Nikon D5500 and D5600 DSLR cameras and allows you to trigger your
camera wirelessly. Make sure the shutter-release cable is plugged into the grip and camera, and that the
remote is pointed at the grip’s IR sensor. The IR remote works through line-of-site, so make sure there
are no obstacles blocking the signal.
Specifications
Power source Up to t wo Niko n EN- EL14/EL14a type recharge able Li-io n batteri es
Operating temperature 32°F to 10 4°F (0°C to 40° C)
Dimen sions ( H × W × D) 4 × 5 × 3.4 in. (10.2 × 12 .7 × 8.7 cm)
Weight 7.4 oz. (209.8 g) w itho ut batter ies
10
Page 11
ONE-YEAR LIMITED WARRANTY
This VELLO product is warranted to the original purchaser to be free from defects in materials and workmanship
under normal consumer use for a period of one (1) year from the original purchase date or thirty (30) days after
replacement, whichever occurs later. The warranty provider’s responsibility with respect to this limited warranty
shall be limited solely to repair or replacement, at the provider’s discretion, of any product that fails during normal
use of this product in its intended manner and in its intended environment. Inoperability of the product or part(s)
