Vello BG-C8 User manual

BG-C8

BATTERY GRIP

Designed For The Canon
EOS 6D DSLR Camera

Introduction

Thank you for choosing Vello, and congr atulations
on your new BG-C8 battery grip purchase. Enjoy
the many benefits that a battery grip offer s, such as
extended shooting time and more cont rol and comfor t
when shooting in a ver tical (portrait) orientation.

The Vello BG- C8 is compatible with the Canon EOS
6D DSLR camera. The BG -C8 accept s two Canon
LP-E6 rechargeable batteries, or six AA batteries
(alkaline, Ni-MH, lithium, or nickel-manganese) can
be used instead for added convenience. The BG-C8 is
equipped wi th an alter nate shut ter-release button, AF
on but ton, AF point selection, AE lock/FE lock but ton,
and main dial for shooting in a vertical position.

Please read through this entire manual before using
the BG -C8 battery grip.

2

Precautions

1. The BG-C8 should only be used with compatible

devices specified in this manual.

2. Only use with batteries and batte ry holders

recommended in this manual.

3. Cover the power terminals wi th the contact cap

when the BG-C8 is not in use. This prevents
electrical shorts caused by metal objects touching
the power ter minals.

4. When you remove the bat ter y holder from the

grip, remove the batteries or place the holder in
a container to preve nt electr ical shor ts caused by
contact wi th other met al object s.

5. If you notice smoke , an unusual smell or noise from

the battery pack, discontinue use immediately.

Remove the bat ter ies and take the device to a
Vello authorized reseller.

6. Turn the grip power off when not shooting

vertically.

7. The battery level may not display properly if

batteries are inser ted before mounting the grip.

8. Remove bat ter ies from the grip when not in use.

9. Do not attempt to disassemble.

10. Avoid water or ex treme humidit y and keep in a

dry and cool place.

11. Keep out of reach of children.

3

OVERVI EW INTRODUCTI ON

ASSEMBLY

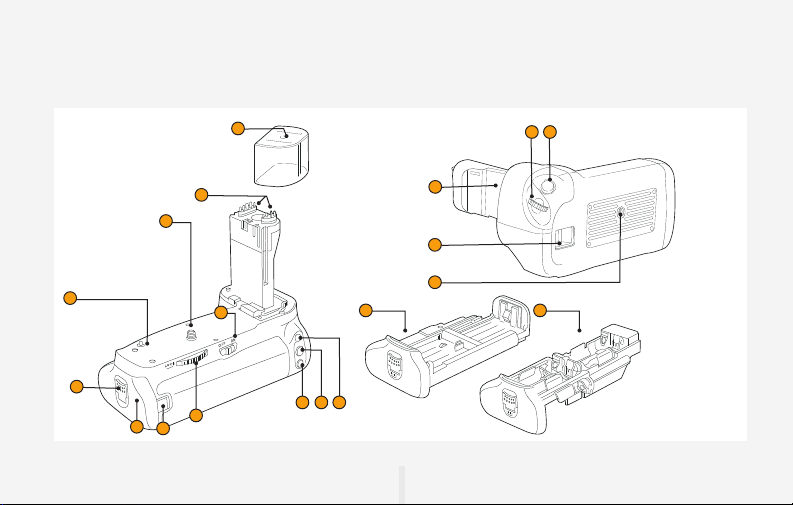

Overview

4

6

7

10 11 12

1

13

16

17

9

2

5

8

18 19

3

15

14

4

1

Contact Cap

Protects grip contacts. Cover the
contacts when the grip is not in use.

2

Electrical Contacts

Communicates with the camera
electronics.

3

Mounting Screw

Aligns with the camera’s tripod
socket.

4

Guide Pin

Helps align the camera to the grip.

5

Battery Tray Lever

Locks and unlocks the batter y
compartment door.

6

Battery Tray Compartment

Houses the battery tray.

7

DC Coupler Cord Mount

Groove for use w ith the Canon AC
Power Adapter (AC K-E6).

8

Attachment Wheel

Secur es the grip to the camera.

9

Grip Power ON/OFF

10

AF Point Selection/Magnify Button*

11

AE Lock/FE Lock/Index/Reduce
Button*

12

AF On Button

13

Shutter-Release Button*

14

Main Dial*

15

Camera Battery Chamber Cover

Holder

Stores the cover when the grip is

mounted.

16

Hand Strap Mount

17

Tripod Socket

18

Battery Tray

Holds up to two C anon L P-E6

batteries.

19

AA Battery Holder

This second tray holds six A A

batteries.

* Performs the same function as on the
camera.

OVERVI EW INTRODUCTI ON

ASSEMBLY

5

Attaching The Grip

1. Ensur e that t he power is

turned off on the camer a
and that the power switch
is set to OFF on the
battery grip.

2. Remove the bat ter y

from the camera battery
compar tment.

3. Open the camera battery

chamber cover and
remove, as indicated
above.

6

4. To prevent loss, place the

camera battery chamber
cover in the BG-C8
battery chamber holder,

as indicated above. Swing
the battery cha mber cover
shut so that it locks into
place

5. Remove the protective

cap and connect the BG­C8 grip to the camera
while aligning the grip’s
mounting screw with the
camera’s tripod socket.

6. Rotate the attachment

wheel in the direc tion
shown by the ar row until
it is firmly tightened.

3

Turn the camera power off,
remove batteries, and replace
protective contact cap when
removing the grip.

7

OVERVI EW INTRODUCTI ON

ASSEMBLY

2

1

Inserting Batteries

1. Ensure that the power

is turned off on the
camera and grip. Use your
fingernail to pry open the
battery tray lever so you
can rotate and pull i t as
indicated above and slide
the battery tr ay out of the
grip.

2. Canon LP-E6 Batteries:

Insert up to two batteries
by placing them in either
slot in the battery, ensuring
the cor rec t orientation as
shown on the tr ay.

3. AA Batteries: Place

six new dispos able or
freshly recharged AA
batteries of the same
type in the AA battery
holder as shown, while
ensuring that they are in
the cor rec t orientation.

8

MIC

4. Rotate the bat ter y tray

lever counterclockwise
and slide the battery
tray all the way into the
grip. Rotate the lever as
indicated above and push
it back into place to lock
the tray.

5. Switch the grip power

to ON and then turn
on the camer a’s power.
Check t he bat ter y level
in the control panel or
viewfi nder.

6. Household Power Outlet:

The Canon ACK- E6
AC Power Adapter Kit
(sold separately) can be
connected to the gr ip.
Insert the DC coupler
through the small groove
on the back of the grip.
Ensure that the cord
doesn’t get pinched by the
battery holder.

MIC

9

OVERVI EW INTRODUCTI ON

ASSEMBLY

MIC

Specifications

Power Source 1. One or t wo Can on LP- E6 rec harg eable batt eries

2. Six A A/L R6 Alk alin e, Ni -MH , lithium, or nickel-manganese ba tteries

3. Work s with t he Canon AC Ada pter K it ACK- E6 (sold separ atel y)

Operating Temperature

32 – 104 °F (0 – 40 °C)

Dimensions

Appr oxima tely 5 .5 x 5. 5 x 3. 5” (139.7 x 139.7 x 88.9 mm)

Weig ht

Approximately 12.8 oz. (363 g ) (excluding bat ter y tray and bat teries)

* Approximate m easur ement s.

Specifi catio ns and design ar e subje ct to ch ange wi thou t notic e.

AA batter ies do no t provi de as muc h shoot ing time as LP- E6 rec harg eable batteries . Perf ormance of AA b atte ries may also be dependent
on brand and storage conditions. A A bat teri es may not function at temper atur es belo w 68º F (20 º C).

10

Warranty

Vello provides a limited warranty that this product is free from defects in materials and workmanship to

the original purchaser under normal use for a period of one (1) year from the original purchase date or

thirty (30) days after replacement whichever occurs later. Our responsibility with respect to this limited

warranty shall be limited solely to repair or replacement, at its option, of any product which fails during

normal consumer use. To obtain warranty coverage during the Warranty Period, contact your place of

purchase (“Seller”) to obtain a return merchandise authorization (“RMA”) number, and return to Seller

the defective product along with proof of purchase and the RMA number. This warranty does not extend

to damage or failure which results from misuse, neglect, accident, alteration, abuse, improper installation or

maintenance. EXCEPT AS PROVIDED HEREIN, VELLO MAKES NEITHER ANY EXPRESS WARRANTIES

NOR ANY IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY

OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. This warranty provides you with

specifi c legal rights, and you may also have additional rights which vary from state to state.

© Copyright 2013 Gradus Group.
