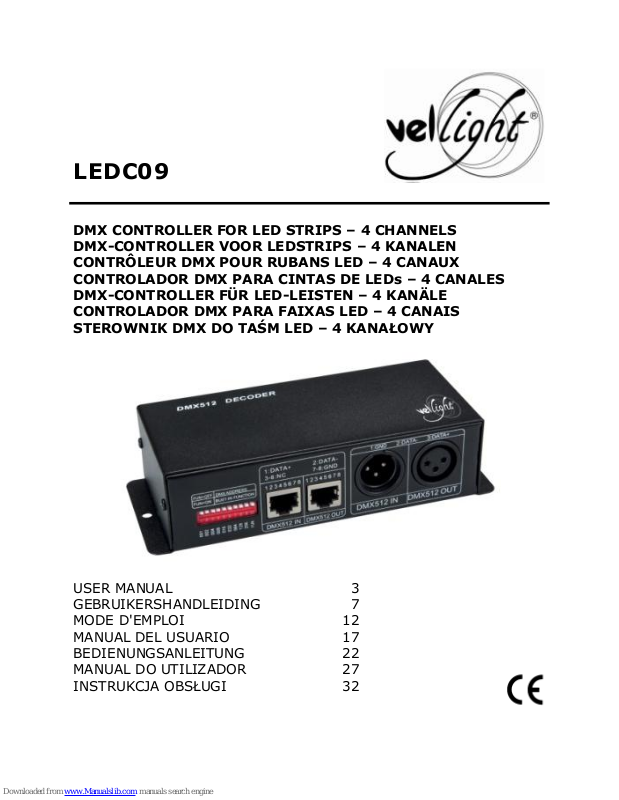

LEDC09
DMX CONTROLLER FOR LED STRIPS – 4 CHANNELS
DMX-CONTROLLER VOOR LEDSTRIPS – 4 KANALEN
CONTRÔLEUR DMX POUR RUBANS LED – 4 CANAUX
CONTROLADOR DMX PARA CINTAS DE LEDs – 4 CANALES
DMX-CONTROLLER FÜR LED-LEISTEN – 4 KANÄLE
CONTROLADOR DMX PARA FAIXAS LED – 4 CANAIS
STEROWNIK DMX DO TAŚM LED – 4 KANAŁOWY
USER MANUAL 3
GEBRUIKERSHANDLEIDING 7
MODE D'EMPLOI 12
MANUAL DEL USUARIO 17
BEDIENUNGSANLEITUNG 22
MANUAL DO UTILIZADOR 27
INSTRUKCJA OBSŁUGI 32
LEDC09
V. 01 – 12/09/2013 2 ©Velleman nv
LEDC09
V. 01 – 12/09/2013 3 ©Velleman nv
USER MANUAL
1. Introduction
To all residents of the European Union
Important environmental information about this product
This symbol on the device or the package indicates that
disposal of the device after its lifecycle could harm the
environment. Do not dispose of the unit (or batteries) as
unsorted municipal waste; it should be taken to a
specialized company for recycling. This device should be
returned to your distributor or to a local recycling service. Respect
the local environmental rules.
If in doubt, contact your local waste disposal authorities.
Thank you for choosing Vellight! Please read the manual thoroughly
before bringing this device into service. If the device was damaged in
transit, don't install or use it and contact your dealer.
2. Safety Instructions
Be very careful during the installation: touching live wires
can cause life-threatening electroshocks.
Always disconnect mains power when device not in use or
when servicing or maintenance activities are performed.
Handle the power cord by the plug only.
Keep this device away from rain, moisture, splashing
and dripping liquids. Never put objects filled with
liquids on top of or close to the device.
Keep this device away from children and unauthorized
users.
There are no user-serviceable parts inside the device. Refer
to an authorized dealer for service and/or spare parts.
A qualified technician should install and service this device.
Make sure that the available voltage does not exceed the voltage
stated in the specifications of this manual.
3. General Guidelines
Refer to the Velleman® Service and Quality Warranty on the last
pages of this manual.
LEDC09
V. 01 – 12/09/2013 4 ©Velleman nv
Keep this device away from dust and extreme temperatures. Make
sure the ventilation openings are clear at all times.
Protect this device from shocks and abuse. Avoid brute force when
operating the device.
Familiarise yourself with the functions of the device before actually
using it.
All modifications of the device are forbidden for safety reasons.
Damage caused by user modifications to the device is not covered
by the warranty.
Only use the device for its intended purpose. Using the device in
an unauthorised way will void the warranty.
Damage caused by disregard of certain guidelines in this manual
is not covered by the warranty and the dealer will not accept
responsibility for any ensuing defects or problems.
Keep this manual for future reference.
4. Installation
Refer to the illustrations on page 2-4 of this manual.
1
DIP switches
to select the operating mode
2
DMX input
8P8C (RJ45) input from external DMX
controller
3
DMX output
8P8C (RJ45) output to next LEDC09 device in
daisy chain connection
4
DMX input
3-pin XLR input from external DMX controller
5
DMX output
3-pin XLR output to next LEDC09 device in
daisy chain connection
6
terminals
V–
to 12-24 VDC power supply (–)
V+
to 12-24 VDC power supply (+)
COM
to LED strip, power
CH1
to LED strip, red (channel 1)
CH2
to LED strip, green (channel 2)
CH3
to LED strip, blue (channel 3)
CH4
to LED strip, white (channel 4)
Caution: Use either 8P8C connectors or 3-pin XLR connectors. Do
not use both.
LEDC09
V. 01 – 12/09/2013 5 ©Velleman nv
5. Test Mode
In test mode, you can set a static colour, or use changing colours at
different speeds.
Static Colour
To set a static colour:
1. Set DIP switch 10 to ON.
2. Set DIP switches 8 and 9 to OFF.
3. Select the desired static colour by setting the corresponding DIP
switch (1-7) to on. If all DIP switches are off, all LED lights are
out. If more than one DIP switch is set to on, the DIP switch
with the highest value prevails:
Colour
DIP switch
1 2 3 4 5 6 7 8 9
Red 1 0 0 0 0 0 0 0
0
Green
x 1 0 0 0 0 0 0 0
Blue
x x 1 0 0 0 0 0 0
Yellow
x x x 1 0 0 0 0 0
Purple
x x x x 1 0 0 0 0
Cyan
x x x x x 1 0 0 0
White
x x x x x x 1 0 0
0 = off; 1 = on; x = can be either on or off.
Changing Colours
To use changing colours:
1. Set DIP switch 10 to ON.
2. Choose the desired dynamic mode:
o For switching colours, set DIP switch 8 to on and DIP switch 9
to off.
o For fading colours, set DIP switch 9 to on (DIP switch 8 can
be either on or off).
3. Set the speed of the colour change by setting the corresponding
DIP switch (1-7) to on. All DIP switches off = slowest; DIP
switch 7 on = fastest. If more than one DIP switch is set to on,
the DIP switch with the highest value prevails.
LEDC09
V. 01 – 12/09/2013 6 ©Velleman nv
Some examples:
Mode
DIP switch
1 2 3 4 5 6 7 8 9
Switching colours
at medium speed
x x x 1 0 0 0 1 0
Fading colours at
maximum speed
x x x x x x 1 x 1
0 = off; 1 = on; x = can be either on or off.
6. DMX Mode
To set the device to work with a DMX controller:
1. Set DIP switch 10 to OFF.
2. Connect the external DMX controller to the DMX input.
Caution: Use either 8P8C connectors or 3-pin XLR connectors.
Do not use both.
3. Use DIP switches 1-9 to specify the DMX address:
Address
DIP switches
Switch
Represents
5
1 1 2
2
3
4
19
4 8 5
16
6
32
40
7
64
8
128
9
256
Set more than one DIP switch on and add their corresponding values
to obtain the desired DMX address. For example: if only DIP switch 8
is on, the DMX address is 128. To obtain DMX address 19, set DIP
switches 1, 2, and 5 to on (1 + 2 + 16 = 19).
7. Technical Specifications
DMX channels
4
power supply
12-24 VDC (not incl.)
LEDC09
V. 01 – 12/09/2013 7 ©Velleman nv
power output
12 V
< 192 W
24 V
< 384 W
output current
4 x 4 A
input signal
DMX512
greyscale levels
256 (8 bits)
PWM frequency
± 2600 Hz
weight
310 g
dimensions
165 x 68 x 40 mm
Use this device with original accessories only. Velleman nv
cannot be held responsible in the event of damage or injury
resulting from (incorrect) use of this device. For more info
concerning this product and the latest version of this manual,
please visit our website www.velleman.eu. The information in
this manual is subject to change without prior notice.
© COPYRIGHT NOTICE – The copyright to this manual is
owned by Velleman nv. All worldwide rights reserved. No part
of this manual may be copied, reproduced, translated or reduced to
any electronic medium or otherwise without the prior written consent
of the copyright holder.
GEBRUIKERSHANDLEIDING
1. Inleiding
Aan alle ingezetenen van de Europese Unie
Belangrijke milieu-informatie betreffende dit product
Dit symbool op het toestel of de verpakking geeft aan dat,
als het na zijn levenscyclus wordt weggeworpen, dit toestel
schade kan toebrengen aan het milieu. Gooi dit toestel (en
eventuele batterijen) niet bij het gewone huishoudelijke
afval; het moet bij een gespecialiseerd bedrijf
terechtkomen voor recyclage. U moet dit toestel naar uw verdeler of
naar een lokaal recyclagepunt brengen. Respecteer de plaatselijke
milieuwetgeving.
Hebt u vragen, contacteer dan de plaatselijke autoriteiten
betreffende de verwijdering.
