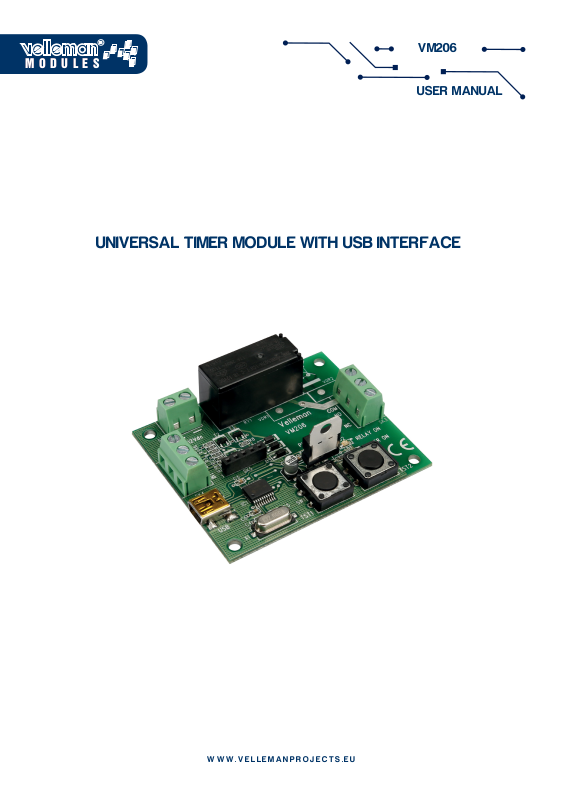

UNIVERSAL TIMER MODULE WITH USB INTERFACE
VM206
USER MANUAL
WWW.VELLEMANPROJECTS.EU
Table of contents
Description 3
Timing sequencer user interface 10
Let’s get started!
Description
No timer is universal, except this one!
2 reasons why this timer is truly universal:
1. The timer comes with a wide variety of operating modes.
2. If the built-in modes or delays don’t suit your application, you can simply tailor them according to your needs using the supplied PC software.
Features
• 10 operating modes:
- toggle mode
- start/stop timer
- staircase timer
- trigger-at-release timer
- timer with turn on delay
- timer with turn off delay
- single shot timer
- pulse/pause timer
- pause/pulse timer
- custom sequence timer
• wide timing range
• buffered inputs for external START / STOP buttons
• heavy duty relay
• PC software for timer conguration and delay setting
Specications
• power supply: 12 VDC (100 mA max.)
• relay output: 8 A / 250 VAC max.
• minimum event time: 100 ms
• maximum event time: 1000 h (over 41 days)
• dimensions: 68 x 56 x 20 mm (2.6” x 2.2” x 0.8”)
VM206USER MANUAL
3
Plugging in your board for the rst time
First, you will need to plug your VM206 into an available USB port on your computer so Windows can detect your new device.
Then download the latest software version for the VM206 on www.velleman.eu via these simple steps:
1. go to: http://www.vellemanprojects.eu/support/downloads/?code=VM206
2. download the VM206_setup.zip le
3. unzip the les in a folder on your drive
4. double click the “setup.exe” le An install wizard will guide you through the complete installation procedure. Shortcuts to the VM206
software can now be installed.
Starting the software
1. locate the VM206 software shortcuts (programs > VM206 > ...).
2. click on the icon to start the main program
3. then click on the ‘Connect’ button, the “Connected” label should now be displayed
You are now ready to program the VM206 timer!
Timer operation modes
1: on delay - relay turns on after delay t1 2: off delay - relay turns off after delay t1 3: one shot - a single pulse of length t2, after delay t1 4: repeat cycle - after delay t1, relay turns on for t2 ; then repeats 5: repeat cycle - relay turns on for time t1, off for t2; then repeats 6: toggle mode 7: start/stop timer 8: staircase timer 9: trigger-at-release timer
10: programmable timing sequence
Now you can set up your rst timing program for the VM206:
1. select any of the options from 1 to 9
2. enter the time or use the default 2sec and 1sec
3. now click the ‘Send’ button
g. 1
VM206USER MANUAL
4
The VM206 is now programmed!
You can check the operation by pressing the TST1 (Start) button. The ‘RELAY ON’ LED indicates the operation. You can stop the timer operation by pressing the TST2 (Reset) button.
Power
supply
Heavy duty relay
12 VDC / 100 mA max.
Start - Stop Buffered inputs accept dry contact or open collector
For inductive loads, add optional VDR (e.g., Velleman VDR300)
8 A / 250 VAC NO / NC Relay output
Status LEDs
USB
ICSP
connector
To get the relay functioning as well, you need to connect the 12V supply to the SK1 screw connector.
You can disconnect the USB cable and test the timer operation as a stand-alone with the 12V supply.
On the board there are two inputs; IN1 and IN2 for remote switches or NPN transistors to control the timer operation. The switch or transistor connected between IN1 and GND acts as the Start button (TST1) and the switch or transistor connected between IN2 and GND acts as the Reset button (TST2).
Start - Reset
pushbuttons
Relay output
The relay contacts are connected to the SK3 connector:
COM: Common
NO: Normally Open
NC: Normally Closed
g. 2
On the board, there is space provided for a transient suppressor (option) to reduce contact wear. Mount VDR1 for suppression of the NC contact. Mount VDR2 for suppression of the NO contact.
VM206USER MANUAL
5
Description of the timer operation
1: On delay - relay turns on after delay t1
Timing begins on the leading edge of the Start signal. When the set time (t1) has elapsed, the relay contacts transfer to the ON state. The contacts remain in the ON state until the Reset signal is applied or power is interrupted.
Start
Reset
Output
g. 3
2: Off delay - relay turns off after delay t1
When a Start signal is supplied, the relay contacts transfer immediately to the ON state. Timing begins on the leading edge of the Start signal. When the set time (t1) has elapsed, the relay contacts transfer to the OFF state. The timer is reset by applying the Reset input or by interruption of power.
Start
Reset
Output
g. 4
3: One shot - a single pulse of length t2, after delay t1
Timing begins on the leading edge of the Start signal. When the rst set time (t1) has elapsed, the relay contacts transfer to the ON state. The contacts remain in the ON state until the second set time (t2) has elapsed or the Reset signal is applied or power is interrupted.
VM206USER MANUAL
6
Start
Reset
Output
g. 5
4: Repeat cycle - after delay t1, relay turns on for t2; then repeats
Timing begins on the leading edge of the Start signal. A cycle is initiated when the output will be OFF for the rst set time (t1), then ON for the second set time (t2). This cycle will continue until the Reset signal is applied or power is interrupted.
Start
Reset
Output
g. 6
5: Repeat Cycle - relay turns on for time t1, off for t2; then repeats
Timing begins on the leading edge of the Start signal. A cycle is initiated where the output will be ON for the rst set time (t1), then OFF for the second set time (t2). This cycle will continue until the Reset signal is applied or power is interrupted.
Start
Reset
Output
VM206USER MANUAL
g. 7
7
6: Toggle mode
When a Start signal is supplied, the relay contacts transfer immediately to the ON state. When the Start signal turns ON again, the relay contacts transfer to the OFF state and on the next Start signal to ON state etc.
Start
Reset
Output
g. 8
7: Start/Stop timer
When a Start signal is supplied, the relay contacts transfer immediately to the ON state and the set time (t1) begins. When the set time (t1) has elapsed, the relay contacts transfer to the OFF state. The timer is reset by applying the Start signal before the set time (t1) has elapsed.
Start
Reset
Output
g. 9
8: Staircase timer
When a Start signal is supplied, the relay contacts transfer immediately to the ON state and the set time (t1) begins. When the set time (t1) has elapsed, the relay contacts transfer to the OFF state. The timer is reactivated by applying the Start signal before the set time (t1) has elapsed.
Start
Reset
Output
VM206USER MANUAL
g. 10
8
9: Trigger-at-release timer
On the trailing edge of the Start signal the relay contacts transfer to the ON state and the timing begins. When the set time (t1) has elapsed, the relay contacts transfer to the OFF state. The timer is reactivated by applying the next trailing edge of the Start signal before the set time (t1) has elapsed.
Start
Reset
Output
g. 11
10: Programmable timing sequence
In this mode you can program a sequence of up to 24 timing events. You can specify the relay state ON or OFF and the duration of each timing event. The programmed sequence can be repeated. You can save the timing sequence to le.
Start
Reset
Output
g. 13
VM206USER MANUAL
9
g. 14
Timing sequence user interface
Options:
add timing / insert timing
delete timing copy timing repeat
sustain the rst state until Start signal is OFF
By selecting the option ‘Sustain ...’, the relay state of the rst timing event is sustained as long as the Start signal is ON or the Start button is kept pressed down.
Start
Reset
Output
VM206USER MANUAL
g. 15
10
Normally the relay will be OFF after the last timing event of the sequence. The relay can be forced to stay ON by entering the time of the last ‘ON’ action to zero.
g. 16
VM206USER MANUAL
11
