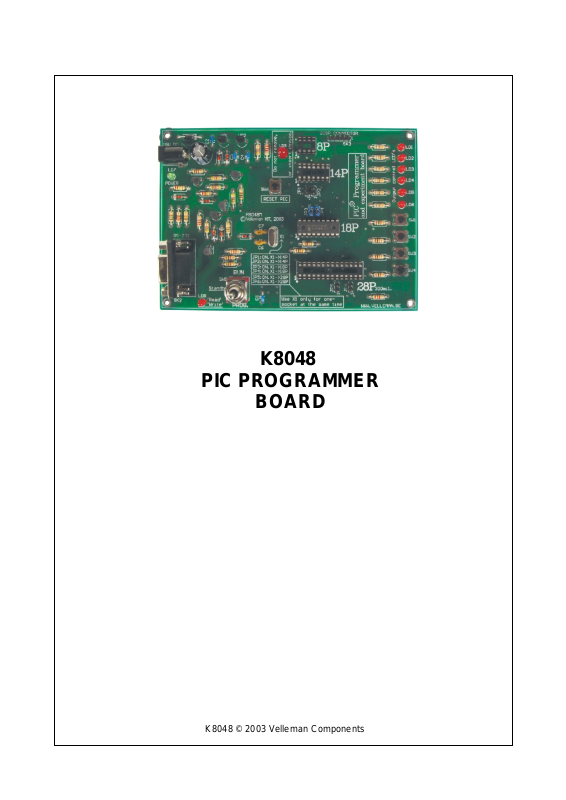

Velleman К8048 User Manual
K8048
PIC PROGRAMMER
BOARD
K8048 © 2003 Velleman Components
Velleman Kits
Welcome to the exciting world of Velleman Kits.
Velleman Kit is known all over the world for our High Quality electronic
kits. Our range goes from easy to build Mini Kits to more advanced
Kits such as High-End audio circuits, domotic systems and computer
interface kits.
Because of the huge success of our sophisticated measuring
instruments like the PC- and hand-held oscilloscopes, we've founded
the Velleman Instruments division.
The Velleman Kit team
Table of Contents
Contents
I
general
FCC information
Specifications
Connection
Hardware installation
Programming Procedure
Writing/changing a program
Compiling
Actual programming of the microcontroller
Erase pic device
................................................................................................................................... 5
................................................................................................................................... 5
................................................................................................................................... 7
.......................................................................................................................................................... 9Programming
................................................................................................................................... 10
Experiments
ICSP
2
2
3
3
4
5
11
13
K8048 © 2003 Velleman Components
2
The K8048 is a multifunctional programmer for Microchip ® PIC™ FLASH microcontrollers*. These
controllers can be reprogrammed a large number of times, making it easy to upgrade the software
of a device in which they are implemented or allowing the user to experiment to his heart's content.
Different IC types can be programmed and various LEDs and push buttons allow the testing of
small circuits on the programmer print.
The use of this programmer consists of two important stages: in the first stage the program code is
written on an ASCII word processor (e.g. NotePAD) included in the standard Microsoft Windows
package or you can use the Microchip's development package MPLAB, which you can find on their
site
www.microchip.com.
Upon conclusion of the compilation phase the program is programmed in the processor via the
K8048 by means of the PICPROG2 software. The K8048 has room available for the direct
mounting of 4 different 'footprints', 8 pins, 14 pins, 18 pins and 28 pins. Other 'footprint' types can
also be used via the ICSP connector. This addition allows the use of controllers with different
connections or controllers mounted in a device. The latter can be programmed without removing
them from their holders (see ICSP).
You can start programming immediately with the enclosed controller.
*
The Microchip name and logo, PIC and PICmicro are registered trademarks of Microchip Technology Inc. in the USA and
other countries
This device complies with Part 15 of the FCC Rules provided the enclosed instructions are followed
to the letter. Use of the device is subject to the following conditions: (1) this device must not cause
harmful interference and (2) the operation of this device should not be influenced by unwanted
interference.
More information about FCC can be look at
http://www.fcc.gov/
PIC programmer board
1 general
2 FCC information
3 Specifications
·
Suitable for programming Microchip® FLASH PIC(tm) microcontrollers.
·
Supports 4 different 300 mil. PICs: 8p, 14p, 18p and 28p.
·
Test buttons and LED indicators to carry out educational experiments e.g. the enclosed
programming examples.
·
Easily to connect to a PC via the serial port.
·
Enclosed is a Flash Microcontroller (PIC16F627) that can be reprogrammed up to 1000 times.
·
Software is included to compile and program your source code.
·
Power: 12 or 15V DC, min. 300mA, non-regulated adapter:
·
(PS1205 / PS1208/PS1508 (230Vac))
·
(PS1208USA (115Vac))
·
IBM-compatible PC, Pentium or higher, with Windows™ 95/98/ME/NT/2000/XP, CDROM and
a free serial RS232 port (cable not included, e.g. CW014).
·
Supports these FLASH microcontrollers:
·
PIC12F629, PIC12F675, PIC16F83, PIC16F84(A), PIC16F871, PIC16F872,
·
PIC16F873, PIC16F874, PIC16F876, PIC16F627(A),PIC16F628(A),PICF630, ….*
·
Dimensions: 145 mm x 100 mm.
(*) Visit our website for the updated list and software updates :
www.velleman.be
