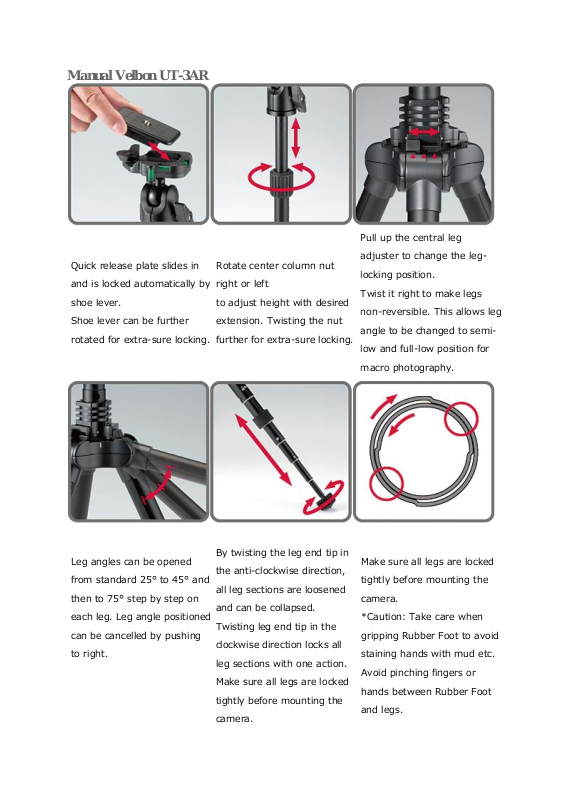

Manual Velbon UT-3AR

Quick release plate slides in
and is locked automatically by
shoe lever.
Shoe lever can be further
rotated for extra-sure locking.

Rotate center column nut
right or left
to adjust height with desired
extension. Twisting the nut
further for extra-sure locking.

Pull up the central leg
adjuster to change the leg­locking position.
Twist it right to make legs
non-reversible. This allows leg
angle to be changed to semi­low and full-low position for
macro photography.

Leg angles can be opened

from standard 25° to 45° and
then to 75° step by step on

each leg. Leg angle positioned
can be cancelled by pushing
to right.

By twisting the leg end tip in
the anti-clockwise direction,
all leg sections are loosened
and can be collapsed.
Twisting leg end tip in the
clockwise direction locks all
leg sections with one action.
Make sure all legs are locked
tightly before mounting the
camera.

Make sure all legs are locked
tightly before mounting the
camera.
*Caution: Take care when
gripping Rubber Foot to avoid
staining hands with mud etc.
Avoid pinching fingers or
hands between Rubber Foot
and legs.
