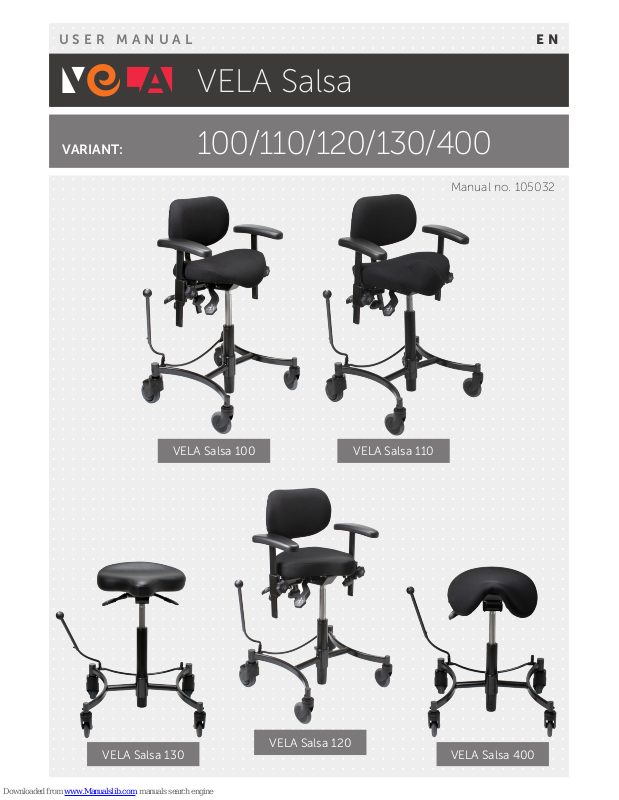

Vela Salsa 100, Salsa 110, Salsa 130, Salsa 120, Salsa 400 User Manual

VELA Salsa

100/110/120/130/400

VELA Salsa 100 VELA Salsa 110

VELA Salsa 130 VELA Salsa 400

VELA Salsa 120

USER MANUAL EN

VARIANT:

Manual no. 105032

TABLE OF CONTENTS

1.0. INTRODUCTION 3

1.1. SAFETY 4

1.1.1. Transport 4

1.2. WARRANTY 4

1.3. UNPACKING THE CHAIR 5

1.4. MAINTENANCE 5

1.4.1. Wheels 5

1.4.2. Frame 5

1.4.3. Upholstery 5

1.5. USER MANUAL 6

1.5.1. Attaching the backrest 6

1.5.2. Adjustment of seat height 6

1.5.3. Adjustment of seat height (Salsa 130 & 400) 6

1.5.4. Adjustment of seat tilt 6

1.5.5. Adjustment of seat tilt (Salsa 130 & 400) 7

1.5.6. Brake 7

1.5.7. Adjustment of back height 7

1.5.8. Adjustment of back tilt 7

1.5.9. Adjustment of armrest, height 8

1.5.10. Adjustment of armrest, width 8

1.5.11. Rotation (optional) 8

3

DEAR CUSTOMER

Thank you for purchasing a VELA Salsa. This user
manual contain useful information about positioning,
operating and maintenance of VELA Salsa stools.

Important

Please read this user manual thoroughly and keep
it for later use. This user manual must always
accompany the chair. The user manual can also be
found on VELA’s website: www.vela.eu, where you
also can find other relevant information about VELA
Salsa stools.

If you have any questions, please contact VELA’s
distributor in your country.

VELA reserves the right to make changes to this
manual.

VELA

Gøteborgvej 8-12
DK-9200 Aalborg
Denmark
www.vela.eu

1.0. INTRODUCTION

4

1.1. SAFETY

This chair bears the CE mark and
conforms to all applicable EU rules.
The stool is manufactured by VELA,
Vermund Larsen A/S, Goeteborgvej
8-12, 9200 Aalborg SV, Denmark.

VELA Salsa is an indoor stool
designed for sitting persons.

VELA Salsa 100/110/120/130/400 is
tested and approved for a maximum
user weight of 125 kg.

1.1.1. TRANSPORT

By transport in car, by plain or other
means of transport, always use
the chair’s brake. The chair is not
approved as a passenger seat in
means of transportation and should
not be used as such.

The chair withstands the following
transport specifikations:

Temperature: -40°C (-40°F) to
+70°C (+158°F)
Humidity: 15-95%
Air pressure: PPP up to 1000 meters
(3280 ft) above sea level

1.2. WARRANTY

VELA provides warranty by the laws
and regulations which are debt in the
country the chair is bought in. The
warranty only applies when using
original spare parts and accessories.
Modification may only be carried out
by authorised service technicians.

VELA does not accept responsibility
for damage or injury to the product
or user, which have arisen due to:

:: Transportation

:: Misuse

:: General wear and tear

:: Incorrect use

:: Use of non-original spare parts

and accessories

:: Adjustments carried out by

unauthorised service technicians

GENERAL

5

1.3. UNPACKING THE CHAIR

VELA Salsa is supplied in cardboard
packaging, developed with conside­ration for the environment.

If there are any parts missing or
transport damage to the chair, plea­se contact your dealer immediately.
Do not not try to repair any damage
or use the chair.

Content of the cardboard
packaging:

:: VELA Salsa chair

:: This user manual

1.4. MAINTENANCE

We recommend your VELA Salsa
undergoes an annual service to find,
for example, defective or worn parts.

1.4.1. WHEELS

VELA recommend that the wheels
are checked in regular intervals e.g.
to remove possible thread remnants.

1.4.2. FRAME

Clean with water, possibly with a PH
neutral soap.

1.4.3. UPHOLSTERY

Fabric: Clean with upholstery clea-

ners or wipe it with a tightly wrung
cloth rinsed in clean water.

Imitation leather: Clean with water
or mild soap.

Medical textiles: Clean as described
above. Can also be cleaned with
disinfectants and alcohol.

Leather: Cleen by vacuuming it
using a soft dusting brush. Avoid
cleaning products.

VELA

SALSA

130 &

400

1.

2.

6

1.5.3. ADJUSTMENT OF SEAT HEIGHT (SALSA 130 & 400)

Adjust the seat height by pushing the lever placed at your
left hand.

1.5.4. ADJUSTMENT OF SEAT TILT

Adjust the seat tilt by pulling the middle lever placed at your
right hand.

1.5.2. ADJUSTMENT OF SEAT HEIGHT

Adjust the seat height by pushing the front lever placed at your
right hand.

1.5. USER MANUAL

Replacement of the gas spring may only be performed
by the service support team from your dealer or a
skilled technical person.

1.5.1. ATTACHING THE BACKREST

The lever for backrest adjustment (1) must be in open position.
Press the locking pin spring (2) and push the backrest arm
through the hole. Tighten the lever afterwards.
Note: The backrest arm must be pushed through completely
so the pin spring locks the backrest arm. Make sure that the
backrest arm cannot be pulled out again.

VELA

SALSA

130 &

400

7

1.5.7. ADJUSTMENT OF BACK HEIGHT

Adjust the back height by using the lever placed on the back of
the chair. Remember to tighten the handle again afterwards.

1.5.8. ADJUSTMENT OF BACK TILT

Adjust the back tilt by pushing the rear lever placed at your
right hand.

1.5.5. ADJUSTMENT OF SEAT TILT (SALSA 130 & 400)

Adjust the seat tilt by pushing the middle lever placed at your
right hand.

1.5.6. BRAKE

VELA Salsa brakes by moving the lever on the side of the chair forward.
Unlock the chair by moving the handle back into upright position.
Note: The brake can be moved by loosening the screw at the bottom of
the brake lever, remove the plastic knob on the opposite side hole and
insert the brake lever. Remember to tighten the handle again.

701.215 © Vermund Larsen A/S

VELA :: Gøteborgvej 8-12 :: 9200 Aalborg SV :: Denmark :: [phone] :: [e-mail] vela.eu

1.5.11. ROTATION (OPTIONAL)

The seat is rotated by pulling up the forward handle on the left
side.

1.5.10. ADJUSTMENT OF ARMREST, WIDTH

Adjust by loosening the screw underneath the seat and
regulate the width of the armrest. Remember to tighten the
screw again.

1.5.9. ADJUSTMENT OF ARMREST, HEIGHT

Adjust by loosening the screw on the armrest bar and regulate
the height of the armrest. Remember to tighten the screw
again.
