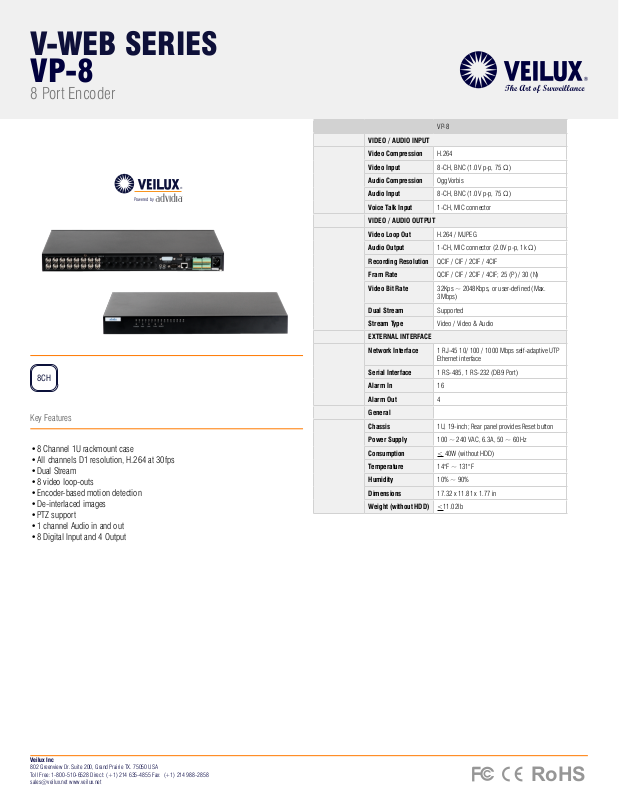

V-WEB SERIES
VP-8
8 Port Encoder
®
Powered by
8CH
Key Features
•8 Channel 1U rackmount case
•All channels D1 resolution, H.264 at 30fps
•Dual Stream
•8 video loop-outs
•Encoder-based motion detection
•De-interlaced images
•PTZ support
•1 channel Audio in and out
•8 Digital Input and 4 Output
VP-8
VIDEO / AUDIO INPUT
Video Compression H.264
Video Input 8-CH, BNC (1.0V p-p, 75 Ω)
Audio Compression OggVorbis
Audio Input 8-CH, BNC (1.0V p-p, 75 Ω)
Voice Talk Input 1-CH, MIC connector
VIDEO / AUDIO OUTPUT
Video Loop Out H.264 / MJPEG
Audio Output 1-CH, MIC connector (2.0V p-p, 1k Ω)
Recording Resolution QCIF / CIF / 2CIF / 4CIF
Fram Rate QCIF / CIF / 2CIF / 4CIF; 25 (P) / 30 (N)
Video Bit Rate 32Kps ~ 2048Kbps, or user-defined (Max.
Dual Stream Supported
Stream Type Video / Video & Audio
EXTERNAL INTERFACE
Network Interface 1 RJ-45 10/ 100 / 1000 Mbps self-adaptive UTP
Serial Interface 1 RS-485, 1 RS-232 (DB9 Port)
Alarm In 16
Alarm Out 4
General
Chassis 1U, 19-inch; Rear panel provides Reset button
Power Supply 100 ~ 240 VAC, 6.3A, 50 ~ 60Hz
Consumption
Temperature 14°F ~ 131°F
Humidity 10% ~ 90%
Dimensions 17.32 x 11.81 x 1.77 in
Weight (without HDD)
3Mbps)
Ethernet interface
< 40W (without HDD)
<11.02lb
Veilux Inc
802 Greenview Dr. Suite 200, Grand Prairie TX. 75050 USA
Toll Free: 1-800-510-6528 Direct: (+1) 214 635-4855 Fax: (+1) 214 988-2858
sales@veilux.net www.veilux.net
RoHS
