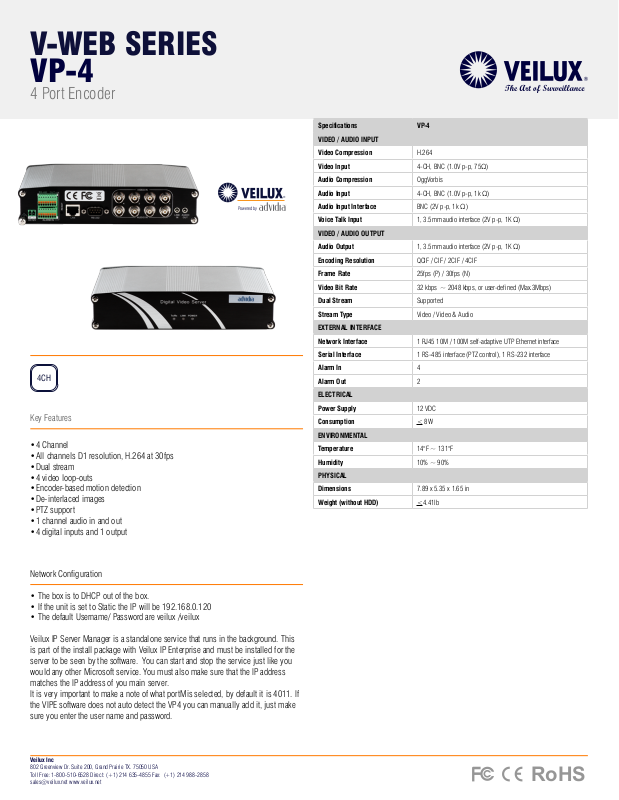

Veilux VP-4 Specsheet

V-WEB SERIES

VP-4

4 Port Encoder

4CH

Key Features

•4 Channel

•All channels D1 resolution, H.264 at 30fps

•Dual stream

•4 video loop-outs

•Encoder-based motion detection

•De-interlaced images

•PTZ support

•1 channel audio in and out

•4 digital inputs and 1 output

Powered by

Specifications VP-4

VIDEO / AUDIO INPUT

Video Compression H.264

Video Input 4-CH, BNC (1.0V p-p, 75Ω)

Audio Compression OggVorbis

®

Audio Input 4-CH, BNC (1.0V p-p, 1k Ω)

Audio Input Interface BNC (2V p-p, 1k Ω)

Voice Talk Input 1, 3.5mm audio interface (2V p-p, 1K Ω)

VIDEO / AUDIO OUTPUT

Audio Output 1, 3.5mm audio interface (2V p-p, 1K Ω)

Encoding Resolution QCIF / CIF / 2CIF / 4CIF

Frame Rate 25fps (P) / 30fps (N)

Video Bit Rate 32 kbps ~ 2048 kbps, or user-defined (Max.3Mbps)

Dual Stream Supported

Stream Type Video / Video & Audio

EXTERNAL INTERFACE

Network Interface 1 RJ45 10M / 100M self-adaptive UTP Ethernet interface

Serial Interface 1 RS-485 interface (PTZ control), 1 RS-232 interface

Alarm In 4

Alarm Out 2

ELECTRICAL

Power Supply 12 VDC

Consumption

ENVIRONMENTAL

Temperature 14°F ~ 131°F

Humidity 10% ~ 90%

PHYSICAL

Dimensions 7.89 x 5.35 x 1.65 in

Weight (without HDD)

< 8W

<4.41lb

Network Configuration

• The box is to DHCP out of the box.

• If the unit is set to Static the IP will be 192.168.0.120

• The default Username/ Password are veilux /veilux

Veilux IP Server Manager is a standalone service that runs in the background. This
is part of the install package with Veilux IP Enterprise and must be installed for the
server to be seen by the software. You can start and stop the service just like you
would any other Microsoft service. You must also make sure that the IP address
matches the IP address of you main server.
It is very important to make a note of what portMis selected, by default it is 4011. If
the VIPE software does not auto detect the VP4 you can manually add it, just make
sure you enter the user name and password.

Veilux Inc

802 Greenview Dr. Suite 200, Grand Prairie TX. 75050 USA
Toll Free: 1-800-510-6528 Direct: ([phone] Fax: [phone]
[e-mail] www.veilux.net

RoHS
