Page 1

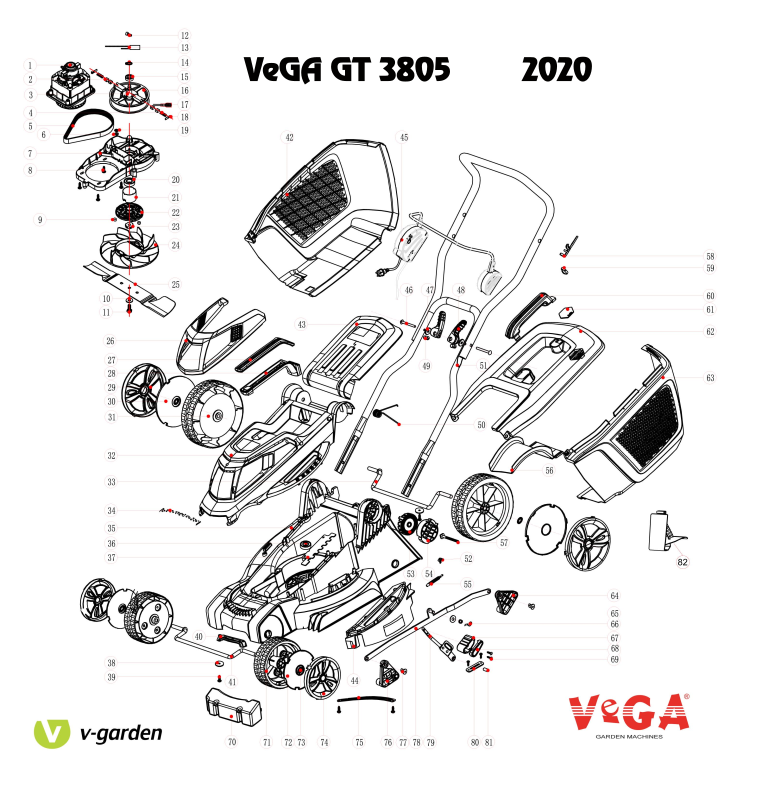

VeGA GT 3805 2020
82
Page 2
No. ID zboží Název No. ID zboží Název
1
2AJ30007R
motor 49
J2580000047R
pin
2 A633B340001R block brake 50
J0H00360001R
guard board spring
3
J0840000077R
pulley insert 51
A0H00980001R
Rukojeť spodní
4 J6330680003R spring brake
A0H00980001RX
Rukojeť vrchní
5
X6360940002R
belt 52
J0010000871R
bolt
6
Z0800000030
washer 53
Q0H0K250H33R
rotate support
7
Q0B5D960B25R
motor plate 54
Q200D650Y14R
rotate block
8
J0010000896R
bolt 55
J0H00690001R
spring
9
J0090000455R
bolt 56
Q0H0F48PH02
tongue
10
J0030000019R
washer 57
J0020000472R
lower handle bolt
11
J0020000088R
bolt 58
Q256D720H02
hook
12
D5000100004R
impaction 59
Q438741PH02
cable hook
13
D4100802001R
thermal 60
Q0H0D86PH02
grassbox handle
14
J0150000412R
circlip 61
Q0H0807PH02
grass full indication
15
J0160000246R
bearing 62
Q0H0F44P735
grassbox cover
16
A6362040008R
belt wheel 63
Q0H0D67PH02
left grassbox
17
D70B5006002R
inner wire 64
Q0H01780H33R
triangle block
18 J0130000023R patch brake 65
J0H00370001R
spring
19
J0150000998R
clip washer 66
J0H00460001R
spring
20
J0160000346R
bearing 67
Q0H0K19AH01
adjust handle
21 J4380000002R ring brakr 68
Q0H0A92A007
adjust handle cover
22
A8450140002R
blade-support assy 69
J0010001620R
bolt
23
J0200000180R
washer 70
Q0H0G100H18R
sydds
24
Q0H0A13PH02
fan 71
Q200F46PH02
front rear wheel
25
J2420000155R
blade 72
Q0H0573PH02
front wheel insert
26
Q0H0K27PY69
decorate block 73
J0320000014R
clip washer
27
Q0H0619PH02
handle cover 74
Q0H0719PY69
front wheel cover
28
Q0H0Z59PH02
motor cover handle 75
J3240000021R
support plate
29
Q0H0720PY69
back wheel cover 76
Q0H01680H33R
triangle block
30
Q0H0421PH02
back wheel insert 77
Q197D540H10R
link pin
31
Q645F470H02
back whell 78
J3320000025R
bar
32
Q0H0614P735
cover 79
A0H04410001R
adjust level
33
J0090000488R
rear wheel axes 80
J3330000006R
adust lever cover
34
G0H00020001
filter 81
J0090000489R
adjust axes
35
Q0H0438PH02
deck 82
QOH0U12PH02
Mulčovací záslepka
36
J0160000398R
bearing
37
J3310000007R
locality
38
J0200000271R
axes washer
39
J0010001022R
bolt
40
Q0H0683P007
front handle
41
J0090000487R
front ayes
42
Q0H0D670H02
right grassbox
43
Q0H0885PH02
guard board
44
Q0H0K28PH02
adjust cover
45
A0H00870001R
switch box asse
46
J0020000402R
bolt
47
J0200000251R
knob washer
48
Q9087620007R
knob washer
