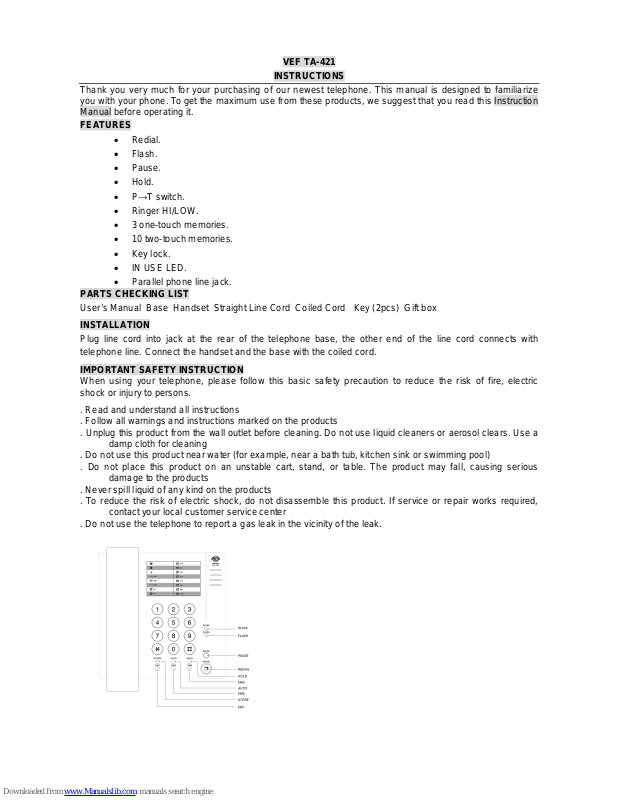

VEF TA-421
INSTRUCTIONS
Thank you very much for your purchasing of our newest telephone. This manual is designed to familiarize
you with your phone. To get the maximum use from these products, we suggest that you read this Instruction
Manual before operating it.
FEATURES
• Redial.
• Flash.
• Pause.
• Hold.
• P→T switch.
• Ringer HI/LOW.
• 3 one-touch memories.
• 10 two-touch memories.
• Key lock.
• IN USE LED.
• Parallel phone line jack.
PARTS CHECKING LIST
User’s Manual Base Handset Straight Line Cord Coiled Cord Key (2pcs) Gift box
INSTALLATION
Plug line cord into jack at the rear of the telephone base, the other end of the line cord connects with
telephone line. Connect the handset and the base with the coiled cord.
IMPORTANT SAFETY INSTRUCTION
When using your telephone, please follow this basic safety precaution to reduce the risk of fire, electric
shock or injury to persons.
. Read and understand all instructions
. Follow all warnings and instructions marked on the products
. Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol clears. Use a
damp cloth for cleaning
. Do not use this product near water (for example, near a bath tub, kitchen sink or swimming pool)
. Do not place this product on an unstable cart, stand, or table. The product may fall, causing serious
damage to the products
. Never spill liquid of any kind on the products
. To reduce the risk of electric shock, do not disassemble this product. If service or repair works required,
contact your local customer service center
. Do not use the telephone to report a gas leak in the vicinity of the leak.
ANSWERING CALLS
From handset
Pick up the handset. Talk with the other end.
When finished, return the handset to the cradle.
MAKING CALLS
Using Handset
Pick up the handset; you will hear a dialing tone.
Press the desired number.
When finished, return the handset to the cradle.
Redial
When you want to call back the last dialed telephone number, press the “REDIAL” button as soon as you
have picked up the handset. The number will be dialed automatically.
Flash
Press the “Flash” key to activate certain services as “Call waiting” (if the service is provided by your
telephone company); or to transfer phone calls when you are using a telephone exchange (PABX). The
default value of Flash is 600ms.
Pause
Pressing this button will insert a time gap of 3.6s between two digits.
Hold
At off-hook state, press HOLD key to keep the line engaged while doing other work and you can return the
handset to the base. You can pick up the handset again to renew the conversation.
SETTING THE RINGER VOLUME
The ringer volume switch is located at the base of the telephone. You can choose between “H” and “L”.
P/T MODE SELECTOR
Slide the DIALING switch to P/T position to select dialing mode PULSE or TONE. In Pulse mode press *
button to switch to Tone mode once.
STORING PHONE NUMBER INTO ONE-TOUCH MEMORY
1. Pick up the handset and press “Store” key.
2. Dial the phone number you want to store, including Tone (*) and Pause each of which is counted as
one digit.
3. Press one of the 3 one-touch memory buttons (EM1, EM2, EM3).
4. Repeat steps 1 to 3 to store numbers into other locations.
TO CHANGE A STORED NUMBER
Just store a new number, as described above; the old number will be erased automatically.
MAKING CALLS WITH 3 ONE-TOUCH SPEED-DIALING MEMORIES
1. Pick up the handset; press one of the one-touch speed dial buttons (EM1 to EM3).
2. The phone will dial the number you stored into the button.
TWO- TOUCH MEMORIES
1) Store in the telephone number
Pick up the handset and press “Store” key.
Enter the telephone number, press “Store” key.
Press one of the numerical buttons (0-9).
2) Calling a two-touch memory number
Pick up the handset and press “AUTO” key.
Press the desired numerical button (0-9).
The stored number will be dialed out automatically.
LOCK
Two Way Lock: When you turn the key to the green point, the number headed with “0” cannot be dialed.
When you turn the key to the red point, no lock.
