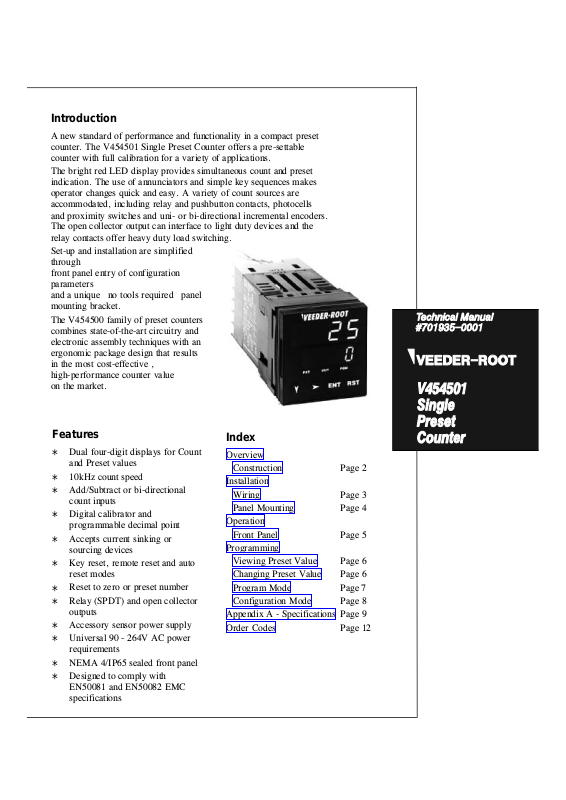

Introduction

A new standard of performance and functionality in a compact preset counter. The V454501 Single Preset Counter offers a pre-settable counter with full calibration for a variety of applications.

The bright red LED display provides simultaneous count and preset indication. The use of annunciators and simple key sequences makes operator changes quick and easy. A variety of count sources are accommodated, including relay and pushbutton contacts, photocells and proximity switches and uni- or bi-directional incremental encoders. The open collector output can interface to light duty devices and the relay contacts offer heavy duty load switching.

Set-up and installation are simplified through front panel entry of configuration parameters and a unique “no tools required” panel mounting bracket.

The V454500 family of preset counters combines state-of-the-art circuitry and electronic assembly techniques with an ergonomic package design that results in the most cost-effective , high-performance counter value on the market.

Features

Dual four-digit displays for Count

and Preset values 10kHz count speed

Add/Subtract or bi-directional

count inputs Digital calibrator and

programmable decimal point Accepts current sinking or

sourcing devices Key reset, remote reset and auto

reset modes Reset to zero or preset number

Relay (SPDT) and open collector

outputs Accessory sensor power supply

Universal 90 - 264V AC power

requirements NEMA 4/IP65 sealed front panel

Designed to comply with

EN50081 and EN50082 EMC specifications

Index

Overview

Construction Page 2

Installation

Wiring Page 3 Panel Mounting Page 4

Operation

Front Panel Page 5

Programming

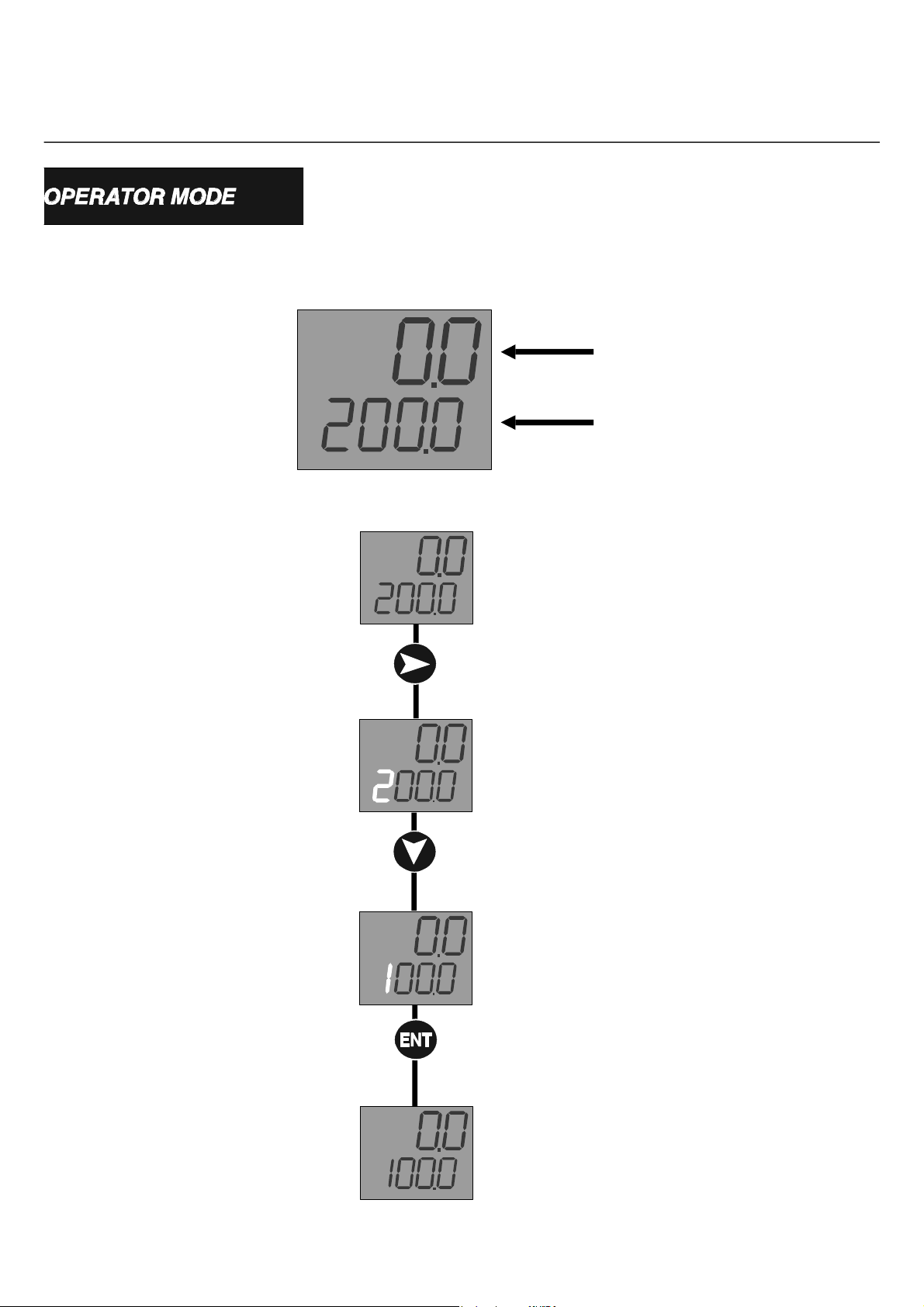

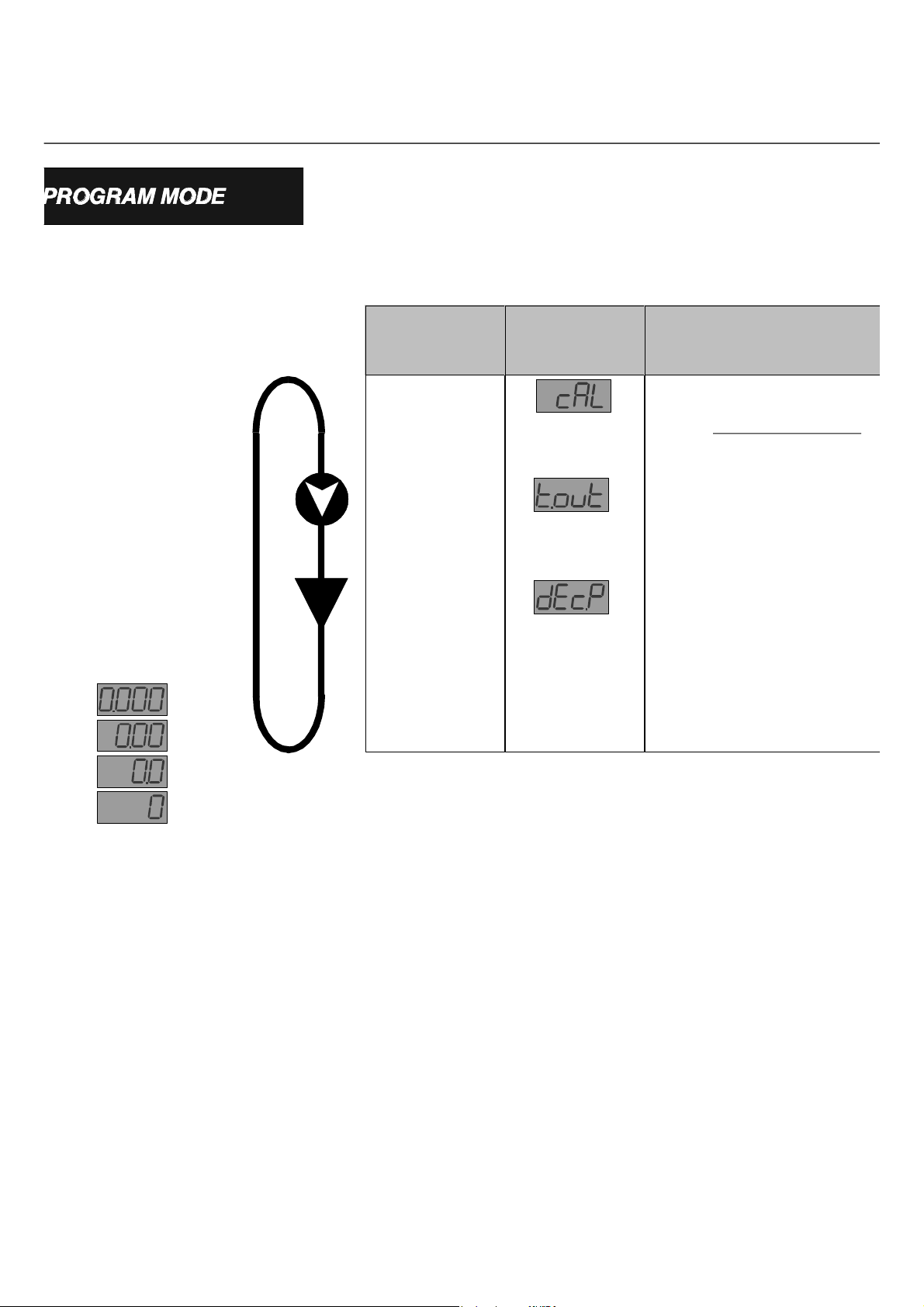

Viewing Preset Value Page 6 Changing Preset Value Page 6 Program Mode Page 7

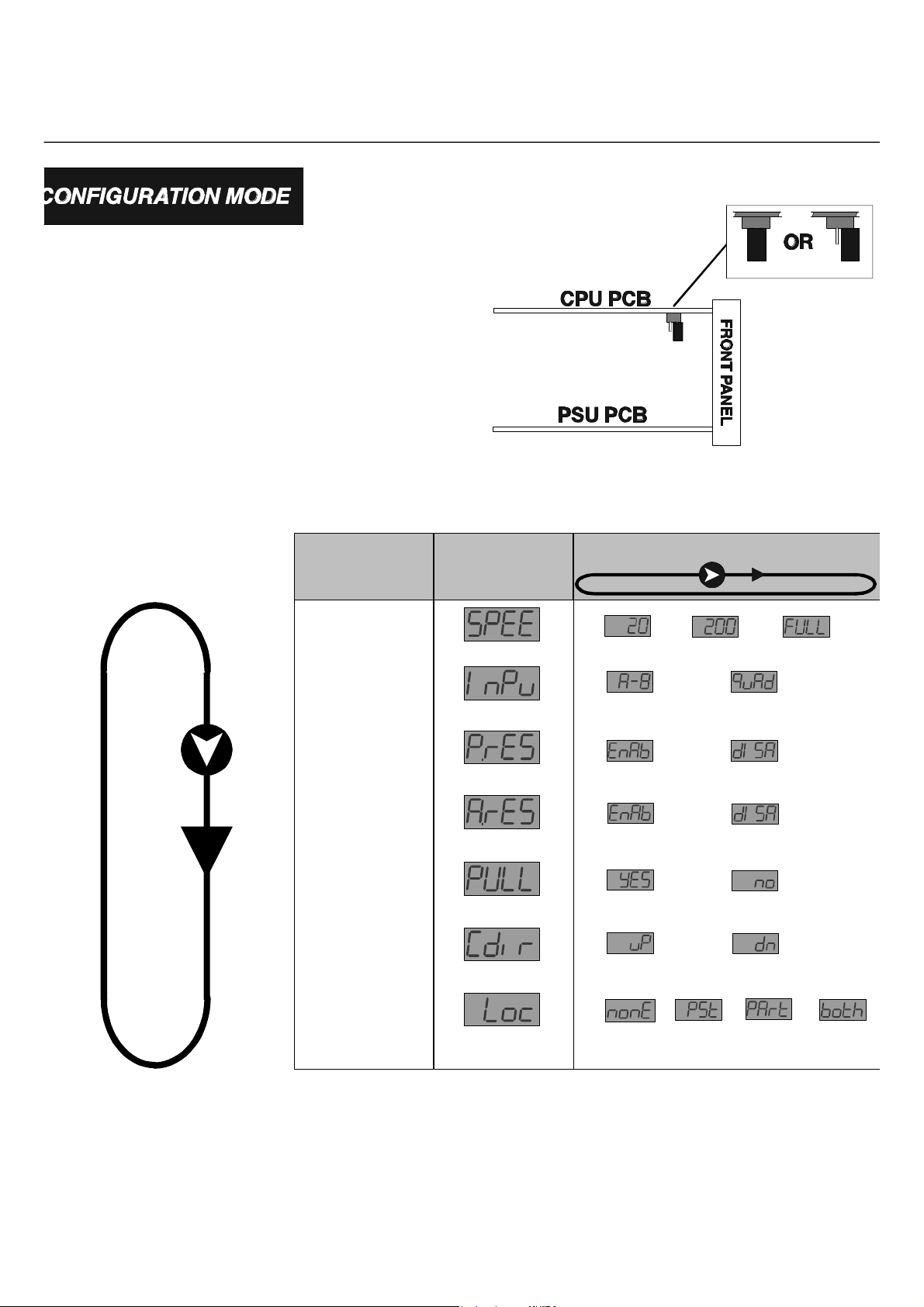

Configuration Mode Page 8 Appendix A - Specifications Page 9 Order Codes Page 12

Compact Design

Uses only 48mm of panel space. 110mm behind-panel depth.

Dual Four-character Display

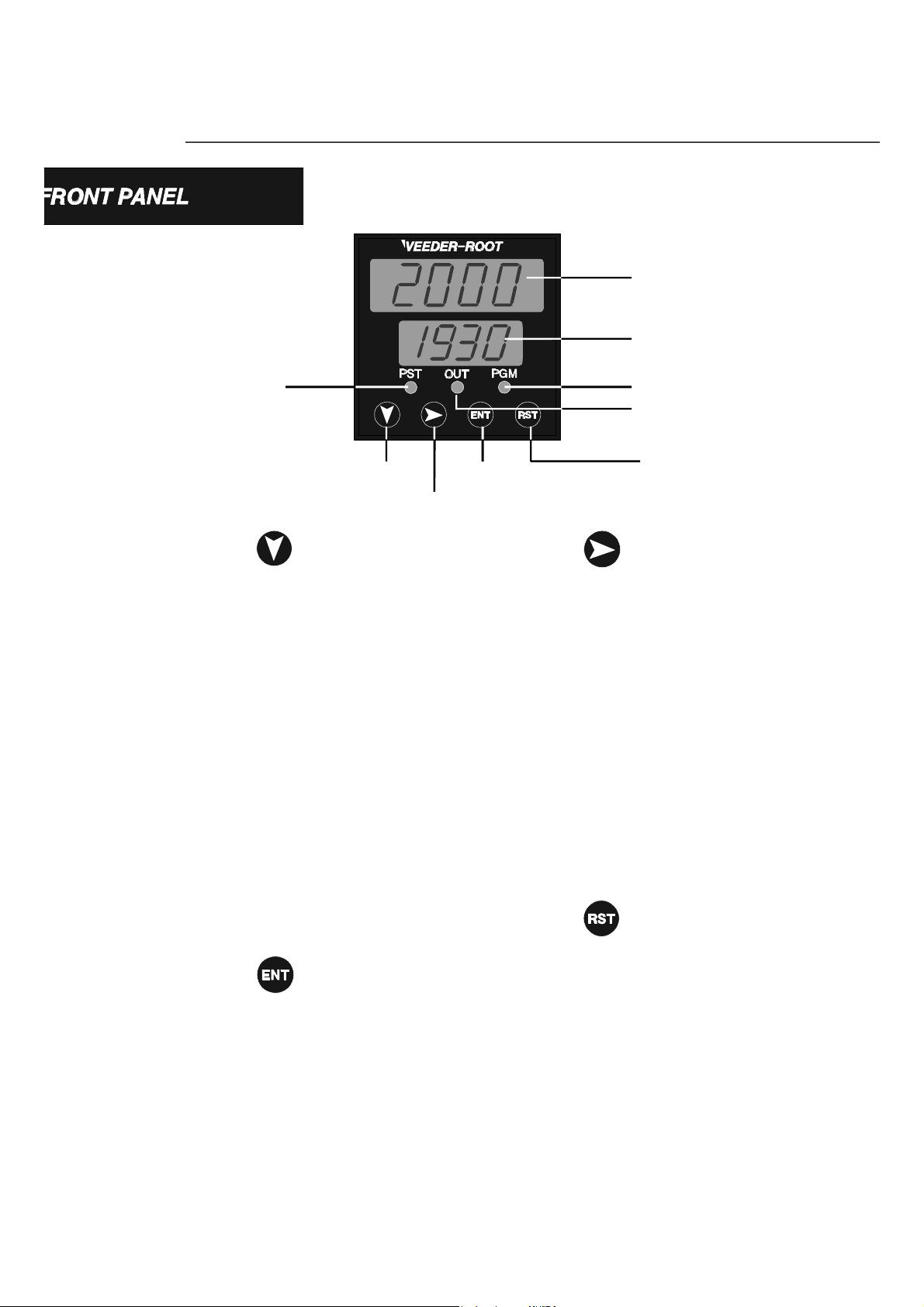

Simultaneous display of Count and Preset data. Red LED display. Annunciators show input, display and output status.

Ergonomic Keypad

Simple key sequences to view and edit Presets. Front Panel Reset key can be disabled.

Front Panel Seal

NEMA 4/IP65-rated when installed with panel mount gasket supplied.

Rear Terminal Connections

Top of Counter

I N S T A L L A T I O N

IMPORTANT: In severe electrical noise environments, shielded cable is recommended for inputs and outputs. Connect the shield only to the building earth (ground).

AC Power Input

Connect AC power to Terminal 7 (Line) via a 1A slow-blow fuse and to Terminal 8 (Neutral) - see below. AC power should be from a separate branch circuit which is noise-free and does not feed heavy loads.

DC/Low Voltage AC Power Input

Connect DC/low voltage AC power to Terminal 7 (+) via a 0.5A slow-blow fuse and to Terminal 8 (–) - see below. DC power should have low ripple and be noise-free.

Reset and Program Inputs

Current Sourcing (PNP) Count Inputs

Connect Add count input to Terminal 2 (A) and/or Subtract count input to Terminal 3 (B) - see below. In Configuration Mode, set PuLL parameter to no and, for Add/Subtract operation, set InPu parameter to A-B .

PNP Open Collector

Contact Closure

Current Source or Line Driver

Connect Reset pushbutton or current sink device to Reset (Terminal 5) and COM (Terminal 4). Connect Program switch or jumper to PGM (Terminal 6) and COM (Terminal 4).

Bi-directional Quadrature Inputs

Connect Quadrature Encoder to V+ (Terminal 1), A input (Terminal 2), B input (Terminal 3) and COM (Terminal 4) as shown below. In Configuration Mode, set InPu parameter to QuAd . For NPN open collector devices with no pullup resistors, set PuLL parameter to YES .

Current Sinking (NPN) Count Inputs

Connect Add count input to Terminal 2 (A) and/or Subtract count input to Terminal 3 (B) - see below. In Configuration Mode, set PuLL parameter to YES and, for Add/Subtract operation, set InPu parameter to A-B .

NPN Open Collector

Contact Closure

Current Sink or Line Driver

Open Collector Output

connect Terminal 12 and V+ (Terminal 1) as shown on below (lower

Connect Terminals 12 (open collector) and 4 (COM) to solid state devices as shown below (upper circuit). To drive DC relay coils,

circuit). Suppress switching transients with a suppression diode, connected as shown.

48m

Panel Mounting

Make cut-out(s) according to the details in the diagram on the right. The maximum panel thickness is 6 mm.

Insert the rear of the Counter housing through the cut-out (from the front of the mounting panel) and hold the Counter lightly in position against the panel. Ensure that the panel gasket is not distorted and that the Controller is positioned squarely against the mounting panel. Apply pressure to the front panel bezel only. Slide the mounting bracket in place (see right) and push it forward until it is firmly in contact with the rear face of the mounting panel (tongues on the bracket should engage in matching rachet positions on the Counter housing and the mounting bracket springs should push firmly against the mounting panel rear face).

110

10mm (approx.)

45m

Single

Installatio

Rear face of mounting panel

Mounting bracket

Counter housing

Tongues on mounting bracket engage in ratchet slots on Counter housing

(48n - 4)mm

Multiple Installation (n

Counters)
