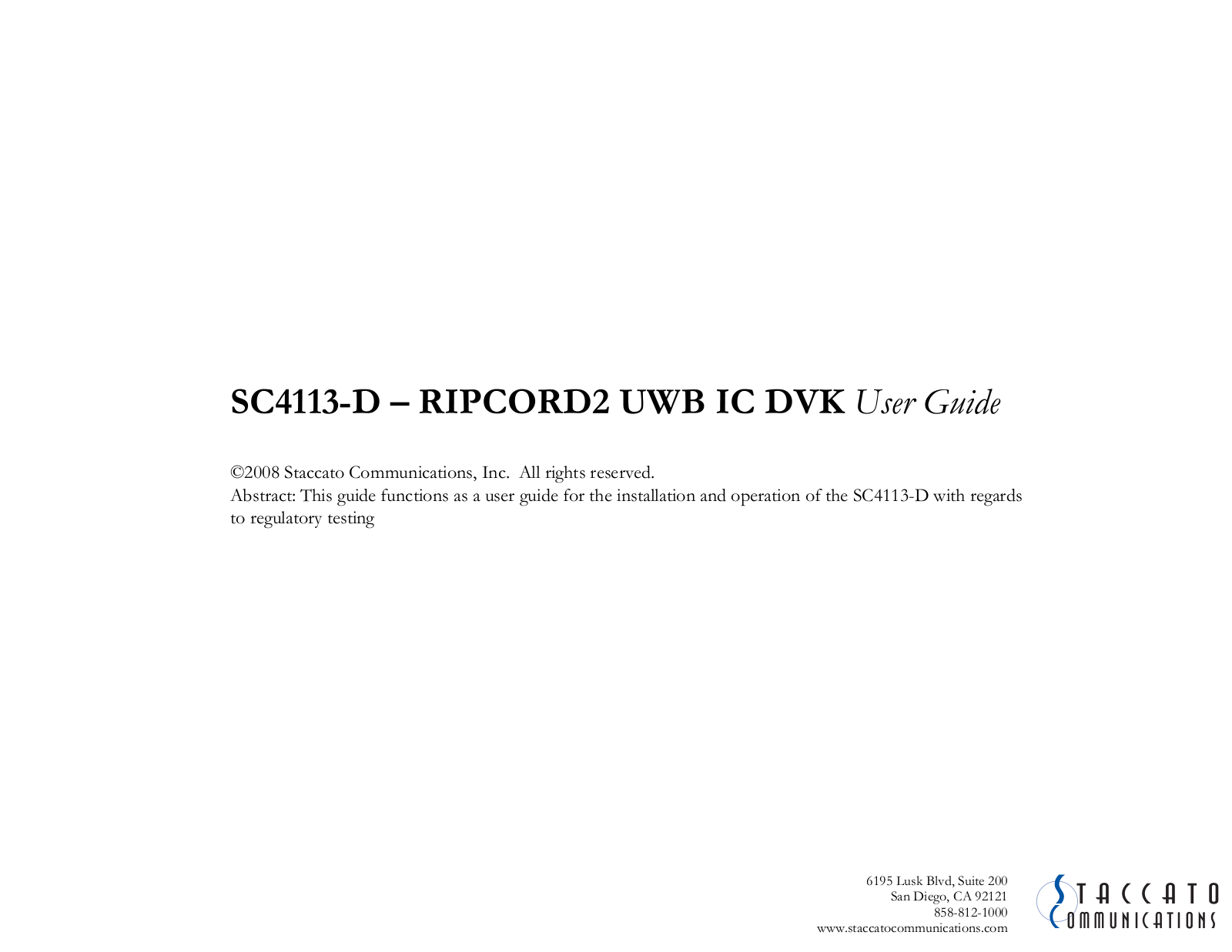

SC4113-D – RIPCORD2 UWB IC DVK User Guide
©2008 Staccato Communications, Inc. All rights reserved.
Abstract: This guide functions as a user guide for the installation and operation of the SC4113-D with regards
to regulatory testing
www.staccatocommunications.com
6195 Lusk Blvd, Suite 200
San Diego, CA 92121
858-812-1000
S
taccato
C
o
mm
unications
2

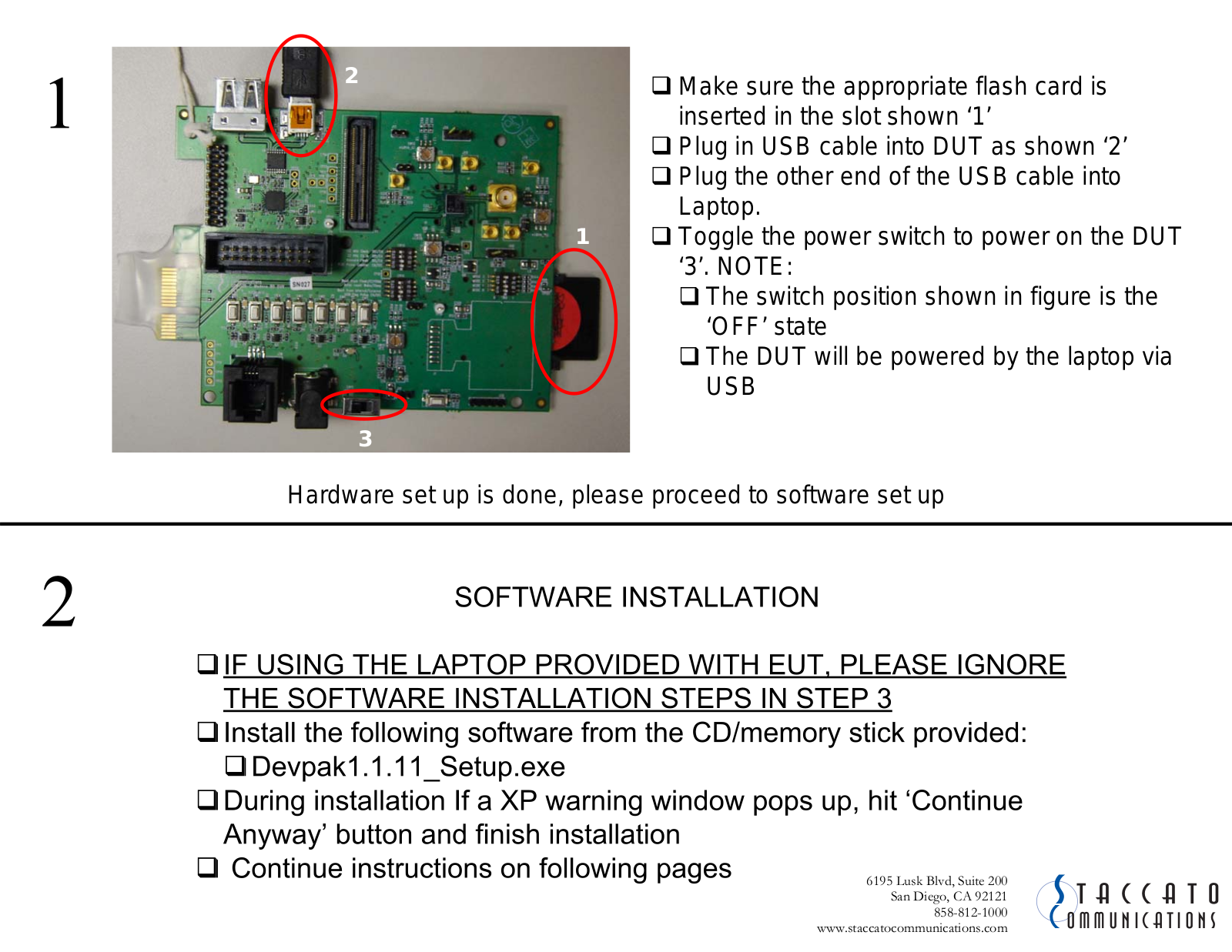

Make sure the appropriate flash card is
inserted in the slot shown ‘1’
Plug in USB cable into DUT as shown ‘2’
Plug the other end of the USB cable into
Laptop.
1
Toggle the power switch to power on the DUT
‘3’. NOTE:
The switch position shown in figure is the
‘OFF’ state
The DUT will be powered by the laptop via
USB
3
Hardware set up is done, please proceed to software set up
www.staccatocommunications.com
6195 Lusk Blvd, Suite 200
San Diego, CA 92121
858-812-1000
S
taccato
C
o
mm
unications

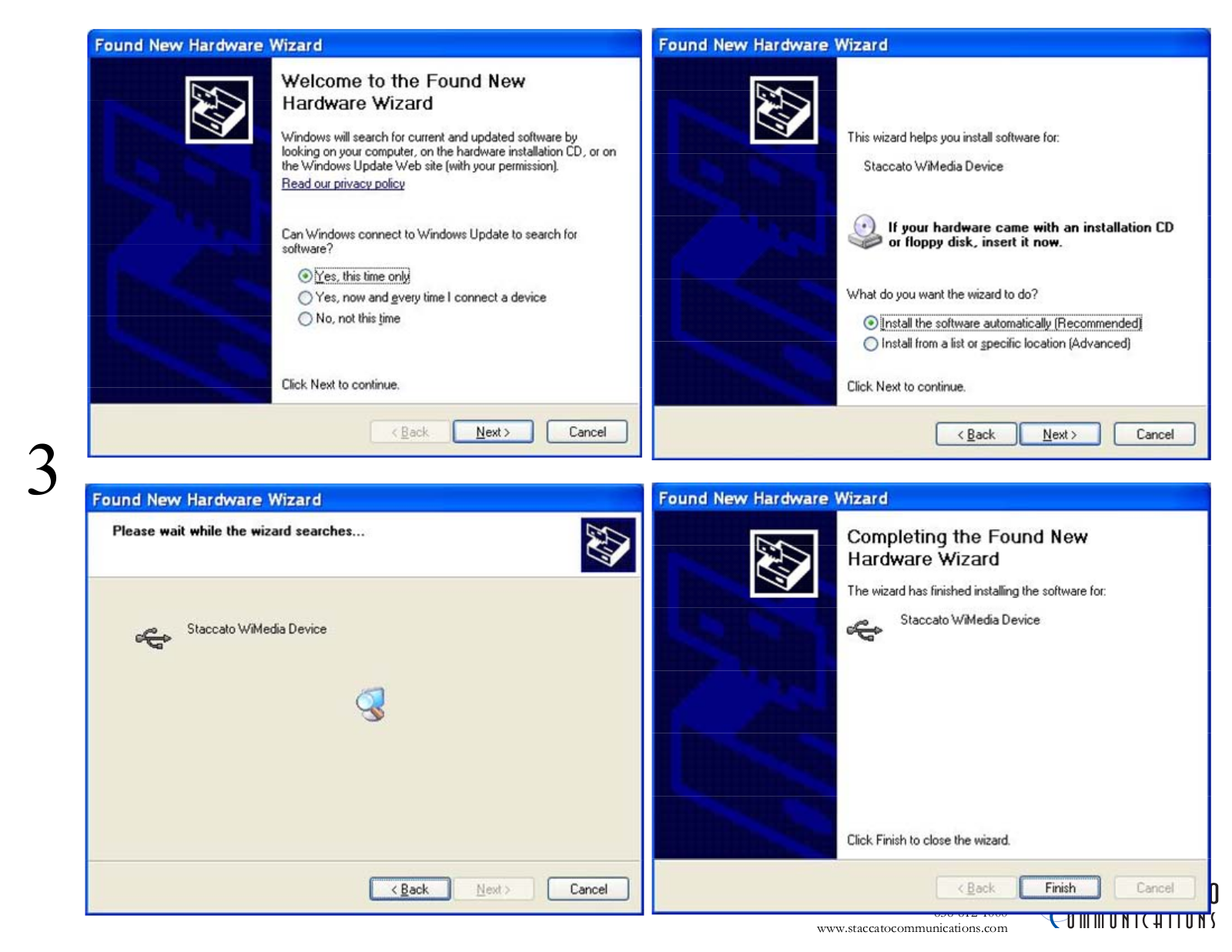

www.staccatocommunications.com
6195 Lusk Blvd, Suite 200
San Diego, CA 92121
858-812-1000
S
taccato
C
o
mm
unications

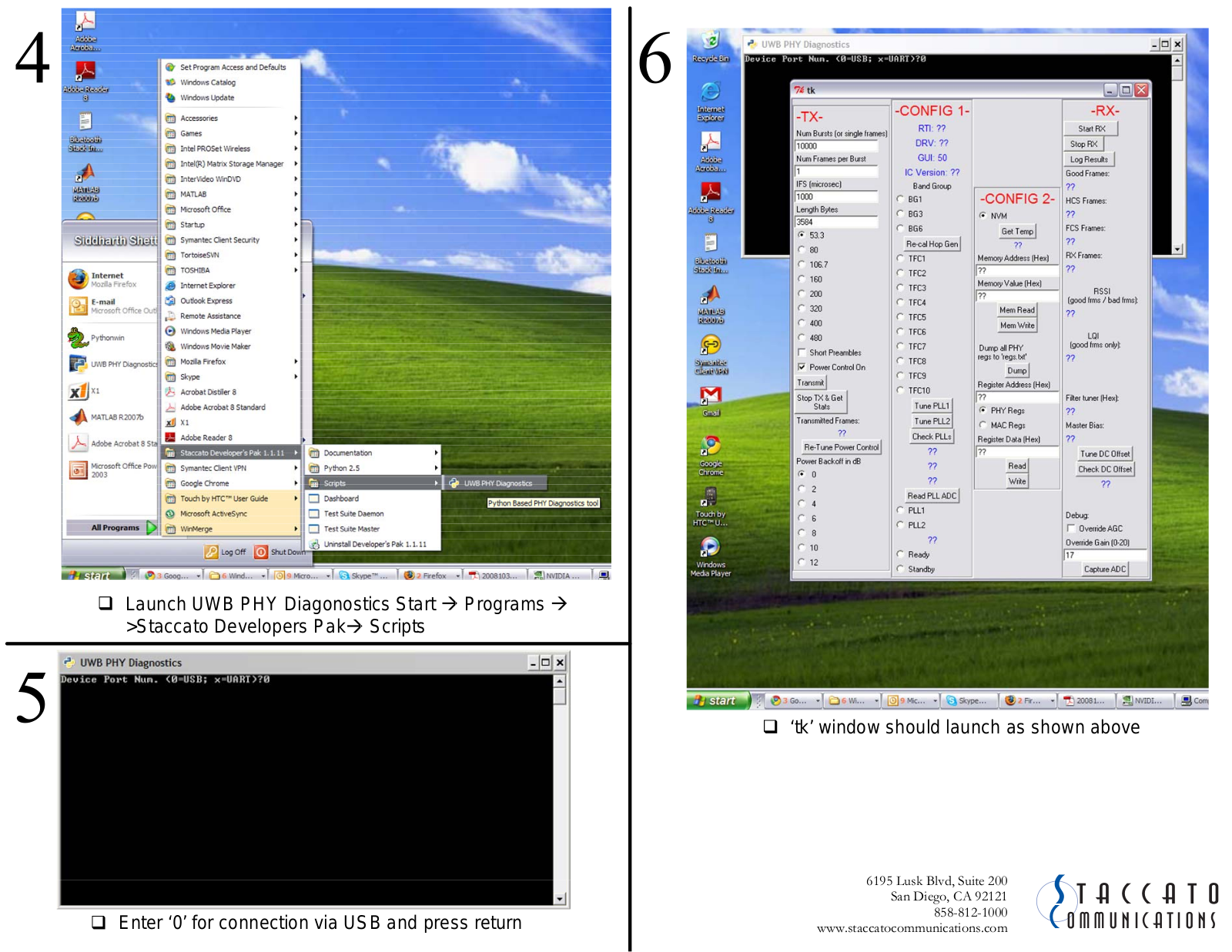

Launch UWB PHY Diagonostics Start Programs
>Staccato Developers Pak Scripts
‘tk’ window should launch as shown above
Enter ‘0’ for connection via USB and press return
www.staccatocommunications.com
6195 Lusk Blvd, Suite 200
San Diego, CA 92121
858-812-1000
S
taccato
C
o
mm
unications
www.staccatocommunications.com
6195 Lusk Blvd, Suite 200
San Diego, CA 92121
858-812-1000
S
taccato
C
o
mm
unications

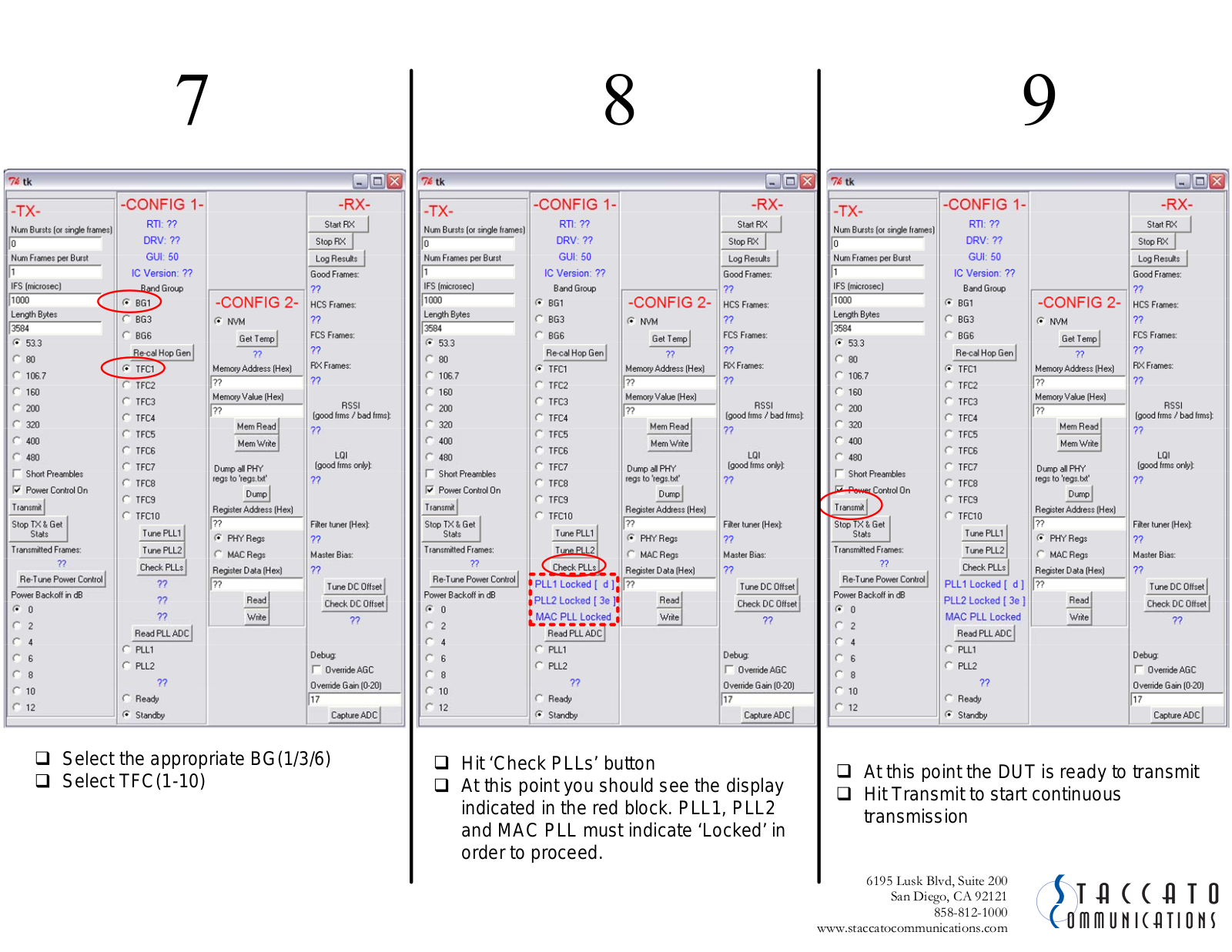

Select the appropriate BG(1/3/6)
Select TFC(1-10)
Hit ‘Check PLLs’ button
At this point you should see the display
indicated in the red block. PLL1, PLL2
and MAC PLL must indicate ‘Locked’ in
order to proceed.
At this point the DUT is ready to transmit
Hit Transmit to start continuous
transmission
6195 Lusk Blvd, Suite 200
San Diego, CA 92121
858-812-1000
www.staccatocommunications.com
S
taccato
C
o
mm
unications

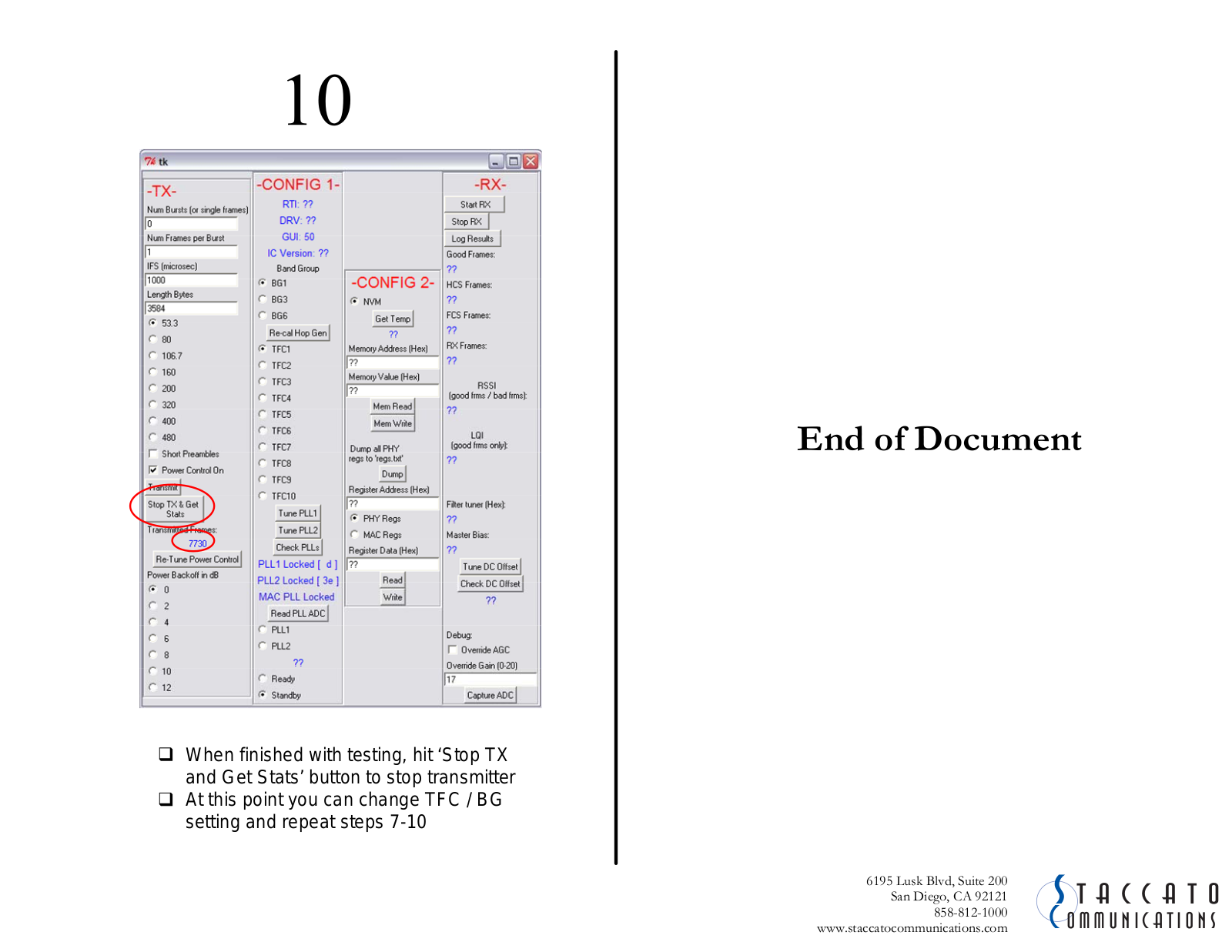

When finished with testing, hit ‘Stop TX
and Get Stats’ button to stop transmitter
At this point you can change TFC / BG
setting and repeat steps 7-10
End of Document
