UUsseerr MMaannuuaall // IInnssttaallllaattiioonn GGuuiiddee
MMooddeell NNoo.. OOTT1177//CCTT1177
Warning! It will cause malfunction if the monitor is operating with unspecified power supply unit
or incorrect power voltage. Do not exposure this unit in the rain or moisture environment to reduce the
risk of fire or electric shock.
Content:
I. Introduction.............................................................................................................................1
Features....................................................................................................................................1
Unpack the monitor .................................................................................................................2
Ⅱ. Installation...............................................................................................................................3
I/O placement...........................................................................................................................3
To PC .......................................................................................................................................3
Touch driver.............................................................................................................................4
MSR (optional)........................................................................................................................6
Second Display installation (optional).....................................................................................6
Control Buttons........................................................................................................................8
Structure of OSD settings.........................................................................................................9
Ⅲ. For your safety........................................................................................................................10
Ⅳ. Support timing........................................................................................................................10
Ⅴ. Mechanical dimension............................................................................................................10
Ⅵ. FCC Warning Statement........................................................................................................11
Ⅶ. Product General Specification...............................................................................................12
Version. 1.0
1
I. Introduction
OT17/CT17 is color TFT LCD monitor, integrate with ELO or TWN resistive touch, suitable for many
types of application. Optional MSR and 2nd display, please contact our regional distributor for further
information.
¾ Features
- Optimal display resolution 1280 * 1024
- VESA 100 * 100 mm wall mount standard
- Durable and sturdy base design
- Optional 3 tracks Magnetic Strip Reader (MSR)
- Optional variety of 2nd display (7”/8.4”)
- Adjustable viewing angel freely up to 90 degrees horizontally
- Low power consumption only 20W with CCFL backlight
- Packing box to be recycled as a free storage cabinet
Version. 1.0
2
¾ Unpacking the monitor
- Put the monitor on a clean surface, make sure the box in upright position.
- Remove packing materials from inside of box.
Check accessory
Please make sure all the accessory are included:
Standard Items
a. b. c.
d. e. f.
Optional Items
a. b.
a. MSR b. 2
nd
display ( 7” or 8.4” )
a. LCD Monitor b. VGA cable
c. Touch driver / User Manual CD d. Touch cable (USB or RS232)
e. Power adaptor f. Power cable
Version. 1.0
3
Ⅱ. Installation
¾ I/O placement:
1 DC JACK 2 DVI
3 VGA 4 USB B Type
5 Dual USB A Type 6 RS232
7 RJ45(RS232)
8. DC JACK 9. VGA
10. USB B Type 11. RS232
¾ To PC:
1. Connect VGA cable from monitor to PC
2. Connect USB touch cable to PC
3. Connect DC plug to monitor and the other side to wall outlet
OT17TB
OT17TA
Version. 1.0
4
¾ Touch Driver installation：
TWN Touch：
1. Double click “setup.exe” from driver menu 2. Click “next” from welcome window
3. Click “next” from choose destination location window
4. Click “next” from ready to install the
program
5. Click “next” from setup type 6. Click “finish” when setup completed
Calibration procedures:
1. Double click “POS Touch+” icon to run calibration function
2. Follow 9 points linearity calibration procedures and save the data
3. Follow free draw calibration
4. Exit calibration menu
5. Reboot PC
Version. 1.0
5
ELO Touch：
1.Install ELO Touchscreen Driver
2. Click “Unzip” from WinZip
Self-Extractor-ELO_v463.exe
3. Click “next” from Select Language
4.Select Install Serial or USB Touchscreen
Driver
5.Click-on “Yes” after Installation 6. Click-on “Finish”
Calibration procedures:
1. Double click “Elo Touchscreen” icon to run calibration function
2. Follow 3 points linearity calibration procedures and save the data
3. Follow free draw calibration
4. Exit calibration menu
Version. 1.0
6
¾ MSR installation (optional)：
Components of MSR Kit:
1. Slide the MSR into the right position of the System.
2. Fasten the screws (x2) .

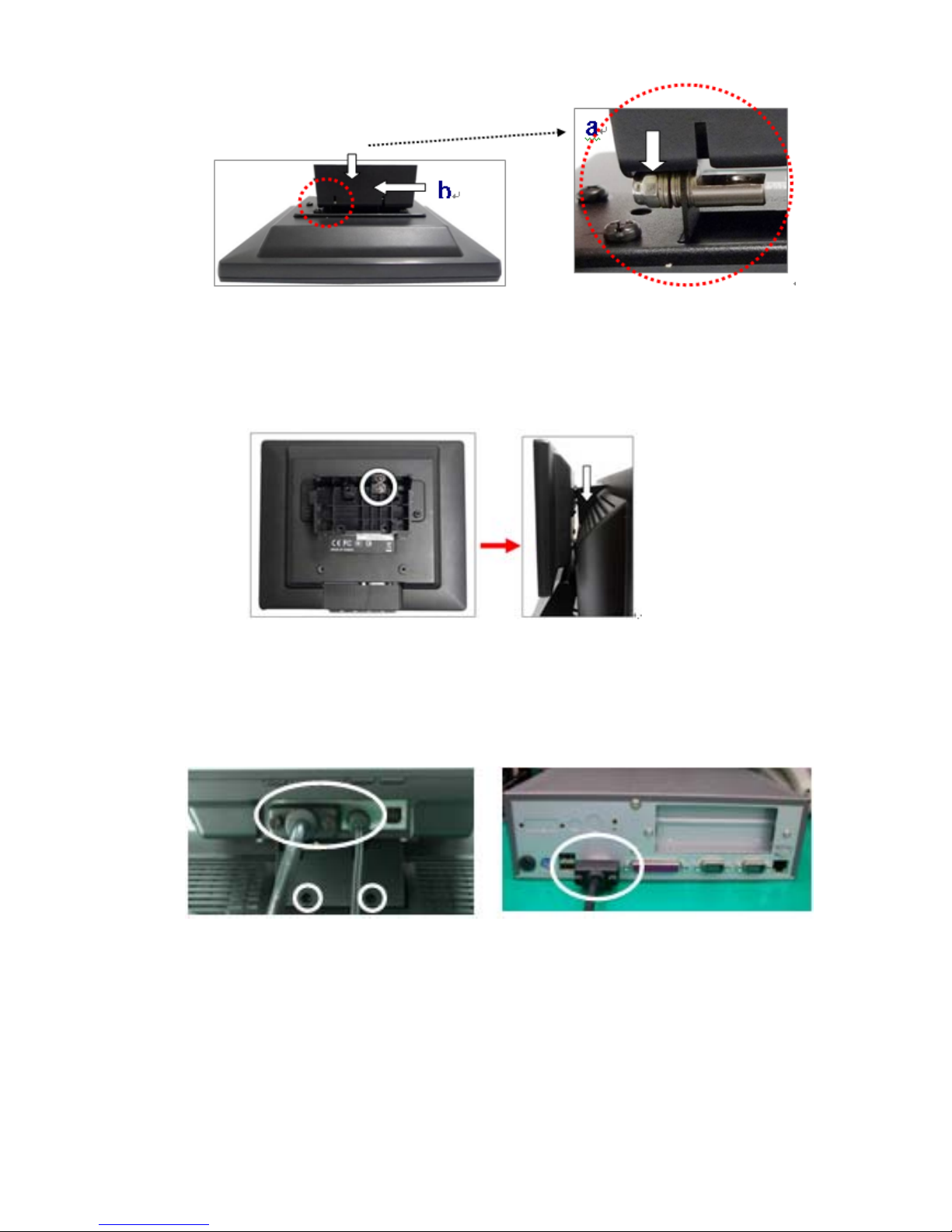

¾ Second Display installation (optional)：
To install the Second Display, please open the VFD cover first.
Components of Second Display Kit with power adapter:
1. Fix the parts of Second Display modules as steps ❶ Æ ❷ Æ ❸ as above left
picture shows. (detail steps as below)
❶ Put the second display upside down.
❷ Place the metal bracket onto the rear side of the second display
and fasten the screws (x4) to fix metal bracket with the system.
Version. 1.0
7
❸ Align the plastic bracket into the right position of metal bracket.
(a) Align the plastic bracket onto the metal bracket.
(b) Push to left until the click sound appears.
2. Fasten the screw (x1) to fix the platic bracket and Second Display module
with metal bracket.
3. Slide the Second Display Module into the slot.
4. Fasten the scrws (x2) to fix the Second Display moudle with the System.
5. Connect the VGA cable to the Second Display Module and the System.
6. Connect the DC piug to the Second Display Module and the other side to wall
outlet.
7. Finish
Version. 1.0
8
¾ Control Buttons
Power
Use the power switch to turn the power ON or OFF. We recommend to turn your
system power on first, then the LCD monitor.
Auto Adjusting
a.) Pressing to execute AUTO-Adjusting function. This function will set the
monitor display area to the optimal position.
b.) Sometimes this function can't achieve the optimal effects. Please follow the
manual adjusting procedure.
Up
Down
a.) When OSD mode is activated (When “MENU” key is pressed). The two keys
are used to select the adjustment items.
b.) When adjustment item is selected, the two keys are defined to decrease or
increase the value of each selected item.
Menu
When the light bar move other item, the key are used to select it, and read to adjust.
Press the MENU key to activate the On Screen Display (OSD). Press twice to turn
off the OSD. After 30 sec idle time, the OSD screen will automatically turn off .
Version. 1.0
9
¾ Structure of OSD settings:
First Level Second Level
Third
Level
Operating Procedure
Auto Adjust
Press “UP” or “DOWN” to adjust H-phase &
H-position & V-position clock automatically.
Luminance
Brightness
Contrast
Exit
Press “UP” key to increase brightness, “DOWN” key to
decrease brightness.
Press “UP” key to increase contrast, “DOWN” key to
decrease contrast.
Geometry
H. Position
V. Position
Clock
Phase
Exit
Press “UP” key to shift screen right, “DOWN” key to
shift screen left.
Press “UP” key to shift picture upward, “DOWN” key
to shift picture downward.
Adjust sampling clock of analog to digital converter
until clock is equal to pixel frequency of video input.
By varying this “UP” “DOWN” control the exact
sampling time within the pixel can be adjusted.
9300K
6500K
5800K
User Preset
Red
Green
Blue
Exit
Color
Exit
Press “UP” or “DOWN” to choose three types of color
temperature 9300°k, 6500°k and user define.
OSD
H. Position
V. Position
OSD Timeout
Exit
Adjust OSD frame horizontal location, press “UP” key
to shift frame right, “DOWN” key to shift frame left ,
timeout and preset OSD.
Adjust OSD frame vertical location, press “UP” key to
shift frame upward, “UP” key to shift frame
downward , timeout and preset OSD.
Language
English
French
German
Italian
Spanish
Japanese
T. Chinese
S. Chinese
Press “UP” or “DOWN” to choose any one of the
following language, English, French, Germany, Italy,
Spain , Japanese, Traditional Chinese and Simplified
Chinese.
Recall
Color Recall
Recall All
Exit
Recall the default value.
Miscellaneous
Sharpness
Display
Information
Exit
Press “UP” key to increase sharpness, “DOWN” key to
decrease sharpness.
Main
Menu
Exit
Version. 1.0
10
III. For your safety
1. When move the monitor, always switch off power and disconnect all cables to avoid any danger.
2. Please use the power and signal cables correctly when install or bend it.
3. In case of notice any abnormal smell or noise, please stop operation and call the nearest dealer or
service center.
IV. Support timing chart:
Timing
Mode
Reference
Standard
Resolution
Pixel
MHz
FH KHz FV Hz Interlace
H
Polarity V Polarity
Mode 1 VESA 1280*1024 108 64 60 NO + +
Mode 2 VESA 1280*1024 135 80 75.029 NO + +
Mode 3 VESA 1280*1024 157.5 91.1 85 NO + +
V. Mechanical Dimension:
Version. 1.0
11
VI. FCC Warning Statement
WARNING
Note: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
Notice:
(1) A Unshielded-type power cord is required in order to meet FCC emission limits and also to prevent
interference to the nearby radio and television reception. It is essential that only the supplied power cord by
used.
(2) Use only shielded cables to connect I/O devices to this equipment.
(3) Changes or modifications not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
Version. 1.0
12
Ⅷ. Product General Specification
Model OT17TA/CT17TA OT17TB/CT17TB
Cabinet color Black
Display size 17.0"
Active Area 338 * 270 mm
Optimal Resolution 1280 * 1024
Color Arrangement RGB-stripe
Brightness (Panel) 300 cd/m² (typ)
Contrast Ratio 500:1
Response Time 8 ms (typ)
140 degrees (H)
Viewing Angle
130 degrees (V)
Input Video Format VGA/DVI
Input Video signal connector D-Sub 15 pins D-Sub 15 pins+DVI-D
Power consumption 30W
Horizontal : 31.5 kHz~60.2 kHz
Input Frequency
Vertical : 56.3Hz~75Hz
Power supply DC 12V +/- 10%
Operating : 0℃~40℃
Temperature
Storage : -10℃~50℃
Operating : 20%~80%
Humidity
Storage : 10%~90%
Weight 5.86Kg(net)
Approvals
CE, FCC，BSMI，CCC
Wall Mount VESA 100 * 100 mm
Optional items
Color White
Wall Mount Bracket
MSR 3 Tracks
2nd Display
7”/8.4”
Customer Display VFD
