VECTRIX GC667894 Users Manual

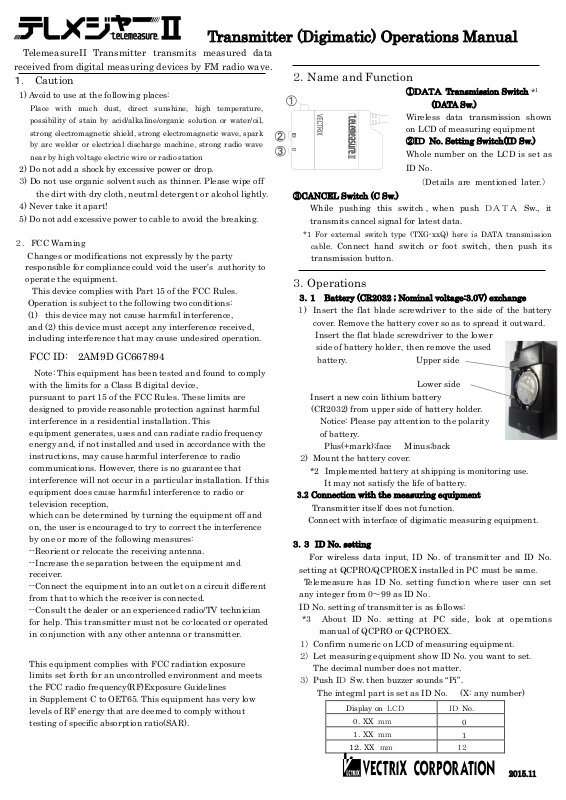

Transmitter (Digimatic) Operations Manual

Changes or modificat

ions not expressly by the party

This device complies with Part 15 of the FCC Rules.

Note: This equipment has been tested and found to comply

This equipment complies with FCC radiation exposure

TelemeasureII Transmitter transmits measured data

received from digital measuring devices by FM radio wave.

１． Caution

1) Avoid to use at the following places:

Place with much dust, direct sunshine, high temperature,
possibility of stain by acid/alkaline/organic solution or water/oil,
strong electromagnetic shield, strong electromagnetic wave, spark
by arc welder or electrical discharge machine、strong radio wave
near by high voltage electric wire or radio station

2) Do not add a shock by excessive power or drop.

３) Do not use organic solvent such as thinner. Please wipe off
the dirt with dry cloth, neutral detergent or alcohol lightly.

4) Never take it apart!

5) Do not add excessive power to cable to avoid the breaking.

２. FCC Warning

responsible for compliance could void the user’s authority to
operate the equipment.

Operation is subject to the following two conditions:
(1) this device may not cause harmful interference,
and (2) this device must accept any interference received,
including interference that may cause undesired operation.

FCC ID: 2AM9D GC667894

２．Name and Function

①ＤＡＴＡ Transmission Switch *

(DATA Sw.)
Wireless data transmission shown
on LCD of measuring equipment
②IＤ No. Setting Switch(ID Sw.)
Whole number on the LCD is set as

ID No.

（Details are mentioned later.）

③CANCEL Switch (C Sw.)

While pushing this switch 、 when push Ｄ Ａ Ｔ Ａ Sw., it
transmits cancel signal for latest data.

*1 For external switch type (TXG-xxQ) here is DATA transmission

cable. Connect hand switch or foot switch, then push its

transmission button.

３．Operations

３．１ Battery (CR2032 ; Nominal voltage:3.0V) exchange

１) Insert the flat blade screwdriver to the side of the battery

cover. Remove the battery cover so as to spread it outward.

Insert the flat blade screwdriver to the lower

side of battery holder、then remove the used

battery. Upper side

1

with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful
interference in a residential installation. This
equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or
television reception,
which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference
by one or more of the following measures:

--Reorient or relocate the receiving antenna.

--Increase the separation between the equipment and
receiver.

--Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.

--Consult the dealer or an experienced radio/TV technician
for help. This transmitter must not be co-located or operated
in conjunction with any other antenna or transmitter.

limits set forth for an uncontrolled environment and meets
the FCC radio frequency(RF)Exposure Guidelines
in Supplement C to OET65. This equipment has very low
levels of RF energy that are deemed to comply without
testing of specific absorption ratio(SAR).

Lower side

Insert a new coin lithium battery

(CR2032) from upper side of battery holder.

Notice: Please pay attention to the polarity
of battery.

Plus(+mark);face Minus;back

２) Mount the battery cover.
*2 Implemented battery at shipping is monitoring use.

It may not satisfy the life of battery.

3.2 Connection with the measuring equipment
Transmitter itself does not function.

Connect with interface of digimatic measuring equipment.

３．３ ID No. setting

For wireless data input, ID No. of transmitter and ID No.

setting at QCPRO/QCPROEX installed in PC must be same.

Telemeasure has ID No. setting function where user can set

any integer from 0～99 as ID No.
ID No. setting of transmitter is as follows:

*3 About ID No. setting at PC side, look at operations

manual of QCPRO or QCPROEX.

１） Confirm numeric on LCD of measuring equipment.
２） Let measuring equipment show ID No. you want to set.

The decimal number does not matter.

３） Push IＤ Sw. then buzzer sounds “Pi”.

The integral part is set as ID No. (X: any number)

Display on ＬＣＤ ＩＤ No.

0．XX ｍｍ

1．XX ｍｍ

12

．XX ｍｍ １２

0

1

2015.11

Transmitter (Digimatic) Operations Manual

*4 Notice:

Available ＩＤ No. may be limited if you use measuring

equipment which has limited measuring range.
For measuring equipment having origin & preset function,
larger number than measured number can be set as ID.
Please see the instruction of each measuring equipment.

Reset of Transmitter；

In case of malfunction, but the battery has voltage(3.0V or
more), please rest the Transmitter.

・Remove the battery See 3.1 1)
・While pushing 3 SW's. (CANCEL, ID No. and DATA)

at a same time, insert battery., then buzzer sounds “Pi”,
“Pi”, “Pi”,

※ After the reset ID No.=0, Receiver No.=1 (at shipping)

Guarantee

----- Guarantee rule -----

This product is manufactured under strict quality control.

If trouble due to our manufacture or transportation occurred to

product within 6 months, we will repair it free of charge.

In the following cases, repair will be charged even within the

period of guarantee.

・Trouble due to misuse or improper handling

・Trouble due to the remodeling by customer

・Change in the appearance such as scratch during the use

・Trouble due to inevitability such as fire earthquake, flood or

due to abnormal voltage.

・This guarantee is valid only in Japan.

＜To Agent＞

Please fill & sign the above “Guarantee”, then give it to customer.

＜High-performance Function＞

（In case of normal usage without High-performance Function
using one receiver, please skip it.） Multi-settings among Item2
～ Item4 are unavailable. Except Item2 setting of receiver
DR-200 side is necessary.

１．Setting of Receiver No.(Multi-receiver use)

If you use more than one receiver in one area, to avoid radio
interference you can set Receiver No. to each transmitter.
Receiver No. is chosen from 1～128. Operation:

①Let measuring equipment show numeric where the integer

should be Receiver No. which you want to set.

②While pushing C Sw., push ID Sw.

After completed setting, buzzer sounds “Pi”.

*5 Default(Shipment) Receiver. No.=1
*6 Operation for receiver ＤＲ-200Ｕ/Ｒ is required.

（Look at the operation manual of ＤＲ-200Ｕ/Ｒ.）

２．Interval Transmission

TXG- has function to transmit data every specified time.

２．１ Setting

①Interval active : Let measuring equipment show “0.2”.

Then while pushing C Sw., push ID Sw.
The confirmation is checked by buzzer sounds “Pi”.

②Interval time : Let measuring equipment show “0.00～0.16”.

Then while pushing C Sw., push ID Sw.

③Interval cancel : Let measuring equipment show “0.3”.

Then while pushing C Sw, push ID Sw.

Interval function Display Interval function Display

① Active

Interval time Display Interval time Display

Min. (appr. 0.4sec.)

1sec. 0.01 2min. 0.12

Name・Type Transmitter TXG－
Serial No.

Period of guarantee
Date purchased

Company

Customer

Address

Division
Name
TEL.

Agent (Company, Address, Tel., Name )

2sec. 0.02 5min. 0.13

5sec. 0.03 10min. 0.14
10sec. 0.04 30min. 0.15
30sec. 0.05 60min. 0.16

*7 Minimum time depends on measuring equipment.
*8 Number under place of above “Display” is ignored.
(Ex.0.039)

0.2

0.00 1min. 0.11

6 months from purchased date

〒

２．２ Transmission start and halt

①Start Push DATA Sw. of transmitter, then sounds “Pi”.

(By DATA Switch of cable side it does not work.)

②Halt Push C Sw. Then buzzer sounds “Pi”.

*9 During interval setting, cancel function does not work.
*10 For change of interval time、please set again after halt by

C Sw. or cancel of interval function.

③ Cancel

Day Month Year

(Signature)

0.3

2015.11
