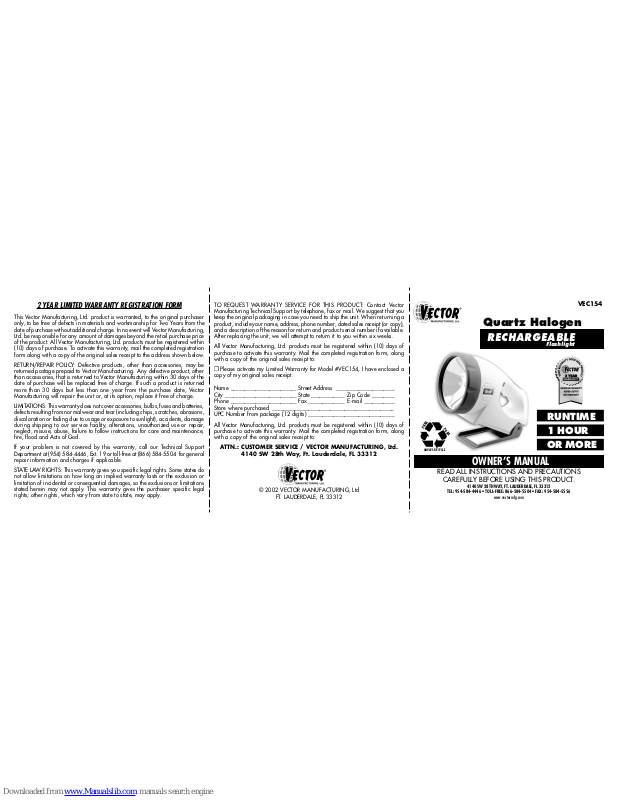

Vector VEC154 Owner's Manual

VEC154

OWNER’S MANUAL

READ ALL INSTRUCTIONS AND PRECAUTIONS

CAREFULLY BEFORE USING THIS PRODUCT.

4140 SW 28TH WAY, FT. LAUDERDALE, FL 33312

TEL: [phone] • TOLL-FREE: 866-584-5504 • FAX: [phone]

www.vectormfg.com

2 YEAR LIMITED WARRANTY REGISTRATION FORM

This Vector Manufacturing, Ltd. product is warranted, to the original purchaser
only, to be free of defects in materials and workmanship for Two Years from the
date of purchase without additional charge. In no event will Vector Manufacturing,
Ltd. be responsible for any amount of damages beyond the retail purchase price
of the product. All Vector Manufacturing, Ltd. products must be registered within
(10) days of purchase. To activate this warranty, mail the completed registration
form along with a copy of the original sales receipt to the address shown below.

RETURN/REPAIR POLICY: Defective products, other than accessories, may be
returned postage prepaid to Vector Manufacturing. Any defective product, other
than accessories, that is returned to Vector Manufacturing within 30 days of the
date of purchase will be replaced free of charge. If such a product is returned
more than 30 days but less than one year from the purchase date, Vector
Manufacturing will repair the unit or, at its option, replace it free of charge.

LIMITATIONS: This warranty does not cover accessories, bulbs, fuses and batteries,
defects resulting from normal wear and tear (including chips, scratches, abrasions,
discoloration or fading due to usage or exposure to sunlight), accidents, damage
during shipping to our service facility, alterations, unauthorized use or repair,
neglect, misuse, abuse, failure to follow instructions for care and maintenance,
fire, flood and Acts of God.

If your problem is not covered by this warranty, call our Technical Support
Department at [phone], Ext. 19 or toll-free at [phone] for general
repair information and charges if applicable.

STATE LAW RIGHTS: This warranty gives you specific legal rights. Some states do
not allow limitations on how long an implied warranty lasts or the exclusion or
limitation of incidental or consequential damages, so the exclusions or limitations
stated herein may not apply. This warranty gives the purchaser specific legal
rights; other rights, which vary from state to state, may apply.

TO REQUEST WARRANTY SERVICE FOR THIS PRODUCT: Contact Vector
Manufacturing Technical Support by telephone, fax or mail. We suggest that you
keep the original packaging in case you need to ship the unit. When returning a
product, include your name, address, phone number, dated sales receipt (or copy),
and a description of the reason for return and product serial number if available.
After replacing the unit, we will attempt to return it to you within six weeks.

All Vector Manufacturing, Ltd. products must be registered within (10) days of
purchase to activate this warranty. Mail the completed registration form, along
with a copy of the original sales receipt to:

❒ Please activate my Limited Warranty for Model #VEC154, I have enclosed a
copy of my original sales receipt.

Name ________________________ Street Address _____________________
City __________________________ State ____________ Zip Code ________
Phone ________________________ Fax _____________ E-mail ___________
Store where purchased ____________________________________________
UPC Number from package (12 digits) _______________________________

All Vector Manufacturing, Ltd. products must be registered within (10) days of
purchase to activate this warranty. Mail the completed registration form, along
with a copy of the original sales receipt to:

ATTN.: CUSTOMER SERVICE / VECTOR MANUFACTURING, Ltd.

4140 SW 28th Way, Ft. Lauderdale, FL 33312

RECHARGEABLE

Flashlight

© 2002 VECTOR MANUFACTURING, Ltd

FT. LAUDERDALE, FL 33312

RUNTIME
1 HOUR
OR MORE

Quartz Halogen

ALWAYS RECYCLE

PRBA

PRBA

Congratulations on selecting the Vector Manufacturing rechargeable Quartz
Halogen flashlight.

• Ideal for temporary power outages or emergencies - always be prepared!

• Operates on Long Life sealed lead-acid rechargeable batteries

• Comes with two plug adaptors 110 Volt AC and 12 Volt DC cigarette plug
WARNING: Please read and understand all instructions.

CHARGING AND OPERATING:

NOTE: Flashlight must charge at least 15 hours prior to first use for maximum

charge to occur. When light has begun to dim charge at least 12 hours to
achieve maximum run time. The light can be recharged, after the first
charging, from either an AC wall outlet in your home or garage or from a
12 volt DC cigarette lighter receptacle in your car, SUV, boat or RV.

1. Press switch to off position.

2. Remove Weatherproof plug from back of spotlight.

3. Plug the 110 Volt AC adapter into any 110 Volt AC household outlet and the
other end into the charging receptacle at the back of the flashlight.

4. To use, unplug unit from the wall outlet and press and hold the on/off switch
or lock into the on position.

CAUTION:

• Do Not charge unit in outdoor outlets or use in wet conditions

• Do Not submerge flashlight in liquid.

BULB REPLACEMENT:

Make sure flashlight is unplugged from wall outlet.

1. Remove retaining screw holding the Bezel Cover.

2. Gently twist Bezel Cover counterclockwise to remove. Remove the
glass and the reflector.

3. Remove the wire spring and gently pull bulb out and replace with a
H3 6V 100W halogen bulb Vector model # VEC154RB.

4. Replace in opposite order.

Contact Vector Manufacturing Technical Support for replacement parts toll free
at 866-584-5504.

BATTERY REPLACEMENT:

Make sure flashlight is unplugged from wall outlet.

1. Remove the two retaining screws holding the battery cover in place.

2. Pull gently on the cover to remove and pull the battery out of the
compartment.

VEC 154 – (1) H3 6V 2.8 amp hour

3. Carefully unplug the positive and negative wires from the battery clips and
remove the battery pack. ( Do not let the connectors touch together).

4. Attach a new battery pack to the wires, taking care to match up the proper
polarity (positive (Red) to positive; negative (Black) to negative.

5. Position the battery in the housing and reassemble the battery cover.

BATTERY DISPOSAL:

• The sealed lead acid battery contained in this flashlight should be disposed of
properly once it has expired. Some states require recycling. Please contact
your local solid waste authority for recycling information.

• Before disposing of the battery, protect exposed terminals with heavy-duty
tape to prevent shorting (shorting can result in injury or fire). DO NOT
EXPOSE BATTERY TO FIRE OR INTENSE HEAT AS IT MAY EXPLODE.

They should be accepted at any location that accepts
common automotive batteries, County or Municipal
recycling drop-off centers, scrap metal dealers or
retailers who sell automotive batteries. For more
information on recycling this battery, please call
toll-free 877-288-7722.

Open

Push
Inward

ALWAYS RECYCLE

PRBA

PRBA
