Vector VEC013DB, RD122904 User Manual

OWNER’S MANUAL AND

WARRANTY INFORMATION

THIS MANUAL CONTAINS IMPORTANT INFORMA TION REGARDING SAFETY,

OPERATION, MAINTENANCE AND STORAGE OF THIS PRODUCT. READ

CAREFULLY BEFORE USE, AND RETAIN FOR FUTURE REFERENCE.

4444111144440000SSSS....WWWW....22228888tttthhhhWWWWaaaayyyy,,,,FFFFtttt....LLLLaaaauuuuddddeeeerrrrddddaaaalllleeee,,,,FFFFLLLL333333333333111122

22

TTTToooollllllllFFFFrrrreeeeeeee::::((((888800000000))))999911116666----77770000000044

44

VEC013DB

12VOLT DC POWER SUPPLY

Jump-Start System

1

SAFETY INFORMATION

WARNINGS:

1. When working with lead-acid batteries, always make sure immediate assistance
is available in case of accident or emergency.

2. Always use protective eyewear when using this product: contact with battery acid
may cause blindness and/or severe burns, be aware of first aid procedures in
case of accidental contact with battery acid.

3. There is a risk of explosive gases being released when lead acid batteries are
being charged or discharged. Failure to follow instructions may cause property
damage, explosive hazard, and/or personal injury.

4. When charging unit from a 120 volt AC electrical outlet in any wet or damp
area, make sure that the outlet used is protected by a ground fault interrupt
(GFI) switch.

5. When charging the unit near water, do not allow the electrical cords and outlets
to get wet or come near water–electrical shock could result.

6 Jump-start procedures should only be performed in a safe, dry , well-ventilated area.

7. Always store battery clamps on clamp holder tab on back of unit when not in
use. Never touch battery clamps together, this can cause dangerous sparks,
power arcing and/ or explosion.

8. When using this unit in proximity to the vehicle’s battery and engine, stand the
unit on a flat, stable surface, and be sure to keep all clamps, cords, clothing
and body parts away from moving vehicle components.

9. Do not wear vinyl clothing when jump-starting a vehicle, friction can cause
dangerous static-electricity sparks. Remove all jewelry or metal objects that
could cause short circuits or react with battery acid.

10. Always disconnect the negative (Black) jumper cable first: followed by the
positive (Red) jumper cable, except for positive ground systems.

11. Never allow red and black clamps to touch each other or another common metal
conductor–this could cause damage to the unit and/or create sparking/
explosion hazard. Always store battery clamps on clamp holder tabs when not
in use.

12. Do not expose battery to fire or intense heat as it may explode. Before disposing of
the battery, protect exposed terminals with heavy-duty electrical tape to prevent
shorting (shorting can result in injury or fire).

13. Do not smoke or use inflammable items (matches, cigarette lighters, etc.) while
working on a vehicle’s battery system.

14. Keep unit out of reach of children (whether stored, or in use)!

CAUTIONS:

1. Use only the supplied cords/adapters for recharging this unit. Do not recharge
for more than 4-5 hours maximum using 12 volt DC method. Recharge unit
after each use.

2. All On/Off switches should be in the OFF position when the unit is charging or
not in use. Make sure all switches are in the OFF position before connection to a
power source or load.

2

3. Never insert anything other than the supplied power/recharging cords or
recommended appliance power/recharging cords into the 12 volt DC charging/
power socket on this unit. Do not use any accessory that is not recommended
or provided by the manufacturer.

4. Do not use this unit to operate appliances that draw more than 5 amps.

5. This system is designed to be used only on vehicles with 12 volt DC battery
systems. Do not connect to a 6 volt or 24 volt battery system.

6. This system is not designed to be used as a replacement for a vehicular battery.
Do not attempt to operate a vehicle that does not have a battery installed.

7. Vehicles that have on-board computerized systems may be damaged if vehicle
battery is jump-started. Before jump-starting, read the vehicle’s owners manual to
confirm that external-starting assistance is advised.

8. Excessive engine cranking can damage a vehicle’s starter motor. If the engine
fails to start after the recommended number of attempts, discontinue jump-start
procedures and look for other problems that may need to be corrected.

9. Although this unit contains a non-spillable battery, it is recommended that unit be
kept upright during storage, use and recharging. To avoid possible damage that
may shorten the unit’s working life, protect it from direct sunlight, direct heat
and/or moisture.

10. Check unit periodically for wear and tear. Replace worn or defective parts
immediately. Contact Durabilt’s Customer Service department toll-free (800) 916-

7004.

11. Do not attempt to jump-start a frozen battery.

12. Never submerge this unit in water.

FIRST AID:
SKIN:

If battery acid comes in contact with skin, rinse immediately with running water,
then wash thoroughly with soap and water. If redness, pain or irritation occurs,
seek immediate medical attention.

EYES: If batter y acid comes in contact with eyes, flush eyes immediately - for minimum

of 15 minutes - seek immediate medical attention.

IMPORTANT:

Although this unit is delivered in a partially charged state, you must fully charge it
with the supplied 120 volt AC charger for a full 48 hours before using it for the first
time. You cannot overcharge the unit using the AC charger method.

CAUTIONS:

Do not expose to rain. Replace defective cords or wires immediately.

SAVE THESE INSTRUCTIONS

INTRODUCTION

Congratulations on selecting the Durabilt Jump-Start System. This compact jump­starter is unique in the amount of energy it can supply for its size. The internal battery
is a high-density sealed, lead-acid battery that stores and delivers energy
comparable to full sized ordinary jump-starters. Please read this guide carefully
before use to ensure optimum performance and avoid damage to the unit or items
that you are using it with.

The Durabilt Jump-Start System is a compact, durable and por table jump-start
system for vehicles and boats that have a standard 12 volt battery system. This self­contained, rechargeable system will start most vehicles and boats without the need
for a host vehicle or 120 volt AC power supply. It can also be used as a safe,
portable source of 12 volt DC electric power in remote locations and/or
emergency situations. It is ideal for use with Durabilt 12 volt DC cordless, portable,
rechargeable products.

Use the DurabiltJump-Start System to:

•

Jump start any engine system with a standard 12 volt DC battery: boat; truck; car;

airplane; RV; personal watercraft; snowmobile; garden tractor; gasoline engine
generator, etc.

•

Operate: 12 volt DC fans, inflators, fluorescent worklights, cellular phones (can

quick-charge a cellular phone by using the phone’s 12 volt DC adapter cord),
spotlights, TVs, portable radios, cassette or CD players, and more.

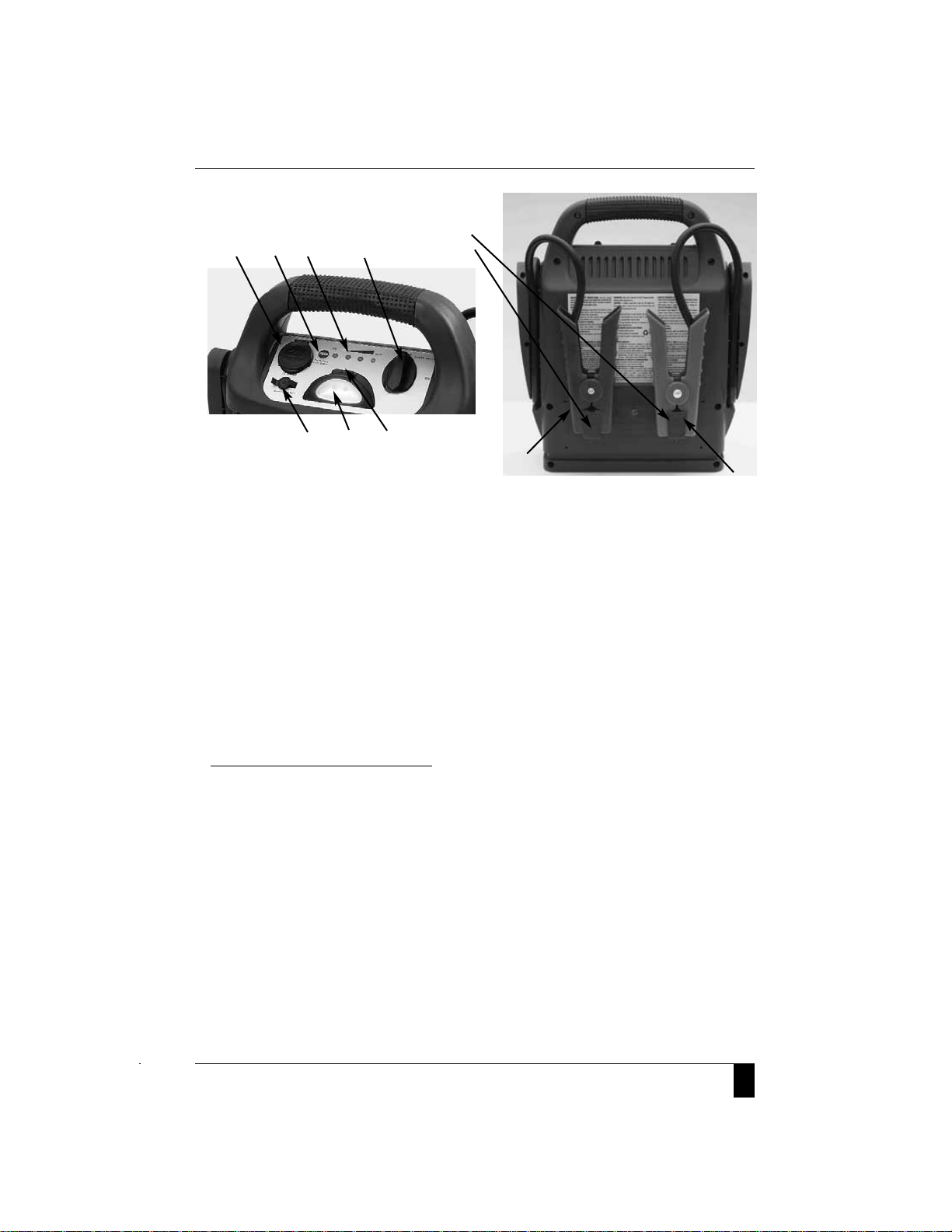

The Jump-Start System has an easy-to-read series of LED (Light Emitting Diode) charge
indicators that show when the unit is fully charged, or the level of charge in the battery.
Charge level can be viewed when the charge status push button is pressed. A 12 volt
DC power accessory socket is provided for use with appliances that can operate from
a vehicle 12 volt DC accessory outlet. This allows maximum portability and utility
when the Jump-Start System is used in remote locations.

The Jump-Start System can be recharged from any standard 120 volt AC power
source using the supplied AC Recharge Adapter. The adapter barrel connector
attaches to the Recharge Port on the top panel of the jump-starter. A built-in 12 volt
appliance socket and the appropriate DC/DC charging/adapter cord is used to
recharge the battery from another 12 volt DC source. When pressed, the CHARGE
STATUS button will show the battery power level status (from Low to Full). The green
LED full indicator illuminates when the unit is fully recharged and charging can be
discontinued. An ON/OFF switch operates the built-in work/emergency light.

3
