Installation and Assembly - Vector Pro™ and PRS Projector
Wall Mounts
IMPORT ANT! Read entire instruction sheet before you start installation and assembly .
IMPORT ANT! Certain types of walls require additional mounting hardware...
Models: PWA-14,
PWA-14S,
PWA-14W
WARNING
• This product was designed and intended to be mounted to the following supporting surfaces checked below with
the hardware included in this product as specified in the installation sheet. To mount this product to an alternative supporting surface, contact Peerless customer care at 1 800 865-21 12.
• This product was designed to be installed on the following wall construction only;
WALL CONSTRUCTION ADDITIONAL HARDWARE REQUIRED
x Wood Stud None
x Wood Beam None
Solid Concrete Do not attach except with Peerless accessory kit for solid concrete;
Contact Customer Service for Peerless accessory kit for solid concrete.
Cinder Block Do not attach except with Peerless accessory kit for cinder block;
Contact Customer Service for Peerless accessory kit for cinder block.
Metal Stud Do not attach except with Peerless accessory kit for metal studs;
Contact Customer Service for Peerless accessory kit for metal studs.
Brick Contact Customer Service
Other or unsure? Contact Customer Service
TURN TO THE APPROPRIATE PAGE FOR YOUR INSTALLATION.
Installations:
T o Wood Stud Walls.............................................................. step 2, p age 3
T o Concrete Walls...................................................................step 3, page 4
T o Metal Stud W alls.................................................................step 4, page 5
Max. Load Capacity
50 lb (22.7 kg)
Some of the following
tools may be required:
Drill, hammer, socket
wrench, pencil, stud finder
1 of 6
Visit the Peerless Web Site at www.peerlessmounts.com For customer service call 1-800-729-0307 or 708-865-8870.
ISSUED: 03-19-03 SHEET #: 017-9011-4 06-13-07
Parts List
Model # PWA-14 PWA-14S PWA-14W
Description
A
support arm
B
carriage bolt
C
M10 locknut
D
M10 steel washer
E
M10 bronze washer
F
#14 x 2.5 phillips wood screw
G
threaded rod adapter
H
end cap
Some parts may appear slightly different
than illustrated.
Attach threaded rod adapter (G) to
support arm (A) using carriage bolt
(B), locknut (C), steel washer (D) and
bronze washer (E) as shown. Insert
end cap (H) into end of support arm
(A) as shown.
Qty.
1
1
1
1
1
2
1
1
Part #
017-1019
580-1022
530-9402
540-9407
540-9441
5S1-015-C03
580-1021
590-1014
Part #
017-4019
580-2022
530-9404
540-9470
540-9441
5S1-015-C04
580-2021
590-4014
B
Part #
017-2019
580-2022
530-9404
540-9470
540-9441
5S1-015-C04
580-2021
590-1001
F
A
H
D
G
E
C
2 of 6
Visit the Peerless Web Site at www.peerlessmounts.com For customer service call 1-800-729-0307 or 708-865-8870.
ISSUED: 03-19-03 SHEET #: 017-9011-4 06-13-07

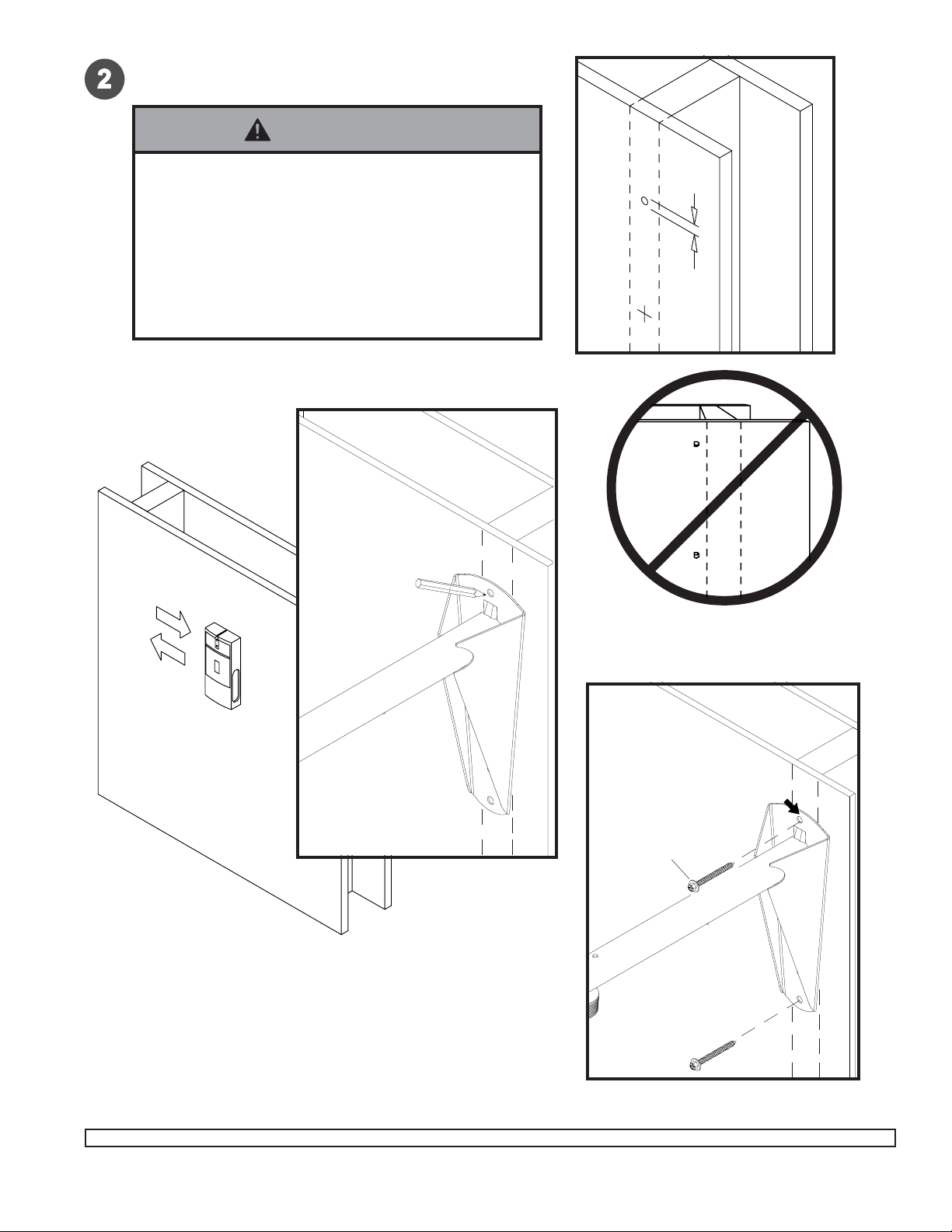

Installation to a wood stud wall
Drill two 5/32" (4 mm) dia. holes 2 1/2" (65 mm) deep. Attach wall
arm (A) with #14 x 2.5"(6 mm x 65 mm) wood screws (F).
WARNING
• Tighten wood screws so that wall plate is firmly
attached, but do not overtighten. Overtightening can
damage the screws, greatly reducing their holding
power.
• Never tighten in excess of 80 in • lb (9 N.M.).
• Make sure that mounting screws are anchored into the
center of the studs. The use of an "edge to edge" stud
finder is highly recommended.
∅ 5/32"
(4 mm)
A
∅ 5/32"(4 mm)
F
A
3 of 6
Visit the Peerless Web Site at www.peerlessmounts.com For customer service call 1-800-729-0307 or 708-865-8870.
ISSUED: 03-19-03 SHEET #: 017-9011-4 06-13-07

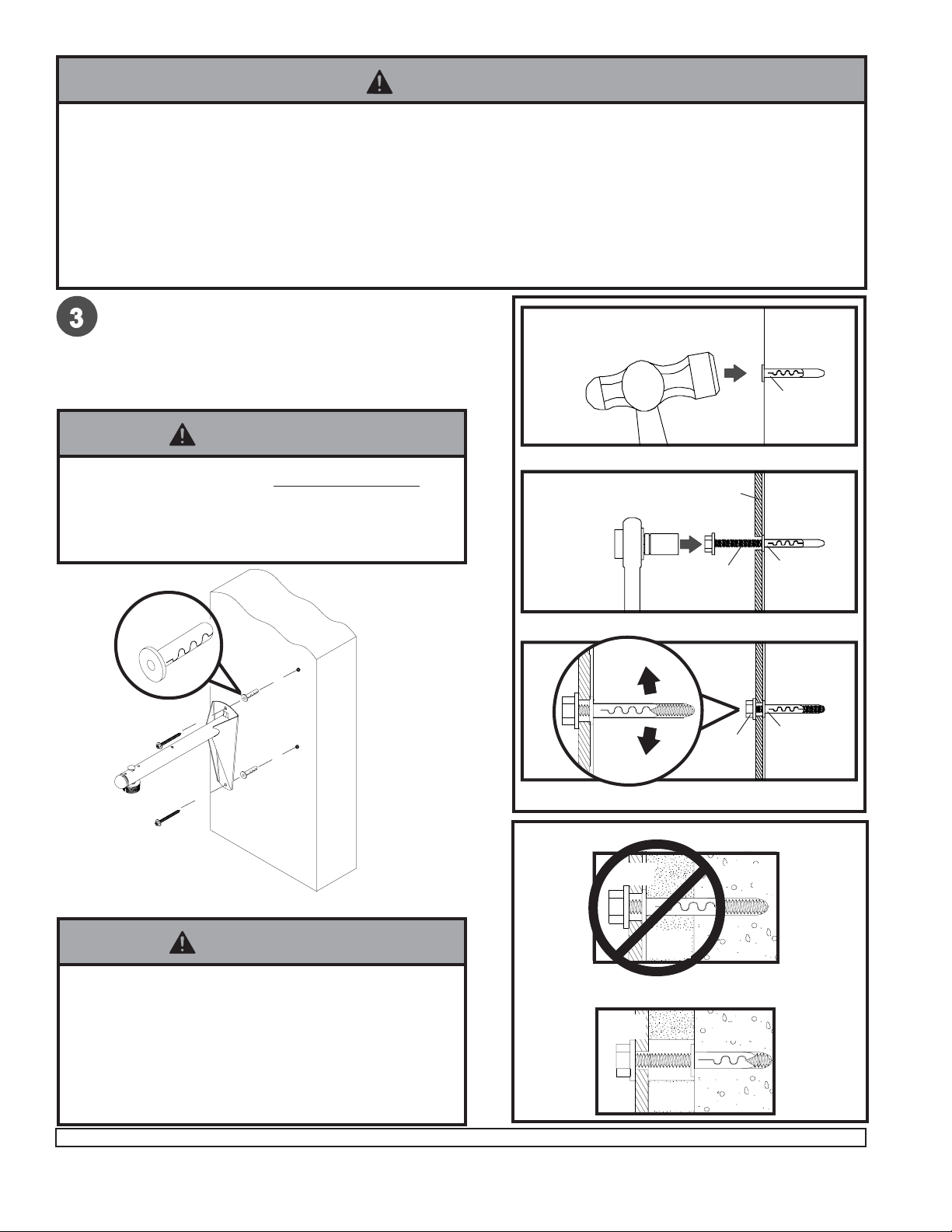

Installation to a concrete wall
WARNING
• When installing Peerless wall mounts on cinder block, verify that you have a minimum of 1-3/8" of actual concrete
surface in the hole to be used for the concrete anchors. Do not drill into mortar joints! Be sure to mount in a solid
part of the block, generally 1" minimum from the side of the block. Cinder block must meet ASTM C-90 specifications. It is suggested that a standard electric drill on slow setting is used to drill the hole instead of a hammer drill
to avoid breaking out the back of the hole when entering a void or cavity .
• Concrete must be 2000 psi density minimum. Lighter density concrete may not hold concrete anchor .
• Make sure that the wall will safely support four times the combined load of the equipment and all attached hardware and components.
Drill two 1/4" (6 mm) dia. holes to a minimum depth of
2.5" (64 mm). Attach support arm (A) using concrete
anchors(call customer service to order accessory kit ACC
200 or ACC203)
shown in Illustration A and 1, 2, and 3. Tighten all
fasteners.
and #14 x 2.5" wood screws (F) as
1
concrete
wall
concrete
anchor
WARNING
Drill hole and insert anchor
• Tighten wood screws firmly , but do not overtighten.
Overtightening can damage the screws, greatly
reducing their holding power.
• Never tighten in excess of 80 in • lb (9 N.M.).
2
F
A
concrete
anchor
concrete
anchor
A
F
Illustration A
WARNING
• Concrete anchors are not intended for attachment to
concrete wall covered with a layer of plaster, drywall,
or other finishing material. If mounting to concrete wall
covered with plaster/drywall is unavoidable, plaster/
drywall (up to 5/8" thick) must be counterbored as
shown right. If plaster/drywall is thicker than 5/8",
custom fasteners must be supplied by installer .
Place wall plate over anchor and secure with screw
3
concrete
F
After repeating step one tighten all fasteners
INCORRECT
CUT AW A Y VIEW
metal
bracket
metal
bracket
plaster/
dry wall
CORRECT
plaster/
dry wall
concrete
concrete
anchor
4 of 6
Visit the Peerless Web Site at www.peerlessmounts.com For customer service call 1-800-729-0307 or 708-865-8870.
ISSUED: 03-19-03 SHEET #: 017-9011-4 06-13-07

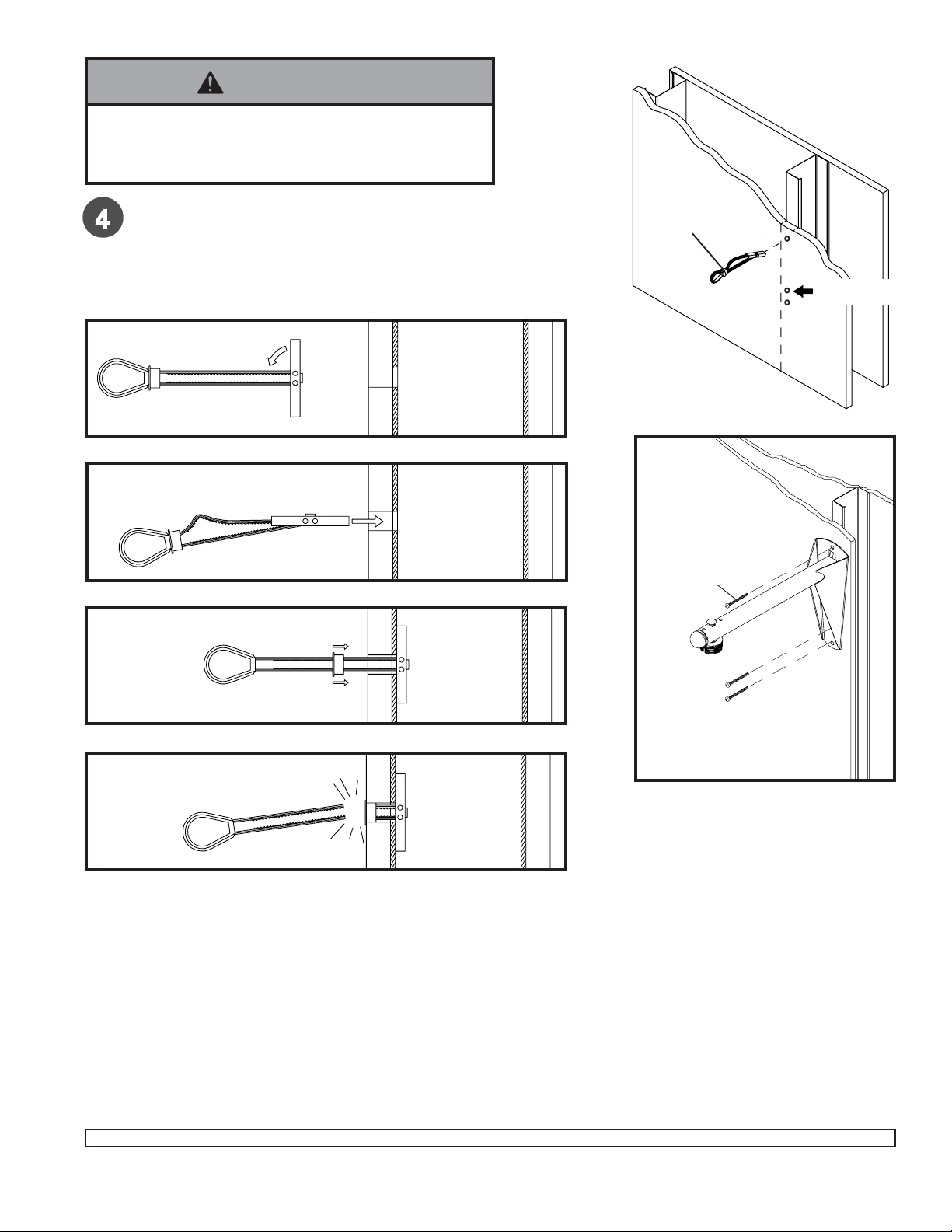

Installation to a metal stud wall
WARNING
• Product must be mounted through drywall that has a
minimum thickness of 1/2" and into metal studs, 26
gauge or heavier.
Drill 1/2" (13 mm) dia. holes through drywall and
stud. Insert togglers (call customer service to order
accessory kit ACC 415) as follows.
Important: Product must be mounted through
drywall that has a minimum thickness of 1/2" and
into metal studs, 26 gauge or heavier.
Pivot end of toggler.
toggler
∅ 1/2"(13 mm)
Push into hole.
Slide plastic cap forward while pulling back firmly on ring.
Snap off as shown.
A
1/4-20 x 2.5"
phillips screw
Attach wall arm with 1/4-20 phillips
screws.
5 of 6
Visit the Peerless Web Site at www.peerlessmounts.com For customer service call 1-800-729-0307 or 708-865-8870.
ISSUED: 03-19-03 SHEET #: 017-9011-4 06-13-07

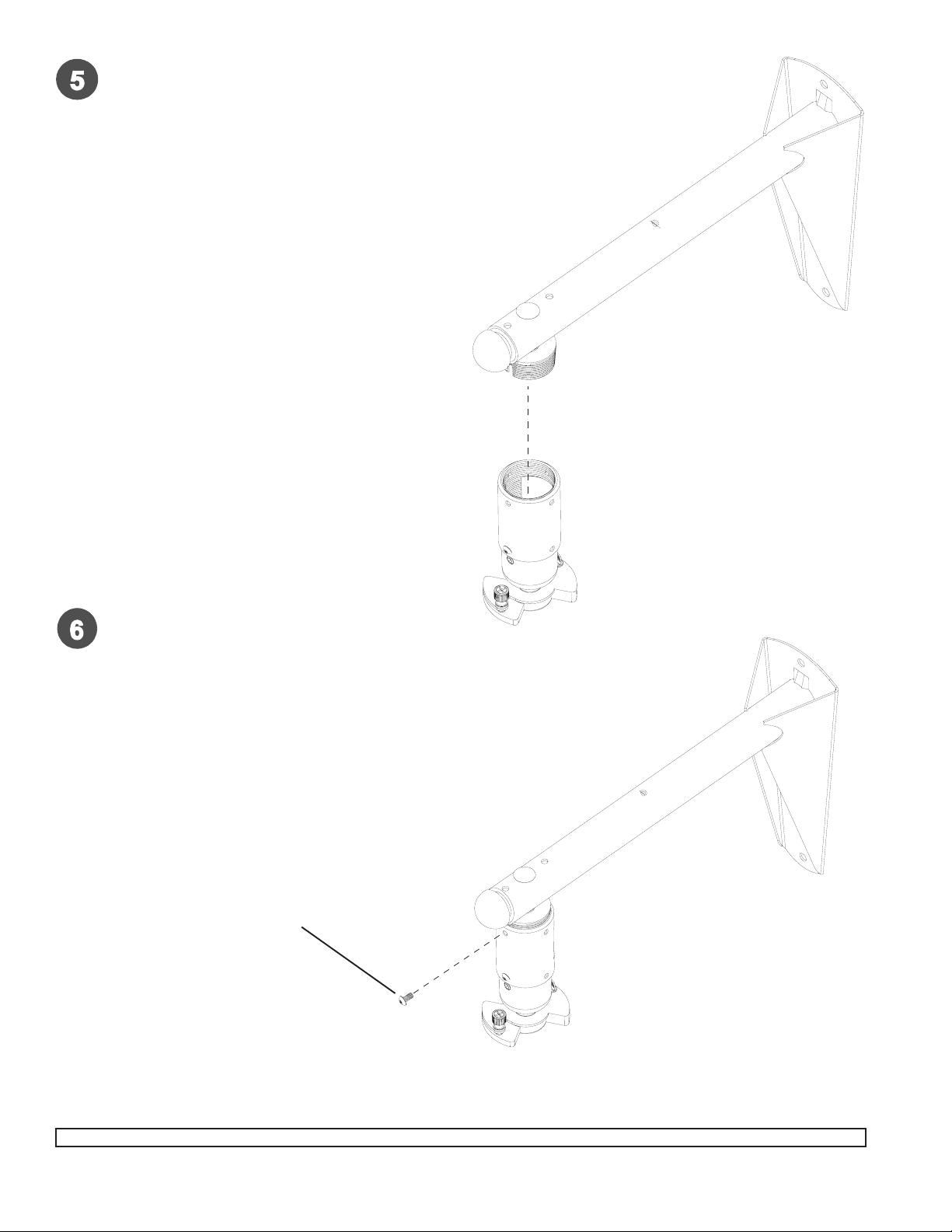

Thread projector mount onto threaded rod adapter
(G) as shown. Note: Make sure the notch in
threaded rod adapter (G) is aligned with one of the
four holes at the top of the PJF2-1.
Note: Installation of PRS-1 not shown. Please
refer to PRS model instructions to attach PRS
mount to PWA-14.
G
PJF2-1 (not included)
PRS-1 (not shown)
Secure PJF2-1 to threaded rod adapter (G) with one
#10-32 x 3/8 socket pin screw provided with PJF2-1
Note: Installation PRS-1 not shown. Please refer
to PRS model instructions to attach PRS mount to
PWA-14.
#10-32 x 3/8 socket pin screw
Refer to PJF2-1 or PRS-1 model instructions for attachment of projector .
6 of 6
Visit the Peerless Web Site at www.peerlessmounts.com For customer service call 1-800-729-0307 or 708-865-8870.
© 2004 Peerless Industries, Inc. All rights reserved.
Peerless is a registered trademark of Peerless Industries, Inc.
All other brand and product names are trademarks or registered trademarks of their respective owners.
ISSUED: 03-19-03 SHEET #: 017-9011-4 06-13-07
