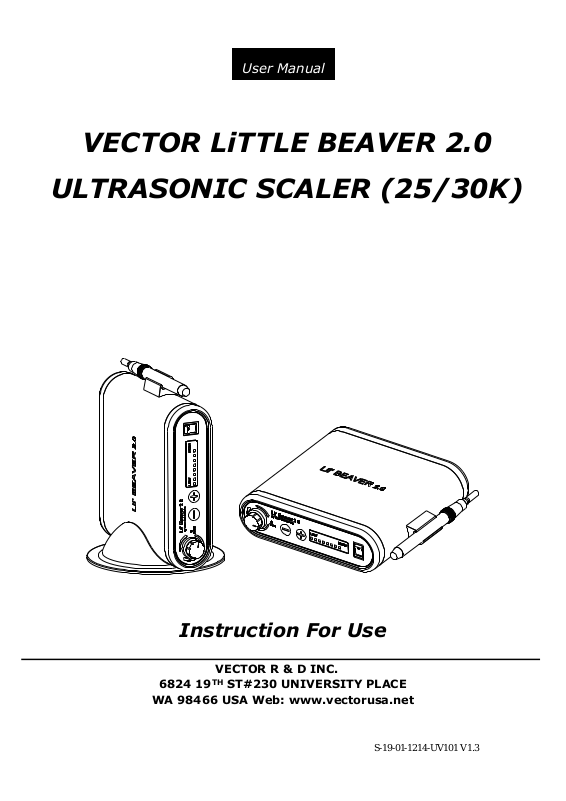

Vector Lil' Beaver 2.0 User Manual

User Manual

VECTOR LiTTLE BEAVER 2.0

ULTRASONIC SCALER (25/30K)

Instruction For Use

VECTOR R & D INC.

6824 19TH ST#230 UNIVERSITY PLACE

WA 98466 USA Web: www.vectorusa.net

S-19-01-1214-UV101 V1.3

2

Table Of Contents

Section Section Title Page

Number Description of Contents Number

1 Precautions……………………………………………………………………………………………..3

1.1 Precautions for All Systems

1.2 Precautions for Ultrasonic Prophylaxis Procedure

2 Introduction…………………………………………………………………………………………....4

3 Application………………………………………………………………………………………………4
4 Specification………………………………………….………………………………………………...5
5 Contraindications and Warnings…………………………………………………………………6

5.1 Contraindications

5.2 Warnings

6 Infection Control……………………………………………………………………………………….6

6.1 General Infection Control Recommendations

6.2 Water Supply Recommendations
7 Installation Instructions……………………………………………………………………………7

7.1 General Information

7.2 Water Line Requirements

7.3 Electrical Requirements

7.4 Unpacking the System

7.5 System Installation

7.6 Vertical Installation

7.7 Rear Panel Controls / Power Connection

7.8 Water Supply Line Connection
8 Little Beaver 2.0 Ultrasonic Scaler Description……………………………………………8-9

8.1 System Controls

8.2 Handpiece Holder

8.3 Ultrasonic Insert, Handpiece Sleeve Assembly/Disassembly

8.4 Foot Switch Controls and Operation
9 Accessories……………………………………………………………………………………….……..10
10 Techniques For Use……………………………………………………………………………………10

10.1 Patient Positioning

10.2 Performing Ultrasonic Scaling Procedures

10.3 Patient Comfort Considerations

11 System Maintenance And Care…………………………………………………………………….11
12 Trouble shooting……………………………………………………………………………………….12
13 Disposable of Unit……………………………………………………………………………………..13
14 Disclaimer………………………………………………………………………………………………..13
15 WARRANTY………………………………….…………………………………………………………..14
16 Additional Symbols…………………….……………………………………………………………..15

S-19-01-1214-UV101 V1.3

3

Section 1: Precautions

Prior to installation and start-up of the ultrasonic scaler, carefully read the instructions provided herein!

1.1 Precautions for All Systems

Do not place the ultrasonic scaler on or next to a radiator or other heat source. Excessive heat may

damage the ultrasonic scaler’s electronics. Place the ultrasonic scaler where air is free to circulate on all sides

and beneath it. Do not cover vents on rear panel.

The ultrasonic scaler which can be carried vertical or plate is portable, but must be handled with care

when moving.

Equipment flushing and dental water supply system maintenance are strongly recommended. See

Section 11: System Maintenance And Care.

Close the water shut-off valve in the dental water supply system every night before leaving the office.

The use of an in-line water filter is recommended.

Never operate the ultrasonic scaler without water flowing through the handpiece.

Grounding reliability can only be achieved when the equipment is connected to an equivalent

receptacle marked Hospital Only or Hospital Grade.

1.2 Precautions for Ultrasonic Prophylaxis Procedures

‧ Like a toothbrush, ultrasonic inserts "wear out" with use. Inserts with just 2 mm of wear lose about 50%

of their scaling efficiency. In general, it is recommended that ultrasonic inserts be discarded and replaced

after one year of use to maintain optimal efficiency and avoid breakage.

‧ If excessive wear is noted, or the insert has been bent, reshaped or otherwise damaged, discard the

insert immediately.

‧ Ultrasonic insert tips that have been bent, damaged, or reshaped are susceptible to in-use breakage and

should be discarded and replaced immediately.

‧ Retract the lips, cheeks and tongue to prevent contact with the insert tip whenever it is placed in the

patient's mouth.

S-19-01-1214-UV101 V1.3

4

Section 2: Introduction

2.1 Function:

The Little Beaver 2.0 Ultrasonic Scaler is designed

for use in prophylaxis treatments periodontia, and

other areas of operative dentistry. When used

in prophylaxis treatment, the unit operates with a

fine warm water spray, requiring little of the physical

exertion necessary with hand instruments. It easily

and effectively removes stubborn calculus and

stains both supragingivally and subgingivally,

leaving crown and root surfaces clean and smooth.

2.1 Conformance to Standards:

The Vector R & D Inc. Little Beaver 2.0 Ultrasonic

Scaler conforms to IEC60601-1-2:2007 and

IEC60601-1-1:2005.

The device is CE marked corresponding to European

Medical Device Directive (93/42/EEC)

2.2 Supplies and Replacement Parts

Contact your local Vector R & D Inc. dealer to order

supplies or replacement parts. There are no

serviceable parts included in this device. Please

contact your dealer to acquire all repairing service

and technique supports.

CAUTIONE: QUIPMENT NOT SUITABLE FOR

USE IN THE PRESENCE OF FLAMMABLE

ANESTHETIC MIXTURE WITH AIR OR WITH

NITROUS OXIDE.

CAUTION: U.S FEDERAL LAW RESTRICTS THIS

DEVICE TO SALE BY OR ON THE ORDER OF A

DENTAL PROFESSIONAL.

Section 3: Application

The Ultrasonic Scaler procedures

‧ All general supra and subgingival scaling applications.

‧ Periodontal debridement for all types of periodontal diseases.

‧ Endodontic procedures.

S-19-01-1214-UV101 V1.3

5

Section 4: Specifications

4.1 Electric Voltage:

VOLTAGE:

CURRENT

100VAC 50/60Hz

1.0 A (MAX)

110VAC 50/60Hz

1.0 A (MAX)

230VAC 50/60Hz

0.6 A (MAX)

WATTAGE:

MAX.85 W

WATER PRESSURE:

20-40 psi

4.2 Dimension:

HEIGHT

:

6.5 CM

WIDTH

:

23.0 CM

DEPTH

:

22.0 CM

WEIGHT

:

2.1 KG

4.3 Operation Environment:

AMBIENT TEMPERATURE

:+10℃ - +40℃

RELATIVE HUMIDITY

:30% - 75%

ATOMOSPHERIC PRESSURE

:700 hPa - 1060hPa

4.4 Transportation And Storage Environment:

AMBIENT TEMPERATURE

: －10 °C ~+70 °C

RELATIVE HUMIDITY

: 10%~90%

ATOMOSPHERIC PRESSURE

: 500 hPa ~1060 hPa

Vector R & D Inc. Little Beaver 2.0 Ultrasonic

Scaler is multi-voltage 110V/230V unit.
